1-01 — ACCELERATOR PEDAL AND CONTROL (#28268) — 32 parça

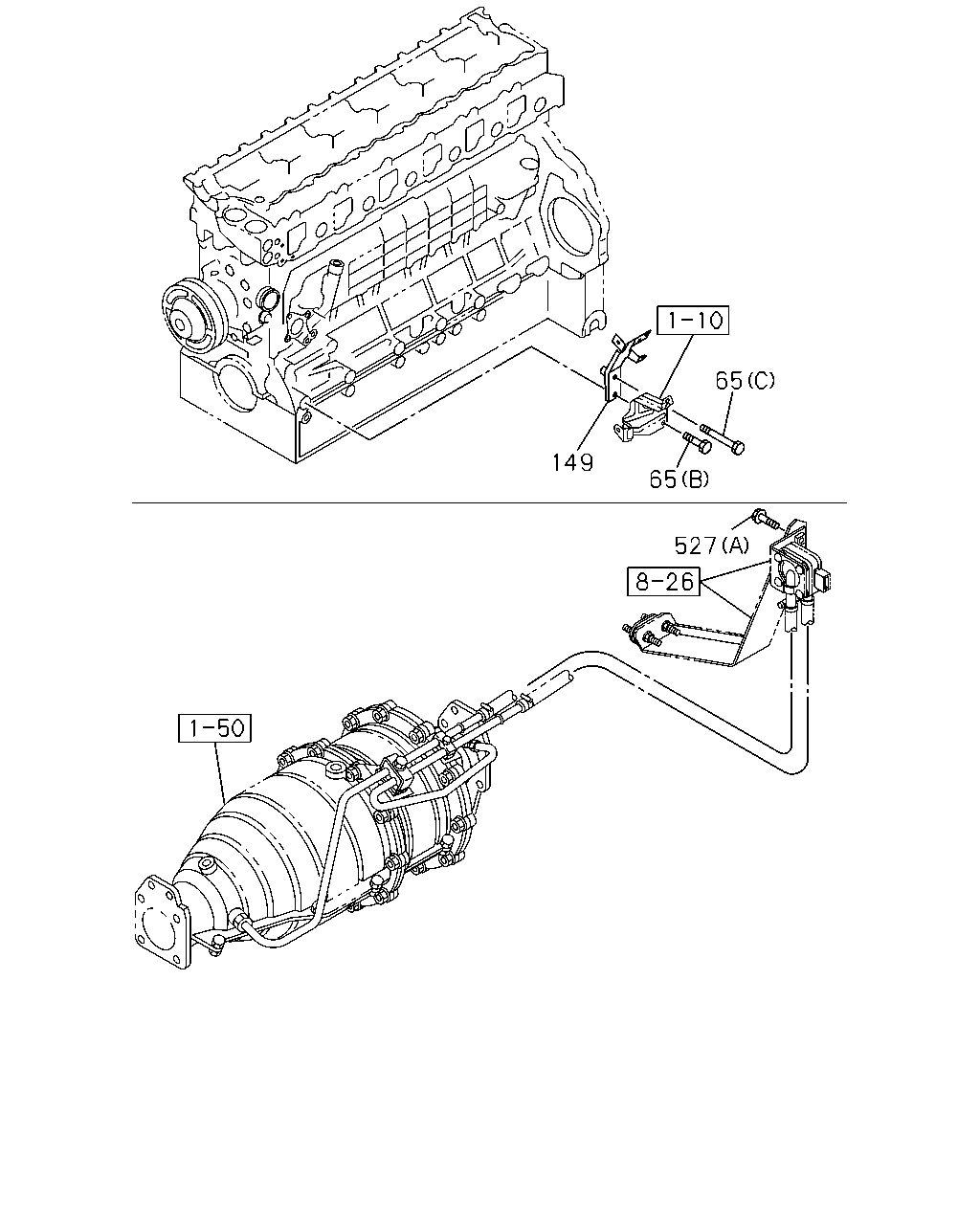

çizim 25702
65 149 65 527
BalonParca AdiParca NoAdetTipApplied Date
65 BOLT
(C) M10X60 		0-16861-060-0 01 1 0609-
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0609-
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0609-
149 BRACKET; ENG CONT 8-98042-125-2 01 1 0609-
527 BOLT; ACCEL SENSOR
(B) M5X16 		8-98111-511-0 01 1 0810-
527 BOLT; ACCEL SENSOR
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0609-

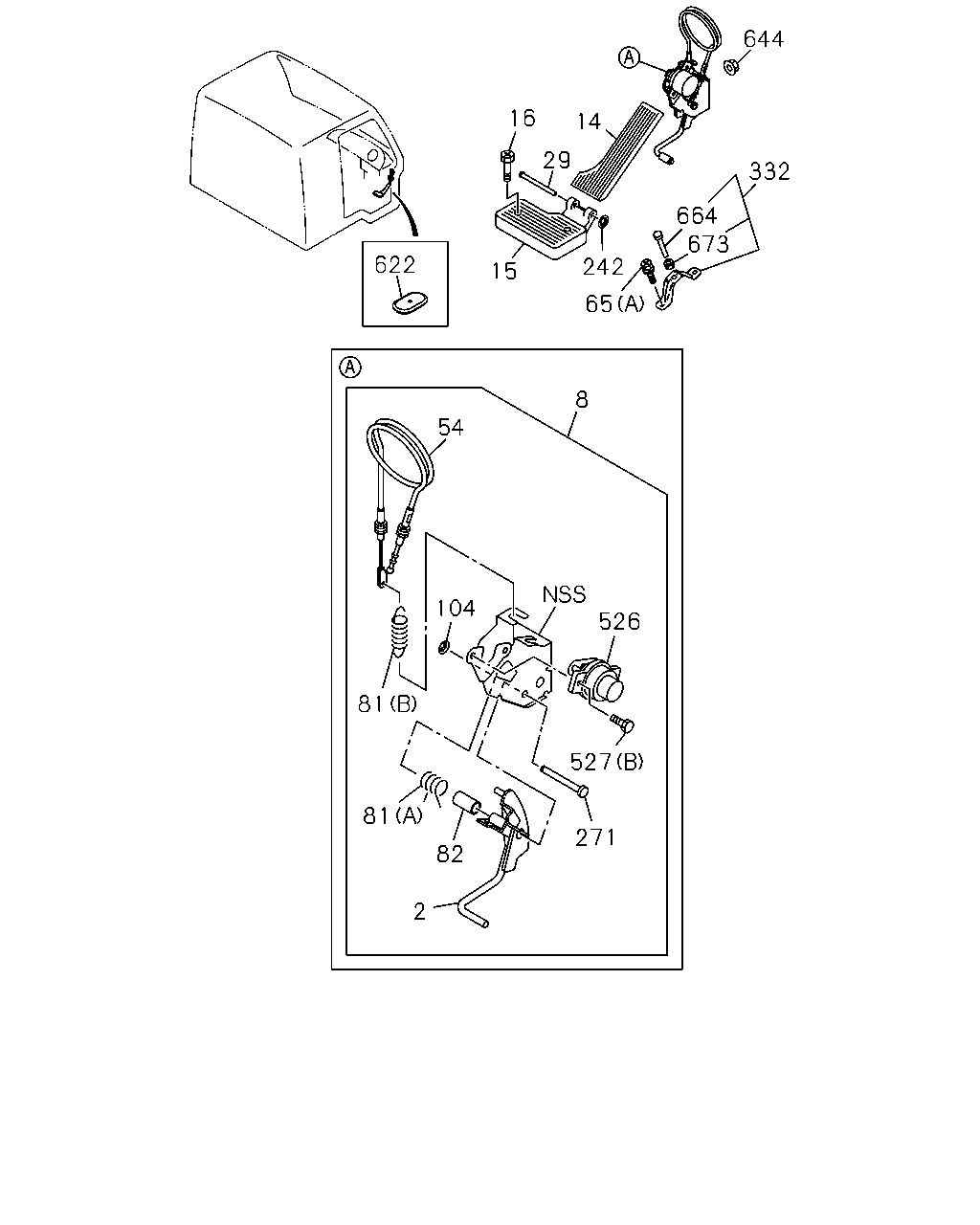

çizim 87783
644 16 14 29 332 664 673 622 242 15 65 8 54 104 526 81 527 81 271 82 2
BalonParca AdiParca NoAdetTipApplied Date
2 LEVER; ENG CONT 1-73996-593-1 01 1 0609-
8 LINK ASM; ENG CONT 1-73996-591-0 01 1 0609-0908
8 LINK ASM; ENG CONT 8-98133-476-1 01 1 0909-
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0609-
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0609-
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0609-
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0609-
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0609-
65 BOLT
(C) M10X60 		0-16861-060-0 01 1 0609-
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0609-
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0609-
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0609-
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 0609-
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 0609-
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0609-
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0609-
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 0609-
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0609-
526 SENSOR; ACCEL 8-97602-416-0 01 1 0609-0908
526 SENSOR; ACCEL 8-98131-263-0 01 1 0909-
527 BOLT; ACCEL SENSOR
(B) M5X16 		8-98111-511-0 01 1 0810-
527 BOLT; ACCEL SENSOR
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0609-
622 GROMMET; ACCEL CONT CABLE
OD=30 		8-94107-655-0 01 1 0609-
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0609-
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0609-
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0609-
