Isuzu WW
▶
TRUCKS
▶
FSR
▶
11028 - FSR(RHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#28264) — 67 parça
◀

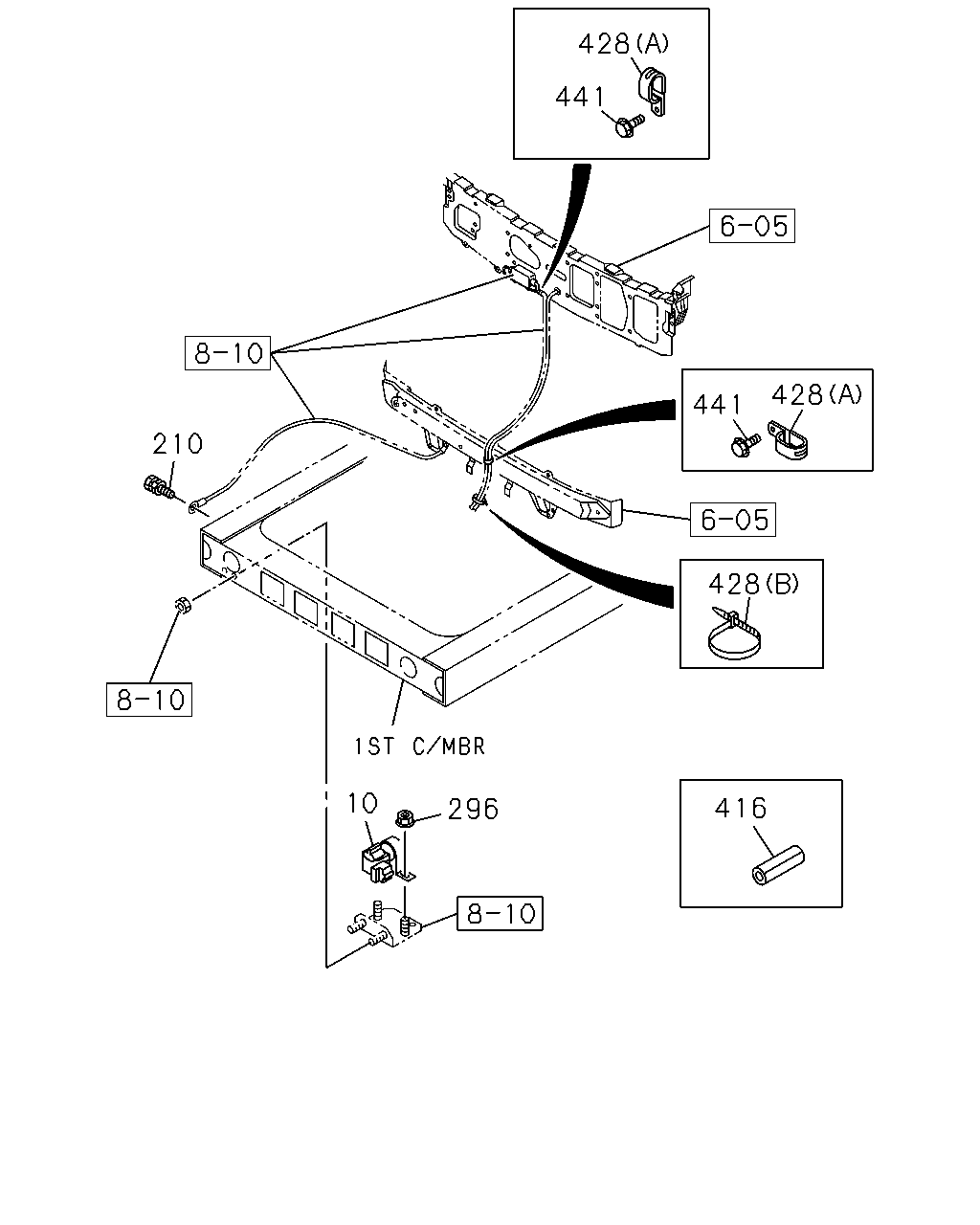

[060A] FRAME SIDE (8 parça)

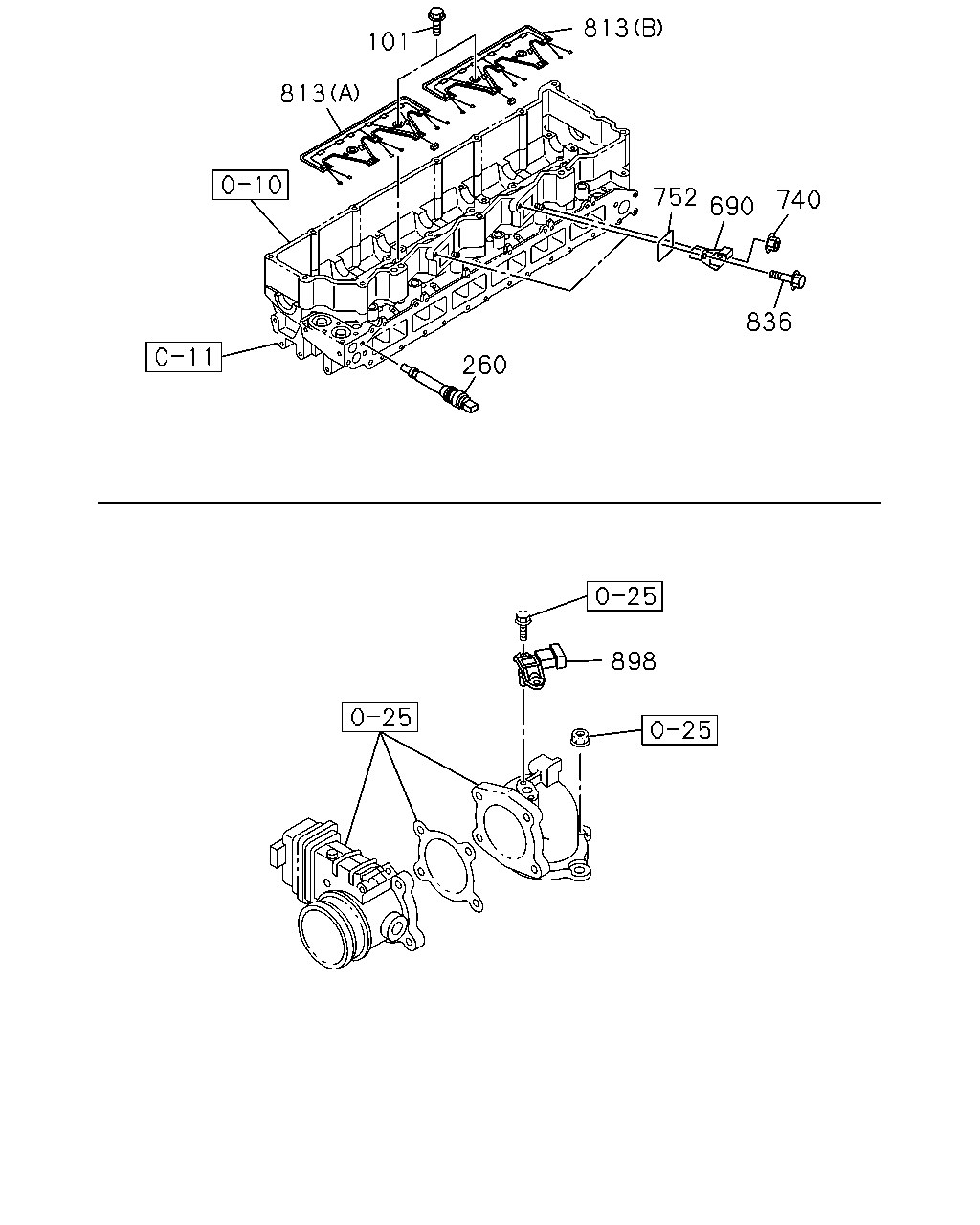

[060A] ENGINE SIDE (14 parça)

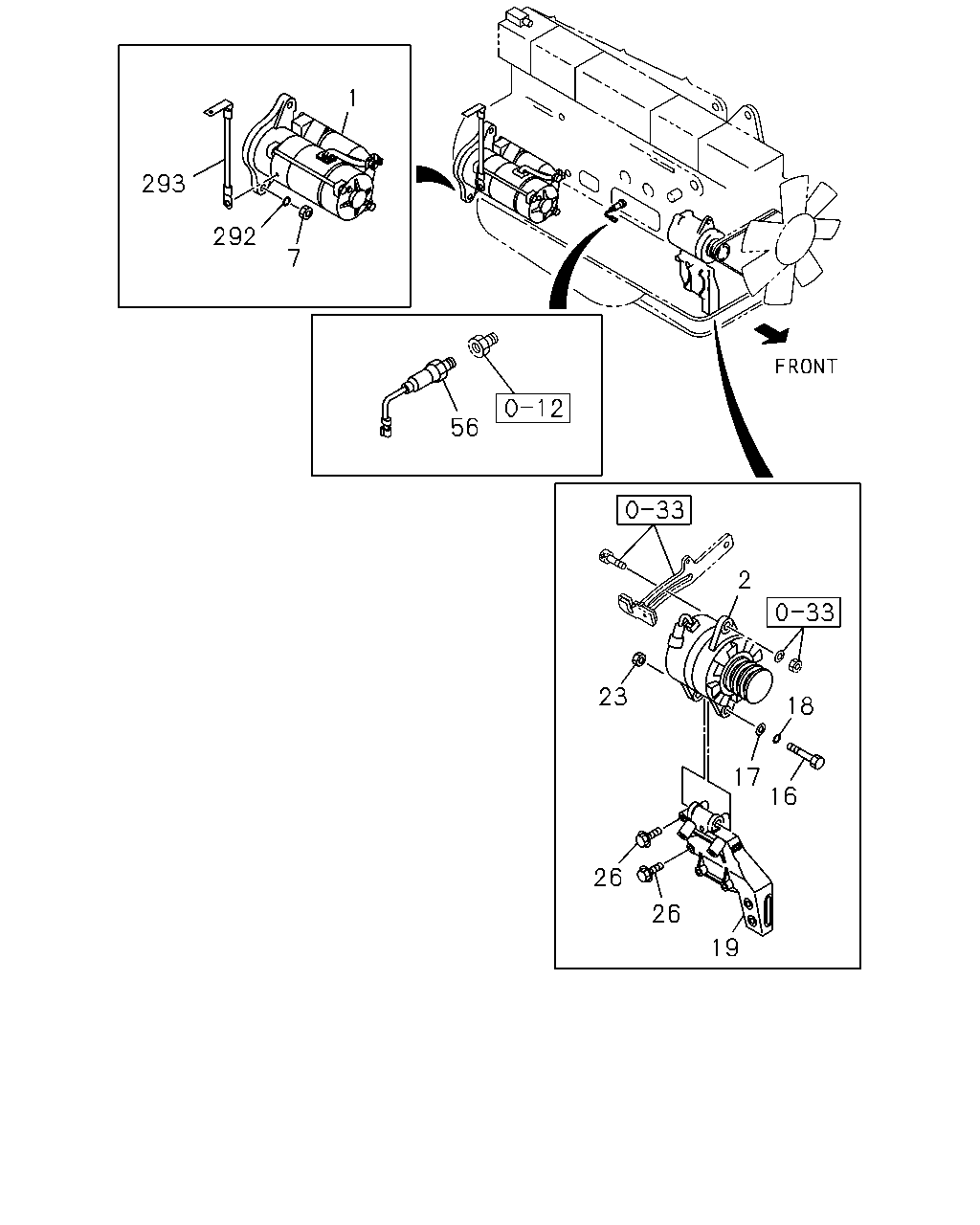

[060A] STARTER AND GENERATOR (22 parça)

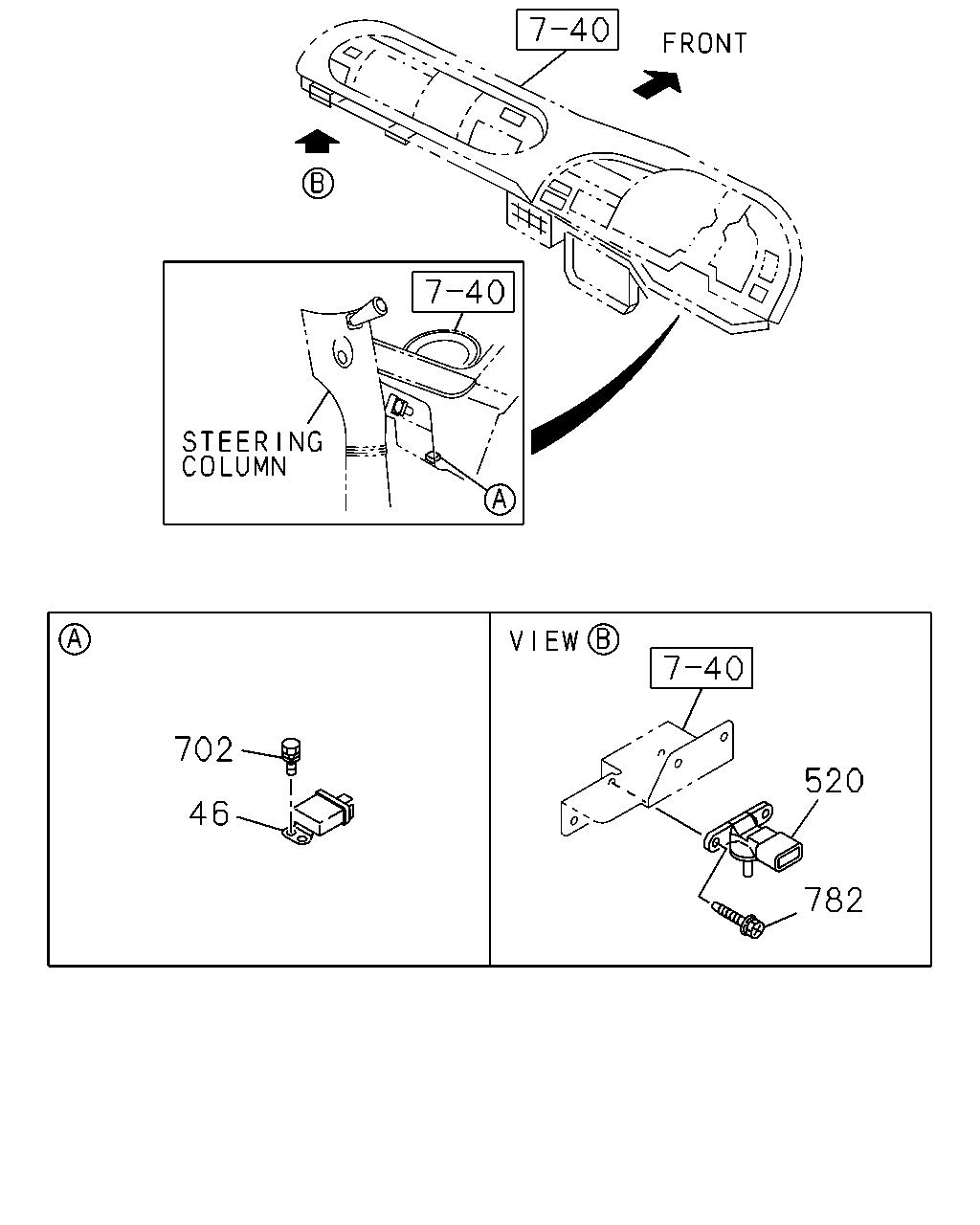

[060A] CAB SIDE NO.1 (4 parça)

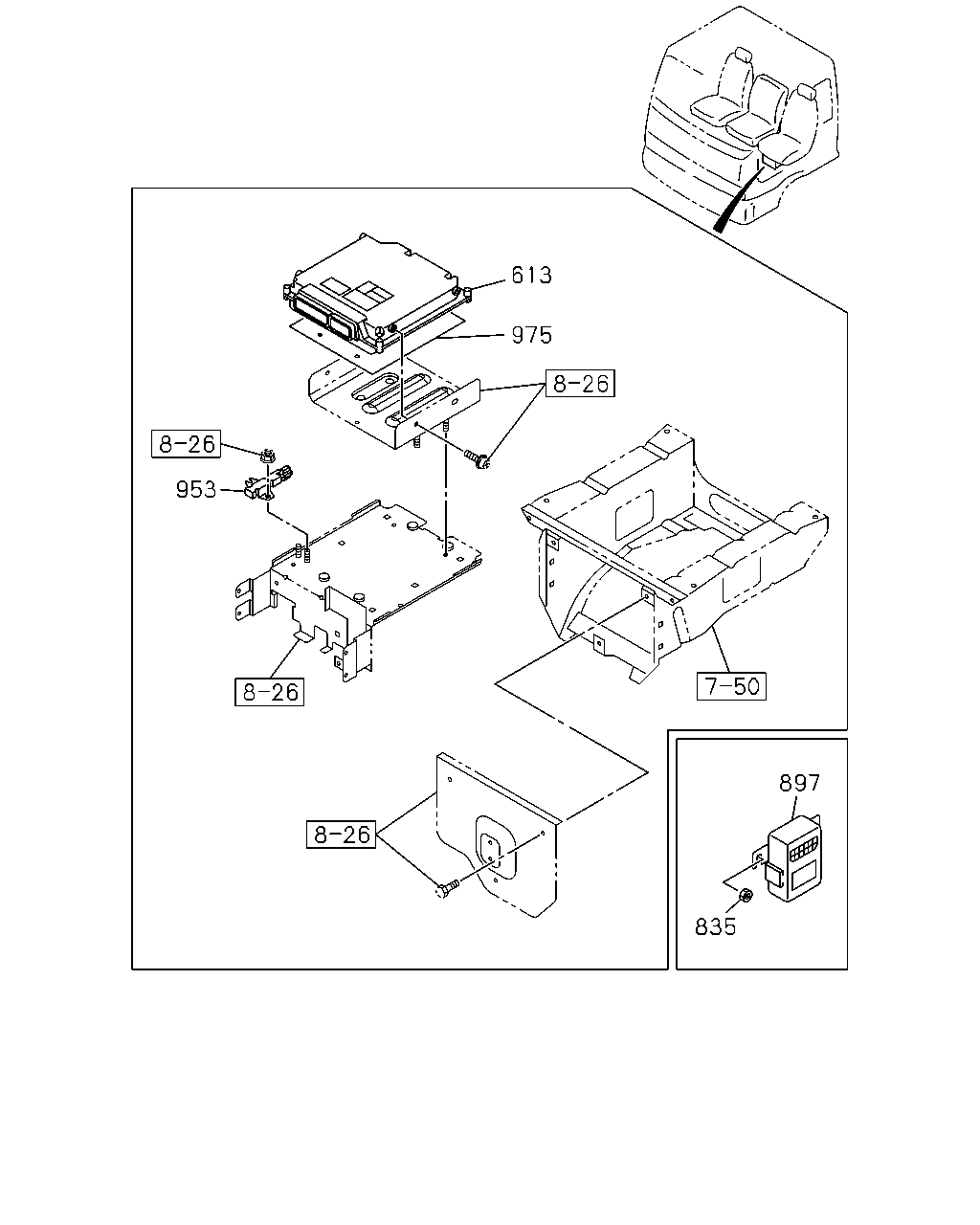

[060A] CAB SIDE NO.2 (19 parça)
▶
428
441
428
441
210
428
10
416
296
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
24V NIKKO
8-98005-631-1
01
1
0609-
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0609-1201
210
BOLT; CABLE FIX
M8X14 W/PL WASHER
8-98164-837-0
01
1
1202-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91180-108-0
02
1
0609-
416
SLEEVE; RUBBER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=17 OD=21 L=40
1-09337-012-0
01
1
0610-
428
CLIP; HARNESS
(A) ID=35 L=50
1-09701-214-0
02
1
0609-
428
CLIP; HARNESS
(B) L=300
1-09707-001-1
03
1
0609-
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28650-825-0
02
1
0609-
813
101
813
752
740
690
836
260
898
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; HARNESS
M8X40 FLANGE
0-28650-840-0
04
1
0609-
260
SENSOR; WATER TEMP
NIPPON THERMOSTAT
8-98023-717-0
01
1
0609-
690
CONNECTOR
8-94390-858-1
02
1
0609-
740
NUT
M8 FLANGE
0-91180-108-0
04
1
0609-1011
740
NUT
M8 FLANGE
0-91180-108-0
02
1
1012-
752
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94391-310-0
02
1
0609-
813
HARNESS; INJECTOR
(A) FRONT
8-97602-748-2
01
1
0609-1008
813
HARNESS; INJECTOR
(A) FRONT
8-98177-447-0
01
1
1009-1112
813
HARNESS; INJECTOR
(A) FRONT
8-98204-717-0
01
1
1201-
813
HARNESS; INJECTOR
(B) REAR
8-97602-749-2
01
1
0609-1008
813
HARNESS; INJECTOR
(B) REAR
8-98177-448-0
01
1
1009-1112
813
HARNESS; INJECTOR
(B) REAR
8-98204-718-0
01
1
1201-
836
BOLT; CONNECTOR
M8X12 FLANGE
0-28050-812-0
02
1
1012-
898
SENSOR; BOOST
8-98009-418-0
01
1
0609-
56
293
292
1
2
23
18
17
16
26
26
19
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
1-81100-414-2
01
1
0609-0609
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
8-98060-854-0
01
1
0610-0909
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
8-98141-206-3
01
1
0910-1409
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI
8-98261-669-0
01
1
1410-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO
8-98013-461-4
01
1
0609-
7
NUT; STARTER
M14
0-91110-514-0
02
1
0609-
16
BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M6X10 FLANGE
0-28050-610-0
01
1
0910-
16
BOLT; GEN
M6X10 FLANGE
0-28050-610-0
02
1
0609-0611
16
BOLT; GEN
M6X10 FLANGE
0-28050-610-0
02
1
0612-
16
BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) ANTI NOISE EQUIPMENT VAR2<TAK> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) M6X10 FLANGE
0-28050-610-0
02
1
0612-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
0609-
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0609-
18
WASHER; LK,GEN
ID=14.2
0-91510-514-0
01
1
0609-
19
BRACKET; GEN
8-94390-589-1
01
1
0609-0704
19
BRACKET; GEN
8-97609-149-0
01
1
0705-0803
19
BRACKET; GEN
8-98082-615-1
01
1
0804-
23
NUT; GEN
M14
0-91110-514-0
01
1
0609-
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28151-040-0
02
1
0609-
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28151-080-0
02
1
0609-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
0609-
292
WASHER; LK,STARTER
ID=14.2
0-91510-514-0
02
1
0609-
293
CABLE; STARTER EARTH
L=320
1-82650-324-0
01
1
0609-
702
520
46
782
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
RELAY; GLOW PLUG
8-94258-014-0
01
1
0609-
520
SENSOR; PRESSURE
8-98020-514-0
01
1
0609-
702
BOLT; RELAY
M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0609-
782
BOLT; SENSOR
M6X19.5 W/LK&PL WASHER
8-97360-226-0
02
1
0609-
613
975
953
897
835
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
613
CONTROL UNIT; ENG
SINGAPORE EQUIPMENT(WQ3) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98085-145-0
01
1
0705-0706
613
CONTROL UNIT; ENG
EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98085-145-2
01
1
0707-0804
613
CONTROL UNIT; ENG
EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98105-531-1
01
1
0805-1004
613
CONTROL UNIT; ENG
EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98163-588-0
01
1
1005-
613
CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-97616-517-2
01
1
0609-0702
613
CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98072-058-0
01
1
0703-0706
613
CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98088-404-2
01
1
0707-0804
613
CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98105-528-1
01
1
0805-1004
613
CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98163-587-0
01
1
1005-
613
CONTROL UNIT; ENG
EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-97616-518-2
01
1
0610-0610
613
CONTROL UNIT; ENG
EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98066-005-0
01
1
0611-0702
613
CONTROL UNIT; ENG
EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)
8-98072-063-0
01
1
0703-0704
613
CONTROL UNIT; ENG
EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),SINGAPORE EQUIPMENT(WQ3)
8-98072-063-0
01
1
0705-0706
613
CONTROL UNIT; ENG
8-97616-517-1
01
1
0609-
835
NUT; ECU
M6 FLANGE
0-91180-106-0
02
1
0609-
897
DRM
8-98013-144-8
01
1
0609-1401
897
DRM
8-98260-912-0
01
1
1402-
953
RESISTOR; CONT UNIT
8-97357-613-0
01
1
0609-
975
SHEET; DRM
8-98038-647-0
01
1
0609-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
