Isuzu WW
▶
TRUCKS
▶
FSR
▶
11028 - FSR(RHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

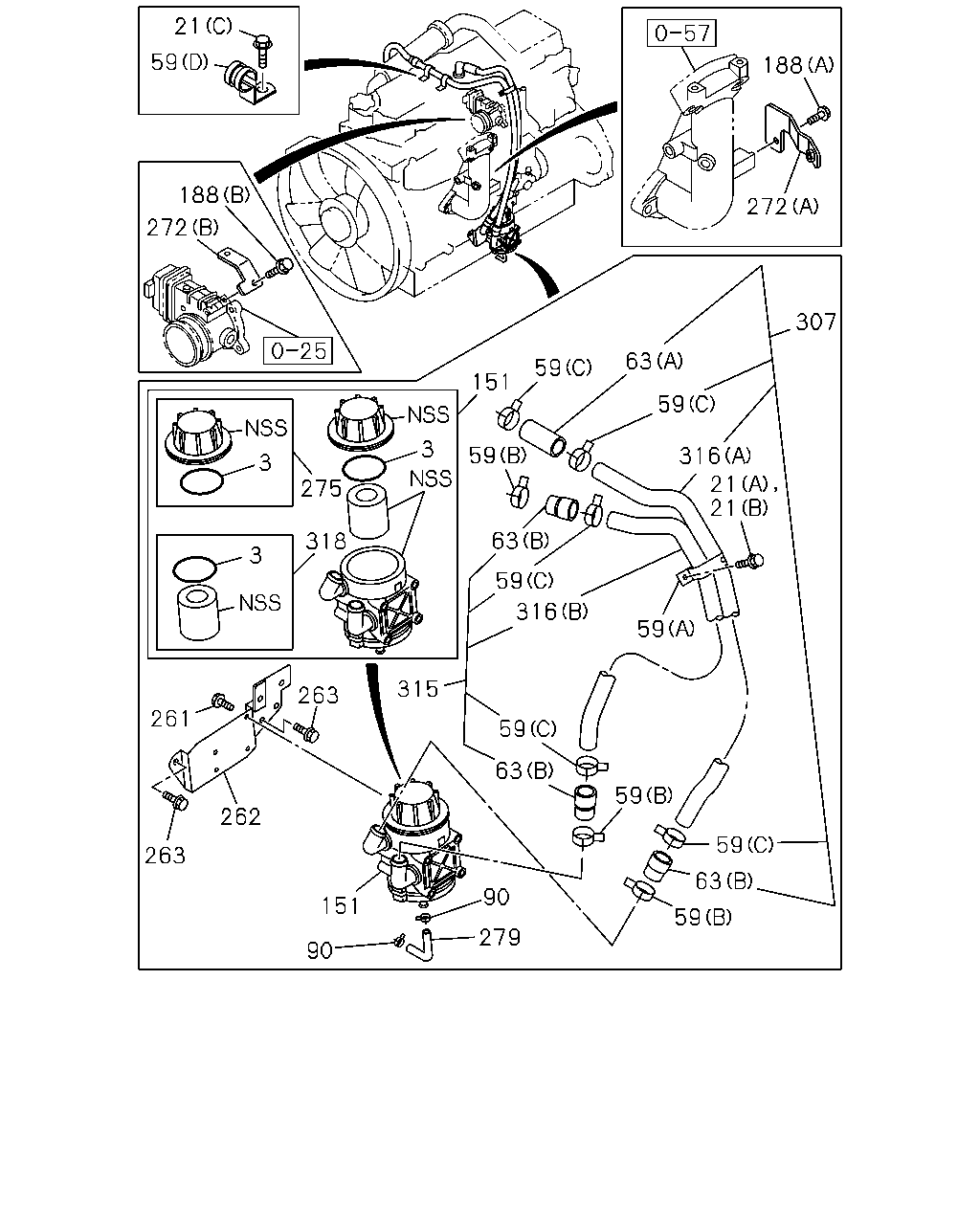

0-28 — VENTILATION SYSTEM
(#28249) — 27 parça
59
63
59
59
63
59
90
279
90
151
262
263
315
263
261
3
3
275
318
3
272
188
59
21
188
272
307
59
63
59
151
59
63
59
316
59
21
21
316
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
0609-
21
BOLT; CLIP
(A) M6X12 FLANGE
0-28050-612-0
01
1
0609-
21
BOLT; CLIP
(C) M8X12 FLANGE
0-28050-812-0
02
1
0609-
21
BOLT; CLIP
(B) M8X16 FLANGE
0-28050-816-0
02
1
0609-
59
CLIP; HOSE
(D) ID=31 H=30 L=35
1-09700-994-0
02
1
0609-
59
CLIP; HOSE
(A) ID=30X2 L=28
1-09701-266-0
03
1
0609-
59
CLIP; HOSE
(B) ID=28.5
1-09707-150-0
03
1
0609-
59
CLIP; HOSE
(C) ID=33.6
8-94362-518-0
05
1
0609-
63
HOSE; RUBBER,AIR BREATHER
(A) L=70
0-02828-070-0
01
1
0609-
63
HOSE; RUBBER,AIR BREATHER
(B)
1-09360-925-0
03
1
0609-
90
CLIP; RUBBER HOSE
ID=14
1-09704-102-0
02
1
0609-
151
SEPARATOR; OIL,PCV
8-97602-262-2
01
1
0609-
188
BOLT; BRKT
(B) M6X12 FLANGE
0-28050-612-0
01
1
0609-
188
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
01
1
0609-
261
BOLT; SEPARETOR
M8X16 FLANGE
0-28050-816-0
04
1
0609-
262
BRACKET; OIL SEPARETOR
8-97604-921-0
01
1
0609-
263
BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE
0-28751-025-0
02
1
0609-
272
BRACKET; PIPE
(B)
8-97607-397-0
01
1
0609-
272
BRACKET; PIPE
(A)
8-98032-178-0
01
1
0609-
275
CAP; PCV
8-97606-319-0
01
1
0609-
279
HOSE; RUBBER,OIL DRAIN
0-02709-140-0
01
1
0609-0712
279
HOSE; RUBBER,OIL DRAIN
L=160
0-02709-160-0
01
1
0801-
307
HOSE; RUBBER,HEAD COVER TO OIL SEPARAT
8-97604-965-4
01
1
0609-
315
HOSE; RUBBER
8-97614-119-4
01
1
0609-
316
HOSE; BREATHER
(B)
8-97601-378-1
01
1
0609-
316
HOSE; BREATHER
(A) L=900
8-97602-985-0
01
1
0609-
318
ELEMENT KIT; PCV
8-97606-318-0
01
1
0609-
