Sayfa 9-01 - Isuzu EPC

274 271 209 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	0609-0708
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0709-
268	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0609-
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	0609-0708
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0709-
274	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0609-

61 120 122 126 128 143 141 129 157 153 144 158 159 180 161 178 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	PULLER ASM; PILOT BRG	1-85210-050-0	01	1	0609-
120	PULLER ASM; MAIN REAR BRG	9-85210-169-0	01	1	0609-
122	PULLER ASM; COUNTER FRT	9-85210-168-0	01	1	0609-
126	WRENCH; FRT HUB BRG NUT L=257 B=54	1-85111-011-0	01	1	0609-
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	0609-
129	PULLER ASM; PITMAN ARM	9-85210-170-0	01	1	0609-
129	PULLER ASM; PITMAN ARM	9-85210-170-0	01	1	0609-
141	HANDLE; WRENCH OD=25 L=480	1-85116-011-0	01	1	0609-1501
141	HANDLE; WRENCH OD=25 L=480	1-85116-011-0	01	1	0609-1501
141	HANDLE; WRENCH OD=25 L=480	8-98257-407-0	01	1	1502-
141	HANDLE; WRENCH OD=25 L=480	8-98257-407-0	01	1	1502-
143	GUIDE; BOOT,TIE ROD END	1-85229-011-0	01	1	0609-
143	GUIDE; BOOT,TIE ROD END	1-85229-011-0	01	1	0609-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-012-0	01	1	0609-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-012-0	01	1	0609-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0609-
157	REPLACER KIT; RETURN SPR	9-85231-554-0	01	1	0609-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0609-
159	REMOVER; RETURN SPR ID=12.5	9-85231-555-0	01	1	0609-
161	REMOVER; TIE ROD ARM	1-85176-001-0	01	1	0609-
161	REMOVER; TIE ROD ARM	1-85176-001-0	01	1	0609-
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	0609-
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	0609-
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	0609-

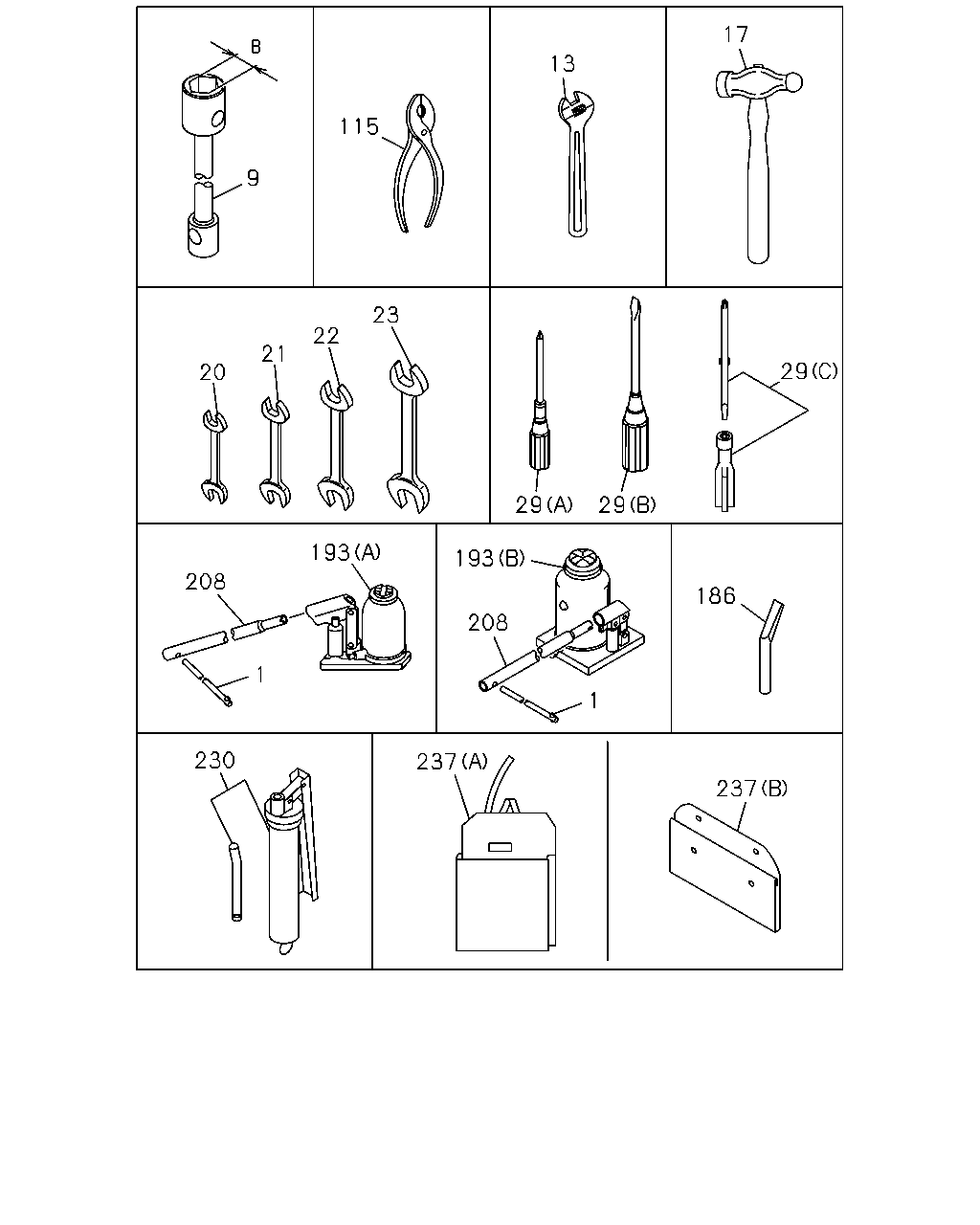

17 13 115 9 23 22 21 29 20 29 29 193 193 208 186 208 1 1 230 237 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER TOOL A KIT<SK9>,TOOL B KIT<SL1> L=280	1-85515-007-0	01	1	0609-1107
1	HANDLE; SPARE TIRE CARRIER TOOL A KIT<SK9>,TOOL B KIT<SL1> L=280	8-98181-251-0	01	1	1108-
9	WRENCH; WHEEL PIN TOOL A KIT<SK9> 41X21 L=330	8-94340-033-2	01	1	0609-
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> B=41X21 L=440	1-85113-015-1	01	1	0609-
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0609-1407
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0609-
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0609-
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0609-
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0609-
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0609-
29	DRIVER; SCREW TOOL A KIT<SK9>,TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0609-
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=285	1-85151-004-0	01	1	0609-0611
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=275	8-98061-105-0	01	1	0612-
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <+> L=190	9-09595-522-0	01	1	0609-
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0609-1410
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-
186	ADJUSTER; BRAKE TOOL B KIT<SL1>	1-85269-008-0	01	1	0609-
193	JACK ASM TOOL A KIT<SK9> (B) 7TON	1-85510-017-0	01	1	0609-
193	JACK ASM TOOL B KIT<SL1> (A) 7TON	1-85510-005-2	01	1	0609-
208	HANDLE; JACK TOOL A KIT<SK9> L=580	1-85515-005-1	01	1	0609-1107
208	HANDLE; JACK L=580	1-85515-005-1	01	1	0609-1107
208	HANDLE; JACK TOOL A KIT<SK9> L=580	8-98181-249-0	01	1	1108-
208	HANDLE; JACK L=580	8-98181-249-0	01	1	1108-
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0609-
237	BAG; TOOL TOOL A KIT<SK9> (B)	8-97312-893-0	01	1	0609-
237	BAG; TOOL TOOL B KIT<SL1> (A)	8-97130-902-1	01	1	0609-
