Isuzu WW
▶
TRUCKS
▶
FRR
▶
11027 - FRR RHD EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶
8-75 — CONDENSER
(#28233) — 31 parça
◀

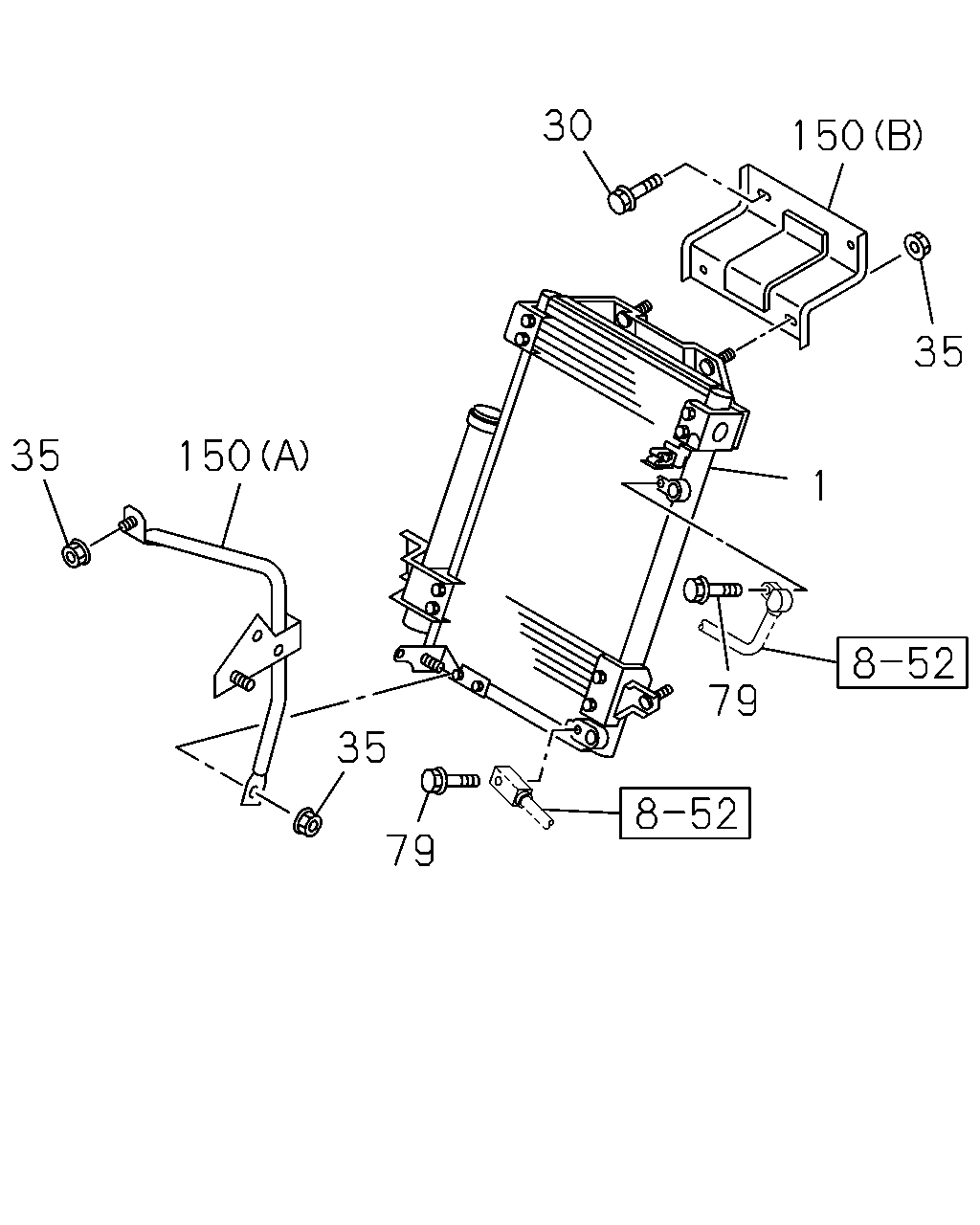

[875A] FIXING (7 parça)
[875A] COMPONENT (24 parça)
▶
30
150
35
35
150
1
79
35
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83534-250-3
01
1
0609-
30
BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0609-0904
30
BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
35
NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
06
1
0609-
79
BOLT; CONDENSER BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
02
1
0609-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83571-986-0
01
1
0609-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83573-099-2
01
1
0609-
1
187
129
188
65
11
4
15
29
12
18
65
9
5
187
201
22
9
60
26
29
27
29
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83534-250-3
01
1
0609-
4
MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60)
1-83561-139-3
01
1
0609-0703
4
MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60)
8-98014-458-0
01
1
0704-
5
SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-380-0
01
1
0609-
9
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X14
1-83539-382-0
04
1
0609-
11
COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-381-0
01
1
0609-
12
BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-314-0
03
1
0609-
15
FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83561-140-0
01
1
0609-
18
NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-313-0
01
1
0609-
22
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83534-261-0
01
1
0609-1409
22
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-98275-189-0
01
1
1410-
26
BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-281-0
01
1
0609-
27
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X14
1-83539-382-0
02
1
0609-
27
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25
8-97178-770-0
02
1
0609-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83573-278-0
01
1
0609-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83573-279-0
01
1
0609-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83573-280-0
01
1
0609-
60
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83574-266-0
01
1
0609-
65
BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16
8-97096-525-0
04
1
0609-
129
BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-129-0
01
1
0609-
187
NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6
1-83539-354-0
04
1
0609-
188
BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
1-83561-184-1
01
1
0609-
201
DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
1-83535-097-0
01
1
0609-1409
201
DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
8-98282-482-0
01
1
1410-
