Sayfa 2-39A - Isuzu EPC

2-39A — POWER ASSISTOR (#2823) — 219 parça

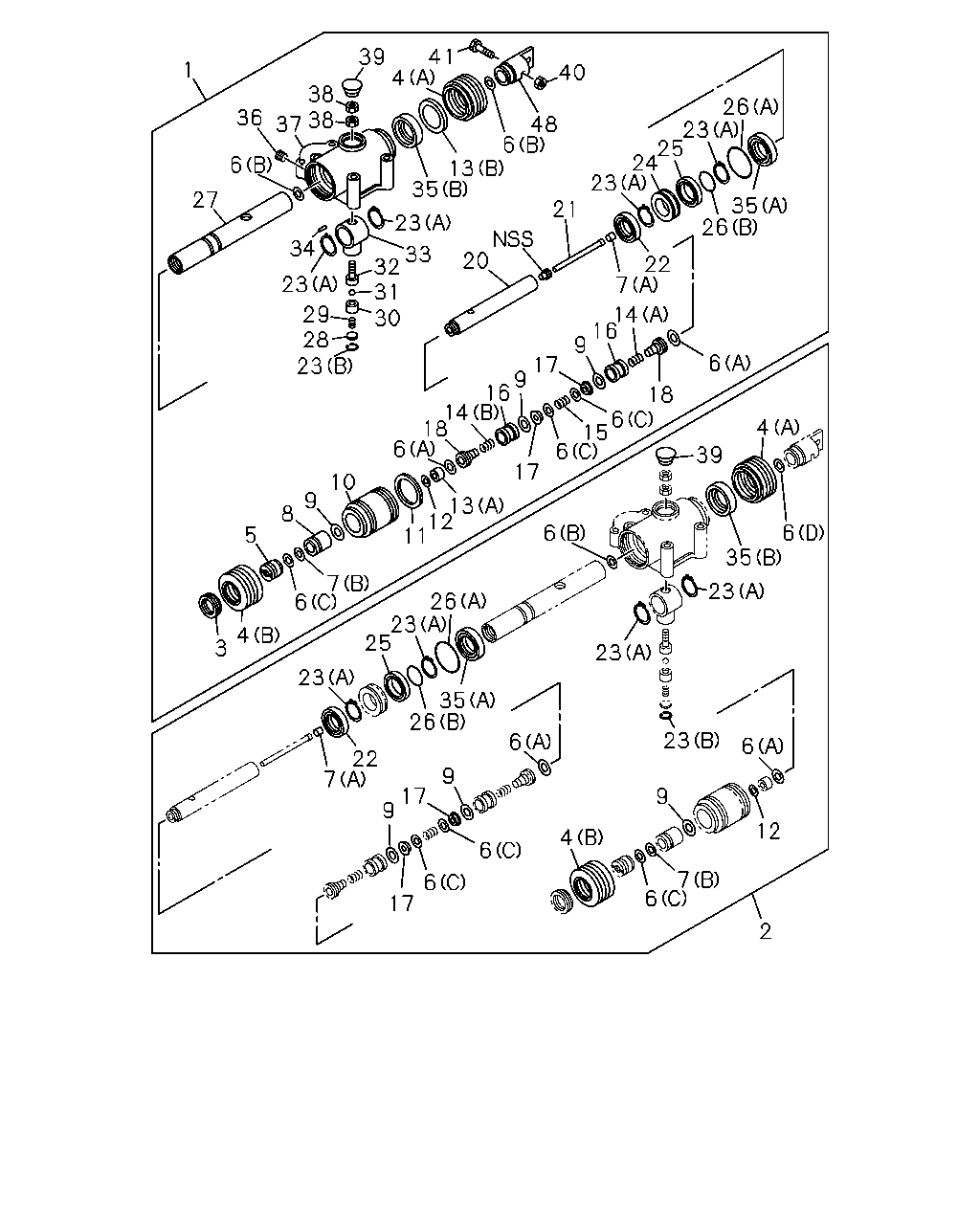

2 6 7 12 17 23 9 4 17 6 6 17 9 17 9 7 22 6 23 35 26 23 25 23 26 6 23 35 6 4 39 6 19 17 18 6 15 6 17 13 12 11 7 6 4 3 5 8 9 10 17 18 14 16 9 17 9 16 14 7 22 26 35 26 23 24 25 23 21 20 23 28 29 23 34 30 31 32 33 23 35 13 6 48 40 41 4 39 38 1 27 6 36 37 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-060-2	01	1	9002-9306	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-062-4	01	1	9002-		●
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-362-0	01	1	9002-9306	●
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-360-0	01	1	9002-		●
3	NUT; LK,ROD ASSISTER SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9002-9306	●
3	NUT; LK,ROD ASSISTER SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9002-		●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-030-0	01	1	9002-9306	●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-038-0	01	1	9002-9306	●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-030-0	01	1	9002-		●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-038-0	01	1	9002-		●
5	CONNECTOR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-428-0	01	1	9002-9101	●
5	CONNECTOR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-103-0	01	1	9102-9306	●
5	CONNECTOR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-103-0	01	1	9002-		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (C)	1-33739-013-0	03	1	9002-9306	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-070-0	01	1	9002-9306	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (D)	1-33739-080-0	01	1	9002-9306	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-365-0	01	1	9002-9306	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-008-0	02	1	9002-		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (C)	1-33739-013-0	03	1	9002-		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-080-0	02	1	9002-		●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-032-0	01	1	9002-9306	●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-033-0	01	1	9002-9306	●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-032-0	01	1	9002-		●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-033-0	01	1	9002-		●
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-431-0	01	1	9002-9306	●
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-126-0	01	1	9002-		●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	03	1	9002-9306	●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	03	1	9002-		●
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-352-0	01	1	9002-9306	●
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-352-0	01	1	9002-		●
11	PLATE; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-108-0	01	1	9002-9306	●
11	PLATE; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-108-0	01	1	9002-		●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9002-9306	●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9002-		●
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-426-0	01	1	9002-9306	●
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-429-0	01	1	9002-9306	●
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-015-0	01	1	9002-		●
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-426-0	01	1	9002-		●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-347-0	01	1	9002-9306	●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-354-0	01	1	9002-9306	●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-009-0	01	1	9002-		●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-034-0	01	1	9002-		●
15	SPRING; VALVE SEAL ASSISTER SHIFT CONTROL<WX8>	1-33739-014-0	01	1	9002-9306	●
15	SPRING; VALVE SEAL ASSISTER SHIFT CONTROL<WX8>	1-33739-014-0	01	1	9002-		●
16	SEAT; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-067-0	02	1	9002-9306	●
16	SEAT; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-067-0	02	1	9002-		●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9002-9306	●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-065-0	02	1	9002-9306	●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-012-0	02	1	9002-		●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-430-0	02	1	9002-9106	●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-500-0	02	1	9107-9306	●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-007-0	02	1	9002-		●
19	BUSHING; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-427-0	01	1	9002-9306	●
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-346-0	01	1	9002-9306	●
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-101-0	01	1	9002-		●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> ID=7 L=113	1-33739-006-0	01	1	9002-9306	●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> ID=7 L=113	1-33739-006-0	01	1	9002-9306		●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-048-0	01	1	9307-		●
22	SEAL; OIL ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9002-9306	●
22	SEAL; OIL ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9002-		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	04	1	9002-9306	●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-47819-109-0	01	1	9002-9306	●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	04	1	9002-		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-47819-109-0	01	1	9002-		●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-349-0	01	1	9002-9106	●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-499-0	01	1	9107-9306	●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-349-0	01	1	9002-9109		●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-499-0	01	1	9110-		●
25	RING; "X",PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-350-0	01	1	9002-9306	●
25	RING; "X",PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-350-0	01	1	9002-		●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-122-0	01	1	9002-9306	●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-124-0	01	1	9002-9306	●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-028-0	01	1	9002-		●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-129-0	01	1	9002-		●
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-348-0	01	1	9002-9306	●
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-355-0	01	1	9002-		●
28	PLATE; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-094-0	01	1	9002-9306	●
28	PLATE; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-094-0	01	1	9002-		●
29	SPRING; BALL ASSISTER SHIFT CONTROL<WX8>	1-33739-095-0	01	1	9002-9306	●
29	SPRING; BALL ASSISTER SHIFT CONTROL<WX8>	1-33739-095-0	01	1	9002-		●
30	PLUG ASSISTER SHIFT CONTROL<WX8>	1-33739-273-0	01	1	9002-9306	●
30	PLUG ASSISTER SHIFT CONTROL<WX8>	1-33739-273-0	01	1	9002-		●
31	BALL; STEEL ASSISTER SHIFT CONTROL<WX8>	1-33739-096-0	01	1	9002-9306	●
31	BALL; STEEL ASSISTER SHIFT CONTROL<WX8>	1-33739-096-0	01	1	9002-		●
32	BOLT; STRIKER ASSISTER SHIFT CONTROL<WX8>	1-33739-269-0	01	1	9002-9306	●
32	BOLT; STRIKER ASSISTER SHIFT CONTROL<WX8>	1-33739-269-0	01	1	9002-		●
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-351-0	01	1	9002-9306	●
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-351-0	01	1	9002-		●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-271-0	01	1	9002-9306	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-271-0	01	1	9002-		●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-073-0	01	1	9002-9306	●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-075-0	01	1	9002-9306	●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-073-0	91	1	9002-		●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-075-0	01	1	9002-		●
36	SCREW; SET ASSISTER SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9002-9306	●
36	SCREW; SET ASSISTER SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9002-		●
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-105-0	01	1	9002-9306	●
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-105-0	01	1	9002-		●
38	NUT; STRIKER BOLT ASSISTER SHIFT CONTROL<WX8> M10	9-09110-510-0	02	1	9002-9306	●
38	NUT; STRIKER BOLT ASSISTER SHIFT CONTROL<WX8> M10	9-09110-510-0	02	1	9002-9306		●
38	NUT; STRIKER BOLT ASSISTER SHIFT CONTROL<WX8>	9-83315-080-0	02	1	9307-		●
39	COVER; RUBBER ASSISTER SHIFT CONTROL<WX8>	1-33739-031-0	01	1	9002-9306	●
39	COVER; RUBBER ASSISTER SHIFT CONTROL<WX8>	1-33739-031-0	01	1	9002-		●
40	NUT; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-363-0	01	1	9002-9306	●
40	NUT; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-363-0	01	1	9002-		●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9002-9306	●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9002-9503		●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-043-0	01	1	9504-		●
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-358-0	01	1	9002-9306	●
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-358-0	01	1	9002-		●

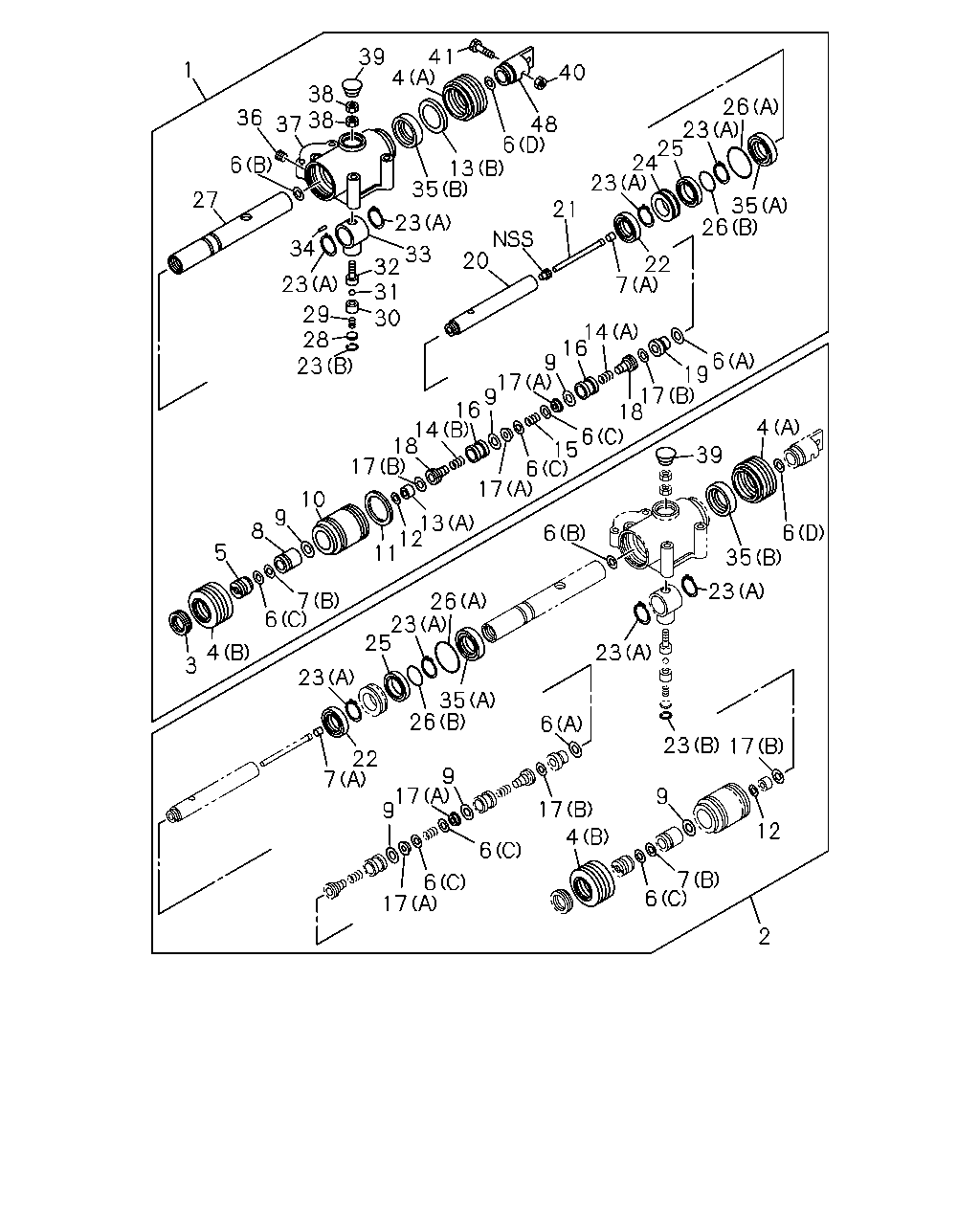

2 12 7 6 4 9 23 6 23 23 35 6 4 6 39 6 26 23 25 23 35 26 6 9 6 17 6 17 9 7 22 3 4 5 8 9 10 6 7 11 12 13 17 6 15 6 18 14 16 9 17 9 16 14 18 6 20 21 7 22 26 35 26 23 25 24 23 40 48 6 13 35 23 34 33 32 31 30 23 28 29 23 27 6 36 37 38 39 38 4 41 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-060-2	01	1	9002-9306	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTER SHIFT CONTROL<WX8>	1-33730-062-4	01	1	9002-		●
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-362-0	01	1	9002-9306	●
2	REPAIR KIT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-360-0	01	1	9002-		●
3	NUT; LK,ROD ASSISTER SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9002-9306	●
3	NUT; LK,ROD ASSISTER SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9002-		●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-030-0	01	1	9002-9306	●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-038-0	01	1	9002-9306	●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-030-0	01	1	9002-		●
4	BOOT; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-038-0	01	1	9002-		●
5	CONNECTOR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-428-0	01	1	9002-9101	●
5	CONNECTOR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-103-0	01	1	9102-9306	●
5	CONNECTOR; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-103-0	01	1	9002-		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (C)	1-33739-013-0	03	1	9002-9306	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-070-0	01	1	9002-9306	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (D)	1-33739-080-0	01	1	9002-9306	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-365-0	01	1	9002-9306	●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-008-0	02	1	9002-		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (C)	1-33739-013-0	03	1	9002-		●
6	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-080-0	02	1	9002-		●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-032-0	01	1	9002-9306	●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-033-0	01	1	9002-9306	●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-032-0	01	1	9002-		●
7	FILTER; AIR ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-033-0	01	1	9002-		●
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-431-0	01	1	9002-9306	●
8	TUBE ASSISTER SHIFT CONTROL<WX8>	1-33739-126-0	01	1	9002-		●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	03	1	9002-9306	●
9	RING; SQUARE ASSISTER SHIFT CONTROL<WX8>	1-33739-086-0	03	1	9002-		●
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-352-0	01	1	9002-9306	●
10	CYLINDER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-352-0	01	1	9002-		●
11	PLATE; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-108-0	01	1	9002-9306	●
11	PLATE; CYL ASSISTER SHIFT CONTROL<WX8>	1-33739-108-0	01	1	9002-		●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9002-9306	●
12	RING; RET ASSISTER SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9002-		●
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-426-0	01	1	9002-9306	●
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-429-0	01	1	9002-9306	●
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-015-0	01	1	9002-		●
13	RETAINER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-426-0	01	1	9002-		●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-347-0	01	1	9002-9306	●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-354-0	01	1	9002-9306	●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-009-0	01	1	9002-		●
14	SPRING; VALVE LIFTER ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-034-0	01	1	9002-		●
15	SPRING; VALVE SEAL ASSISTER SHIFT CONTROL<WX8>	1-33739-014-0	01	1	9002-9306	●
15	SPRING; VALVE SEAL ASSISTER SHIFT CONTROL<WX8>	1-33739-014-0	01	1	9002-		●
16	SEAT; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-067-0	02	1	9002-9306	●
16	SEAT; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-067-0	02	1	9002-		●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9002-9306	●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-065-0	02	1	9002-9306	●
17	SEAL ASM; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-012-0	02	1	9002-		●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-430-0	02	1	9002-9106	●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-500-0	02	1	9107-9306	●
18	LIFTER; VALVE ASSISTER SHIFT CONTROL<WX8>	1-33739-007-0	02	1	9002-		●
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-346-0	01	1	9002-9306	●
20	ROD ASM; W/CAP ASSISTER SHIFT CONTROL<WX8>	1-33739-101-0	01	1	9002-		●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> ID=7 L=113	1-33739-006-0	01	1	9002-9306	●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8> ID=7 L=113	1-33739-006-0	01	1	9002-9306		●
21	PIPE; AIR,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-048-0	01	1	9307-		●
22	SEAL; OIL ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9002-9306	●
22	SEAL; OIL ASSISTER SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9002-		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	04	1	9002-9306	●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-47819-109-0	01	1	9002-9306	●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-022-0	04	1	9002-		●
23	RING; RET ASSISTER SHIFT CONTROL<WX8> (B)	1-47819-109-0	01	1	9002-		●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-349-0	01	1	9002-9106	●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-499-0	01	1	9107-9306	●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-349-0	01	1	9002-9109		●
24	PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-499-0	01	1	9110-		●
25	RING; "X",PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-350-0	01	1	9002-9306	●
25	RING; "X",PISTON ASSISTER SHIFT CONTROL<WX8>	1-33739-350-0	01	1	9002-		●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-122-0	01	1	9002-9306	●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-124-0	01	1	9002-9306	●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-028-0	01	1	9002-		●
26	GASKET ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-129-0	01	1	9002-		●
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-348-0	01	1	9002-9306	●
27	ROD; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-355-0	01	1	9002-		●
28	PLATE; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-094-0	01	1	9002-9306	●
28	PLATE; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-094-0	01	1	9002-		●
29	SPRING; BALL ASSISTER SHIFT CONTROL<WX8>	1-33739-095-0	01	1	9002-9306	●
29	SPRING; BALL ASSISTER SHIFT CONTROL<WX8>	1-33739-095-0	01	1	9002-		●
30	PLUG ASSISTER SHIFT CONTROL<WX8>	1-33739-273-0	01	1	9002-9306	●
30	PLUG ASSISTER SHIFT CONTROL<WX8>	1-33739-273-0	01	1	9002-		●
31	BALL; STEEL ASSISTER SHIFT CONTROL<WX8>	1-33739-096-0	01	1	9002-9306	●
31	BALL; STEEL ASSISTER SHIFT CONTROL<WX8>	1-33739-096-0	01	1	9002-		●
32	BOLT; STRIKER ASSISTER SHIFT CONTROL<WX8>	1-33739-269-0	01	1	9002-9306	●
32	BOLT; STRIKER ASSISTER SHIFT CONTROL<WX8>	1-33739-269-0	01	1	9002-		●
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-351-0	01	1	9002-9306	●
33	STRIKER; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-351-0	01	1	9002-		●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-271-0	01	1	9002-9306	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-271-0	01	1	9002-		●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-073-0	01	1	9002-9306	●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-075-0	01	1	9002-9306	●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (A)	1-33739-073-0	91	1	9002-		●
35	GASKET; CUP ASSISTER SHIFT CONTROL<WX8> (B)	1-33739-075-0	01	1	9002-		●
36	SCREW; SET ASSISTER SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9002-9306	●
36	SCREW; SET ASSISTER SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9002-		●
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-105-0	01	1	9002-9306	●
37	HOUSING; POWER SHIFTER ASSISTER SHIFT CONTROL<WX8>	1-33739-105-0	01	1	9002-		●
38	NUT; STRIKER BOLT ASSISTER SHIFT CONTROL<WX8> M10	9-09110-510-0	02	1	9002-9306	●
38	NUT; STRIKER BOLT ASSISTER SHIFT CONTROL<WX8> M10	9-09110-510-0	02	1	9002-9306		●
38	NUT; STRIKER BOLT ASSISTER SHIFT CONTROL<WX8>	9-83315-080-0	02	1	9307-		●
39	COVER; RUBBER ASSISTER SHIFT CONTROL<WX8>	1-33739-031-0	01	1	9002-9306	●
39	COVER; RUBBER ASSISTER SHIFT CONTROL<WX8>	1-33739-031-0	01	1	9002-		●
40	NUT; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-363-0	01	1	9002-9306	●
40	NUT; LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-363-0	01	1	9002-		●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9002-9306	●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9002-9503		●
41	BOLT; SET,LEVER ASSISTER SHIFT CONTROL<WX8>	1-33739-043-0	01	1	9504-		●
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-358-0	01	1	9002-9306	●
48	LEVER; CONT,CABLE ASSISTER SHIFT CONTROL<WX8>	1-33739-358-0	01	1	9002-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
