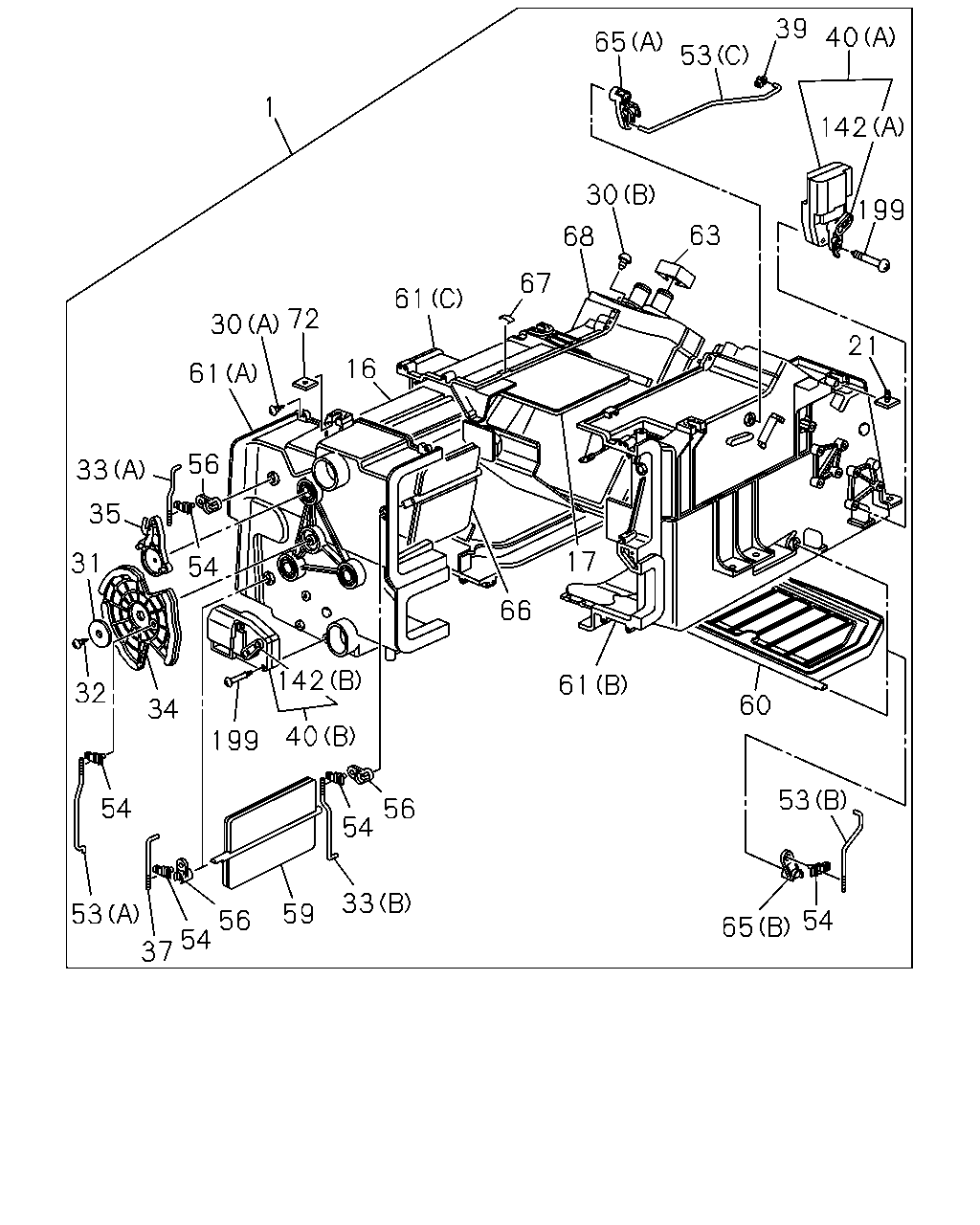

8-60 — HEATER UNIT; FRONT (#28229) — 42 parça

39 40 65 53 1 142 30 199 63 68 67 61 72 30 21 16 61 56 33 35 17 31 54 66 142 61 32 60 34 40 199 53 54 56 54 33 59 53 54 56 54 37 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83511-175-1	01	1	0609-1409
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98238-476-0	01	1	1410-
16	SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-625-1	01	1	0609-
17	SHUTTER; HTR UNIT,CENTER AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-628-1	01	1	0609-
21	BOLT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	02	1	0609-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A) M4X16	8-94324-850-0	12	1	0609-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X20	9-09829-324-1	01	1	0609-1409
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X16	8-94248-820-0	01	1	1410-
31	WASHER; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-94129-950-0	01	1	0609-
32	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0609-1409
32	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M5X16	8-94248-820-0	01	1	1410-
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-619-0	01	1	0609-
33	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-621-0	01	1	0609-
34	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-326-0	01	1	0609-
35	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-94389-502-1	03	1	0609-
37	ROD; LEVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-620-1	01	1	0609-
39	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-136-0	01	1	0609-
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-649-1	01	1	0609-
40	ACTUATOR; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-650-1	01	1	0609-
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-622-0	01	1	0609-
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-623-0	01	1	0609-
53	ROD; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-624-0	01	1	0609-
54	CLIP; SHUTTER LEVER AIR CONDITIONER MANUAL CONTROL(C60)	8-94248-794-0	05	1	0609-
56	LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-325-0	03	1	0609-
59	SHUTTER; HTR UNIT,SIDE AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-626-2	01	1	0609-
60	DOOR; MIX,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83578-084-0	01	1	0609-
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-346-3	01	1	0609-
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-401-0	01	1	0609-1409
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98299-713-0	01	1	1410-
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-402-0	01	1	0609-1409
61	CASE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98299-715-0	01	1	1410-
63	LINING; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-557-0	02	1	0609-
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-327-0	01	1	0609-
65	LEVER; MIX,DOOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-328-1	01	1	0609-
66	SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-627-0	01	1	0609-
67	CLIP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-148-0	01	1	0609-
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83562-078-1	01	1	0609-1409
68	CORE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98238-475-0	01	1	1410-
72	NUT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-659-4	02	1	0609-
142	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-345-1	01	1	0609-
142	LEVER; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-414-0	01	1	0609-
199	SCREW; ACTUATOR AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	04	1	0609-
