Isuzu WW
▶
TRUCKS
▶
FRR
▶
11027 - FRR RHD EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶

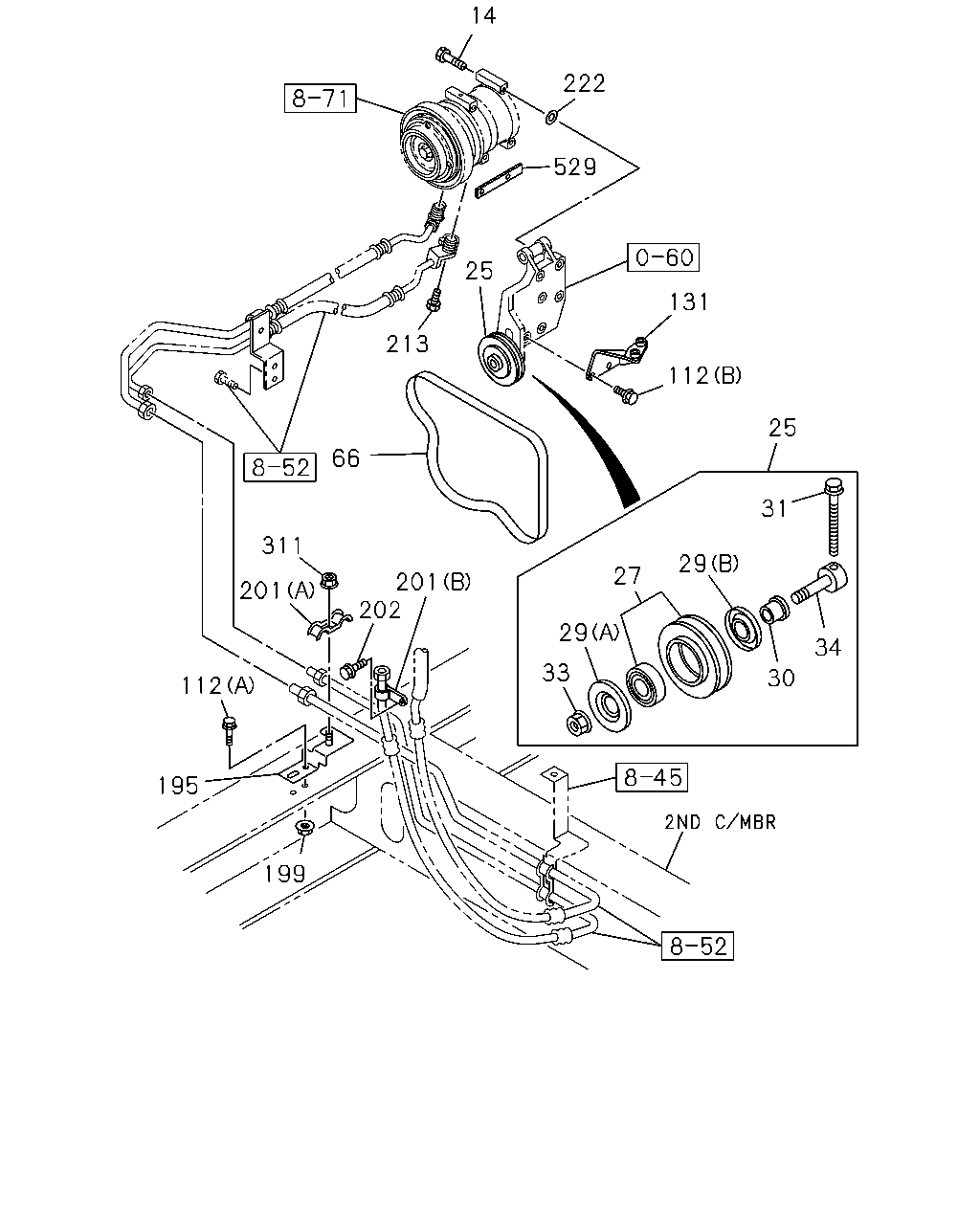

8-50 — AIR CONDITIONING SYSTEM; FRONT
(#28227) — 26 parça
14
222
529
25
131
213
112
25
66
31
311
29
27
201
202
201
29
34
33
30
112
195
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
BOLT; CMPR
M8X80 FLANGE
0-28050-880-0
04
1
0609-0609
14
BOLT; CMPR
M8X78 W/LK WASHER
5-09000-228-1
04
1
0610-
25
PULLEY ASM; IDLER,CMPR
8-97605-079-0
01
1
0609-
27
PULLEY; IDLE,A/C
8-97605-323-0
01
1
0609-
29
COVER; DUST,IDLE PULLEY
(A)
8-97605-329-0
01
1
0609-
29
COVER; DUST,IDLE PULLEY
(B)
8-97605-330-0
01
1
0609-
30
COLLAR; IDLE PULLEY
8-97605-328-0
01
1
0609-
31
BOLT; ADJ,IDLE PULLEY
8-97605-325-0
01
1
0609-
33
NUT; IDLER PULLEY
8-97605-326-0
01
1
0609-
34
SHAFT; IDLE PULLEY
8-97605-327-0
01
1
0609-
66
BELT; A/C CMPR
BEST VALUE PARTS
1-87610-104-0
01
1
0609-
66
BELT; A/C CMPR
L=1114
8-97605-102-0
01
1
0609-
112
BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE
0-28650-825-0
02
1
0609-
112
BOLT; STAY
(B) M8X16 FLANGE
0-28050-816-0
02
1
0609-
131
STAY; CMPR BRKT
8-97601-869-1
01
1
0609-
195
STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-172-0
01
1
0609-
199
NUT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
02
1
0609-0610
201
CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20
0-95235-836-0
01
1
0609-
201
CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2
1-83574-190-0
01
1
0609-
202
BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
01
1
0609-
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE
0-28050-625-0
02
1
0609-
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE
0-28650-825-0
02
1
0609-
222
GASKET; CONNECTOR
ID=8.4 OD=19
5-11779-001-0
02
1
0609-0609
222
GASKET; CONNECTOR
ID=8.2
8-94312-733-0
02
1
0610-
311
NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
0609-
529
SPACER
1-83573-271-0
01
1
0609-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
