8-40 — HEATER SYSTEM (#28225) — 34 parça

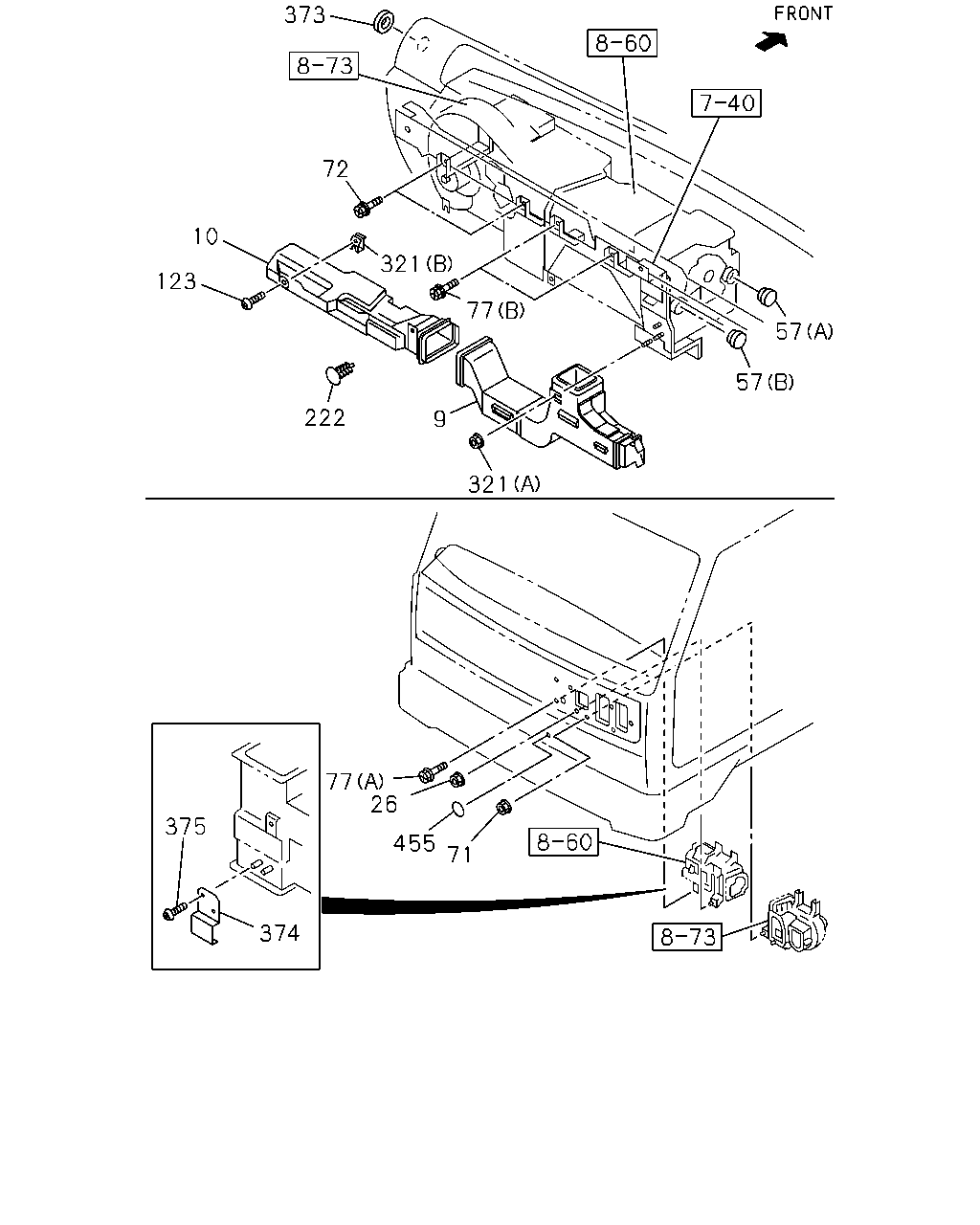

373 72 10 321 123 77 57 57 222 9 321 77 26 375 455 71 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	DUCT; HTR AIR,FOOT CENTER AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-426-2	01	1	0609-
10	DUCT; HTR AIR,ASSIST FOOT AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-413-0	01	1	0609-
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0609-
57	COVER; INL DUCT (A)	1-83579-617-0	02	1	0609-
57	COVER; INL DUCT (B)	1-83579-618-0	01	1	0609-
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0609-
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0609-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-
123	SCREW; DUCT AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0609-
123	SCREW; DUCT AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	08	1	0609-
222	FASTENER; DUCT AIR CONDITIONER MANUAL CONTROL(C60) ID=6 OD=16 L=18	8-94178-705-0	01	1	0609-
321	NUT; DUCT FIX AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91180-106-0	01	1	0609-
321	NUT; DUCT FIX AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-196-0	01	1	0609-
373	RUBBER; JOINT	1-76378-291-0	02	1	0609-
374	HOLDER; DUCT AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	0609-
375	SCREW; HOLDER AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0609-
455	SEAL; CLIP HOLE EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0609-

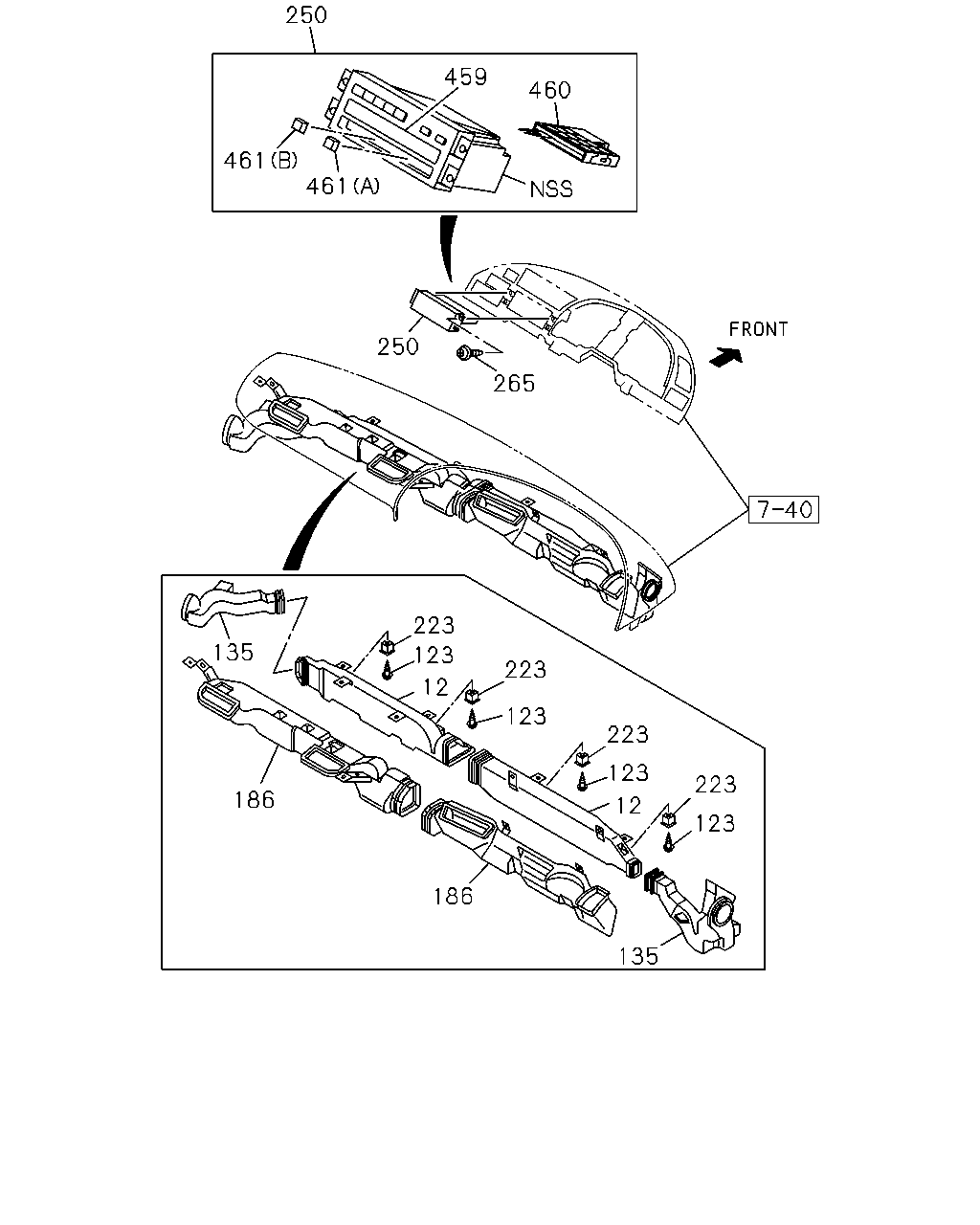

250 459 460 461 461 250 265 223 135 123 223 12 123 223 123 223 186 12 123 186 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-172-7	01	1	0609-
12	NOZZLE; DEFROSTER AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-321-6	01	1	0609-
123	SCREW; DUCT AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0609-
123	SCREW; DUCT AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	08	1	0609-
135	HOSE; DEFROSTER AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-252-7	01	1	0609-
135	HOSE; DEFROSTER AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-253-4	01	1	0609-
186	DUCT; VENTILATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-173-6	01	1	0609-0710
186	DUCT; VENTILATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-246-0	01	1	0711-
186	DUCT; VENTILATOR AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-418-0	01	1	0609-
223	GROMMET; SCREW AIR CONDITIONER MANUAL CONTROL(C60) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0609-
250	CONTROL ASM; A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83543-050-0	01	1	0609-
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0609-
459	PANEL; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-83549-013-0	01	1	0609-
460	SWITCH; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60)	1-82489-006-0	01	1	0609-
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	0609-
461	KNOB; CONTROL ASM,A/C AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-016-0	01	1	0609-
