Isuzu WW
▶
TRUCKS
▶
FRR
▶
11027 - FRR RHD EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#28222) — 26 parça
◀

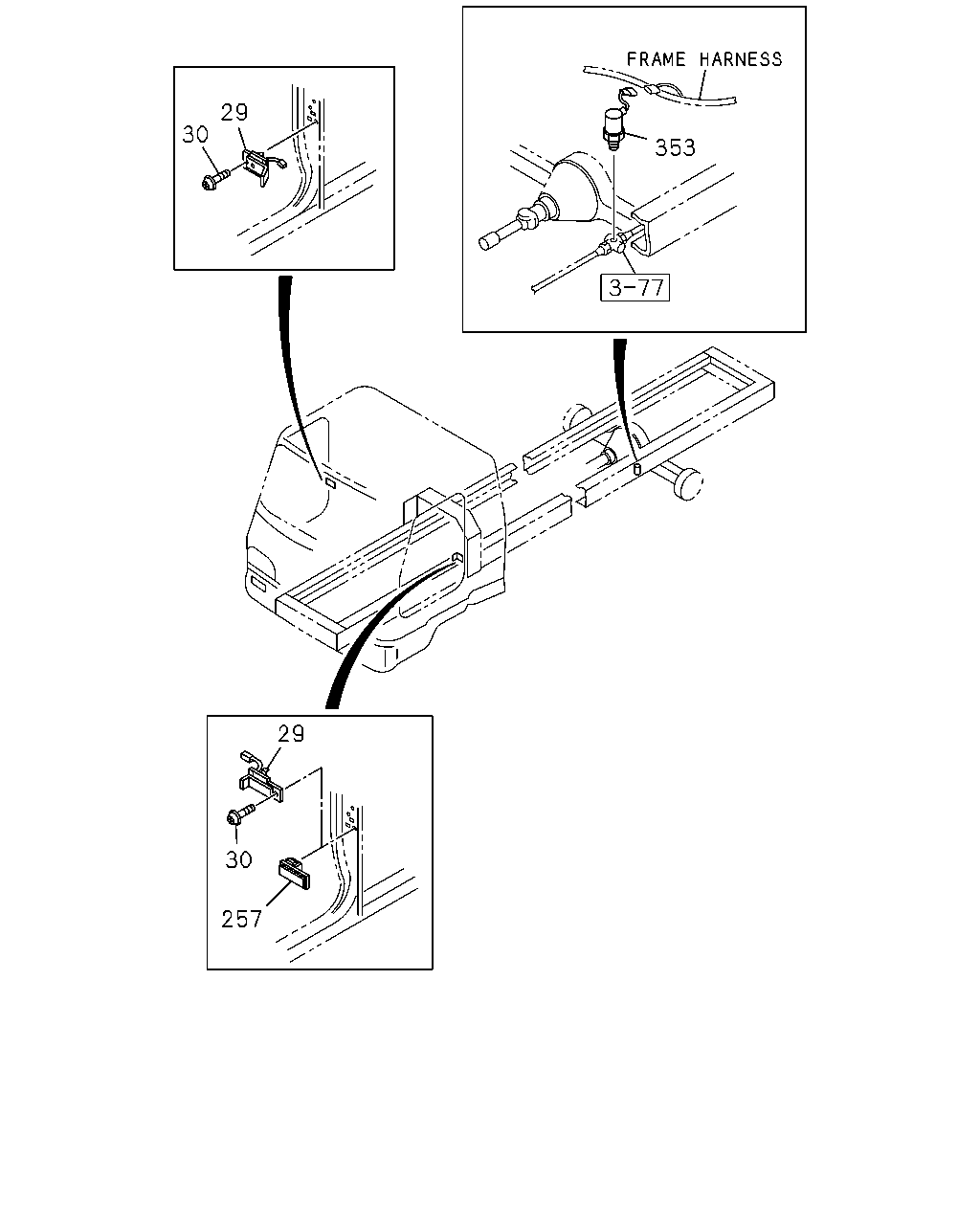

[825A] DOOR PARK BRK SW,SW HOLE COVER (6 parça)

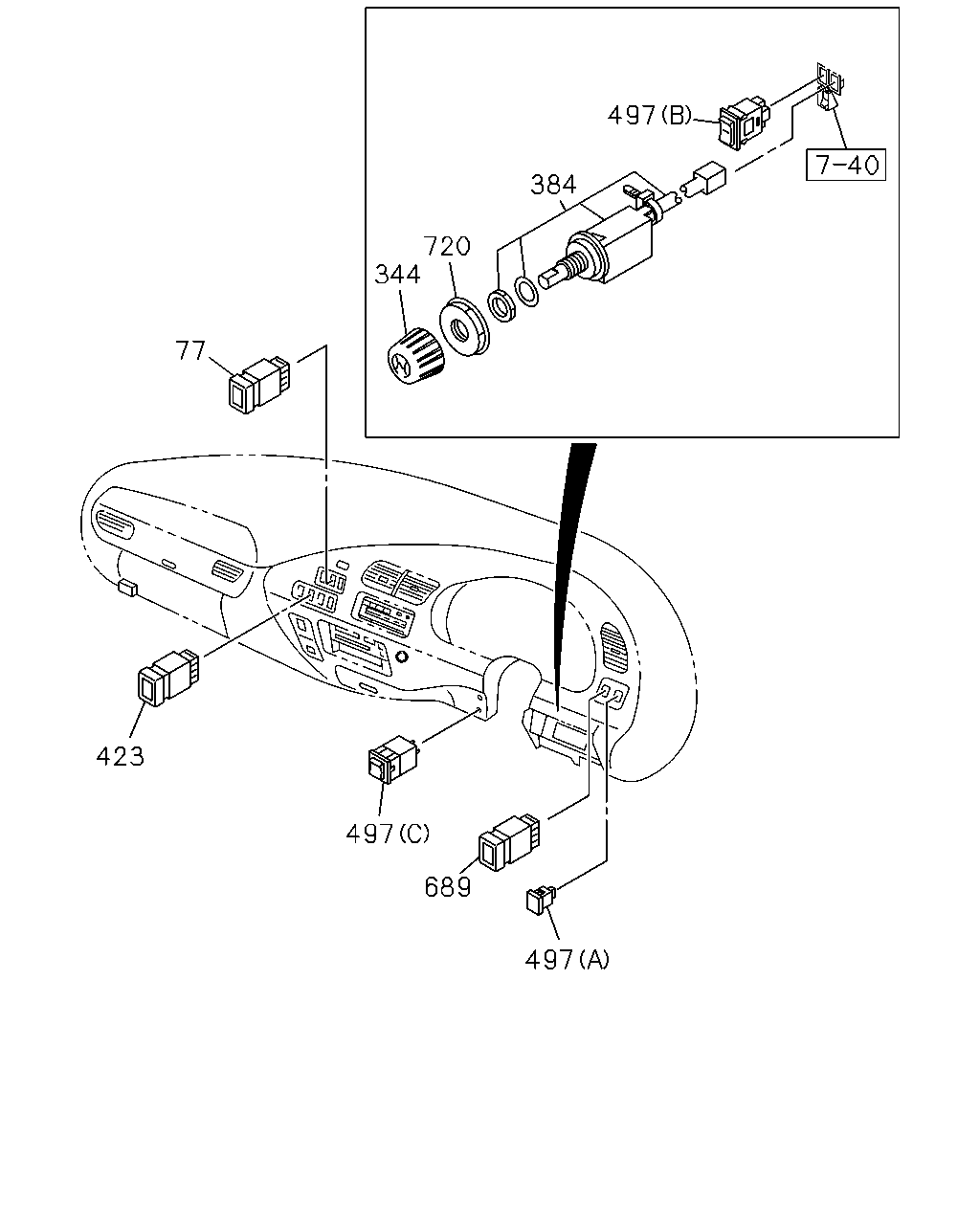

[825A] SWITCH;INST PANEL (10 parça)

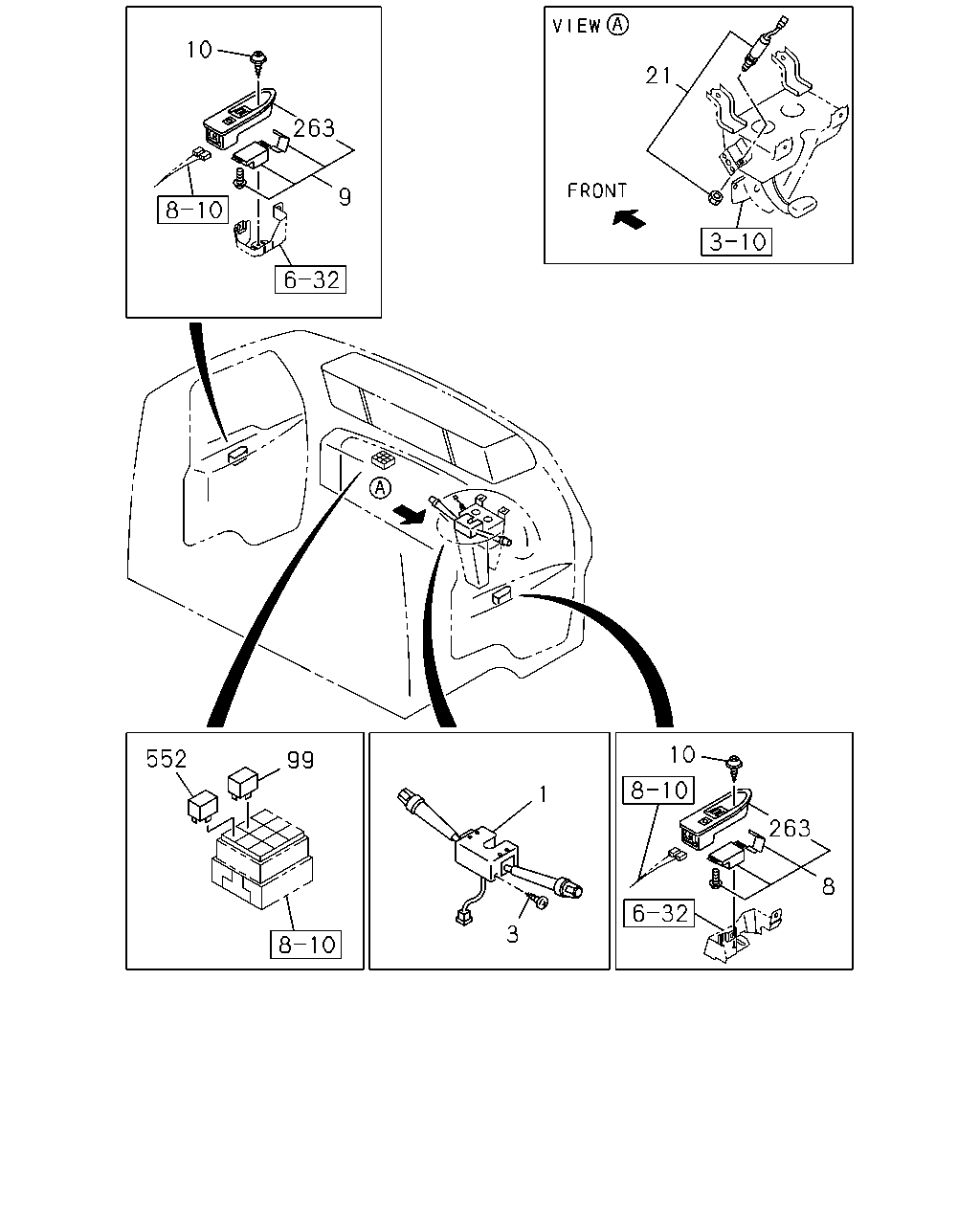

[825A] COMB,POWER AND CLU SWITCH (10 parça)
▶
29
30
353
29
30
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
BRAKE SYSTEM HSA<SLD>
8-97855-032-3
02
1
0609-
29
SWITCH; DOOR
EXC. BRAKE SYSTEM HSA<SLD>
8-97855-032-3
01
1
0609-
30
SCREW; DOOR SW
BRAKE SYSTEM HSA<SLD> M5X11
1-09981-536-1
02
1
0609-
30
SCREW; DOOR SW
EXC. BRAKE SYSTEM HSA<SLD> M5X11
1-09981-536-1
01
1
0609-
257
COVER; HOLE,SW
EXC. BRAKE SYSTEM HSA<SLD>
8-94229-914-1
01
1
0609-
353
SWITCH ASM; PARKING BRAKE
1-82410-163-1
01
1
0609-
497
384
720
344
77
423
497
689
497
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
SWITCH; PTO
PTO CONTROL<SV6>
1-82340-403-0
01
1
0609-
344
KNOB; SW,IDLE
8-98013-420-0
01
1
0609-
384
SWITCH; IDLING CONT,ELEC
8-98013-418-0
01
1
0609-
423
SWITCH; ENG WARMING
1-82340-697-0
01
1
0609-
497
SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (A) HSA OFF
1-82340-408-1
01
1
0609-1105
497
SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (A) HSA OFF
8-98191-448-1
01
1
1106-
497
SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (B) HSA ADJUST
1-82350-237-2
01
1
0609-
497
SWITCH; HSA
BRAKE SYSTEM HSA<SLD> (C) HSA RESET
8-97076-356-0
01
1
0609-
689
SWITCH; DPD
1-82340-693-0
01
1
0609-
720
HOLDER; SW,IDLE
8-97352-127-0
01
1
0609-
10
21
263
9
10
552
99
1
263
8
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-715-0
01
1
0609-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0609-
8
SWITCH; POWER WINDOW
DRIVER
1-82380-166-2
01
1
0609-
9
SWITCH; POWER WINDOW
PASSENGER
1-82380-167-1
01
1
0609-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0609-
21
SWITCH; CLU
1-82440-126-1
01
1
0609-
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0609-
263
COVER; SW
DRIVER
1-82385-005-2
01
1
0609-
263
COVER; SW
PASSENGER
1-82385-006-3
01
1
0609-
552
RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC
8-97262-933-0
01
1
0609-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
