2-37B — MANUAL TRANSMISSION CONT; MISSION SIDE (#2822) — 76 parça
çizim 28835
45 47 8 46 45 49 49 46 47 36 44 37 38 6 44 36 37 38 32 31 35 30 35 30 31 5 32 24 23 22 16 25 3 22 16 23 24 25 26 28 27 29 4 29 26 27 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 ROD; LINK,2ND SHIFT
6RB1 STD ENG(07L),10PD1 STD ENG(40L) L=595 		1-33652-568-0 01 1 9002- ● ●
3 ROD; LINK,2ND SHIFT
L=595 		1-33652-568-0 01 1 9002- ● ●
3 ROD; LINK,2ND SHIFT
6RB1TC ENG(30L) L=580 		1-33652-416-0 01 1 9002- ● ● ●
3 ROD; LINK,2ND SHIFT
6RA1TC ENG(19L) L=588 		1-33652-567-1 01 1 9002-9306 ●
4 ROD; LINK,2ND SELECT
6RB1 STD ENG(07L),10PD1 STD ENG(40L) L=585 		1-33652-320-0 01 1 9002-9409 ● ●
4 ROD; LINK,2ND SELECT
L=585 		1-33652-320-0 01 1 9002-9409 ● ●
4 ROD; LINK,2ND SELECT
6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) L=585 		1-33652-320-0 01 1 9410- ● ● ● ● ● ●
4 ROD; LINK,2ND SELECT
6RB1TC ENG(30L) L=580 		1-33652-381-0 01 1 9002-9409 ● ● ●
4 ROD; LINK,2ND SELECT
6RA1TC ENG(19L) L=668 		1-33652-339-2 01 1 9002-9306 ●
5 ROD; LINK,3RD SHIFT
L=1300 		1-33652-342-0 01 1 9002- ● ● ● ● ●
5 ROD; LINK,3RD SHIFT
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) L=1300 		1-33652-342-0 01 1 9002- ● ●
5 ROD; LINK,3RD SHIFT
10PD1 STD ENG(40L) L=855 		1-33652-321-0 01 1 9307- ●
5 ROD; LINK,3RD SHIFT
10PD1 STD ENG(40L) L=855 		1-33652-321-0 01 1 9002-9306 ● ●
6 ROD; LINK,3RD SELECT
L=1635 		1-33652-425-2 01 1 9002- ● ● ● ●
6 ROD; LINK,3RD SELECT
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) L=1635 		1-33652-425-2 01 1 9002- ● ●
6 ROD; LINK,3RD SELECT
10PD1 STD ENG(40L) L=1440 		1-33652-340-0 01 1 9002- ● ●
8 ROD; LINK,4TH SHIFT
L TYPE ENG<90L> L=303 		1-33652-433-1 01 1 9002-9306 ● ● ● ●
8 ROD; LINK,4TH SHIFT
L=303 		1-33652-433-1 01 1 9307- ● ● ● ●
8 ROD; LINK,4TH SHIFT
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) L=303 		1-33652-433-1 01 1 9307- ● ●
8 ROD; LINK,4TH SHIFT
10PD1 STD ENG(40L) L=530 		1-33652-394-1 01 1 9002- ● ●
16 JOINT ASM; BALL,CONT ROD
(A) L=48 		1-09760-038-1 02 1 9002- ● ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) (B) 		1-09760-078-0 02 1 9002- ● ● ● ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
6RA1TC ENG(19L) 		1-09760-082-0 02 1 9002-9306 ●
23 WASHER; LK,2ND LINK ROD
ID=10.2 		9-09150-510-0 02 1 9002-9301 ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 		9-09110-410-0 02 1 9002-9301 ● ● ● ● ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9302- ● ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) M10 		9-09111-410-0 02 1 9002- ● ● ● ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
6RA1TC ENG(19L) M12 		9-99111-412-0 02 1 9002-9306 ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD
6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) L=48 		1-09760-038-1 02 1 9002- ● ● ● ● ● ●
26 JOINT; BALL,RIGHT SCREW,LINK ROD
6RA1TC ENG(19L) RH THREAD 		1-09760-039-1 02 1 9002-9306 ●
27 WASHER; LK,2ND LINK ROD
ID=8.2 		9-09150-508-0 02 1 9002-9301 ● ● ● ● ● ●
28 NUT; 2ND LINK ROD
M8 		9-09110-408-0 02 1 9002-9301 ● ● ● ● ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9302- ● ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) M8 		9-09111-408-0 02 1 9002- ● ● ● ● ● ●
29 NUT; LK,RIGHT SCREW,LINK ROD
6RA1TC ENG(19L) M10 		9-09111-410-0 02 1 9002-9306 ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-078-0 02 1 9002- ● ● ● ● ● ●
31 WASHER; LK,3RD LINK ROD
ID=10.2 		9-09150-510-0 02 1 9002-9301 ● ● ● ● ● ●
32 NUT; 3RD LINK ROD
M10 		9-09110-410-0 02 1 9002-9301 ● ● ● ● ● ●
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9302- ● ● ● ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9002- ● ● ● ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L=48 		1-09760-038-1 02 1 9002-9306 ● ● ● ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L=48 		1-09760-038-1 02 1 9307- ● ● ●
37 WASHER; LK,3RD LINK ROD
ID=8.2 		9-09150-508-0 02 1 9002-9301 ● ● ● ● ● ●
38 NUT; 3RD LINK ROD
M8 		9-09110-408-0 02 1 9002-9301 ● ● ● ● ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9302- ● ● ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9002-9306 ● ● ● ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9307- ● ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
10PD1 STD ENG(40L) (A),(B) 		1-09760-078-0 02 1 9002-9302 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
10PD1 STD ENG(40L) (A),(B) 		1-09760-078-0 02 1 9303-9306 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
10PD1 STD ENG(40L) (A),(B) 		1-09760-078-0 02 1 9307-9501 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (A),(B) 		1-09760-078-0 02 1 9502- ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
(A) 		1-09760-078-0 01 1 9002- ● ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (A) 		1-09760-078-0 01 1 9002- ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
(B) 		1-33660-157-1 01 1 9002- ● ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (B) 		1-33660-157-1 01 1 9002- ● ●
46 WASHER; LK,4TH LINK ROD
ID=10.2 		9-09150-510-0 02 1 9002-9301 ● ● ● ● ● ●
47 NUT; 4TH LINK ROD
M10 		9-09110-410-0 02 1 9002-9301 ● ● ● ● ● ●
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-050-0 02 1 9302- ● ● ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9002-9106 ● ● ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9107-9306 ● ● ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9307-9501 ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9502- ● ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> M12 		9-99111-412-0 02 1 9502- ●

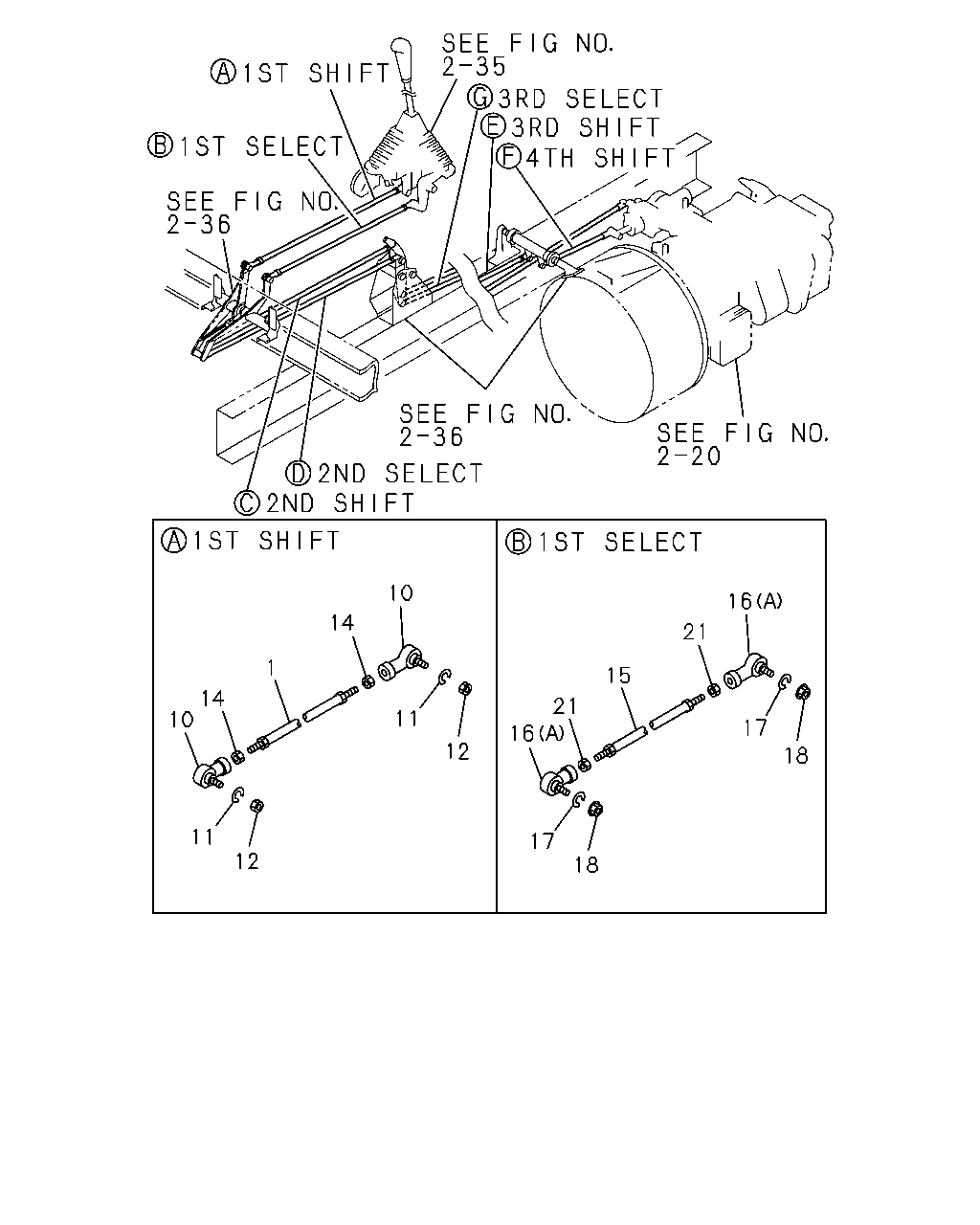

çizim 93671
18 17 16 21 21 17 16 18 12 11 10 14 1 14 10 11 12 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ROD; LINK,1ST SHIFT
L=498 		1-33652-269-1 01 1 9002- ● ● ● ● ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-078-0 02 1 9002- ● ● ● ● ● ●
11 WASHER; LK,1ST LINK ROD,SHIFT
ID=10.2 		9-09150-510-0 02 1 9002-9301 ● ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 		9-09110-510-0 02 1 9002-9301 ● ● ● ● ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-050-0 02 1 9302- ● ● ● ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9002- ● ● ● ● ● ●
15 ROD; LINK 1ST SHIFT
L=513 		1-33652-318-1 01 1 9002- ● ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
(A) L=48 		1-09760-038-1 02 1 9002- ● ● ● ● ● ●
16 JOINT ASM; BALL,CONT ROD
6RB1 STD ENG(07L),6RB1TC ENG(30L),10PD1 STD ENG(40L) (B) 		1-09760-078-0 02 1 9002- ● ● ● ● ● ●
17 WASHER; LK,1ST LINK ROD
ID=8.2 		9-09150-508-0 02 1 9002-9301 ● ● ● ● ● ●
18 NUT; 1ST LINK ROD
M8 		9-09110-508-0 02 1 9002-9301 ● ● ● ● ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9302- ● ● ● ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9002- ● ● ● ● ● ●
