Isuzu WW
▶
TRUCKS
▶
FRR
▶
11027 - FRR RHD EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#28218) — 62 parça
◀

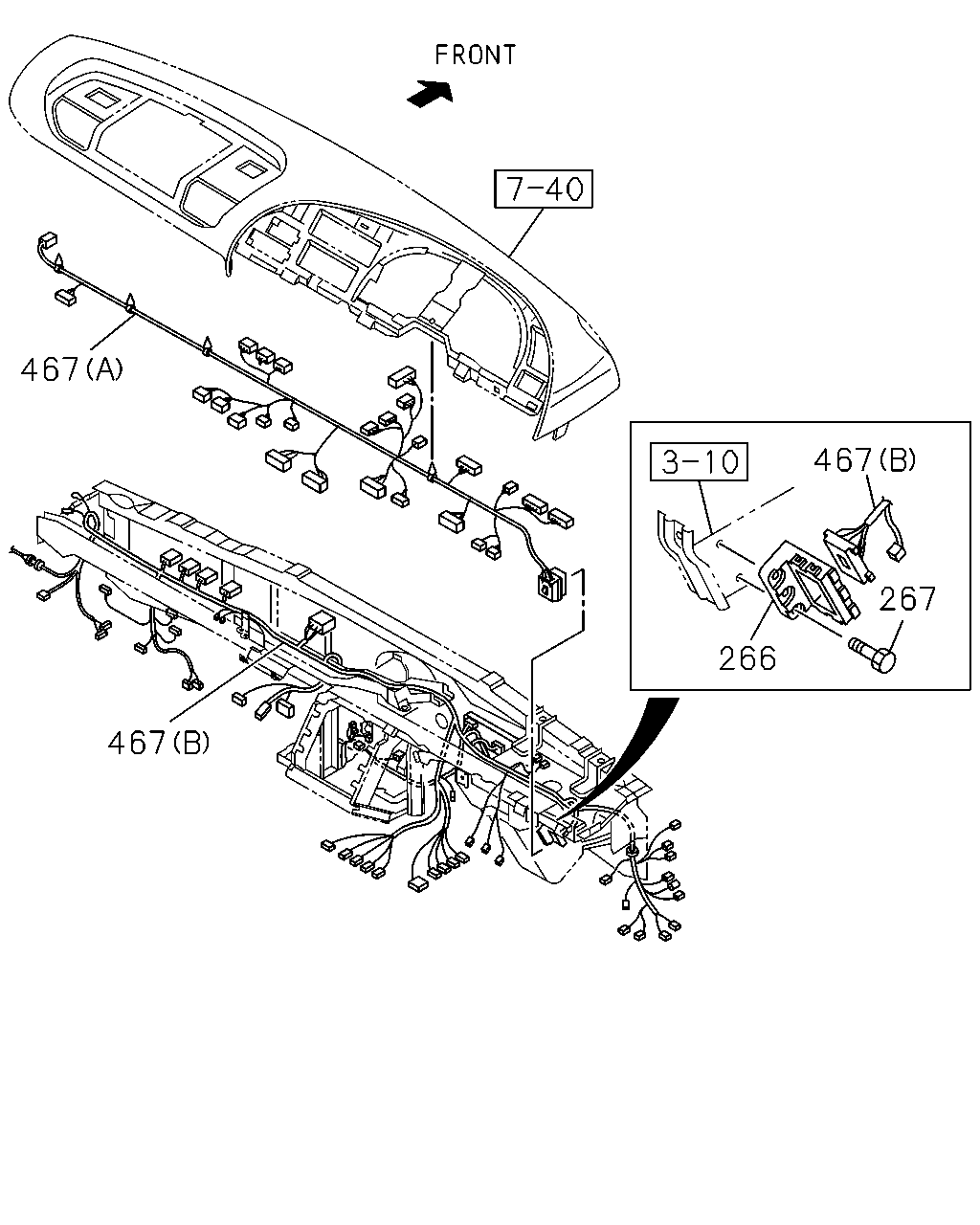

[810A] INST PANEL SIDE NO.2 (5 parça)

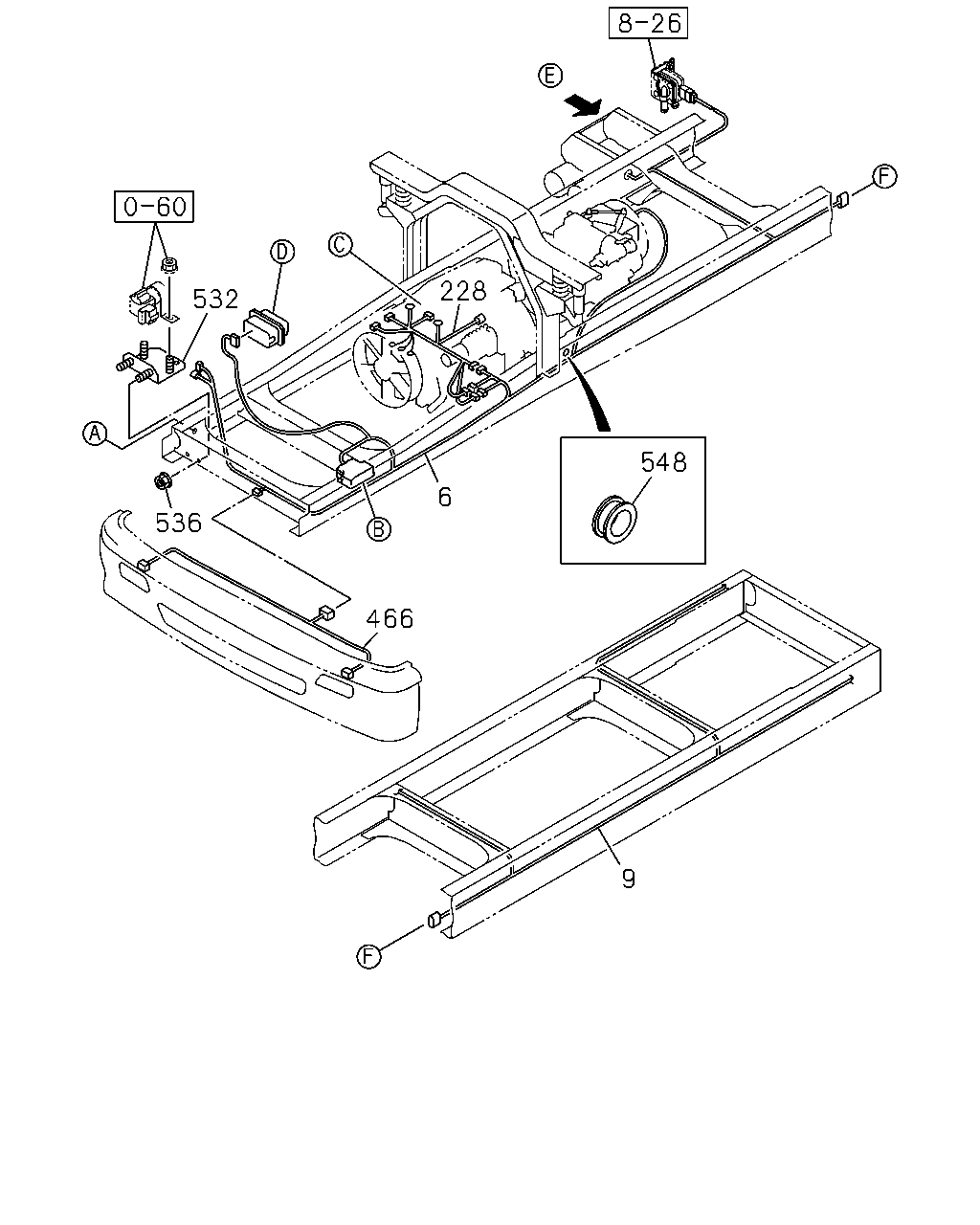

[810A] FRAME SIDE NO.1 (8 parça)

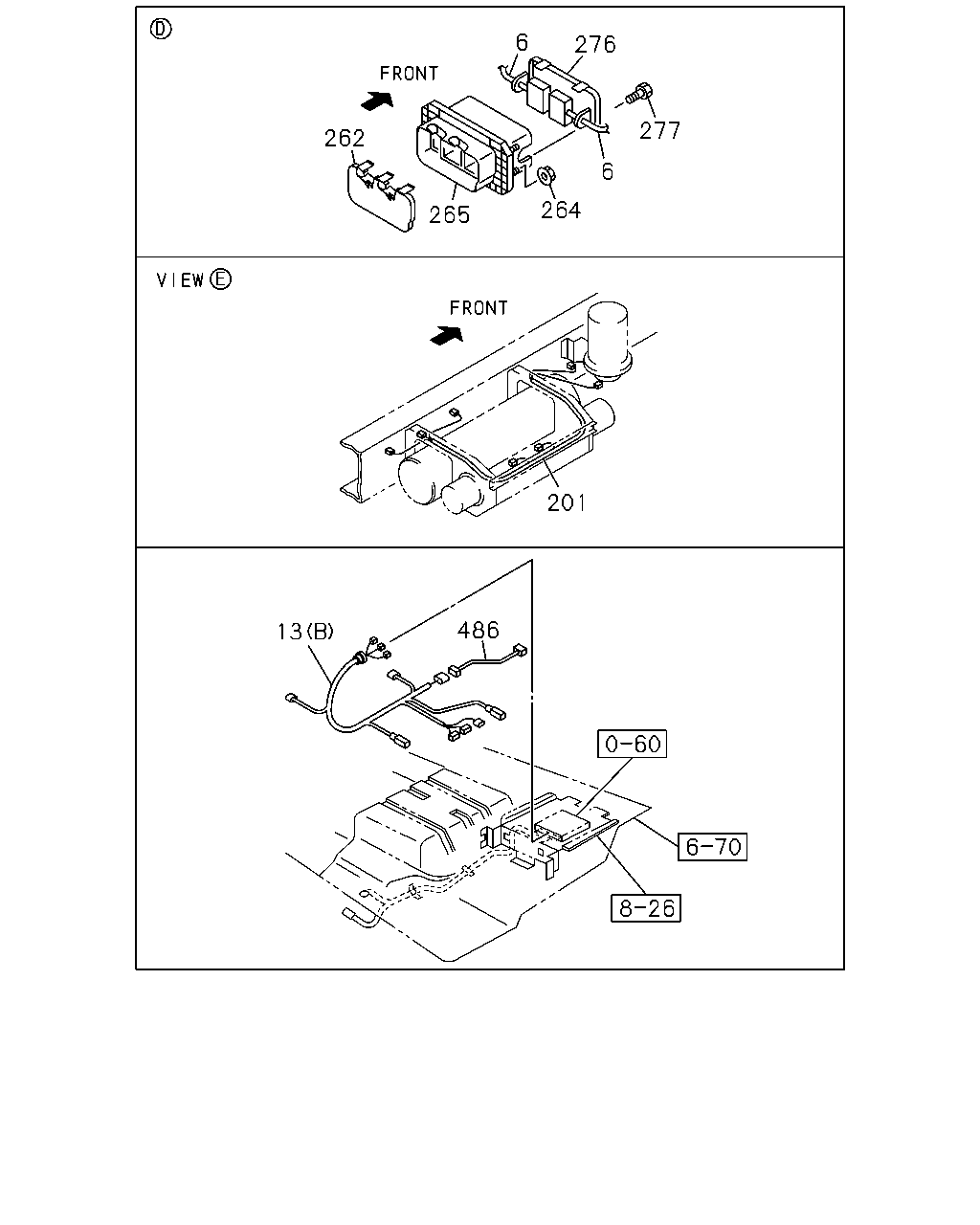

[810A] FRAME SIDE NO.3 (11 parça)

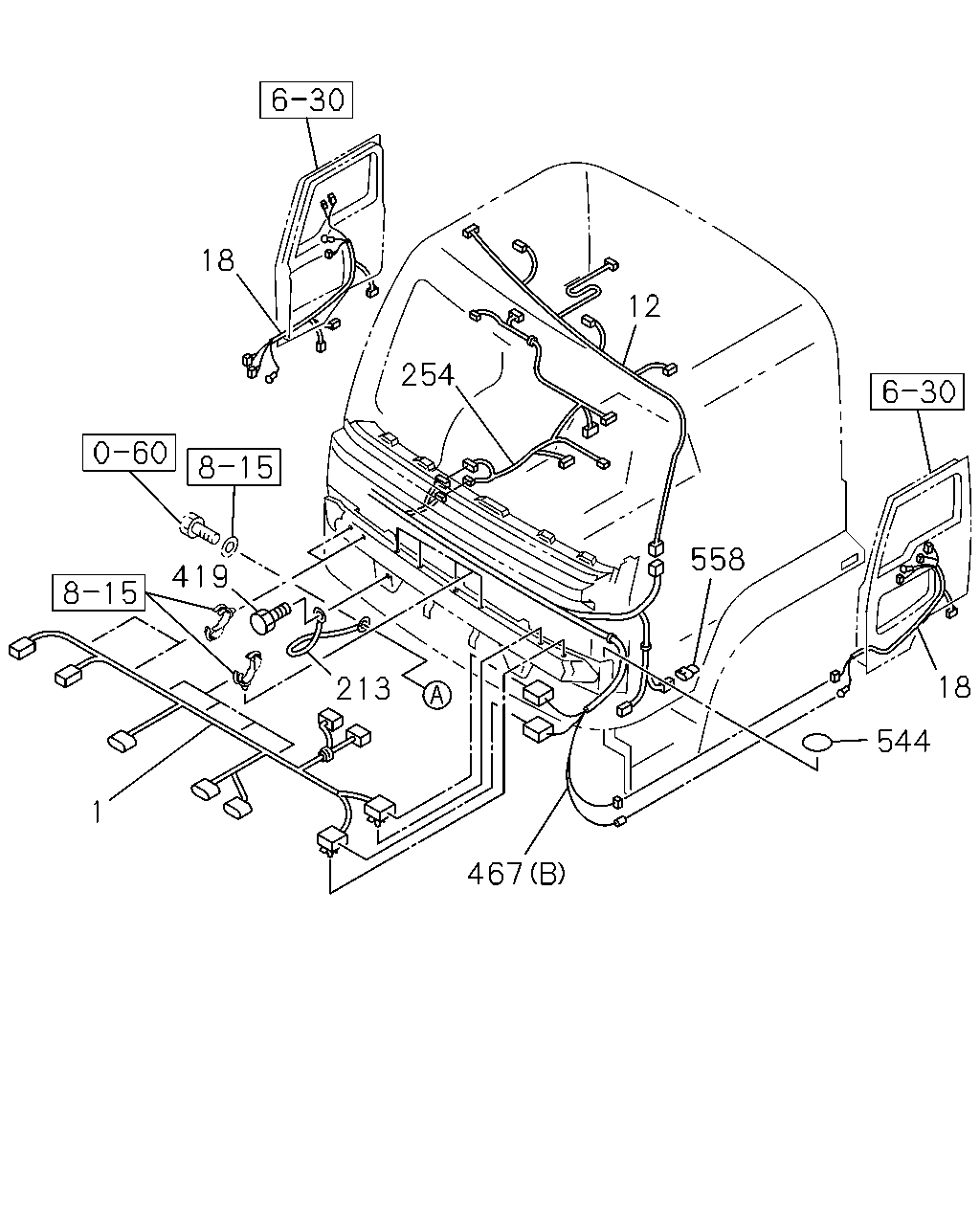

[810A] CAB AND DOOR SIDE (16 parça)

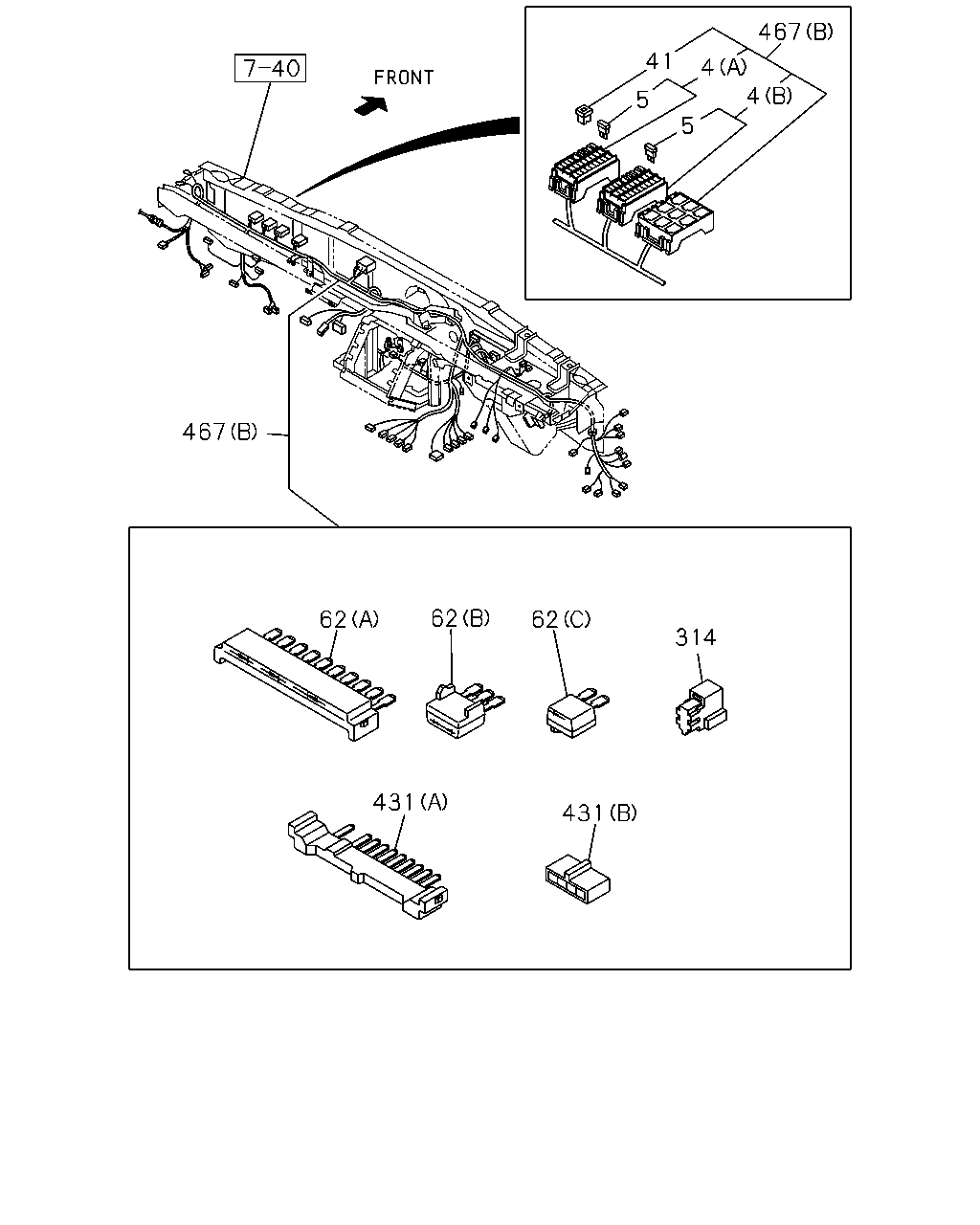

[810A] INST PANEL SIDE NO.1 (14 parça)

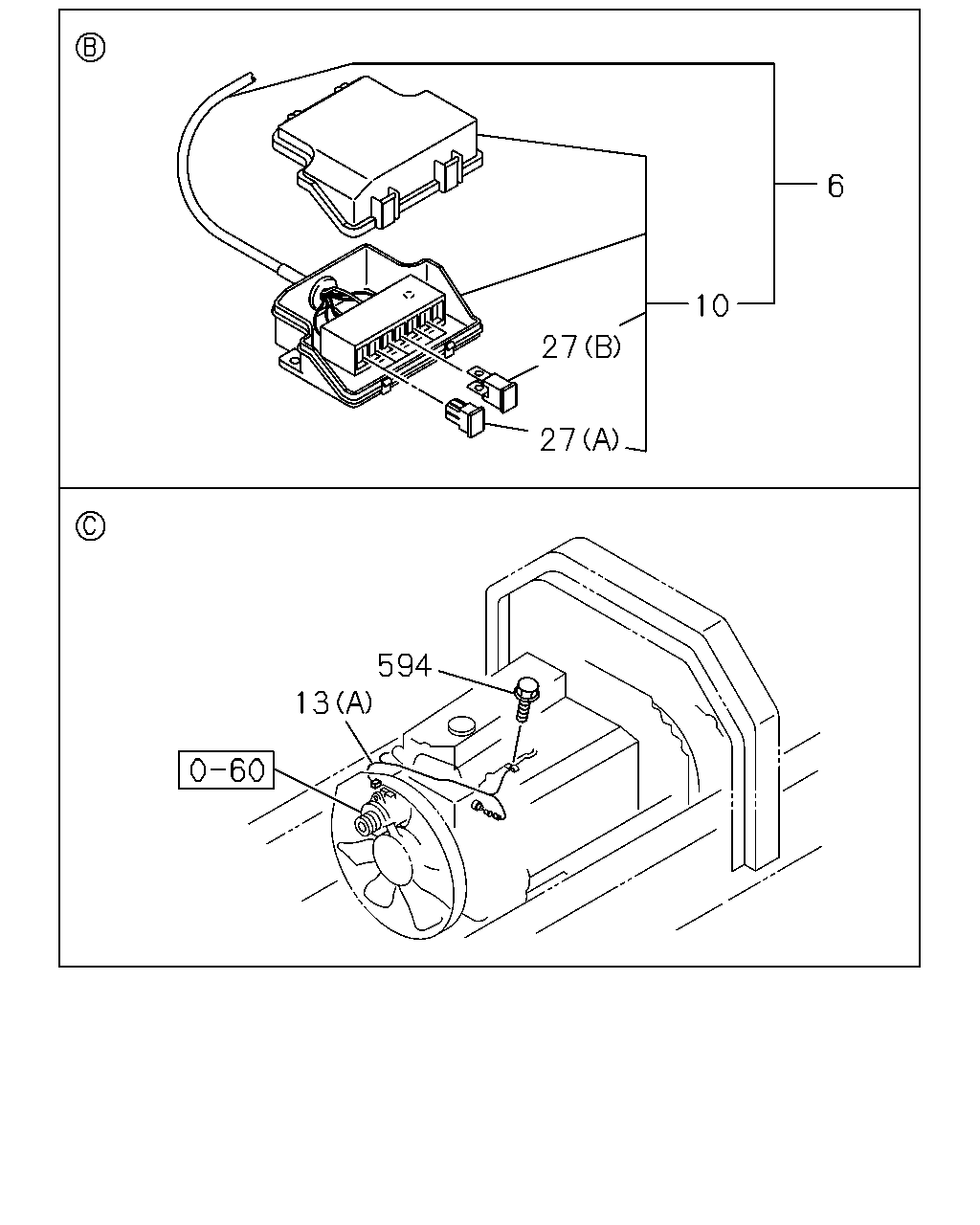

[810A] FRAME SIDE NO.2 (8 parça)
▶
467
467
267
266
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
266
BRACKET; CONN BOX
1-82699-580-0
01
1
0609-
267
BOLT; BRKT
M6X16 W/PL WASHER
1-09981-438-0
02
1
0609-
467
HARNESS; FACIA
BRAKE SYSTEM HSA<SLD> (B)
1-82662-820-6
01
1
0609-
467
HARNESS; FACIA
(A)
1-82662-866-0
01
1
0609-
467
HARNESS; FACIA
EXC. BRAKE SYSTEM HSA<SLD> (B)
1-82662-819-6
01
1
0609-
228
532
548
6
536
466
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82678-214-3
01
1
0609-
9
HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W)
1-82678-253-0
01
1
0609-
9
HARNESS; FRAME,RR
WHEEL BASE 4800MM(48W)
1-82678-254-0
01
1
0609-
228
HARNESS; GEN
8-98019-892-5
01
1
0609-
466
HARNESS; BUMPER
8-97603-621-3
01
1
0609-
532
BRACKET; RELAY
8-98049-149-0
01
1
0609-
536
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
02
1
0609-
548
GROMMET
ID=28 OD=35 T=25
1-09332-011-1
01
1
0609-
6
276
277
262
6
264
265
201
486
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82678-214-3
01
1
0609-
13
HARNESS; ENG
(A)
8-97605-001-6
01
1
0609-
13
HARNESS; ENG
(B)
1-82662-763-4
01
1
0609-0612
13
HARNESS; ENG
(B)
1-82662-933-0
01
1
0701-
201
HARNESS; AIR TANK
1-82678-216-1
01
1
0609-
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-605-1
01
1
0609-
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0609-
265
BOX; CONN,FRT PNL
1-82699-538-3
01
1
0609-
276
COVER; BOX,FRAME HARNESS
1-82699-558-3
01
1
0609-
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50640-625-0
02
1
0609-
486
HARNESS; ALL SPEED ACCEL
PTO CONTROL<SV6>
1-82675-898-0
01
1
0609-
18
12
254
419
558
18
213
544
1
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) BRAKE SYSTEM HSA<SLD>
1-82662-800-0
01
1
0609-
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. BRAKE SYSTEM HSA<SLD>
1-82626-365-0
01
1
0609-
1
HARNESS; CAB
EXC. AIR CONDITIONER MANUAL CONTROL(C60)
1-82625-717-1
01
1
0609-
12
HARNESS; ROOF
1-82660-024-2
01
1
0609-
18
HARNESS; DOOR
1-82628-582-0
01
1
0609-
18
HARNESS; DOOR
1-82628-584-0
01
1
0609-
213
CABLE; EARTH,CAB TO FRAME
1-82657-055-1
01
1
0609-
254
HARNESS; CAB FLOOR
BRAKE SYSTEM HSA<SLD>
1-82629-667-2
01
1
0609-
254
HARNESS; CAB FLOOR
EXC. BRAKE SYSTEM HSA<SLD>
1-82629-307-3
01
1
0609-
419
BOLT; CAB EARTH
M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
0609-1201
419
BOLT; CAB EARTH
M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1202-
467
HARNESS; FACIA
BRAKE SYSTEM HSA<SLD> (B)
1-82662-820-6
01
1
0609-
467
HARNESS; FACIA
(A)
1-82662-866-0
01
1
0609-
467
HARNESS; FACIA
EXC. BRAKE SYSTEM HSA<SLD> (B)
1-82662-819-6
01
1
0609-
544
SEAL; FRT MTG RAIL
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK
1-76798-019-0
01
1
0609-
558
CONNECTOR; HARNESS
1-82690-666-0
02
1
0609-
467
41
4
4
5
5
467
62
62
62
314
431
431
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
(A) 7.5AX15
1-82510-391-0
01
1
0609-
4
BOX ASM; FUSE,HARNESS
(B) 15AX16
1-82510-397-0
01
1
0609-
5
FUSE; FACIA HARNESS
15A BLUE
5-82516-003-0
16
1
0609-
5
FUSE; FACIA HARNESS
7.5A BROWN
8-94159-007-0
15
1
0609-
41
PULLER; FUSE
L=25.3 B=11.5
8-94121-482-0
01
1
0609-
62
DIODE; HARNESS
(A) BLACK 10P
1-82699-703-0
02
1
0609-
62
DIODE; HARNESS
(B) BLACK 3P-1.5A
8-94416-438-1
02
1
0609-
62
DIODE; HARNESS
(C) BLACK 2P-1.5A
8-94422-639-1
02
1
0609-
314
RESISTOR; HARNESS
BLUE
1-82691-204-0
02
1
0609-
431
CONNECTOR; JOINT
(B) 3P & 3P
1-82698-170-0
01
1
0609-
431
CONNECTOR; JOINT
(A) 10P BROWN
1-82699-601-0
07
1
0609-
467
HARNESS; FACIA
BRAKE SYSTEM HSA<SLD> (B)
1-82662-820-6
01
1
0609-
467
HARNESS; FACIA
(A)
1-82662-866-0
01
1
0609-
467
HARNESS; FACIA
EXC. BRAKE SYSTEM HSA<SLD> (B)
1-82662-819-6
01
1
0609-
6
10
27
27
594
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82678-214-3
01
1
0609-
10
BOX; FUSE,HARNESS
1-82510-409-0
01
1
0609-
13
HARNESS; ENG
(A)
8-97605-001-6
01
1
0609-
13
HARNESS; ENG
(B)
1-82662-763-4
01
1
0609-0612
13
HARNESS; ENG
(B)
1-82662-933-0
01
1
0701-
27
FUSE UNIT
(A) 40A GREEN
8-94468-662-0
03
1
0609-
27
FUSE UNIT
(B) 60A YELLOW
8-94468-669-0
01
1
0609-
594
BOLT; GLOW PLUG HARNESS
M4X10 W/LK&PL WASHER
0-36230-410-0
01
1
0609-0701
