7-43 — SUN VISOR AND ASSIST GRIP
(#28210) — 43 parça
◀

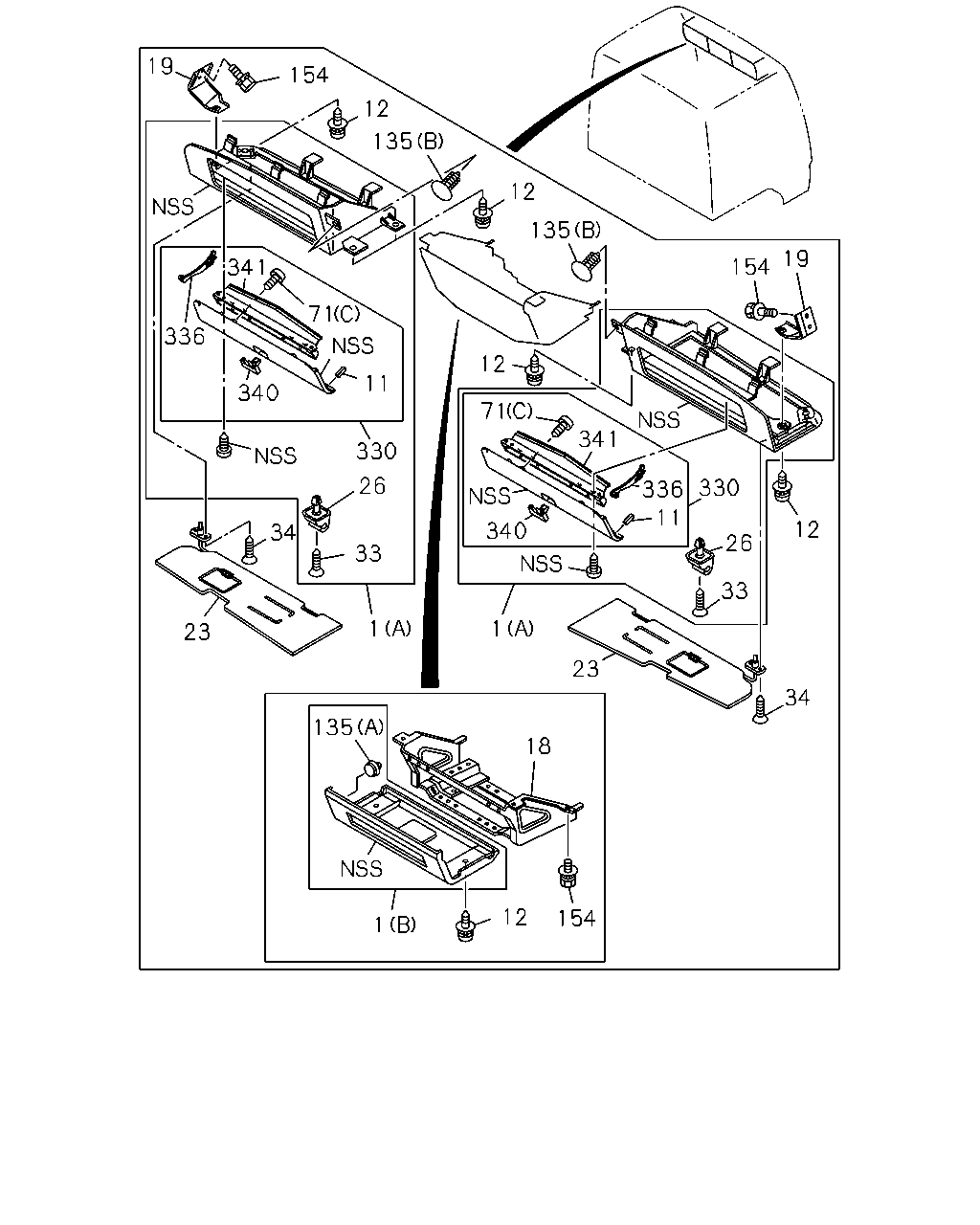

[743A] HEADER SHELF AND SUN VISOR (24 parça)
[743A] GRIP;ROOF PANEL AND FRONT PANEL (12 parça)
[743A] GRIP;CANT RAIL SIDE AND QUARTER SIDE (7 parça)
▶
19
154
12
135
12
135
19
154
341
71
336
12
11
340
71
341
330
26
330
336
11
12
340
34
26
33
33
1
1
23
23
34
135
18
12
154
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
(B) CENTER
1-72448-663-0
01
1
0609-
1
BOARD; HEADER SHELF
(A)
1-73318-690-0
01
1
0609-
1
BOARD; HEADER SHELF
(A)
1-73318-691-0
01
1
0609-
11
CAP; HEADER SHELF
8-94270-538-0
04
1
0609-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
12
1
0609-
18
SUPPORT; HEADER SHELF CENTER
8-97865-124-1
01
1
0609-
19
SUPPORT ASM; HEADER SHELF
1-72448-323-1
01
1
0609-
19
SUPPORT ASM; HEADER SHELF
1-72448-324-1
01
1
0609-
23
SUN VISOR
1-73138-156-1
01
1
0609-
23
SUN VISOR
1-73138-157-1
01
1
0609-
26
HOLDER; SUN VISOR
1-73137-175-0
02
1
0609-
33
SCREW; HOLDER,SUN VISOR
M4X16 TAPPING OVAL-HEAD
0-70540-416-0
02
1
0609-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
02
1
0609-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
02
1
0609-
71
SCREW
ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER
5-09981-064-0
02
1
0609-
71
SCREW
(C) M5X14 W/PL WASHER
5-09981-050-0
06
1
0609-
71
SCREW
(B) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
0609-
135
CLIP; HEADER SHELF
(B) D6X23 BLACK
1-09987-114-0
02
1
0609-
135
CLIP; HEADER SHELF
(A) OD=7.9 BLACK
8-94279-974-1
06
1
0609-
154
BOLT; SUPPORT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
0609-
330
LID; HEADER SHELF
1-72448-679-0
02
1
0609-
336
STAY; LID
1-72448-379-3
04
1
0609-
340
LOCK; HEADER SHELF
1-72448-376-0
02
1
0609-
341
HINGE; LID,HEADER SHELF
1-72448-403-1
02
1
0609-
64
64
64
62
64
48
48
48
48
62
68
66
103
48
59
68
66
48
48
59
103
48
59
48
59
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
0609-
48
BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
0609-
48
BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0609-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
0609-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
0609-
62
GRIP; ASSIST,ROOF PANEL
1-71907-492-0
02
1
0609-0907
62
GRIP; ASSIST,ROOF PANEL
8-97630-819-0
02
1
0908-
64
SHEET; ASSIST GRIP
25X25
8-94272-533-0
04
1
0609-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
0609-
68
BRACKET; ASSIST GRIP,FRT PANEL
1-65580-203-0
02
1
0609-
103
GRIP; ASSIST,FRT PNL
1-71998-791-2
01
1
0609-
103
GRIP; ASSIST,FRT PNL
1-71998-792-2
01
1
0609-
87
71
150
142
71
54
150
71
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
54
GRIP; ASSIST,QUARTER SIDE
1-73618-185-1
02
1
0609-
71
SCREW
ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER
5-09981-064-0
02
1
0609-
71
SCREW
(C) M5X14 W/PL WASHER
5-09981-050-0
06
1
0609-
71
SCREW
(B) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
0609-
87
GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP<EG5> DARK GRAY
8-97098-476-2
01
1
0609-
142
SEAL; ASSIST GRIP
OD=25 BLACK
1-76798-019-0
02
1
0609-
150
CLIP; ASSIST GRIP HOLE
ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY
1-73996-301-0
02
1
0609-
