7-20 — MIRROR AND MIRROR STAY (#28207) — 146 parça

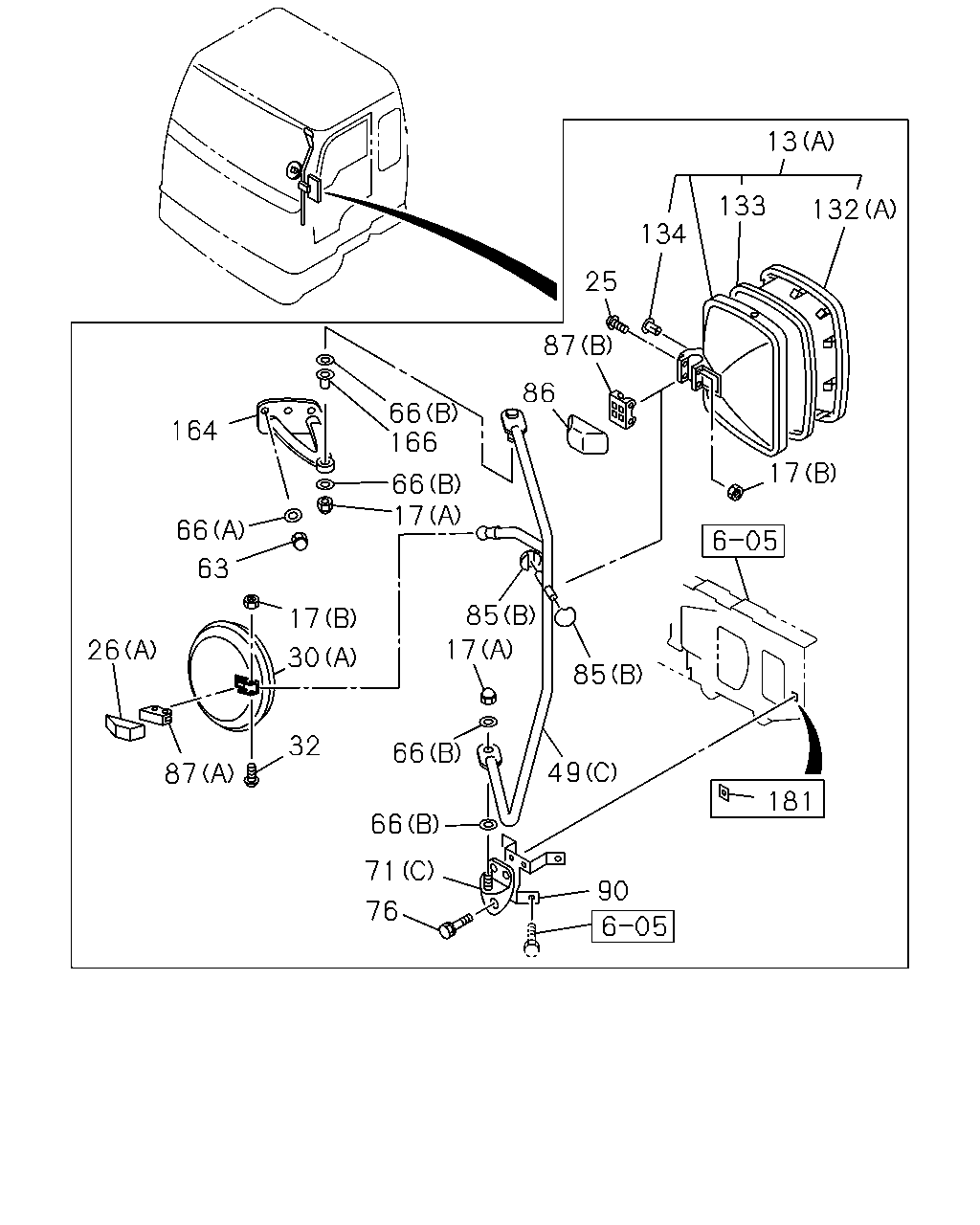

13 133 132 134 25 87 49 66 166 66 17 86 164 17 66 17 63 85 134 85 32 30 132 30 17 66 87 135 26 32 66 26 87 90 17 71 76 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0609-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0609-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0609-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0609-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0609-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0609-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	04	1	0609-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0609-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0609-
26	COVER; OUTSIDE MIRROR (A) BLACK	1-71737-649-1	01	1	0609-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-652-1	01	1	0609-
30	MIRROR; UNDER (A)	1-71798-591-1	01	1	0609-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0609-
32	SCREW; UNDER MIRROR MIR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0609-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0609-
49	STAY; MIRROR SIDE MIR O/S UNDER VIEW<RR9> (C)	1-71797-856-2	01	1	0609-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-763-2	01	1	0609-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0609-
63	NUT; STAY M8	1-09984-187-0	03	1	0609-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0609-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0609-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0609-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	0609-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0609-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0609-
85	PIVOT; MAIN MIRROR (B) ID=22.2	1-71736-489-2	02	1	0609-
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0609-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0609-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0609-
87	SPACER MIR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0609-
87	SPACER (B)	1-71737-704-0	01	1	0609-
87	SPACER (B)	1-71737-704-0	01	1	0609-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0609-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0609-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0609-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-933-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-935-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE	1-71737-927-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER VIEW<RR9>	1-71737-927-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-926-0	01	1	0609-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0609-
134	CLIP; MIRROR LENS MIR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0609-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0609-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-929-0	01	1	0609-
164	STAY; ROOF	1-71798-299-4	01	1	0609-
166	BUSHING; STAY	1-09983-175-1	01	1	0609-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0609-

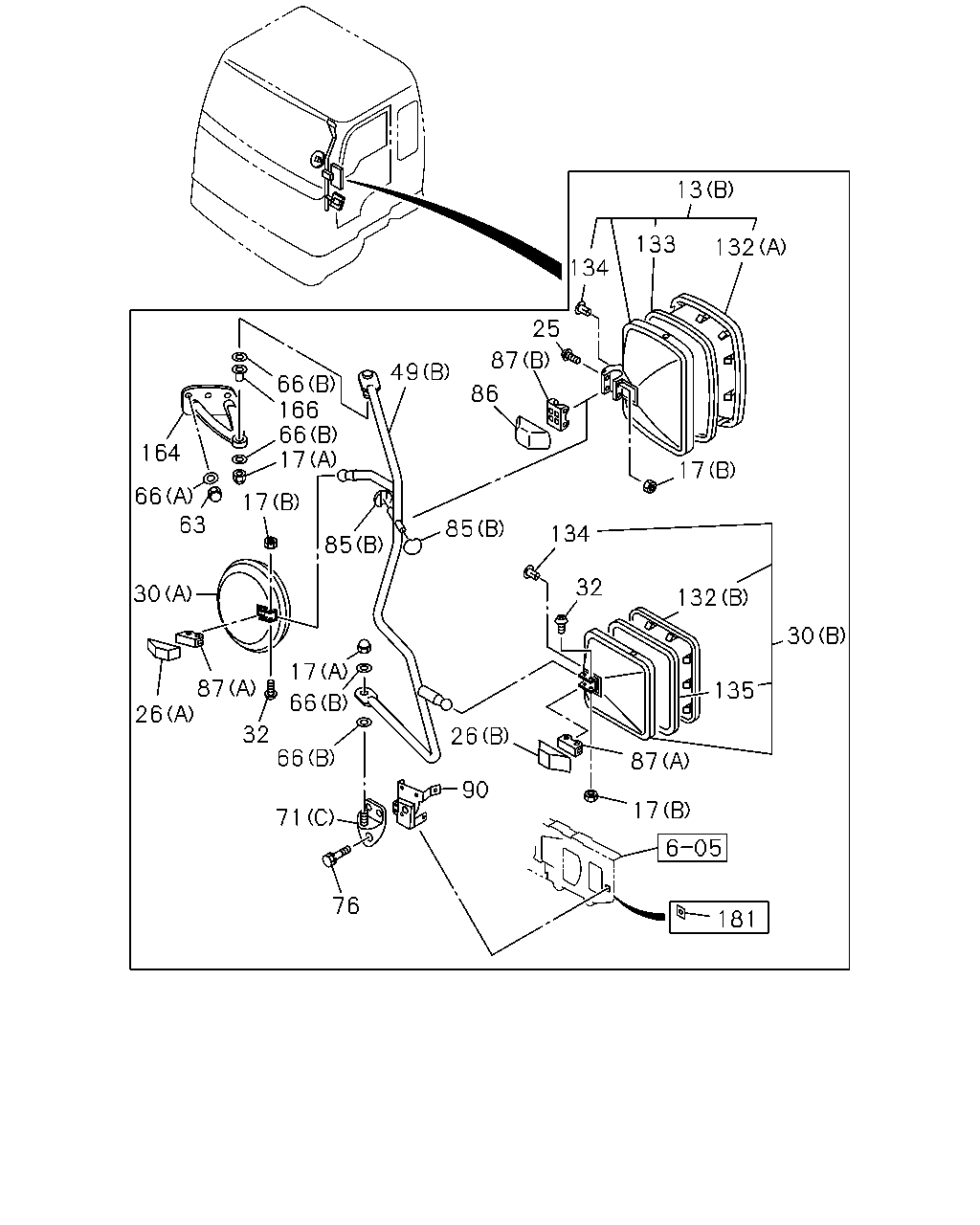

13 133 132 134 25 87 86 66 166 164 17 66 17 66 63 85 17 17 26 30 85 32 66 49 87 181 66 71 90 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0609-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0609-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0609-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0609-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0609-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0609-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	04	1	0609-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0609-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0609-
26	COVER; OUTSIDE MIRROR (A) BLACK	1-71737-649-1	01	1	0609-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-652-1	01	1	0609-
30	MIRROR; UNDER (A)	1-71798-591-1	01	1	0609-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0609-
32	SCREW; UNDER MIRROR MIR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0609-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0609-
49	STAY; MIRROR SIDE MIR O/S UNDER VIEW<RR9> (C)	1-71797-856-2	01	1	0609-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-763-2	01	1	0609-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0609-
63	NUT; STAY M8	1-09984-187-0	03	1	0609-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0609-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0609-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0609-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	0609-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0609-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0609-
85	PIVOT; MAIN MIRROR (B) ID=22.2	1-71736-489-2	02	1	0609-
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0609-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0609-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0609-
87	SPACER MIR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0609-
87	SPACER (B)	1-71737-704-0	01	1	0609-
87	SPACER (B)	1-71737-704-0	01	1	0609-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0609-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0609-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0609-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-933-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-935-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE	1-71737-927-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER VIEW<RR9>	1-71737-927-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-926-0	01	1	0609-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0609-
134	CLIP; MIRROR LENS MIR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0609-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0609-
164	STAY; ROOF	1-71798-299-4	01	1	0609-
166	BUSHING; STAY	1-09983-175-1	01	1	0609-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0609-

2 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	MIRROR; ROOM	1-73117-033-1	01	1	0609-
	2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0609-

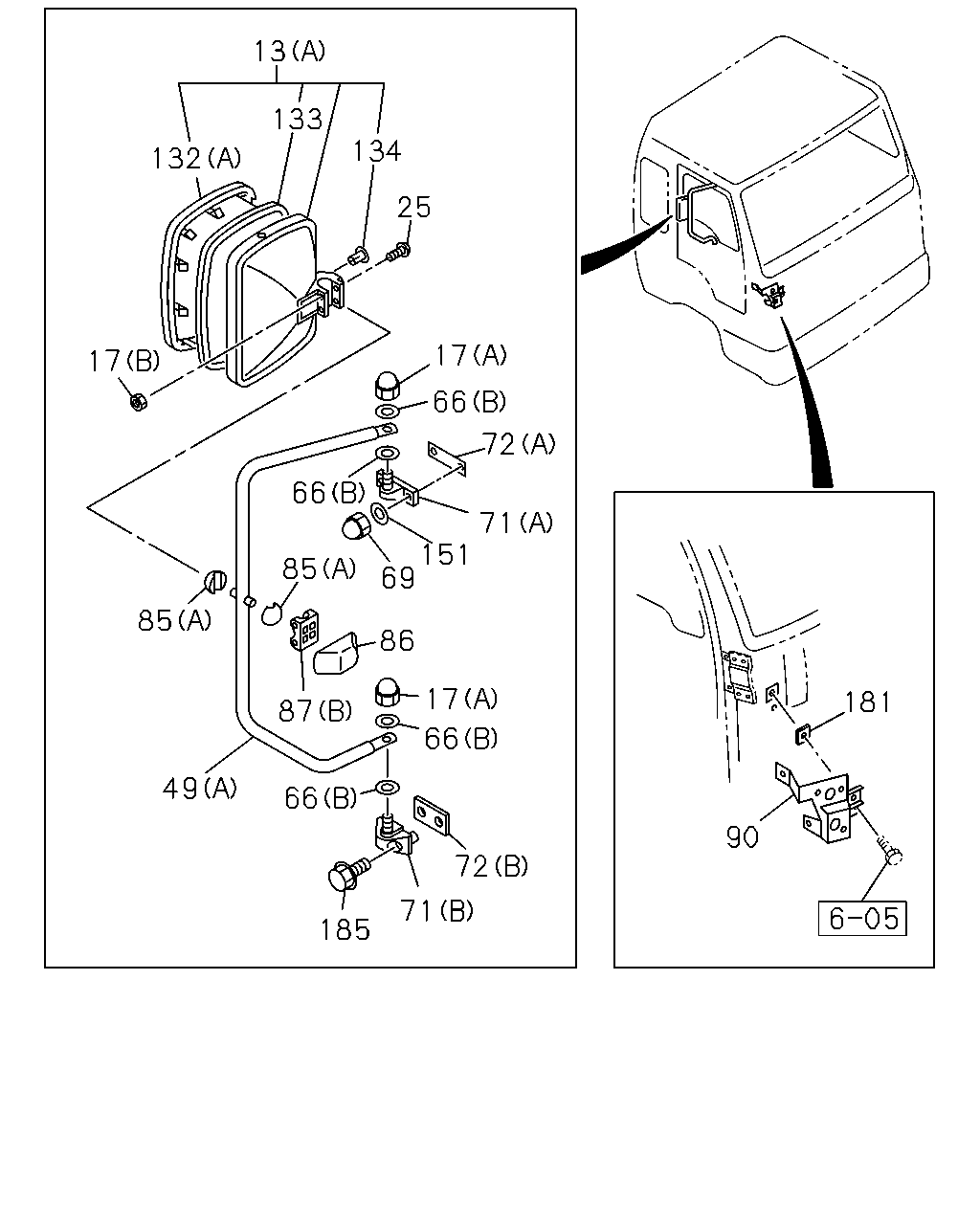

13 133 134 132 25 17 17 66 72 66 71 151 69 85 85 86 17 181 87 66 49 66 90 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0609-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0609-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0609-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0609-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0609-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0609-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	04	1	0609-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0609-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0609-
49	STAY; MIRROR SIDE MIR O/S UNDER VIEW<RR9> (C)	1-71797-856-2	01	1	0609-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-763-2	01	1	0609-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0609-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0609-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0609-
69	NUT; CAP M8	1-09984-187-0	02	1	0609-0809
69	NUT; CAP M8 CAP NUT	8-98059-914-0	02	1	0810-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0609-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	0609-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0609-
72	SHEET (A)	1-71798-487-3	01	1	0609-
72	SHEET (B)	1-71798-488-1	01	1	0609-
85	PIVOT; MAIN MIRROR (B) ID=22.2	1-71736-489-2	02	1	0609-
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0609-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0609-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0609-
87	SPACER MIR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0609-
87	SPACER (B)	1-71737-704-0	01	1	0609-
87	SPACER (B)	1-71737-704-0	01	1	0609-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0609-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0609-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0609-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-933-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-935-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE	1-71737-927-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER VIEW<RR9>	1-71737-927-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-926-0	01	1	0609-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0609-
134	CLIP; MIRROR LENS MIR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0609-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0609-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0609-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0609-
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	02	1	0609-
