2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#2820) — 106 parça

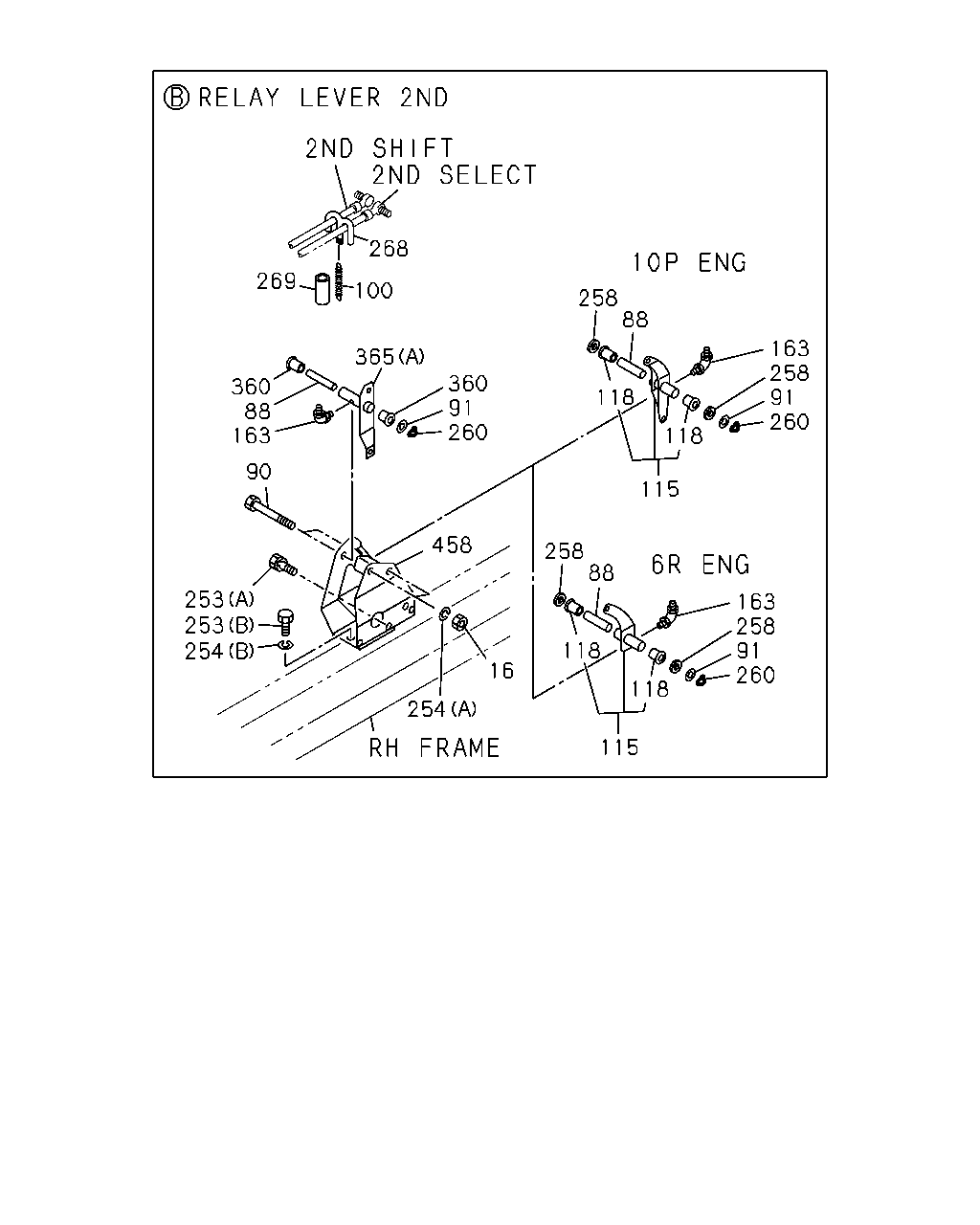

268 269 100 365 360 91 360 88 163 90 458 253 253 254 258 88 118 16 254 115 118 118 88 258 163 258 91 260 163 258 91 260 118 115 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	NUT; RELAY LEVER M14	9-99111-514-0	02	1	9002-	●	●	●	●	●	●
88	COLLAR; RELAY LEVER	1-33659-074-0	02	1	9002-	●	●	●	●	●	●
90	SHAFT	1-33619-125-0	02	1	9002-	●	●	●	●	●	●
91	SHIM; RELAY LEVER	1-33659-092-0	02	1	9002-	●	●	●	●	●	●
100	SPRING 6RA1TC ENG(19L)	1-09583-218-0	01	1	9002-9306		●
115	LEVER; RELAY,2ND SHIFT	1-33651-505-1	01	1	9002-	●			●	●	●
115	LEVER; RELAY,2ND SHIFT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L)	1-33651-505-1	01	1	9002-		●	●
115	LEVER; RELAY,2ND SHIFT 10PD1 STD ENG(40L)	1-33651-504-1	01	1	9002-		●	●
118	BUSHING; RELAY LEVER ID=22 OD=25 L=18	1-09330-050-0	02	1	9002-	●	●	●	●	●	●
163	NIPPLE; GREASE,RELAY LEVER PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9002-	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X40	9-92051-440-0	02	1	9002-9005	●			●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (B) M14X40	9-92051-440-0	02	1	9002-9005		●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X40	0-20801-440-0	02	1	9006-	●			●	●	●
253	BOLT; BRKT,2ND RELAY LEVER 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (B) M14X40	0-20801-440-0	02	1	9006-		●	●
253	BOLT; BRKT,2ND RELAY LEVER 10PD1 STD ENG(40L) (B) M14X45	9-92051-445-0	02	1	9002-9005		●	●
253	BOLT; BRKT,2ND RELAY LEVER 10PD1 STD ENG(40L) (B) M14X45	0-20801-445-0	02	1	9006-9306		●	●
254	WASHER; LK,RELAY LEVER (A) ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●	●	●
254	WASHER; LK,RELAY LEVER (B) ID=14.2	9-09150-614-0	02	1	9002-	●	●	●	●	●	●
258	WASHER; RELAY LEVER	1-09509-041-0	02	1	9002-	●	●	●	●	●	●
260	WASHER; WAVED	1-33659-093-0	02	1	9002-	●	●	●	●	●	●
268	BRACKET; LINK ROD 6RA1TC ENG(19L)	1-33657-216-0	01	1	9002-9306		●
269	COVER; SPR 6RA1TC ENG(19L)	1-15669-002-0	01	1	9002-9306		●
360	BUSHING; RELAY LEVER L=24	5-33659-054-0	02	1	9002-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT 10PD1 STD ENG(40L) (A)	1-33651-249-4	01	1	9002-9306		●	●
365	LEVER; RELAY,SELECT (C)	1-33651-285-2	01	1	9002-9306	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-557-0	01	1	9307-	●	●	●			●
365	LEVER; RELAY,SELECT (B)	1-33651-286-2	01	1	9002-9306	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-555-0	01	1	9307-	●	●	●			●
365	LEVER; RELAY,SELECT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (A)	1-33651-295-1	01	1	9002-9306	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-295-1	01	1	9307-	●	●	●			●
458	BRACKET; 2ND RELAY LEVER 10PD1 STD ENG(40L)	1-33657-210-4	01	1	9002-		●	●
458	BRACKET; 2ND RELAY LEVER 6RB1 STD ENG(07L),6RB1TC ENG(30L)	1-33657-221-5	01	1	9002-	●	●	●	●	●	●
458	BRACKET; 2ND RELAY LEVER 6RA1TC ENG(19L)	1-33657-215-5	01	1	9002-9306		●

310 366 366 386 387 325 300 325 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
300	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●	●	●	●
300	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●	●	●	●
300	BOLT; CLIP NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	01	1	9303-9405	●	●	●	●	●	●
303	NUT; CLIP NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9002-9405	●	●	●	●	●	●
310	CLIP; TUBE ID=13.5 & 11	1-09709-123-0	02	1	9002-9007	●			●	●	●
310	CLIP; TUBE 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) ID=13.5 & 11	1-09709-123-0	02	1	9002-9007		●	●
310	CLIP; TUBE 10PD1 STD ENG(40L) ID=13.5 & 9.5 & 11	1-09709-124-0	02	1	9002-9007		●	●
325	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9306	●	●	●	●	●	●
325	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9307-9405	●	●	●	●	●	●
325	CLIP; NYLON TUBE NYLON TUBE AIR PIPING<Z29> (B) L=250	1-09707-126-0	01	1	9307-	●	●	●	●	●	●
366	TUBE; NYLON,FULLER CONT BLACK OD=1/8" L=30000	1-09368-255-0	AR	1	9002-9306	●	●	●	●	●	●
366	TUBE; NYLON,FULLER CONT WHITE OD=1/8" L=30000	1-09368-256-0	AR	1	9002-9306	●	●	●	●	●	●
366	TUBE; NYLON,FULLER CONT WHITE OD=3/8" L=30000	1-09369-315-0	AR	1	9002-9306	●	●	●	●	●	●
366	TUBE; NYLON,FULLER CONT COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTI DISC<BCP> RED OD=3.96MM SERVICED BY L=5800 RED	1-33619-362-0	01	1	9307-		●				●
366	TUBE; NYLON,FULLER CONT COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTI DISC<BCP> BLACK OD=3.96MM SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9307-		●				●
366	TUBE; NYLON,FULLER CONT COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTI DISC<BCP> BLUE OD=3.96MM SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9307-		●				●
366	TUBE; NYLON,FULLER CONT COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTI DISC<BCP> GREEN OD=3.96MM SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9307-		●				●
366	TUBE; NYLON,FULLER CONT COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTI DISC<BCP> YELLOW OD=3.96MM	1-33619-394-0	01	1	9307-		●				●
366	TUBE; NYLON,FULLER CONT COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTI DISC<BCP> ORANGE OD=3.96MM SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9307-		●				●
386	CLIP; CONT CABLE & TUBE L=140	5-09707-031-0	02	1	9002-9007	●	●	●	●	●	●
386	CLIP; CONT CABLE & TUBE L=140	5-09707-031-1	01	1	9008-	●	●	●	●	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	9002-9306	●	●	●	●	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	9307-	●	●	●			●

111 113 113 164 361 113 362 112 112 110 362 112 164 110 264 29 114 112 365 264 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

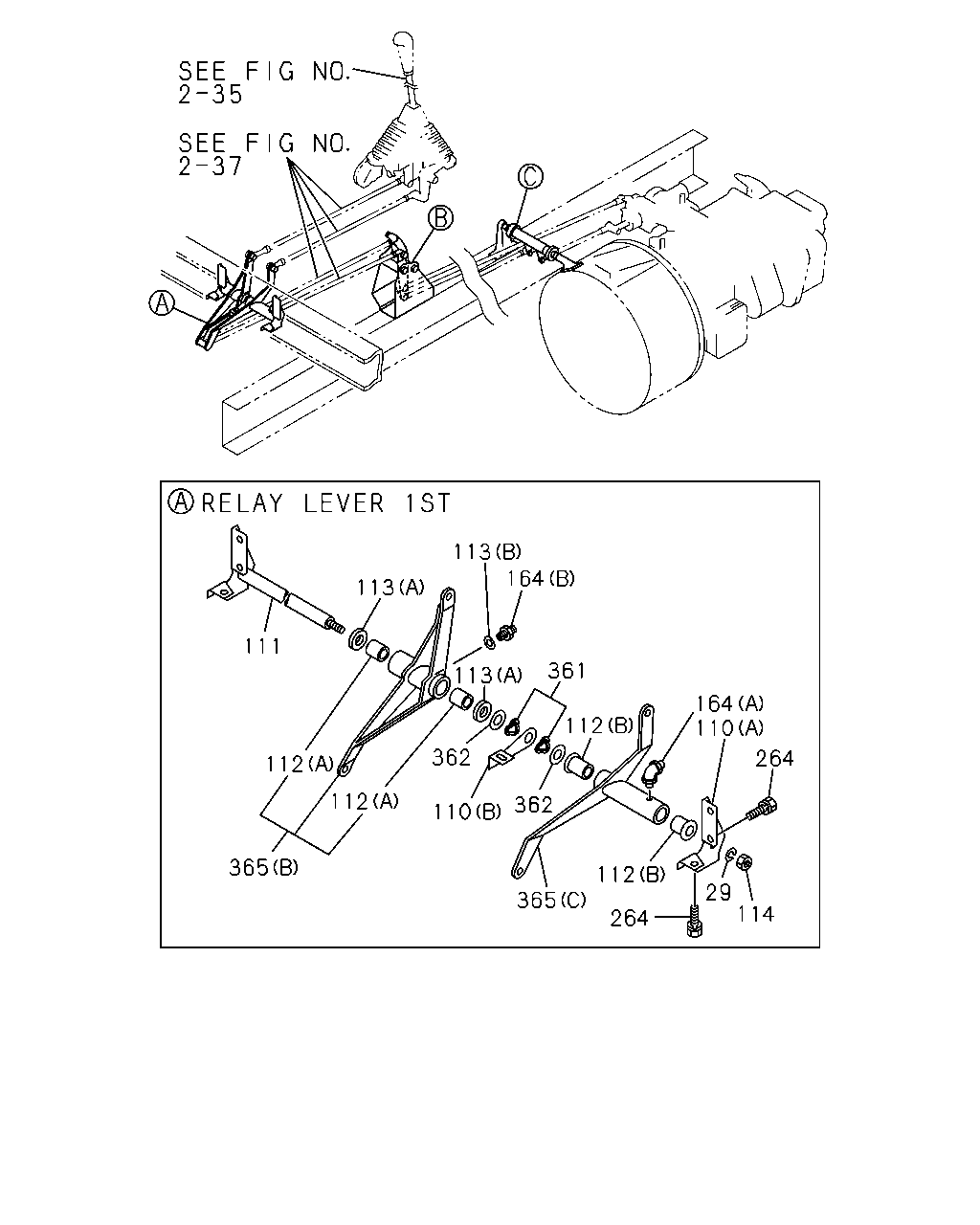

29	WASHER; LK,RELAY LEVER ID=14.2	9-09150-514-0	01	1	9002-	●	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST (A)	1-33657-180-1	01	1	9002-	●	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST (B)	1-33657-184-2	01	1	9002-	●	●	●	●	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-123-1	01	1	9002-	●	●	●	●	●	●
112	BUSHING; RELAY LEVER (A) ID=22 OD=25 L=18	1-09330-050-0	02	1	9002-	●	●	●	●	●	●
112	BUSHING; RELAY LEVER (B) L=24	5-33659-054-0	02	1	9002-	●	●	●	●	●	●
113	WASHER; RELAY LEVER (A)	1-09509-041-0	02	1	9002-	●	●	●	●	●	●
113	WASHER; RELAY LEVER (B)	9-09160-506-0	01	1	9002-	●	●	●	●	●	●
114	NUT; RELAY LEVER M14	9-99110-414-0	01	1	9002-	●	●	●	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD (B)	9-09031-006-0	01	1	9002-	●	●	●	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD (A) PT1/8 ELBOW	9-09031-210-0	01	1	9002-	●	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	9-01970-825-0	07	1	9002-9005	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	0-50140-825-0	07	1	9006-	●	●	●	●	●	●
361	WASHER; WAVED	1-33659-093-0	02	1	9002-	●	●	●	●	●	●
362	SHIM	1-33659-092-0	02	1	9002-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT 10PD1 STD ENG(40L) (A)	1-33651-249-4	01	1	9002-9306		●	●
365	LEVER; RELAY,SELECT (C)	1-33651-285-2	01	1	9002-9306	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-557-0	01	1	9307-	●	●	●			●
365	LEVER; RELAY,SELECT (B)	1-33651-286-2	01	1	9002-9306	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-555-0	01	1	9307-	●	●	●			●
365	LEVER; RELAY,SELECT 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (A)	1-33651-295-1	01	1	9002-9306	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-295-1	01	1	9307-	●	●	●			●

206 71 46 34 34 34 71 162 34 46 35 33 33 71 35 34 46 34 34 162 34 71 46 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
33	BOLT; BRKT,3RD RELAY LEVER M12X45 W/LK WASHER	0-50041-245-0	02	1	9307-	●	●	●			●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M14X45	9-92051-445-0	01	1	9002-9005		●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M14X45	0-20801-445-0	01	1	9006-9306		●	●
33	BOLT; BRKT,3RD RELAY LEVER M12X45	9-01911-245-0	02	1	9002-9005	●			●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) M12X45	9-01911-245-0	02	1	9002-9005		●	●
33	BOLT; BRKT,3RD RELAY LEVER M12X45 W/LK WASHER	0-50041-245-0	02	1	9006-9306	●			●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) M12X45 W/LK WASHER	0-50041-245-0	02	1	9006-9306		●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X45 W/LK WASHER	0-50041-045-0	01	1	9002-9205		●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X40 W/LK WASHER	0-50041-040-0	01	1	9206-9306		●	●
34	SEAT; BALL,RELAY LEVER	1-33659-118-0	04	1	9002-	●	●	●	●	●	●
35	RING; SNAP,RELAY LEVER OD=23.5	9-09180-122-0	01	1	9002-	●	●	●	●	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-076-0	02	1	9002-	●	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (C)	1-33657-193-2	01	1	9307-	●	●	●			●
71	BRACKET; 3RD RELAY LEVER,FRAME (D)	1-33657-200-0	01	1	9307-	●	●	●			●
71	BRACKET; 3RD RELAY LEVER,FRAME (C)	1-33657-193-2	01	1	9002-9306	●			●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (C)	1-33657-193-2	01	1	9002-9306		●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (D)	1-33657-200-0	01	1	9002-9306	●			●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (D)	1-33657-200-0	01	1	9002-9306		●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PD1 STD ENG(40L) (B)	1-33657-188-0	01	1	9002-9306		●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PD1 STD ENG(40L) (A)	1-33657-223-0	01	1	9002-9306		●	●
162	LEVER; RELAY 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L)	1-33651-338-1	01	1	9002-	●	●	●	●	●	●
162	LEVER; RELAY 10PD1 STD ENG(40L)	1-33651-403-3	01	1	9002-		●	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●			●	●	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005		●	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●			●	●	●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-		●	●
242	NUT; FLANGE 3RD RELAY LEVER 8PD1 STD ENG(38L),10PD1 STD ENG(40L) M8 FLANGE	5-09440-005-0	04	1	9002-			●
