8-50 — AIR CONDITIONING SYSTEM; FRONT (#282) — 42 parça

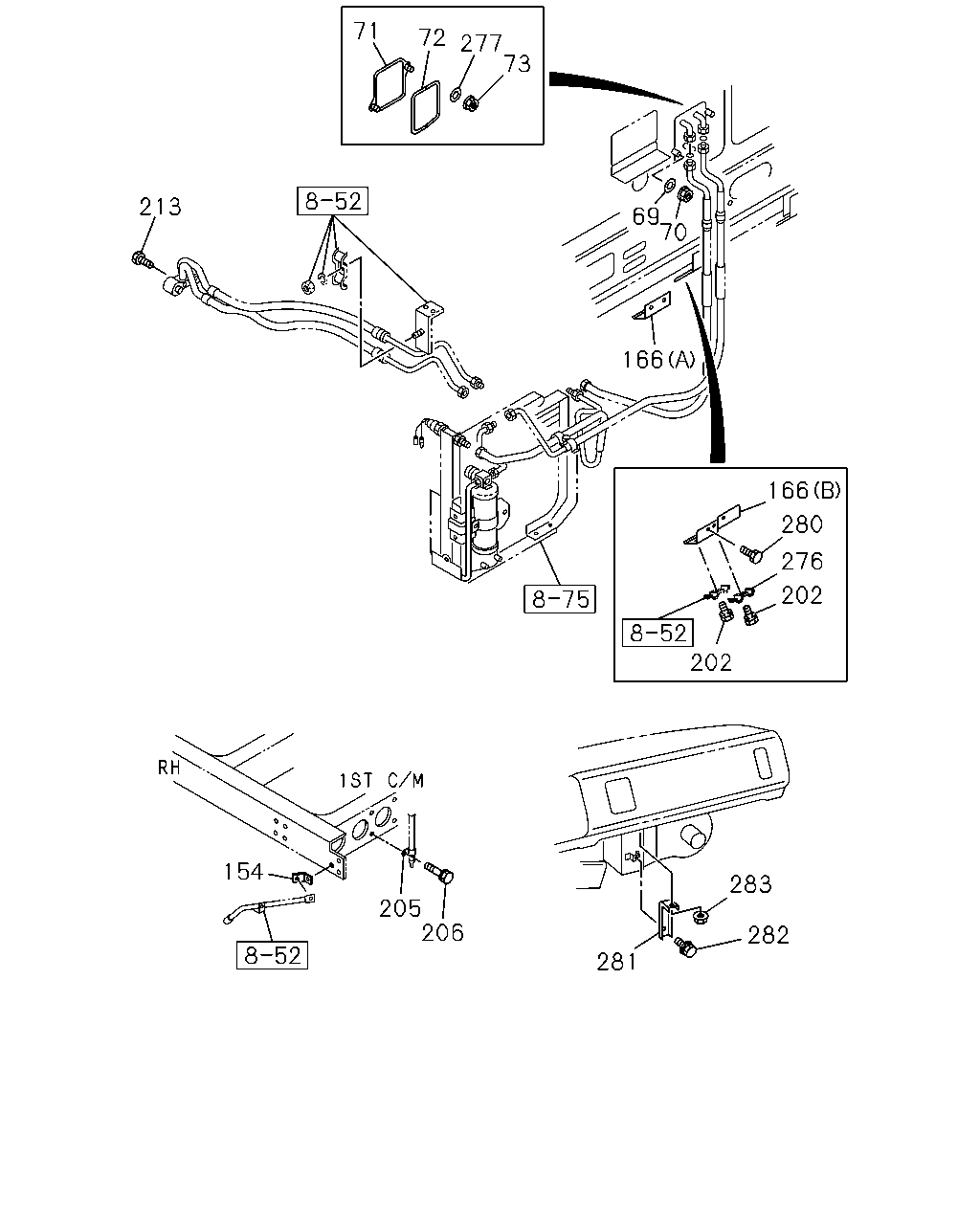

71 72 277 73 69 70 166 166 280 202 276 202 283 282 281 206 205 154 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	WASHER; PL,EVAP AIR CON MANUAL CONTROL(C60) OD=20	1-09509-047-0	01	1	9212-
69	WASHER; PL,EVAP AIR CON MANUAL CONTROL(C60) OD=14	1-09509-048-0	02	1	9212-
70	NUT; EVAP,A/C AIR CON MANUAL CONTROL(C60) M6 FLANGE	1-09984-141-0	03	1	9212-
71	COVER; EVAP,A/C EXC. AIR CON MANUAL CONTROL(C60)	1-71997-460-1	01	1	9212-
72	SEAL; COVER,EVAP EXC. AIR CON MANUAL CONTROL(C60)	1-71998-221-0	01	1	9212-
73	NUT; COVER,A/C EVAP EXC. AIR CON MANUAL CONTROL(C60) M6 FLANGE	1-09984-141-0	02	1	9212-
154	BRACKET; STAY AIR CON MANUAL CONTROL(C60)	1-83571-421-0	01	1	9212-9302
154	BRACKET; STAY AIR CON MANUAL CONTROL(C60) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-83571-421-0	01	1	9303-
154	BRACKET; STAY AIR CON MANUAL CONTROL(C60) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-83571-421-0	01	1	9303-
154	BRACKET; STAY AIR CON MANUAL CONTROL(C60) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-83571-864-0	01	1	9303-
166	BRACKET; FLEX HOSE (B) L=200	1-71118-359-3	01	1	9212-
166	BRACKET; FLEX HOSE AIR CON MANUAL CONTROL(C60) (A) L=85	1-83571-397-2	01	1	9212-
202	BOLT; CLIP,FLEX HOSE AIR CON MANUAL CONTROL(C60) M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9212-
205	CLIP; BAND,DRAIN HOSE AIR CON MANUAL CONTROL(C60) ID=35 L=35	1-09700-908-0	01	1	9212-
206	BOLT; CLIP BRKT AIR CON MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	01	1	9212-
213	BOLT; FLEX HOSE TO CMPR AIR CON MANUAL CONTROL(C60) M8X25 FLANGE	0-28080-825-0	02	1	9212-
213	BOLT; FLEX HOSE TO CMPR AIR CON MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9212-
276	CLIP; FLEX HOSE AIR CON MANUAL CONTROL(C60)	1-83574-116-0	01	1	9212-
277	WASHER; EVAP COVER EXC. AIR CON MANUAL CONTROL(C60) OD=14	1-09509-048-0	02	1	9212-
280	BOLT; BRKT,A/C FLEX HOSE AIR CON MANUAL CONTROL(C60) M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9212-
280	BOLT; BRKT,A/C FLEX HOSE M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9212-
281	STAY; EVAP AIR CON MANUAL CONTROL(C60)	1-65680-446-0	01	1	9212-
282	BOLT; STAY,EVAP AIR CON MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9212-
283	NUT; STAY,EVAP AIR CON MANUAL CONTROL(C60) M6 FLANGE	5-09440-004-0	01	1	9212-

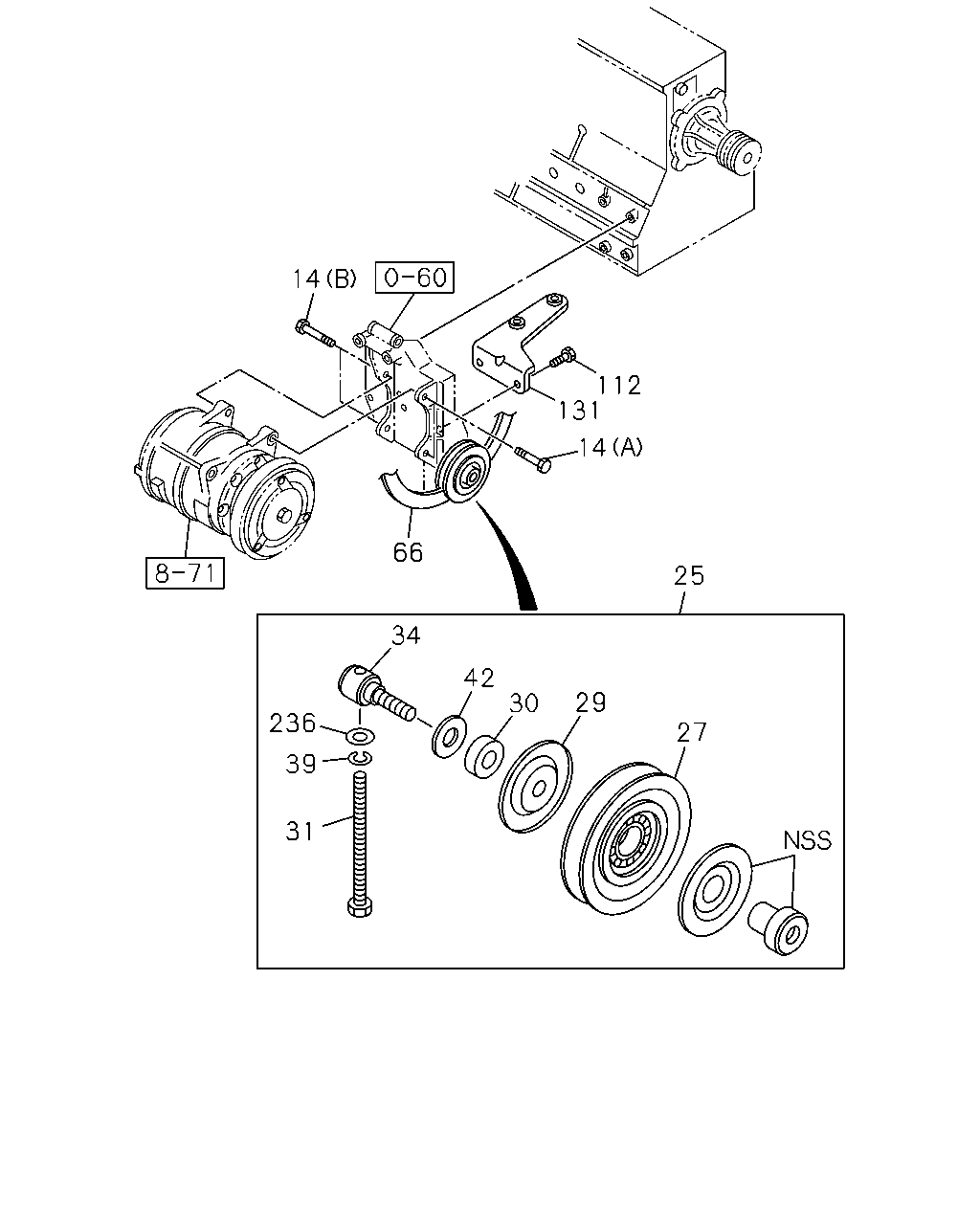

14 112 14 131 66 25 34 42 30 29 27 236 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	BOLT; CMPR AIR CON MANUAL CONTROL(C60) (A) M10X30 FLANGE	0-28081-030-0	02	1	9212-9411
14	BOLT; CMPR AIR CON MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	02	1	9412-
14	BOLT; CMPR AIR CON MANUAL CONTROL(C60) (B) M10X45 FLANGE	0-28081-045-0	02	1	9212-
25	PULLEY ASM; IDLER,CMPR AIR CON MANUAL CONTROL(C60)	8-94399-957-0	01	1	9212-
27	PULLEY; IDLE,A/C AIR CON MANUAL CONTROL(C60)	1-83579-116-0	01	1	9212-
29	COVER; DUST,IDLE PULLEY AIR CON MANUAL CONTROL(C60)	9-13369-603-0	01	1	9212-
30	COLLAR; IDLE PULLEY AIR CON MANUAL CONTROL(C60)	1-83579-144-0	01	1	9212-
31	BOLT; ADJ,IDLE PULLEY AIR CON MANUAL CONTROL(C60)	1-83579-143-0	01	1	9212-
34	SHAFT; IDLE PULLEY AIR CON MANUAL CONTROL(C60)	1-83579-236-0	01	1	9212-
39	WASHER; LK,ADJ BOLT AIR CON MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	9212-
42	WASHER; PULLEY AIR CON MANUAL CONTROL(C60)	8-97014-636-0	01	1	9212-
66	BELT; A/C CMPR 6HE1 N ENG(47L) AIR CON MANUAL CONTROL(C60) L=1082	1-13671-256-0	01	1	9212-
66	BELT; A/C CMPR 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) EXC. FLUID DRIVE FAN<KA3> L=1082	1-13671-256-0	01	1	9212-
66	BELT; A/C CMPR 6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) FLUID DRIVE FAN<KA3> L=1110	1-13671-217-0	01	1	9212-
112	BOLT; STAY AIR CON MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	02	1	9212-
131	STAY; CMPR BRKT AIR CON MANUAL CONTROL(C60)	8-94396-990-0	01	1	9212-9410
131	STAY; CMPR BRKT AIR CON MANUAL CONTROL(C60)	8-94393-451-0	01	1	9411-
236	WASHER; PL,ADJ BOLT AIR CON MANUAL CONTROL(C60)	1-09503-216-0	01	1	9212-
