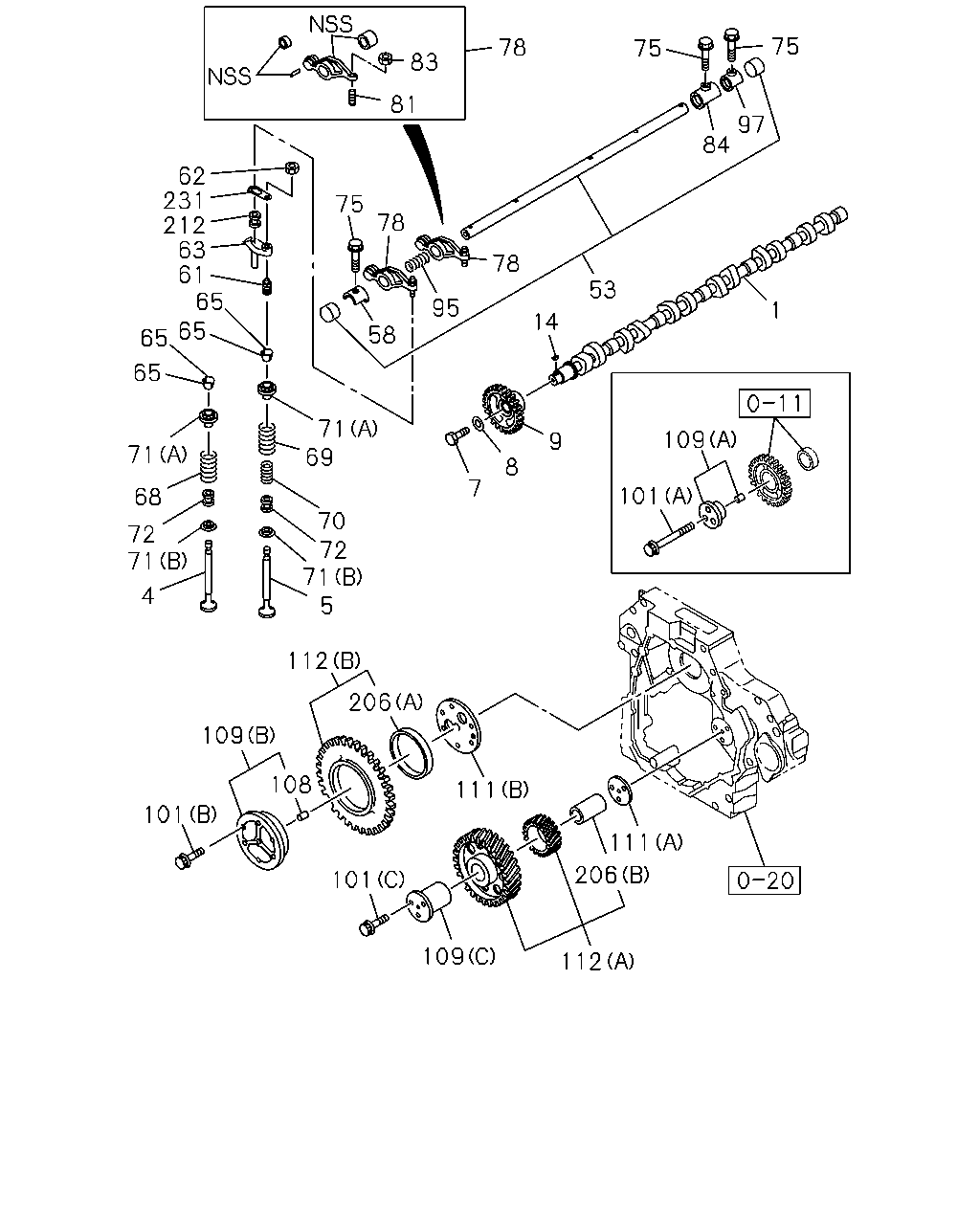

0-14 — CAMSHAFT AND VALVE (#28191) — 85 parça

75 97 84 75 1 53 14 9 8 7 101 109 78 78 95 58 78 75 71 69 83 81 70 72 71 5 112 109 206 111 111 206 112 109 101 108 101 4 71 72 71 65 65 65 65 61 63 212 231 62 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	1-12511-255-2	01	1	0509-0602	●
1	CAMSHAFT	1-12511-255-2	01	1	0603-	●	●
4	VALVE; INL	1-12551-162-1	12	1	0509-0602	●
4	VALVE; INL	1-12551-162-4	12	1	0603-	●	●
5	VALVE; EXH	1-12552-100-2	12	1	0509-0602	●
5	VALVE; EXH	1-12552-100-3	12	1	0603-	●	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0509-0602	●
7	BOLT; CM/SHF GEAR M14X28	9-92061-428-0	01	1	0603-	●	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0509-0602	●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0603-	●	●
9	GEAR; CM/SHF Z=54	1-12522-060-0	01	1	0509-0602	●
9	GEAR; CM/SHF Z=54	1-12522-060-1	01	1	0603-	●	●
14	KEY; CM/SHF	9-08055-516-0	01	1	0509-0602	●
14	KEY; CM/SHF	9-08055-516-0	01	1	0603-	●	●
53	SHAFT; ROCKER ARM	8-98191-745-2	01	1	0509-	●	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-070-2	01	1	0509-0602	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-070-3	01	1	0603-	●	●
61	SCREW; ADJ,BRIDGE	1-12616-042-0	12	1	0509-0602	●
61	SCREW; ADJ,BRIDGE	1-12616-042-0	12	1	0603-	●	●
62	NUT; ADJ SCREW LK BRIDGE M10	9-09840-310-0	12	1	0509-0602	●
62	NUT; ADJ SCREW LK BRIDGE M10	9-09840-310-0	12	1	0603-	●	●
63	BRIDGE	1-12611-277-3	12	1	0509-0602	●
63	BRIDGE	1-12611-277-3	12	1	0603-	●	●
65	COLLAR; SPLIT	1-12565-007-0	48	1	0509-0602	●
65	COLLAR; SPLIT	1-12565-007-0	48	1	0603-	●	●
68	SPRING; VLV	8-97603-305-0	12	1	0509-0602	●
68	SPRING; VLV	8-97603-305-0	12	1	0603-	●	●
69	SPRING; VLV,OUTER	1-12561-093-0	12	1	0509-0602	●
69	SPRING; VLV,OUTER	1-12561-093-0	12	1	0603-	●	●
70	SPRING; VLV,INNER	1-12562-060-0	12	1	0509-0602	●
70	SPRING; VLV,INNER	1-12562-060-0	12	1	0603-	●	●
71	SEAT; SPR (B)	1-12563-056-2	24	1	0509-0602	●
71	SEAT; SPR (B)	1-12563-056-2	24	1	0603-	●	●
71	SEAT; SPR (A)	1-12563-060-0	24	1	0509-0602	●
71	SEAT; SPR (A)	1-12563-060-0	24	1	0603-	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-020-0	24	1	0509-0602	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-12569-020-0	24	1	0603-	●	●
75	BOLT; BRKT M12X97 FLANGE	1-09044-087-1	07	1	0509-0602	●
75	BOLT; BRKT M12X97 FLANGE	1-09044-087-1	07	1	0603-	●	●
78	ARM; ROCKER	1-12610-080-0	12	1	0509-0602	●
78	ARM; ROCKER	1-12610-080-2	12	1	0603-	●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-034-1	12	1	0509-0602	●
81	SCREW; ADJ,ROCKER ARM	1-12616-034-1	12	1	0603-	●	●
83	NUT; ADJ SCREW,LK M12	9-99110-512-0	12	1	0509-0512	●
83	NUT; ADJ SCREW,LK M12	0-91110-512-0	12	1	0601-0602	●
83	NUT; ADJ SCREW,LK M12	0-91110-512-0	12	1	0603-	●	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-068-2	05	1	0509-0602	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-068-2	05	1	0603-	●	●
95	SPRING; ROCKER SHAFT	1-09580-472-1	06	1	0509-0602	●
95	SPRING; ROCKER SHAFT	1-09580-472-1	06	1	0603-	●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-072-2	01	1	0509-0602	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-072-3	01	1	0603-	●	●
101	BOLT; THRUST COLLAR (A) M10X40 FLANGE	0-28181-040-0	03	1	0509-0512	●
101	BOLT; THRUST COLLAR (A) M10X40 FLANGE	0-28151-040-0	03	1	0601-0602	●
101	BOLT; THRUST COLLAR (A) M10X40 FLANGE	0-28151-040-0	03	1	0603-	●	●
101	BOLT; THRUST COLLAR (B) M10X60 FLANGE	0-28181-060-0	06	1	0509-0512	●
101	BOLT; THRUST COLLAR (B) M10X60 FLANGE	0-28151-060-0	06	1	0601-0602	●
101	BOLT; THRUST COLLAR (B) M10X60 FLANGE	0-28151-060-0	06	1	0603-	●	●
101	BOLT; THRUST COLLAR (C) M12X114	1-09070-087-2	03	1	0509-0602	●
101	BOLT; THRUST COLLAR (C) M12X114	1-09070-087-3	03	1	0603-	●	●
108	DOWEL; SHAFT OD=12 L=32	9-08161-232-0	01	1	0509-0602	●
108	DOWEL; SHAFT OD=12 L=32	9-08161-232-0	01	1	0603-	●	●
109	SHAFT; IDLE GEAR (B)	1-12531-076-2	01	1	0509-0602	●
109	SHAFT; IDLE GEAR (B)	1-12531-076-2	01	1	0603-	●	●
109	SHAFT; IDLE GEAR (C)	1-12531-092-1	01	1	0509-0602	●
109	SHAFT; IDLE GEAR (C)	1-12531-092-2	01	1	0603-	●	●
109	SHAFT; IDLE GEAR (A)	1-12531-093-1	01	1	0509-0602	●
109	SHAFT; IDLE GEAR (A)	1-12531-093-1	01	1	0603-	●	●
111	COLLAR; THRUST,IDLE GEAR (A)	1-12535-008-1	01	1	0509-0602	●
111	COLLAR; THRUST,IDLE GEAR (A)	1-12535-008-1	01	1	0603-	●	●
111	COLLAR; THRUST,IDLE GEAR (B)	1-12535-019-0	01	1	0509-0602	●
111	COLLAR; THRUST,IDLE GEAR (B)	1-12535-019-0	01	1	0603-	●	●
112	GEAR; IDLE (A) Z=64-36	1-12523-366-0	01	1	0509-0602	●
112	GEAR; IDLE (A) Z=64-36	1-12523-366-1	01	1	0603-	●	●
112	GEAR; IDLE (B) Z=90	1-12523-369-1	01	1	0509-0602	●
112	GEAR; IDLE (B) Z=90	1-12523-369-1	01	1	0603-	●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	1-09330-113-0	01	1	0509-0602	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	1-09330-113-0	01	1	0603-0705	●	●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-98081-167-0	01	1	0706-	●	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-09330-124-1	01	1	0509-0602	●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-09330-124-1	01	1	0603-	●	●
212	CAP; ADJ SCREW	1-12616-040-0	12	1	0509-0602	●
212	CAP; ADJ SCREW	1-12616-040-0	12	1	0603-	●	●
231	PLATE; CAP	1-12619-011-2	12	1	0509-0602	●
231	PLATE; CAP	1-12619-011-2	12	1	0603-	●	●
