Isuzu WW
▶
TRUCKS
▶
EXR
▶
10950 - EXR LHD WEDGE BRAKE
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#28190) — 54 parça
Tümü
A - 6WF1 TC-C
B - 6WF1 TC
◀
[013A] LEVEL GAUGE (35 parça)

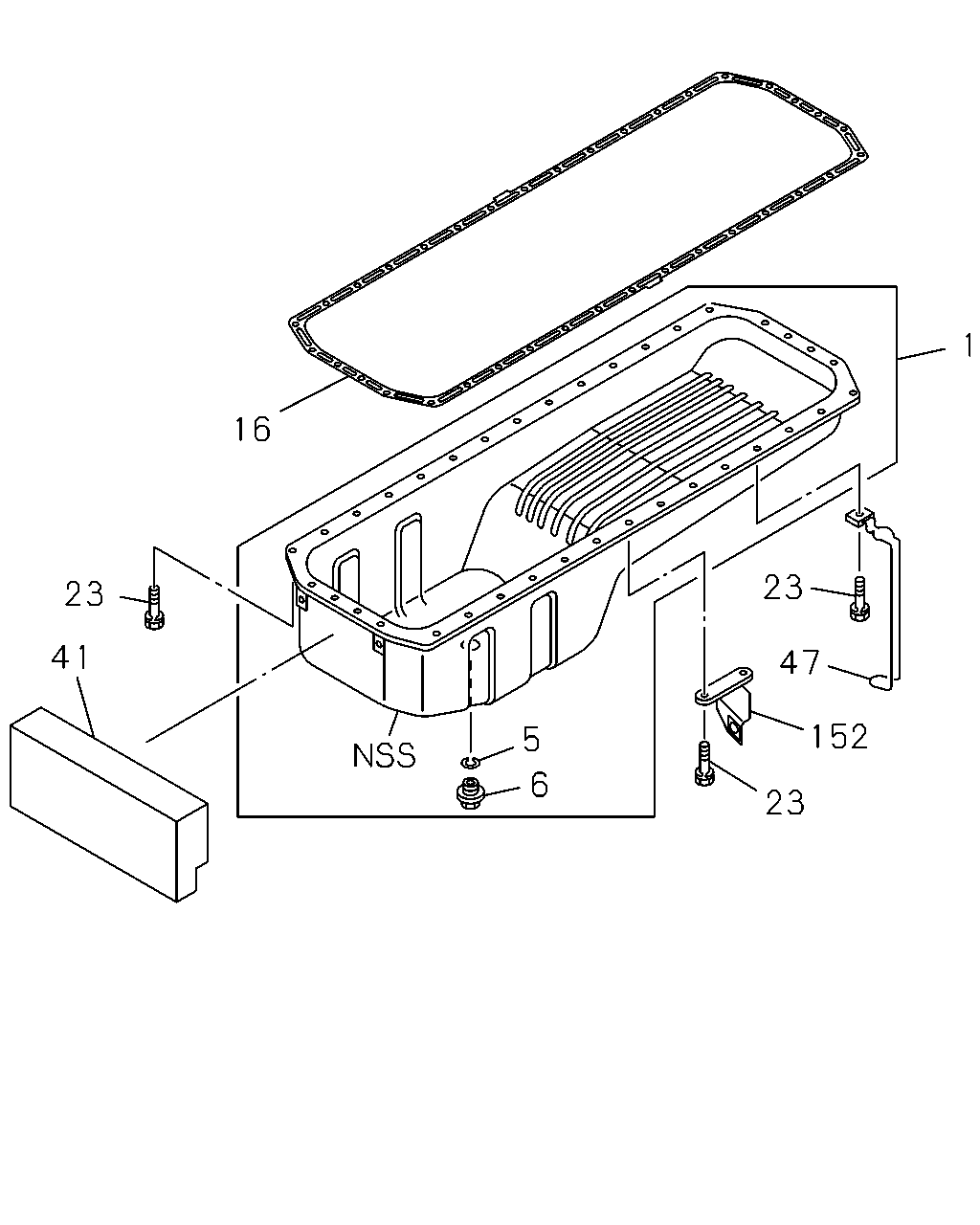

[013A] OIL PAN (19 parça)
▶
225
256
193
192
193
270
203
256
216
12
10
44
193
192
193
49
2
8
10
8
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GAUGE; OIL LEVEL
1-11760-405-0
01
1
0509-1305
●
●
2
GAUGE; OIL LEVEL
1-11760-427-0
01
1
1306-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-608-0
01
1
0509-0602
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-608-0
01
1
0603-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
1-11766-604-2
01
1
0509-
●
●
10
BOLT; GUIDE TUBE
(B) M10X20 FLANGE
0-28081-020-0
01
1
0509-0512
●
10
BOLT; GUIDE TUBE
(B) M10X20 FLANGE
0-28051-020-0
01
1
0601-0602
●
10
BOLT; GUIDE TUBE
(B) M10X20 FLANGE
0-28051-020-0
01
1
0603-
●
●
10
BOLT; GUIDE TUBE
(C) M10X20 FLANGE
0-28181-020-0
02
1
0509-0512
●
10
BOLT; GUIDE TUBE
(C) M10X20 FLANGE
0-28151-020-0
02
1
0601-0602
●
10
BOLT; GUIDE TUBE
(C) M10X20 FLANGE
0-28151-020-0
02
1
0603-
●
●
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28680-820-0
01
1
0509-0512
●
●
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28650-820-0
01
1
0601-
●
●
12
BRACKET; TUBE,OIL LEVEL GAUGE
1-11769-204-1
01
1
0509-0602
●
12
BRACKET; TUBE,OIL LEVEL GAUGE
1-11769-204-1
01
1
0603-
●
●
44
PLUG
M22X41
1-09604-098-0
01
1
0509-0602
●
44
PLUG
M22X41
1-09604-098-0
01
1
0603-
●
●
49
NUT; GUIDE TUBE
M8 FLANGE
0-91150-108-0
01
1
0509-0602
●
●
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
192
HOSE; GUIDE TUBE
L=620 SERVICED BY L=3000
0-02361-300-0
01
1
0509-
●
●
193
CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=39 H=21
1-09700-972-1
01
1
0509-
●
●
193
CLIP; HOSE,GUIDE TUBE
(A) ID=17
1-09707-158-0
02
1
0509-
●
●
193
CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=28
9-09525-856-0
01
1
0509-0606
●
●
193
CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=28
0-95235-856-0
01
1
0607-
●
●
203
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
01
1
0509-0512
●
●
203
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0601-
●
●
216
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
01
1
0509-0512
●
●
216
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0601-
●
●
225
WASHER; PL
ID=8.4 OD=22
9-09160-708-0
01
1
0509-0605
●
●
225
WASHER; PL
ID=8.4 OD=22
0-91610-708-0
01
1
0606-
●
●
256
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0509-0602
●
●
256
NUT; CLIP
M8 FLANGE
0-91150-108-0
01
1
0509-0602
●
●
256
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
256
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
270
BRACKET ASM; TUBE,OIL LEVEL GAUGE
1-47471-382-0
01
1
0509-
●
●
1
16
23
23
41
47
152
5
6
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PAN ASM; OIL
1-11360-912-0
01
1
0509-0602
●
1
PAN ASM; OIL
1-11360-912-0
01
1
0603-
●
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0509-0602
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0603-
●
●
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
0509-0602
●
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
0603-
●
●
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-130-0
01
1
0509-0602
●
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-130-0
01
1
0603-
●
●
23
BOLT; OIL PAN
M10X30 FLANGE
0-28151-030-0
02
1
1001-
●
●
23
BOLT; OIL PAN
M10X28 W/LK&PL WASHER
0-50151-028-0
36
1
0509-0602
●
23
BOLT; OIL PAN
M10X28 W/LK&PL WASHER
0-50151-028-0
36
1
0603-0906
●
●
23
BOLT; OIL PAN
M10X28 W/LK&PL WASHER
0-50651-028-0
36
1
0907-0909
●
●
23
BOLT; OIL PAN
M10X20 FLANGE
0-28151-020-0
36
1
0910-0912
●
●
23
BOLT; OIL PAN
M10X20 FLANGE
0-28151-020-0
34
1
1001-
●
●
41
RUBBER; SPACE
1-19389-209-0
01
1
0603-
●
●
47
CLIP; HOSE,AIR BREATHER
1-11369-147-1
01
1
0509-0602
●
47
CLIP; HOSE,AIR BREATHER
1-11369-147-1
01
1
0603-
●
●
152
BRACKET; CLIP POWER STRG PIPE
1-21119-130-1
01
1
0509-0602
●
152
BRACKET; CLIP POWER STRG PIPE
1-21119-130-1
01
1
0603-
●
●
