2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#2819) — 123 parça

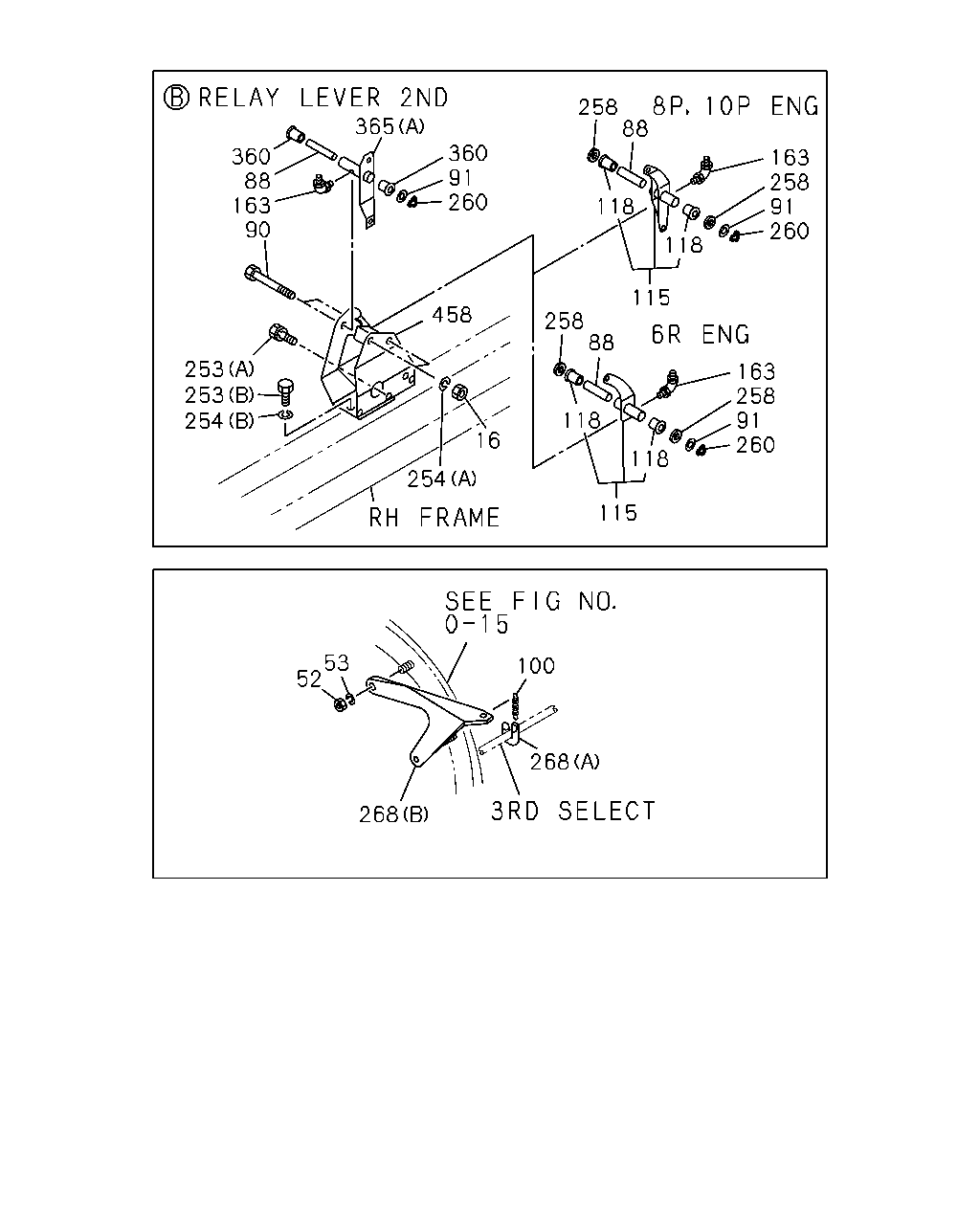

360 88 163 90 360 91 260 365 258 88 163 258 91 260 118 118 115 258 163 258 91 260 118 118 115 16 458 88 253 253 254 254 53 52 100 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
16	NUT; RELAY LEVER M14	9-99111-514-0	02	1	9002-	●	●	●	●	●	●	●	●
52	NUT; BRKT FRAME ENG MTG SEPARATE TYPE<SGM> M10	9-09110-510-0	02	1	9307-9307				●	●
52	NUT; BRKT FRAME ENG MTG SEPARATE TYPE<SGM> M10 FLANGE	5-09440-006-0	02	1	9308-				●	●
53	WASHER; LK,BRKT FRAME ENG MTG SEPARATE TYPE<SGM> ID=10.2	9-09150-510-0	02	1	9307-9307				●	●
88	COLLAR; RELAY LEVER	1-33659-074-0	02	1	9002-	●	●	●	●	●	●	●	●
90	SHAFT	1-33619-125-0	02	1	9002-	●	●	●	●	●	●	●	●
91	SHIM; RELAY LEVER	1-33659-092-0	02	1	9002-	●	●	●	●	●	●	●	●
100	SPRING FRAME ENG MTG SEPARATE TYPE<SGM>	1-09583-294-0	01	1	9307-				●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-505-1	01	1	9002-	●	●		●		●
115	LEVER; RELAY,2ND SHIFT 6RB1 STD ENG(07L)	1-33651-505-1	01	1	9002-			●		●
115	LEVER; RELAY,2ND SHIFT	1-33651-504-1	01	1	9002-							●	●
115	LEVER; RELAY,2ND SHIFT 10PD1 STD ENG(40L)	1-33651-504-1	01	1	9002-			●		●
118	BUSHING; RELAY LEVER ID=22 OD=25 L=18	1-09330-050-0	02	1	9002-	●	●	●	●	●	●	●	●
163	NIPPLE; GREASE,RELAY LEVER PT1/8 ELBOW	9-09031-210-0	02	1	9002-	●	●	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9002-	●	●	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X40	9-92051-440-0	02	1	9002-9005	●	●		●		●
253	BOLT; BRKT,2ND RELAY LEVER 6RB1 STD ENG(07L) (B) M14X40	9-92051-440-0	02	1	9002-9005			●		●
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X40	0-20801-440-0	02	1	9006-	●	●		●		●
253	BOLT; BRKT,2ND RELAY LEVER 6RB1 STD ENG(07L) (B) M14X40	0-20801-440-0	02	1	9006-			●		●
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X45	9-92051-445-0	02	1	9002-9005							●	●
253	BOLT; BRKT,2ND RELAY LEVER 10PD1 STD ENG(40L) (B) M14X45	9-92051-445-0	02	1	9002-9005			●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X45	0-20801-445-0	02	1	9006-9306							●	●
253	BOLT; BRKT,2ND RELAY LEVER 10PD1 STD ENG(40L) (B) M14X45	0-20801-445-0	02	1	9006-9306			●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M14X45	0-20801-445-0	02	1	9307-								●
253	BOLT; BRKT,2ND RELAY LEVER 8PD1 STD ENG(38L),10PD1 STD ENG(40L) (B) M14X45	0-20801-445-0	02	1	9307-			●	●	●
254	WASHER; LK,RELAY LEVER (A) ID=14.2	9-09150-514-0	02	1	9002-	●	●	●	●	●	●	●	●
254	WASHER; LK,RELAY LEVER (B) ID=14.2	9-09150-614-0	02	1	9002-	●	●	●	●	●	●	●	●
258	WASHER; RELAY LEVER	1-09509-041-0	02	1	9002-	●	●	●	●	●	●	●	●
260	WASHER; WAVED	1-33659-093-0	02	1	9002-	●	●	●	●	●	●	●	●
268	BRACKET; LINK ROD FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-439-1	01	1	9307-				●	●
268	BRACKET; LINK ROD FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-494-0	01	1	9307-				●	●
360	BUSHING; RELAY LEVER L=24	5-33659-054-0	02	1	9002-	●	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	9002-9306	●	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	9307-	●	●	●	●	●			●
365	LEVER; RELAY,SELECT (C)	1-33651-285-2	01	1	9002-9306	●	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-557-0	01	1	9307-	●	●	●	●	●			●
365	LEVER; RELAY,SELECT (B)	1-33651-286-2	01	1	9002-9306	●	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-555-0	01	1	9307-	●	●	●	●	●			●
458	BRACKET; 2ND RELAY LEVER	1-33657-210-4	01	1	9002-	●	●	●	●	●	●	●	●

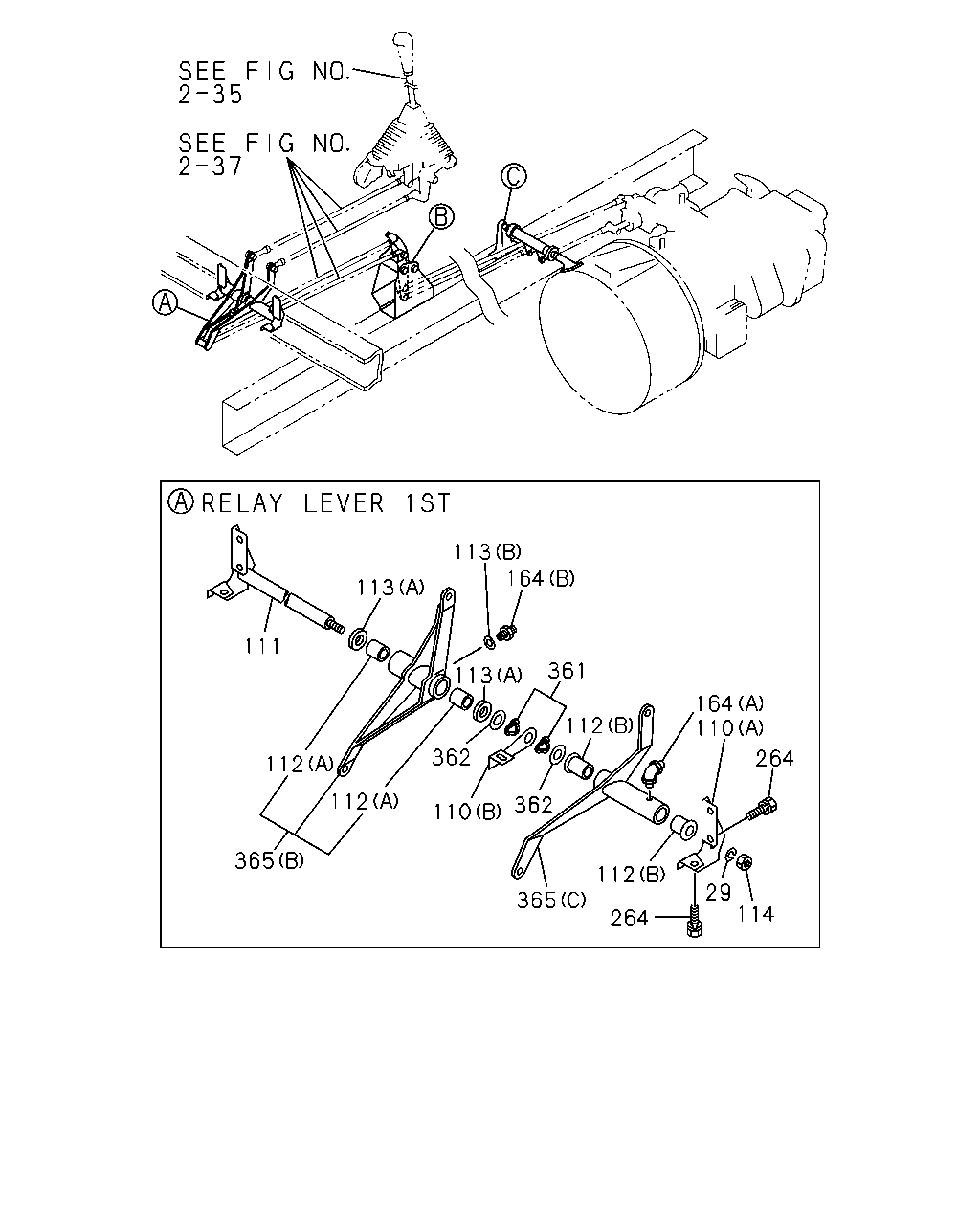

111 113 113 164 361 113 112 164 110 264 362 362 112 112 365 110 112 365 264 29 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
29	WASHER; LK,RELAY LEVER ID=14.2	9-09150-514-0	01	1	9002-	●	●	●	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST (A)	1-33657-180-1	01	1	9002-	●	●	●	●	●	●	●	●
110	BRACKET; RELAY LEVER,1ST (B)	1-33657-184-2	01	1	9002-	●	●	●	●	●	●	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-123-1	01	1	9002-	●	●	●	●	●	●	●	●
112	BUSHING; RELAY LEVER (A) ID=22 OD=25 L=18	1-09330-050-0	02	1	9002-	●	●	●	●	●	●	●	●
112	BUSHING; RELAY LEVER (B) L=24	5-33659-054-0	02	1	9002-	●	●	●	●	●	●	●	●
113	WASHER; RELAY LEVER (A)	1-09509-041-0	02	1	9002-	●	●	●	●	●	●	●	●
113	WASHER; RELAY LEVER (B)	9-09160-506-0	01	1	9002-	●	●	●	●	●	●	●	●
114	NUT; RELAY LEVER M14	9-99110-414-0	01	1	9002-	●	●	●	●	●	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD (B)	9-09031-006-0	01	1	9002-	●	●	●	●	●	●	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD (A) PT1/8 ELBOW	9-09031-210-0	01	1	9002-	●	●	●	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	9-01970-825-0	07	1	9002-9005	●	●	●	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M8X25 W/LK&PL WASHER	0-50140-825-0	07	1	9006-	●	●	●	●	●	●	●	●
361	WASHER; WAVED	1-33659-093-0	02	1	9002-	●	●	●	●	●	●	●	●
362	SHIM	1-33659-092-0	02	1	9002-	●	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	9002-9306	●	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-249-4	01	1	9307-	●	●	●	●	●			●
365	LEVER; RELAY,SELECT (C)	1-33651-285-2	01	1	9002-9306	●	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-557-0	01	1	9307-	●	●	●	●	●			●
365	LEVER; RELAY,SELECT (B)	1-33651-286-2	01	1	9002-9306	●	●	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-555-0	01	1	9307-	●	●	●	●	●			●

71 33 243 35 34 162 34 71 46 242 34 34 46 33 35 46 34 71 34 162 34 46 71 34 206 243

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> M12X45 W/LK WASHER	0-50041-245-0	02	1	9307-		●
33	BOLT; BRKT,3RD RELAY LEVER M12X45 W/LK WASHER	0-50041-245-0	02	1	9307-	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) M12X45 W/LK WASHER	0-50041-245-0	02	1	9307-			●	●	●
33	BOLT; BRKT,3RD RELAY LEVER MIXER TRUCK<RA2> M10X30 W/LK WASHER	0-50041-030-0	01	1	9002-9306		●				●
33	BOLT; BRKT,3RD RELAY LEVER MIXER TRUCK<RA2> M14X45	9-92051-445-0	01	1	9002-9005		●				●
33	BOLT; BRKT,3RD RELAY LEVER M14X45	9-92051-445-0	01	1	9002-9005							●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M14X45	9-92051-445-0	01	1	9002-9005			●		●
33	BOLT; BRKT,3RD RELAY LEVER MIXER TRUCK<RA2> M14X45	0-20801-445-0	01	1	9006-9306		●				●
33	BOLT; BRKT,3RD RELAY LEVER M14X45	0-20801-445-0	01	1	9006-9306							●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M14X45	0-20801-445-0	01	1	9006-9306			●		●
33	BOLT; BRKT,3RD RELAY LEVER MIXER TRUCK<RA2> M10X30 W/LK WASHER	0-50041-030-0	01	1	9307-		●				●
33	BOLT; BRKT,3RD RELAY LEVER EXC. MIXER TRUCK<RA2> M12X45	9-01911-245-0	02	1	9002-9005		●				●
33	BOLT; BRKT,3RD RELAY LEVER M12X45	9-01911-245-0	02	1	9002-9005	●			●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) M12X45	9-01911-245-0	02	1	9002-9005			●		●
33	BOLT; BRKT,3RD RELAY LEVER EXC. MIXER TRUCK<RA2> M12X45 W/LK WASHER	0-50041-245-0	02	1	9006-9306		●				●
33	BOLT; BRKT,3RD RELAY LEVER M12X45 W/LK WASHER	0-50041-245-0	02	1	9006-9306	●			●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) M12X45 W/LK WASHER	0-50041-245-0	02	1	9006-9306			●		●
33	BOLT; BRKT,3RD RELAY LEVER 8PD1 STD ENG(38L),10PD1 STD ENG(40L) M14X45	0-20801-445-0	01	1	9307-		●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 6RB1 STD ENG(07L) MIXER TRUCK<RA2> M14X45	0-20801-445-0	01	1	9307-		●
33	BOLT; BRKT,3RD RELAY LEVER M14X45	0-20801-445-0	01	1	9307-								●
33	BOLT; BRKT,3RD RELAY LEVER 8PD1 STD ENG(38L),10PD1 STD ENG(40L) M10X40 W/LK WASHER	0-50041-040-0	01	1	9307-		●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER M10X40 W/LK WASHER	0-50041-040-0	01	1	9307-								●
33	BOLT; BRKT,3RD RELAY LEVER M10X45 W/LK WASHER	0-50041-045-0	01	1	9002-9205							●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X45 W/LK WASHER	0-50041-045-0	01	1	9002-9205			●		●
33	BOLT; BRKT,3RD RELAY LEVER M10X40 W/LK WASHER	0-50041-040-0	01	1	9206-9306							●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PD1 STD ENG(40L) M10X40 W/LK WASHER	0-50041-040-0	01	1	9206-9306			●		●
34	SEAT; BALL,RELAY LEVER	1-33659-118-0	04	1	9002-	●	●	●	●	●	●	●	●
35	RING; SNAP,RELAY LEVER OD=23.5	9-09180-122-0	01	1	9002-	●	●	●	●	●	●	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-076-0	02	1	9002-	●	●	●	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> (C)	1-33657-193-2	01	1	9307-		●
71	BRACKET; 3RD RELAY LEVER,FRAME (C)	1-33657-193-2	01	1	9307-	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L) (C)	1-33657-193-2	01	1	9307-			●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L) EXC. MIXER TRUCK<RA2> (D)	1-33657-200-0	01	1	9307-		●
71	BRACKET; 3RD RELAY LEVER,FRAME (D)	1-33657-200-0	01	1	9307-	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L) (D)	1-33657-200-0	01	1	9307-			●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME MIXER TRUCK<RA2> (C)	1-33657-244-1	01	1	9202-		●				●
71	BRACKET; 3RD RELAY LEVER,FRAME MIXER TRUCK<RA2> (D)	1-33657-334-1	01	1	9202-		●				●
71	BRACKET; 3RD RELAY LEVER,FRAME EXC. MIXER TRUCK<RA2> (C)	1-33657-193-2	01	1	9002-9306		●				●
71	BRACKET; 3RD RELAY LEVER,FRAME (C)	1-33657-193-2	01	1	9002-9306	●			●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L) (C)	1-33657-193-2	01	1	9002-9306			●		●
71	BRACKET; 3RD RELAY LEVER,FRAME EXC. MIXER TRUCK<RA2> (D)	1-33657-200-0	01	1	9002-9306		●				●
71	BRACKET; 3RD RELAY LEVER,FRAME (D)	1-33657-200-0	01	1	9002-9306	●			●
71	BRACKET; 3RD RELAY LEVER,FRAME 6RB1 STD ENG(07L) (D)	1-33657-200-0	01	1	9002-9306			●		●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-188-0	01	1	9307-		●	●	●	●			●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PD1 STD ENG(38L),10PD1 STD ENG(40L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-223-0	01	1	9307-		●	●	●	●			●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-188-0	01	1	9002-9306							●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PD1 STD ENG(40L) (B)	1-33657-188-0	01	1	9002-9306			●		●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-223-0	01	1	9002-9306							●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PD1 STD ENG(40L) (A)	1-33657-223-0	01	1	9002-9306			●		●
71	BRACKET; 3RD RELAY LEVER,FRAME FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-417-0	01	1	9307-				●	●
71	BRACKET; 3RD RELAY LEVER,FRAME FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-478-0	01	1	9307-				●	●
162	LEVER; RELAY 6RB1 STD ENG(07L)	1-33651-270-4	01	1	9002-	●	●	●	●	●	●
162	LEVER; RELAY 8PD1 STD ENG(38L),10PD1 STD ENG(40L)	1-33651-271-2	01	1	9307-		●	●	●	●			●
162	LEVER; RELAY	1-33651-271-1	01	1	9002-9306							●	●
162	LEVER; RELAY 10PD1 STD ENG(40L)	1-33651-271-1	01	1	9002-9306			●		●
206	BOLT; BRKT,3RD RELAY LEVER,ENG M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005	●	●		●		●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RB1 STD ENG(07L) M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005			●		●
206	BOLT; BRKT,3RD RELAY LEVER,ENG M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-	●	●		●		●
206	BOLT; BRKT,3RD RELAY LEVER,ENG 6RB1 STD ENG(07L) M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-			●		●
242	NUT; FLANGE 3RD RELAY LEVER 8PD1 STD ENG(38L),10PD1 STD ENG(40L) M8 FLANGE	5-09440-005-0	04	1	9002-		●	●	●	●
242	NUT; FLANGE 3RD RELAY LEVER M8 FLANGE	5-09440-005-0	04	1	9002-							●	●
243	WASHER; LK,BRKT 8PD1 STD ENG(38L),10PD1 STD ENG(40L) ID=14.2	9-09150-614-0	01	1	9002-		●	●	●	●		●	●
243	WASHER; LK,BRKT 6RB1 STD ENG(07L) MIXER TRUCK<RA2> ID=14.2	9-09150-614-0	01	1	9002-		●
