◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10950 - EXR LHD WEDGE BRAKE ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#28186) — 23 parça

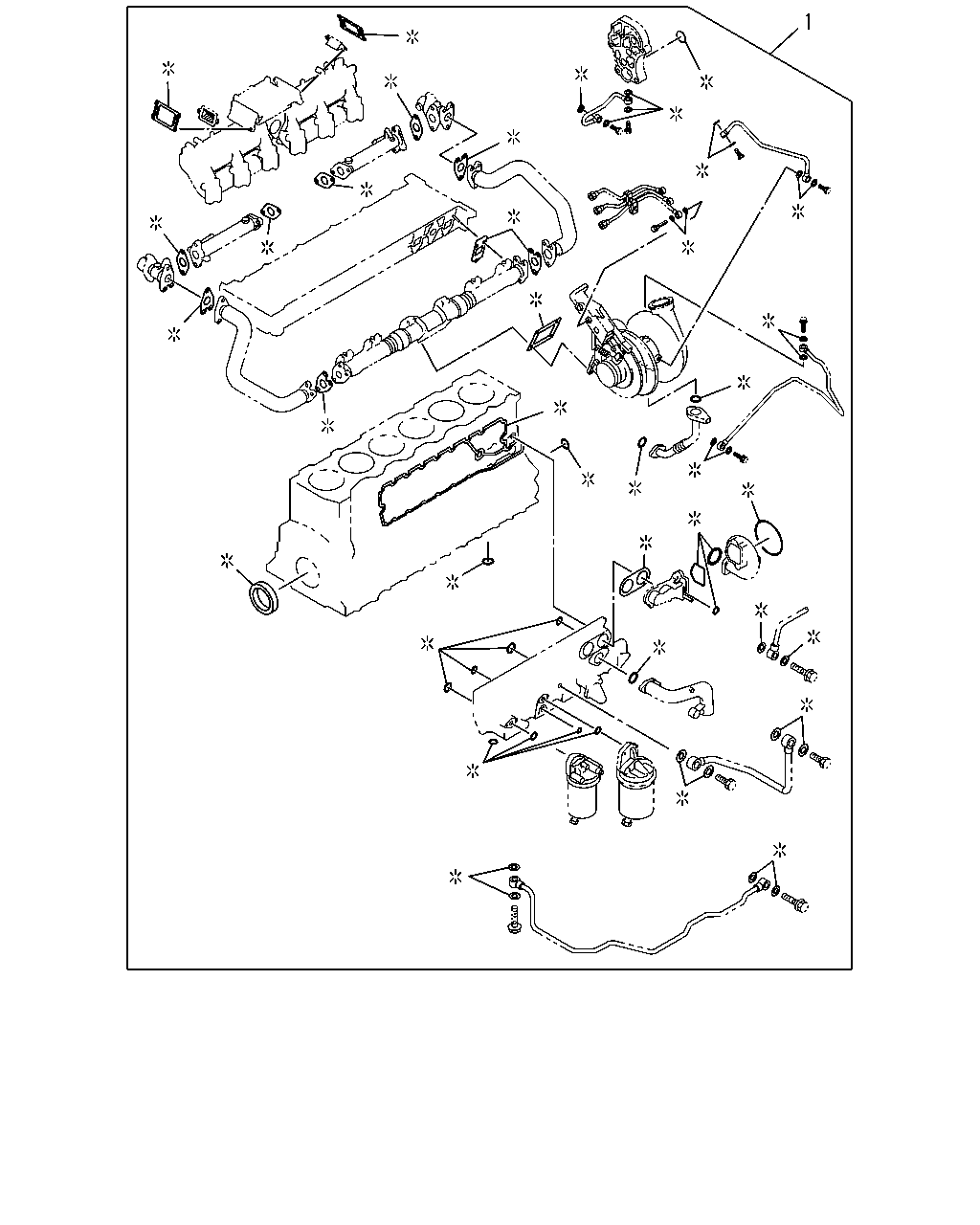

çizim 104892
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87812-926-1 01 1 0509-0602 ●
1 GASKET SET; ENG OVERHAUL 1-87812-926-1 01 1 0603-0608 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-139-0 01 1 0609-0702 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-191-1 01 1 0703-0703 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-222-0 01 1 0704-0704 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-230-5 01 1 0705-1111 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-811-0 01 1 1112-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-657-0 01 1 1401-1502 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-586-0 01 1 1503- ● ●

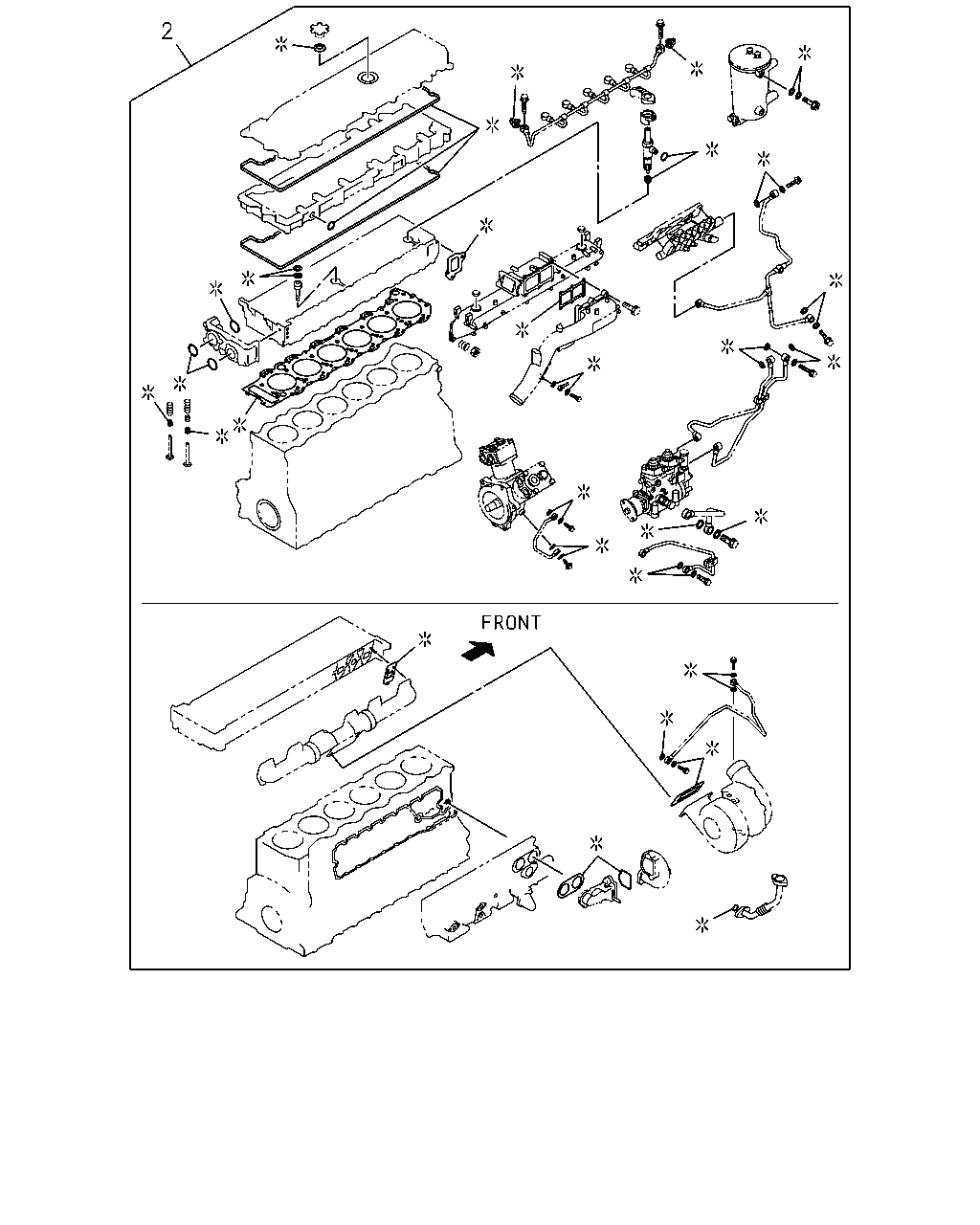

çizim 105004
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87812-927-1 01 1 0509-0602 ●
2 GASKET SET; ENG HD OVERHAUL 1-87812-927-1 01 1 0603-0702 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-192-4 01 1 0703-1111 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-812-0 01 1 1112-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-658-0 01 1 1401- ● ●

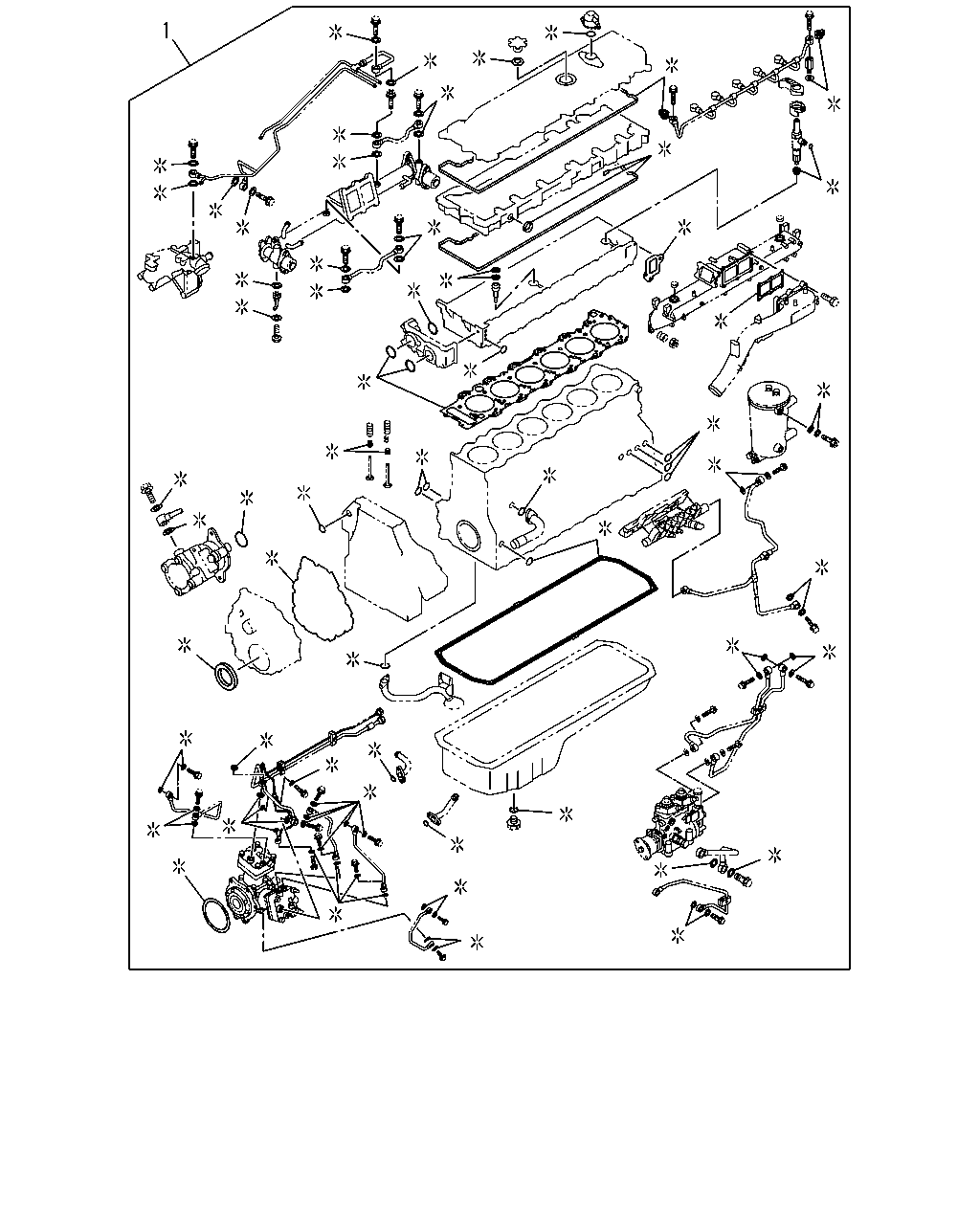

çizim 105007
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87812-926-1 01 1 0509-0602 ●
1 GASKET SET; ENG OVERHAUL 1-87812-926-1 01 1 0603-0608 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-139-0 01 1 0609-0702 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-191-1 01 1 0703-0703 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-222-0 01 1 0704-0704 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-230-5 01 1 0705-1111 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-811-0 01 1 1112-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-657-0 01 1 1401-1502 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-586-0 01 1 1503- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
