9-01 — TOOLS (#28184) — 133 parça

121 121 75 120 404 404 122 123 407 404 404 405 408 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
75	TOOL; SETTING,OIL SEAL (A)	1-85220-049-0	AR	1	0411-	●	●
75	TOOL; SETTING,OIL SEAL (B)	1-85221-096-0	01	1	0411-	●	●
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	0411-	●	●
121	PULLER ASM; COUNTER REAR (B)	1-85210-069-0	01	1	0411-	●	●
121	PULLER ASM; COUNTER REAR (A) OD=146	1-85210-074-0	01	1	0411-	●	●
122	PULLER ASM; COUNTER FRT	9-85210-195-0	01	1	0411-	●	●
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	0411-	●	●
404	TOOL; SETTING,MAIN COUNTER (A)	1-85221-257-0	01	1	0411-	●	●
404	TOOL; SETTING,MAIN COUNTER (B)	1-85221-259-0	01	1	0411-	●	●
404	TOOL; SETTING,MAIN COUNTER (C)	1-85221-260-0	01	1	0411-	●	●
404	TOOL; SETTING,MAIN COUNTER (D)	1-85221-262-0	02	1	0411-	●	●
405	GUIDE; COUNTER	1-85221-264-0	01	1	0411-	●	●
407	SOCKET; SW	1-85221-267-1	01	1	0411-	●	●
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-268-0	01	1	0411-	●	●
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-269-0	01	1	0411-	●	●

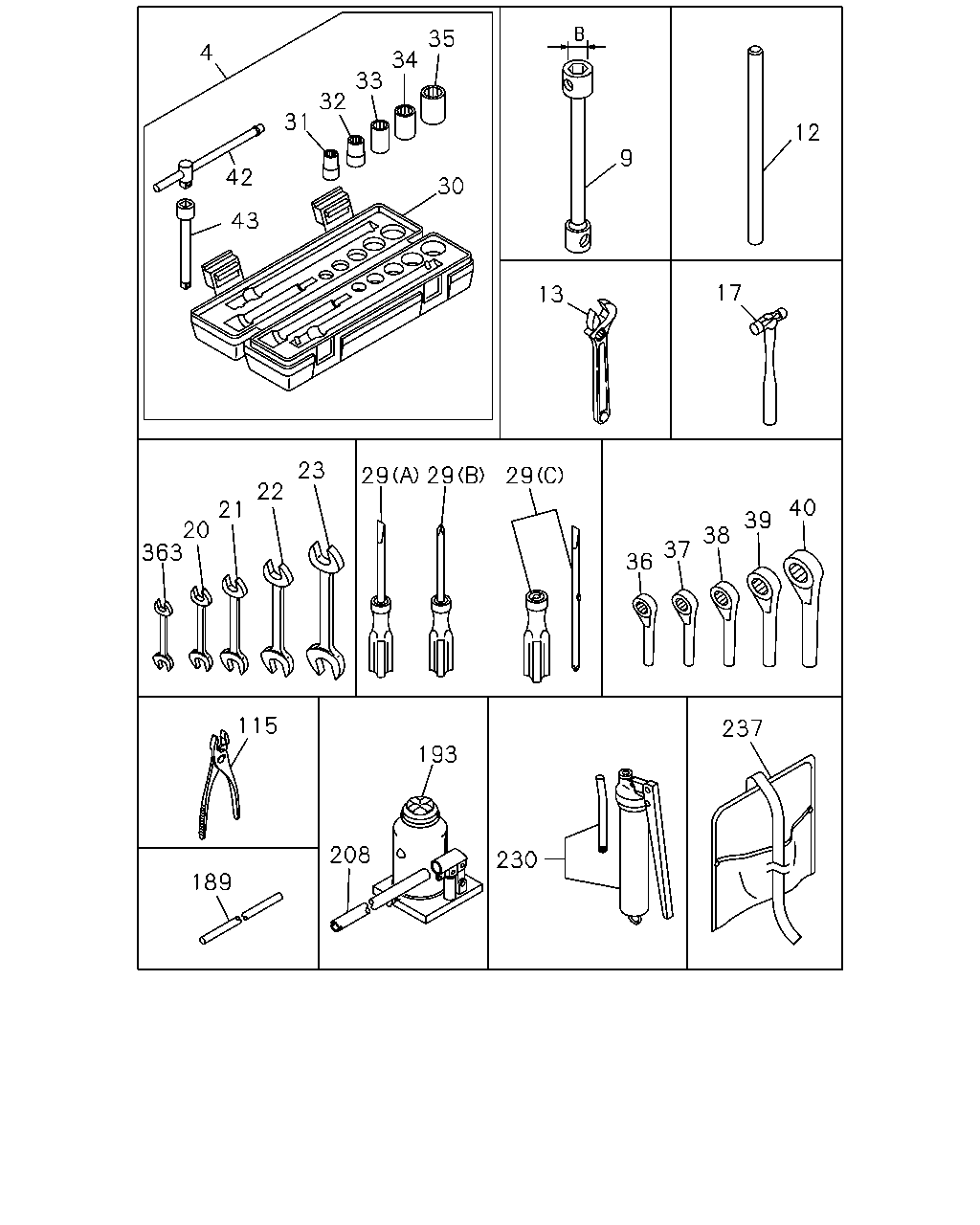

35 34 33 32 4 31 12 9 42 30 43 17 13 23 29 29 29 22 40 21 20 363 39 38 37 36 115 237 193 208 230 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	WRENCH KIT; SOCKET TOOL B KIT<SL1>	1-85000-491-0	01	1	0411-	●	●
9	WRENCH; WHEEL PIN TOOL B KIT<SL1> EXC. WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) B=33X30 L=450	1-85111-033-1	01	1	0411-	●	●
9	WRENCH; WHEEL PIN WHEEL 8STUD 7.50VX20 165-13(Q62),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) TOOL B KIT<SL1> B=41X21 L=440	1-85113-015-1	01	1	0411-	●	●
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	0411-	●	●
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0411-	●	●
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0411-	●	●
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0411-	●	●
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0411-	●	●
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0411-	●	●
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0411-	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	0411-	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	0411-	●	●
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	0411-	●	●
30	BOX; SOCKET WRENCH TOOL B KIT<SL1>	1-85000-492-0	01	1	0411-	●	●
31	WRENCH; 12 TOOL B KIT<SL1>	1-85000-495-0	01	1	0411-	●	●
32	WRENCH; 14 TOOL B KIT<SL1>	1-85000-496-0	01	1	0411-	●	●
33	WRENCH; 17 TOOL B KIT<SL1>	1-85000-497-0	01	1	0411-	●	●
34	WRENCH; 19 TOOL B KIT<SL1>	1-85000-498-0	01	1	0411-	●	●
35	WRENCH; 22 TOOL B KIT<SL1>	1-85000-499-0	01	1	0411-	●	●
36	WRENCH; 24	9-85111-377-0	01	1	0411-	●	●
37	WRENCH; 27	9-85111-375-0	01	1	0411-	●	●
38	WRENCH; 32	9-85111-358-0	01	1	0411-	●	●
39	WRENCH; 36	9-85111-374-0	01	1	0411-	●	●
40	WRENCH; 41	9-85111-356-0	01	1	0411-	●	●
42	HANDLE; SLIDING TOOL B KIT<SL1>	1-85000-500-0	01	1	0411-	●	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1>	1-85000-501-0	01	1	0411-	●	●
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0411-	●	●
189	TUBE; AIR BREATHER TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	0411-	●	●
193	JACK ASM TOOL B KIT<SL1> 15TON	1-85510-019-1	01	1	0411-	●	●
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0411-	●	●
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-2	01	1	0411-	●	●
237	BAG; TOOL TOOL B KIT<SL1>	8-97130-902-0	01	1	0411-	●	●
363	WRENCH; OPEN END 8X10 TOOL B KIT<SL1> 8X10	9-99592-108-0	01	1	0411-	●	●

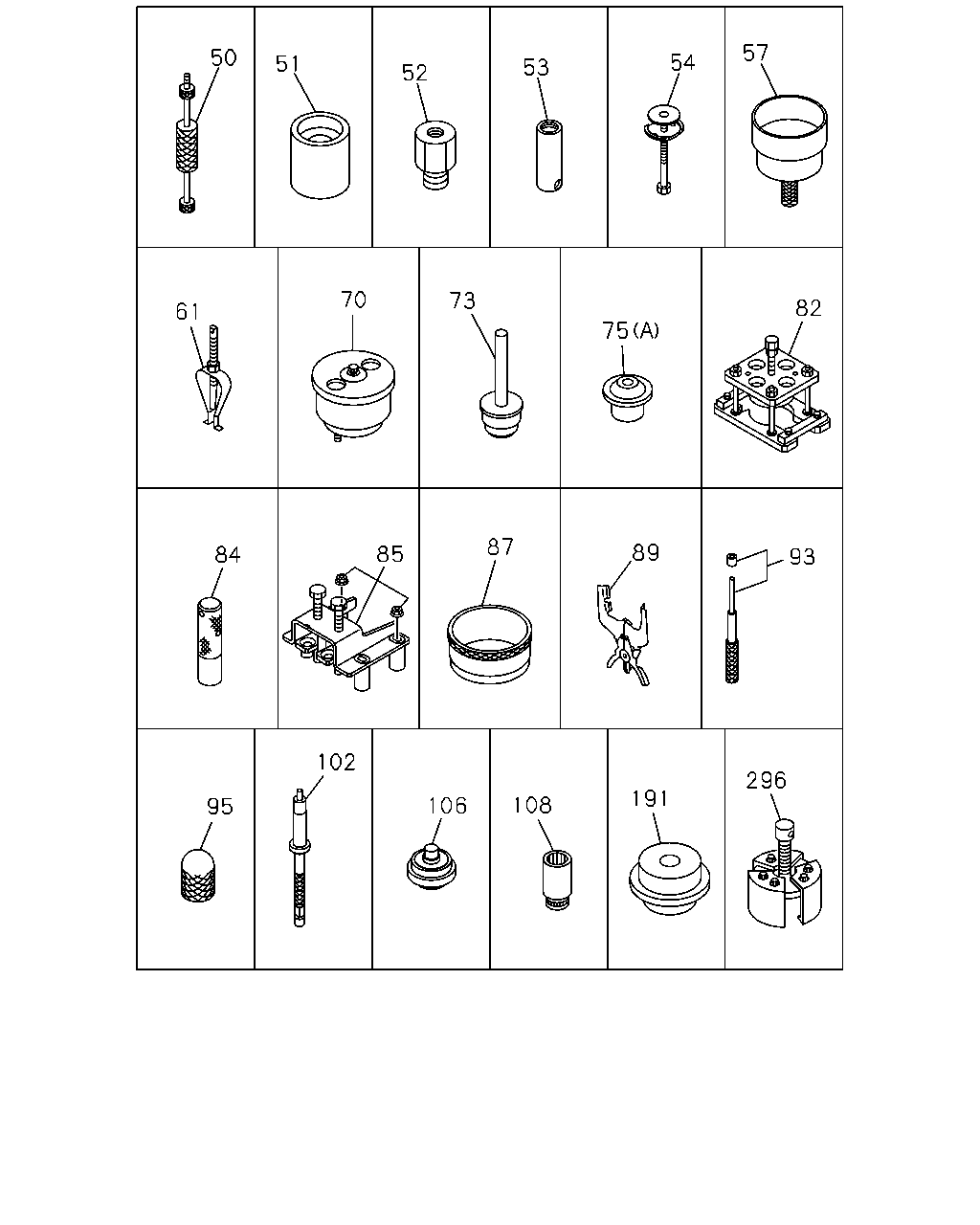

57 50 54 51 53 52 70 73 82 61 75 87 89 85 84 93 102 296 191 108 106 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	REPLACER; NOZZLE HOLDER L=300	1-85230-013-0	AR	1	0411-	●	●
51	PULLER ASM; WATER PUMP	1-85220-047-0	AR	1	0411-	●	●
52	REMOVER; WATER PUMP	1-85210-062-0	AR	1	0411-	●	●
53	PULLER; TAPER BUSHING	1-85210-063-0	AR	1	0411-	●	●
54	PULLER; THERMOSTAT SEAL	1-85210-067-0	AR	1	0411-	●	●
57	TOOL; SETTING CRANK GEAR OD=162	1-85220-045-0	AR	1	0411-	●	●
61	PULLER ASM; PILOT BRG	9-85210-157-0	AR	1	0411-	●	●
70	TOOL; SETTING,OIL SEAL	1-85220-043-0	AR	1	0411-	●	●
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	AR	1	0411-	●	●
75	TOOL; SETTING,OIL SEAL (A)	1-85220-049-0	AR	1	0411-	●	●
75	TOOL; SETTING,OIL SEAL (B)	1-85221-096-0	01	1	0411-	●	●
82	PULLER ASM; CR/SHF GEAR	1-85210-064-0	AR	1	0411-	●	●
84	REPLACER; VALVE SEAL EXHAUST	1-85221-184-0	AR	1	0411-	●	●
84	REPLACER; VALVE SEAL INLET	1-85221-187-0	AR	1	0411-	●	●
85	REPLACER ASM; VALVE SPR	1-85235-013-0	AR	1	0411-	●	●
87	TOOL; PISTON	1-85220-059-0	AR	1	0411-	●	●
89	TOOL; PISTON RING	1-85221-025-0	AR	1	0411-	●	●
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	AR	1	0411-	●	●
95	SETTING TOOL; BRIDGE GUIDE	9-85221-324-0	AR	1	0411-	●	●
102	ADAPTER; COMP GAGE	1-85317-019-0	AR	1	0411-	●	●
106	TOOL; SETTING PILOT BRG	1-85221-057-0	AR	1	0411-	●	●
108	WRENCH; SOCKET	9-85113-132-0	01	1	0411-	●	●
191	ADAPTER INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-85216-009-0	01	1	0411-		●
296	REPLACER; SLINGER	1-85210-027-0	AR	1	0411-	●	●

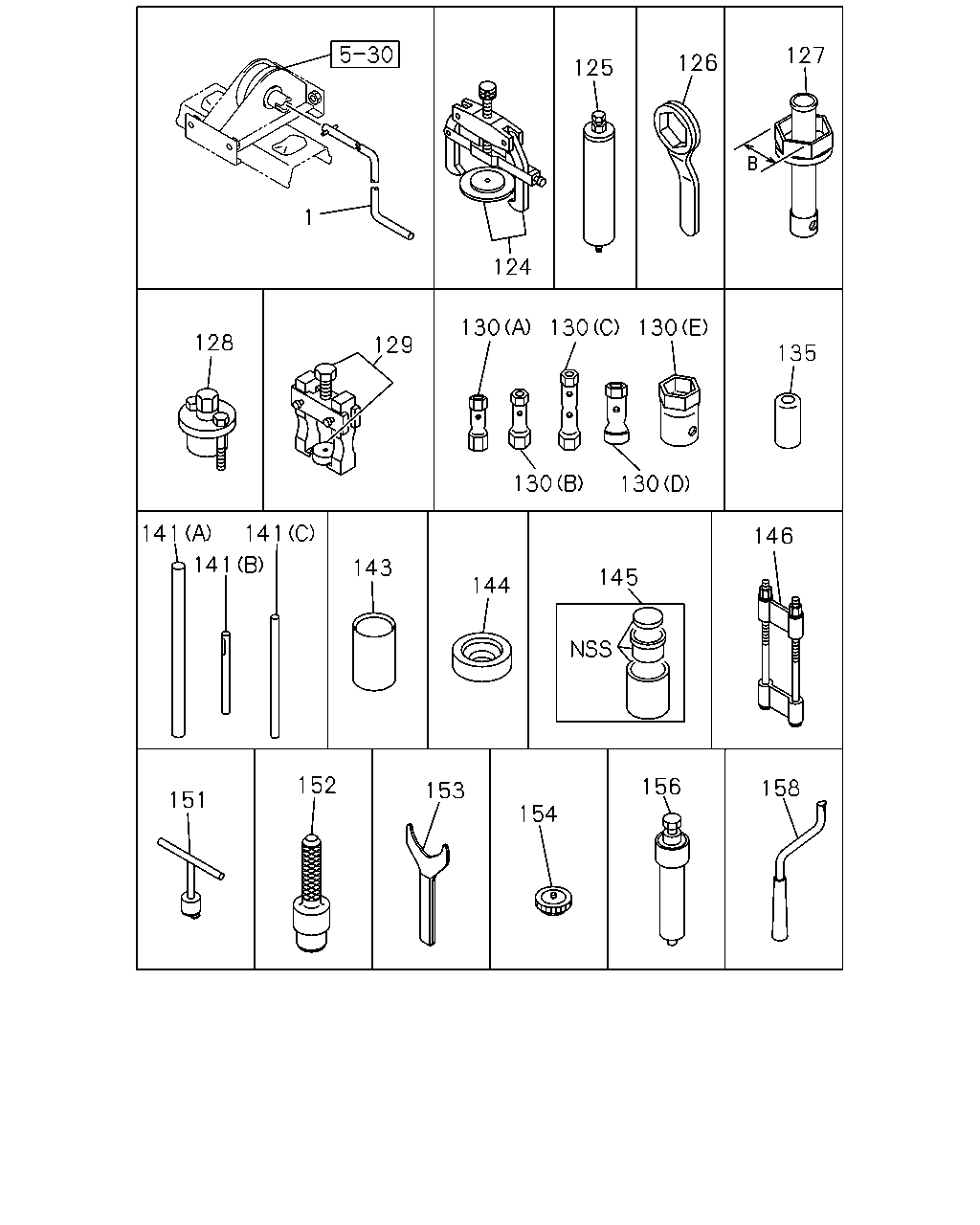

127 126 125 1 124 130 130 130 128 129 135 130 130 141 141 146 141 143 145 144 152 156 158 153 151 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>	9-23110-018-0	01	1	0411-	●	●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0411-	●	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0411-	●	●
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-0	01	1	0411-	●	●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	0411-	●	●
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0411-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0411-	●	●
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	0411-	●	●
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	0411-	●	●
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	0411-	●	●
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	0411-	●	●
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	0411-	●	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0411-	●	●
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	0411-	●	●
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	0411-	●	●
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	0411-	●	●
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	0411-	●	●
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0411-	●	●
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0411-	●	●
145	REPLACER ASM; BUSHING	1-85230-008-0	01	1	0411-	●	●
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	0411-	●	●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0411-	●	●
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0411-	●	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0411-	●	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0411-	●	●
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	0411-	●	●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0411-	●	●

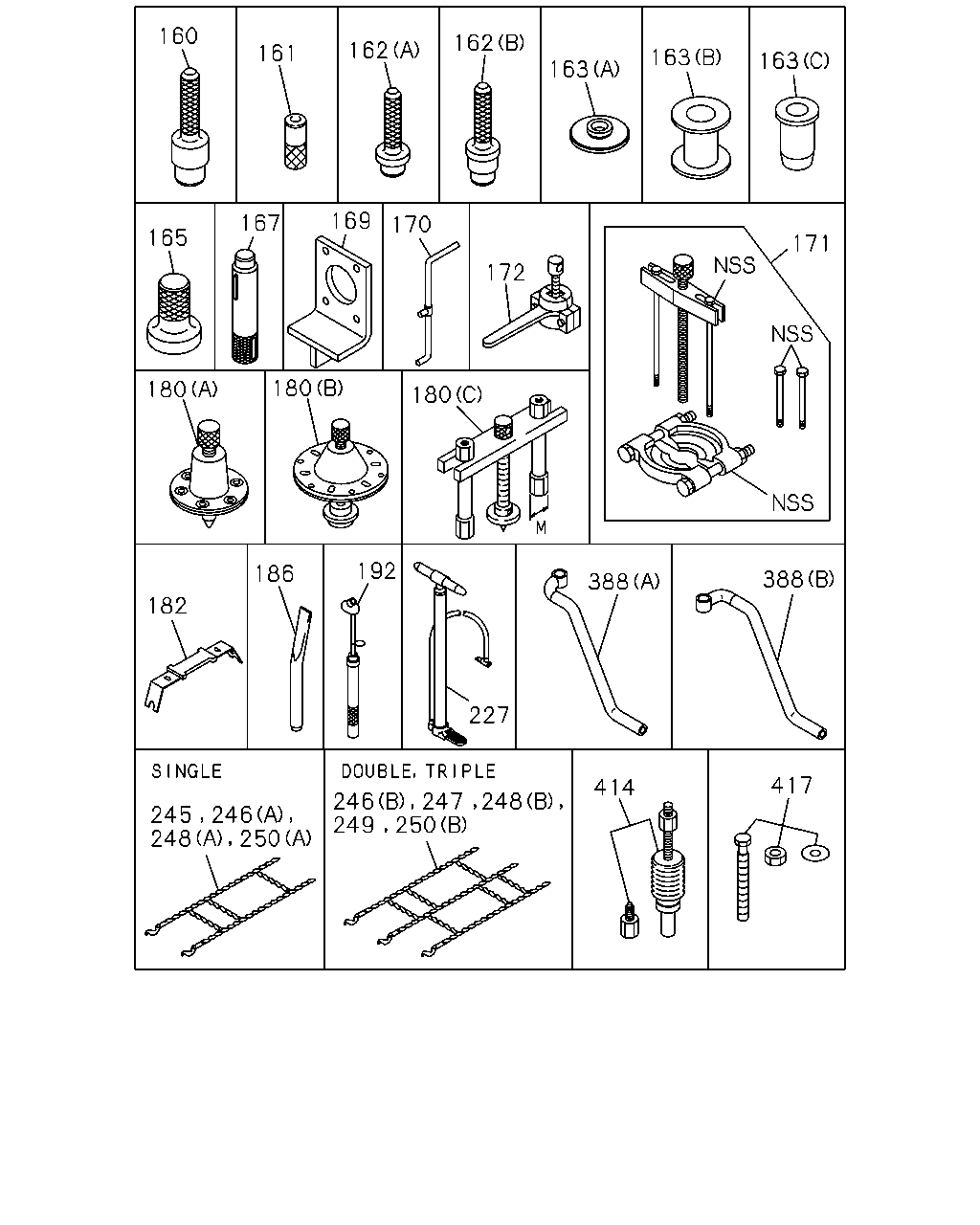

160 162 162 161 163 163 163 169 167 170 165 171 172 180 180 180 192 186 388 388 182 227 417 414 245 248 250 246 246 249 250 247 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0411-	●	●
161	REMOVER; TIE ROD ARM	1-85176-001-0	01	1	0411-	●	●
162	SETTING TOOL; NEEDLE BRG (A) L=181	1-85238-008-0	01	1	0411-	●	●
162	SETTING TOOL; NEEDLE BRG (B) L=213	1-85238-009-0	01	1	0411-	●	●
163	TOOL; SETTING (C) L=195	1-85221-162-1	01	1	0411-	●	●
163	TOOL; SETTING (B) L=150	1-85221-163-0	01	1	0411-	●	●
163	TOOL; SETTING (A) OD=150	1-85221-167-0	01	1	0411-	●	●
165	SETTING TOOL; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-85221-177-0	01	1	0411-	●	●
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	0411-	●	●
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	0411-	●	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0411-	●	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0411-	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0411-	●	●
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	0411-	●	●
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	0411-	●	●
180	PULLER; FRT & RR HUB EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (C) M24	1-85210-057-0	01	1	0411-	●	●
180	PULLER; FRT & RR HUB INTERNATIONAL STANDARD ISO 10STUD<B3V> (C) M22	1-85210-049-0	01	1	0411-		●
182	REMOVER ASM	1-85239-008-0	01	1	0411-	●	●
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	0411-	●	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0411-	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0411-	●	●
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0411-	●	●
246	CHAIN; TIRE,1000-20,SINGLE (A) 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0411-	●	●
246	CHAIN; TIRE,1000-20,SINGLE (B) 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0411-	●	●
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	01	1	0411-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE (A) 10.00-20 DOUBLE TYPE	9-85591-240-0	01	1	0411-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE (B) 11.00-20 DOUBLE TYPE	9-85591-260-0	01	1	0411-	●	●
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0411-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE (A) 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0411-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE (B) 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0411-	●	●
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	0411-	●	●
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	0411-	●	●
414	PULLER; REV IDLE SHAFT	9-85210-095-0	01	1	0411-	●	●
417	BOLT; CHAMBER RELEASE 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	0411-	●	●
