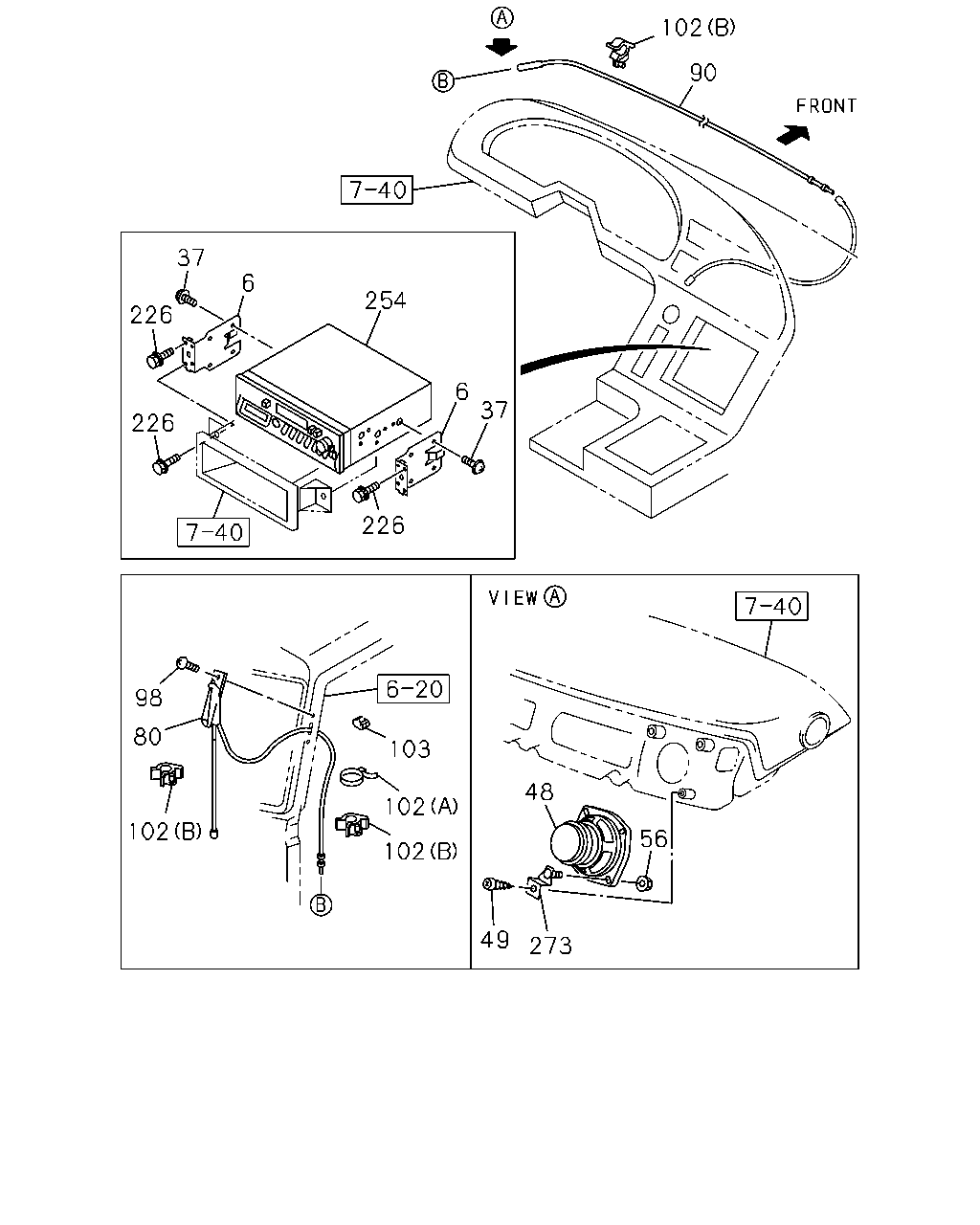

8-90 — RADIO AND TV (#28183) — 17 parça

102 90 37 6 254 226 37 226 226 98 80 103 48 102 102 56 102 49 273 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BRACKET; RADIO TO PANEL	1-65671-551-4	02	1	0411-	●	●
37	SCREW; CASSETTE & RADIO RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0411-	●	●
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-073-0	02	1	0411-	●	●
48	SPEAKER; AUDIO RADIO AM/FM STEREO & TAPE PLAYER(UN3)	1-84114-073-0	02	1	0411-	●	●
49	SCREW; SPEAKER M5X14	8-94279-325-0	06	1	0411-	●	●
56	NUT; SPEAKER,RADIO OR STEREO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5 FLANGE	1-09984-170-0	02	1	0411-	●	●
56	NUT; SPEAKER,RADIO OR STEREO RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5 FLANGE	1-09984-170-0	02	1	0411-	●	●
80	ANTENNA ANTENNA RADIO<U73>	1-84115-055-2	01	1	0411-	●	●
90	CABLE; ANTENNA,FEEDER ANTENNA RADIO<U73>	1-84113-011-2	01	1	0411-	●	●
98	SCREW; TAP,ANTENNA M5X11	1-09981-536-1	02	1	0411-	●	●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) W/PACKING ID=4.8	1-73907-618-0	05	1	0411-	●	●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) WO/PACKING ID=4.8	8-94128-483-0	02	1	0411-	●	●
102	CLIP; CABLE ANTENNA RADIO<U73> EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A) L=140	5-09707-031-1	01	1	0411-	●	●
103	GROMMET; ANTENNA HOLE,FRT ANTENNA RADIO<U73>	8-97027-381-0	01	1	0411-	●	●
226	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0411-	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO & TAPE PLAYER(UN3) CLARION	1-84122-032-3	01	1	0411-	●	●
273	BRACKET; SPEAKER	1-65671-788-0	02	1	0411-	●	●
