Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10660 - CXZ RHD
▶
2 - Clutch, Transmission, Trans Axle
▶

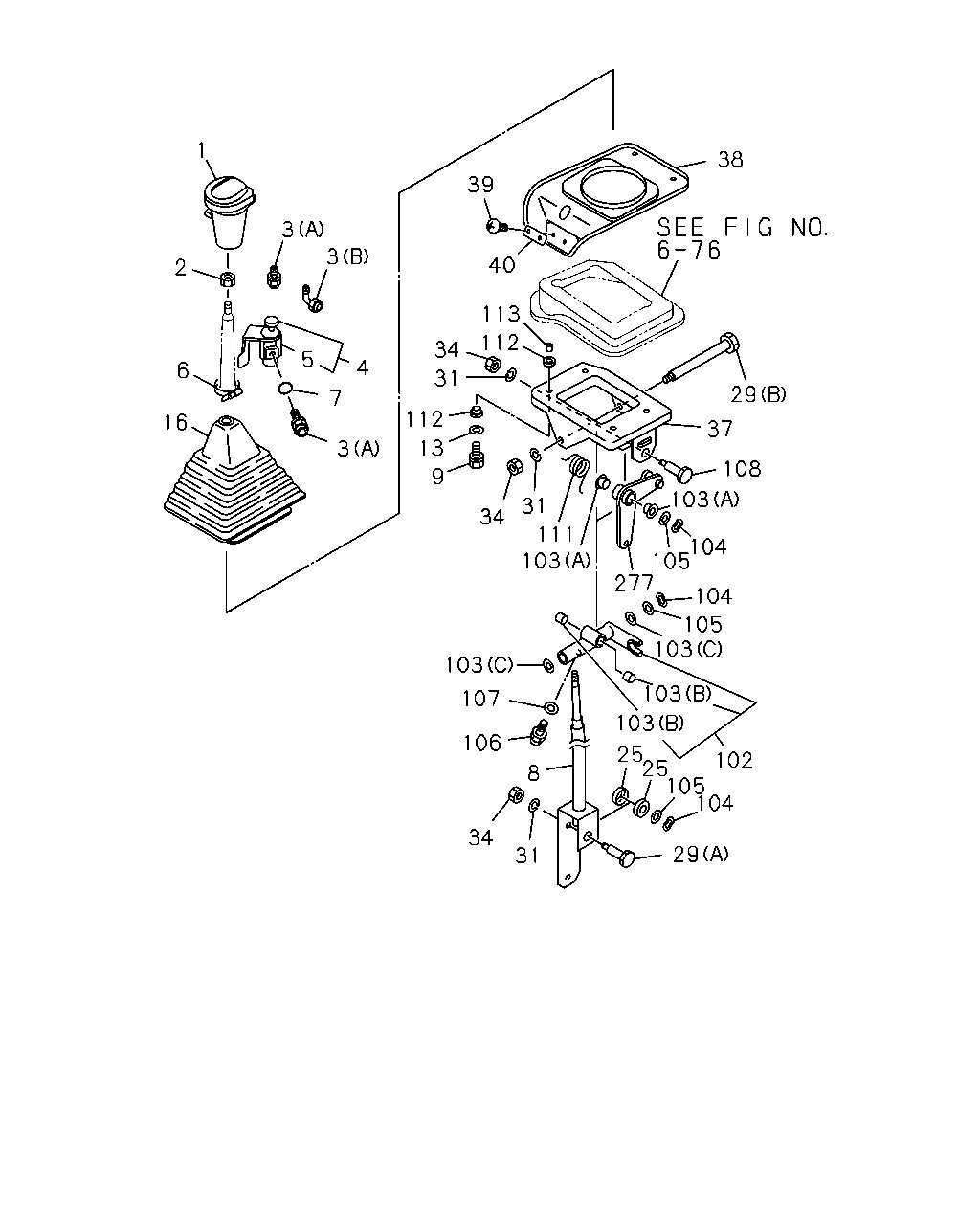

2-35B - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶
2-35B — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#2818) — 44 parça
Tümü
A - RTO14613 M/T FULLER
B - RTO11613 M/T FULLER
C - RT14715 M/T FULLER
D - RT11609A M/T FULLER
E - RTO11609B M/T FULLER
F - RTX11609B M/T FULLER
3
3
5
2
6
4
7
16
3
39
38
40
113
34
112
31
112
13
9
34
31
111
103
29
37
108
103
104
105
104
277
105
103
103
103
107
106
34
31
103
25
25
105
104
102
29
1
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
KNOB; CHANGE LEVER
1-33611-044-0
01
1
9002-
●
●
1
KNOB; CHANGE LEVER
1-33611-043-0
01
1
9002-9306
●
1
KNOB; CHANGE LEVER
1-33611-042-0
01
1
9002-
●
●
●
2
NUT; KNOB
1/2-13UNC
1-33619-033-0
01
1
9002-
●
●
●
●
●
●
3
CONNECTOR; CONT TUBE
(B)
1-33619-036-0
02
1
9002-9006
●
●
●
●
●
3
CONNECTOR; CONT TUBE
COUNTER SHAFT BRAKE<BAP> (B)
1-33619-036-0
02
1
9007-9306
●
●
●
●
●
●
3
CONNECTOR; CONT TUBE
(A)
1-33619-035-0
04
1
9002-9306
●
●
●
3
CONNECTOR; CONT TUBE
(A)
1-33619-035-0
02
1
9002-9306
●
●
●
3
CONNECTOR; CONT TUBE
(A)
1-33619-403-0
04
1
9307-
●
3
CONNECTOR; CONT TUBE
(B)
1-33619-402-0
02
1
9307-
●
●
3
CONNECTOR; CONT TUBE
(A)
1-33619-403-0
02
1
9307-
●
●
4
VALVE; ACTUATOR
1-33712-003-0
01
1
9002-
●
●
●
●
●
●
5
BRACKET; ACTUATOR VLV
1-33719-078-0
01
1
9002-
●
●
●
●
●
●
6
CLAMP; BRKT
1-33719-079-0
01
1
9002-
●
●
●
●
●
●
7
GASKET; CONNECTOR
1-33619-034-0
03
1
9002-
●
●
●
●
●
●
8
LEVER; CHANGE
L=298
1-33613-252-0
01
1
9002-
●
●
●
●
●
●
9
BOLT; CHANGE LEVER
M8X25 W/LK WASHER
9-01910-825-0
04
1
9002-9005
●
●
●
●
●
9
BOLT; CHANGE LEVER
M8X25 W/LK WASHER
0-50040-825-0
04
1
9006-9302
●
●
●
●
●
●
9
BOLT; CHANGE LEVER
M8X25 FLANGE
0-28080-825-0
04
1
9303-
●
●
●
●
●
●
13
WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22
9-09160-708-0
04
1
9002-
●
●
●
●
●
●
16
BOOT; CHANGE LEVER
1-79997-145-5
01
1
9002-9306
●
●
●
●
●
●
16
BOOT; CHANGE LEVER
1-79997-362-0
01
1
9307-
●
●
●
●
25
WASHER
ID=16.5 OD=27.8 H=3.5
1-09503-047-0
02
1
9002-
●
●
●
●
●
●
29
SHAFT
(A) L=61
1-33619-126-2
01
1
9002-
●
●
●
●
●
●
29
SHAFT
(B) L=135
1-33619-127-0
01
1
9002-
●
●
●
●
●
●
31
WASHER; LK
ID=10.2
9-09150-510-0
03
1
9002-
●
●
●
●
●
●
34
NUT
M10
9-09110-410-0
03
1
9002-
●
●
●
●
●
●
37
BRACKET; CHANGE LEVER SUPPORT
1-33619-166-1
01
1
9002-
●
●
●
●
●
●
38
HOLDER; BOOT CHANGE LEVER
1-79997-152-5
01
1
9002-
●
●
●
●
●
●
39
SCREW; BOOT,CHANGE LEVER
M6X20 W/LK&PL WASHER
1-09981-312-0
04
1
9002-
●
●
●
●
●
●
40
SEAL; BOOT HOLDER CHANGE LEVER
1-79997-151-1
01
1
9002-
●
●
●
●
●
●
102
SPIDER ASM
1-33615-022-3
01
1
9002-
●
●
●
●
●
●
103
BUSHING; RELAY LEVER
(A) ID=16 OD=18 L=12.5
1-09330-048-0
02
1
9002-
●
●
●
●
●
●
103
BUSHING; RELAY LEVER
(B) ID=16 OD=18 L=16
1-09330-049-0
02
1
9002-
●
●
●
●
●
●
103
BUSHING; RELAY LEVER
(C) ID=16 OD=18 H=16
1-09503-151-0
02
1
9002-
●
●
●
●
●
●
104
WASHER; WAVED
9-09855-315-0
03
1
9002-
●
●
●
●
●
●
105
SHIM; CHANGE LEVER
1-33659-096-0
03
1
9002-
●
●
●
●
●
●
106
NIPPLE; GREASE
M6 STRAIGHT
9-09031-006-0
01
1
9002-
●
●
●
●
●
●
107
WASHER; PL
ID=6.4
9-09160-506-0
01
1
9002-
●
●
●
●
●
●
108
SHAFT; SELECT LEVER
1-33619-128-1
01
1
9002-
●
●
●
●
●
●
111
SPRING
1-09585-091-2
01
1
9002-
●
●
●
●
●
●
112
RUBBER; CUSHION
1-33619-148-0
08
1
9002-
●
●
●
●
●
●
113
SPACER
9-09651-072-0
04
1
9002-
●
●
●
●
●
●
277
LEVER; RELAY
1-33651-250-3
01
1
9002-
●
●
●
●
●
●
