◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10943 - FVM(THAI)EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#28173) — 199 parça

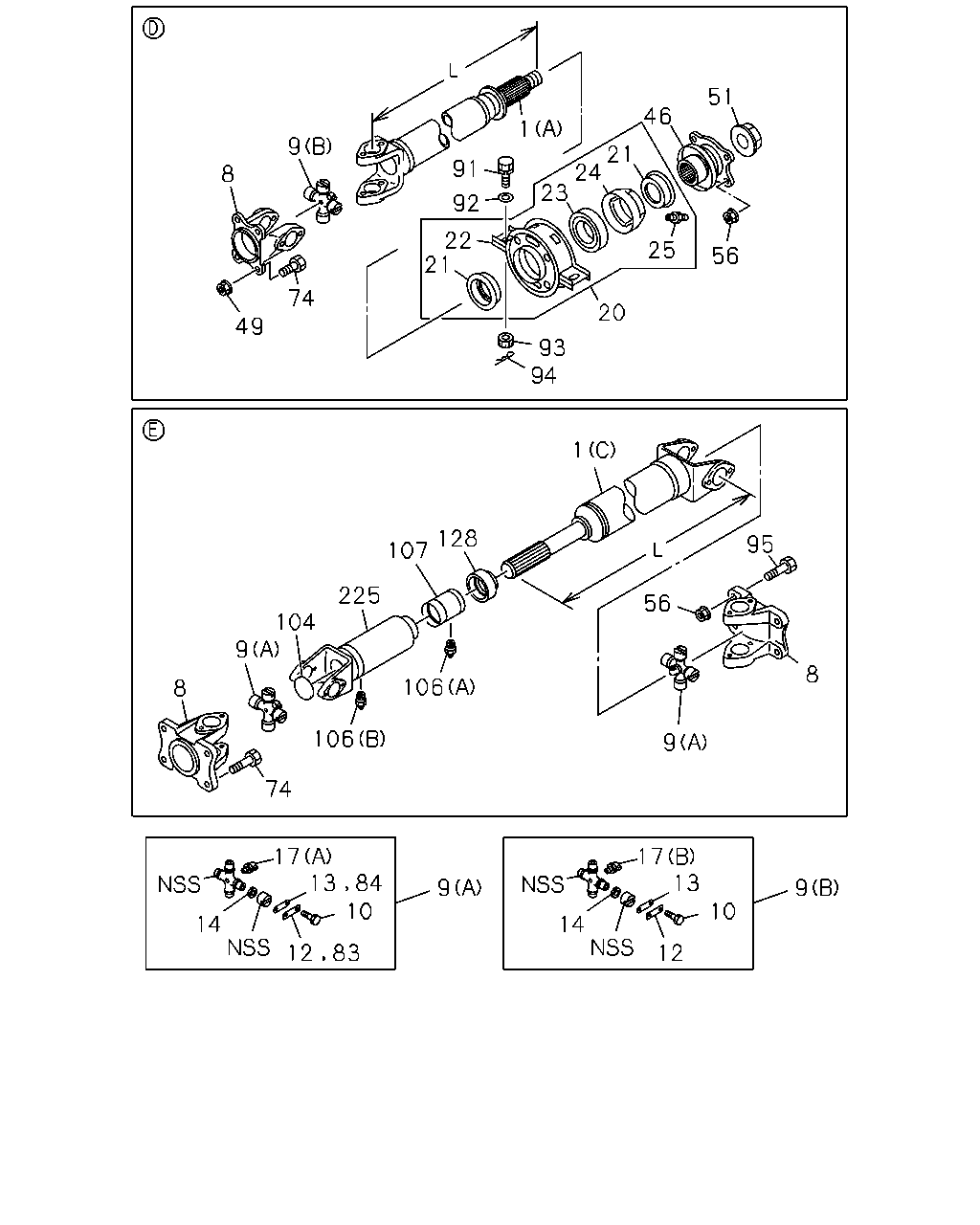

çizim 23601
51 46 1 9 21 24 23 91 8 92 22 21 25 56 74 20 49 93 94 1 128 95 107 225 56 104 9 8 106 8 106 9 74 17 10 17 13 9 9 10 14 14 12 13 84 83 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(C) L=869 		1-37124-216-0 01 1 0407- ●
1 SHAFT; PROP
(A) L=786 		1-37152-074-0 01 1 0407- ● ● ●
1 SHAFT; PROP
(C) L=1079 		1-37125-080-0 01 1 0407- ●
1 SHAFT; PROP
(C) L=1094 		1-37123-928-0 01 1 0407- ●
1 SHAFT; PROP
(C) L=939 		1-37123-959-0 01 1 0407- ●
1 SHAFT; PROP
(B) L=916 		1-37152-279-0 01 1 0407- ●
1 SHAFT; PROP
(A) L=1101 		1-37152-336-0 01 1 0407- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0407- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0407- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 03 1 0407- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-095-1 AR 1 0407- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-094-1 AR 1 0407- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-094-1 AR 1 0407- ●
10 BOLT; UJT
M10X20 		9-02061-020-0 16 1 0407-0512 ● ● ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 16 1 0601- ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 08 1 0407-0512 ● ● ● ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 08 1 0601- ● ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 24 1 0407-0512 ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 24 1 0601- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 0407- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 0407- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 08 1 0407- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 0407- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 0407- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 08 1 0407- ●
14 COVER; DUST,SPIDER 9-37352-023-0 08 1 0407- ● ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 04 1 0407- ● ● ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 12 1 0407- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 0407-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 0407-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 0407-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		0-90301-510-0 02 1 0601- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0407- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0407- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0407- ● ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0407- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0407- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0407- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0407- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0407- ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0407- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0407- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0407- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0407- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0407- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0407- ●
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0407- ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0407- ● ● ● ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0407- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0407- ● ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0407- ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0407- ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0407- ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-010-0 04 1 0407- ● ● ● ●
84 COVER; UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 0407- ● ● ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0407- ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0407- ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		9-99116-516-0 02 1 0407-0605 ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0606- ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0407-0606 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 0407- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0407- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) MT6 STRAIGHT 		1-09380-006-0 01 1 0407- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0407-0512 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 0407- ● ● ● ●
128 SEAL; SLEEVE 1-37247-021-0 01 1 0407- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-109-1 01 1 0407- ● ● ● ●

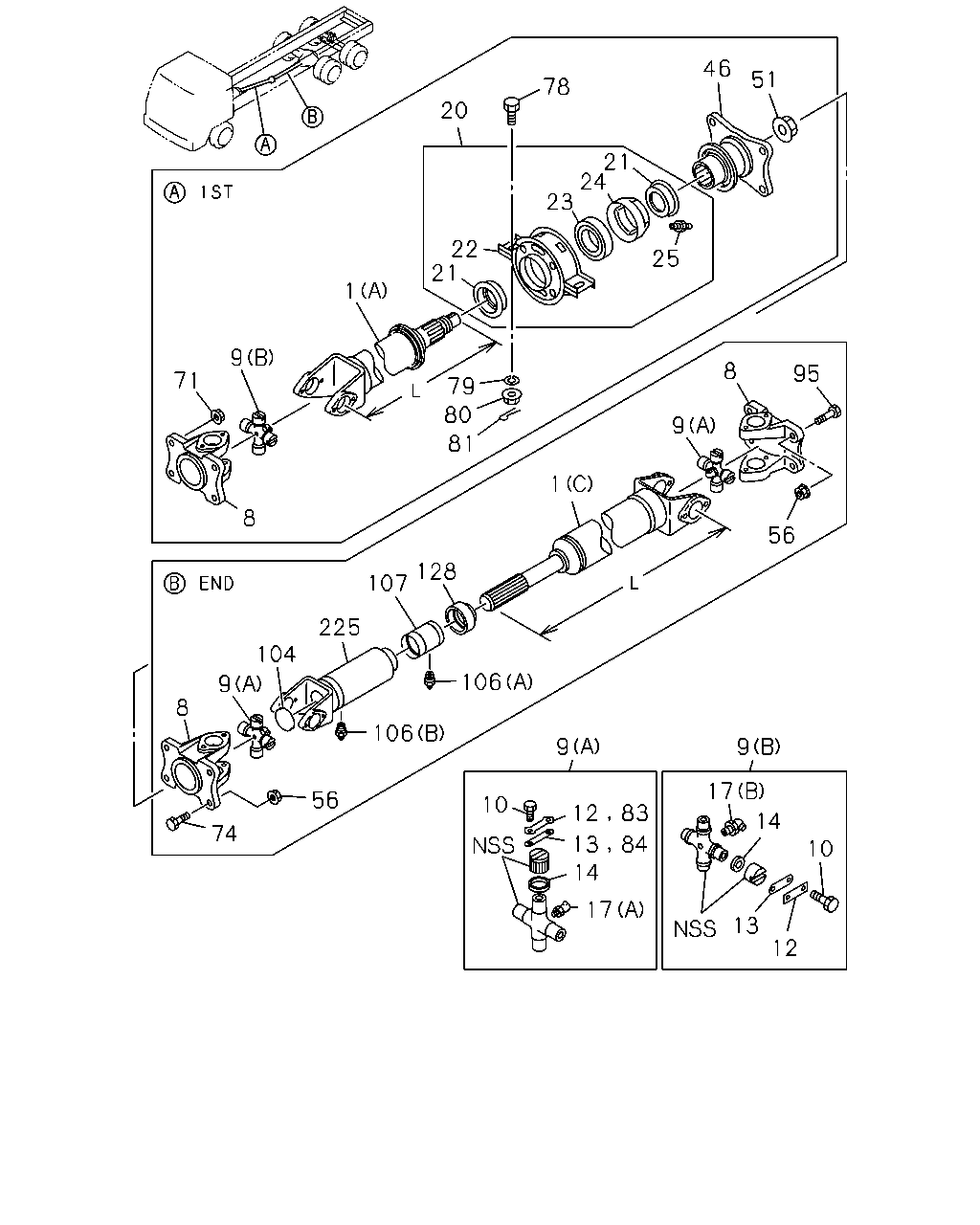

çizim 25638
46 51 78 20 21 24 23 22 21 25 1 9 8 95 71 79 80 9 81 1 8 56 128 107 225 104 106 9 8 106 9 9 17 56 10 14 74 10 14 17 13 12 12 83 13 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(C) L=869 		1-37124-216-0 01 1 0407- ●
1 SHAFT; PROP
(A) L=786 		1-37152-074-0 01 1 0407- ● ● ●
1 SHAFT; PROP
(C) L=1079 		1-37125-080-0 01 1 0407- ●
1 SHAFT; PROP
(C) L=1094 		1-37123-928-0 01 1 0407- ●
1 SHAFT; PROP
(C) L=939 		1-37123-959-0 01 1 0407- ●
1 SHAFT; PROP
(B) L=916 		1-37152-279-0 01 1 0407- ●
1 SHAFT; PROP
(A) L=1101 		1-37152-336-0 01 1 0407- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0407- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0407- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 03 1 0407- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-095-1 AR 1 0407- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-094-1 AR 1 0407- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-094-1 AR 1 0407- ●
10 BOLT; UJT
M10X20 		9-02061-020-0 16 1 0407-0512 ● ● ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 16 1 0601- ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 08 1 0407-0512 ● ● ● ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 08 1 0601- ● ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 24 1 0407-0512 ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 24 1 0601- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 0407- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 0407- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 08 1 0407- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 0407- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 0407- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 08 1 0407- ●
14 COVER; DUST,SPIDER 9-37352-023-0 08 1 0407- ● ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 04 1 0407- ● ● ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 12 1 0407- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 0407-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 0407-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 0407-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		0-90301-510-0 02 1 0601- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0407- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0407- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0407- ● ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0407- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0407- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0407- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0407- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0407- ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0407- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0407- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0407- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0407- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0407- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0407- ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0407- ● ● ● ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0407- ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0407- ● ● ● ●
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0407- ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0407- ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0407- ● ● ● ●
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0407- ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0407- ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0407- ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0407-0605 ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0606- ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0407-0606 ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ● ● ● ●
83 PLATE; LK,UJT,PROP SHAFT 1-37356-010-0 04 1 0407- ● ● ● ●
84 COVER; UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 0407- ● ● ● ●
95 BOLT; YOKE,FINAL
M16X48 		1-09000-383-0 04 1 0407- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0407- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) MT6 STRAIGHT 		1-09380-006-0 01 1 0407- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0407-0512 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 0407- ● ● ● ●
128 SEAL; SLEEVE 1-37247-021-0 01 1 0407- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-109-1 01 1 0407- ● ● ● ●

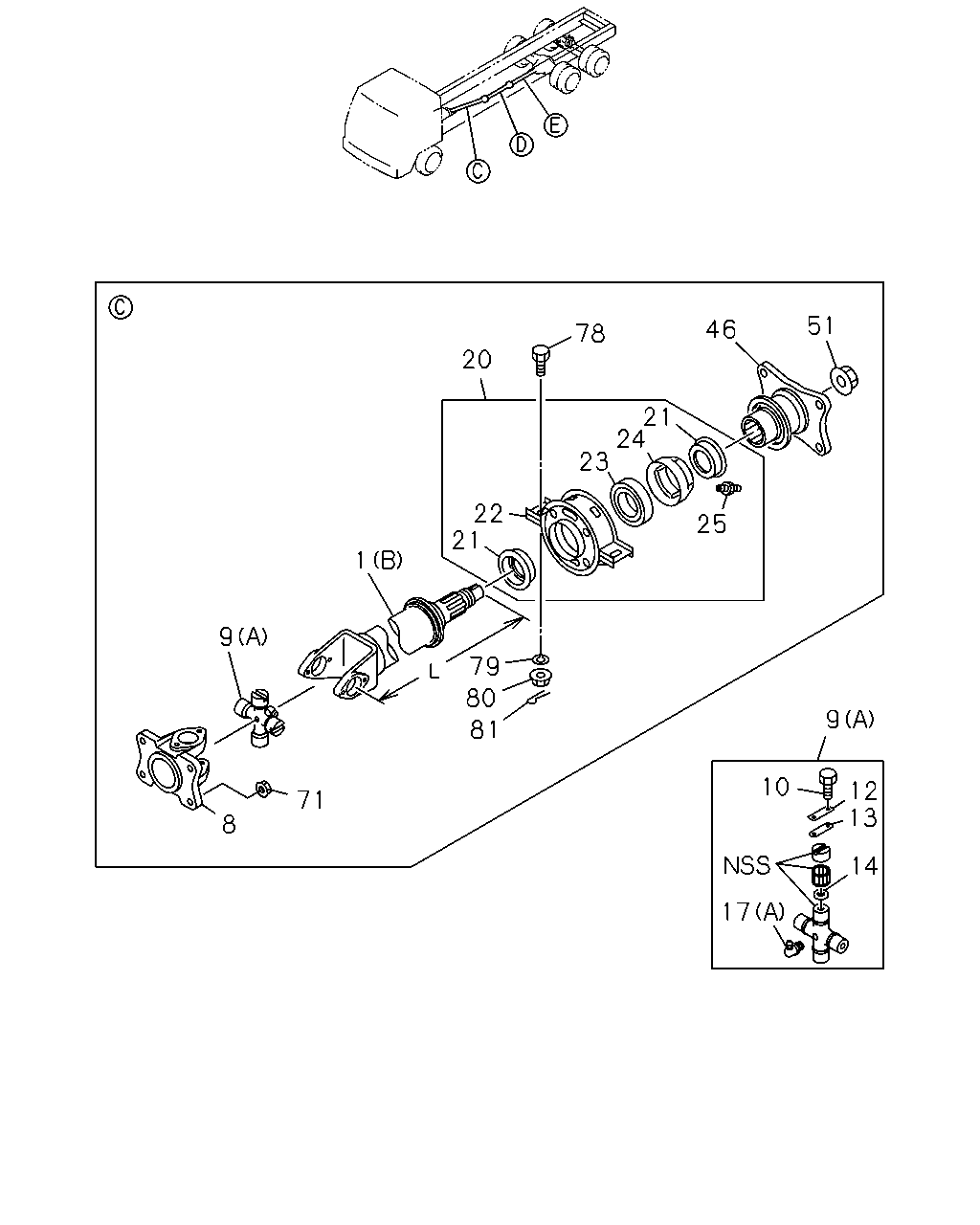

çizim 84699
51 46 78 20 21 24 23 22 21 25 1 9 79 80 9 81 10 12 13 71 8 14 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(C) L=869 		1-37124-216-0 01 1 0407- ●
1 SHAFT; PROP
(A) L=786 		1-37152-074-0 01 1 0407- ● ● ●
1 SHAFT; PROP
(C) L=1079 		1-37125-080-0 01 1 0407- ●
1 SHAFT; PROP
(C) L=1094 		1-37123-928-0 01 1 0407- ●
1 SHAFT; PROP
(C) L=939 		1-37123-959-0 01 1 0407- ●
1 SHAFT; PROP
(B) L=916 		1-37152-279-0 01 1 0407- ●
1 SHAFT; PROP
(A) L=1101 		1-37152-336-0 01 1 0407- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0407- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0407- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 03 1 0407- ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-095-1 AR 1 0407- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-094-1 AR 1 0407- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-094-1 AR 1 0407- ●
10 BOLT; UJT
M10X20 		9-02061-020-0 16 1 0407-0512 ● ● ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 16 1 0601- ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 08 1 0407-0512 ● ● ● ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 08 1 0601- ● ● ● ●
10 BOLT; UJT
M10X20 		9-02061-020-0 24 1 0407-0512 ●
10 BOLT; UJT
M10X20 THA 		0-20951-020-0 24 1 0601- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 0407- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 04 1 0407- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 08 1 0407- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 0407- ● ● ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 04 1 0407- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 08 1 0407- ●
14 COVER; DUST,SPIDER 9-37352-023-0 08 1 0407- ● ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 04 1 0407- ● ● ● ●
14 COVER; DUST,SPIDER 9-37352-023-0 12 1 0407- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 0407-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 0407-0512 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		0-90301-510-0 01 1 0601- ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 0407-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5? 		0-90301-510-0 02 1 0601- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0407- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-093-3 01 1 0407- ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0407- ● ● ● ●
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0407- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0407- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-047-2 01 1 0407- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0407- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0407- ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0407- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0407- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0407- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0407- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0407- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0407- ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0407- ● ● ● ●
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0407- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0407- ● ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0407- ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0407- ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		9-99116-516-0 02 1 0407-0605 ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0606- ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		9-08114-025-0 02 1 0407-0606 ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0607- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
