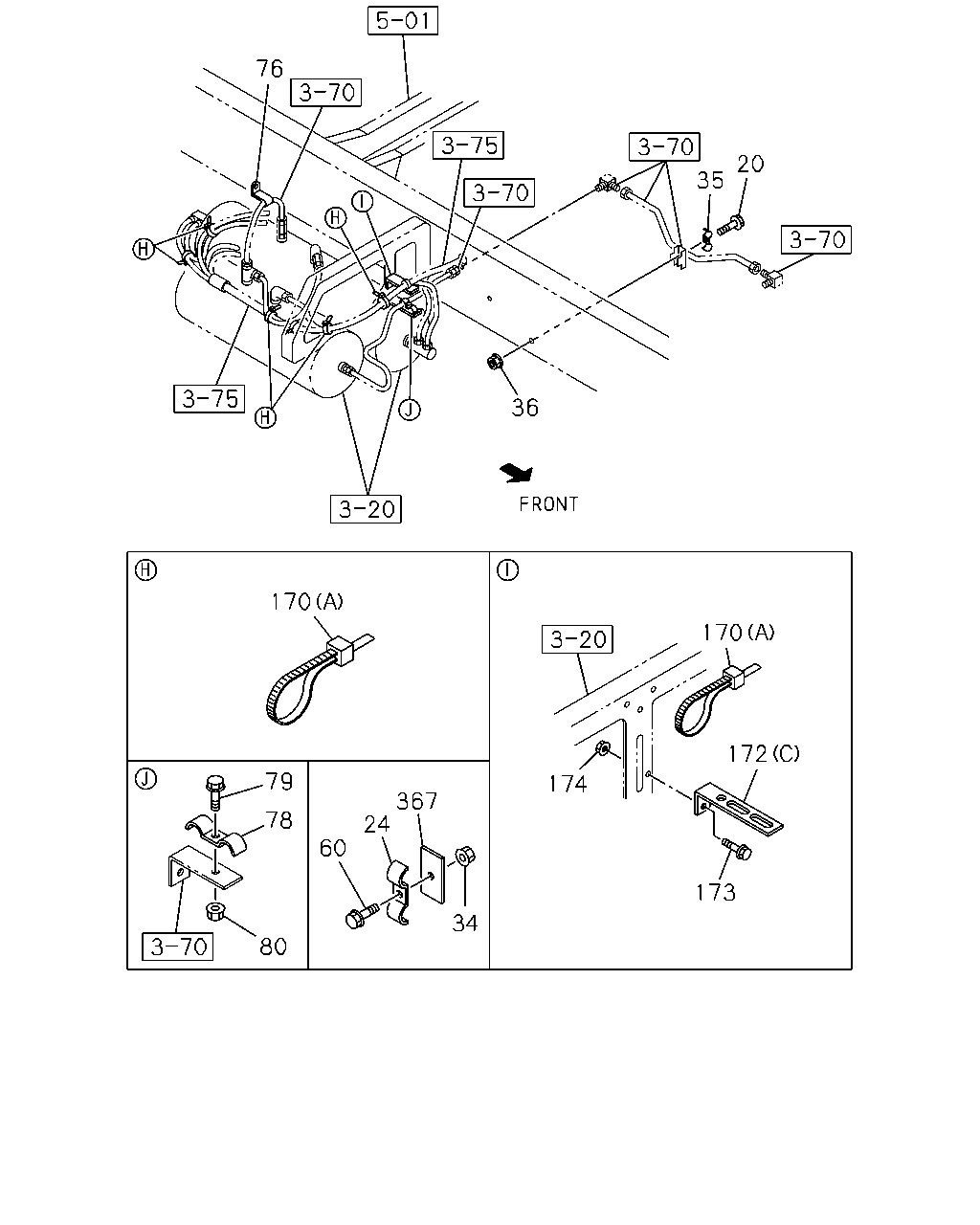

3-78 — FIXING PARTS; AIR PIPING (#28172) — 96 parça

356 300 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0407-
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0407-
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0407-

76 20 35 36 170 170 172 79 174 367 24 78 60 173 34 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	01	1	0407-0512
20	BOLT; CLIP M8X45 FLANGE THA	0-28050-845-0	01	1	0601-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0611
20	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0612-
24	CLIP; PIPE ID=16 & 7 L=21 & 17 THA	1-09700-675-0	01	1	0407-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0602
34	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	0603-
35	CLIP; AIR PIPE ID=16 & 7 L=21 & 17 THA	1-09700-675-0	01	1	0407-
36	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0602
36	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	0603-
60	BOLT; CLIP FIX M8X16 FLANGE	0-28080-816-0	01	1	0407-0512
60	BOLT; CLIP FIX M8X16 FLANGE THA	0-28050-816-0	01	1	0601-
76	CLIP; NYLON TUBE ID=13 H=50 L=25	1-09700-529-0	01	1	0407-
78	CLIP; AIR PIPE ID=16 & 7 L=21 & 17 THA	1-09700-675-0	01	1	0407-
79	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0611
79	BOLT; PIPE CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0612-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0602
80	NUT; CLIP,AIR PIPE M8 FLANGE THA	0-91180-108-0	01	1	0603-
170	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	26	1	0407-
170	CLIP; NYLON TUBE (B) ID=11 L=50	9-09525-085-0	01	1	0407-0606
170	CLIP; NYLON TUBE (B) ID=11 L=50	0-95235-085-0	01	1	0607-
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0407-
172	BRACKET; TUBE CLIP (D)	1-47477-514-3	01	1	0407-
172	BRACKET; TUBE CLIP (D)	1-47477-514-3	02	1	0407-
172	BRACKET; TUBE CLIP (C) L=150	1-47477-629-2	01	1	0407-
172	BRACKET; TUBE CLIP (C) L=225	1-47477-646-3	01	1	0407-
172	BRACKET; TUBE CLIP (B) L=117	1-47478-116-0	01	1	0407-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0611
173	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	0612-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	0407-0611
173	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0612-
173	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0611
173	BOLT; CLIP BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	0612-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0611
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	0612-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0407-0611
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0612-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0602
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0602
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	03	1	0603-
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	03	1	0603-
367	BRACKET ASM L=50 THA	1-47475-299-2	01	1	0407-

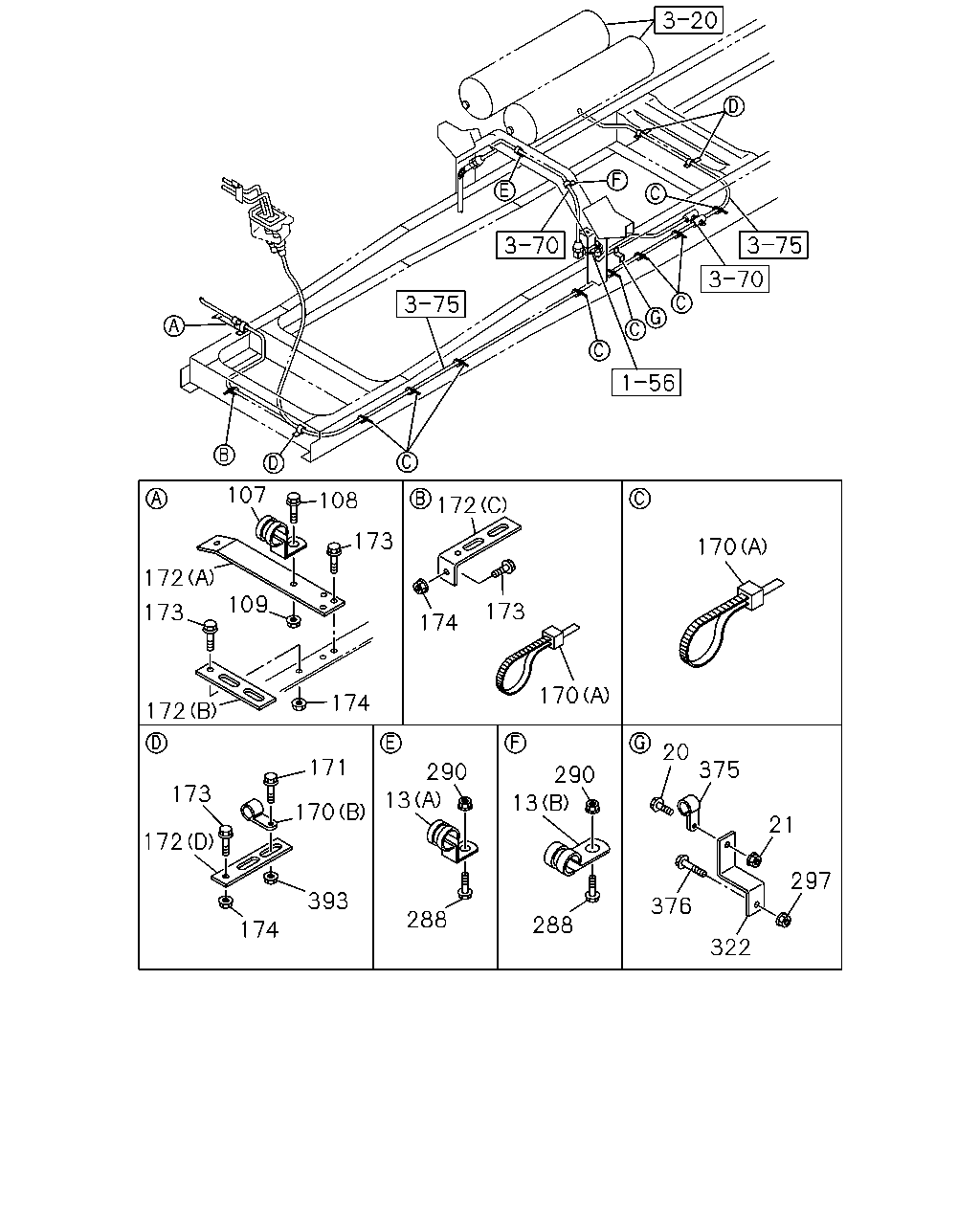

107 108 172 173 170 172 109 173 173 174 172 170 174 20 375 171 290 290 173 13 13 170 21 172 297 393 376 288 288 174 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21 THA	1-09700-916-0	01	1	0407-
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0407-0606
13	CLIP; AIR PIPE (B) ID=7 L=40	0-95234-675-0	01	1	0607-
20	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	01	1	0407-0512
20	BOLT; CLIP M8X45 FLANGE THA	0-28050-845-0	01	1	0601-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0611
20	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0612-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-
107	CLIP; NYLON TUBE ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0407-0611
108	BOLT; TUBE CLIP M8X25 FLANGE THA	0-28650-825-0	01	1	0612-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0602
109	NUT; TUBE CLIP M8 FLANGE THA	0-91180-108-0	01	1	0603-
170	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	26	1	0407-
170	CLIP; NYLON TUBE (B) ID=11 L=50	9-09525-085-0	01	1	0407-0606
170	CLIP; NYLON TUBE (B) ID=11 L=50	0-95235-085-0	01	1	0607-
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0611
171	BOLT; TUBE CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0612-
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0407-
172	BRACKET; TUBE CLIP (D)	1-47477-514-3	01	1	0407-
172	BRACKET; TUBE CLIP (D)	1-47477-514-3	02	1	0407-
172	BRACKET; TUBE CLIP (C) L=150	1-47477-629-2	01	1	0407-
172	BRACKET; TUBE CLIP (C) L=225	1-47477-646-3	01	1	0407-
172	BRACKET; TUBE CLIP (B) L=117	1-47478-116-0	01	1	0407-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0611
173	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	0612-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	0407-0611
173	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0612-
173	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0611
173	BOLT; CLIP BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	0612-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0611
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	0612-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0407-0611
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0612-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0602
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0602
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	03	1	0603-
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	03	1	0603-
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	02	1	0407-0611
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	0612-
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0407-0602
290	NUT; CLIP,AIR PIPE M8 FLANGE THA	0-91180-108-0	02	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0602
297	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	0603-
322	BRACKET; CLIP	1-47479-248-0	01	1	0407-
375	CLIP; AIR PIPE ID=9	9-09524-825-0	01	1	0407-0606
375	CLIP; AIR PIPE ID=9 L=16	0-95234-825-0	01	1	0607-
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0611
376	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	0612-
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	0407-0602
393	NUT; UNION M8 FLANGE THA	0-91180-108-0	01	1	0603-
