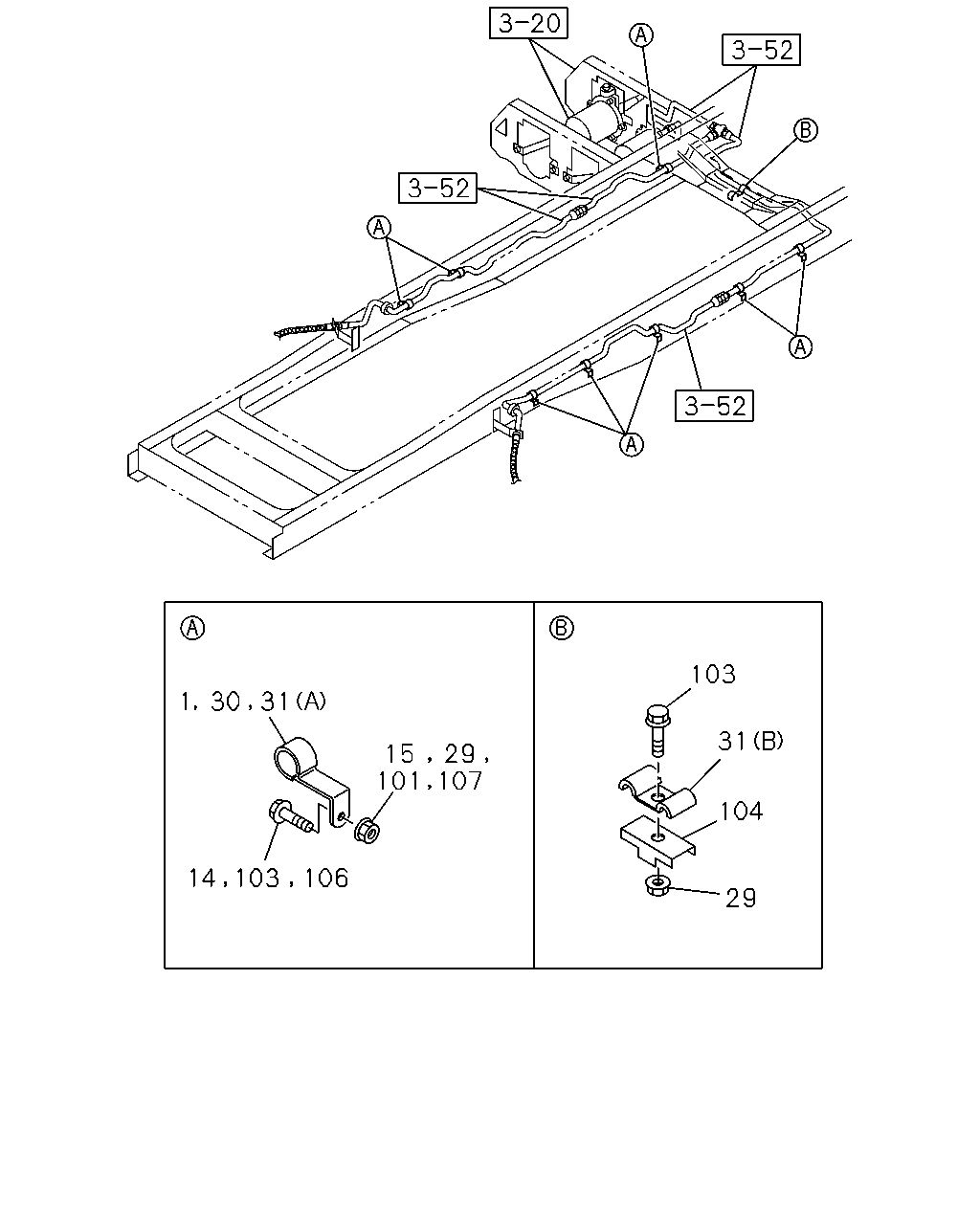

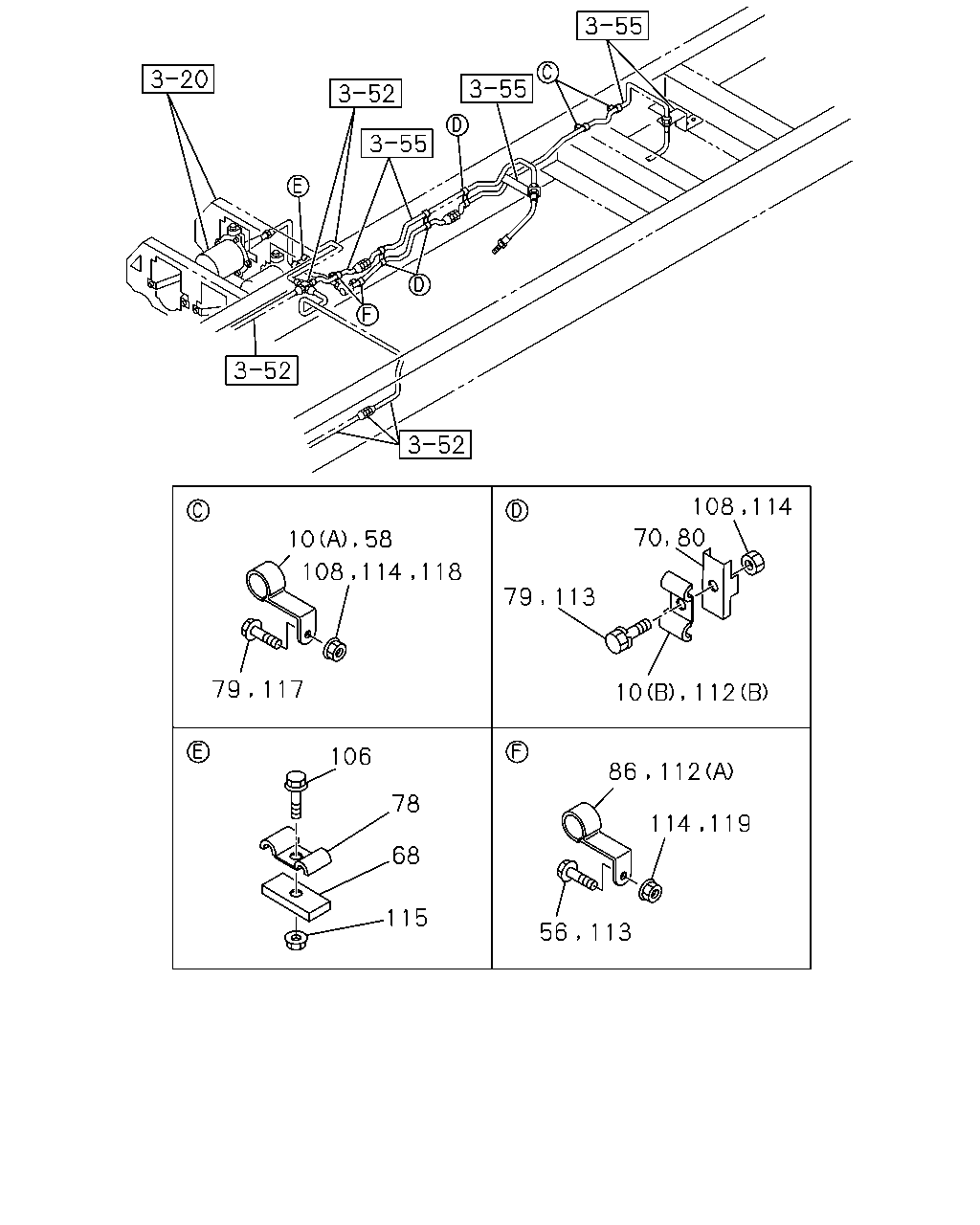

3-58 — FIXING PARTS; OIL PIPING (#28168) — 80 parça

103 1 31 101 107 104 106 29 30 31 15 29 103 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20 THA	1-09700-603-0	01	1	0407-
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0407-
14	BOLT; CLIP,OIL PIPE M8X35 FLANGE	0-28680-835-0	01	1	0407-0611
14	BOLT; CLIP,OIL PIPE M8X35 FLANGE THA	0-28650-835-0	01	1	0612-
14	BOLT; CLIP,OIL PIPE M8X35 FLANGE	0-28680-835-0	02	1	0407-0611
14	BOLT; CLIP,OIL PIPE M8X35 FLANGE THA	0-28650-835-0	02	1	0612-
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0407-0602
15	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	02	1	0603-
29	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0602
29	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	0603-
30	CLIP; OIL PIPE ID=6 H=20 L=20 THA	1-09700-603-0	03	1	0407-
31	CLIP; OIL PIPE (A) ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0407-
31	CLIP; OIL PIPE (B) ID=7 & 9 L=17.5 & 17.5 THA	1-09700-746-0	01	1	0407-
101	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0602
101	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	0603-
103	BOLT; CLIP,OIL PIPE M8X35 FLANGE	0-28680-835-0	02	1	0407-0611
103	BOLT; CLIP,OIL PIPE M8X35 FLANGE THA	0-28650-835-0	02	1	0612-
103	BOLT; CLIP,OIL PIPE M8X40 FLANGE	0-28680-840-0	01	1	0407-0611
103	BOLT; CLIP,OIL PIPE M8X40 FLANGE THA	0-28650-840-0	01	1	0612-
104	BRACKET; OIL PIPE	1-47475-427-1	01	1	0407-
106	BOLT; CLIP,OIL PIPE M8X35 FLANGE	0-28680-835-0	03	1	0407-0611
106	BOLT; CLIP,OIL PIPE M8X35 FLANGE THA	0-28650-835-0	03	1	0612-
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	0407-0611
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE THA	0-28050-816-0	01	1	0612-
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0407-0602
107	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	0603-

57 59 57 57 57 59 57 57 59 57 57 59

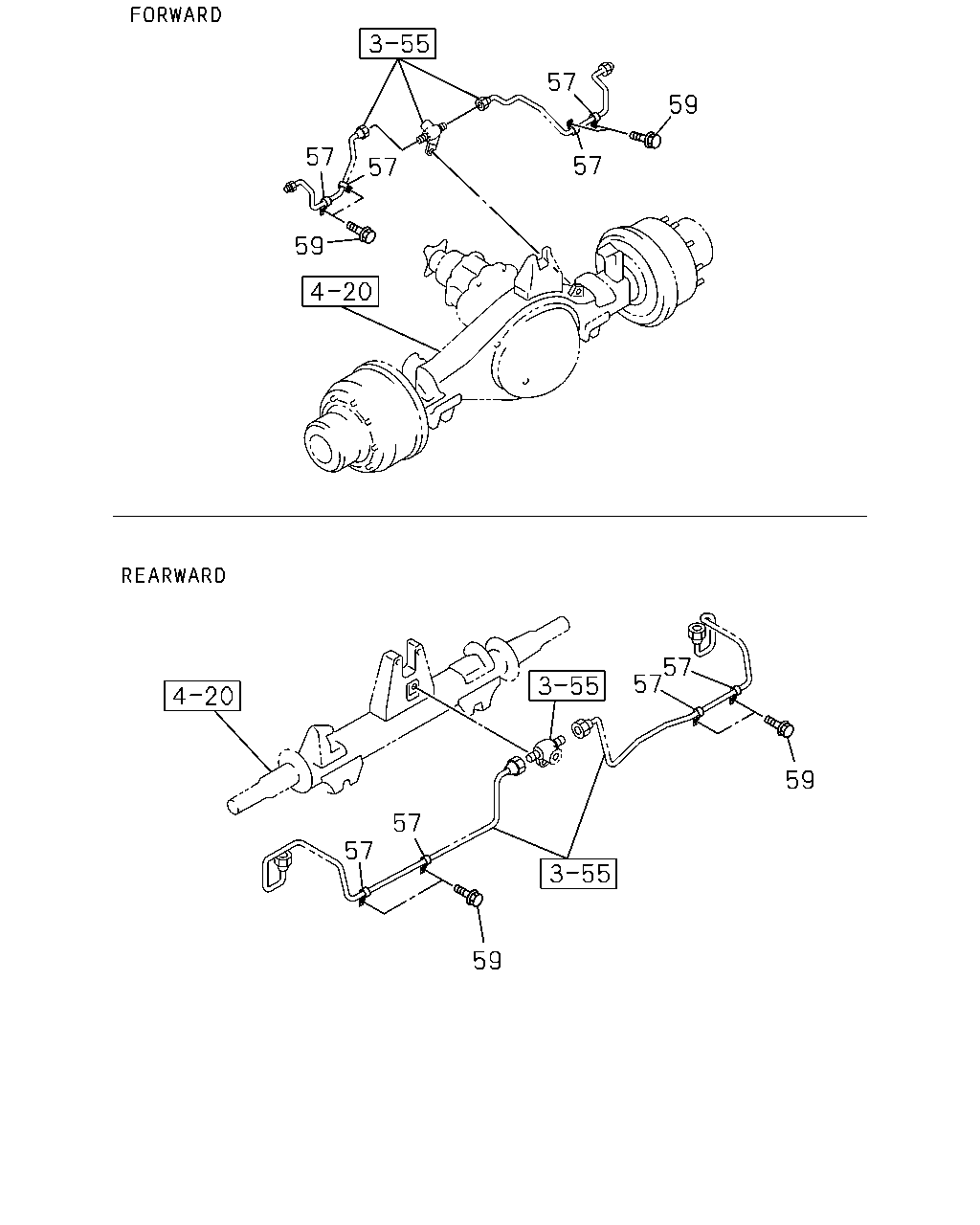

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	0407-0606
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	0407-0606
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	04	1	0607-
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	04	1	0607-
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	04	1	0407-0512
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	04	1	0407-0512
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE THA	0-28050-810-0	04	1	0601-
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE THA	0-28050-810-0	04	1	0601-

10 58 79 113 79 117 10 112 106 86 112 78 68 115 56 113 108 114 118 70 80 108 114 114 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CLIP; OIL PIPE WHEEL BASE 5300MM<53W> (A) ID=6 H=20 L=20 THA	1-09700-603-0	01	1	0407-
10	CLIP; OIL PIPE (B) ID=7 & 7 L=17.5 & 17.5 THA	1-09700-745-0	03	1	0407-
56	BOLT; CLIP WHEEL BASE 5300MM<53W>,WHEEL BASE 5500MM<55W> M8X35 FLANGE	0-28680-835-0	01	1	0407-0611
56	BOLT; CLIP WHEEL BASE 5300MM<53W>,WHEEL BASE 5500MM<55W> M8X35 FLANGE THA	0-28650-835-0	01	1	0612-
58	CLIP; OIL PIPE ID=6 H=20 L=20 THA	1-09700-603-0	03	1	0407-
68	BRACKET; CLIP L=50 THA	1-47475-299-2	01	1	0407-
70	BRACKET; CLIP	1-47475-427-1	03	1	0407-
78	CLIP; OIL PIPE ID=7 & 9 L=17.5 & 17.5 THA	1-09700-746-0	01	1	0407-
79	BOLT; CLIP,OIL PIPE WHEEL BASE 5300MM<53W> M8X30 FLANGE	0-28680-830-0	01	1	0407-0611
79	BOLT; CLIP,OIL PIPE WHEEL BASE 5300MM<53W> M8X30 FLANGE THA	0-28650-830-0	01	1	0612-
79	BOLT; CLIP,OIL PIPE M8X45 FLANGE	0-28080-845-0	03	1	0407-0512
79	BOLT; CLIP,OIL PIPE M8X45 FLANGE THA	0-28050-845-0	03	1	0601-
80	BRACKET; CLIP,OIL PIPE WHEEL BASE 5800MM<58W>	1-47475-427-1	02	1	0407-
80	BRACKET; CLIP,OIL PIPE WHEEL BASE 6300MM<63W>	1-47475-427-1	03	1	0407-
86	CLIP; OIL PIPE WHEEL BASE 5300MM<53W>,WHEEL BASE 5500MM<55W> ID=6 H=20 L=20 THA	1-09700-603-0	01	1	0407-
106	BOLT; CLIP,OIL PIPE M8X35 FLANGE	0-28680-835-0	03	1	0407-0611
106	BOLT; CLIP,OIL PIPE M8X35 FLANGE THA	0-28650-835-0	03	1	0612-
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	01	1	0407-0611
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE THA	0-28050-816-0	01	1	0612-
108	NUT; CLIP,AIR PIPE WHEEL BASE 5300MM<53W> M8 FLANGE	0-91150-108-0	04	1	0407-0602
108	NUT; CLIP,AIR PIPE WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> M8 FLANGE	0-91150-108-0	03	1	0407-0602
108	NUT; CLIP,AIR PIPE WHEEL BASE 5300MM<53W> M8 FLANGE THA	0-91180-108-0	04	1	0603-
108	NUT; CLIP,AIR PIPE WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> M8 FLANGE THA	0-91180-108-0	03	1	0603-
112	CLIP; OIL PIPE WHEEL BASE 5500MM<55W> (A) ID=6 H=20 L=20 THA	1-09700-603-0	01	1	0407-
112	CLIP; OIL PIPE WHEEL BASE 5800MM<58W> (B) ID=7 & 7 L=17.5 & 17.5 THA	1-09700-745-0	02	1	0407-
112	CLIP; OIL PIPE WHEEL BASE 6300MM<63W> (B) ID=7 & 7 L=17.5 & 17.5 THA	1-09700-745-0	03	1	0407-
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5500MM<55W> M8X30 FLANGE	0-28680-830-0	01	1	0407-0611
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5500MM<55W> M8X30 FLANGE THA	0-28650-830-0	01	1	0612-
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5800MM<58W> M8X45 FLANGE	0-28080-845-0	02	1	0407-0512
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5800MM<58W> M8X45 FLANGE THA	0-28050-845-0	02	1	0601-
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6300MM<63W> M8X45 FLANGE	0-28080-845-0	03	1	0407-0512
113	BOLT; CLIP,OIL PIPE WHEEL BASE 6300MM<63W> M8X45 FLANGE THA	0-28050-845-0	03	1	0601-
114	NUT; CLIP,OIL PIPE WHEEL BASE 5500MM<55W> M8 FLANGE	0-91150-108-0	01	1	0407-0602
114	NUT; CLIP,OIL PIPE WHEEL BASE 5800MM<58W> M8 FLANGE	0-91150-108-0	02	1	0407-0602
114	NUT; CLIP,OIL PIPE WHEEL BASE 6300MM<63W> M8 FLANGE	0-91150-108-0	03	1	0407-0602
114	NUT; CLIP,OIL PIPE WHEEL BASE 5500MM<55W> M8 FLANGE THA	0-91180-108-0	01	1	0603-
114	NUT; CLIP,OIL PIPE WHEEL BASE 5800MM<58W> M8 FLANGE THA	0-91180-108-0	02	1	0603-
114	NUT; CLIP,OIL PIPE WHEEL BASE 6300MM<63W> M8 FLANGE THA	0-91180-108-0	03	1	0603-
115	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0602
115	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	0603-
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0407-0611
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	03	1	0612-
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0407-0602
118	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	0603-
119	NUT; CLIP WHEEL BASE 5300MM<53W>,WHEEL BASE 5500MM<55W> M8 FLANGE	0-91150-108-0	01	1	0407-0602
119	NUT; CLIP WHEEL BASE 5300MM<53W>,WHEEL BASE 5500MM<55W> M8 FLANGE THA	0-91180-108-0	01	1	0603-
