3-55 — BRAKE PIPING; OIL,REAR (#28167) — 59 parça

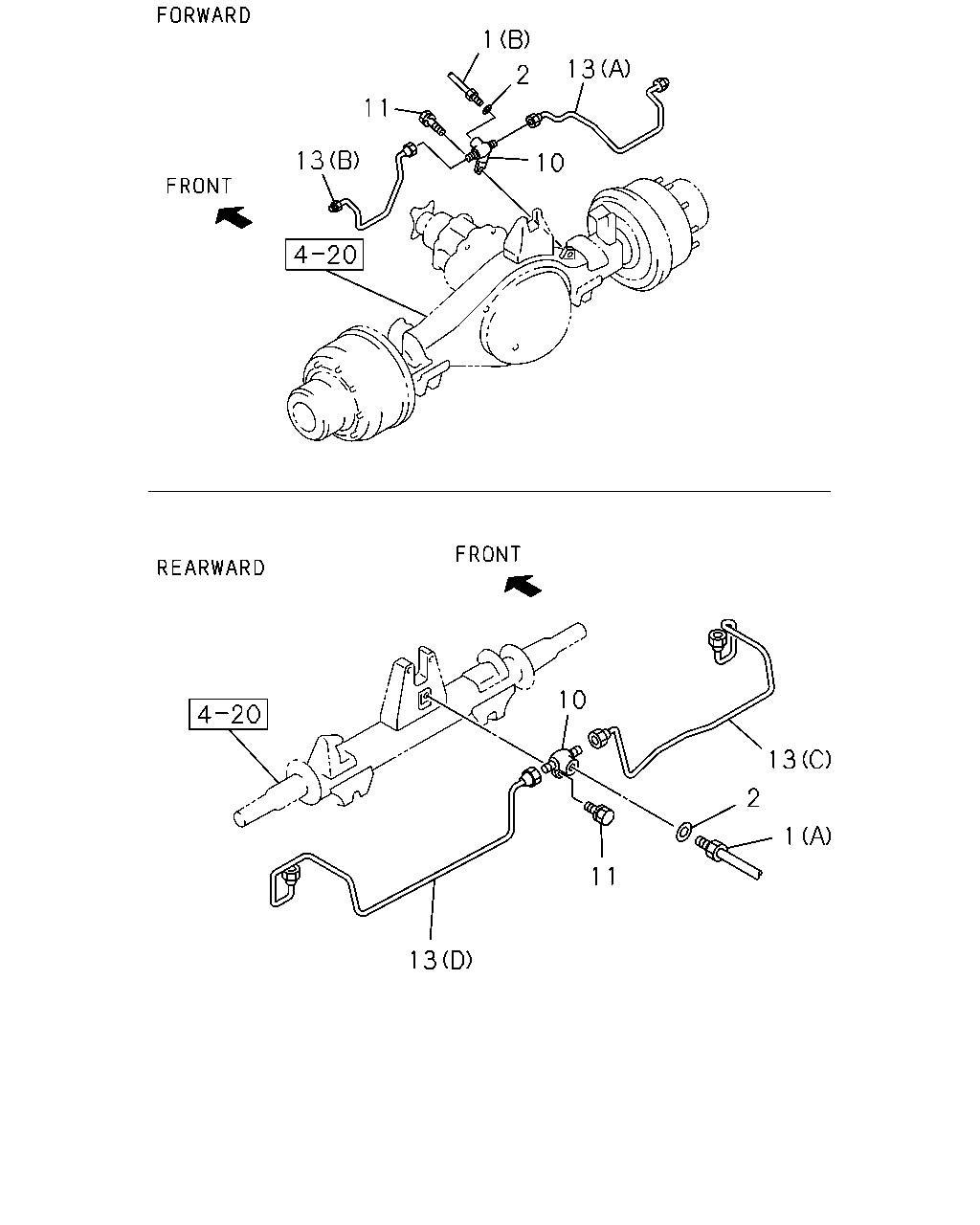

1 13 2 11 13 10 10 13 2 1 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK (B) L=525	1-09364-191-0	01	1	0407-
1	HOSE; FLEX,RR BRK (A) L=675	1-09364-201-0	01	1	0407-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0407-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0407-
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0407-
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0407-
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0407-0702
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0407-0702
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50541-025-0	01	1	0703-
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50541-025-0	01	1	0703-
13	PIPE; BRK,RR AXLE (A) FORWARD THA	8-97922-651-0	01	1	0407-
13	PIPE; BRK,RR AXLE (B) FORWARD THA	8-97922-652-0	01	1	0407-0408
13	PIPE; BRK,RR AXLE (B) FORWARD THA	8-97922-737-0	01	1	0409-
13	PIPE; BRK,RR AXLE (C) REARWARD THA	8-97922-653-0	01	1	0407-
13	PIPE; BRK,RR AXLE (D) REARWARD THA	8-97922-654-0	01	1	0407-

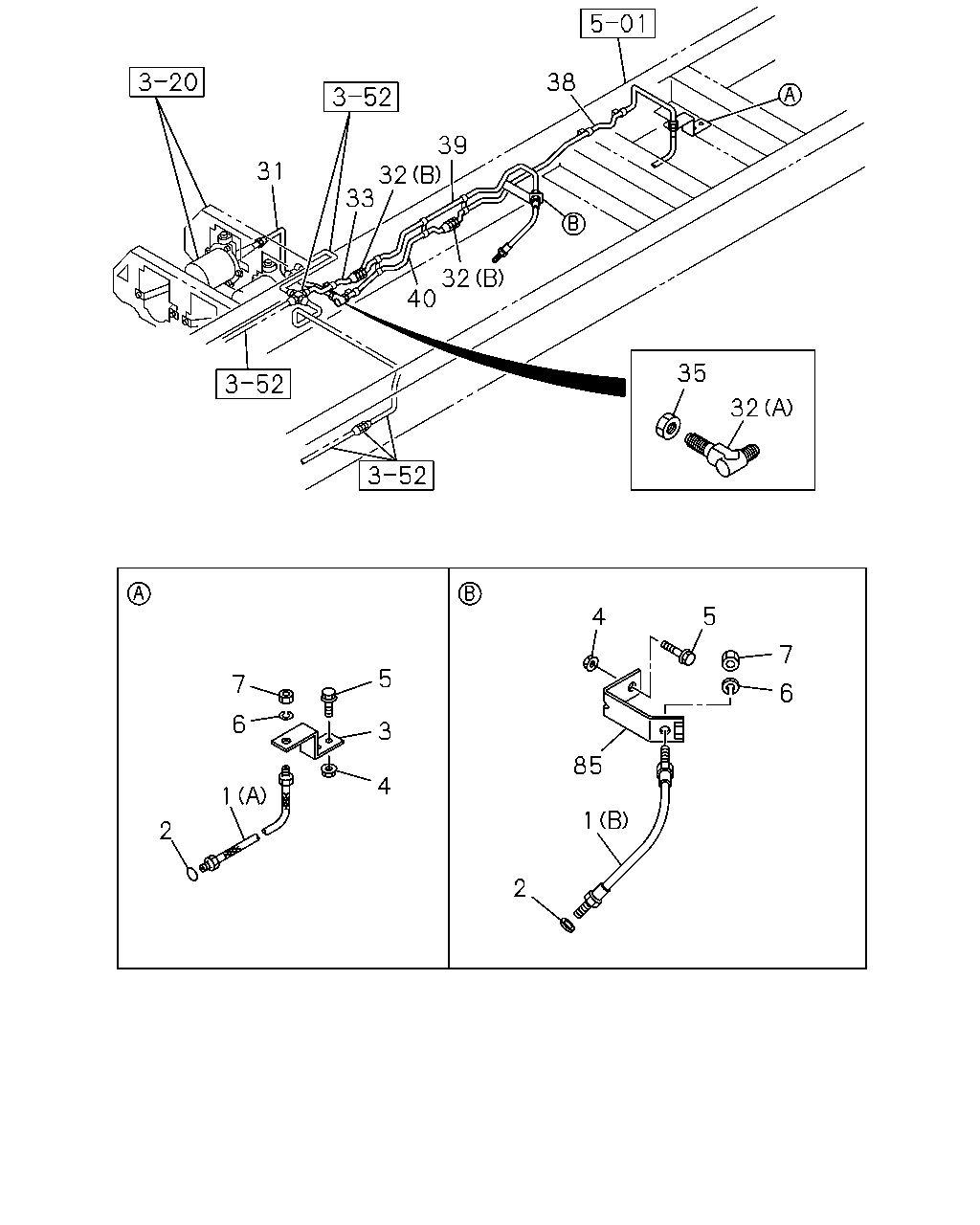

38 39 32 33 31 32 40 35 32 5 4 7 5 7 6 6 3 85 4 1 1 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK (B) L=525	1-09364-191-0	01	1	0407-
1	HOSE; FLEX,RR BRK (A) L=675	1-09364-201-0	01	1	0407-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0407-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0407-
3	BRACKET; FLEX HOSE,RR BRK	1-47465-608-0	01	1	0407-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0407-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0407-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE THA	0-91180-108-0	02	1	0603-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE THA	0-91180-108-0	02	1	0603-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28680-830-0	02	1	0407-0611
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28680-830-0	02	1	0407-0611
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE THA	0-28650-830-0	02	1	0612-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE THA	0-28650-830-0	02	1	0612-
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0407-0603
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0407-0603
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0407-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0407-
31	PIPE; OIL,AIR MASTER TO UNION THA	8-97917-626-0	01	1	0407-
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	0407-0607
32	UNION; OIL PIPE WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (B) M12 L=40	9-09223-006-1	01	1	0407-0607
32	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0608-
32	UNION; OIL PIPE WHEEL BASE 5500MM<55W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> (B) M12 L=40	0-92113-006-0	01	1	0608-
32	UNION; OIL PIPE (A) M12 ELBOW	9-09225-206-1	01	1	0407-0607
32	UNION; OIL PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0608-
33	PIPE; OIL,UNION TO UNION 6HE1 TC ENG<57L> WHEEL BASE 5500MM<55W> THA	8-97917-619-0	01	1	0407-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6300MM<63W> THA	8-97917-619-0	01	1	0407-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5800MM<58W> L=1010 THA	8-97917-620-0	01	1	0407-
33	PIPE; OIL,UNION TO UNION 6HH1 STD ENG<65L> WHEEL BASE 5500MM<55W> THA	8-97917-618-0	01	1	0407-
35	NUT; UNION M12	9-09840-280-0	01	1	0407-
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 5300MM<53W>,WHEEL BASE 5800MM<58W>, WHEELBASE 6300MM<63W> THA	8-97922-589-0	01	1	0407-
38	PIPE; OIL,UNION TO FLEX HOSE WHEEL BASE 5500MM<55W> THA	8-97922-590-0	01	1	0407-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5300MM<53W> L=1876 SERVICED BY L=2000 THA	1-47426-359-0	01	1	0407-
39	PIPE; OIL,UNION TO RR FLEX HOSE 6HE1 TC ENG<57L> WHEEL BASE 5500MM<55W> L=531 SERVICED BY L=550	1-47426-344-0	01	1	0407-
39	PIPE; OIL,UNION TO RR FLEX HOSE WHEEL BASE 5800MM<58W>,WHEEL BASE 6300MM<63W> L=1383 SERVICED BY L=1500 THA	1-47426-355-0	01	1	0407-
39	PIPE; OIL,UNION TO RR FLEX HOSE 6HH1 STD ENG<65L> WHEEL BASE 5500MM<55W> L=1476 SERVICED BY L=1500 THA	1-47426-355-0	01	1	0407-
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5300MM<53W> L=1072 THA	8-97917-631-0	01	1	0407-
40	PIPE; BRK,UNION TO UNION 6HE1 TC ENG<57L> WHEEL BASE 5500MM<55W> THA	8-97921-517-0	01	1	0407-
40	PIPE; BRK,UNION TO UNION 6HE1 TC ENG<57L> WHEEL BASE 6300MM<63W> L=2173 THA	8-97917-633-0	01	1	0407-
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5800MM<58W> L=1675 THA	8-97917-632-0	01	1	0407-
40	PIPE; BRK,UNION TO UNION 6HH1 STD ENG<65L> WHEEL BASE 5500MM<55W> L=1224 THA	8-97917-629-0	01	1	0407-
40	PIPE; BRK,UNION TO UNION 6HH1 STD ENG<65L> WHEEL BASE 6300MM<63W> L=2174 THA	8-97917-630-0	01	1	0407-
85	BRACKET; FLEX HOSE,FWD RR	1-47475-357-2	01	1	0407-
