3-20 — AIR TANK (#28162) — 86 parça

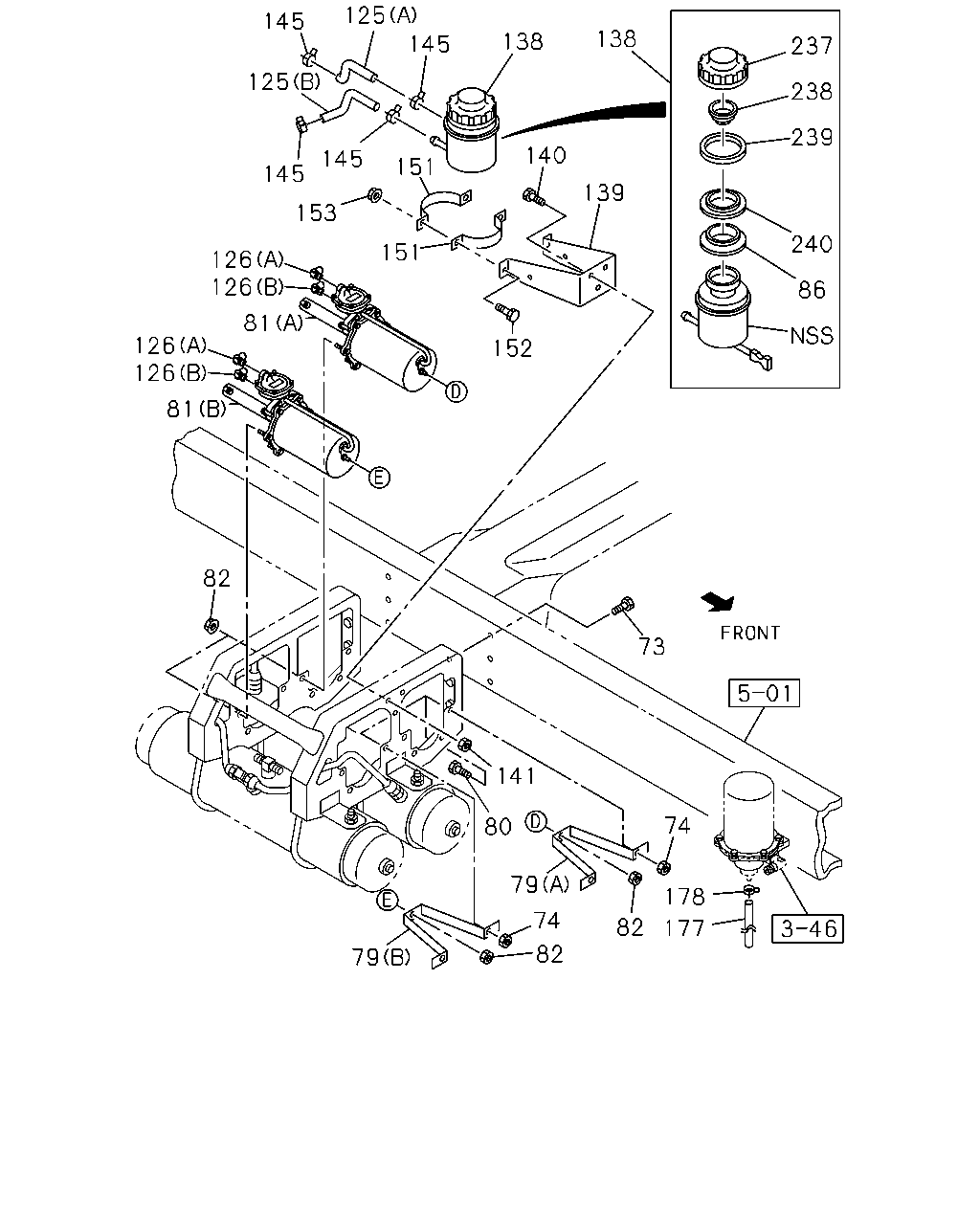

çizim 24819
125 145 138 138 145 237 125 238 239 140 145 151 145 139 153 240 151 126 126 86 81 126 126 152 81 82 73 141 74 80 79 178 74 82 177 82 79
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; BRKT TO FRAME,AIR MASTER
M12X40 FLANGE 		0-28681-240-0 06 1 0407-0512
73 BOLT; BRKT TO FRAME,AIR MASTER
M12X40 FLANGE 		0-28651-240-0 06 1 0601-
74 NUT; STAY AIR MASTER
M10 FLANGE THA 		0-91180-210-0 04 1 0603-
74 NUT; STAY AIR MASTER
M10 FLANGE 		0-91150-210-0 04 1 0407-0602
79 STAY; AIR MASTER TO BRKT
(B) 		1-53318-347-0 01 1 0407-0805
79 STAY; AIR MASTER TO BRKT
(B) 		8-98120-254-0 01 1 0806-
79 STAY; AIR MASTER TO BRKT
(A) 		1-53318-348-0 01 1 0407-
80 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0407-0611
80 BOLT; BRKT
M10X30 FLANGE THA 		0-28651-030-0 04 1 0612-
80 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0407-0611
80 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0612-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. (B) 		1-47800-794-0 01 1 0407-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. (A) 		1-47800-795-0 01 1 0407-
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE THA 		0-91180-210-0 16 1 0603-
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91150-210-0 16 1 0407-0602
86 SEAL; DUST 1-47529-019-0 01 1 0407-
125 HOSE; OIL TANK TO AIR MASTER
(B) 		1-47469-118-0 01 1 0407-
125 HOSE; OIL TANK TO AIR MASTER
(A) 		1-47469-119-0 01 1 0407-
126 CONNECTOR; ELBOW
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0407-
126 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0407-
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0407-
139 BRACKET; OIL TANK 1-47537-153-0 01 1 0407-
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE 		0-28681-025-0 03 1 0407-0611
140 BOLT; OIL TANK TO BRKT
M10X25 FLANGE THA 		0-28651-025-0 03 1 0612-
141 NUT; OIL TANK TO BRKT
M10 FLANGE THA 		0-91180-210-0 03 1 0603-
141 NUT; OIL TANK TO BRKT
M10 FLANGE 		0-91150-210-0 03 1 0407-0602
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 THA 		1-09704-102-0 04 1 0407-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 0407-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0611
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE THA 		0-28650-820-0 02 1 0612-
153 NUT; OIL TANK TO BAND
M8 		0-91110-508-0 02 1 0601-
153 NUT; OIL TANK TO BAND
M8 		9-09110-408-0 02 1 0407-0512
177 HOSE; RUBBER,DRAIN
L=90 		9-09712-638-0 01 1 0407-
178 CLIP; HOSE
ID=33.6 		8-94362-518-0 01 1 0407-
237 CAP; OIL TANK 1-47525-030-0 01 1 0407-
238 PLATE; BAFFLE 1-47529-022-0 01 1 0407-
239 FILTER; DUST 1-47529-017-0 01 1 0407-
240 HOLDER; FILTER 1-47529-018-0 01 1 0407-

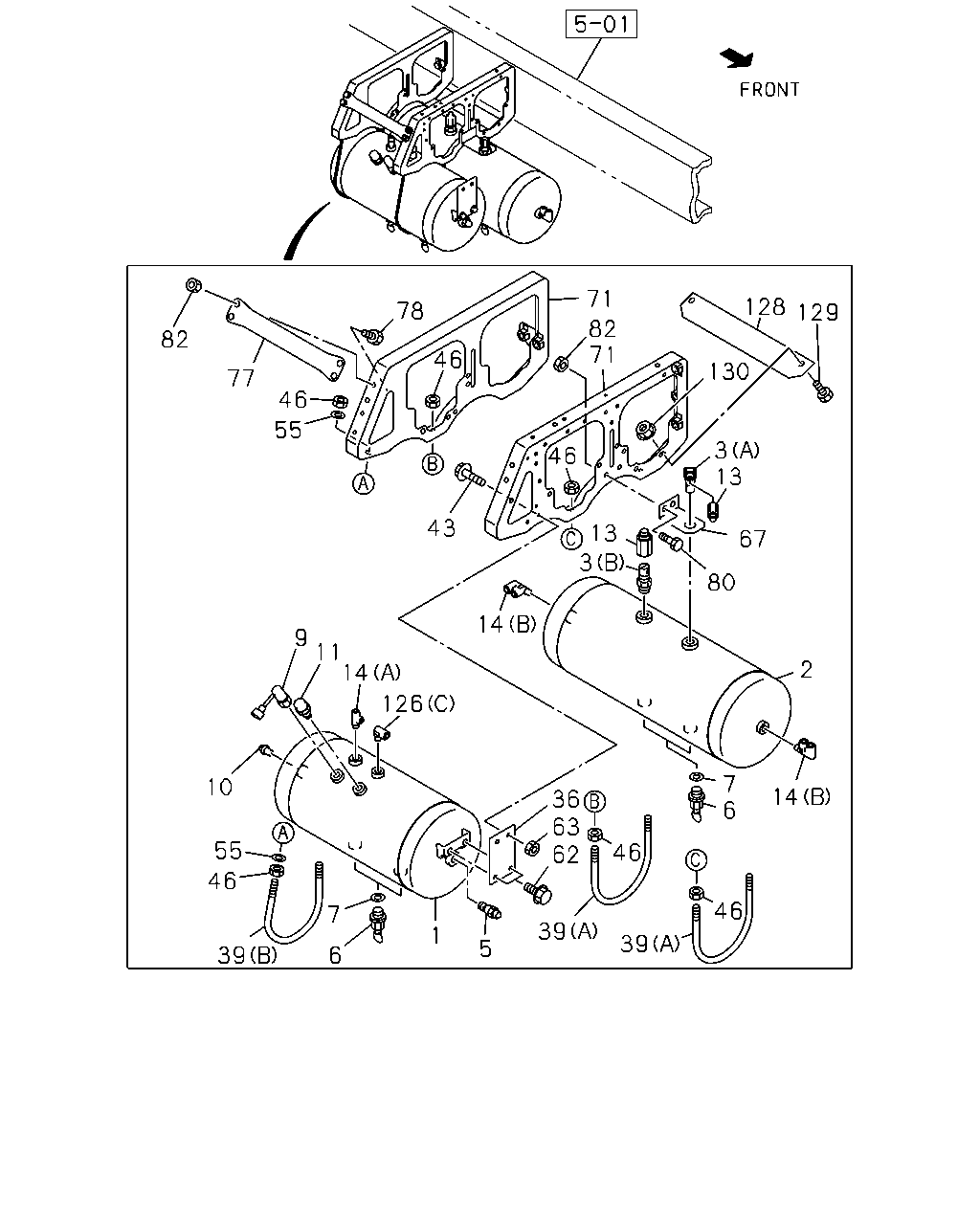

çizim 25018
71 128 78 129 82 71 82 46 130 77 46 55 46 3 13 43 80 13 67 3 14 9 11 14 2 126 7 6 10 14 36 63 62 5 46 46 46 7 39 1 39 5 39 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR 1-48370-493-0 01 1 0407-
2 TANK; AIR 1-48370-810-0 01 1 0407-
3 VALVE; CHECK,AIR TANK
(B) THA 		1-48410-182-3 01 1 0407-
3 VALVE; CHECK,AIR TANK
(A) M20 & PT3/4 ELBOW THA 		1-48410-412-0 01 1 0407-
5 UNION; AIR TANK
M22 & PT3/4 THA 		1-48410-136-3 01 1 0407-
6 COCK; DRAIN,AIR TANK
THA 		1-48312-015-0 02 1 0407-
6 COCK; DRAIN,AIR TANK
THA 		1-48312-015-0 02 1 0407-
7 GASKET; DRAIN COCK
ID=14 THA 		1-09630-145-0 02 1 0407-
7 GASKET; DRAIN COCK
ID=14 THA 		1-09630-145-0 02 1 0407-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
530KPA THA 		1-48340-054-1 01 1 0407-
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 0407-
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 0407-
13 ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0407-
14 UNION; 3 WAY,AIR TANK
(A) DIN8X2 & R3/8 3WAY 		1-09661-007-0 01 1 0407-
14 UNION; 3 WAY,AIR TANK
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0407-
36 STAY; MAIN TANK 1-48317-760-0 01 1 0407-
39 U-BOLT; AIR TANK
(A) THA 		1-48317-301-0 02 1 0407-
39 U-BOLT; AIR TANK
(B) THA 		1-48317-302-0 01 1 0407-
43 BOLT; STAY,AIR TANK,MAIN
M10X30 FLANGE 		0-28681-030-0 02 1 0407-0611
43 BOLT; STAY,AIR TANK,MAIN
M10X30 FLANGE THA 		0-28651-030-0 02 1 0612-
46 NUT; U-BOLT
M8 		0-91110-508-0 12 1 0601-
46 NUT; U-BOLT
M8 		9-09110-408-0 12 1 0407-0512
55 WASHER; PL,U-BOLT
ID=8.4 OD=18 		0-91610-608-0 04 1 0606-
55 WASHER; PL,U-BOLT
ID=8.4 OD=18 		9-09160-608-0 04 1 0407-0605
62 BOLT; SUPPORT
M10X25 FLANGE 		0-28681-025-0 02 1 0407-0611
62 BOLT; SUPPORT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0612-
63 NUT; SUPPORT
M10 FLANGE THA 		0-91180-210-0 02 1 0603-
63 NUT; SUPPORT
M10 FLANGE 		0-91150-210-0 02 1 0407-0602
67 STAY; SUB TANK
THA 		1-48317-321-2 01 1 0407-
71 BRACKET; AIR MASTER,TANDEM 1-53318-276-1 02 1 0407-
77 STAY; AIR MASTER UPR 1-53318-293-1 01 1 0407-
78 BOLT; STAY AIR MASTER
M10X30 FLANGE 		0-28681-030-0 04 1 0407-0611
78 BOLT; STAY AIR MASTER
M10X30 FLANGE THA 		0-28651-030-0 04 1 0612-
80 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0407-0611
80 BOLT; BRKT
M10X30 FLANGE THA 		0-28651-030-0 04 1 0612-
80 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0407-0611
80 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 02 1 0612-
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE THA 		0-91180-210-0 16 1 0603-
82 NUT; STAY,AIR MASTER BRKT
M10 FLANGE 		0-91150-210-0 16 1 0407-0602
126 CONNECTOR; ELBOW
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0407-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0407-
126 CONNECTOR; ELBOW
(B) DIN12 & R1/2 ELBOW 		1-09660-960-0 02 1 0407-
128 PROTECTOR 1-53319-018-0 01 1 0407-
129 BOLT; PROTECTOR FIX
M8X30 FLANGE 		0-28680-830-0 02 1 0407-0611
129 BOLT; PROTECTOR FIX
M8X30 FLANGE THA 		0-28650-830-0 02 1 0612-
130 NUT; PROTECTOR FIX
M8 FLANGE 		0-91150-108-0 02 1 0407-0602
130 NUT; PROTECTOR FIX
M8 FLANGE THA 		0-91180-108-0 02 1 0603-
