◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#2816) — 79 parça

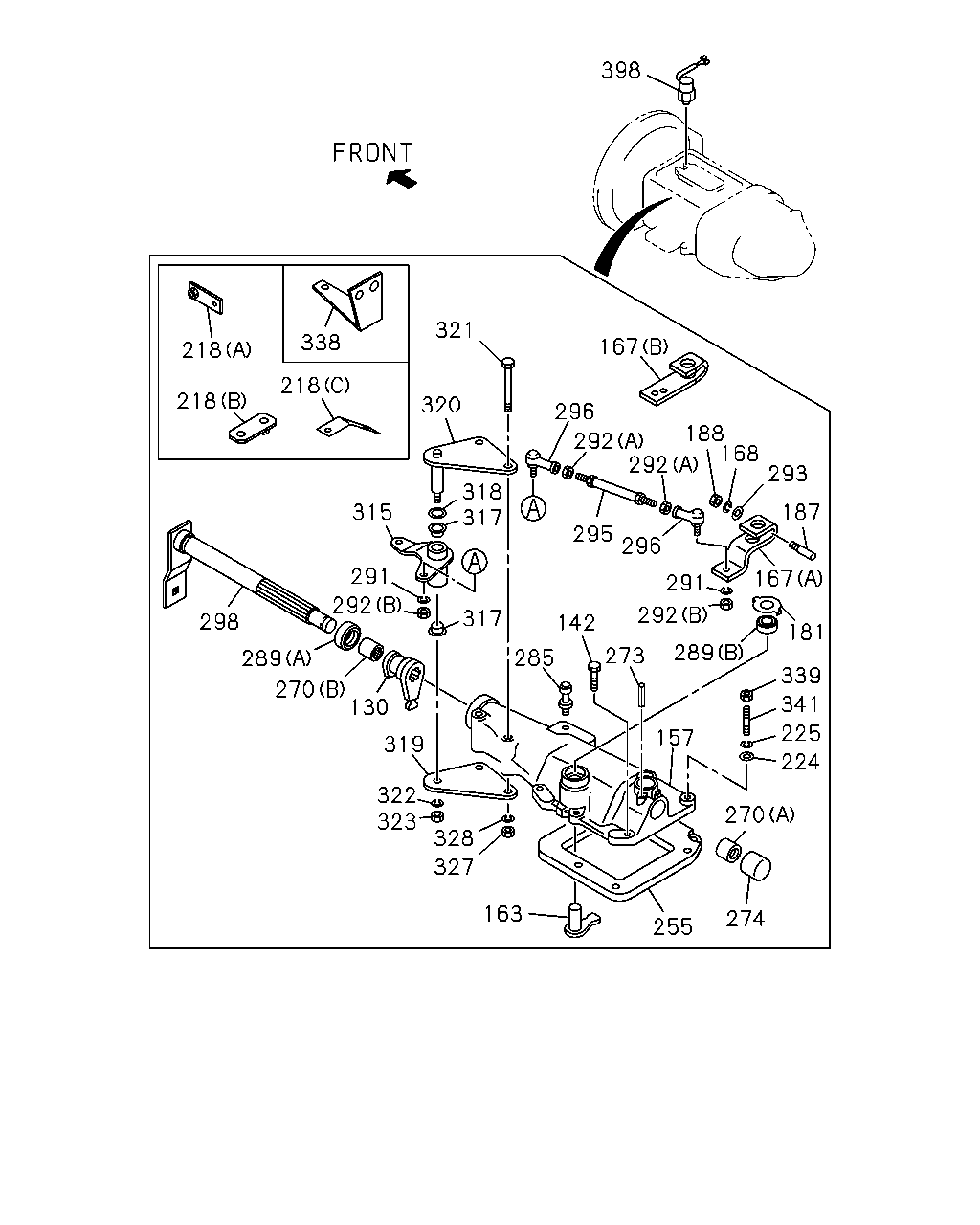

çizim 27986
218 338 218 218 321 320 167 398 296 292 188 168 293 187 167 292 295 296 318 317 315 291 292 317 142 273 291 292 181 289 339 341 225 224 157 285 130 319 270 289 298 322 323 328 327 163 255 274 270
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
130 LEVER; SHIFT,INTERNAL 1-33521-055-0 01 1 9002- ● ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 		9-01971-028-0 04 1 9002-9002 ● ● ● ● ●
142 BOLT; QUAD BOX
M10X28 W/LK&PL WASHER 		0-50141-028-0 04 1 9003- ● ● ● ● ● ●
157 BOX; QUAD,TRANS 1-33541-267-1 01 1 9002- ● ● ● ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-3 01 1 9002- ● ● ● ● ● ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-070-0 01 1 9002-9306 ● ● ● ●
167 LEVER; SELECT,EXTERNAL
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) (B) 		1-33521-070-0 01 1 9002-9306 ● ●
167 LEVER; SELECT,EXTERNAL
10PD1 STD ENG(40L) (A) 		1-33521-064-0 01 1 9002-9306 ● ●
167 LEVER; SELECT,EXTERNAL
COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) 		1-33521-070-0 01 1 9307-9412 ●
167 LEVER; SELECT,EXTERNAL
COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) 		1-33521-070-0 01 1 9501- ● ●
167 LEVER; SELECT,EXTERNAL
6RB1 STD ENG(07L) COUNTER SHAFT BRAKE<BAP> (B) 		1-33521-070-0 01 1 9501- ● ●
167 LEVER; SELECT,EXTERNAL
COUNTER SHAFT BRAKE<BAP> (A) 		1-33521-064-0 01 1 9307- ● ● ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9002-9205 ● ● ● ● ● ●
168 WASHER; LK,SELECT LEVER
ID=8.2 		9-09150-508-0 01 1 9206- ● ● ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9002- ● ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9002- ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9002-9205 ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		0-91150-208-0 01 1 9206-9304 ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-049-0 01 1 9305- ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 		9-09110-408-0 01 1 9206- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47465-485-0 02 1 9002- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-123-1 01 1 9002- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-228-0 02 1 9002- ● ● ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=10.5 OD=18 		9-09160-510-0 02 1 9002- ● ● ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=10.2 		9-09150-510-0 02 1 9002- ● ● ● ● ● ●
255 PLATE; DIST,QUAD BOX 1-33549-070-1 01 1 9002- ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9002-9412 ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9501- ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9002-9412 ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9501- ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9002-9412 ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9501- ● ● ● ●
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9002- ● ● ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9002- ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-005-0 01 1 9002-9008 ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9009- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9002- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9002- ● ● ● ● ● ●
291 WASHER; LK,LINK ROD
ID=8.2 		9-09150-508-0 02 1 9002-9205 ● ● ● ● ● ●
291 WASHER; LK,LINK ROD
ID=8.2 		9-09150-508-0 02 1 9206-9312 ● ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		0-91150-208-0 02 1 9002-9301 ● ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-049-0 02 1 9302- ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9002- ● ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9002- ● ● ● ● ● ●
295 ROD; LINK,RELAY LEVER 1-33652-393-0 01 1 9002-9306 ● ● ● ●
295 ROD; LINK,RELAY LEVER
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) 		1-33652-393-0 01 1 9002-9306 ● ●
295 ROD; LINK,RELAY LEVER 1-33652-393-0 01 1 9307-9510 ● ● ●
295 ROD; LINK,RELAY LEVER 9-08400-815-0 01 1 9511- ● ● ● ●
295 ROD; LINK,RELAY LEVER
10PD1 STD ENG(40L) 		1-33652-392-0 01 1 9002-9306 ● ●
296 ROD END
L=48 		1-09760-038-1 02 1 9002- ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER 1-33522-068-0 01 1 9002- ● ● ● ● ● ●
315 LEVER; SELECT 1-33651-337-0 01 1 9002-9306 ● ● ● ●
315 LEVER; SELECT
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) 		1-33651-337-0 01 1 9002-9306 ● ●
315 LEVER; SELECT 1-33651-337-0 01 1 9307- ● ● ●
315 LEVER; SELECT
10PD1 STD ENG(40L) 		1-33651-246-2 01 1 9002-9306 ● ●
317 BUSHING; LEVER
ID=16 OD=18 H=16 		1-09503-151-0 02 1 9002- ● ● ● ● ● ●
318 WASHER; WAVE 9-09855-315-0 01 1 9002- ● ● ● ● ● ●
319 BRACKET; SELECT LEVER
10PD1 STD ENG(40L) 		1-33657-190-0 01 1 9002-9306 ● ●
319 BRACKET; SELECT LEVER 1-33657-196-0 01 1 9002-9412 ● ● ● ●
319 BRACKET; SELECT LEVER
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) 		1-33657-196-0 01 1 9002-9412 ● ●
319 BRACKET; SELECT LEVER 1-33657-196-0 01 1 9501- ● ● ● ●
320 SHAFT; LEVER
10PD1 STD ENG(40L) 		1-33619-129-0 01 1 9002-9306 ● ●
320 SHAFT; LEVER 1-33619-134-0 01 1 9002-9306 ● ● ● ●
320 SHAFT; LEVER
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) 		1-33619-134-0 01 1 9002-9306 ● ●
320 SHAFT; LEVER 1-33619-134-0 01 1 9307-9412 ● ● ●
320 SHAFT; LEVER 1-33619-134-0 01 1 9501- ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		9-01056-080-0 02 1 9002-9004 ● ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9005- ● ● ● ● ● ●
322 WASHER; LK
ID=10.2 		9-09150-510-0 01 1 9002- ● ● ● ● ● ●
323 NUT; LK,SELECT LEVER
M10 		9-09110-410-0 01 1 9002- ● ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9206- ● ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-410-0 02 1 9002-9205 ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
M10 		9-09110-510-0 02 1 9206- ● ● ● ● ● ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9002-9205 ● ● ● ● ● ●
328 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9206- ● ● ● ● ● ●
338 BRACKET; FLEX TUBE 1-47475-452-0 01 1 9002- ● ● ● ● ● ●
339 NUT; QUAD BOX
M10 		9-09110-510-0 02 1 9002- ● ● ● ● ● ●
341 STUD; QUAD BOX 1-09305-004-0 02 1 9002- ● ● ● ● ● ●
398 SWITCH; REV LAMP 1-82440-046-0 01 1 9002- ● ● ● ● ● ●
