Isuzu WW
▶
TRUCKS
▶
FVM
▶
10943 - FVM(THAI)EURO2
▶
2 - Clutch, Transmission, Trans Axle
▶

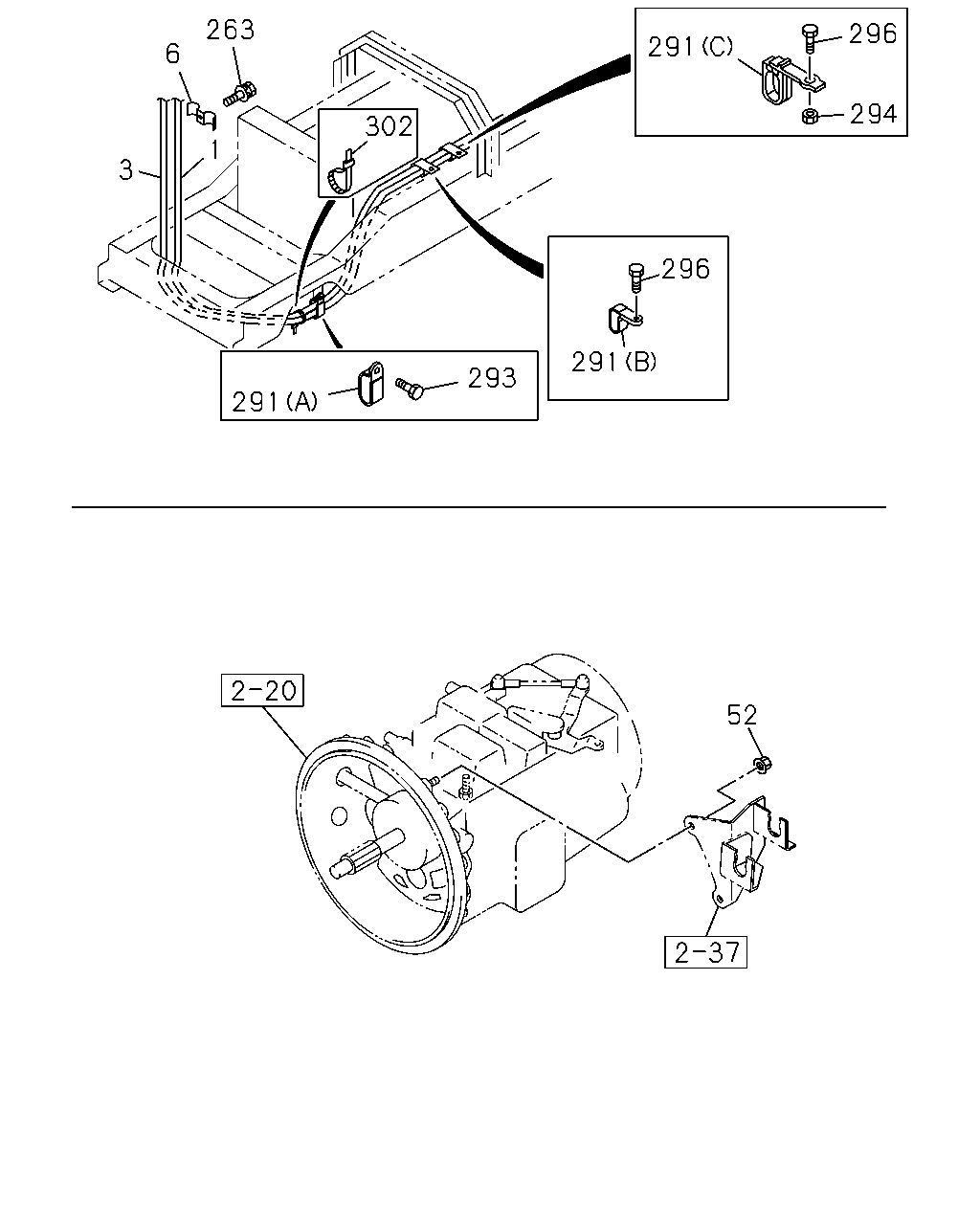

2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#28154) — 25 parça
◀
[236A] NO.1 (7 parça)
[236A] NO.2 (18 parça)
▶
221
393
3
386
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
6HE1 TC ENG<57L> L=3710 THA
8-97510-006-0
01
1
0407-
1
CABLE; SHIFT,TRANS CONT
6HH1 STD ENG<65L> L=3560 THA
8-97510-004-0
01
1
0407-
3
CABLE; SELECT,TRANS CONT
6HE1 TC ENG<57L> L=3825 THA
8-97510-010-0
01
1
0407-
3
CABLE; SELECT,TRANS CONT
6HH1 STD ENG<65L> L=3675 THA
8-97510-008-0
01
1
0407-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-049-0
01
1
0407-
386
CLIP; CONT CABLE & TUBE
1-09700-966-1
02
1
0407-
393
NUT; SELECT CABLE,CAB
M8 FLANGE
1-09440-049-0
01
1
0407-
263
296
291
6
294
302
1
3
296
291
293
291
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
6HE1 TC ENG<57L> L=3710 THA
8-97510-006-0
01
1
0407-
1
CABLE; SHIFT,TRANS CONT
6HH1 STD ENG<65L> L=3560 THA
8-97510-004-0
01
1
0407-
3
CABLE; SELECT,TRANS CONT
6HE1 TC ENG<57L> L=3825 THA
8-97510-010-0
01
1
0407-
3
CABLE; SELECT,TRANS CONT
6HH1 STD ENG<65L> L=3675 THA
8-97510-008-0
01
1
0407-
6
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 THA
1-09700-739-0
01
1
0407-
52
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
0407-
263
BOLT; CLIP,TRANS CONT WIRE
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0407-
291
CLIP; SHIFT TO SELECT,FRAME
(C) THA
1-09701-220-0
01
1
0407-
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32 THA
1-09701-245-0
01
1
0407-0506
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13X2 L=32
1-09701-312-0
01
1
0507-
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
9-09535-026-0
01
1
0407-0606
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16
0-95325-026-0
01
1
0607-
293
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE
0-28080-816-0
01
1
0407-0611
293
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE THA
0-28050-816-0
01
1
0612-
294
NUT; CLIP
6HE1 TC ENG<57L> M8 FLANGE
0-91150-108-0
01
1
0407-
296
BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE
0-28680-830-0
02
1
0407-0611
296
BOLT; CLIP,SHIFT & SELECT
M8X30 FLANGE THA
0-28650-830-0
02
1
0612-
302
CLIP; BAND
L=300 THA
1-09707-001-1
01
1
0407-
