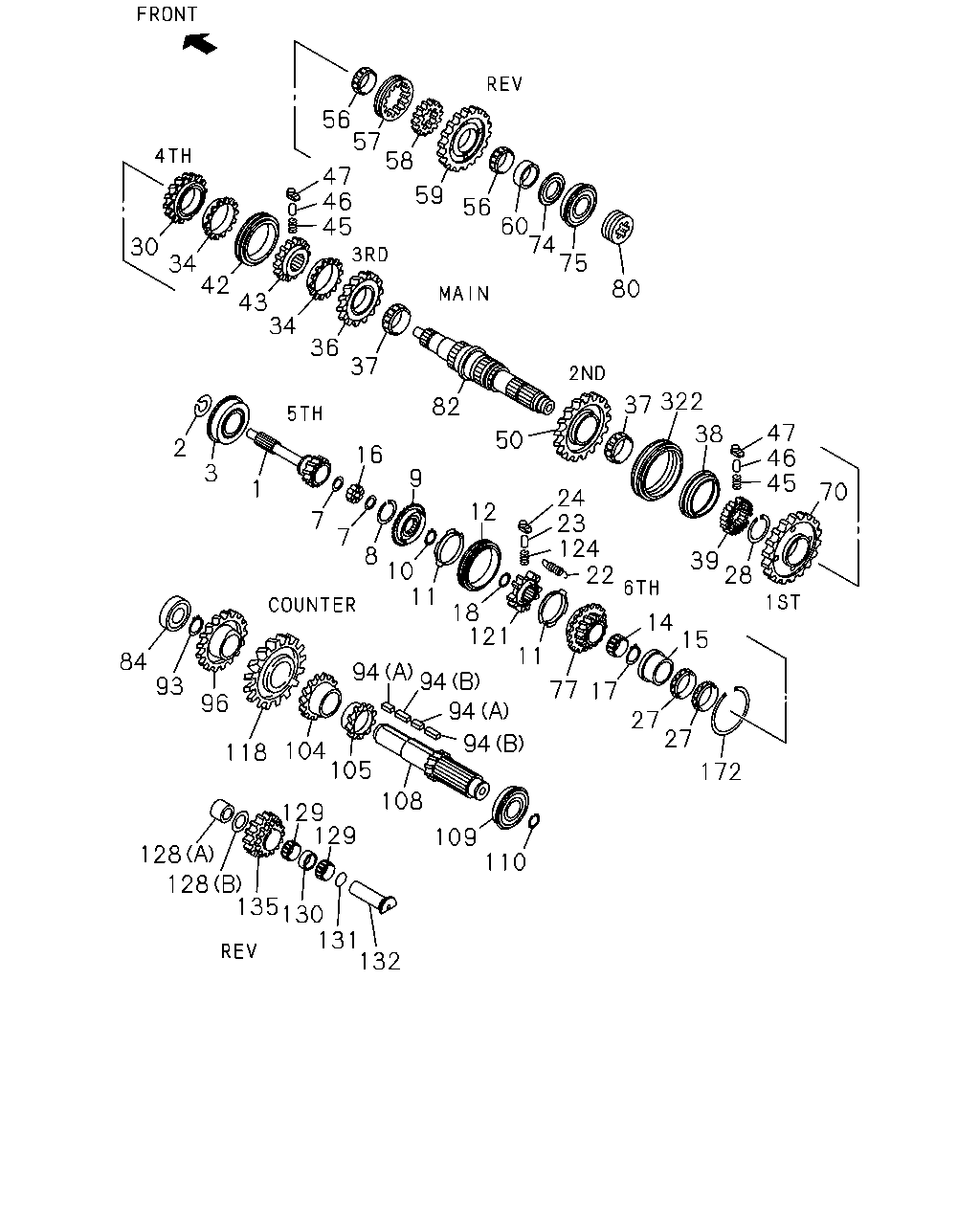

2-26 — MANUAL TRANSMISSION GEAR (#28151) — 71 parça

56 57 58 47 46 45 30 59 56 60 74 75 30 34 42 43 34 80 36 37 37 322 82 47 46 45 38 50 2 16 3 9 1 70 24 23 124 22 12 7 7 8 39 28 10 11 18 121 14 15 11 84 93 94 94 94 77 17 96 27 27 104 105 94 118 172 108 129 129 109 110 128 128 135 130 131 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-989-0	01	1	0407-
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0407-
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0407-
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0407-
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0407-
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0407-
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0407-
8	CLIP; DOG CLU	1-33219-020-0	01	1	0407-
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0407-
10	RING; SNAP,PILOT BRG	1-09587-072-0	01	1	0407-
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0407-
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0407-
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0407-
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0407-
16	BEARING; PILOT,MAINSHAFT KOYO	1-09844-015-0	13	1	0407-
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0407-
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0407-
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0407-
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0407-
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0407-
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0407-
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0407-
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0407-
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0407-
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0407-
37	BEARING; NEEDLE,2ND & 3RD KOYO	1-09811-277-0	02	1	0407-
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0407-
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0407-
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0407-
42	SLEEVE Z=54	1-33262-154-0	01	1	0407-
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0407-
45	SPRING; BLOCK INSERT	1-09580-395-0	06	1	0407-
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0407-
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0407-
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0407-
56	BEARING; NEEDLE,1ST,REV KOYO	1-09811-320-0	02	1	0407-
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0407-
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0407-
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0407-
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0407-
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0407-
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0407-
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0407-
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0407-
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0407-
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0407-
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0407-
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0407-
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0407-
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0407-
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0407-
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0407-
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0407-
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0407-
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0407-
109	BEARING; COUNTER SHAFT,RR KOYO	1-09810-039-1	01	1	0407-
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0407-
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0407-
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0407-
121	HUB; CLU,6TH	1-33261-270-0	01	1	0407-
124	SPRING; PLUNGER,CLU HUB	1-09580-395-0	03	1	0407-
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0407-
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0407-
129	BEARING; NEEDLE,IDLER KOYO	1-09811-102-0	02	1	0407-
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0407-
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0407-
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0407-
132	SHAFT; REV	1-33351-017-0	01	1	0407-
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0407-
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0407-
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0407-
