Isuzu WW
▶
TRUCKS
▶
FVM
▶
10943 - FVM(THAI)EURO2
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶

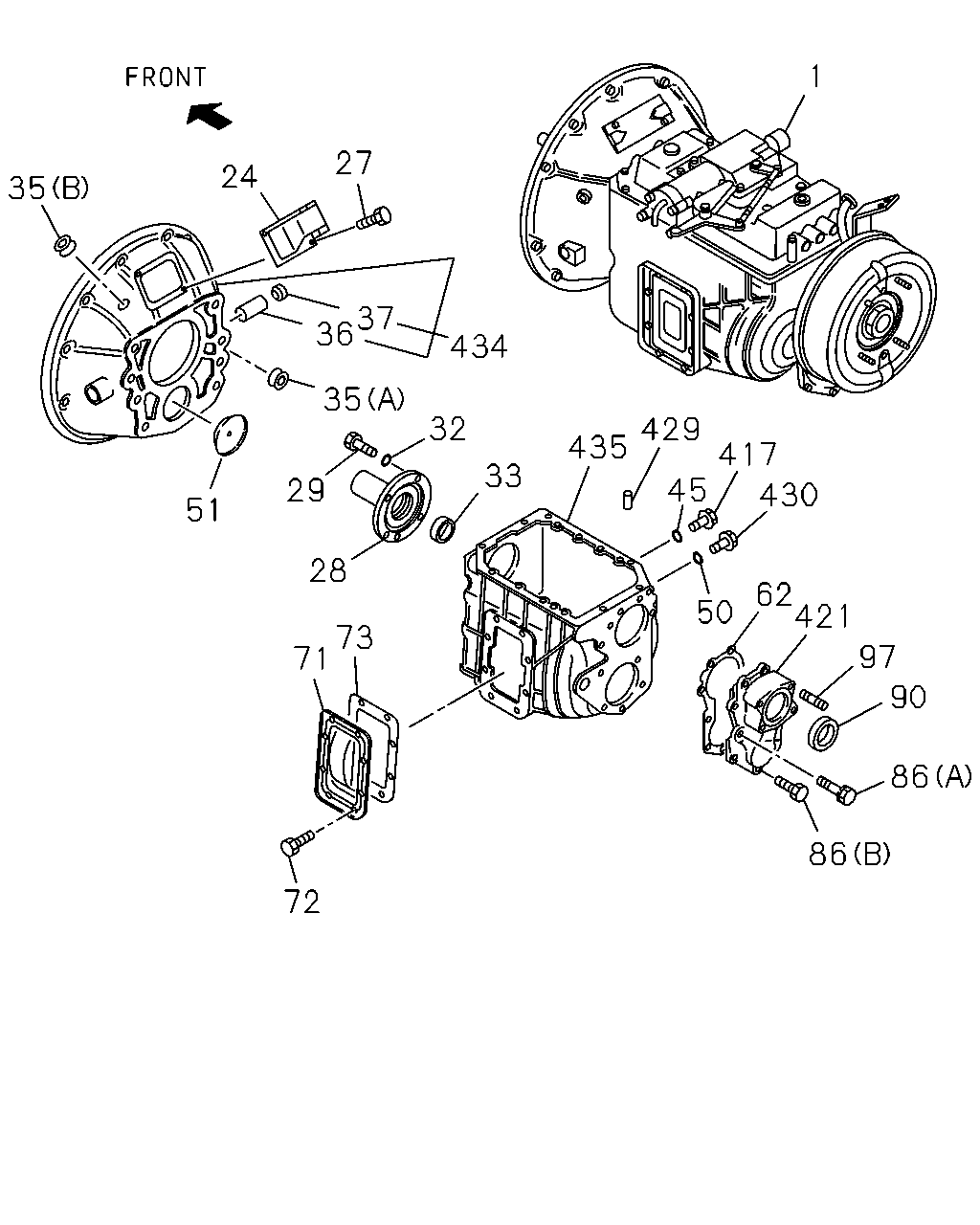

2-20 — MANUAL TRANSMISSION ASM AND CASE
(#28149) — 34 parça
1
27
24
35
37
36
434
35
32
429
435
417
45
33
29
430
51
28
62
421
50
73
71
97
90
86
86
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
THA
8-97917-642-0
01
1
0407-
24
COVER; CHECK HOLE,DUST
1-31131-041-0
01
1
0407-
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE
0-28080-816-0
02
1
0407-0512
27
BOLT; COVER TO CLU HSG
M8X16 FLANGE THA
0-28050-816-0
02
1
0601-
28
COVER; FRT,TRANS CASE
1-33121-105-0
01
1
0407-
29
BOLT; FRT COVER
M10X28 FLANGE REAMER
1-09040-089-1
04
1
0407-0805
29
BOLT; FRT COVER
M10X28 FLANGE REAMER
8-97365-375-0
04
1
0806-
32
GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=10
1-09623-369-0
04
1
0407-
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-498-0
01
1
0407-
35
GROMMET; CLU HSG
(A) OD=15 T=6.6
8-97037-246-0
01
1
0407-
35
GROMMET; CLU HSG
(B)
9-09575-796-0
01
1
0407-
36
BEARING; NEEDLE,CLU HSG
NTN
1-09811-002-1
02
1
0407-
37
SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T).
1-09625-002-0
02
1
0407-
45
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8
1-09623-058-0
01
1
0407-
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8
1-09623-058-0
01
1
0407-
51
COVER; SEAL,COUNTER,FRT
1-33319-107-1
01
1
0407-
62
GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
1-33132-045-2
01
1
0407-
71
COVER; SIDE,TRANS CASE
1-33141-033-0
01
1
0407-
72
BOLT; SIDE COVER
M10X16 FLANGE
0-28181-016-0
08
1
0407-0512
72
BOLT; SIDE COVER
M10X16 FLANGE
0-28151-016-0
08
1
0601-
73
GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
1-33142-036-0
01
1
0407-
86
BOLT; RR COVER
(B) M17X35
1-09044-076-0
08
1
0407-
86
BOLT; RR COVER
(A) M12X60
1-09044-084-0
01
1
0407-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-513-0
01
1
0407-
97
STUD; PARKING BRK
M14X27 L=49
1-09302-099-1
03
1
0407-
97
STUD; PARKING BRK
M14X27 L=49
1-09302-099-1
01
1
0407-
417
PLUG; OIL FILLER,TRANS
M24X17 FLANGE
1-09604-022-0
01
1
0407-
421
COVER; RR,TRANS
1-33131-177-1
01
1
0407-
429
PIN; STRAIGHT
OD=10 L=18
9-08151-018-0
02
1
0407-
430
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-023-0
01
1
0407-
434
HOUSING; CLU
1-31110-169-0
01
1
0407-
435
CASE; TRANS
1-33111-342-0
01
1
0407-0407
435
CASE; TRANS
8-97381-568-0
01
1
0407-0802
435
CASE; TRANS
1-33111-355-0
01
1
0803-
