◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10943 - FVM(THAI)EURO2 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#28134) — 43 parça

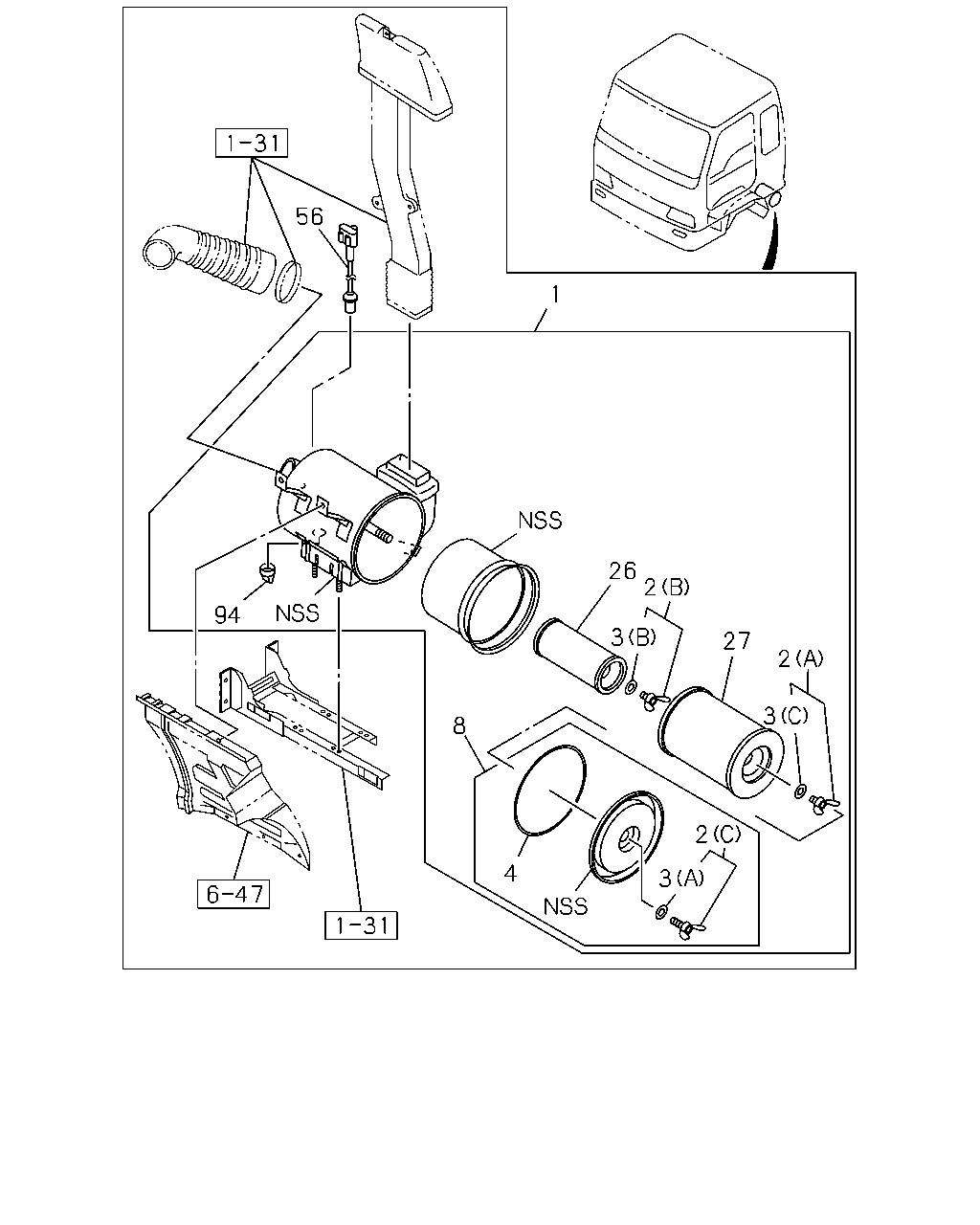

çizim 83244
56 1 26 2 94 3 27 2 3 8 2 4 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
THA 		8-97917-498-0 01 1 0407- ●
1 CLEANER ASM; AIR
THA 		8-97917-500-0 01 1 0407- ●
2 NUT; WING,ELEMENT
(D) THA 		8-97917-507-0 01 1 0407- ●
2 NUT; WING,ELEMENT
(B) THA 		8-97917-509-0 01 1 0407- ●
2 NUT; WING,ELEMENT
(A) THA 		8-97917-508-0 01 1 0407- ● ●
2 NUT; WING,ELEMENT
(C) THA 		8-97917-516-0 01 1 0407- ● ●
3 WASHER; SEAL,WING NUT
(D) THA 		8-97917-510-0 01 1 0407- ●
3 WASHER; SEAL,WING NUT
(B) THA 		8-97917-511-0 01 1 0407- ●
3 WASHER; SEAL,WING NUT
(A) THA 		8-97917-348-0 01 1 0407- ● ●
3 WASHER; SEAL,WING NUT
(C) THA 		8-97917-512-0 01 1 0407- ● ●
4 GASKET; COVER TO BODY
THA 		8-97917-514-0 01 1 0407- ●
4 GASKET; COVER TO BODY
THA 		8-97917-513-0 01 1 0407- ●
8 COVER ASM; ACL
THA 		8-97917-515-0 01 1 0407- ●
8 COVER ASM; ACL
THA 		8-97921-509-0 01 1 0407- ●
26 FILTER; ACL,INNER
THA 		8-97917-505-0 01 1 0407- ●
26 FILTER; ACL,INNER
THA 		8-97917-518-0 01 1 0407- ●
27 FILTER; ACL,OUTER
THA 		8-97917-506-0 01 1 0407- ●
27 FILTER; ACL,OUTER
THA 		8-97917-519-0 01 1 0407- ●
56 SWITCH; ACL 1-81530-016-0 01 1 0407-0704 ● ●
56 SWITCH; ACL 1-81530-018-0 01 1 0705- ● ●
94 VALVE; VACUATOR
THA 		8-97917-502-0 01 1 0407- ● ●

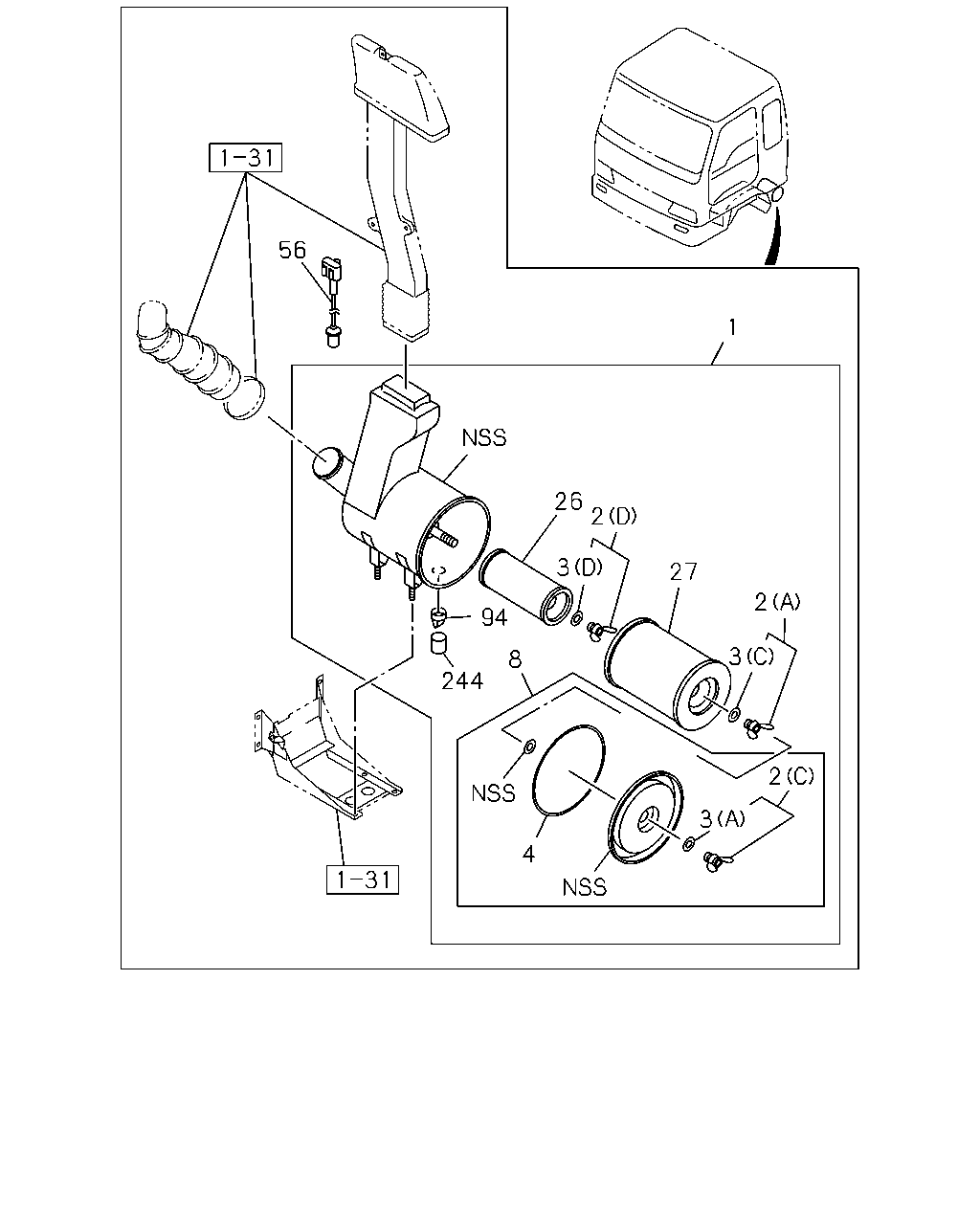

çizim 86246
56 1 26 2 3 27 2 94 3 8 244 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
THA 		8-97917-498-0 01 1 0407- ●
1 CLEANER ASM; AIR
THA 		8-97917-500-0 01 1 0407- ●
2 NUT; WING,ELEMENT
(D) THA 		8-97917-507-0 01 1 0407- ●
2 NUT; WING,ELEMENT
(B) THA 		8-97917-509-0 01 1 0407- ●
2 NUT; WING,ELEMENT
(A) THA 		8-97917-508-0 01 1 0407- ● ●
2 NUT; WING,ELEMENT
(C) THA 		8-97917-516-0 01 1 0407- ● ●
3 WASHER; SEAL,WING NUT
(D) THA 		8-97917-510-0 01 1 0407- ●
3 WASHER; SEAL,WING NUT
(B) THA 		8-97917-511-0 01 1 0407- ●
3 WASHER; SEAL,WING NUT
(A) THA 		8-97917-348-0 01 1 0407- ● ●
3 WASHER; SEAL,WING NUT
(C) THA 		8-97917-512-0 01 1 0407- ● ●
4 GASKET; COVER TO BODY
THA 		8-97917-514-0 01 1 0407- ●
4 GASKET; COVER TO BODY
THA 		8-97917-513-0 01 1 0407- ●
8 COVER ASM; ACL
THA 		8-97917-515-0 01 1 0407- ●
8 COVER ASM; ACL
THA 		8-97921-509-0 01 1 0407- ●
26 FILTER; ACL,INNER
THA 		8-97917-505-0 01 1 0407- ●
26 FILTER; ACL,INNER
THA 		8-97917-518-0 01 1 0407- ●
27 FILTER; ACL,OUTER
THA 		8-97917-506-0 01 1 0407- ●
27 FILTER; ACL,OUTER
THA 		8-97917-519-0 01 1 0407- ●
56 SWITCH; ACL 1-81530-016-0 01 1 0407-0704 ● ●
56 SWITCH; ACL 1-81530-018-0 01 1 0705- ● ●
94 VALVE; VACUATOR
THA 		8-97917-502-0 01 1 0407- ● ●
244 COVER ASM; VALVE
THA 		1-14219-281-0 01 1 0407- ●
