Isuzu WW
▶
TRUCKS
▶
FVM
▶
10943 - FVM(THAI)EURO2
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

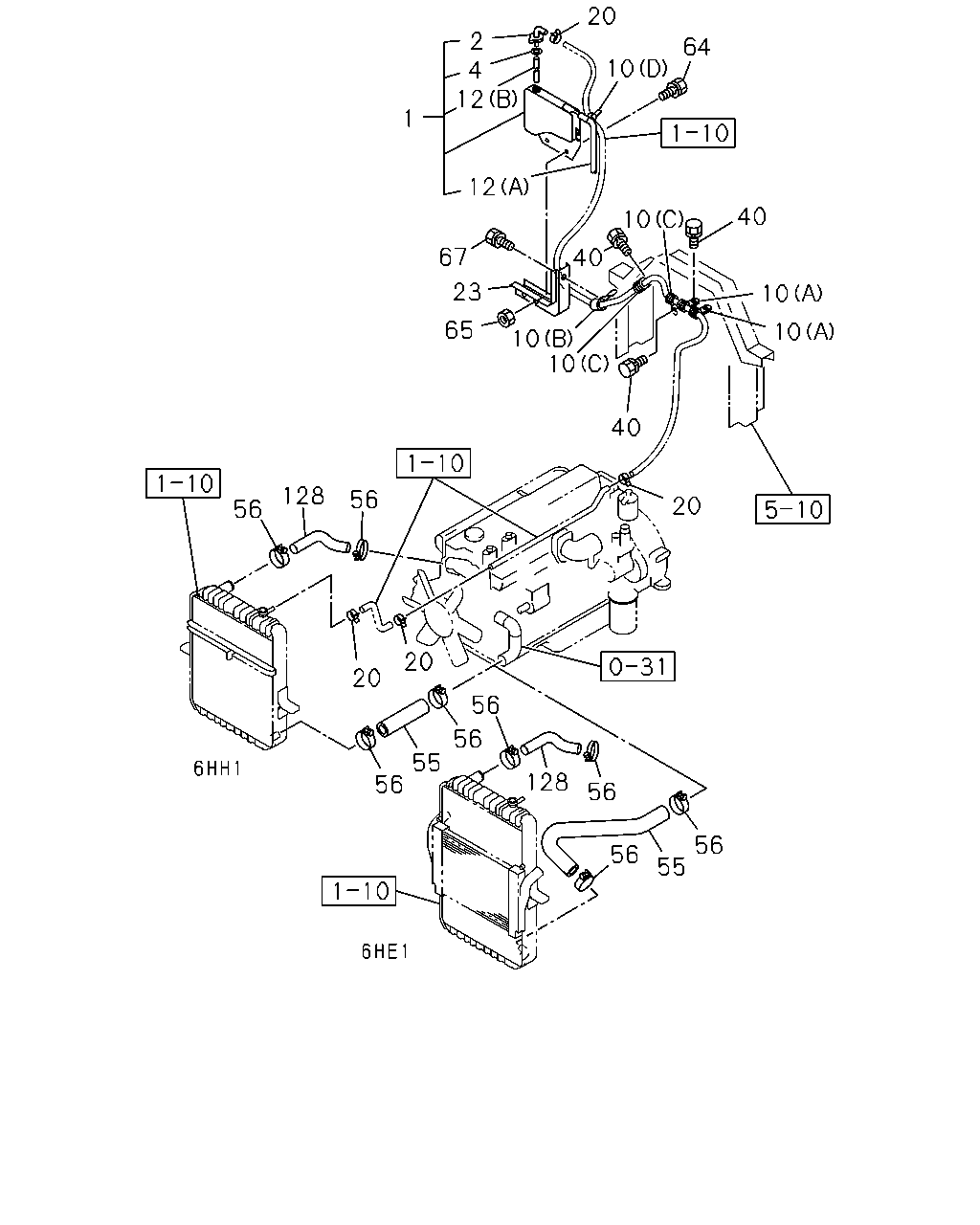

1-11 — RADIATOR HOSE AND SUB TANK
(#28133) — 24 parça
Tümü
A - 6HE1 TC ENG
B - 6HH1 STD ENG
20
2
4
12
64
10
1
12
40
10
67
40
23
10
10
10
65
10
40
128
56
20
56
20
20
56
56
55
56
128
56
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
1-21480-104-1
01
1
0407-
●
●
2
CAP; SURGE TANK
1-21483-008-0
01
1
0407-
●
●
4
GASKET; SURGE TANK
5-21489-006-0
01
1
0407-
●
●
10
CLIP; RUBBER HOSE
(C) ID=14.5 L=40 THA
1-09701-014-0
02
1
0407-
●
●
10
CLIP; RUBBER HOSE
(D) L=140
5-09707-031-1
01
1
0407-
●
●
10
CLIP; RUBBER HOSE
(A) ID=13 L=50
9-09525-286-0
02
1
0407-0606
●
●
10
CLIP; RUBBER HOSE
(A) ID=13 L=50
0-95235-286-0
02
1
0607-
●
●
10
CLIP; RUBBER HOSE
(B) ID=14 L=44 THA
9-09917-427-0
01
1
0407-
●
●
12
HOSE; SURGE TANK
(B)
1-21489-203-0
01
1
0407-
●
●
12
HOSE; SURGE TANK
(A) L=300
1-09366-199-0
01
1
0407-
●
●
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
04
1
0407-
●
●
23
BRACKET; RESERVE TANK
THA
1-21489-128-0
01
1
0407-
●
●
40
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
04
1
0407-0611
●
●
40
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
04
1
0612-
●
●
55
HOSE; WATER,RAD OUTLET
THA
8-97915-463-1
01
1
0407-
●
55
HOSE; WATER,RAD OUTLET
THA
8-97914-849-1
01
1
0407-
●
56
CLIP; WATER HOSE,RAD
ID=63 THA
1-09704-067-0
04
1
0407-
●
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
0407-0707
●
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
0708-
●
●
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91150-108-0
04
1
0407-
●
●
67
BOLT; BRKT
M10X20 FLANGE
0-28681-020-0
02
1
0407-0611
●
●
67
BOLT; BRKT
M10X20 FLANGE THA
0-28651-020-0
02
1
0612-
●
●
128
HOSE; WATER,RAD INL
THA
8-97915-028-0
01
1
0407-
●
128
HOSE; WATER,RAD INL
THA
8-97917-640-0
01
1
0407-
●
