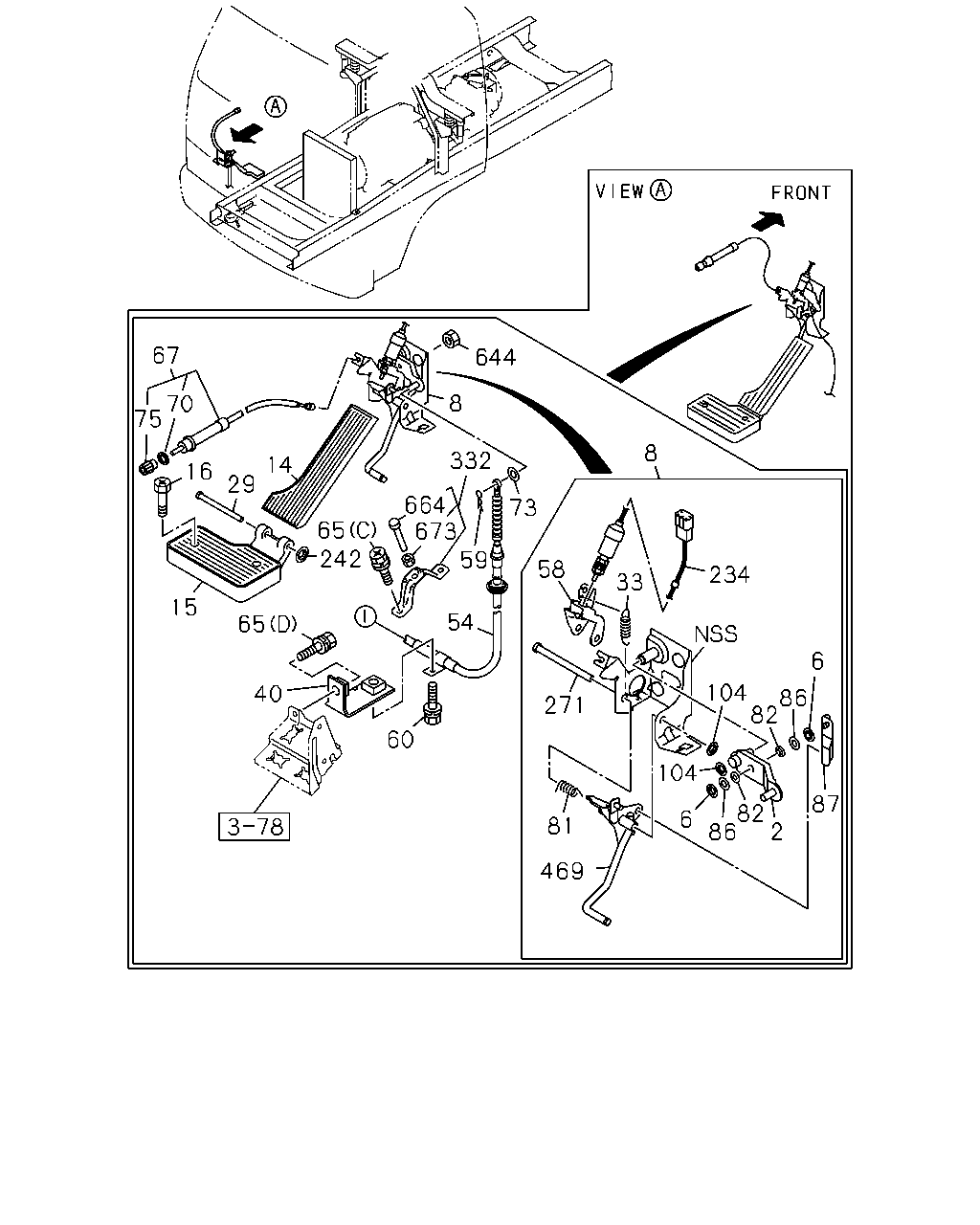

1-01 — ACCELERATOR PEDAL AND CONTROL (#28131) — 76 parça

67 644 8 70 75 332 8 14 16 29 664 673 59 73 6 242 58 234 33 15 54 65 6 104 86 82 40 271 60 104 87 82 6 81 469 86 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT	1-71907-210-2	01	1	0407-	●	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	0407-0604	●	●
6	RING; SNAP,LINK TO LINK ID=4	0-91805-504-0	02	1	0605-	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0407-	●	●
14	PAD; PEDAL,ACCEL THA	8-97915-953-0	01	1	0407-	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0407-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0407-	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0407-	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0407-	●	●
40	BRACKET; ENG CONT CABLE	1-47478-612-0	01	1	0407-	●	●
54	CABLE; ENG CONT L=3006.5 THA	8-97915-011-2	01	1	0407-	●
54	CABLE; ENG CONT L=2912.5 THA	8-97917-960-1	01	1	0407-		●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0407-	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	0407-	●	●
60	BOLT; CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0407-	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0407-0512	●	●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0407-0512	●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	02	1	0407-	●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0407-	●	●
67	CABLE ASM; IDLE CONT L=315 THA	1-73908-423-0	01	1	0407-	●	●
70	NUT; CONT CABLE THA	1-73908-045-1	01	1	0407-	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	0407-0605	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4 OD=16 THA	0-91610-508-0	01	1	0606-	●	●
75	KNOB ASM; IDLING CONT THA	1-73908-409-0	01	1	0407-	●	●
81	SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	0407-	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0407-	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0407-	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	0407-	●	●
104	NUT; ENG CONT D=17.5 THA	8-94368-617-0	02	1	0407-	●	●
234	SWITCH; ACCEL	1-82380-114-3	01	1	0407-	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0407-	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0407-	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73908-428-0	01	1	0407-	●	●
469	LEVER ASM	1-71907-209-5	01	1	0407-	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0407-	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0407-	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0407-0512	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●

74 57 63 64 63 62 54 149 439 56 65 65

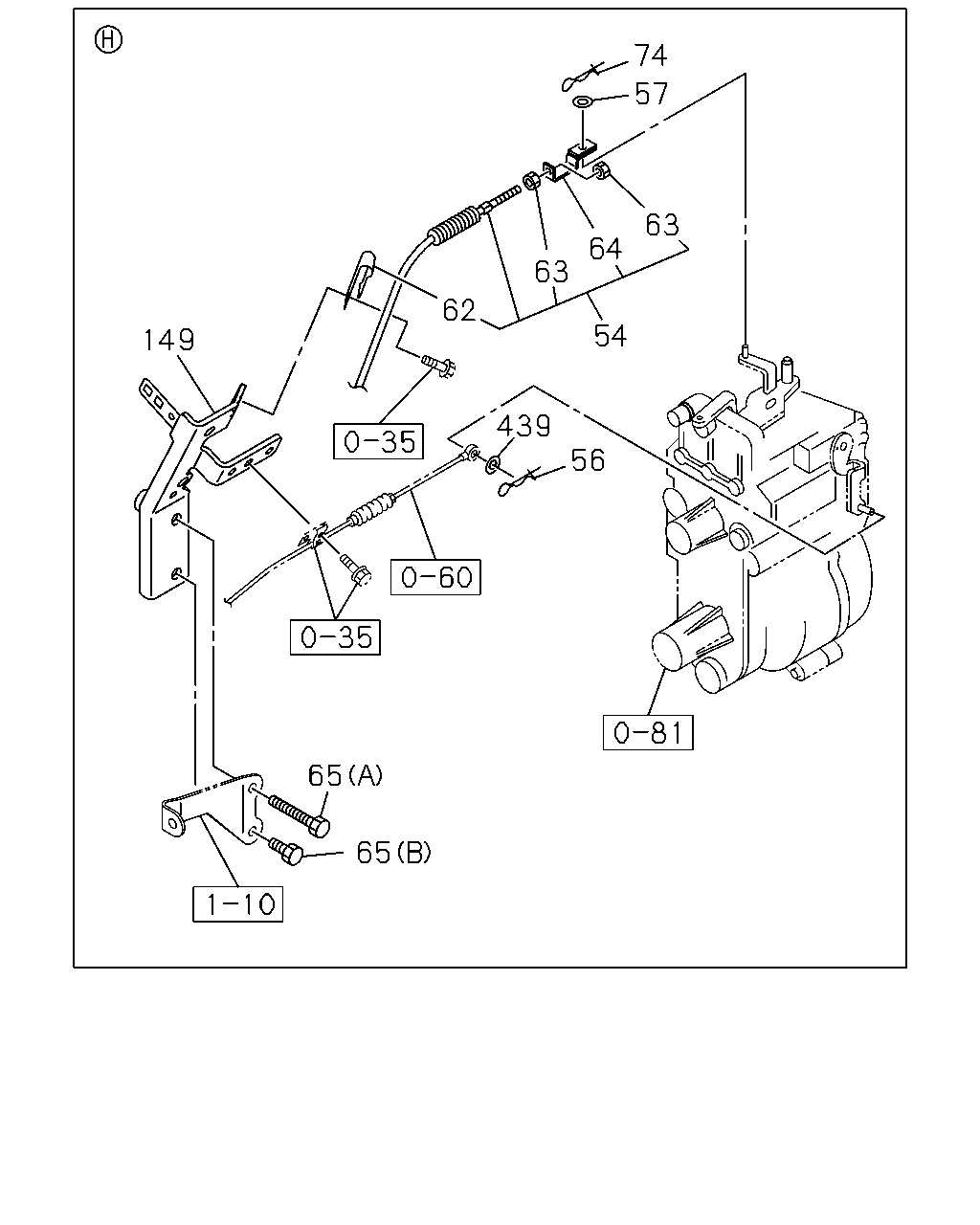

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT L=3006.5 THA	8-97915-011-2	01	1	0407-	●
54	CABLE; ENG CONT L=2912.5 THA	8-97917-960-1	01	1	0407-		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0407-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0407-0605	●	●
57	WASHER; ENG CONT CABLE ID=8.4 OD=16 THA	0-91610-508-0	01	1	0606-	●	●
62	CLIP; ENG CONT CABLE THA	8-97921-649-0	01	1	0407-	●
62	CLIP; ENG CONT CABLE THA	8-97921-648-0	01	1	0407-		●
63	NUT; LOCK,BRKT THA	8-97921-646-0	02	1	0407-	●	●
64	BRACKET; ENG CONT CABLE THA	8-97921-647-0	01	1	0407-	●	●
65	BOLT (A) M10X60	0-16811-060-0	01	1	0407-0512	●	●
65	BOLT (A) M10X60	0-16861-060-0	01	1	0601-	●	●
65	BOLT (B) M10X20 FLANGE	0-28181-020-0	01	1	0407-0512	●	●
65	BOLT (B) M10X20 FLANGE	0-28151-020-0	01	1	0601-	●	●
65	BOLT (C) M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	02	1	0407-	●	●
65	BOLT (D) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0407-	●	●
74	PIN; SNAP,CABLE END L=27.7	8-94157-841-0	01	1	0407-	●	●
149	BRACKET; ENG CONT	8-94394-532-1	01	1	0407-	●
149	BRACKET; ENG CONT	8-97600-861-1	01	1	0407-		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0407-0605	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●

54 61 392 446 392 61 401 323 399 450 443 400 54

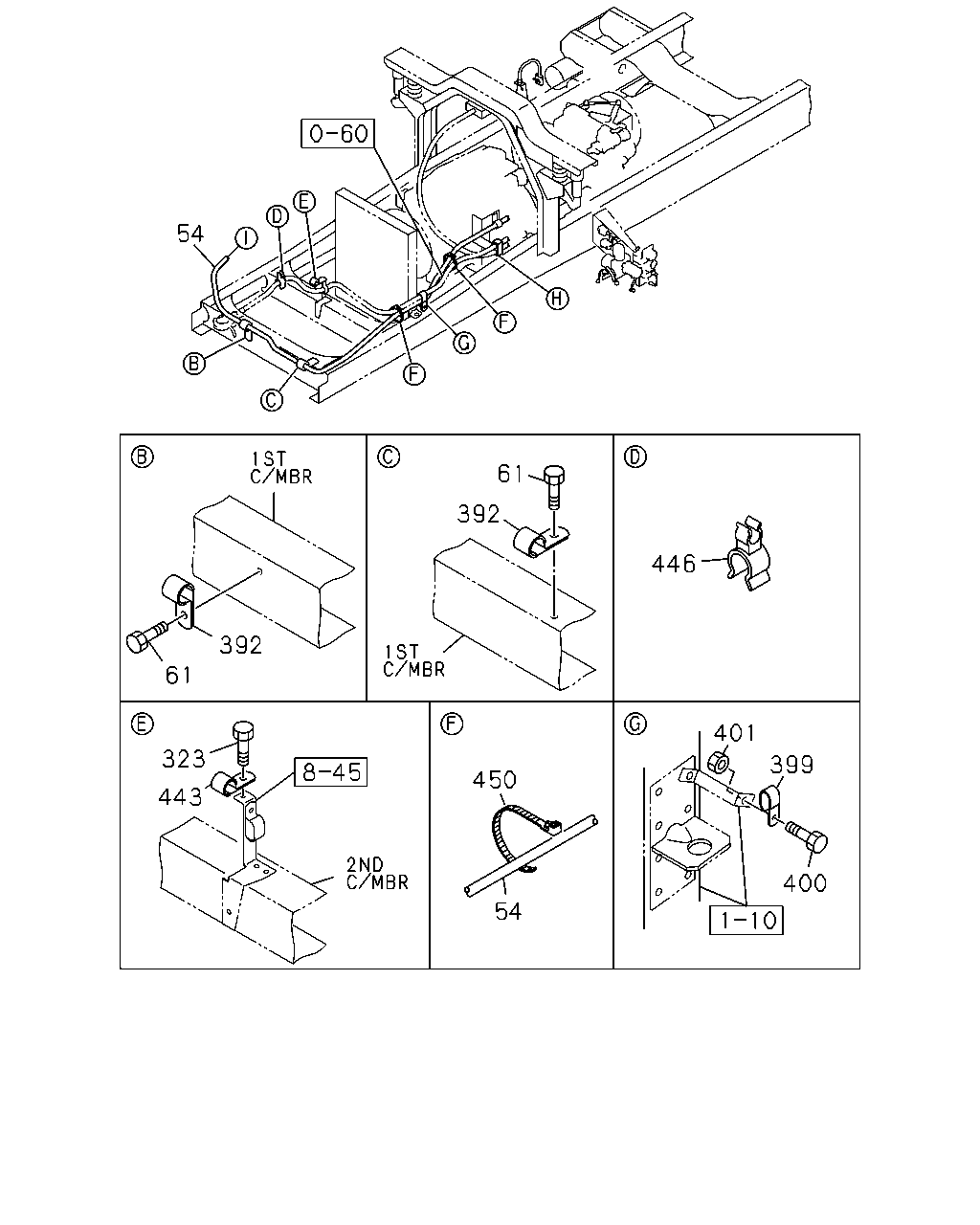

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CABLE; ENG CONT L=3006.5 THA	8-97915-011-2	01	1	0407-	●
54	CABLE; ENG CONT L=2912.5 THA	8-97917-960-1	01	1	0407-		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	0407-0611	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE THA	0-28050-816-0	02	1	0612-	●	●
323	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0407-0611	●	●
323	BOLT; CLIP M8X16 FLANGE THA	0-28050-816-0	01	1	0612-	●	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	9-09525-265-0	02	1	0407-0606	●	●
392	CLIP; ACCEL CONT CABLE ID=13 L=32	0-95235-265-0	02	1	0607-	●	●
399	CLIP; CABLE,RAD SIDE THA	1-09701-260-0	01	1	0407-	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE	0-28080-816-0	01	1	0407-0611	●	●
400	BOLT; CLIP,RAD SIDE M8X16 FLANGE THA	0-28050-816-0	01	1	0612-	●	●
401	NUT; CLIP,RAD SIDE M8 FLANGE	0-91150-108-0	01	1	0407-	●	●
443	CLIP; CABLE ID=7 L=20	9-09524-635-0	01	1	0407-0606	●	●
443	CLIP; CABLE ID=7 L=20	0-95234-635-0	01	1	0607-	●	●
446	CLIP; ENG CONT ID=6.8X11.8 THA	1-09709-127-0	01	1	0407-	●	●
450	CLIP; BAND L=140	5-09707-031-1	02	1	0407-		●
