Sayfa 2-26A - Isuzu EPC

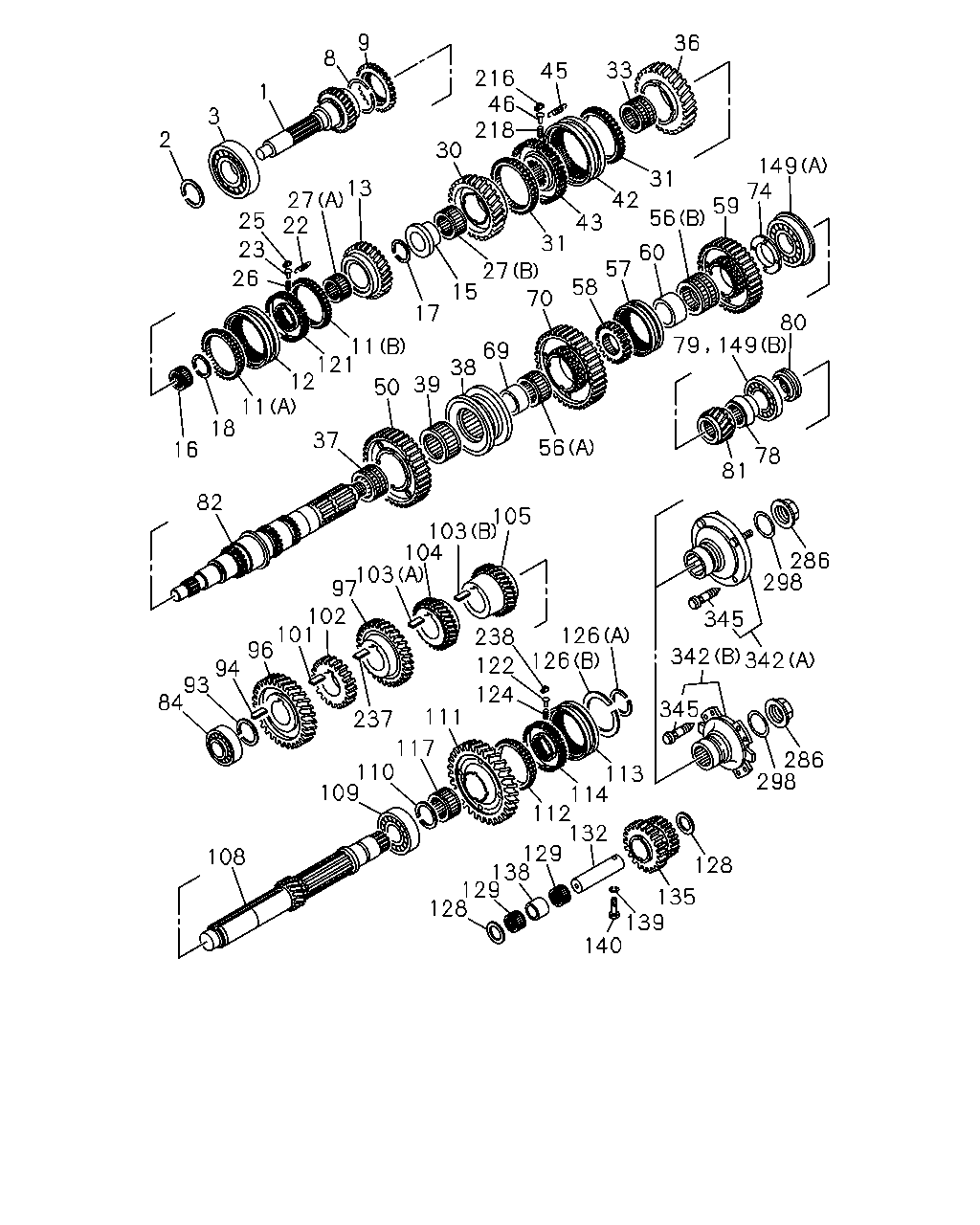

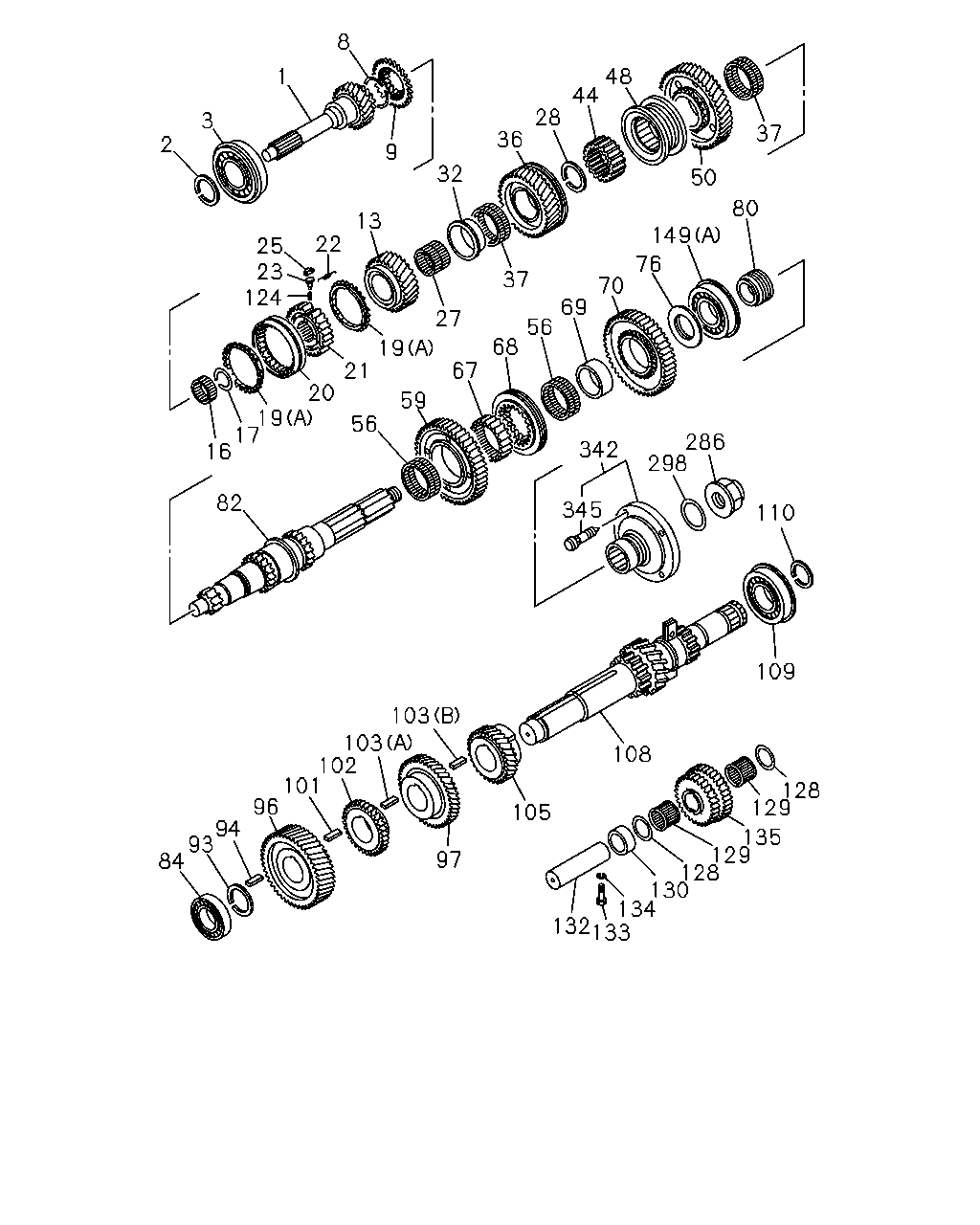

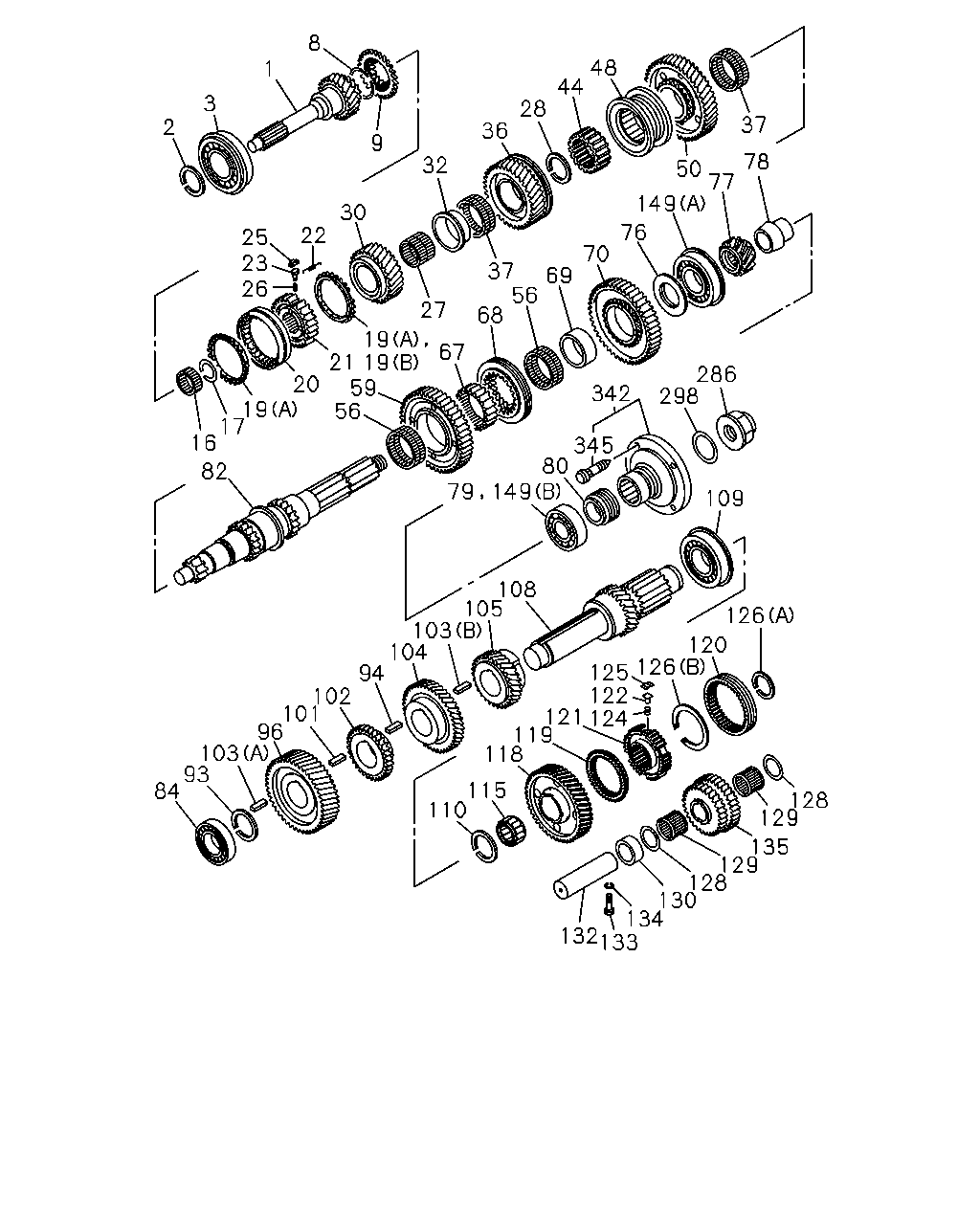

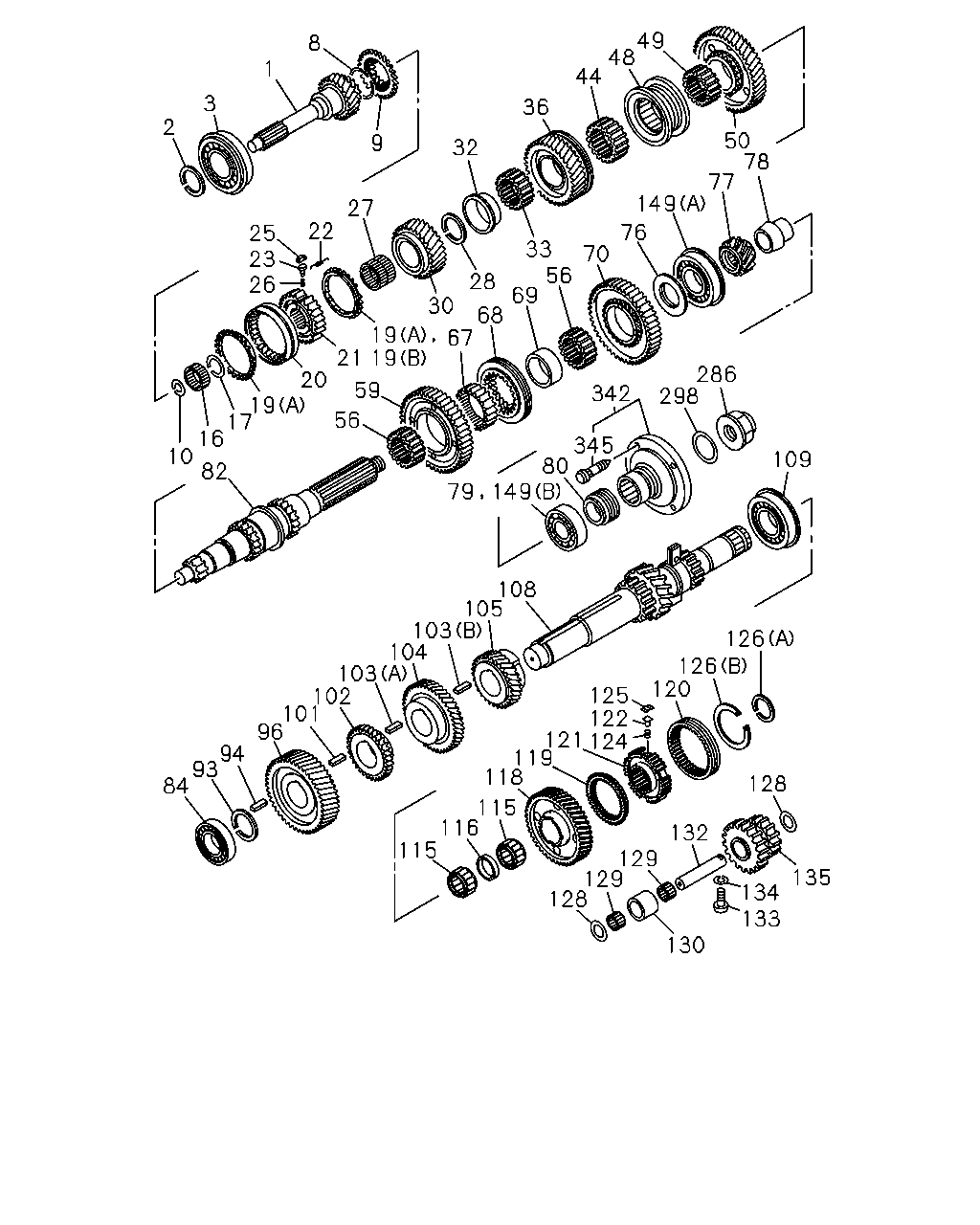

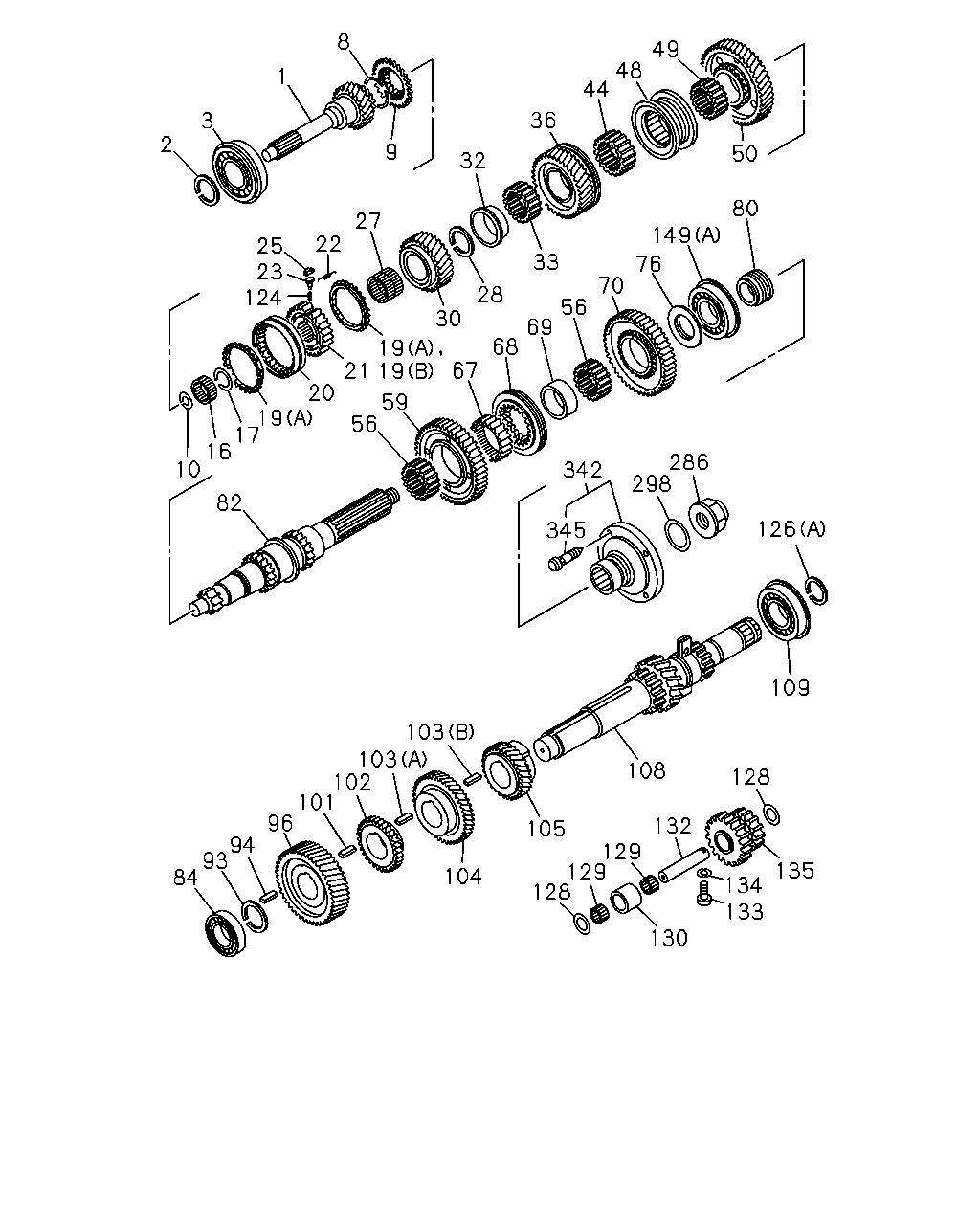

2-26A — MANUAL TRANSMISSION GEAR (#2813) — 1134 parça

2 3 1 8 9 25 22 27 23 124 32 36 44 48 49 50 10 16 17 19 20 21 19 19 59 56 30 67 68 28 33 69 56 70 76 149 80 82 342 345 298 286 126 109 103 103 102 101 96 94 93 84 104 105 108 128 132 129 129 128 130 134 133 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-604-1	01	1	9002-	●	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-605-1	01	1	9002-			●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	9002-9306				●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	9002-					●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-						●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-611-1	01	1	9002-							●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-								●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9002-	●	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●	●	●	●	●	●
10	RING; SNAP,PILOT BRG	1-09588-177-0	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-				●	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9002-	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-160-1	01	1	9002-				●	●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	9002-						●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-2	02	1	9002-9406	●	●	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9407-	●		●		●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9407-	●		●		●
20	SLEEVE	1-33262-097-1	01	1	9002-	●	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9002-9204	●	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-	●	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-9306	●	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	06	1	9307-	●		●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9307-					●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9002-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9002-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-248-0	01	1	9002-9205				●	●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	9206-				●	●
27	BEARING; 4TH GEAR NTN	1-09811-390-0	02	1	9412-9601				●	●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	9602-				●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205						●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-353-0	02	1	9206-						●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205						●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	9206-						●	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9412-						●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9002-	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-118-0	01	1	9002-				●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-323-0	01	1	9002-	●		●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-325-0	01	1	9002-9306		●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	9002-					●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-						●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9002-9203	●	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-	●	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	9002-				●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-200-0	01	1	9002-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-201-0	01	1	9002-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-226-0	01	1	9002-9205						●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9206-						●	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9002-	●		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-193-1	01	1	9002-9306		●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-304-0	01	1	9002-9306				●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	9002-					●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9002-						●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9002-	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	9002-				●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9002-	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	9002-				●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-200-0	01	1	9002-	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-201-0	01	1	9002-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9002-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	9002-				●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-						●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9002-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9002-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-246-0	02	1	9002-9205				●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-352-1	04	1	9206-				●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205						●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-						●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205						●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-						●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	9002-				●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-						●		●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-							●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9002-	●	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	9002-				●	●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9002-	●	●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	9002-				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9002-9302	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-063-0	01	1	9002-9302				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	9303-				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302						●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-						●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	9002-				●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	9002-						●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-2	01	1	9002-							●
76	WASHER; THRUST,MAIN LOW	1-33239-094-1	01	1	9002-	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	9002-				●	●
80	GEAR; SPD DRIVE Z=7	1-33371-032-1	01	1	9002-	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-032-1	01	1	9002-			●
80	GEAR; SPD DRIVE Z=5	1-33371-031-0	01	1	9002-9306		●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 45/7 17.5"(W3X) Z=5	1-33371-031-0	01	1	9002-9306			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-031-1	01	1	9307-			●
80	GEAR; SPD DRIVE Z=7	1-33371-030-0	01	1	9002-9306				●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y) Z=7	1-33371-030-0	01	1	9002-9306					●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-014-2	01	1	9002-					●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-1	01	1	9002-						●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-021-4	01	1	9002-						●	●
80	GEAR; SPD DRIVE Z=7	1-33371-021-4	01	1	9002-								●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-141-8	01	1	9002-	●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-140-8	01	1	9002-		●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-218-2	01	1	9005-9306				●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-168-5	01	1	9005-					●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-210-3	01	1	9002-						●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-209-4	01	1	9002-							●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=60.8	9-09180-065-0	01	1	9002-	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9002-				●	●
93	RING; SNAP,COUNTER FRT BRG ID=79.5	1-09588-149-0	01	1	9002-						●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-030-0	01	1	9002-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9002-				●	●	●	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9002-	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-115-2	01	1	9002-			●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	9002-9306				●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	9002-					●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-						●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-							●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-								●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9002-	●	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-				●	●	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9002-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9002-				●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-						●	●	●
103	KEY; COUNTER GEAR (A) L=45	1-09735-032-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (B) L=47	1-09735-034-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-9105				●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9106-				●	●	●	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	9002-				●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	02	1	9002-9105						●	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-						●	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-155-3	01	1	9002-	●		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-176-2	01	1	9002-9306		●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	9002-					●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-						●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9002-	●		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-078-0	01	1	9002-9306		●
105	GEAR; 3RD,COUNTER Z=31	1-33333-120-0	01	1	9002-9306				●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	9002-					●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-						●	●	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-175-1	01	1	9002-9201	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-242-0	01	1	9202-	●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-213-0	01	1	9002-9201		●	●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-250-0	01	1	9202-		●	●
108	SHAFT; COUNTER Z=22-13	1-33311-193-0	01	1	9002-9306				●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	9002-					●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-						●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110							●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-							●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110								●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-								●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-049-1	01	1	9002-9306	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-162-0	01	1	9002-9306	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-				●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-				●	●	●	●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9002-	●	●	●	●	●	●	●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-9306	●				●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	02	1	9002-9306		●	●
126	RING; SNAP,CLU HUB (B) ID=130 T=2.5	1-09588-040-0	01	1	9002-		●	●		●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9307-			●		●		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9002-	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-				●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9002-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9002-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9002-				●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-						●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9002-	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9002-				●	●
132	SHAFT; REV	1-33351-014-1	01	1	9002-	●	●	●
132	SHAFT; REV	1-33351-012-1	01	1	9002-				●	●
132	SHAFT; REV	1-33351-016-1	01	1	9002-						●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9002-9203	●	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-	●	●	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9002-	●	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	9002-				●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-						●		●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-							●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9002-	●	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9002-	●	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-			●		●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-			●		●		●	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9002-	●	●	●	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9002-						●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9002-	●	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9002-						●	●	●
342	FLANGE; OUTPUT	1-37243-061-2	01	1	9002-	●	●	●
342	FLANGE; OUTPUT	1-37243-149-3	01	1	9002-9306				●	●
342	FLANGE; OUTPUT P115 PROP SHAFT<C5X> (B)	1-37243-203-0	01	1	9002-						●
342	FLANGE; OUTPUT P90 PROP SHAFT<C5T> (A)	1-37243-171-4	01	1	9002-						●
342	FLANGE; OUTPUT (A)	1-37243-171-4	01	1	9002-							●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9002-9412	●	●	●	●	●		●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-048-1	04	1	9002-9412						●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●	●	●		●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-086-0	04	1	9501-						●
345	BOLT; FLANGE TO YOKE P115 PROP SHAFT<C5X>	1-46219-069-0	04	1	9002-						●

2 3 1 8 9 13 22 25 23 124 32 36 28 44 48 37 50 80 16 17 19 20 21 19 27 37 82 56 59 67 68 56 69 70 76 149 342 345 298 286 110 109 108 105 97 84 93 94 96 101 102 103 103 132 133 134 130 128 129 135 129 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-604-1	01	1	9002-	●	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-605-1	01	1	9002-			●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	9002-9306				●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	9002-					●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-						●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-611-1	01	1	9002-							●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-								●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9002-	●	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●	●	●	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-450-0	01	1	9002-9306				●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9002-						●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-416-0	01	1	9002-							●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9002-								●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-				●	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9002-	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-160-1	01	1	9002-				●	●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	9002-						●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-2	02	1	9002-9406	●	●	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9407-	●		●		●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9407-	●		●		●
20	SLEEVE	1-33262-097-1	01	1	9002-	●	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9002-9204	●	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-	●	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-9306	●	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	06	1	9307-	●		●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9307-					●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9002-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9002-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-248-0	01	1	9002-9205				●	●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	9206-				●	●
27	BEARING; 4TH GEAR NTN	1-09811-390-0	02	1	9412-9601				●	●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	9602-				●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205						●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-353-0	02	1	9206-						●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205						●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	9206-						●	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9412-						●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9002-	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-118-0	01	1	9002-				●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9002-9203	●	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-	●	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	9002-				●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9002-	●		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-193-1	01	1	9002-9306		●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-304-0	01	1	9002-9306				●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	9002-					●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9002-						●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-226-0	02	1	9002-9205				●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-351-0	04	1	9206-				●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-246-0	01	1	9002-9205						●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9206-						●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9002-	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	9002-				●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9002-	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	9002-				●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9002-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	9002-				●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-						●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9002-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9002-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-246-0	02	1	9002-9205				●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-352-1	04	1	9206-				●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205						●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-						●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205						●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-						●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	9002-				●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-						●		●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-							●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9002-	●	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	9002-				●	●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9002-	●	●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	9002-				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9002-9302	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-063-0	01	1	9002-9302				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	9303-				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302						●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-						●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	9002-				●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	9002-						●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-2	01	1	9002-							●
76	WASHER; THRUST,MAIN LOW	1-33239-094-1	01	1	9002-	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	9002-				●	●
80	GEAR; SPD DRIVE Z=7	1-33371-032-1	01	1	9002-	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-032-1	01	1	9002-			●
80	GEAR; SPD DRIVE Z=5	1-33371-031-0	01	1	9002-9306		●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 45/7 17.5"(W3X) Z=5	1-33371-031-0	01	1	9002-9306			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-031-1	01	1	9307-			●
80	GEAR; SPD DRIVE Z=7	1-33371-030-0	01	1	9002-9306				●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y) Z=7	1-33371-030-0	01	1	9002-9306					●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-014-2	01	1	9002-					●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-1	01	1	9002-						●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-021-4	01	1	9002-						●	●
80	GEAR; SPD DRIVE Z=7	1-33371-021-4	01	1	9002-								●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-141-8	01	1	9002-	●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-140-8	01	1	9002-		●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-218-2	01	1	9005-9306				●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-168-5	01	1	9005-					●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-210-3	01	1	9002-						●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-209-4	01	1	9002-							●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=60.8	9-09180-065-0	01	1	9002-	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9002-				●	●
93	RING; SNAP,COUNTER FRT BRG ID=79.5	1-09588-149-0	01	1	9002-						●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-030-0	01	1	9002-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9002-				●	●	●	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9002-	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-115-2	01	1	9002-			●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	9002-9306				●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	9002-					●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-						●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-							●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-								●
97	GEAR; 5TH,COUNTER Z=43	1-33338-244-0	01	1	9002-9306				●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9002-						●
97	GEAR; 5TH,COUNTER Z=41	1-33338-231-0	01	1	9002-							●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9002-								●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9002-	●	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-				●	●	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9002-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9002-				●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-						●	●	●
103	KEY; COUNTER GEAR (A) L=45	1-09735-032-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (B) L=47	1-09735-034-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-9105				●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9106-				●	●	●	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	9002-				●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	02	1	9002-9105						●	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-						●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9002-	●		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-078-0	01	1	9002-9306		●
105	GEAR; 3RD,COUNTER Z=31	1-33333-120-0	01	1	9002-9306				●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	9002-					●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-						●	●	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-175-1	01	1	9002-9201	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-242-0	01	1	9202-	●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-213-0	01	1	9002-9201		●	●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-250-0	01	1	9202-		●	●
108	SHAFT; COUNTER Z=22-13	1-33311-193-0	01	1	9002-9306				●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	9002-					●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-						●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110							●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-							●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110								●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-								●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-049-1	01	1	9002-9306	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-162-0	01	1	9002-9306	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-				●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-				●	●	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9002-				●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-						●	●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9002-	●	●	●	●	●	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9002-	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-				●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9002-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9002-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9002-				●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-						●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9002-	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9002-				●	●
132	SHAFT; REV	1-33351-014-1	01	1	9002-	●	●	●
132	SHAFT; REV	1-33351-012-1	01	1	9002-				●	●
132	SHAFT; REV	1-33351-016-1	01	1	9002-						●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9002-9203	●	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-	●	●	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9002-	●	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	9002-				●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-						●		●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-							●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9002-	●	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9002-	●	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-			●		●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-			●		●		●	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9002-	●	●	●	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9002-						●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9002-	●	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9002-						●	●	●
342	FLANGE; OUTPUT	1-37243-061-2	01	1	9002-	●	●	●
342	FLANGE; OUTPUT	1-37243-149-3	01	1	9002-9306				●	●
342	FLANGE; OUTPUT P115 PROP SHAFT<C5X> (B)	1-37243-203-0	01	1	9002-						●
342	FLANGE; OUTPUT P90 PROP SHAFT<C5T> (A)	1-37243-171-4	01	1	9002-						●
342	FLANGE; OUTPUT (A)	1-37243-171-4	01	1	9002-							●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9002-9412	●	●	●	●	●		●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-048-1	04	1	9002-9412						●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●	●	●		●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-086-0	04	1	9501-						●
345	BOLT; FLANGE TO YOKE P115 PROP SHAFT<C5X>	1-46219-069-0	04	1	9002-						●

2 3 1 8 9 30 22 25 23 26 16 17 19 20 21 19 59 56 67 27 68 37 56 69 70 76 149 50 32 36 28 44 48 37 78 77 342 298 286 345 80 149 79 108 105 103 104 94 102 101 96 103 93 84 110 115 118 119 121 124 122 125 126 120 126 109 82 19 132 133 134 130 128 129 135 129 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-604-1	01	1	9002-	●	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-605-1	01	1	9002-			●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	9002-9306				●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	9002-					●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-						●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-611-1	01	1	9002-							●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-								●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9002-	●	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-				●	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9002-	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-160-1	01	1	9002-				●	●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	9002-						●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-2	02	1	9002-9406	●	●	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9407-	●		●		●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9407-	●		●		●
20	SLEEVE	1-33262-097-1	01	1	9002-	●	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9002-9204	●	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-	●	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-9306	●	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	06	1	9307-	●		●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9307-					●	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	9002-		●	●		●		●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9002-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9002-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-248-0	01	1	9002-9205				●	●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	9206-				●	●
27	BEARING; 4TH GEAR NTN	1-09811-390-0	02	1	9412-9601				●	●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	9602-				●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205						●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-353-0	02	1	9206-						●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205						●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	9206-						●	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9412-						●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9002-	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-118-0	01	1	9002-				●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-323-0	01	1	9002-	●		●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-325-0	01	1	9002-9306		●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	9002-					●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-						●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9002-9203	●	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-	●	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	9002-				●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9002-	●		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-193-1	01	1	9002-9306		●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-304-0	01	1	9002-9306				●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	9002-					●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9002-						●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-226-0	02	1	9002-9205				●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-351-0	04	1	9206-				●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-246-0	01	1	9002-9205						●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9206-						●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9002-	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	9002-				●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9002-	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	9002-				●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9002-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	9002-				●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-						●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9002-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9002-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-246-0	02	1	9002-9205				●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-352-1	04	1	9206-				●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205						●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-						●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205						●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-						●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	9002-				●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-						●		●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-							●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9002-	●	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	9002-				●	●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9002-	●	●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	9002-				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9002-9302	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-063-0	01	1	9002-9302				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	9303-				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302						●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-						●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	9002-				●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	9002-						●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-2	01	1	9002-							●
76	WASHER; THRUST,MAIN LOW	1-33239-094-1	01	1	9002-	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	9002-				●	●
77	GEAR; 6TH,MAINSHAFT Z=20	1-33253-308-0	01	1	9002-9306		●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-352-0	01	1	9002-			●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-445-2	01	1	9004-					●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-075-0	01	1	9002-		●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	9002-					●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9002-						●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9002-							●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-148-0	01	1	9002-9203		●	●		●		●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-172-0	01	1	9204-9306		●	●		●		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-149-0	01	1	9002-9205		●	●		●		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-173-0	01	1	9206-9306		●	●		●		●	●
80	GEAR; SPD DRIVE Z=7	1-33371-032-1	01	1	9002-	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-032-1	01	1	9002-			●
80	GEAR; SPD DRIVE Z=5	1-33371-031-0	01	1	9002-9306		●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 45/7 17.5"(W3X) Z=5	1-33371-031-0	01	1	9002-9306			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-031-1	01	1	9307-			●
80	GEAR; SPD DRIVE Z=7	1-33371-030-0	01	1	9002-9306				●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y) Z=7	1-33371-030-0	01	1	9002-9306					●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-014-2	01	1	9002-					●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-1	01	1	9002-						●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-021-4	01	1	9002-						●	●
80	GEAR; SPD DRIVE Z=7	1-33371-021-4	01	1	9002-								●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-141-8	01	1	9002-	●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-140-8	01	1	9002-		●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-218-2	01	1	9005-9306				●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-168-5	01	1	9005-					●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-210-3	01	1	9002-						●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-209-4	01	1	9002-							●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=60.8	9-09180-065-0	01	1	9002-	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9002-				●	●
93	RING; SNAP,COUNTER FRT BRG ID=79.5	1-09588-149-0	01	1	9002-						●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-030-0	01	1	9002-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9002-				●	●	●	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9002-	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-115-2	01	1	9002-			●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	9002-9306				●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	9002-					●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-						●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-							●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-								●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9002-	●	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-				●	●	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9002-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9002-				●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-						●	●	●
103	KEY; COUNTER GEAR (A) L=45	1-09735-032-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (B) L=47	1-09735-034-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-9105				●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9106-				●	●	●	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	9002-				●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	02	1	9002-9105						●	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-						●	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-155-3	01	1	9002-	●		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-176-2	01	1	9002-9306		●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	9002-					●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-						●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9002-	●		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-078-0	01	1	9002-9306		●
105	GEAR; 3RD,COUNTER Z=31	1-33333-120-0	01	1	9002-9306				●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	9002-					●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-						●	●	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-175-1	01	1	9002-9201	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-242-0	01	1	9202-	●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-213-0	01	1	9002-9201		●	●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-250-0	01	1	9202-		●	●
108	SHAFT; COUNTER Z=22-13	1-33311-193-0	01	1	9002-9306				●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	9002-					●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-						●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110							●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-							●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110								●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-								●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-049-1	01	1	9002-9306	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-162-0	01	1	9002-9306	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-				●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-				●	●	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9002-				●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-						●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	9-00096-135-0	02	1	9002-		●	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	9-00096-136-0	02	1	9002-		●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-248-0	01	1	9002-9205					●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	9206-					●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-390-0	02	1	9412-9601					●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	9602-					●
118	GEAR; 6TH,COUNTER Z=55	1-33338-203-2	01	1	9002-9306		●
118	GEAR; 6TH,COUNTER Z=45	1-33338-202-2	01	1	9002-			●
118	GEAR; 6TH,COUNTER Z=54	1-33338-238-0	01	1	9002-					●
119	RING; BLOCK,6TH SYN	1-33265-213-1	01	1	9002-9203		●	●		●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	9204-		●	●		●
120	SLEEVE	1-33262-098-2	01	1	9002-		●	●		●
121	HUB; CLU,6TH	1-33261-135-0	01	1	9002-9204		●	●		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9205-		●	●		●
121	HUB; CLU,6TH	1-33261-134-0	01	1	9002-9204						●	●	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9205-						●	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-		●	●		●		●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9002-	●	●	●	●	●	●	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	9002-		●	●		●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-9306	●				●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	02	1	9002-9306		●	●
126	RING; SNAP,CLU HUB (B) ID=130 T=2.5	1-09588-040-0	01	1	9002-		●	●		●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9307-			●		●		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9002-	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-				●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9002-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9002-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9002-				●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-						●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9002-	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9002-				●	●
132	SHAFT; REV	1-33351-014-1	01	1	9002-	●	●	●
132	SHAFT; REV	1-33351-012-1	01	1	9002-				●	●
132	SHAFT; REV	1-33351-016-1	01	1	9002-						●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9002-9203	●	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-	●	●	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9002-	●	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	9002-				●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-						●		●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-							●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9002-	●	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9002-	●	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-			●		●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-			●		●		●	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9002-	●	●	●	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9002-						●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9002-	●	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9002-						●	●	●
342	FLANGE; OUTPUT	1-37243-061-2	01	1	9002-	●	●	●
342	FLANGE; OUTPUT	1-37243-149-3	01	1	9002-9306				●	●
342	FLANGE; OUTPUT P115 PROP SHAFT<C5X> (B)	1-37243-203-0	01	1	9002-						●
342	FLANGE; OUTPUT P90 PROP SHAFT<C5T> (A)	1-37243-171-4	01	1	9002-						●
342	FLANGE; OUTPUT (A)	1-37243-171-4	01	1	9002-							●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9002-9412	●	●	●	●	●		●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-048-1	04	1	9002-9412						●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●	●	●		●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-086-0	04	1	9501-						●
345	BOLT; FLANGE TO YOKE P115 PROP SHAFT<C5X>	1-46219-069-0	04	1	9002-						●

2 3 1 8 9 25 23 26 22 27 32 36 44 48 49 50 78 77 149 76 70 33 28 10 16 82 17 19 20 56 59 21 19 19 30 67 68 79 149 80 345 342 298 286 109 108 105 103 104 103 102 101 96 94 93 84 115 116 118 119 121 124 122 125 120 126 126 128 132 129 129 128 130 133 134 135 69 56 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-604-1	01	1	9002-	●	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-605-1	01	1	9002-			●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	9002-9306				●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	9002-					●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-						●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-611-1	01	1	9002-							●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-								●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9002-	●	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●	●	●	●	●	●
10	RING; SNAP,PILOT BRG	1-09588-177-0	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-				●	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9002-	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-160-1	01	1	9002-				●	●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	9002-						●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-2	02	1	9002-9406	●	●	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9407-	●		●		●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9407-	●		●		●
20	SLEEVE	1-33262-097-1	01	1	9002-	●	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9002-9204	●	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-	●	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-9306	●	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	06	1	9307-	●		●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9307-					●	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	9002-		●	●		●		●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9002-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9002-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-248-0	01	1	9002-9205				●	●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	9206-				●	●
27	BEARING; 4TH GEAR NTN	1-09811-390-0	02	1	9412-9601				●	●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	9602-				●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205						●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-353-0	02	1	9206-						●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205						●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	9206-						●	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9412-						●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9002-	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-118-0	01	1	9002-				●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-323-0	01	1	9002-	●		●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-325-0	01	1	9002-9306		●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	9002-					●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-						●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9002-9203	●	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-	●	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	9002-				●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-200-0	01	1	9002-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-201-0	01	1	9002-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-226-0	01	1	9002-9205						●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9206-						●	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9002-	●		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-193-1	01	1	9002-9306		●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-304-0	01	1	9002-9306				●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	9002-					●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9002-						●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9002-	●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	9002-				●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9002-	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	9002-				●	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-200-0	01	1	9002-	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-201-0	01	1	9002-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9002-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	9002-				●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-						●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9002-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9002-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-246-0	02	1	9002-9205				●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-352-1	04	1	9206-				●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205						●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-						●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205						●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-						●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	9002-				●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-						●		●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-							●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9002-	●	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	9002-				●	●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9002-	●	●	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	9002-				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9002-9302	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-063-0	01	1	9002-9302				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	9303-				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302						●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-						●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	9002-				●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	9002-						●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-2	01	1	9002-							●
76	WASHER; THRUST,MAIN LOW	1-33239-094-1	01	1	9002-	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	9002-				●	●
77	GEAR; 6TH,MAINSHAFT Z=20	1-33253-308-0	01	1	9002-9306		●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-352-0	01	1	9002-			●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-445-2	01	1	9004-					●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-075-0	01	1	9002-		●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	9002-					●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9002-						●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9002-							●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-148-0	01	1	9002-9203		●	●		●		●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-172-0	01	1	9204-9306		●	●		●		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-149-0	01	1	9002-9205		●	●		●		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-173-0	01	1	9206-9306		●	●		●		●	●
80	GEAR; SPD DRIVE Z=7	1-33371-032-1	01	1	9002-	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-032-1	01	1	9002-			●
80	GEAR; SPD DRIVE Z=5	1-33371-031-0	01	1	9002-9306		●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 45/7 17.5"(W3X) Z=5	1-33371-031-0	01	1	9002-9306			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-031-1	01	1	9307-			●
80	GEAR; SPD DRIVE Z=7	1-33371-030-0	01	1	9002-9306				●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y) Z=7	1-33371-030-0	01	1	9002-9306					●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-014-2	01	1	9002-					●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-1	01	1	9002-						●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-021-4	01	1	9002-						●	●
80	GEAR; SPD DRIVE Z=7	1-33371-021-4	01	1	9002-								●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-141-8	01	1	9002-	●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-140-8	01	1	9002-		●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-218-2	01	1	9005-9306				●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-168-5	01	1	9005-					●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-210-3	01	1	9002-						●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-209-4	01	1	9002-							●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=60.8	9-09180-065-0	01	1	9002-	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9002-				●	●
93	RING; SNAP,COUNTER FRT BRG ID=79.5	1-09588-149-0	01	1	9002-						●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-030-0	01	1	9002-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9002-				●	●	●	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9002-	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-115-2	01	1	9002-			●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	9002-9306				●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	9002-					●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-						●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-							●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-								●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9002-	●	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-				●	●	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9002-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9002-				●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-						●	●	●
103	KEY; COUNTER GEAR (A) L=45	1-09735-032-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (B) L=47	1-09735-034-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-9105				●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9106-				●	●	●	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	9002-				●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	02	1	9002-9105						●	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-						●	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-155-3	01	1	9002-	●		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-176-2	01	1	9002-9306		●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	9002-					●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-						●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9002-	●		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-078-0	01	1	9002-9306		●
105	GEAR; 3RD,COUNTER Z=31	1-33333-120-0	01	1	9002-9306				●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	9002-					●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-						●	●	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-175-1	01	1	9002-9201	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-242-0	01	1	9202-	●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-213-0	01	1	9002-9201		●	●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-250-0	01	1	9202-		●	●
108	SHAFT; COUNTER Z=22-13	1-33311-193-0	01	1	9002-9306				●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	9002-					●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-						●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110							●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-							●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110								●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-								●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-049-1	01	1	9002-9306	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-162-0	01	1	9002-9306	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-				●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-				●	●	●	●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	9-00096-135-0	02	1	9002-		●	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	9-00096-136-0	02	1	9002-		●	●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-248-0	01	1	9002-9205					●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	9206-					●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-390-0	02	1	9412-9601					●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	9602-					●
116	COLLAR; DIST,COUNTER SHAFT	1-33315-001-0	01	1	9002-		●	●
118	GEAR; 6TH,COUNTER Z=55	1-33338-203-2	01	1	9002-9306		●
118	GEAR; 6TH,COUNTER Z=45	1-33338-202-2	01	1	9002-			●
118	GEAR; 6TH,COUNTER Z=54	1-33338-238-0	01	1	9002-					●
119	RING; BLOCK,6TH SYN	1-33265-213-1	01	1	9002-9203		●	●		●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	9204-		●	●		●
120	SLEEVE	1-33262-098-2	01	1	9002-		●	●		●
121	HUB; CLU,6TH	1-33261-135-0	01	1	9002-9204		●	●		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9205-		●	●		●
121	HUB; CLU,6TH	1-33261-134-0	01	1	9002-9204						●	●	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9205-						●	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-		●	●		●		●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9002-	●	●	●	●	●	●	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	9002-		●	●		●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-9306	●				●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	02	1	9002-9306		●	●
126	RING; SNAP,CLU HUB (B) ID=130 T=2.5	1-09588-040-0	01	1	9002-		●	●		●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9307-			●		●		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9002-	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-				●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9002-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9002-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9002-				●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-						●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9002-	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9002-				●	●
132	SHAFT; REV	1-33351-014-1	01	1	9002-	●	●	●
132	SHAFT; REV	1-33351-012-1	01	1	9002-				●	●
132	SHAFT; REV	1-33351-016-1	01	1	9002-						●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9002-9203	●	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-	●	●	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9002-	●	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	9002-				●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-						●		●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-							●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9002-	●	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9002-	●	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-			●		●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-			●		●		●	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9002-	●	●	●	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9002-						●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9002-	●	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9002-						●	●	●
342	FLANGE; OUTPUT	1-37243-061-2	01	1	9002-	●	●	●
342	FLANGE; OUTPUT	1-37243-149-3	01	1	9002-9306				●	●
342	FLANGE; OUTPUT P115 PROP SHAFT<C5X> (B)	1-37243-203-0	01	1	9002-						●
342	FLANGE; OUTPUT P90 PROP SHAFT<C5T> (A)	1-37243-171-4	01	1	9002-						●
342	FLANGE; OUTPUT (A)	1-37243-171-4	01	1	9002-							●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9002-9412	●	●	●	●	●		●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-048-1	04	1	9002-9412						●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●	●	●		●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-086-0	04	1	9501-						●
345	BOLT; FLANGE TO YOKE P115 PROP SHAFT<C5X>	1-46219-069-0	04	1	9002-						●

2 3 1 8 9 25 23 26 22 27 13 30 218 46 216 45 33 36 16 18 11 12 37 82 121 11 50 39 38 17 15 27 70 69 58 31 43 57 60 42 31 56 59 74 149 80 149 79 56 84 93 94 96 101 102 97 103 104 103 105 126 238 122 124 126 342 111 237 109 110 108 117 128 129 138 129 112 132 114 113 345 140 139 135 128 298 286 342 345 298 286 81 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-604-1	01	1	9002-	●	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-605-1	01	1	9002-			●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	9002-9306				●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	9002-					●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	9002-						●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-611-1	01	1	9002-							●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	9002-								●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9002-	●	●	●	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9002-	●	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9002-	●	●	●	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9002-	●	●	●	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9002-	●	●	●	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9002-	●	●	●	●	●	●	●	●
11	RING; BLOCK,5TH & 6TH (A),(B) Z=54	1-33265-290-2	02	1	9002-9406						●	●	●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-5	01	1	9407-						●	●	●
11	RING; BLOCK,5TH & 6TH (B)	1-33265-426-0	01	1	9407-						●	●	●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	9002-						●	●	●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-450-0	01	1	9002-9306				●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	9002-						●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-416-0	01	1	9002-							●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	9002-								●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	9002-						●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9002-	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9002-				●	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9002-	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-160-1	01	1	9002-				●	●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	9002-						●	●	●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-						●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9002-	●	●	●	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-	●	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9002-9306	●	●	●	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	06	1	9307-	●		●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9307-					●	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	9002-		●	●		●		●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9002-	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9002-	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-248-0	01	1	9002-9205				●	●
27	BEARING; 4TH GEAR NSK	1-09811-355-0	02	1	9206-				●	●
27	BEARING; 4TH GEAR NTN	1-09811-390-0	02	1	9412-9601				●	●
27	BEARING; 4TH GEAR NTN	1-09811-402-0	02	1	9602-				●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-293-1	01	1	9002-9205						●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-353-0	02	1	9206-						●	●	●
27	BEARING; 4TH GEAR (B) NSK	1-09811-295-0	01	1	9002-9205						●	●	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	9206-						●	●	●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	9412-						●	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-323-0	01	1	9002-	●		●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-325-0	01	1	9002-9306		●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	9002-					●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-395-2	01	1	9002-						●	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-333-0	02	1	9002-9111						●	●	●
31	RING; BLOCK,3RD & 4TH	1-33265-376-3	02	1	9112-						●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-200-0	01	1	9002-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-201-0	01	1	9002-	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-226-0	01	1	9002-9205						●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-351-0	02	1	9206-						●	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9002-	●		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-193-1	01	1	9002-9306		●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-304-0	01	1	9002-9306				●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	9002-					●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	9002-						●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-226-0	02	1	9002-9205				●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-351-0	04	1	9206-				●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-246-0	01	1	9002-9205						●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-352-1	02	1	9206-						●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	9002-						●	●	●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	9002-						●	●	●
42	SLEEVE	1-33262-133-2	01	1	9002-						●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-154-4	01	1	9002-9204						●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-178-2	01	1	9205-						●	●	●
45	SPRING; BLOCK INSERT	1-09583-171-0	03	1	9002-						●	●	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-						●	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9002-	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	9002-				●	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	9002-						●	●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9002-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9002-	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-246-0	02	1	9002-9205				●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-352-1	04	1	9206-				●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-226-0	01	1	9002-9205						●	●	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-351-0	02	1	9206-						●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-246-0	01	1	9002-9205						●	●	●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-352-1	02	1	9206-						●	●	●
57	SLEEVE; REV	1-33262-112-1	01	1	9002-						●	●	●
58	HUB; CLU,REV	1-33261-164-1	01	1	9002-						●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	9002-				●	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	9002-						●		●
59	GEAR; REV MAINSHAFT Z=39-38	1-33257-045-0	01	1	9002-							●
60	COLLAR; REV MAIN	1-33234-062-0	01	1	9002-9302						●	●	●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	9303-						●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9002-9302	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-063-0	01	1	9002-9302				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	9303-				●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-061-0	01	1	9002-9302						●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	9303-						●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	9002-				●	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	9002-						●		●
70	GEAR; 1ST,MAINSHAFT Z=47	1-33255-044-2	01	1	9002-							●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	9002-						●	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-075-0	01	1	9002-		●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	9002-					●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-070-0	01	1	9002-						●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	9002-							●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-148-0	01	1	9002-9203		●	●		●		●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-172-0	01	1	9204-9306		●	●		●		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-149-0	01	1	9002-9205		●	●		●		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-173-0	01	1	9206-9306		●	●		●		●	●
80	GEAR; SPD DRIVE Z=7	1-33371-032-1	01	1	9002-	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-032-1	01	1	9002-			●
80	GEAR; SPD DRIVE Z=5	1-33371-031-0	01	1	9002-9306		●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 45/7 17.5"(W3X) Z=5	1-33371-031-0	01	1	9002-9306			●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U) Z=5	1-33371-031-1	01	1	9307-			●
80	GEAR; SPD DRIVE Z=7	1-33371-030-0	01	1	9002-9306				●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y) Z=7	1-33371-030-0	01	1	9002-9306					●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-014-2	01	1	9002-					●
80	GEAR; SPD DRIVE FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) Z=5	1-33371-028-1	01	1	9002-						●	●
80	GEAR; SPD DRIVE FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) Z=7	1-33371-021-4	01	1	9002-						●	●
80	GEAR; SPD DRIVE Z=7	1-33371-021-4	01	1	9002-								●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	9002-							●	●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-141-8	01	1	9002-	●
82	SHAFT; MAIN,TRANS Z=37-37-28-21	1-33231-140-8	01	1	9002-		●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-218-2	01	1	9005-9306				●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-168-5	01	1	9005-					●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-210-3	01	1	9002-						●
82	SHAFT; MAIN,TRANS Z=37-28-28-28-24	1-33231-209-4	01	1	9002-							●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9002-	●	●	●	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9002-	●	●	●	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=60.8	9-09180-065-0	01	1	9002-	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9002-				●	●
93	RING; SNAP,COUNTER FRT BRG ID=79.5	1-09588-149-0	01	1	9002-						●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-030-0	01	1	9002-	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9002-				●	●	●	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9002-	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-115-2	01	1	9002-			●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	9002-9306				●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	9002-					●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	9002-						●
96	GEAR; COUNTER DRIVE Z=46	1-33331-178-0	01	1	9002-							●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	9002-								●
97	GEAR; 5TH,COUNTER Z=43	1-33338-244-0	01	1	9002-9306				●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	9002-						●
97	GEAR; 5TH,COUNTER Z=41	1-33338-231-0	01	1	9002-							●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	9002-								●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9002-	●	●	●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9002-				●	●	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9002-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9002-				●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	9002-						●	●	●
103	KEY; COUNTER GEAR (A) L=45	1-09735-032-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (B) L=47	1-09735-034-0	01	1	9002-	●	●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9002-9105				●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	01	1	9106-				●	●	●	●	●
103	KEY; COUNTER GEAR (B) L=46	1-09735-038-1	01	1	9002-				●	●
103	KEY; COUNTER GEAR (A) L=50.0	1-09735-010-0	02	1	9002-9105						●	●	●
103	KEY; COUNTER GEAR (B) L=75.3	1-09735-042-0	01	1	9002-						●	●	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-155-3	01	1	9002-	●		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-176-2	01	1	9002-9306		●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	9002-					●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	9002-						●	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9002-	●		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-078-0	01	1	9002-9306		●
105	GEAR; 3RD,COUNTER Z=31	1-33333-120-0	01	1	9002-9306				●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	9002-					●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	9002-						●	●	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-175-1	01	1	9002-9201	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-242-0	01	1	9202-	●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-213-0	01	1	9002-9201		●	●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-250-0	01	1	9202-		●	●
108	SHAFT; COUNTER Z=22-13	1-33311-193-0	01	1	9002-9306				●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	9002-					●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	9002-						●
108	SHAFT; COUNTER Z=21-13	1-33311-190-0	01	1	9002-9110							●
108	SHAFT; COUNTER Z=21-13	1-33311-239-0	01	1	9111-							●
108	SHAFT; COUNTER Z=21-12	1-33311-179-1	01	1	9002-9110								●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	9111-								●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-049-1	01	1	9002-9306	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-162-0	01	1	9002-9306	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9002-				●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9002-				●	●	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9002-				●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	9002-						●	●	●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	9002-							●	●
112	RING; BLOCK,7TH SYN	1-33265-213-1	01	1	9002-9203							●	●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	01	1	9204-							●	●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-2	01	1	9002-							●	●
114	HUB; CLU,7TH	1-33261-152-1	01	1	9002-9204							●	●
114	HUB; CLU,7TH	1-33261-177-2	01	1	9205-							●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-248-0	01	1	9002-9205							●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	9206-							●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-390-0	02	1	9412-9601							●	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	9602-							●	●
121	HUB; CLU,6TH	1-33261-135-0	01	1	9002-9204		●	●		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9205-		●	●		●
121	HUB; CLU,6TH	1-33261-134-0	01	1	9002-9204						●	●	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	9205-						●	●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9002-		●	●		●		●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9002-	●	●	●	●	●	●	●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9002-9306	●				●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	02	1	9002-9306		●	●
126	RING; SNAP,CLU HUB (B) ID=130 T=2.5	1-09588-040-0	01	1	9002-		●	●		●		●	●
126	RING; SNAP,CLU HUB (A) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9307-			●		●		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9002-	●	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	9002-				●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9002-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9002-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9002-				●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	9002-						●	●	●
132	SHAFT; REV	1-33351-014-1	01	1	9002-	●	●	●
132	SHAFT; REV	1-33351-012-1	01	1	9002-				●	●
132	SHAFT; REV	1-33351-016-1	01	1	9002-						●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	9002-				●	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	9002-						●		●
135	GEAR; REV IDLER Z=25-30	1-33361-046-0	01	1	9002-							●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	9002-						●	●	●
139	WASHER; LK,PIECE ID=10.5 TOOTH LK INT	9-09151-210-0	01	1	9002-9205						●	●	●
140	BOLT; LK PIECE M10X16	9-02351-016-0	01	1	9002-9002						●	●	●
140	BOLT; LK PIECE M10X16	0-23801-016-0	01	1	9003-9205						●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	9206-						●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9002-	●	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9002-	●	●	●	●	●	●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9307-			●		●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9307-			●		●		●	●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	9002-						●	●	●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD	1-09580-091-1	03	1	9002-						●	●	●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	9002-						●	●	●
238	INSERT	1-33263-025-2	03	1	9002-							●	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9002-	●	●	●	●	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	9002-						●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9002-	●	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	9002-						●	●	●
342	FLANGE; OUTPUT	1-37243-061-2	01	1	9002-	●	●	●
342	FLANGE; OUTPUT	1-37243-149-3	01	1	9002-9306				●	●
342	FLANGE; OUTPUT P115 PROP SHAFT<C5X> (B)	1-37243-203-0	01	1	9002-						●
342	FLANGE; OUTPUT P90 PROP SHAFT<C5T> (A)	1-37243-171-4	01	1	9002-						●
342	FLANGE; OUTPUT (A)	1-37243-171-4	01	1	9002-							●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9002-9412	●	●	●	●	●		●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-048-1	04	1	9002-9412						●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●	●	●		●	●
345	BOLT; FLANGE TO YOKE P90 PROP SHAFT<C5T> M16X51 W/MARK	1-46219-086-0	04	1	9501-						●
345	BOLT; FLANGE TO YOKE P115 PROP SHAFT<C5X>	1-46219-069-0	04	1	9002-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
