Isuzu WW
▶
TRUCKS
▶
FVM
▶
10943 - FVM(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#28122) — 56 parça
Tümü
A - 6HE1 TC ENG
B - 6HH1 STD ENG
◀

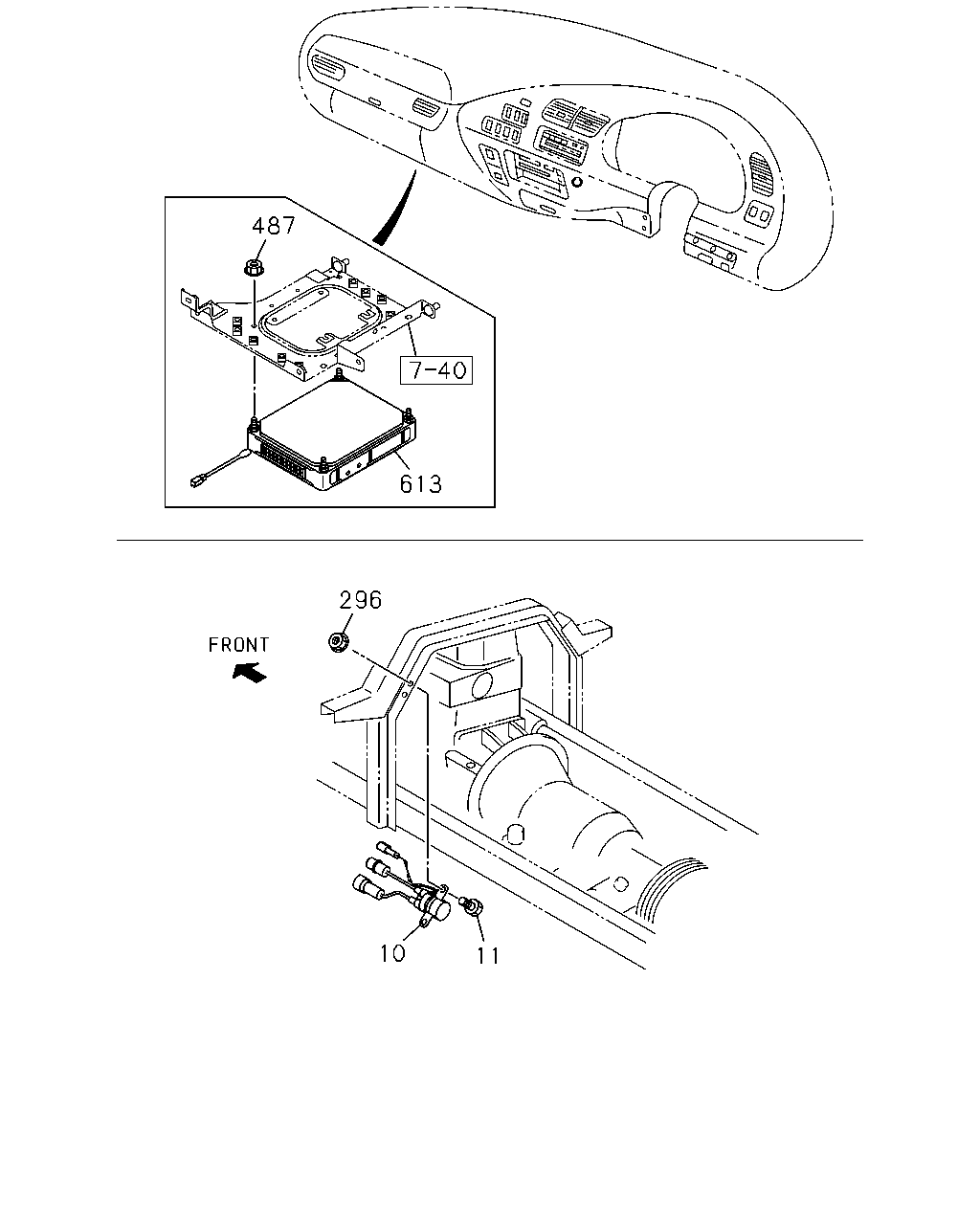

[060A] ENG CONTROL UNIT AND STARTER RELAY (8 parça)

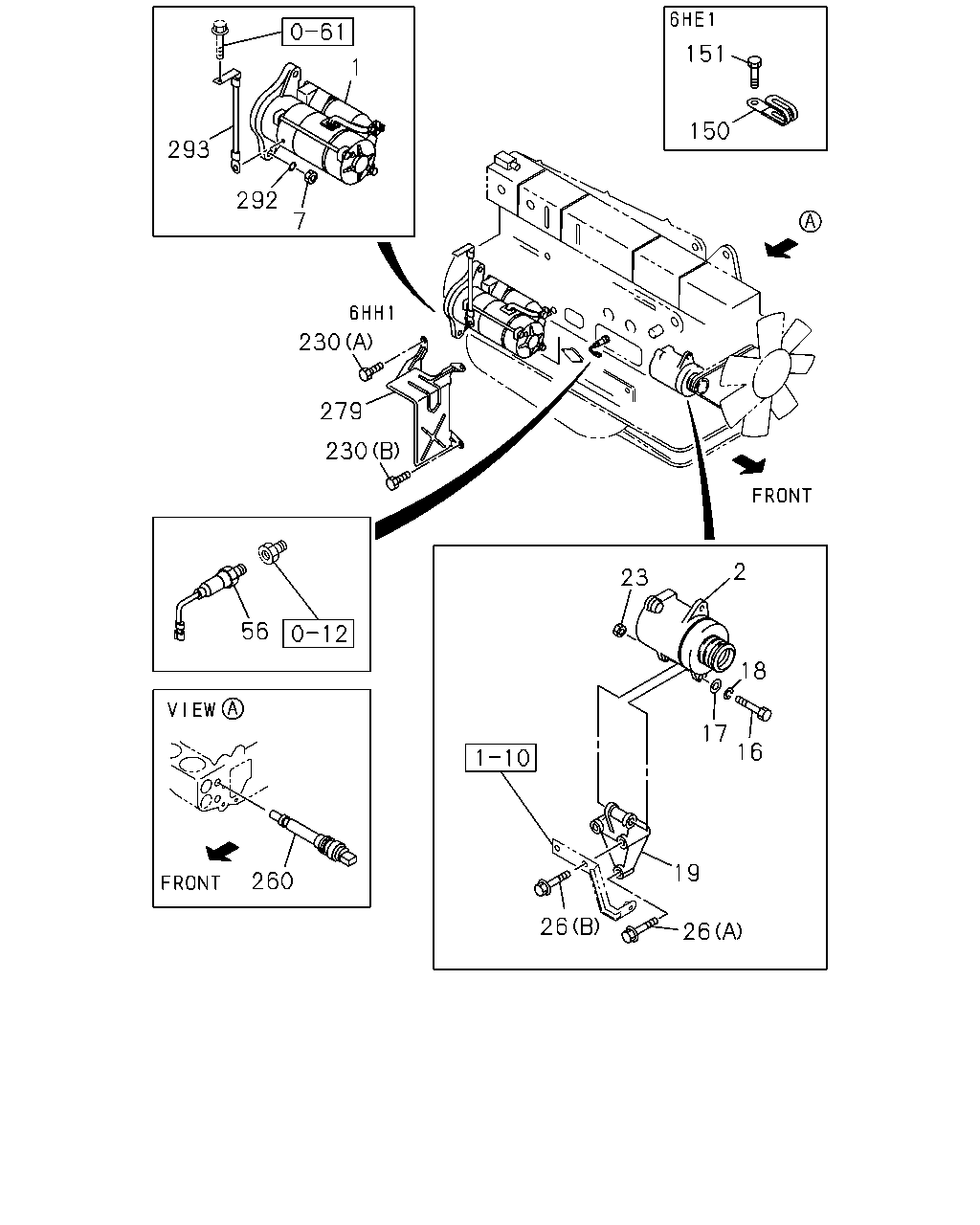

[060A] STARTER AND GENERATOR (31 parça)

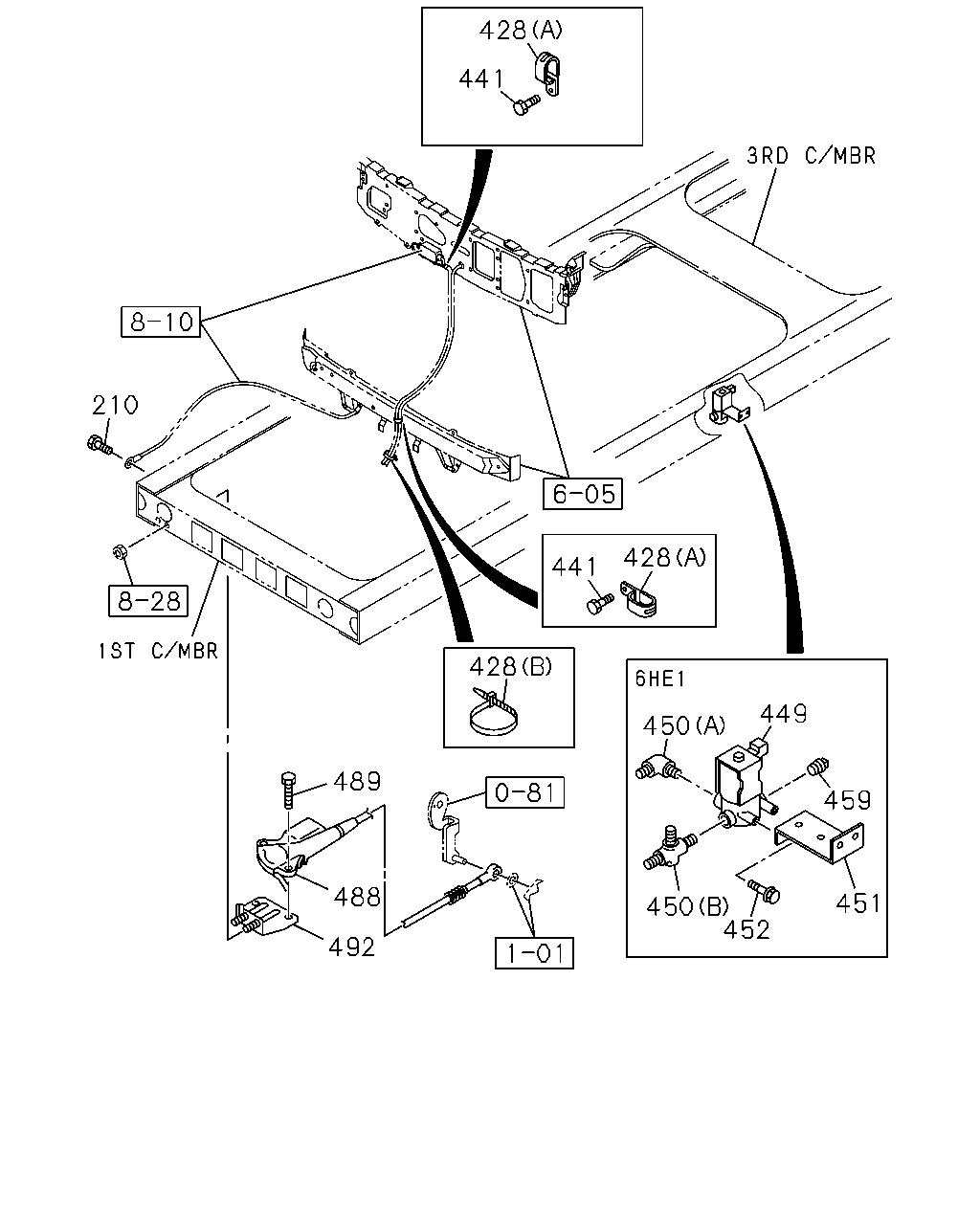

[060A] ENG STOPPER AND MAG VALVE (17 parça)
▶
487
613
296
10
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
RELAY; STARTER
DENSO
1-81171-070-0
01
1
0407-
●
●
11
BOLT; RELAY STARTER
M8X25 FLANGE
0-28680-825-0
02
1
0407-0611
●
●
11
BOLT; RELAY STARTER
M8X25 FLANGE THA
0-28650-825-0
02
1
0612-
●
●
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
0407-
●
●
487
NUT
M6 FLANGE
0-91150-106-0
04
1
0407-0605
●
●
487
NUT
M6 FLANGE THA
0-91180-106-0
04
1
0606-
●
●
613
CONTROL UNIT; ENG
1-80110-178-0
01
1
0407-
●
613
CONTROL UNIT; ENG
8-94392-232-2
01
1
0407-
●
151
1
150
293
292
7
230
279
230
2
23
56
18
17
16
19
260
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5W THA
8-97916-113-2
01
1
0407-
●
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO THA
8-97915-995-1
01
1
0407-
●
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO THA
8-97913-530-2
01
1
0407-
●
●
7
NUT; STARTER
M14
9-99110-414-0
02
1
0407-0512
●
●
7
NUT; STARTER
M14 THA
0-91110-514-0
02
1
0601-
●
●
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
0407-
●
●
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0407-0605
●
●
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0606-
●
●
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
0407-0603
●
●
18
WASHER; LK,GEN
ID=14.2
0-91510-514-0
01
1
0604-
●
●
19
BRACKET; GEN
THA
8-97916-133-0
01
1
0407-
●
●
23
NUT; GEN
M14
9-99110-414-0
01
1
0407-0512
●
●
23
NUT; GEN
M14 THA
0-91110-514-0
01
1
0601-
●
●
26
BOLT; GEN BRKT
(A) M10X40 FLANGE
0-28181-040-0
01
1
0407-0512
●
●
26
BOLT; GEN BRKT
(A) M10X40 FLANGE
0-28151-040-0
01
1
0601-
●
●
26
BOLT; GEN BRKT
(B) M10X80 FLANGE
0-28181-080-0
02
1
0407-0512
●
●
26
BOLT; GEN BRKT
(B) M10X80 FLANGE
0-28151-080-0
02
1
0601-
●
●
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
0407-
●
●
150
CLIP; HARNESS,SOLENOID VLV
ID=18 L=44 THA
8-94225-185-0
02
1
0407-0801
●
150
CLIP; HARNESS,SOLENOID VLV
ID=18 L=44
8-97367-985-1
02
1
0802-
●
151
BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE
0-28080-812-0
02
1
0407-0512
●
151
BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE THA
0-28050-812-0
02
1
0601-
●
230
BOLT; HEAT PROTECTOR
(A) M8X28 FLANGE
0-28080-828-0
01
1
0407-
●
230
BOLT; HEAT PROTECTOR
(B) M10X30 FLANGE
0-28181-030-0
01
1
0407-0512
●
230
BOLT; HEAT PROTECTOR
(B) M10X30 FLANGE
0-28151-030-0
01
1
0601-
●
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
0407-
●
●
279
PROTECTOR; STARTER
8-94394-952-1
01
1
0407-
●
292
WASHER; LK,STARTER
ID=14.2
9-09150-514-0
02
1
0407-0603
●
●
292
WASHER; LK,STARTER
ID=14.2
0-91510-514-0
02
1
0604-
●
●
293
CABLE; STARTER EARTH
THA
8-97913-381-0
01
1
0407-
●
293
CABLE; STARTER EARTH
THA
8-97917-989-0
01
1
0407-
●
428
441
210
428
441
428
449
450
489
459
488
451
450
452
492
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0407-
●
●
428
CLIP; HARNESS
(A) ID=35 L=50 THA
1-09701-214-0
02
1
0407-
●
●
428
CLIP; HARNESS
(B) L=300 THA
1-09707-001-1
03
1
0407-
●
●
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE
0-28680-825-0
02
1
0407-0611
●
●
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE THA
0-28650-825-0
02
1
0612-
●
●
449
VALVE; MAG,VARIABLE SWIRL SYSTEM
1-82563-600-5
01
1
0407-
●
450
CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW
1-09660-649-1
01
1
0407-
●
450
CONNECTOR; MAG VLV,INL PORT
(B)
1-09660-718-1
01
1
0407-
●
451
BRACKET; MAG VLV,VSS
1-47477-953-1
01
1
0407-
●
452
BOLT; VSS MAG VLV
M8X20 FLANGE
0-28080-820-0
02
1
0407-0512
●
452
BOLT; VSS MAG VLV
M8X20 FLANGE THA
0-28050-820-0
02
1
0601-
●
459
PLUG
PT1/4
9-99204-513-0
01
1
0407-
●
488
STOPPER; ENG
1-82840-153-1
01
1
0407-
●
488
STOPPER; ENG
1-82840-128-2
01
1
0407-
●
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50140-825-0
02
1
0407-0701
●
●
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50640-825-0
02
1
0702-
●
●
492
BRACKET; ENG STOPPER
THA
1-82849-089-1
01
1
0407-
●
●
