0-52 — OIL AND VACUUM PIPING; ENGINE (#28121) — 64 parça

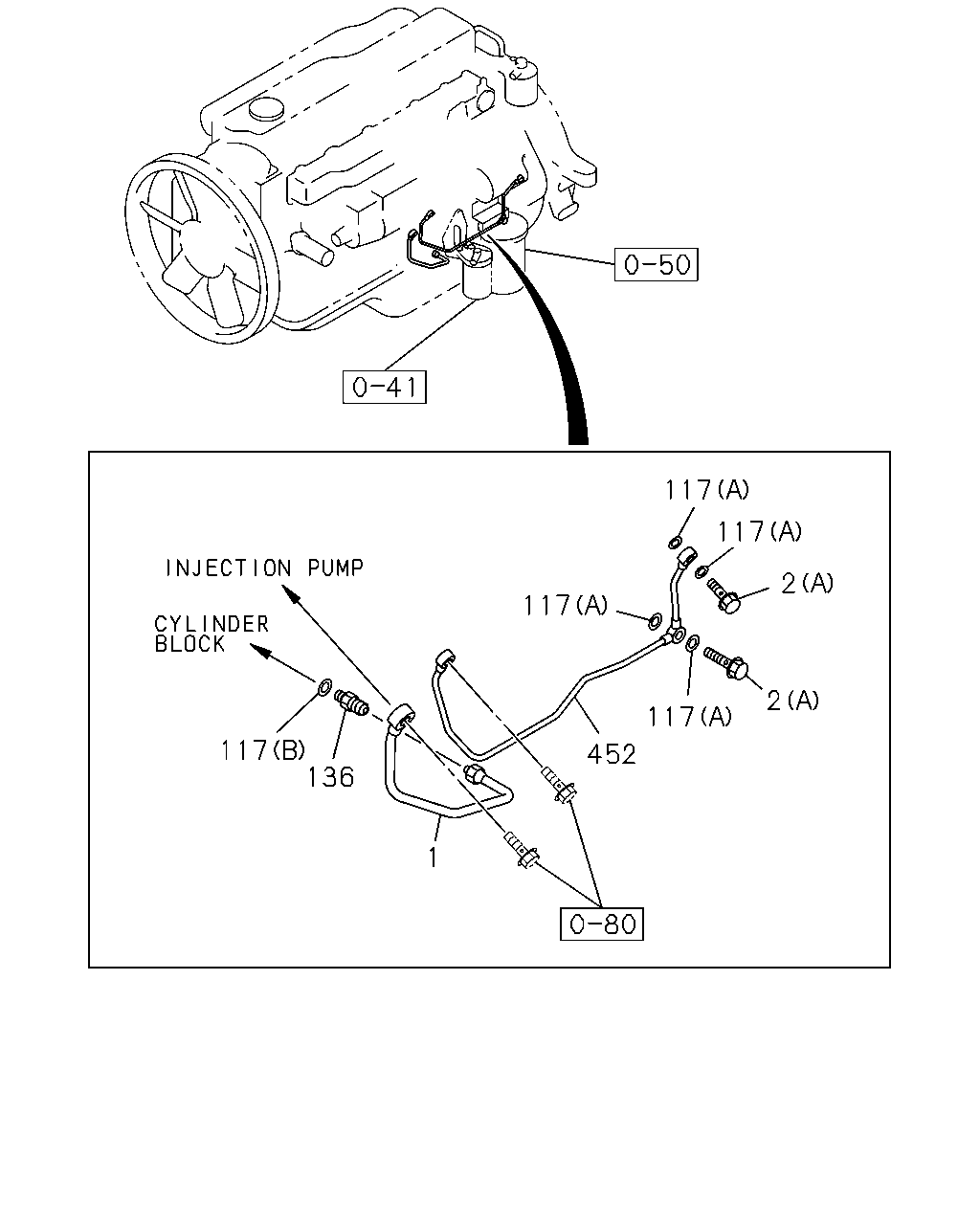

çizim 25284
117 117 2 117 2 117 117 136 452 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 0407- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94392-964-0 01 1 0407- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 01 1 0407-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 01 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0407- ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 0407- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0407-0805 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0407- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA 		1-09630-083-0 04 1 0407- ● ●
136 UNION 8-94392-422-0 01 1 0407- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-571-0 01 1 0407- ●

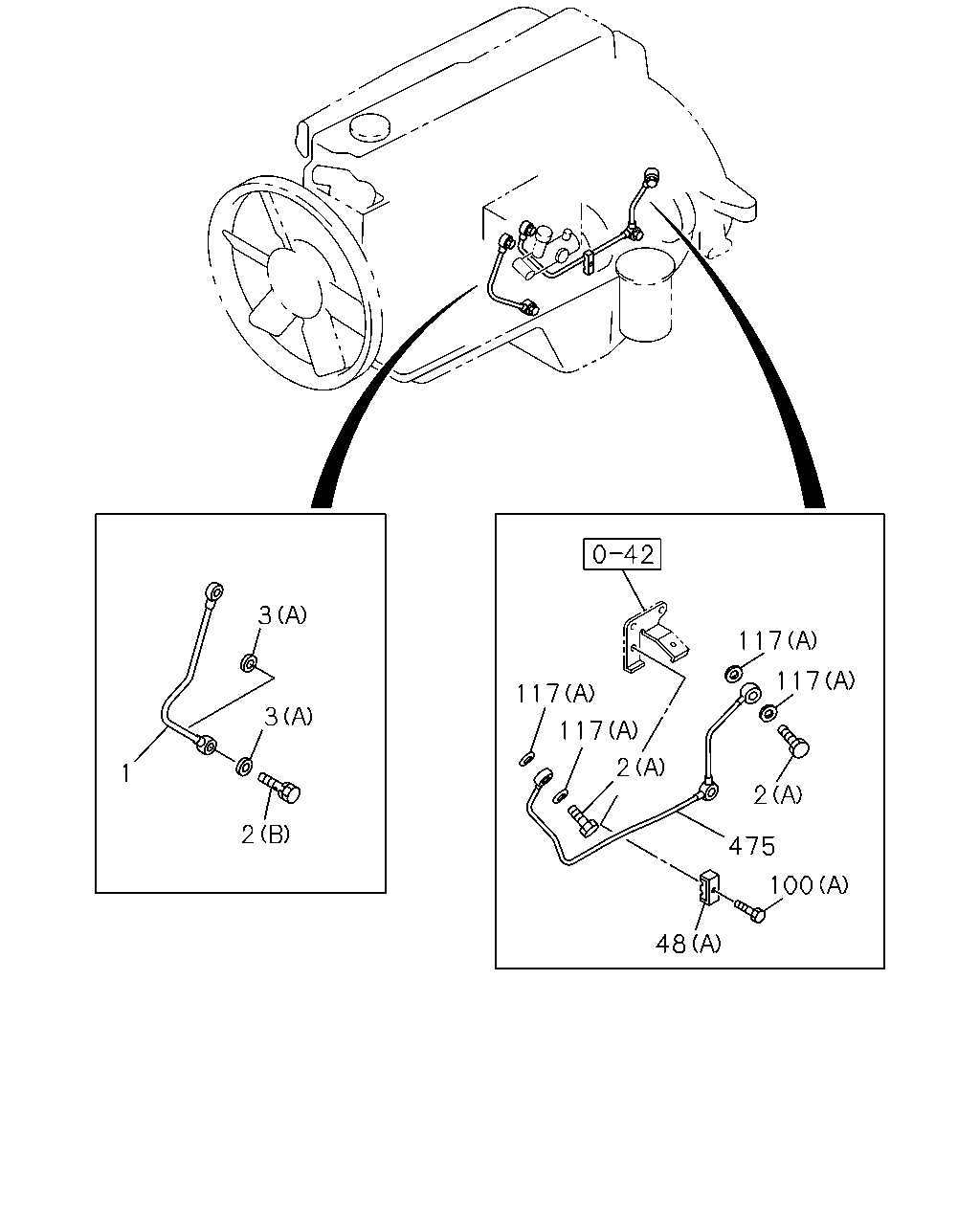

çizim 82253
3 117 117 117 3 117 2 1 2 2 475 100 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,INJ PUMP TO C/BL 8-94395-795-0 01 1 0407- ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94392-964-0 01 1 0407- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 01 1 0407-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 01 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0407- ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 0407- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0407-0805 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 0407- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0407- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0407- ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 0407- ●
48 CLIP; OIL PIPE
(B) 		8-94395-170-0 01 1 0407- ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28080-616-0 01 1 0407-0512 ●
100 BOLT; CLIP
(B) M6X16 FLANGE THA 		0-28050-616-0 01 1 0601- ●
100 BOLT; CLIP
(A) M6X22 FLANGE 		0-28080-622-0 01 1 0407- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2 		1-09630-084-0 01 1 0407- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA 		1-09630-083-0 04 1 0407- ● ●
475 PIPE; OIL,OIL FILTER TO INJ PUMP 8-97600-567-1 01 1 0407- ●

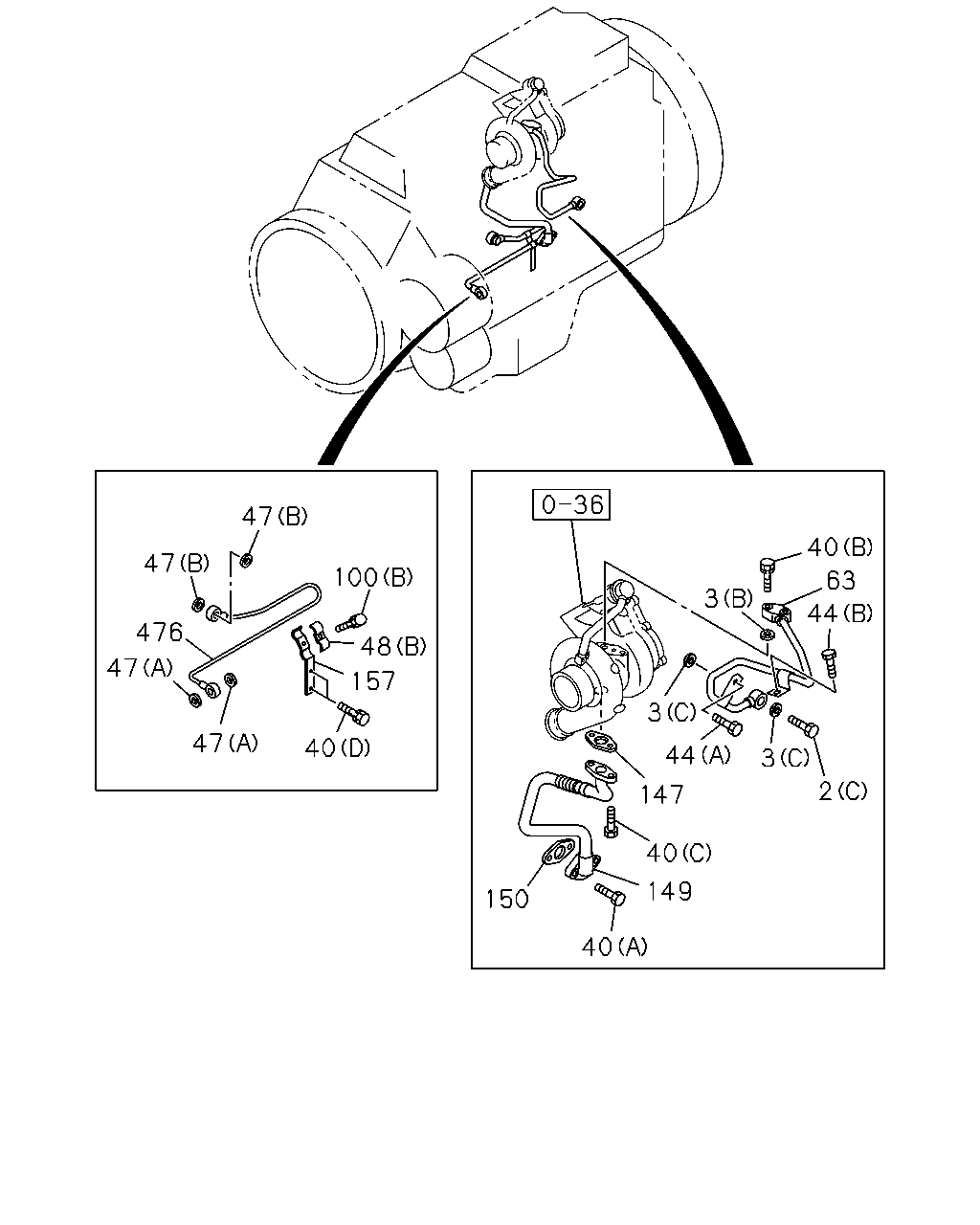

çizim 86610
47 40 47 100 63 3 44 476 48 47 157 3 47 40 44 3 2 147 40 149 150 40
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 01 1 0407-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 01 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0407- ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 02 1 0407- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0407-0805 ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3 		1-09623-481-0 01 1 0407- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2 		1-09630-084-0 02 1 0407- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0407- ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE 		0-28080-830-0 02 1 0407-0512 ●
40 BOLT; OIL PIPE
(B) M8X30 FLANGE THA 		0-28050-830-0 02 1 0601- ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28080-840-0 02 1 0407-0512 ●
40 BOLT; OIL PIPE
(A) M8X40 FLANGE 		0-28050-840-0 02 1 0601- ●
40 BOLT; OIL PIPE
(D) M10X16 FLANGE 		0-28181-016-0 02 1 0407-0512 ●
40 BOLT; OIL PIPE
(D) M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
40 BOLT; OIL PIPE
(C) M10X22 FLANGE 		0-28181-022-0 02 1 0407- ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0407-0512 ●
44 BOLT; CLIP,OIL PIPE
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0601- ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0407-0512 ●
44 BOLT; CLIP,OIL PIPE
(A) M8X16 FLANGE THA 		0-28050-816-0 01 1 0601- ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA 		1-09630-083-0 02 1 0407- ●
47 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0407- ●
48 CLIP; OIL PIPE
(A) 		1-09701-091-0 01 1 0407- ●
48 CLIP; OIL PIPE
(B) 		8-94395-170-0 01 1 0407- ●
63 PIPE; OIL,TURBOCHARGER FEED 8-94392-976-0 01 1 0407- ●
100 BOLT; CLIP
(B) M6X16 FLANGE 		0-28080-616-0 01 1 0407-0512 ●
100 BOLT; CLIP
(B) M6X16 FLANGE THA 		0-28050-616-0 01 1 0601- ●
100 BOLT; CLIP
(A) M6X22 FLANGE 		0-28080-622-0 01 1 0407- ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09637-058-2 01 1 0407- ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-94392-977-0 01 1 0407- ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 0407- ●
157 BRACKET; OIL PIPE 8-94395-168-0 01 1 0407- ●
476 PIPE; OIL,C/BL TO AIR CMPR 8-94394-940-1 01 1 0407- ●
