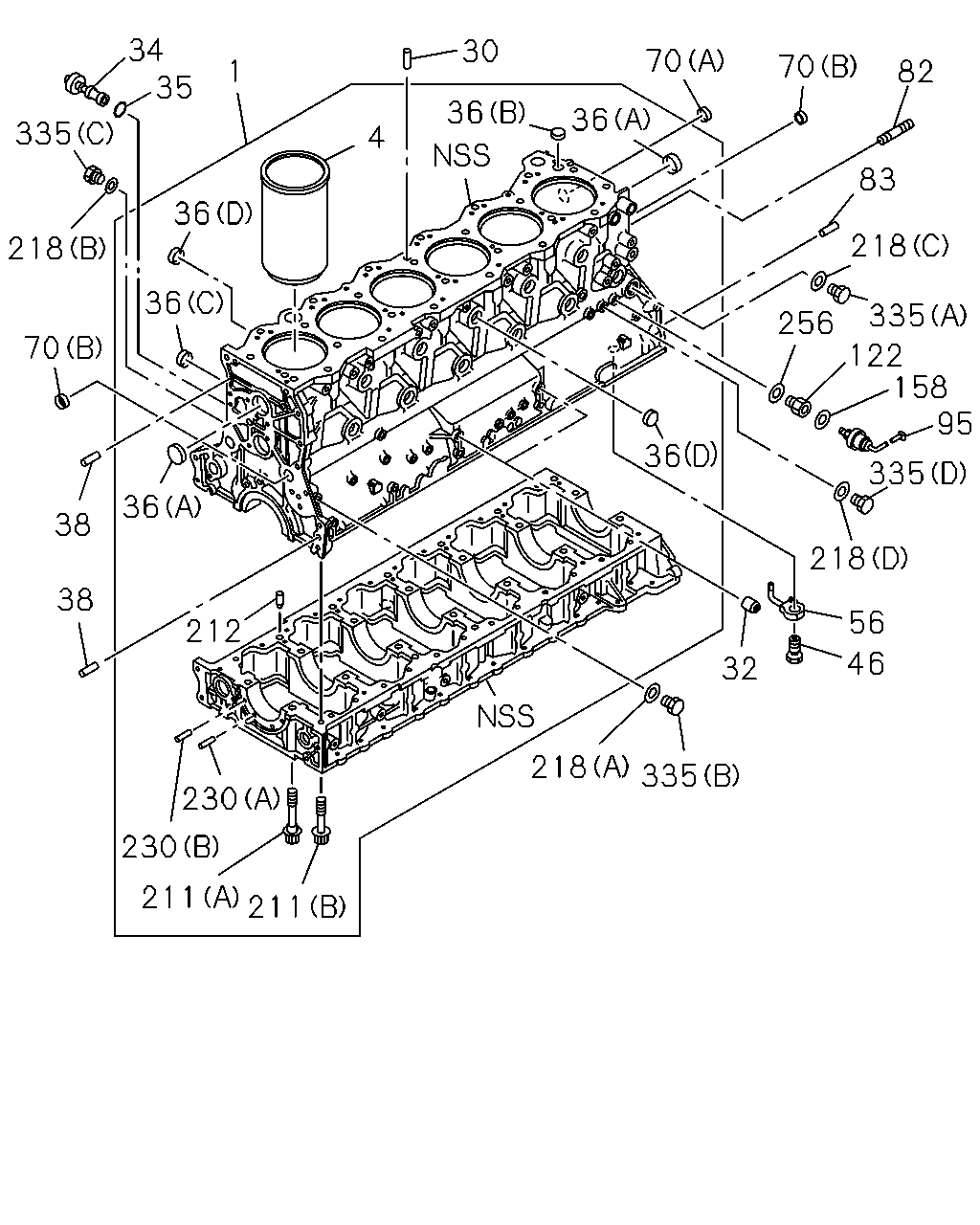

0-12 — CYLINDER BLOCK (#28118) — 40 parça

34 35 30 70 70 1 82 36 36 335 4 83 36 218 218 36 335 256 70 122 158 95 36 335 212 36 38 218 38 56 46 32 218 335 230 230 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	1-11210-664-4	01	1	0105-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-1	06	1	0105-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-1	06	1	0105-
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	0105-
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	0105-
34	VALVE; OIL RELIEF	1-13160-030-3	01	1	0105-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	0105-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0105-
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	0105-
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-065-1	02	1	0105-
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94241-637-0	13	1	0105-
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	0105-
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	0105-
56	JET; OIL,PISTON COOLING	1-13342-125-3	06	1	0105-
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-2	01	1	0105-
70	CUP; SEALING,FRT & RR ENGINE REAR PTO HEAVY DUTY(NJU) (B) OD=25	1-09600-016-0	03	1	0105-
70	CUP; SEALING,FRT & RR EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (B) OD=25	1-09600-016-0	04	1	0105-
82	STUD; FLYWHEEL HSG EXC. ENGINE REAR PTO HEAVY DUTY(NJU) M14X35 L=56	9-04411-435-0	01	1	0105-
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	0105-
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	0105-
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	0105-
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2	1-09630-083-0	01	1	0105-
211	BOLT; CRANKCASE (B) M12X114	1-09070-087-2	28	1	0105-
211	BOLT; CRANKCASE (A) M18X150	1-09070-151-0	14	1	0105-
212	PIN; CRANKCASE	1-09740-068-1	02	1	0105-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) LH SIDE ID=10.2	1-09630-083-0	01	1	0105-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) RH SIDE ID=12.2	1-09630-084-0	01	1	0105-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (C) LH SIDE ID=22	1-09630-089-0	01	1	0105-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (D) LH SIDE ID=14.2 OD=19.2	1-09630-085-0	01	1	0105-
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	0105-
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	0105-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0105-
335	PLUG; C/BL,SIDE (A) LH SIDE M22X12	1-09604-035-0	01	1	0105-
335	PLUG; C/BL,SIDE (B) LH SIDE M10X7	1-09604-094-0	01	1	0105-
335	PLUG; C/BL,SIDE (C) RH SIDE M12X9	1-09604-095-0	01	1	0105-
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO HEAVY DUTY(NJU) (D) LH SIDE M14X9	9-99202-314-0	01	1	0105-

2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87811-837-3	06	1	0105-
2	LINER SET; ENG CYL GRADE=3X	1-87811-838-3	06	1	0105-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-1	06	1	0105-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-1	06	1	0105-
