Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#28114) — 231 parça

40 39 38 37 115 36 189 193 237 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	WRENCH; 24	9-85111-377-0	01	1	0105-
37	WRENCH; 27	9-85111-375-0	01	1	0105-
38	WRENCH; 32	9-85111-358-0	01	1	0105-
39	WRENCH; 36	9-85111-374-0	01	1	0105-
40	WRENCH; 41	9-85111-356-0	01	1	0105-
115	PLIER	5-85171-001-0	01	1	0105-0212
115	PLIER	5-85171-002-0	01	1	0301-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	0105-
193	JACK ASM 15TON	1-85510-019-1	01	1	0105-
230	PUMP; GREASE	1-85556-007-3	01	1	0105-
237	BAG; TOOL	8-97130-902-0	01	1	0105-

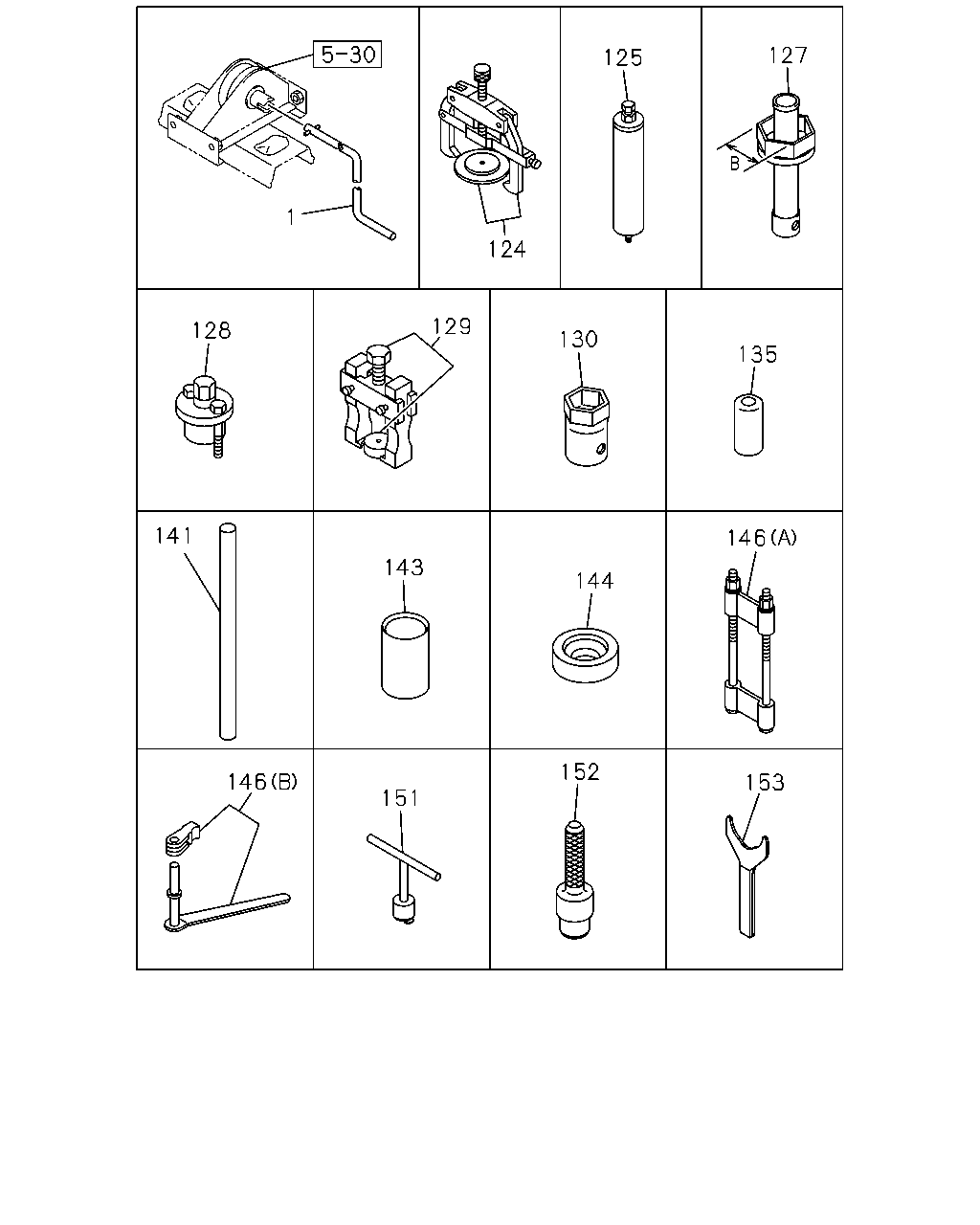

127 125 1 124 129 128 130 135 141 146 143 144 152 146 153 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	0105-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0105-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0105-
127	WRENCH ASM; HUB BRG NUT REARWARD REAR L=400 B=105	9-85113-509-0	01	1	0105-
127	WRENCH ASM; HUB BRG NUT FORWARD REAR L=400 B=116	9-85113-524-0	01	1	0105-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0105-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0105-
130	WRENCH; BOX B=63	9-85111-368-0	01	1	0105-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0105-
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	0105-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0105-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0105-
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	0105-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	0105-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0105-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0105-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0105-

119 75 75 75 121 120 123 121 165 166 163 167 408 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
75	TOOL; SETTING,OIL SEAL (D)	1-85220-049-0	01	1	0105-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (C)	1-85221-096-0	01	1	0105-
75	TOOL; SETTING,OIL SEAL MJD7 M/T<X9J> (A)	1-85221-168-0	01	1	0107-
75	TOOL; SETTING,OIL SEAL MJD7 M/T<X9J> (B)	1-85221-169-0	01	1	0107-
119	PULLER ASM; TOP GEAR BRG MJA7 M/T<X9Q> L=235	9-85210-190-0	01	1	0105-
120	PULLER ASM; MAIN REAR BRG ISUZU M/T<X9A> L=285	9-85210-184-0	01	1	0105-
121	PULLER ASM; COUNTER REAR MJD7 M/T<X9J> (B)	1-85210-069-0	01	1	0107-
121	PULLER ASM; COUNTER REAR MJD7 M/T<X9J> (A) OD=146	1-85210-074-0	01	1	0107-
123	PULLER; SPEEDOMETER BUSHING ISUZU M/T<X9A>	9-85210-091-0	01	1	0105-
163	TOOL; SETTING MJD7 M/T<X9J> (C) OD=150	1-85221-167-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-85221-193-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-85221-193-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85221-194-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85221-194-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-85221-229-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-85221-229-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-85221-230-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-85221-230-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (H)	1-85221-231-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (H)	1-85221-231-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (J)	1-85221-233-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J)	1-85221-233-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (K)	1-85221-234-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (K)	1-85221-234-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (L)	1-85221-235-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (L)	1-85221-235-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (M)	1-85221-236-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (M)	1-85221-236-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (N)	1-85221-237-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (N)	1-85221-237-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT	1-85221-238-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT	1-85221-238-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (P)	1-85221-239-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (P)	1-85221-239-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (Q)	1-85221-240-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (Q)	1-85221-240-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (R)	1-85221-241-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (R)	1-85221-241-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (T)	1-85221-243-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (T)	1-85221-243-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (U)	1-85221-244-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (U)	1-85221-244-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (V)	1-85221-245-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (V)	1-85221-245-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (W)	1-85221-246-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (W)	1-85221-246-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-85221-247-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-85221-247-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85221-248-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85221-248-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-249-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-249-0	01	1	0107-
165	SETTING TOOL; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) MJD7 M/T<X9J>	1-85221-177-0	01	1	0107-
166	ALIGNER; CLU RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5	1-85253-015-0	01	1	0105-
166	ALIGNER; CLU RELEASE LEVER EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=550 H=17.5	1-85253-010-0	01	1	0105-0106
166	ALIGNER; CLU RELEASE LEVER EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH 15.5" TWIN PLATE SPICER(TEY) L=550 H=17.5	1-85253-010-0	01	1	0107-
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	0105-
408	TOOL; SETTING,SHIFT ASSISTER ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A)	1-85221-268-0	01	1	0105-
408	TOOL; SETTING,SHIFT ASSISTER ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (B)	1-85221-269-0	01	1	0105-

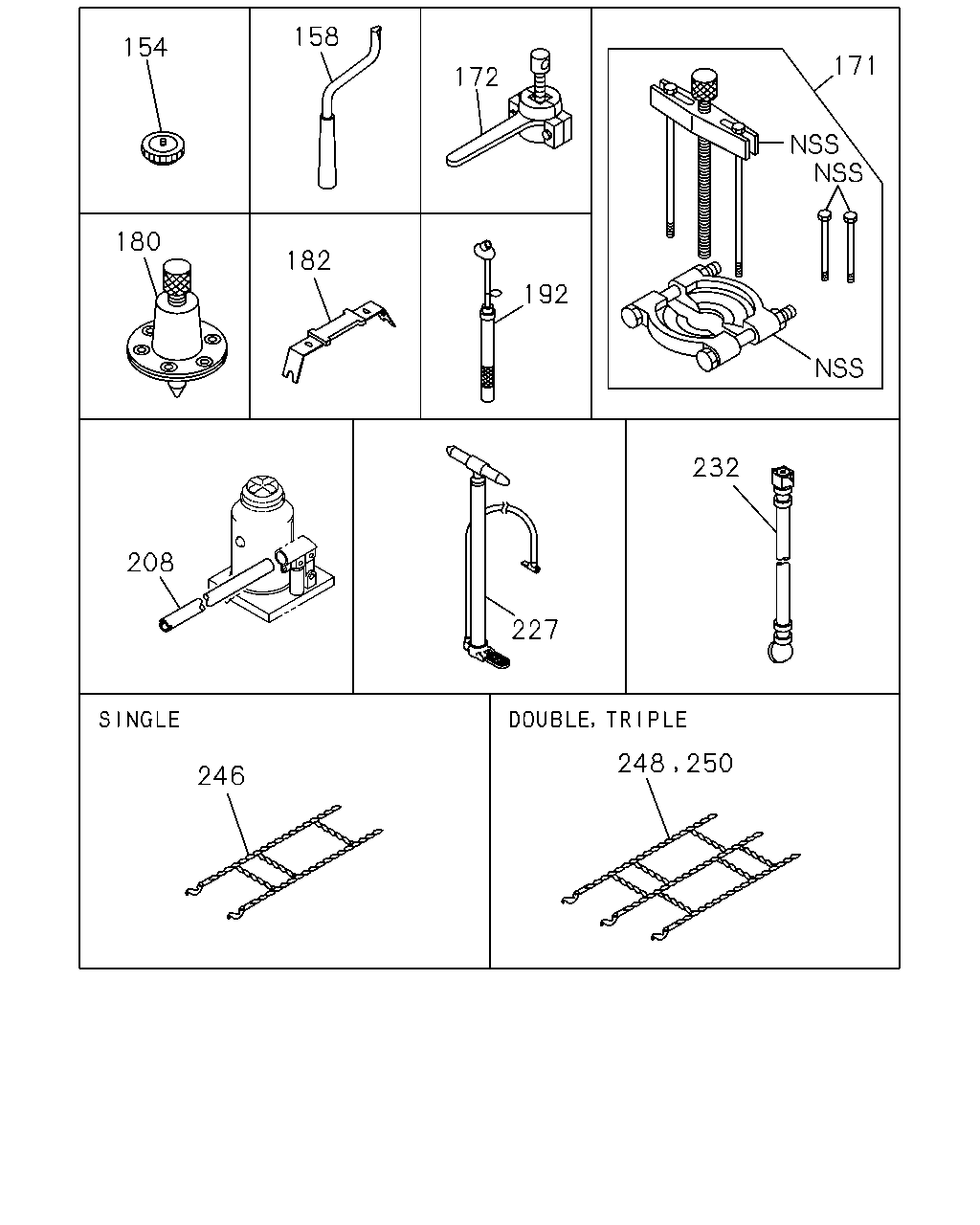

158 154 171 172 180 182 192 232 208 227 248 246 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0105-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0105-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0105-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0105-
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	0105-
182	REMOVER ASM	1-85239-008-0	01	1	0105-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0105-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0105-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	0105-0105
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0105-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	0105-
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0105-
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0105-
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	0105-
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	0105-
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0105-
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0105-

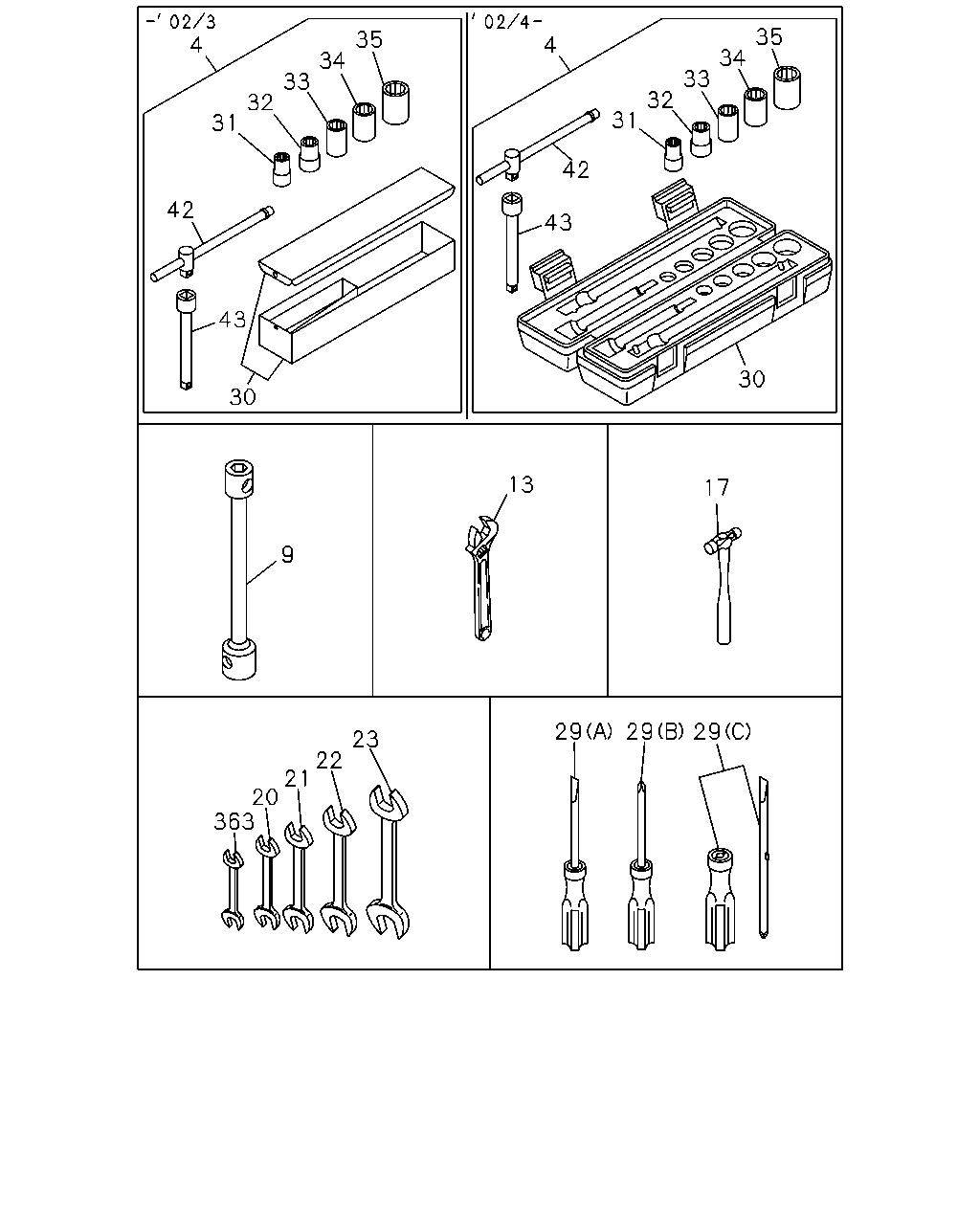

4 35 34 33 32 35 34 33 32 4 31 31 42 42 43 43 30 30 13 17 9 29 23 22 21 20 363 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	0105-0203
4	WRENCH KIT; SOCKET	1-85000-491-0	01	1	0204-
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	0105-
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	0105-
17	HAMMER	9-85121-406-0	01	1	0105-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	0105-0607
20	WRENCH; 10X12 10X12	0-95902-510-0	01	1	0608-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	0105-0607
21	WRENCH; 14X17 14X17	0-95902-514-0	01	1	0608-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	0105-0607
22	WRENCH; 19X22 19X22	0-95902-519-0	01	1	0608-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	0105-0607
23	WRENCH; 24X27 24X27	0-95902-524-0	01	1	0608-
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	0105-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0105-
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	0105-
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	0105-0203
30	BOX; SOCKET WRENCH	1-85000-492-0	01	1	0204-
31	WRENCH; 12	9-09590-012-0	01	1	0105-0203
31	WRENCH; 12	1-85000-495-0	01	1	0204-
32	WRENCH; 14	9-09590-014-0	01	1	0105-0203
32	WRENCH; 14	1-85000-496-0	01	1	0204-
33	WRENCH; 17	9-09590-017-0	01	1	0105-0203
33	WRENCH; 17	1-85000-497-0	01	1	0204-
34	WRENCH; 19	9-09590-019-0	01	1	0105-0203
34	WRENCH; 19	1-85000-498-0	01	1	0204-
35	WRENCH; 22	9-09590-022-0	01	1	0105-0203
35	WRENCH; 22	1-85000-499-0	01	1	0204-
42	HANDLE; SLIDING	9-09590-512-0	01	1	0105-0203
42	HANDLE; SLIDING	1-85000-500-0	01	1	0204-
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	0105-0203
43	BAR; EXTENSION,SOCKET WRENCH	1-85000-501-0	01	1	0204-
363	WRENCH; OPEN END 8X10 8X10	9-99592-108-0	01	1	0105-0607
363	WRENCH; OPEN END 8X10 8X10	0-95902-508-0	01	1	0608-

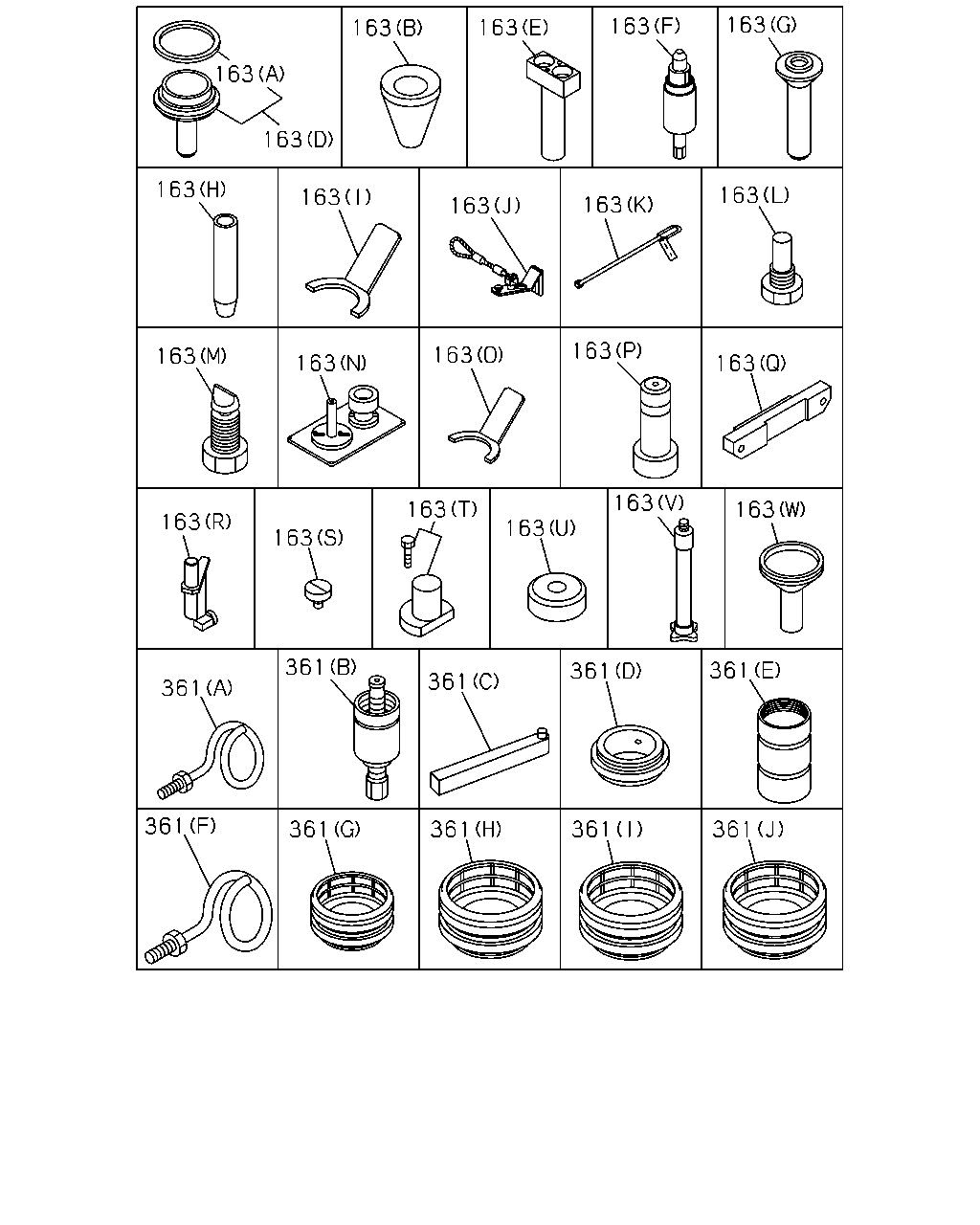

163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 361 361 361 361 361 361 361 361 361 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
163	TOOL; SETTING MJD7 M/T<X9J> (C) OD=150	1-85221-167-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-85221-193-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-85221-193-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85221-194-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85221-194-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-85221-229-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-85221-229-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-85221-230-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-85221-230-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (H)	1-85221-231-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (H)	1-85221-231-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (J)	1-85221-233-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J)	1-85221-233-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (K)	1-85221-234-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (K)	1-85221-234-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (L)	1-85221-235-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (L)	1-85221-235-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (M)	1-85221-236-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (M)	1-85221-236-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (N)	1-85221-237-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (N)	1-85221-237-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT	1-85221-238-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT	1-85221-238-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (P)	1-85221-239-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (P)	1-85221-239-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (Q)	1-85221-240-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (Q)	1-85221-240-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (R)	1-85221-241-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (R)	1-85221-241-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (T)	1-85221-243-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (T)	1-85221-243-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (U)	1-85221-244-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (U)	1-85221-244-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (V)	1-85221-245-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (V)	1-85221-245-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (W)	1-85221-246-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (W)	1-85221-246-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-85221-247-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A)	1-85221-247-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85221-248-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85221-248-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-249-0	01	1	0105-0106
163	TOOL; SETTING TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-249-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (A) M10	1-85210-091-0	01	1	0105-0106
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M10	1-85210-091-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85219-015-0	01	1	0105-0106
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85219-015-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-85219-017-0	01	1	0105-0106
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-85219-017-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (D) TOP BRG	1-85219-018-0	01	1	0105-0106
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) TOP BRG	1-85219-018-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85219-019-0	01	1	0105-0106
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85219-019-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (F) M12	1-85219-020-0	01	1	0105-0106
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) M12	1-85219-020-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (G) COUNTER BRG RR	1-85219-021-0	01	1	0105-0106
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G) COUNTER BRG RR	1-85219-021-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (H) TOP BRG	1-85219-022-0	01	1	0105-0106
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (H) TOP BRG	1-85219-022-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP BRG,MAIN SHAFT SIDE	1-85219-024-0	01	1	0105-0106
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP BRG,MAIN SHAFT SIDE	1-85219-024-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (J) COUNTER BRG FRT	1-85219-025-0	01	1	0105-0106
361	PULLER; TRANS TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J) COUNTER BRG FRT	1-85219-025-0	01	1	0107-

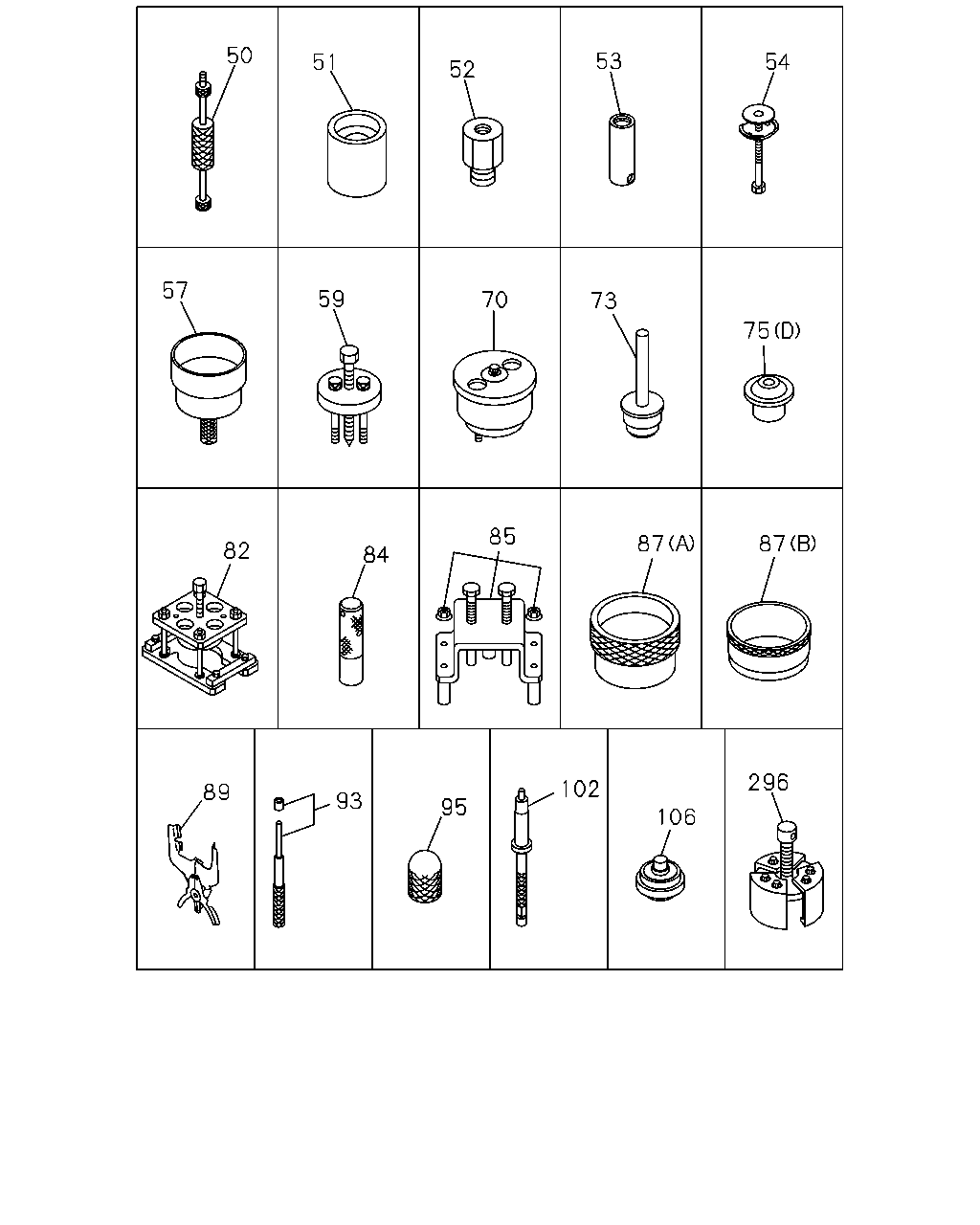

50 53 54 51 52 57 59 70 73 75 85 87 87 82 84 296 102 89 93 95 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	REPLACER; NOZZLE HOLDER L=300	1-85230-013-0	01	1	0105-
51	PULLER ASM; WATER PUMP	1-85220-047-0	01	1	0105-
52	REMOVER; WATER PUMP	1-85210-062-0	01	1	0105-
53	PULLER; TAPER BUSHING	1-85210-063-0	01	1	0105-
54	PULLER; THERMOSTAT SEAL	1-85210-067-0	01	1	0105-
57	TOOL; SETTING CRANK GEAR OD=162	1-85220-045-0	01	1	0105-
59	PULLER ASM; TIMING GEAR 6WA1 TC-C(55L)	1-85210-065-0	01	1	0105-
70	TOOL; SETTING,OIL SEAL	1-85220-043-0	01	1	0105-
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	01	1	0105-
75	TOOL; SETTING,OIL SEAL (D)	1-85220-049-0	01	1	0105-
75	TOOL; SETTING,OIL SEAL ISUZU M/T<X9A> (C)	1-85221-096-0	01	1	0105-
75	TOOL; SETTING,OIL SEAL MJD7 M/T<X9J> (A)	1-85221-168-0	01	1	0107-
75	TOOL; SETTING,OIL SEAL MJD7 M/T<X9J> (B)	1-85221-169-0	01	1	0107-
82	PULLER ASM; CR/SHF GEAR	1-85210-064-0	01	1	0105-
84	REPLACER; VALVE SEAL EXHAUST	1-85221-184-0	01	1	0105-
84	REPLACER; VALVE SEAL INLET	1-85221-187-0	01	1	0105-
85	REPLACER ASM; VALVE SPR	1-85235-013-0	01	1	0105-
87	TOOL; PISTON 6WA1 TC-C(55L) (A)	1-85220-046-0	01	1	0105-
87	TOOL; PISTON 6WF1 TC-C(1B8),6WG1 TC-C(72L) (B)	1-85220-059-0	01	1	0105-
89	TOOL; PISTON RING 6WF1 TC-C(1B8),6WG1 TC-C(72L)	1-85221-025-0	01	1	0105-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	0105-
95	SETTING TOOL; BRIDGE GUIDE	9-85221-324-0	01	1	0105-
102	ADAPTER; COMP GAGE	1-85317-019-0	01	1	0105-
106	TOOL; SETTING PILOT BRG	1-85221-057-0	01	1	0105-
296	REPLACER; SLINGER	1-85210-027-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
