2-25A — SPEEDOMETER DRIVEN GEAR (#2811) — 42 parça

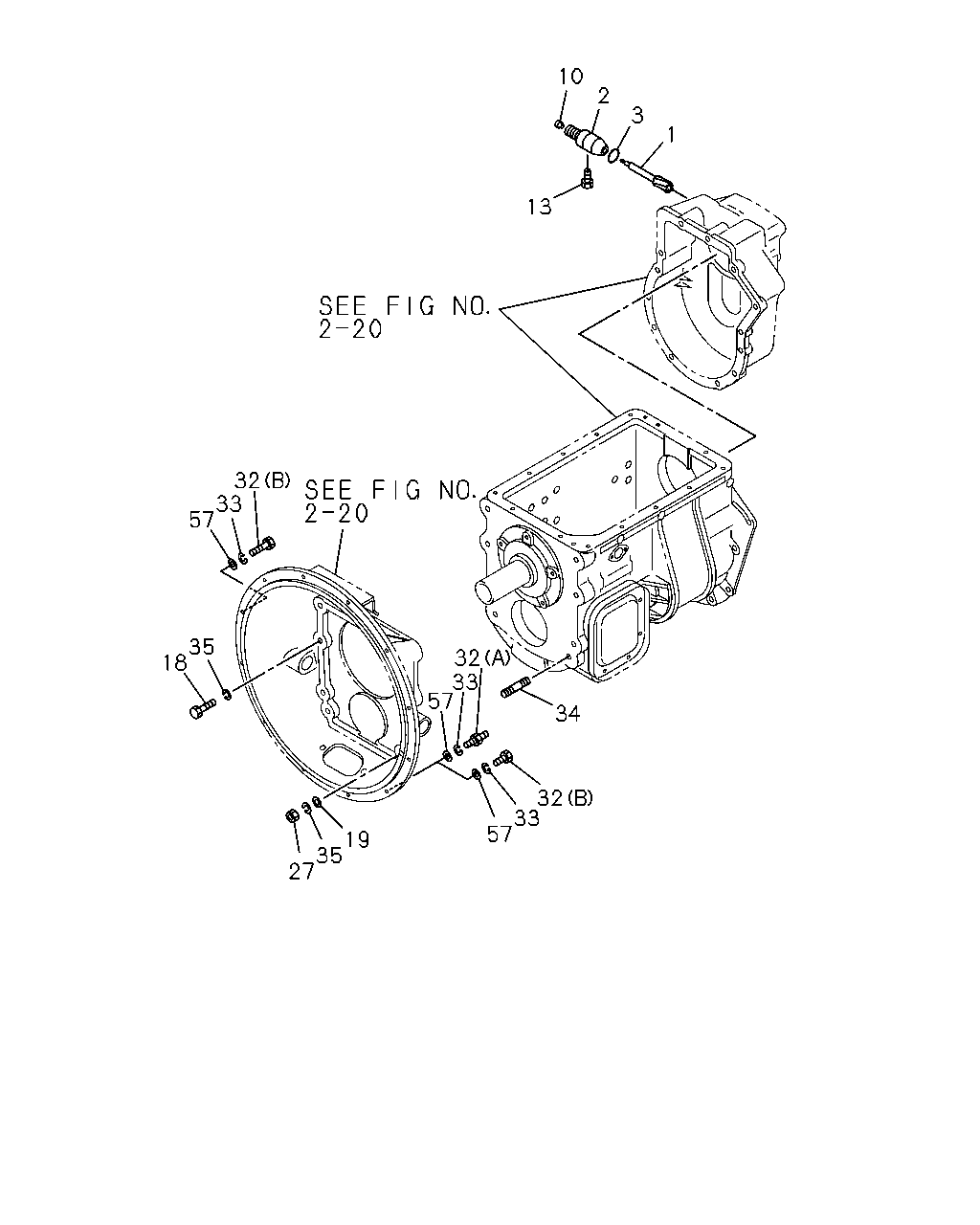

çizim 94346
10 2 3 1 13 32 33 57 35 18 27 35 19 57 33 32 34 32 33 57
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/7 17.5"(W3Y) Z=20 		1-33372-146-4 01 1 9002- ● ● ● ● ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/8 17.5"(W4B) Z=16 		1-33372-142-4 01 1 9002- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 45/7 17.5"(W3X) Z=15 		1-33372-147-2 01 1 9002-9306 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/6 17.5"(W3U) RR TIRE 11.00-20<97X> Z=16 		1-33372-084-3 01 1 9002-9306 ● ● ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/6 17.5"(W3U) RR TIRE 11.00-20<97X> Z=16 		1-33372-084-5 01 1 9307- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 41/6 17.5"(W4W) Z=16 		1-33372-084-5 01 1 9307- ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 43/6 17.5"(W3U) RR TIRE 11.00R20<85X>,RR TIRE 10.00R20<87X>, RR TIRE 10.00-20<96X> Z=17 		1-33372-153-3 01 1 9002- ● ● ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 17.5"(W3Z) RR TIRE 10.00R20<87X> Z=19 		1-33372-145-4 01 1 9002- ● ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR 39/7 17.5"(W3Z) RR TIRE 11.00R20<85X>,RR TIRE 10.00-20<96X>, RR TIRE 11.00-20<97X> Z=18 		1-33372-144-4 01 1 9002- ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-056-2 01 1 9002-9309 ● ● ● ● ● ● ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 1-33373-074-0 01 1 9310- ● ● ● ● ● ●
3 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		1-09623-246-0 01 1 9002- ● ● ● ● ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-113-0 01 1 9002-9003 ● ● ● ● ● ● ● ●
10 SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-510-0 01 1 9004- ● ● ● ● ● ● ● ●
13 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9002- ● ● ● ● ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X50 		9-92351-650-0 06 1 9002-9005 ● ● ● ● ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X50 		0-23801-650-0 06 1 9006-9203 ● ● ● ● ● ● ● ●
18 BOLT; CLU HSG TO TRANS
M16X50 W/LK&PL WASHER 		0-50151-650-0 06 1 9204- ● ● ● ● ● ● ● ●
19 WASHER; PL,CLU HSG TO TRANS
ID=17 		9-09160-516-0 02 1 9204- ● ● ● ● ● ● ● ●
27 NUT; CLU HSG TO TRANS
M16 		9-99110-516-0 02 1 9002- ● ● ● ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X16,M12X35 L=59 		1-09029-031-1 02 1 9002-9306 ● ● ● ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X35 		9-02351-235-0 10 1 9002-9005 ● ● ● ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X35 		0-23801-235-0 10 1 9006-9205 ● ● ● ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X35 W/LK&PL WASHER 		0-50151-235-0 10 1 9206-9306 ● ● ● ● ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(B) M12X35 W/LK&PL WASHER 		0-50151-235-0 10 1 9307- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M12X35 W/LK&PL WASHER 		0-50151-235-0 10 1 9307- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
(A) M10X16,M12X35 L=59 		1-09029-031-1 02 1 9307- ● ● ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M10X16,M12X35 L=59 		1-09029-031-1 02 1 9307- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
FRAME ENG MTG SEPARATE TYPE<SGM> (B) M12X35 W/LK&PL WASHER 		0-50151-235-0 08 1 9307- ● ●
32 BOLT; CLU HSG TO FLYWHEEL HSG
FRAME ENG MTG SEPARATE TYPE<SGM> (A) M10X16,M12X35 L=59 		1-09029-031-1 04 1 9307- ● ●
33 WASHER; LK,CLU HSG
ID=12.2 		9-09150-612-0 12 1 9002-9205 ● ● ● ● ● ● ● ●
33 WASHER; LK,CLU HSG
ID=12.2 		9-09150-612-0 02 1 9206-9306 ● ● ● ● ● ● ● ●
33 WASHER; LK,CLU HSG
ID=12.2 		9-09150-612-0 02 1 9307- ● ● ● ●
33 WASHER; LK,CLU HSG
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=12.2 		9-09150-612-0 02 1 9307- ● ●
33 WASHER; LK,CLU HSG
FRAME ENG MTG SEPARATE TYPE<SGM> ID=12.2 		9-09150-612-0 04 1 9307- ● ●
34 STUD; CLU HSG
M16X45 L=69 		9-04411-645-0 02 1 9002- ● ● ● ● ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-616-0 08 1 9002-9203 ● ● ● ● ● ● ● ●
35 WASHER; LK,CLU HSG TO TRANS
ID=16.2 		9-09150-516-0 02 1 9204- ● ● ● ● ● ● ● ●
57 WASHER; PL,CLU HSG
ID=12.5 		9-09164-512-0 02 1 9206-9306 ● ● ● ● ● ● ● ●
57 WASHER; PL,CLU HSG
ID=12.5 		9-09164-512-0 02 1 9307- ● ● ● ●
57 WASHER; PL,CLU HSG
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=12.5 		9-09164-512-0 02 1 9307- ● ●
57 WASHER; PL,CLU HSG
FRAME ENG MTG SEPARATE TYPE<SGM> ID=12.5 		9-09164-512-0 04 1 9307- ● ●
