Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#28102) — 352 parça

88 261 89 90 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
88	CONNECTOR; MAG VLV (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0106
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0105-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X35 FLANGE	0-28650-835-0	02	1	0601-
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28650-825-0	02	1	0601-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0105-0604
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-

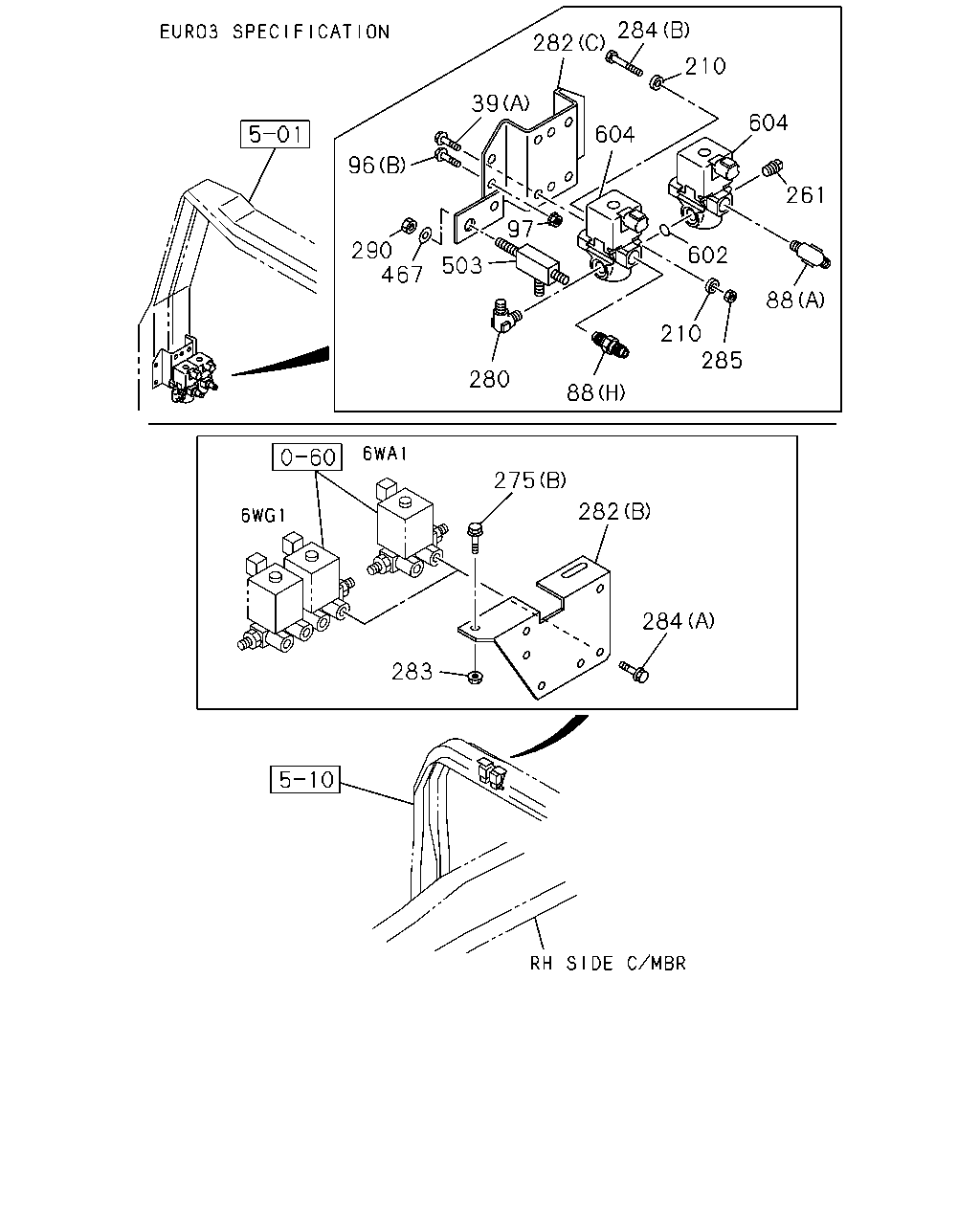

284 282 275 283 280 88 210 285 88 261 602 604 210 284 282 39 96 290 467 503 97 604

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0106
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
88	CONNECTOR; MAG VLV (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0106
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X25 FLANGE	0-28680-825-0	01	1	0109-0512
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28680-820-0	02	1	0109-0512
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M8X20 FLANGE	0-28680-820-0	04	1	0107-0108
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28680-820-0	01	1	0109-0512
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	0105-0108
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	0109-0602
97	NUT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	02	1	0109-0602
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91180-108-0	02	1	0603-
97	NUT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0603-
97	NUT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	04	1	0107-0108
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0105-0106
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0107-
210	WASHER; PL,BRKT 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	0107-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
280	CONNECTOR; IN,MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (C)	1-82569-345-0	01	1	0109-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	0105-
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (B)	1-82569-277-2	01	1	0105-
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (C)	1-82569-290-0	01	1	0107-0108
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (C)	1-82569-290-0	01	1	0109-
283	NUT; BRKT 6WA1 TC-C(55L) M10 FLANGE	0-91150-210-0	01	1	0105-0602
283	NUT; BRKT 6WG1 TC-C(72L) ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	01	1	0105-0602
283	NUT; BRKT 6WA1 TC-C(55L) M10 FLANGE	0-91180-210-0	01	1	0603-
283	NUT; BRKT 6WG1 TC-C(72L) ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> M10 FLANGE	0-91180-210-0	01	1	0603-
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0105-0602
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0603-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0106
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28080-820-0	02	1	0105-0512
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	0105-0106
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0603-
290	NUT 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> M12	9-09840-280-0	01	1	0109-0310
290	NUT 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> M12	9-99111-412-0	01	1	0311-0512
290	NUT 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> M12	0-91111-512-0	01	1	0601-
467	WASHER; LK,MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> ID=12.2	9-09150-512-0	01	1	0109-0603
467	WASHER; LK,MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> ID=12.2	0-91510-512-0	01	1	0604-
503	UNION 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> M12 2WAY	1-09654-059-2	01	1	0109-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0105-0106
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0107-
602	GASKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	0107-
604	VALVE; MAG,ENG CONT 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX>	1-82563-871-2	02	1	0107-

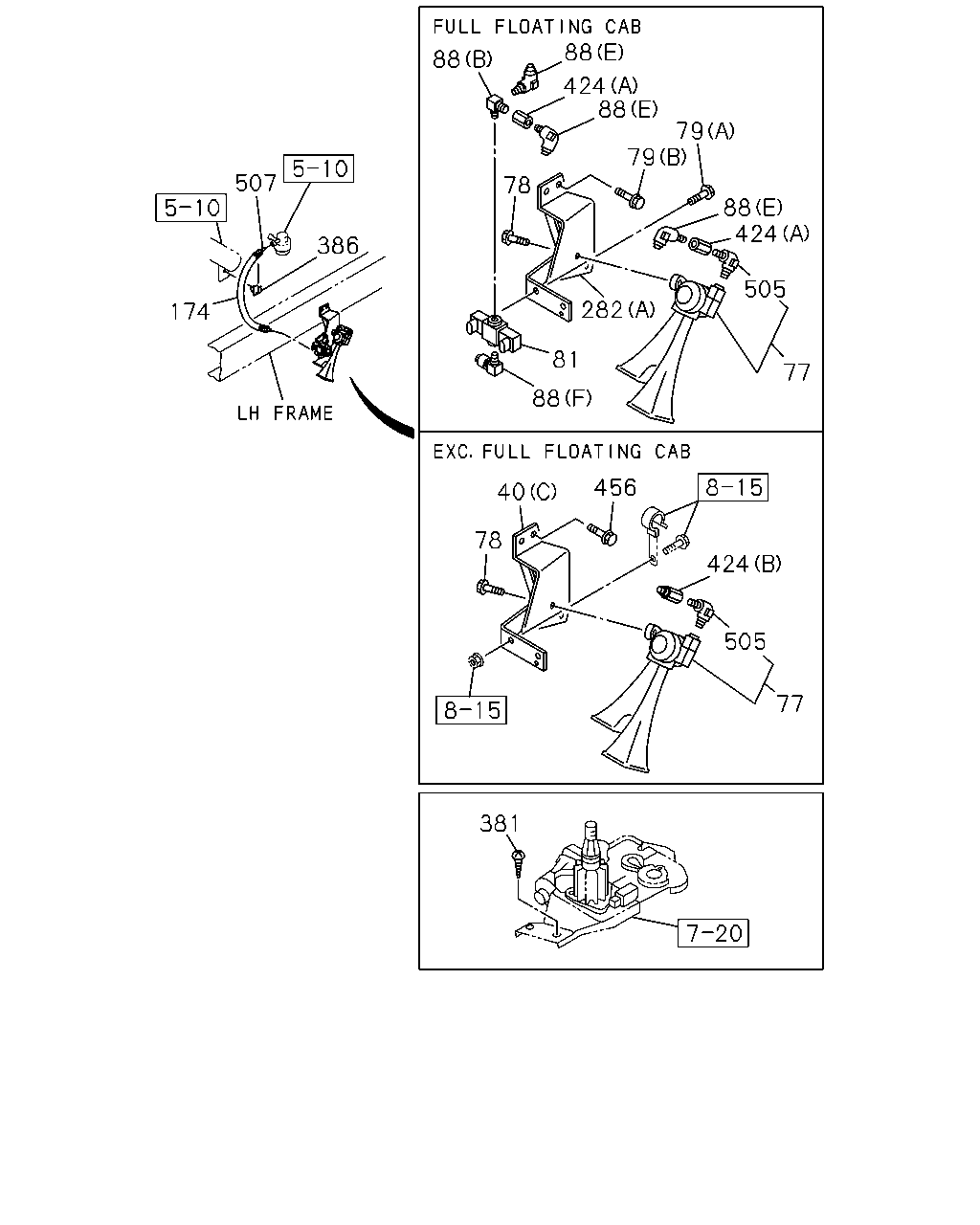

174 386 507 88 88 424 88 79 79 88 424 505 77 282 81 88 40 78 456 424 505 77 381 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0105-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-1	01	1	0105-0110
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0105-
77	HORN ASM	1-83430-041-2	01	1	0105-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0105-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
88	CONNECTOR; MAG VLV (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0106
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0105-0108
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=770	1-83129-347-0	01	1	0109-0109
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0110-
174	COVER FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800	1-83129-031-1	01	1	0105-
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (C)	1-82569-345-0	01	1	0109-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (A)	1-53458-741-2	01	1	0105-
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (B)	1-82569-277-2	01	1	0105-
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (C)	1-82569-290-0	01	1	0107-0108
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (C)	1-82569-290-0	01	1	0109-
381	SCREW; RELAY MIR STAY O/S W/REMOTE<TBA> M5X14	8-94279-325-0	02	1	0105-0210
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0105-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) R1/4 & RC1/4	1-09664-211-0	02	1	0105-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0105-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	0105-0110
505	JOINT; AIR HORN	1-83439-006-0	01	1	0105-
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-0108
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0109-0212
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0301-
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-0212

34 34 33 39 261 34 34 41 40 39 39 33 261 34 34 34 34 714 272 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) R1/4 & RC1/4	1-09664-211-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0105-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0106
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0105-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-1	01	1	0105-0110
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0105-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0105-0602
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0603-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0106
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	0107-0512
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0106
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	0105-0106
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	0107-

284 210 89 34 285 210 602 89 261 34 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (G) R1/4 & RC1/4	1-09664-211-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0105-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0105-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0105-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0105-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0105-0106
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0107-
210	WASHER; PL,BRKT 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	0107-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0105-0106
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0105-0106
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28080-650-0	01	1	0107-0512
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M6X50 FLANGE	0-28050-650-0	01	1	0601-
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28080-820-0	02	1	0105-0512
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	0105-0106
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91150-106-0	01	1	0107-0602
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91180-106-0	01	1	0603-
285	NUT; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0603-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) R1/4 & RC1/4	1-09664-211-0	02	1	0105-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0105-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0105-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0105-0106
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0107-
602	GASKET; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	0107-

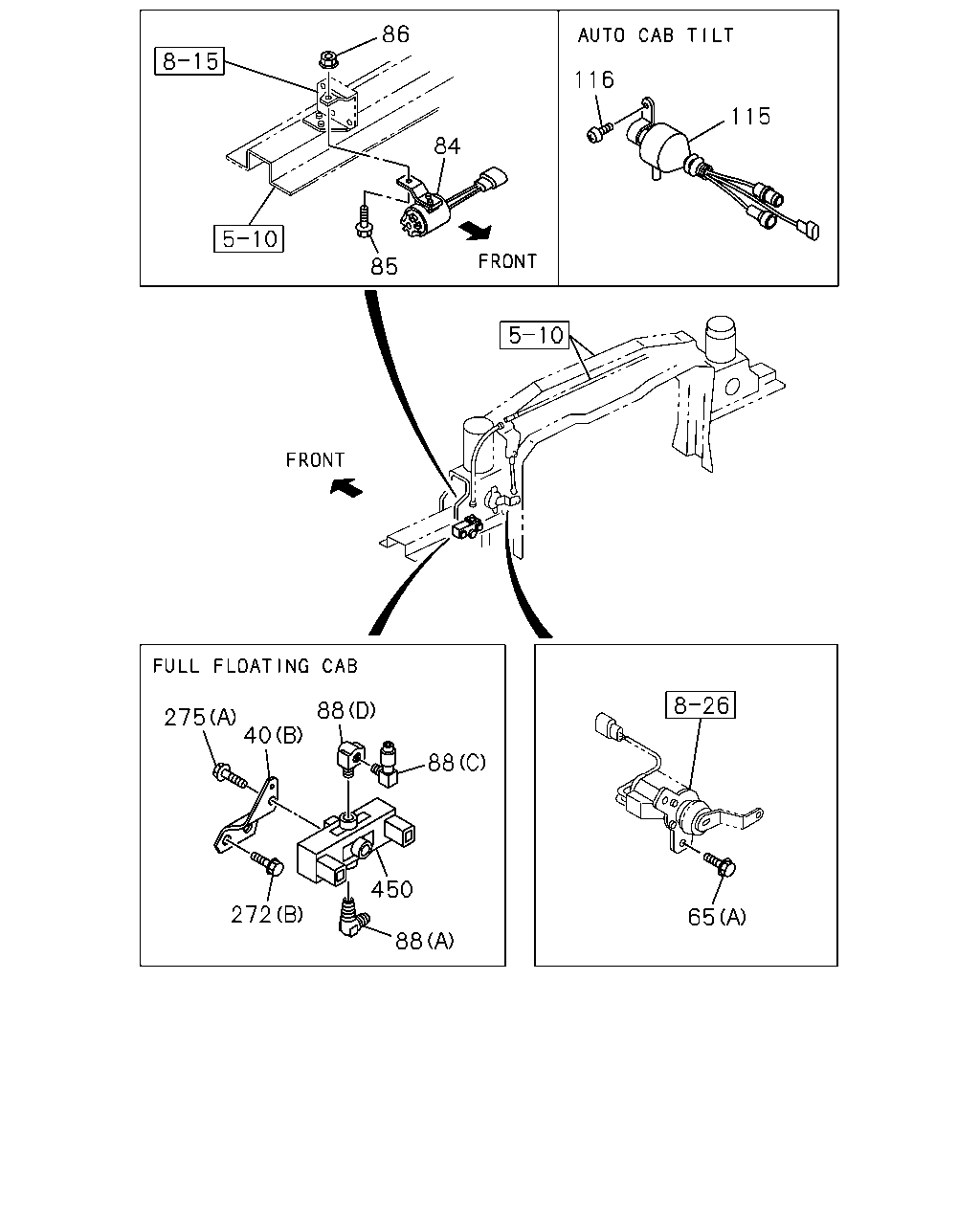

65 88 450 272 40 275 88 88 85 84 86 116 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0105-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (C)	1-53458-741-1	01	1	0105-0110
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0105-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0105-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-2	01	1	0105-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0105-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28050-816-0	01	1	0601-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0105-0602
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0603-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
88	CONNECTOR; MAG VLV (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0106
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (H) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0105-0210
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-075-1	01	1	0211-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0105-0512
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	0601-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	0105-0106
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28680-835-0	02	1	0107-0512
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X35 FLANGE	0-28650-835-0	02	1	0601-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0106
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-

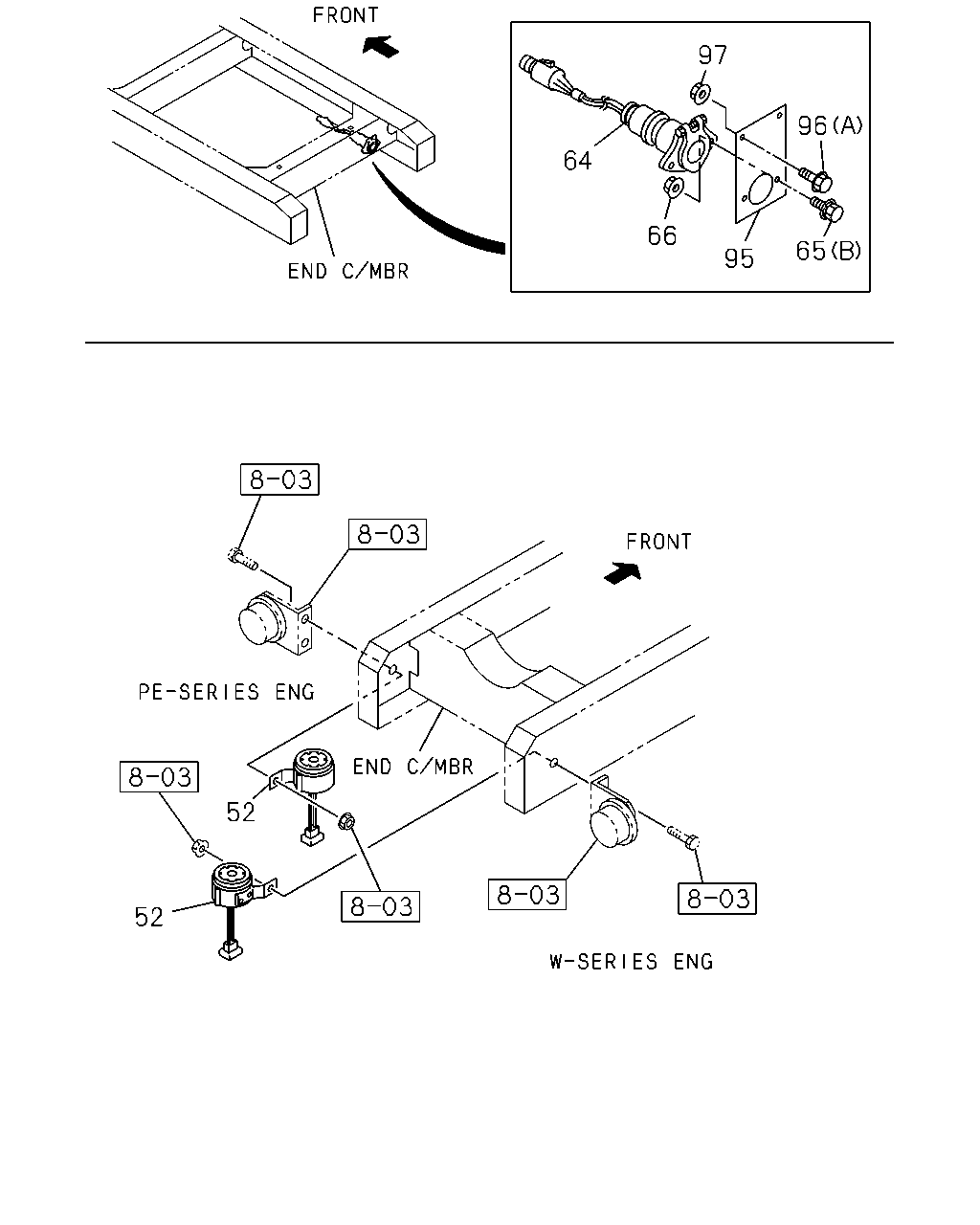

52 52 66 95 65 96 97 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-088-1	01	1	0105-
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6> 7P	1-82523-014-0	01	1	0105-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0105-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	0105-0602
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91180-108-0	02	1	0603-
95	BRACKET; SOCKET,TRAILER FULL TRACTOR TRUCK<RD6>	1-82699-387-0	01	1	0105-
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X25 FLANGE	0-28680-825-0	01	1	0109-0512
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28680-820-0	02	1	0109-0512
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> (B) M8X20 FLANGE	0-28680-820-0	04	1	0107-0108
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28680-820-0	01	1	0109-0512
96	BOLT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> MIXER TRUCK<RA2> (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	0105-0108
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91150-108-0	02	1	0109-0602
97	NUT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	02	1	0109-0602
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91180-108-0	02	1	0603-
97	NUT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	02	1	0603-
97	NUT; BRKT FIX 6WF1 TC-C(1B8) EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	04	1	0107-0108

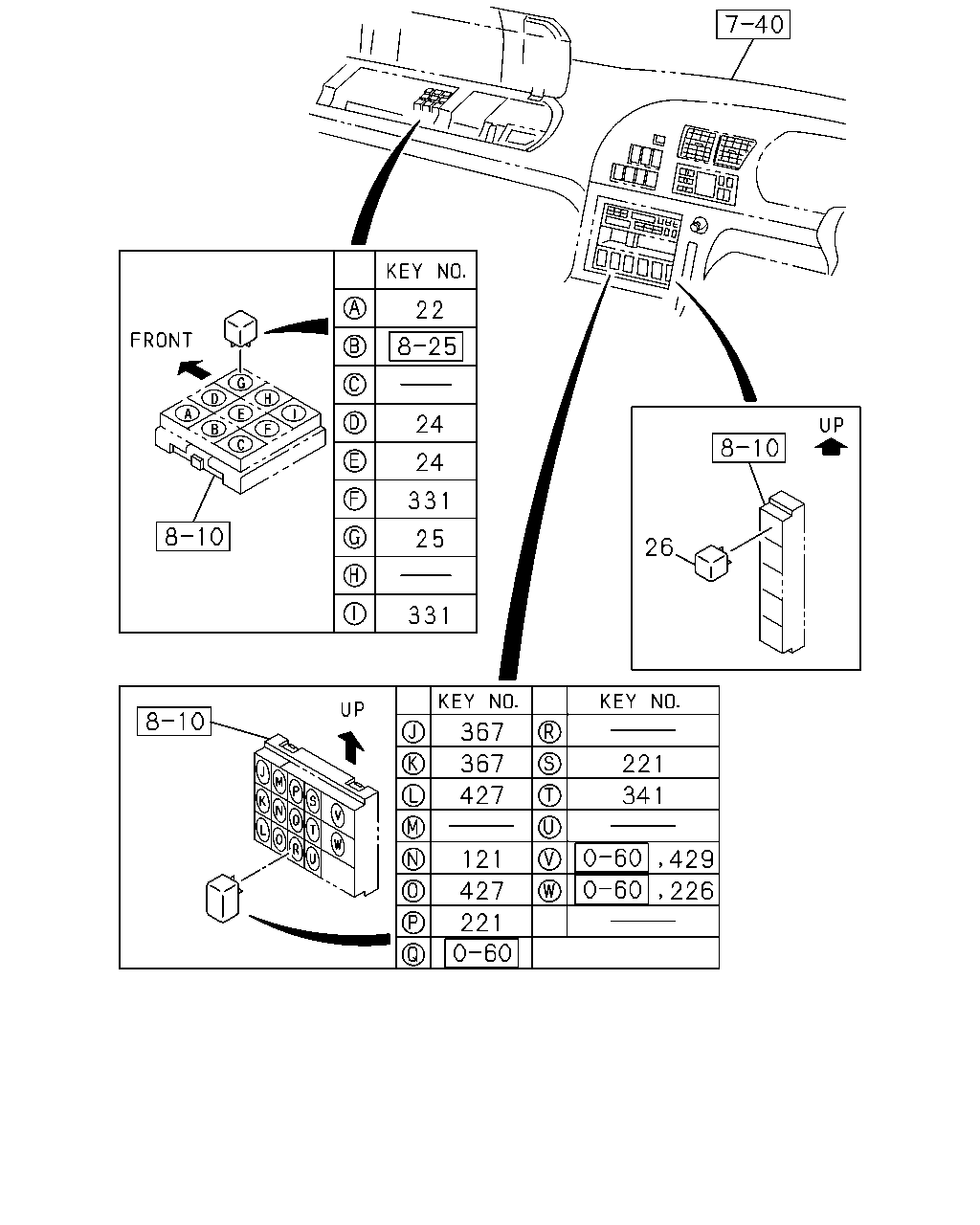

367 367 427 121 427 221 341 221 331 25 331 24 24 22 26 429 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
221	RELAY; AUTO CRUISE AUTO CRUISE WO/RESUME<NKB> 24V 10A PANASONIC	8-97173-035-1	02	1	0105-
226	RELAY; EXH BRK EXC. ELECTRONIC GOV RED4(Q4F) 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
226	RELAY; EXH BRK EXC. ELECTRONIC GOV RED4(Q4F) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> 24V 10A PANASONIC	8-97173-035-1	01	1	0105-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ELECTRONIC GOV RED4(Q4F) 24V 10A PANASONIC	8-97173-035-1	02	1	0105-0106
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ELECTRONIC GOV RED4(Q4F) 24V 10A PANASONIC	8-97173-035-1	02	1	0107-
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	0105-0111
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-

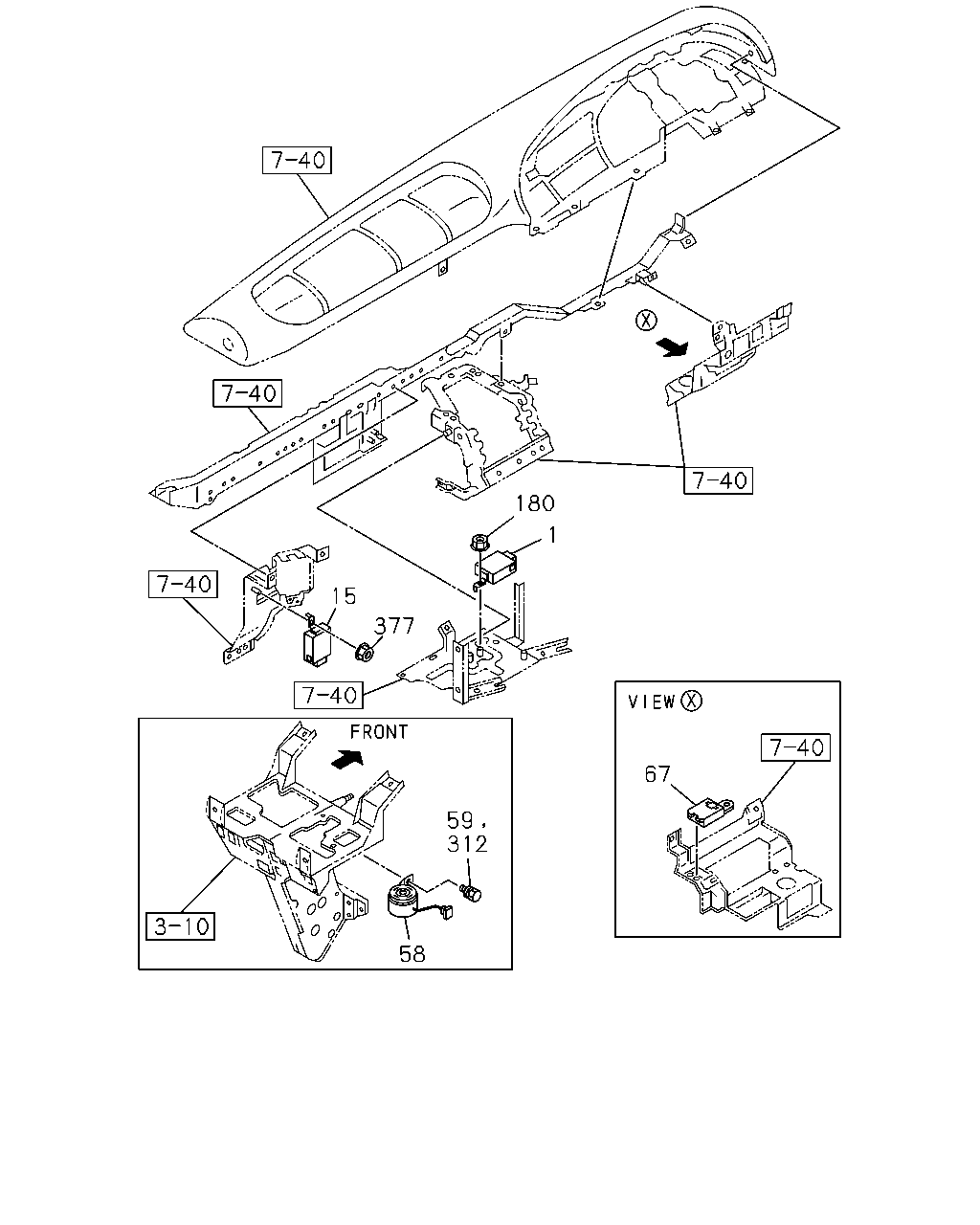

67 59 312 58 377 15 1 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER FULL TRACTOR TRUCK<RD6>	1-83470-062-1	01	1	0105-
1	UNIT; FLASHER EXC. FULL TRACTOR TRUCK<RD6>	1-83470-060-1	01	1	0105-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0105-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0105-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0105-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0105-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0105-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-0305
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0105-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
