8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#28101) — 69 parça

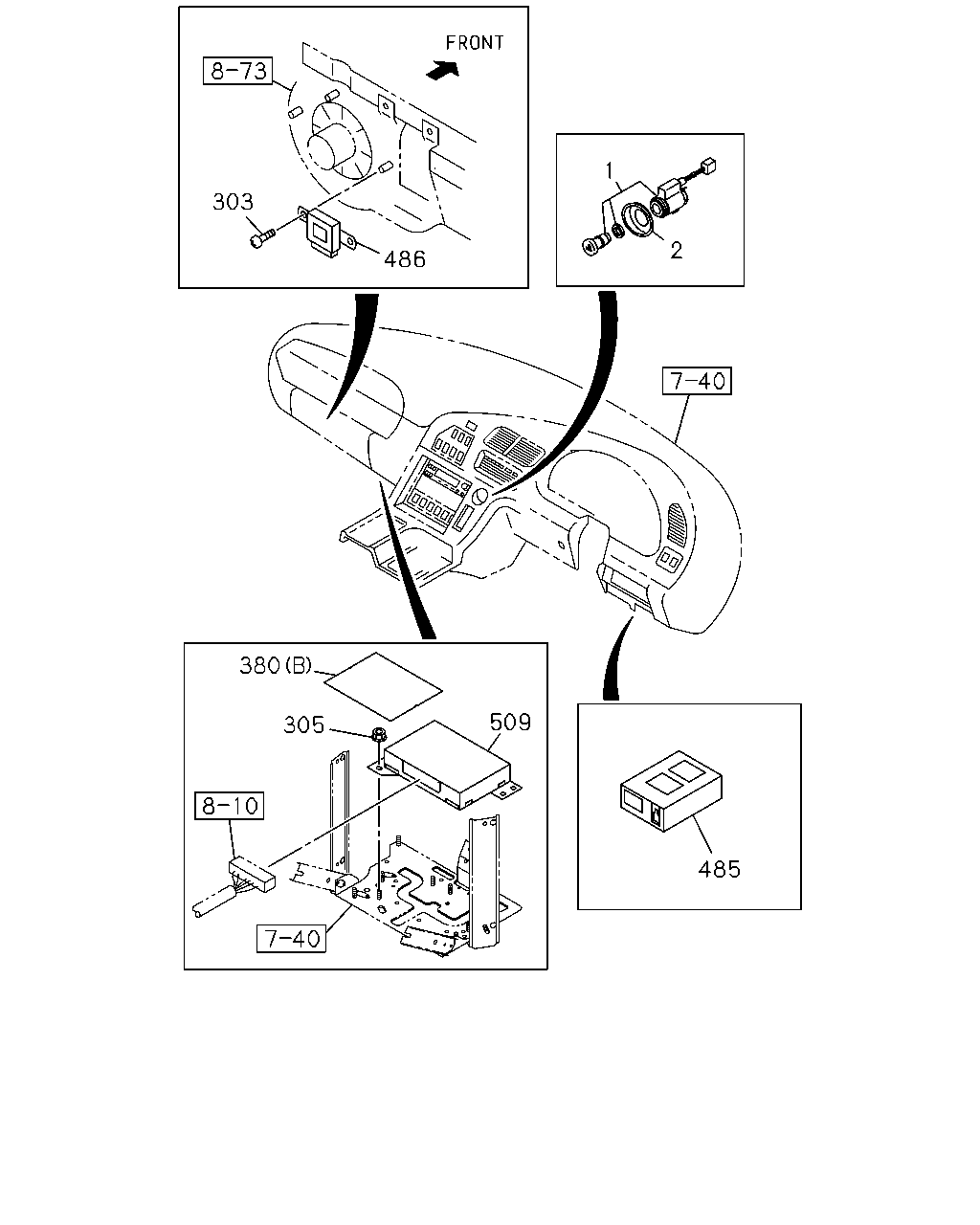

çizim 23337
303 486 2 1 485 509 305 380
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0105-0108
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0105-
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 0105-
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 0105-0602
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0603-
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0212-
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK 		1-76798-019-0 04 1 0105-
380 SEAL
EXC. DELUXE CAB(W14) (A) OD=25 BLACK 		1-76798-019-0 01 1 0105-
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105-
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0105-0402
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403-0410
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411-
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 0105-
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-042-1 01 1 0105-

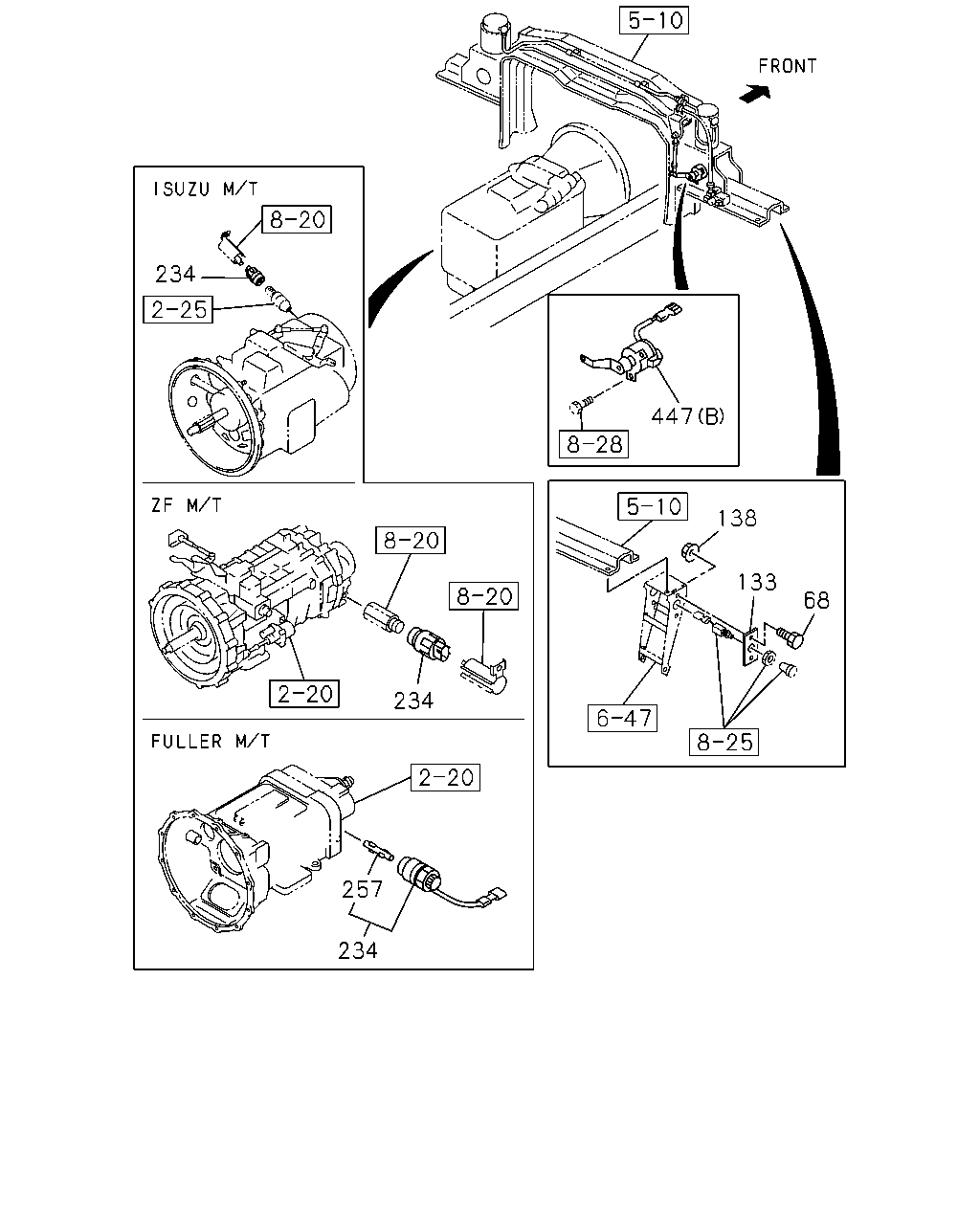

çizim 23338
68 133 138 447 234 234 257 234
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0105
133 BRACKET; SWITCH 1-82699-874-0 01 1 0105-0105
138 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0105
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 0105-
234 SENSOR; VEHICLE SPD
ISUZU M/T<X9A>,ZF M/T<X9E> 		1-80240-001-1 01 1 0105-0202
234 SENSOR; VEHICLE SPD
ISUZU M/T<X9A>,ZF M/T<X9E> 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 0105-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-1 01 1 0105-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0105-
çizim 77938
669 639 437 406 637
BalonParca AdiParca NoAdetTipApplied Date
406 NUT; COVER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 0105-0602
406 NUT; COVER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91180-106-0 04 1 0603-
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> MITSUBISHI 		1-84122-034-1 01 1 0105-0604
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> METRO DENSO 		8-98046-423-0 01 1 0605-
637 BRACKET; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> 		1-75557-483-1 01 1 0105-
639 BOLT; BRKT,DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0105-
669 SCREW; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/PL WASHER 		1-09981-380-0 04 1 0105-

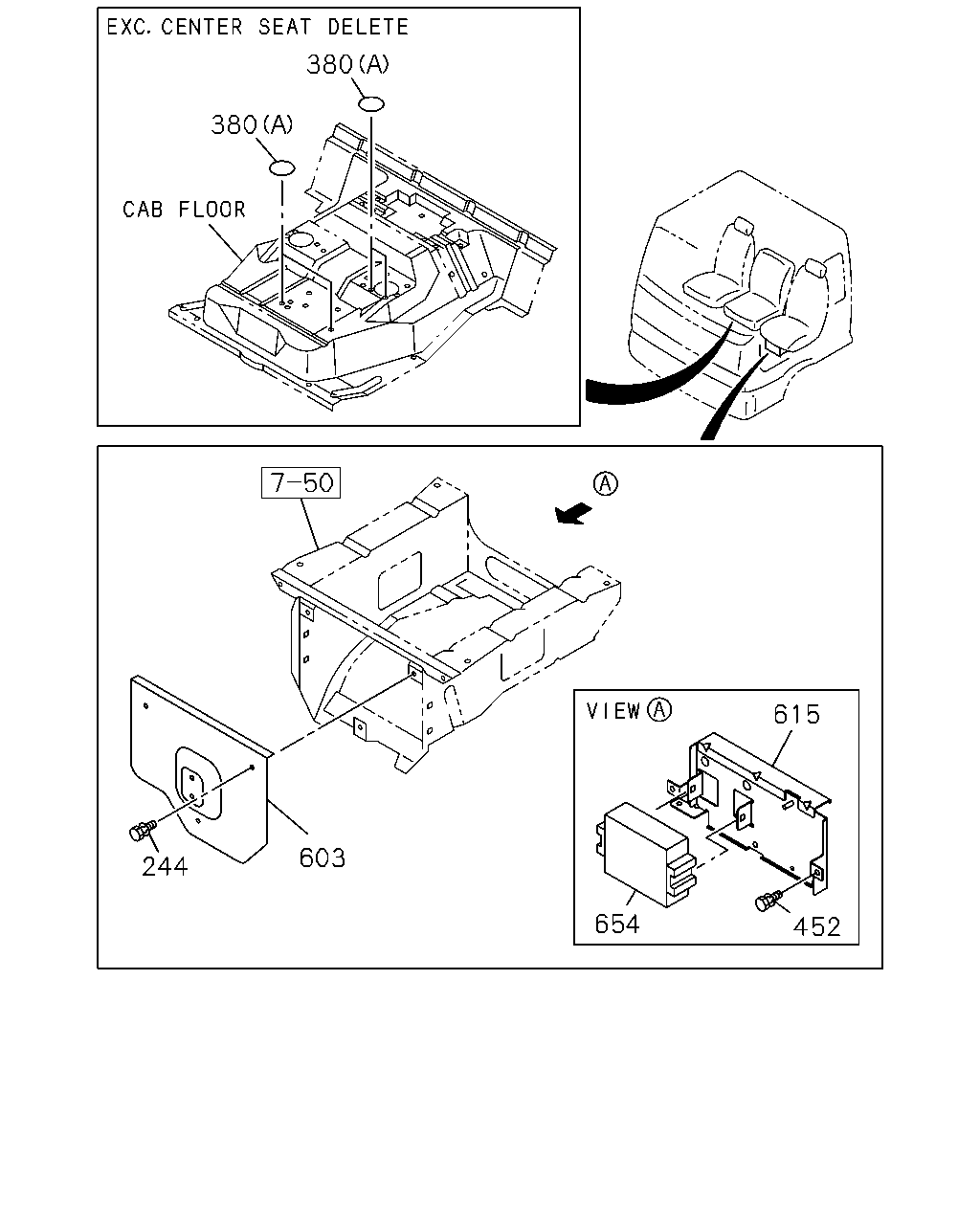

çizim 82794
452 615 654 603 244 380 380
BalonParca AdiParca NoAdetTipApplied Date
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0212-
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK 		1-76798-019-0 04 1 0105-
380 SEAL
EXC. DELUXE CAB(W14) (A) OD=25 BLACK 		1-76798-019-0 01 1 0105-
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105-
452 BOLT; BRKT
ELECTRONIC GOV RED4(Q4F) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
603 COVER; CONT UNIT,SEAT STAND 1-75557-489-1 01 1 0105-
615 BRACKET; ECU,SEAT STAND
ELECTRONIC GOV RED4(Q4F) 		1-75557-469-3 01 1 0105-
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-118-0 01 1 0112-
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) 		1-80150-044-1 01 1 0105-0111
654 CONTROL UNIT; EXH & RETARDER
ELECTRONIC GOV RED4(Q4F) BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-117-0 01 1 0112-
çizim 82847
40 39 38 491 483 380 39 38 40
BalonParca AdiParca NoAdetTipApplied Date
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 0105-
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 0105-0602
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91180-108-0 02 1 0603-
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0212-
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK 		1-76798-019-0 04 1 0105-
380 SEAL
EXC. DELUXE CAB(W14) (A) OD=25 BLACK 		1-76798-019-0 01 1 0105-
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105-
483 SWITCH
DELUXE CAB(W14) 		1-82440-118-0 01 1 0105-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0105-

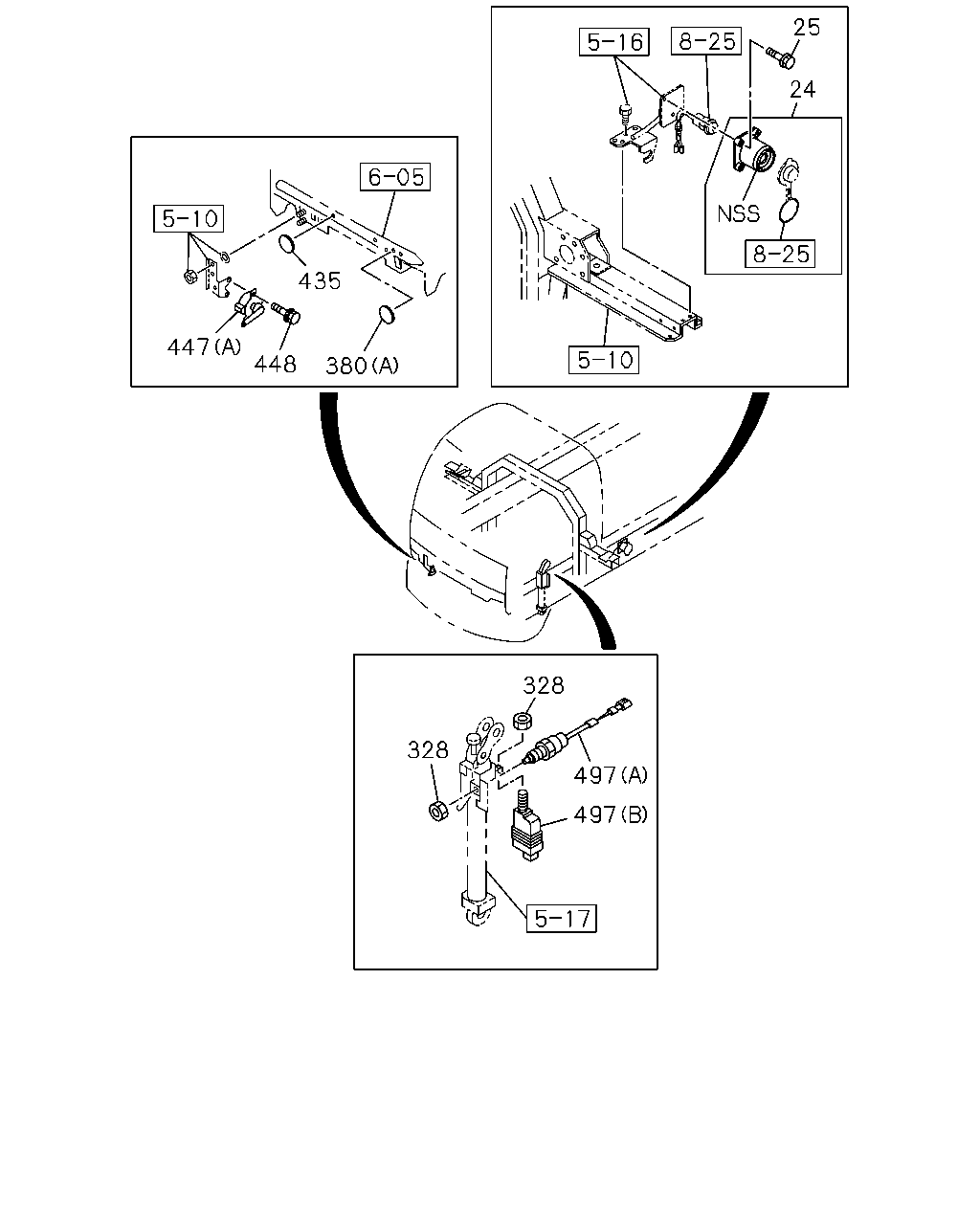

çizim 83278
24 25 328 497 497 328 380 435 448 447
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT
AUTO CAB TILT<WV2> 		1-82389-007-1 01 1 0105-
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE 		0-28080-616-0 02 1 0105-0512
25 BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE 		0-28050-616-0 02 1 0601-
328 NUT
M16 		9-99111-416-0 02 1 0105-0512
328 NUT
M16 		0-91111-516-0 02 1 0601-
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0212-
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK 		1-76798-019-0 04 1 0105-
380 SEAL
EXC. DELUXE CAB(W14) (A) OD=25 BLACK 		1-76798-019-0 01 1 0105-
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) OD=25 BLACK 		1-76798-019-0 02 1 0105-
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0105-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-1 01 1 0105-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0105-
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-0407
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0408-
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0105-
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0105-
