8-15 — FIXING PARTS; WIRING HARNESS (#28097) — 637 parça

38 150 239 88 38 150 313 38 38 313 38 242 38 242 38 242 38 242 38 38 38 313 38 139 139 313 358 133 516 119 255 133 64 515 524 219 294 219 294 340 423 133

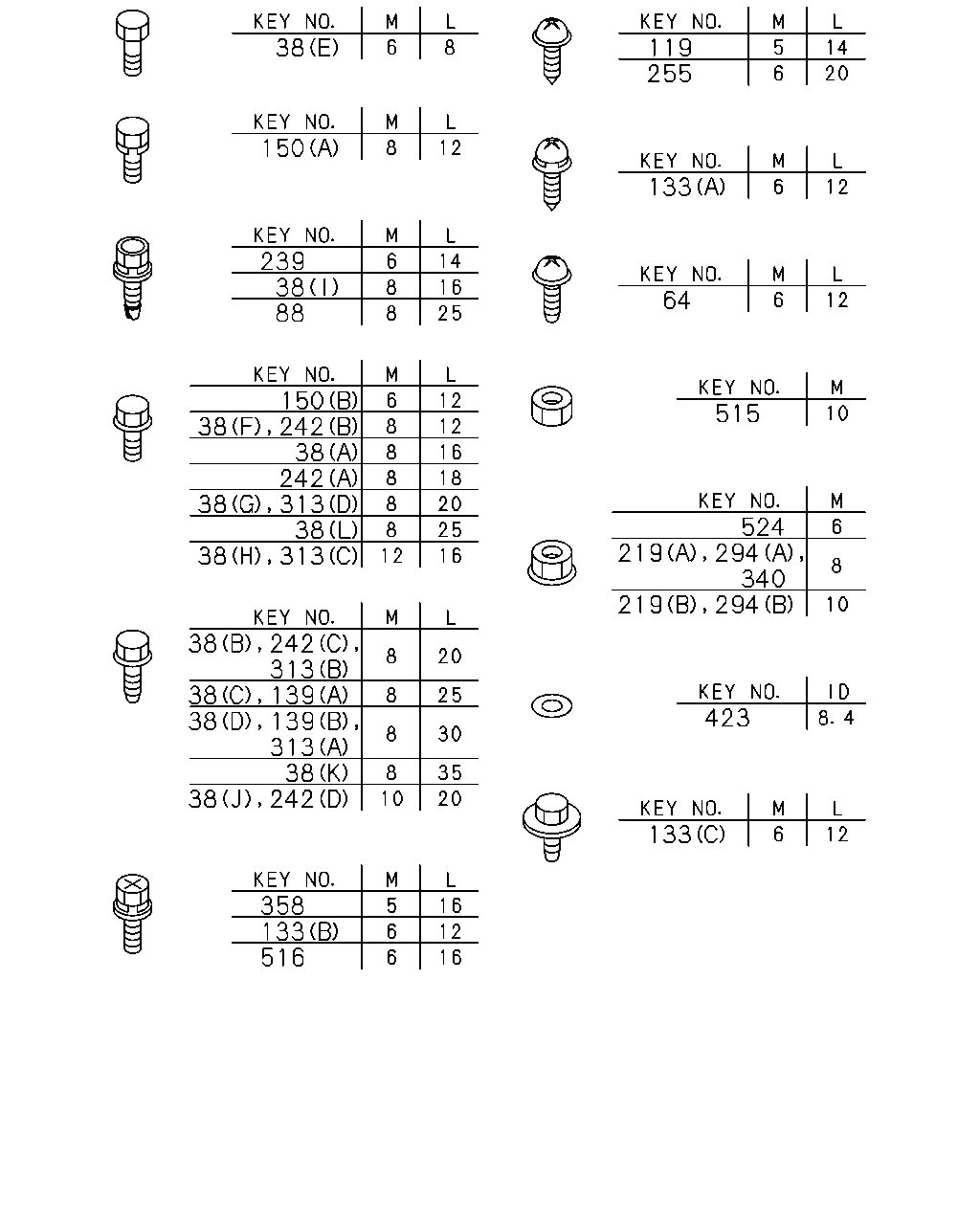

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS FULLER M/T<X9B>,ZF M/T<X9E> (B) M8X20 FLANGE	0-28680-820-0	03	1	0206-0512
38	BOLT; CLIP,HARNESS FULLER M/T<X9B>,ZF M/T<X9E> (B) M8X20 FLANGE	0-28650-820-0	03	1	0601-
38	BOLT; CLIP,HARNESS EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (K) M8X35 FLANGE	0-28680-835-0	01	1	0107-0112
38	BOLT; CLIP,HARNESS MJD7S M/T(Y2Y) (J) M10X20 FLANGE	0-28781-020-0	01	1	0107-0512
38	BOLT; CLIP,HARNESS MJD7S M/T(Y2Y) (J) M10X20 FLANGE	0-28751-020-0	01	1	0601-
38	BOLT; CLIP,HARNESS (L) M8X25 FLANGE	0-28080-825-0	01	1	0109-0512
38	BOLT; CLIP,HARNESS (L) M8X25 FLANGE	0-28050-825-0	01	1	0601-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28680-830-0	02	1	0109-0512
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0601-
38	BOLT; CLIP,HARNESS (E) M6X8	0-20800-608-0	01	1	0105-
38	BOLT; CLIP,HARNESS (F) M8X12 FLANGE	0-28080-812-0	01	1	0105-0512
38	BOLT; CLIP,HARNESS (F) M8X12 FLANGE	0-28050-812-0	01	1	0601-
38	BOLT; CLIP,HARNESS (G) M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
38	BOLT; CLIP,HARNESS (G) M8X20 FLANGE	0-28050-820-0	01	1	0601-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-0205
38	BOLT; CLIP,HARNESS FULLER M/T<X9B>,ZF M/T<X9E> (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-0205
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-0205
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	01	1	0206-0403
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (B) M8X20 FLANGE	0-28680-820-0	01	1	0206-0403
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	01	1	0404-0512
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (B) M8X20 FLANGE	0-28680-820-0	01	1	0404-0512
38	BOLT; CLIP,HARNESS 6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28680-820-0	01	1	0404-0512
38	BOLT; CLIP,HARNESS ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) M8X20 FLANGE	0-28680-820-0	01	1	0404-0512
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
38	BOLT; CLIP,HARNESS 6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
38	BOLT; CLIP,HARNESS ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	05	1	0105-0106
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	03	1	0107-0107
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	04	1	0107-0205
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28680-820-0	02	1	0206-0512
38	BOLT; CLIP,HARNESS ISUZU M/T<X9A> (B) M8X20 FLANGE	0-28680-820-0	02	1	0206-0512
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
38	BOLT; CLIP,HARNESS ISUZU M/T<X9A> (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28680-830-0	02	1	0105-0108
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28680-830-0	02	1	0105-0108
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28680-830-0	01	1	0109-0403
38	BOLT; CLIP,HARNESS (H) M12X16 FLANGE	1-09044-079-0	01	1	0105-
38	BOLT; CLIP,HARNESS (I) M8X16 W/LK&PL WASHER	8-97087-055-0	02	1	0105-
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-
38	BOLT; CLIP,HARNESS CAB UP +110MM<TGG> (C) M8X25 FLANGE	0-28680-825-0	01	1	0105-0106
38	BOLT; CLIP,HARNESS CAB UP +110MM<TGG> (C) M8X25 FLANGE	0-28680-825-0	01	1	0107-0107
38	BOLT; CLIP,HARNESS CAB UP +110MM<TGG> (C) M8X25 FLANGE	0-28680-825-0	01	1	0107-0107
38	BOLT; CLIP,HARNESS CAB UP +110MM<TGG> (C) M8X25 FLANGE	0-28680-825-0	01	1	0107-0112
38	BOLT; CLIP,HARNESS CAB UP +110MM<TGG> (K) M8X35 FLANGE	0-28680-835-0	01	1	0201-0512
38	BOLT; CLIP,HARNESS CAB UP +110MM<TGG> (K) M8X35 FLANGE	0-28650-835-0	01	1	0601-
38	BOLT; CLIP,HARNESS WHEEL BASE 6300MM(63W) (D) M8X30 FLANGE	0-28680-830-0	11	1	0105-0512
38	BOLT; CLIP,HARNESS WHEEL BASE 6300MM(63W) (D) M8X30 FLANGE	0-28650-830-0	11	1	0601-
38	BOLT; CLIP,HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) M8X30 FLANGE	0-28680-830-0	07	1	0105-0106
38	BOLT; CLIP,HARNESS WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (D) M8X30 FLANGE	0-28680-830-0	07	1	0107-0512
38	BOLT; CLIP,HARNESS WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (D) M8X30 FLANGE	0-28650-830-0	07	1	0601-
38	BOLT; CLIP,HARNESS WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (D) M8X30 FLANGE	0-28680-830-0	06	1	0105-0512
38	BOLT; CLIP,HARNESS WHEEL BASE 6600MM(66W) (D) M8X30 FLANGE	0-28680-830-0	06	1	0105-0512
38	BOLT; CLIP,HARNESS WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (D) M8X30 FLANGE	0-28650-830-0	06	1	0601-
38	BOLT; CLIP,HARNESS WHEEL BASE 6600MM(66W) (D) M8X30 FLANGE	0-28650-830-0	06	1	0601-
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	02	1	0105-
88	BOLT; DOOR HARNESS EARTH M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0105-
119	SCREW; DOOR HARNESS EARTH POWER WINDOW<A30> M5X14 W/PL WASHER	8-94447-551-0	02	1	0105-
133	SCREW; HARNESS CLIP,STRG COLUMN (B) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0107-0210
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X16 W/LK&PL WASHER	8-94279-402-0	02	1	0105-0106
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0107-0110
133	SCREW; HARNESS CLIP,STRG COLUMN (C) M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-
139	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0105
139	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X30 FLANGE	0-28680-830-0	01	1	0105-0106
139	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
139	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
150	BOLT; CLIP REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	0105-0512
150	BOLT; CLIP REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X12 W/LK WASHER	0-50540-812-0	02	1	0601-
150	BOLT; CLIP 6WF1 TC-C(1B8) (B) M6X12 FLANGE	0-28080-612-0	01	1	0105-0512
150	BOLT; CLIP 6WF1 TC-C(1B8) (B) M6X12 FLANGE	0-28050-612-0	01	1	0601-
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	0105-0105
219	NUT FULLER M/T<X9B>,ZF M/T<X9E> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0105
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	0106-0205
219	NUT FULLER M/T<X9B> (A) M8 FLANGE	0-91150-108-0	01	1	0106-0205
219	NUT FULLER M/T<X9B> (A) M8 FLANGE	0-91150-108-0	02	1	0206-0602
219	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0206-0602
219	NUT FULLER M/T<X9B> (A) M8 FLANGE	0-91180-108-0	02	1	0603-
219	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-
219	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0105-0205
219	NUT (A) M8 FLANGE	0-91150-108-0	03	1	0206-0602
219	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0603-
219	NUT (A) M8 FLANGE	0-91150-108-0	04	1	0105-0106
219	NUT (A) M8 FLANGE	0-91150-108-0	03	1	0107-0110
219	NUT (A) M8 FLANGE	0-91150-108-0	04	1	0111-0205
219	NUT (A) M8 FLANGE	0-91150-108-0	01	1	0206-0602
219	NUT ISUZU M/T<X9A>,ZF M/T<X9E> (A) M8 FLANGE	0-91150-108-0	01	1	0206-0602
219	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0603-
219	NUT ISUZU M/T<X9A>,ZF M/T<X9E> (A) M8 FLANGE	0-91180-108-0	01	1	0603-
219	NUT (B) M10X1.25 FLANGE	0-91150-210-0	01	1	0105-0106
219	NUT EXC. FULLER M/T<X9B>,ZF M/T<X9E> (B) M10 FLANGE	0-91150-210-0	01	1	0107-0205
219	NUT MJA7U M/T(X6G) (B) M10 FLANGE	0-91150-210-0	01	1	0107-0205
219	NUT ISUZU M/T<X9A> (B) M10 FLANGE	0-91150-210-0	01	1	0206-0305
219	NUT MJA7U M/T(X6G) (B) M10 FLANGE	0-91150-210-0	01	1	0206-0305
219	NUT ISUZU M/T<X9A> (B) M10 FLANGE	0-91150-210-0	01	1	0306-0602
219	NUT MJA7U M/T(X6G),MJD7S M/T(Y2Y) (B) M10 FLANGE	0-91150-210-0	01	1	0306-0602
219	NUT ISUZU M/T<X9A> (B) M10 FLANGE	0-91180-210-0	01	1	0603-
219	NUT MJA7U M/T(X6G),MJD7S M/T(Y2Y) (B) M10 FLANGE	0-91180-210-0	01	1	0603-
219	NUT (B) M10X1.5 FLANGE	0-91250-210-0	01	1	0105-0110
219	NUT WHEEL BASE 6300MM(63W) (A) M8 FLANGE	0-91150-108-0	11	1	0105-0602
219	NUT WHEEL BASE 6300MM(63W) (A) M8 FLANGE	0-91180-108-0	11	1	0603-
219	NUT WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8 FLANGE	0-91150-108-0	07	1	0105-0106
219	NUT WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (A) M8 FLANGE	0-91150-108-0	07	1	0107-0602
219	NUT WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (A) M8 FLANGE	0-91180-108-0	07	1	0603-
219	NUT WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (A) M8 FLANGE	0-91150-108-0	06	1	0105-0602
219	NUT WHEEL BASE 6600MM(66W) (A) M8 FLANGE	0-91150-108-0	06	1	0105-0602
219	NUT WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (A) M8 FLANGE	0-91180-108-0	06	1	0603-
219	NUT WHEEL BASE 6600MM(66W) (A) M8 FLANGE	0-91180-108-0	06	1	0603-
239	BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0105-
242	BOLT; BRKT,HARNESS (B) M8X12 FLANGE	0-28080-812-0	01	1	0105-0512
242	BOLT; BRKT,HARNESS (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-
242	BOLT; BRKT,HARNESS EXC. CAB UP +110MM<TGG> (A) M8X18 FLANGE	0-28080-818-0	04	1	0105-
242	BOLT; BRKT,HARNESS EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) M10X20 FLANGE	0-28681-020-0	02	1	0105-0512
242	BOLT; BRKT,HARNESS EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (D) M10X20 FLANGE	0-28651-020-0	02	1	0601-
242	BOLT; BRKT,HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A) M8X18 FLANGE	0-28080-818-0	02	1	0105-
255	SCREW; TAP CLIP M6X20 TAPPING W/PL WASHER	0-74305-620-0	02	1	0105-0604
255	SCREW; TAP CLIP M6X20 TAPPING W/PL WASHER	0-74365-620-0	02	1	0605-
294	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0106-0602
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-
294	NUT ISUZU M/T<X9A> (B) M10 FLANGE	0-91150-210-0	01	1	0107-0602
294	NUT ISUZU M/T<X9A> (B) M10 FLANGE	0-91180-210-0	01	1	0603-
294	NUT (A) M8 FLANGE	0-91150-108-0	01	1	0105-0105
294	NUT CAB UP +110MM<TGG> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0105
294	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0105
294	NUT ISUZU M/T<X9A> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0105
294	NUT (A) M8 FLANGE	0-91150-108-0	01	1	0105-0105
294	NUT CAB UP +110MM<TGG> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0105
294	NUT ISUZU M/T<X9A> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0105
294	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0105
294	NUT CAB UP +110MM<TGG> (A) M8 FLANGE	0-91150-108-0	01	1	0106-0106
294	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE	0-91150-108-0	01	1	0106-0106
294	NUT CAB UP +110MM<TGG> (A) M8 FLANGE	0-91150-108-0	01	1	0107-0602
294	NUT BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE	0-91150-108-0	01	1	0107-0602
294	NUT CAB UP +110MM<TGG> (A) M8 FLANGE	0-91180-108-0	01	1	0603-
294	NUT BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8 FLANGE	0-91180-108-0	01	1	0603-
313	BOLT; BRKT (D) M8X20 FLANGE	0-28080-820-0	02	1	0212-0512
313	BOLT; BRKT (D) M8X20 FLANGE	0-28050-820-0	02	1	0601-
313	BOLT; BRKT TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12X16	0-28181-216-0	01	1	0107-0108
313	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0105
313	BOLT; BRKT CAB UP +110MM<TGG> (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0105
313	BOLT; BRKT ISUZU M/T<X9A> (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0105
313	BOLT; BRKT CAB UP +110MM<TGG> (A) M8X30 FLANGE	0-28680-830-0	01	1	0106-0512
313	BOLT; BRKT CAB UP +110MM<TGG> (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-0105
313	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0106-0211
313	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0106-0211
313	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0212-0512
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
313	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-0105
313	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
313	BOLT; BRKT ZF M/T<X9E> (B) M8X20 FLANGE	0-28680-820-0	01	1	0106-0512
313	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
313	BOLT; BRKT ZF M/T<X9E> (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
340	NUT; HARNESS CAB TO FRAME EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	0212-0602
340	NUT; HARNESS CAB TO FRAME EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	01	1	0603-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91150-108-0	01	1	0105-0211
340	NUT; HARNESS CAB TO FRAME CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	02	1	0212-0602
340	NUT; HARNESS CAB TO FRAME CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	02	1	0603-
358	BOLT; EARTH AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0105-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	02	1	0105-
515	NUT; BRKT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M10	9-09110-510-0	02	1	0105-0512
515	NUT; BRKT EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M10	0-91110-510-0	02	1	0601-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	02	1	0105-0602
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	02	1	0603-

14 81 16 142 104 194 171 421 206 14 81 205 341 111 16 16 51 81 142 162 208 194 225 305 309 448 16 48 194 16 225 48 16 194 223 162 16 448 283 205 205 16 16 16 470 16 16 16 16 16 16 16 16 16 16 16 81 16 421 421 16 128 16 16 16 16 48 48 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250	5-09707-030-1	02	1	0105-
14	CLIP; BAND,HARNESS REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140	5-09707-031-1	01	1	0105-0404
14	CLIP; BAND,HARNESS REAR AXLE RT210<C2A> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140	5-09707-031-1	01	1	0405-
14	CLIP; BAND,HARNESS 6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (A) L=140	5-09707-031-1	01	1	0405-

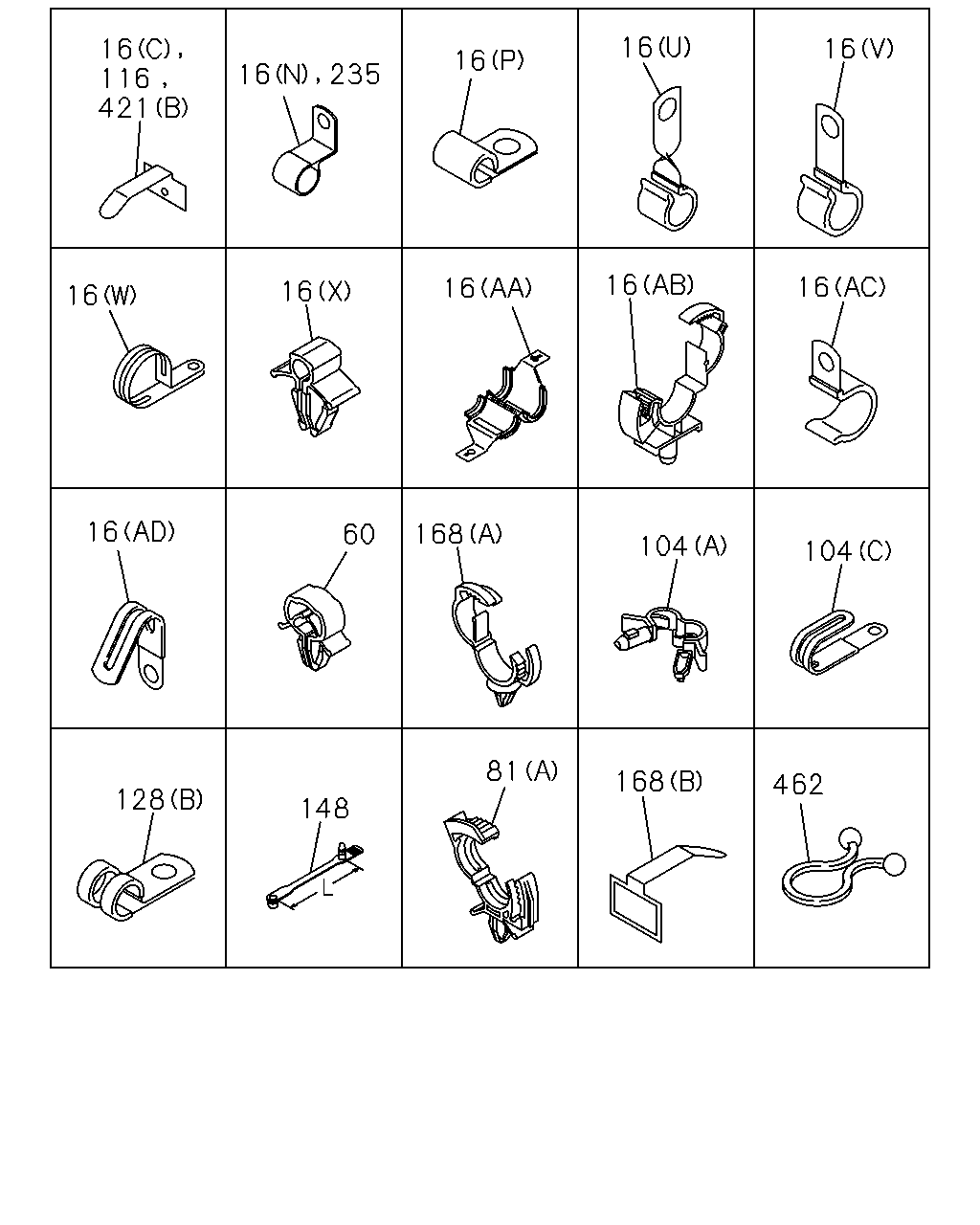

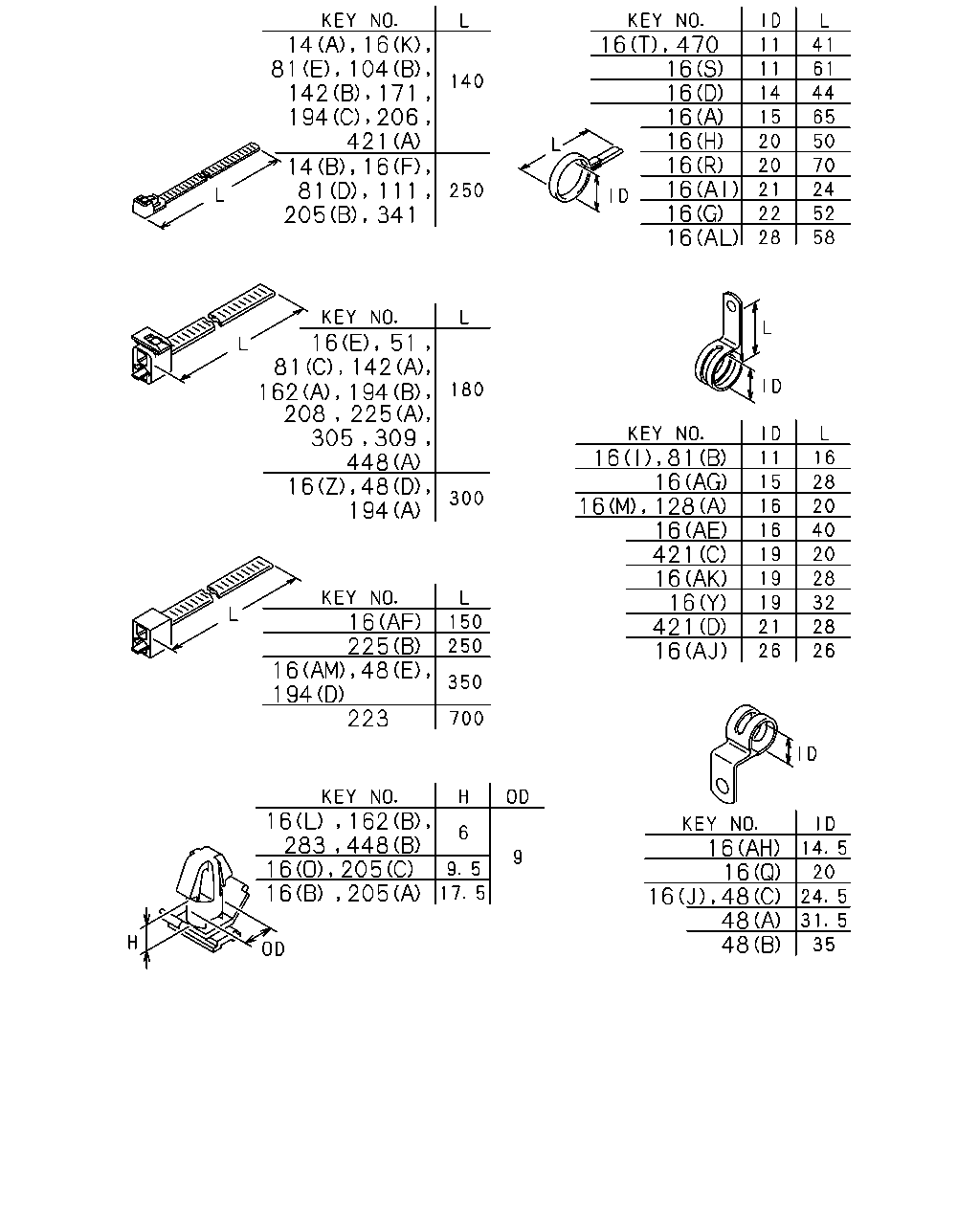

16	CLIP; HARNESS (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0212-
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	04	1	0212-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (D) ID=14 L=44	9-09917-427-0	03	1	0201-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (G) ID=22 L=52	9-09917-431-0	02	1	0201-
16	CLIP; HARNESS (AL) ID=28 L=58	1-09700-400-0	01	1	0111-
16	CLIP; HARNESS AUTO CAB TILT<WV2> (T) ID=11 L=41	1-09700-403-0	01	1	0107-
16	CLIP; HARNESS (T) ID=11 L=41	1-09700-403-0	03	1	0107-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (T) ID=11 L=41	1-09700-403-0	03	1	0107-
16	CLIP; HARNESS ZF M/T<X9E> (AH) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0109-
16	CLIP; HARNESS (T) ID=11 L=41	1-09700-403-0	01	1	0105-0106
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	01	1	0107-
16	CLIP; HARNESS (T) ID=11 L=41	1-09700-403-0	04	1	0105-0106
16	CLIP; HARNESS (G) ID=22 L=52	9-09917-431-0	05	1	0107-
16	CLIP; HARNESS (U) ID=15 L=42	1-09700-479-0	02	1	0105-
16	CLIP; HARNESS (V) ID=15 L=35	1-09700-507-0	01	1	0105-
16	CLIP; HARNESS (W) W/RUBBER ID=42.7 L=38	1-09700-583-1	01	1	0105-0402
16	CLIP; HARNESS (W) WO/RUBBER ID=42.7 L=38	1-09701-313-0	01	1	0403-0403
16	CLIP; HARNESS 6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (W) WO/RUBBER ID=42.7 L=38	1-09701-313-0	01	1	0404-
16	CLIP; HARNESS ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (W) WO/RUBBER ID=42.7 L=38	1-09701-313-0	01	1	0404-
16	CLIP; HARNESS (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0105-0109
16	CLIP; HARNESS (AI) ID=21 L=24	8-94176-807-1	01	1	0110-
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0105-0106
16	CLIP; HARNESS CAB UP +110MM<TGG> (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0105-0106
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0107-0112
16	CLIP; HARNESS EXC. CAB UP +110MM<TGG> (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0107-0112
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0201-
16	CLIP; HARNESS (X) ID=4.8	1-09701-218-0	01	1	0105-0106
16	CLIP; HARNESS AUTO CAB TILT<WV2> (X) ID=4.8	1-09701-218-0	01	1	0107-
16	CLIP; HARNESS (Y) ID=19 L=32	1-09701-235-0	01	1	0105-0109
16	CLIP; HARNESS (Y) ID=19 L=32	1-09701-235-0	02	1	0105-0106
16	CLIP; HARNESS ELECTRONIC GOV RED4(Q4F) (T) ID=11 L=41	1-09700-403-0	05	1	0107-
16	CLIP; HARNESS (Z) L=300	1-09707-001-1	03	1	0105-0504
16	CLIP; HARNESS (AM) L=350	1-09707-183-0	03	1	0505-
16	CLIP; HARNESS (E) L=180	1-09707-162-1	02	1	0105-
16	CLIP; HARNESS (AA) WO/SPONGE RUBBER	1-09709-103-1	02	1	0105-
16	CLIP; HARNESS (L) OD=9 H=6	1-09709-178-0	07	1	0105-0106
16	CLIP; HARNESS (L) OD=9 H=6	1-09709-178-0	03	1	0107-
16	CLIP; HARNESS ZF M/T<X9E> (L) OD=9 H=6	1-09709-178-0	03	1	0107-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	0105-
16	CLIP; HARNESS ZF M/T<X9E> (F) L=250	5-09707-030-1	03	1	0105-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0105-0106
16	CLIP; HARNESS ISUZU M/T<X9A> (K) L=140	5-09707-031-1	01	1	0105-0106
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0107-0205
16	CLIP; HARNESS ISUZU M/T<X9A> (K) L=140	5-09707-031-1	01	1	0107-0205
16	CLIP; HARNESS BRAKE SYSTEM RETARDER<RE2> (K) L=140	5-09707-031-1	01	1	0107-0205
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0206-
16	CLIP; HARNESS ISUZU M/T<X9A> (K) L=140	5-09707-031-1	01	1	0206-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> (K) L=140	5-09707-031-1	01	1	0206-
16	CLIP; HARNESS (AB) ID=14-20	8-97061-603-0	01	1	0105-0106
16	CLIP; HARNESS CAB UP +110MM<TGG> (AJ) ID=26 L=26	1-09701-236-0	02	1	0107-0108
16	CLIP; HARNESS CAB UP +110MM<TGG> (AJ) ID=26 L=26	1-09701-236-0	01	1	0109-
16	CLIP; HARNESS (M) ID=16 L=20	9-09525-535-0	01	1	0105-0108
16	CLIP; HARNESS FULLER M/T<X9B>,ZF M/T<X9E> (M) ID=16 L=20	9-09525-535-0	01	1	0105-0108
16	CLIP; HARNESS (M) ID=16 L=20	9-09525-535-0	01	1	0109-0606
16	CLIP; HARNESS FULLER M/T<X9B> (M) ID=16 L=20	9-09525-535-0	01	1	0109-0606
16	CLIP; HARNESS (M) ID=16 L=20	0-95235-535-0	01	1	0607-
16	CLIP; HARNESS FULLER M/T<X9B> (M) ID=16 L=20	0-95235-535-0	01	1	0607-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	01	1	0105-0106
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (D) ID=14 L=44	9-09917-427-0	01	1	0105-0106
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (D) ID=14 L=44	9-09917-427-0	01	1	0107-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	01	1	0107-
16	CLIP; HARNESS EXC. AUTO CAB TILT<WV2> (D) ID=14 L=44	9-09917-427-0	01	1	0107-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	04	1	0105-0106
16	CLIP; HARNESS EXC. ELECTRONIC GOV RED4(Q4F) (D) ID=14 L=44	9-09917-427-0	05	1	0107-
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	05	1	0105-0106
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	04	1	0107-0109
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	03	1	0110-0112
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	03	1	0110-0112
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	03	1	0201-0211
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	03	1	0201-0211
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	03	1	0212-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AF) L=150	1-09707-145-1	01	1	0105-0106
16	CLIP; HARNESS BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AF) L=150	1-09707-145-1	01	1	0107-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (I) ID=11 L=16	9-09525-025-0	01	1	0105-0109
16	CLIP; HARNESS FULLER M/T<X9B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) ID=11 L=16	9-09525-025-0	01	1	0110-0606
16	CLIP; HARNESS REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) ID=11 L=16	9-09525-025-0	01	1	0110-0606
16	CLIP; HARNESS FULLER M/T<X9B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) ID=11 L=16	0-95235-025-0	01	1	0607-
16	CLIP; HARNESS REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) ID=11 L=16	0-95235-025-0	01	1	0607-
16	CLIP; HARNESS EXC. CAB UP +110MM<TGG> (AC)	8-94403-348-0	01	1	0105-
16	CLIP; HARNESS FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=15 L=65	1-09700-466-0	01	1	0105-
16	CLIP; HARNESS FRAME EQUIPMENT HEAVY DUTY VAR1<F03> REVERSING WARNING BUZZER<YM9> (B) OD=9 H=17.5	1-09709-181-0	01	1	0105-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (E) L=180	1-09707-162-1	01	1	0105-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (F) L=250	5-09707-030-1	01	1	0105-0110
16	CLIP; HARNESS (F) L=250	5-09707-030-1	01	1	0111-0112
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (F) L=250	5-09707-030-1	01	1	0111-0112
16	CLIP; HARNESS (F) L=250	5-09707-030-1	01	1	0201-0211
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (F) L=250	5-09707-030-1	01	1	0201-0211
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (F) L=250	5-09707-030-1	01	1	0212-0303
16	CLIP; HARNESS EXC. CAB UP +110MM<TGG> (F) L=250	5-09707-030-1	01	1	0304-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (F) L=250	5-09707-030-1	01	1	0304-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS AUTO CAB TILT<WV2> (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS AUTO CAB TILT<WV2> (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (G) ID=22 L=52	9-09917-431-0	23	1	0105-0112
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (G) ID=22 L=52	9-09917-431-0	21	1	0201-
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	03	1	0105-0109
16	CLIP; HARNESS FULLER M/T<X9B> (L) OD=9 H=6	1-09709-178-0	02	1	0105-
16	CLIP; HARNESS FULLER M/T<X9B> (F) L=250	5-09707-030-1	02	1	0105-
16	CLIP; HARNESS EXC. FULLER M/T<X9B>,ZF M/T<X9E> (AD) L=36	8-94224-891-1	01	1	0105-0205
16	CLIP; HARNESS ISUZU M/T<X9A> (AD) L=36	8-94224-891-1	01	1	0206-
16	CLIP; HARNESS MJA7 M/T<X9Q> (L) OD=9 H=6	1-09709-178-0	01	1	0105-0205
16	CLIP; HARNESS ISUZU M/T<X9A> (L) OD=9 H=6	1-09709-178-0	01	1	0206-
16	CLIP; HARNESS REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) ID=11 L=16	9-09525-025-0	02	1	0105-0109
16	CLIP; HARNESS REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (N) ID=11 H=30 L=17	1-09700-113-0	01	1	0110-
16	CLIP; HARNESS REVERSING WARNING BUZZER<YM9> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (O) OD=9 H=9.5	1-09709-179-0	01	1	0105-
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (C) L=20 SET=10 PIECE	1-09987-246-2	04	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (R) ID=20 L=70	1-09700-485-0	03	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (R) ID=20 L=70	1-09700-485-0	03	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (Q) ID=20 H=23 L=27	1-09700-861-0	02	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (R) ID=20 L=70	1-09700-485-0	01	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (R) ID=20 L=70	1-09700-485-0	13	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> HONG KONG EQUIPMENT(PQ1) (S) ID=11 L=61	1-09700-484-0	06	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> SINGAPORE EQUIPMENT(WQ3) (S) ID=11 L=61	1-09700-484-0	10	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (H) ID=20 L=50	9-09917-430-0	13	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) SINGAPORE EQUIPMENT(WQ3) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (T) ID=11 L=41	1-09700-403-0	10	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (J) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (R) ID=20 L=70	1-09700-485-0	02	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (R) ID=20 L=70	1-09700-485-0	21	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> HONG KONG EQUIPMENT(PQ1) (S) ID=11 L=61	1-09700-484-0	03	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> SINGAPORE EQUIPMENT(WQ3) (S) ID=11 L=61	1-09700-484-0	07	1	0105-0106
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (G) ID=22 L=52	9-09917-431-0	01	1	0107-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (H) ID=20 L=50	9-09917-430-0	02	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	21	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (T) ID=11 L=41	1-09700-403-0	03	1	0105-0106
16	CLIP; HARNESS ELECTRONIC GOV RED3(KG5) (T) ID=11 L=41	1-09700-403-0	02	1	0107-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (T) ID=11 L=41	1-09700-403-0	06	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (T) ID=11 L=41	1-09700-403-0	06	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (T) ID=11 L=41	1-09700-403-0	07	1	0105-
16	CLIP; HARNESS ZF M/T<X9E> (N) ID=15 H=30 L=30	1-09700-832-0	01	1	0105-0105
16	CLIP; HARNESS ZF M/T<X9E> (AK) ID=19 L=28	9-09525-856-0	01	1	0106-0606
16	CLIP; HARNESS ZF M/T<X9E> (AK) ID=19 L=28	0-95235-856-0	01	1	0607-
16	CLIP; HARNESS ZF M/T<X9E> (L) OD=9 H=6	1-09709-178-0	03	1	0105-0106
16	CLIP; HARNESS AUTO CAB TILT<WV2> (L) OD=9 H=6	1-09709-178-0	04	1	0107-
16	CLIP; HARNESS EXC. ZF M/T<X9E> (AE) ID=16 L=40	9-09525-576-0	01	1	0105-0205
16	CLIP; HARNESS ISUZU M/T<X9A>,FULLER M/T<X9B> (AE) ID=16 L=40	9-09525-576-0	01	1	0206-0606
16	CLIP; HARNESS ISUZU M/T<X9A>,FULLER M/T<X9B> (AE) ID=16 L=40	0-95235-576-0	01	1	0607-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (P) ID=11 L=20	9-09525-032-0	01	1	0105-0606
16	CLIP; HARNESS 6WF1 TC-C(1B8) (P) ID=11 L=20	0-95235-032-0	01	1	0607-
48	CLIP; FRAME HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	02	1	0105-
48	CLIP; FRAME HARNESS FULL TRACTOR TRUCK<RD6> (A) ID=31.5 H=23 L=25	1-09701-017-0	02	1	0105-
48	CLIP; FRAME HARNESS (D) L=300	1-09707-001-1	01	1	0105-0504
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0505-
48	CLIP; FRAME HARNESS (D) L=300	1-09707-001-1	06	1	0105-0504
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	06	1	0505-
48	CLIP; FRAME HARNESS CAB UP +110MM<TGG> (B) ID=35 H=45 L=33	1-09700-947-0	01	1	0105-
48	CLIP; FRAME HARNESS CAB UP +110MM<TGG> (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0105-
48	CLIP; FRAME HARNESS EXC. CAB UP +110MM<TGG> (B) ID=35 H=45 L=33	1-09700-947-0	02	1	0105-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) EXC. FULL TRACTOR TRUCK<RD6> (C) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0105-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) ID=24.5 H=23 L=25	1-09700-862-0	07	1	0105-0106
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (C) ID=24.5 H=23 L=25	1-09700-862-0	07	1	0105-0106
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (C) ID=24.5 H=23 L=25	1-09700-862-0	07	1	0107-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (C) ID=24.5 H=23 L=25	1-09700-862-0	07	1	0107-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (C) ID=24.5 H=23 L=25	1-09700-862-0	06	1	0105-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=180	1-09707-162-1	01	1	0105-
81	CLIP; HARNESS (D) L=250	5-09707-030-1	01	1	0105-
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16	9-09525-025-0	01	1	0105-0606
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16	0-95235-025-0	01	1	0607-
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10	8-94472-578-0	02	1	0105-
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) ID=7-10	8-94472-578-0	06	1	0105-
81	CLIP; HARNESS REINFORCEMENT BUMPER<VG7> (C) L=180	1-09707-162-1	02	1	0105-
81	CLIP; HARNESS EXC. REINFORCEMENT BUMPER<VG7> (E) L=140	5-09707-031-1	02	1	0105-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5	1-09709-290-0	08	1	0105-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) L=140	5-09707-031-1	02	1	0105-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5	8-94178-108-0	02	1	0105-
111	CLIP; STOP LAMP SW HARNESS L=250	5-09707-030-1	01	1	0105-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	0105-0606
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0607-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0105-
142	CLIP; HARNESS,ENG 6WA1 TC-C(55L),6WG1 TC-C(72L) (B) L=140	5-09707-031-1	01	1	0111-
142	CLIP; HARNESS,ENG 6WF1 TC-C(1B8) EXC. ENGINE REAR PTO HEAVY DUTY<NJU> (B) L=140	5-09707-031-1	01	1	0111-
142	CLIP; HARNESS,ENG 6WF1 TC-C(1B8),6WA1 TC-C(55L) (A) L=180	1-09707-162-1	01	1	0105-
142	CLIP; HARNESS,ENG 6WG1 TC-C(72L) (A) L=180	1-09707-162-1	02	1	0105-
162	CLIP; SW HARNESS CAB UP +110MM<TGG> (A) L=180	1-09707-162-1	01	1	0105-
162	CLIP; SW HARNESS EXC. CAB UP +110MM<TGG> (B) OD=9 H=6	1-09709-178-0	01	1	0105-
171	CLIP; STARTER HARNESS L=140	5-09707-031-1	05	1	0105-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	0105-0504
194	CLIP; BAND (D) L=350	1-09707-183-0	01	1	0505-
194	CLIP; BAND (B) L=180	1-09707-162-1	02	1	0105-0106
194	CLIP; BAND (B) L=180	1-09707-162-1	01	1	0107-0112
194	CLIP; BAND AUTO CAB TILT<WV2> (B) L=180	1-09707-162-1	01	1	0107-0112
194	CLIP; BAND AUTO CAB TILT<WV2> (B) L=180	1-09707-162-1	01	1	0201-0305
194	CLIP; BAND ELECTRONIC GOV RED3(KG5) (B) L=180	1-09707-162-1	01	1	0201-0305
194	CLIP; BAND AUTO CAB TILT<WV2> (B) L=180	1-09707-162-1	01	1	0306-
194	CLIP; BAND 6WA1 TC-C(55L) EXC. RLD GOVERNOR(SD7),EURO2 SPECIFICATION<THN> (B) L=180	1-09707-162-1	01	1	0306-
194	CLIP; BAND (C) L=140	5-09707-031-1	01	1	0105-0112
194	CLIP; BAND (C) L=140	5-09707-031-1	01	1	0201-0305
194	CLIP; BAND ELECTRONIC GOV RED4(Q4F) (C) L=140	5-09707-031-1	01	1	0201-0305
194	CLIP; BAND (C) L=140	5-09707-031-1	01	1	0306-
194	CLIP; BAND 6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (C) L=140	5-09707-031-1	01	1	0306-
194	CLIP; BAND ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (C) L=140	5-09707-031-1	01	1	0306-
205	CLIP; BACK LAMP HARNESS FRAME EQUIPMENT HEAVY DUTY VAR1<F03> SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=17.5	1-09709-181-0	01	1	0105-
205	CLIP; BACK LAMP HARNESS FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) OD=9 H=17.5	1-09709-181-0	01	1	0105-
205	CLIP; BACK LAMP HARNESS SINGAPORE EQUIPMENT(WQ3) (B) L=250	5-09707-030-1	05	1	0105-
205	CLIP; BACK LAMP HARNESS SINGAPORE EQUIPMENT(WQ3) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) OD=9 H=9.5	1-09709-179-0	01	1	0105-
205	CLIP; BACK LAMP HARNESS EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (C) OD=9 H=9.5	1-09709-179-0	01	1	0105-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0105-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> L=180	1-09707-162-1	01	1	0112-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> L=700	1-09707-190-0	01	1	0105-
225	CLIP; AIR TANK HARNESS (B) L=250	1-09707-126-0	03	1	0105-
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	03	1	0105-
225	CLIP; AIR TANK HARNESS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A) L=180	1-09707-162-1	01	1	0105-
283	CLIP; SUB SW HARNESS OD=9 H=6	1-09709-178-0	01	1	0105-
305	CLIP; ENG HARNESS L=180	1-09707-162-1	01	1	0105-
309	CLIP; HARNESS,HAND BRAKE CABLE L=180	1-09707-162-1	01	1	0105-
341	CLIP; BAND,STARTER RELAY L=250	5-09707-030-1	03	1	0105-
421	CLIP; FLOOR HARNESS (B) L=20 SET=10 PIECE	1-09987-246-2	01	1	0105-0207
421	CLIP; FLOOR HARNESS (C) ID=19 L=20	9-09525-832-0	02	1	0105-0105
421	CLIP; FLOOR HARNESS (D) ID=21 L=28	1-09700-673-1	02	1	0106-
421	CLIP; FLOOR HARNESS LAMP-ROOM OPERATION W/CONSOLE<C93> (B) L=20 SET=10 PIECE	1-09987-246-2	05	1	0105-
421	CLIP; FLOOR HARNESS ELECTRONIC GOV RED4(Q4F) EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B) L=20 SET=10 PIECE	1-09987-246-2	05	1	0105-
421	CLIP; FLOOR HARNESS VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140	5-09707-031-1	01	1	0105-
448	CLIP; AIR SUSP HARNESS FULL FLOATING CAB(W16) (A) L=180	1-09707-162-1	01	1	0105-
448	CLIP; AIR SUSP HARNESS FULL FLOATING CAB(W16) (B) OD=9 H=6	1-09709-178-0	01	1	0105-0106
470	CLIP; HARNESS,LICENSE LAMP ID=11 L=41	1-09700-403-0	01	1	0105-

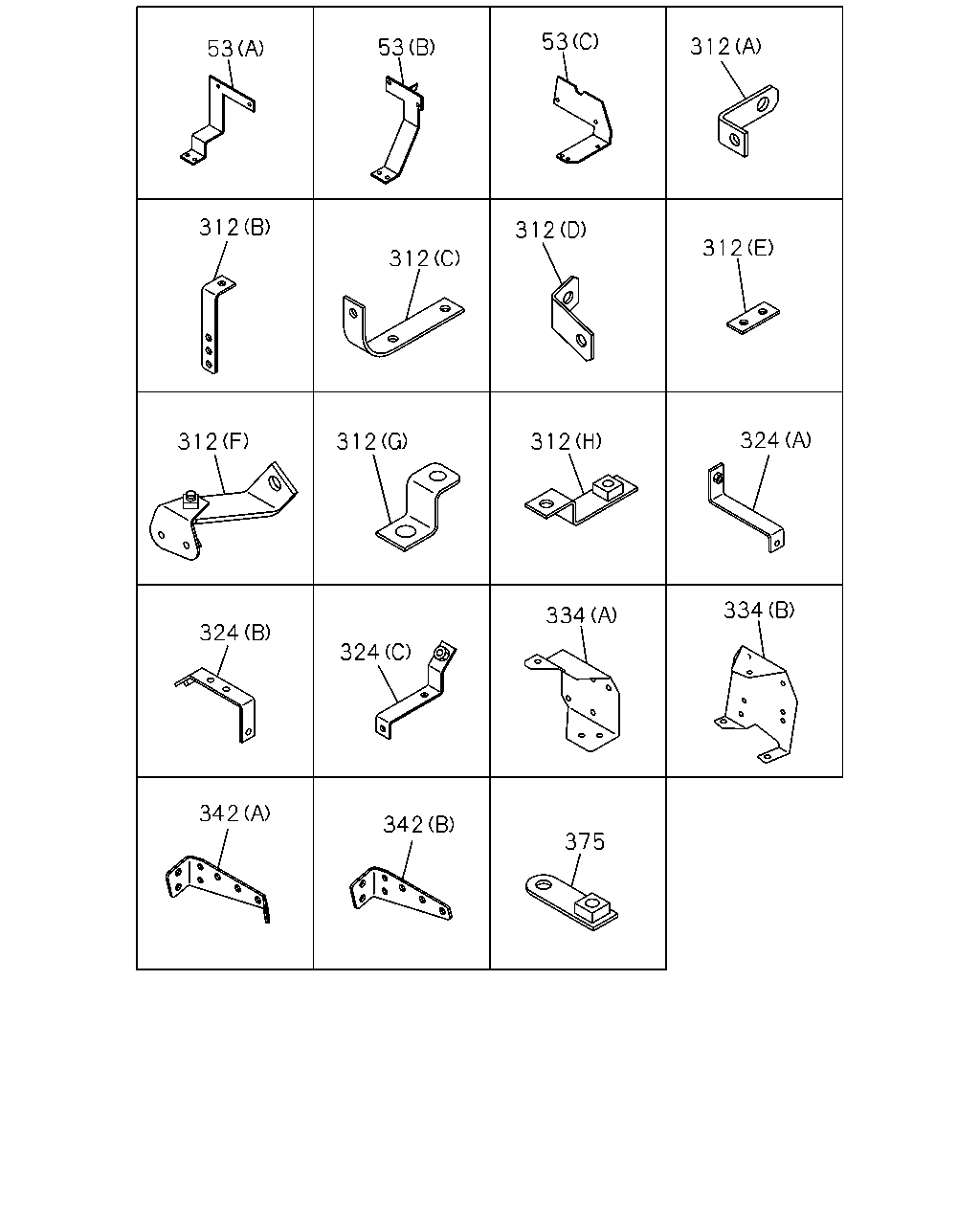

312 53 53 53 312 312 312 312 324 312 312 312 334 334 324 324 375 342 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS EXC. CAB UP +110MM<TGG> (B)	1-82699-592-2	01	1	0105-
53	BRACKET; HARNESS EXC. CAB UP +110MM<TGG> (C)	1-82699-826-0	01	1	0105-
53	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (A)	1-82699-916-0	01	1	0105-
312	BRACKET; CLIP HARNESS ZF M/T<X9E> (H) L=80 H=20	1-82699-304-0	01	1	0106-
312	BRACKET; CLIP HARNESS TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-47477-902-0	01	1	0107-0108
312	BRACKET; CLIP HARNESS ISUZU M/T<X9A> (G)	1-82699-425-0	01	1	0107-
312	BRACKET; CLIP HARNESS (B)	1-82698-358-0	01	1	0105-0105
312	BRACKET; CLIP HARNESS ISUZU M/T<X9A> (B)	1-82698-358-0	01	1	0105-0105
312	BRACKET; CLIP HARNESS (B)	1-82698-358-0	02	1	0106-
312	BRACKET; CLIP HARNESS (D)	1-82699-199-0	01	1	0105-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-82699-239-0	01	1	0105-
312	BRACKET; CLIP HARNESS CAB UP +110MM<TGG> (A) L=60 H=30	1-47477-716-1	01	1	0105-
312	BRACKET; CLIP HARNESS CAB UP +110MM<TGG> (C)	1-47478-769-0	01	1	0105-
312	BRACKET; CLIP HARNESS EXC. CAB UP +110MM<TGG> (C)	1-47477-156-2	01	1	0105-0109
312	BRACKET; CLIP HARNESS EXC. CAB UP +110MM<TGG> (C)	1-47479-342-0	01	1	0110-
324	BRACKET; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (A) L=110	1-82699-589-0	01	1	0105-0105
324	BRACKET; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82698-258-0	01	1	0105-0106
324	BRACKET; CLIP BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82698-258-0	01	1	0107-0107
324	BRACKET; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-82699-996-1	01	1	0107-
334	BRACKET (A)	1-53458-362-0	01	1	0105-
334	BRACKET EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B)	1-53458-709-1	01	1	0105-
342	BRACKET; HARNESS CAB MTG ZF M/T<X9E> (A)	1-82698-224-0	01	1	0105-
342	BRACKET; HARNESS CAB MTG EXC. ZF M/T<X9E> (B)	1-82699-625-0	01	1	0105-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0105-

421 116 16 16 235 16 16 16 16 16 16 16 16 16 60 168 104 104 462 168 81 148 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0212-
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	04	1	0212-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (D) ID=14 L=44	9-09917-427-0	03	1	0201-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (G) ID=22 L=52	9-09917-431-0	02	1	0201-
16	CLIP; HARNESS (AL) ID=28 L=58	1-09700-400-0	01	1	0111-
16	CLIP; HARNESS AUTO CAB TILT<WV2> (T) ID=11 L=41	1-09700-403-0	01	1	0107-
16	CLIP; HARNESS (T) ID=11 L=41	1-09700-403-0	03	1	0107-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (T) ID=11 L=41	1-09700-403-0	03	1	0107-
16	CLIP; HARNESS ZF M/T<X9E> (AH) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0109-
16	CLIP; HARNESS (T) ID=11 L=41	1-09700-403-0	01	1	0105-0106
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	01	1	0107-
16	CLIP; HARNESS (T) ID=11 L=41	1-09700-403-0	04	1	0105-0106
16	CLIP; HARNESS (G) ID=22 L=52	9-09917-431-0	05	1	0107-
16	CLIP; HARNESS (U) ID=15 L=42	1-09700-479-0	02	1	0105-
16	CLIP; HARNESS (V) ID=15 L=35	1-09700-507-0	01	1	0105-
16	CLIP; HARNESS (W) W/RUBBER ID=42.7 L=38	1-09700-583-1	01	1	0105-0402
16	CLIP; HARNESS (W) WO/RUBBER ID=42.7 L=38	1-09701-313-0	01	1	0403-0403
16	CLIP; HARNESS 6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (W) WO/RUBBER ID=42.7 L=38	1-09701-313-0	01	1	0404-
16	CLIP; HARNESS ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (W) WO/RUBBER ID=42.7 L=38	1-09701-313-0	01	1	0404-
16	CLIP; HARNESS (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0105-0109
16	CLIP; HARNESS (AI) ID=21 L=24	8-94176-807-1	01	1	0110-
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0105-0106
16	CLIP; HARNESS CAB UP +110MM<TGG> (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0105-0106
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0107-0112
16	CLIP; HARNESS EXC. CAB UP +110MM<TGG> (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0107-0112
16	CLIP; HARNESS (J) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0201-
16	CLIP; HARNESS (X) ID=4.8	1-09701-218-0	01	1	0105-0106
16	CLIP; HARNESS AUTO CAB TILT<WV2> (X) ID=4.8	1-09701-218-0	01	1	0107-
16	CLIP; HARNESS (Y) ID=19 L=32	1-09701-235-0	01	1	0105-0109
16	CLIP; HARNESS (Y) ID=19 L=32	1-09701-235-0	02	1	0105-0106
16	CLIP; HARNESS ELECTRONIC GOV RED4(Q4F) (T) ID=11 L=41	1-09700-403-0	05	1	0107-
16	CLIP; HARNESS (Z) L=300	1-09707-001-1	03	1	0105-0504
16	CLIP; HARNESS (AM) L=350	1-09707-183-0	03	1	0505-
16	CLIP; HARNESS (E) L=180	1-09707-162-1	02	1	0105-
16	CLIP; HARNESS (AA) WO/SPONGE RUBBER	1-09709-103-1	02	1	0105-
16	CLIP; HARNESS (L) OD=9 H=6	1-09709-178-0	07	1	0105-0106
16	CLIP; HARNESS (L) OD=9 H=6	1-09709-178-0	03	1	0107-
16	CLIP; HARNESS ZF M/T<X9E> (L) OD=9 H=6	1-09709-178-0	03	1	0107-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	0105-
16	CLIP; HARNESS ZF M/T<X9E> (F) L=250	5-09707-030-1	03	1	0105-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0105-0106
16	CLIP; HARNESS ISUZU M/T<X9A> (K) L=140	5-09707-031-1	01	1	0105-0106
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0107-0205
16	CLIP; HARNESS ISUZU M/T<X9A> (K) L=140	5-09707-031-1	01	1	0107-0205
16	CLIP; HARNESS BRAKE SYSTEM RETARDER<RE2> (K) L=140	5-09707-031-1	01	1	0107-0205
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0206-
16	CLIP; HARNESS ISUZU M/T<X9A> (K) L=140	5-09707-031-1	01	1	0206-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> (K) L=140	5-09707-031-1	01	1	0206-
16	CLIP; HARNESS (AB) ID=14-20	8-97061-603-0	01	1	0105-0106
16	CLIP; HARNESS CAB UP +110MM<TGG> (AJ) ID=26 L=26	1-09701-236-0	02	1	0107-0108
16	CLIP; HARNESS CAB UP +110MM<TGG> (AJ) ID=26 L=26	1-09701-236-0	01	1	0109-
16	CLIP; HARNESS (M) ID=16 L=20	9-09525-535-0	01	1	0105-0108
16	CLIP; HARNESS FULLER M/T<X9B>,ZF M/T<X9E> (M) ID=16 L=20	9-09525-535-0	01	1	0105-0108
16	CLIP; HARNESS (M) ID=16 L=20	9-09525-535-0	01	1	0109-0606
16	CLIP; HARNESS FULLER M/T<X9B> (M) ID=16 L=20	9-09525-535-0	01	1	0109-0606
16	CLIP; HARNESS (M) ID=16 L=20	0-95235-535-0	01	1	0607-
16	CLIP; HARNESS FULLER M/T<X9B> (M) ID=16 L=20	0-95235-535-0	01	1	0607-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	01	1	0105-0106
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (D) ID=14 L=44	9-09917-427-0	01	1	0105-0106
16	CLIP; HARNESS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (D) ID=14 L=44	9-09917-427-0	01	1	0107-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	01	1	0107-
16	CLIP; HARNESS EXC. AUTO CAB TILT<WV2> (D) ID=14 L=44	9-09917-427-0	01	1	0107-
16	CLIP; HARNESS (D) ID=14 L=44	9-09917-427-0	04	1	0105-0106
16	CLIP; HARNESS EXC. ELECTRONIC GOV RED4(Q4F) (D) ID=14 L=44	9-09917-427-0	05	1	0107-
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	05	1	0105-0106
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	04	1	0107-0109
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	03	1	0110-0112
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	03	1	0110-0112
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	03	1	0201-0211
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	03	1	0201-0211
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	03	1	0212-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AF) L=150	1-09707-145-1	01	1	0105-0106
16	CLIP; HARNESS BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AF) L=150	1-09707-145-1	01	1	0107-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FULLER M/T<X9B> (I) ID=11 L=16	9-09525-025-0	01	1	0105-0109
16	CLIP; HARNESS FULLER M/T<X9B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) ID=11 L=16	9-09525-025-0	01	1	0110-0606
16	CLIP; HARNESS REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) ID=11 L=16	9-09525-025-0	01	1	0110-0606
16	CLIP; HARNESS FULLER M/T<X9B> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) ID=11 L=16	0-95235-025-0	01	1	0607-
16	CLIP; HARNESS REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) ID=11 L=16	0-95235-025-0	01	1	0607-
16	CLIP; HARNESS EXC. CAB UP +110MM<TGG> (AC)	8-94403-348-0	01	1	0105-
16	CLIP; HARNESS FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=15 L=65	1-09700-466-0	01	1	0105-
16	CLIP; HARNESS FRAME EQUIPMENT HEAVY DUTY VAR1<F03> REVERSING WARNING BUZZER<YM9> (B) OD=9 H=17.5	1-09709-181-0	01	1	0105-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (E) L=180	1-09707-162-1	01	1	0105-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (F) L=250	5-09707-030-1	01	1	0105-0110
16	CLIP; HARNESS (F) L=250	5-09707-030-1	01	1	0111-0112
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (F) L=250	5-09707-030-1	01	1	0111-0112
16	CLIP; HARNESS (F) L=250	5-09707-030-1	01	1	0201-0211
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (F) L=250	5-09707-030-1	01	1	0201-0211
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (F) L=250	5-09707-030-1	01	1	0212-0303
16	CLIP; HARNESS EXC. CAB UP +110MM<TGG> (F) L=250	5-09707-030-1	01	1	0304-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (F) L=250	5-09707-030-1	01	1	0304-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (H) ID=20 L=50	9-09917-430-0	01	1	0105-0106
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS AUTO CAB TILT<WV2> (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0107-0112
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS AUTO CAB TILT<WV2> (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	01	1	0201-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (G) ID=22 L=52	9-09917-431-0	23	1	0105-0112
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (G) ID=22 L=52	9-09917-431-0	21	1	0201-
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	03	1	0105-0109
16	CLIP; HARNESS FULLER M/T<X9B> (L) OD=9 H=6	1-09709-178-0	02	1	0105-
16	CLIP; HARNESS FULLER M/T<X9B> (F) L=250	5-09707-030-1	02	1	0105-
16	CLIP; HARNESS EXC. FULLER M/T<X9B>,ZF M/T<X9E> (AD) L=36	8-94224-891-1	01	1	0105-0205
16	CLIP; HARNESS ISUZU M/T<X9A> (AD) L=36	8-94224-891-1	01	1	0206-
16	CLIP; HARNESS MJA7 M/T<X9Q> (L) OD=9 H=6	1-09709-178-0	01	1	0105-0205
16	CLIP; HARNESS ISUZU M/T<X9A> (L) OD=9 H=6	1-09709-178-0	01	1	0206-
16	CLIP; HARNESS REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (I) ID=11 L=16	9-09525-025-0	02	1	0105-0109
16	CLIP; HARNESS REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (N) ID=11 H=30 L=17	1-09700-113-0	01	1	0110-
16	CLIP; HARNESS REVERSING WARNING BUZZER<YM9> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (O) OD=9 H=9.5	1-09709-179-0	01	1	0105-
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (C) L=20 SET=10 PIECE	1-09987-246-2	04	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (R) ID=20 L=70	1-09700-485-0	03	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (R) ID=20 L=70	1-09700-485-0	03	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (Q) ID=20 H=23 L=27	1-09700-861-0	02	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (R) ID=20 L=70	1-09700-485-0	01	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (R) ID=20 L=70	1-09700-485-0	13	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> HONG KONG EQUIPMENT(PQ1) (S) ID=11 L=61	1-09700-484-0	06	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> SINGAPORE EQUIPMENT(WQ3) (S) ID=11 L=61	1-09700-484-0	10	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (H) ID=20 L=50	9-09917-430-0	13	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) SINGAPORE EQUIPMENT(WQ3) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (T) ID=11 L=41	1-09700-403-0	10	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (J) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (R) ID=20 L=70	1-09700-485-0	02	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (R) ID=20 L=70	1-09700-485-0	21	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> HONG KONG EQUIPMENT(PQ1) (S) ID=11 L=61	1-09700-484-0	03	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) FRAME EQUIPMENT HEAVY DUTY VAR1<F03> SINGAPORE EQUIPMENT(WQ3) (S) ID=11 L=61	1-09700-484-0	07	1	0105-0106
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (G) ID=22 L=52	9-09917-431-0	01	1	0107-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (H) ID=20 L=50	9-09917-430-0	02	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,FULL TRACTOR TRUCK<RD6> (H) ID=20 L=50	9-09917-430-0	21	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (T) ID=11 L=41	1-09700-403-0	03	1	0105-0106
16	CLIP; HARNESS ELECTRONIC GOV RED3(KG5) (T) ID=11 L=41	1-09700-403-0	02	1	0107-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5) (T) ID=11 L=41	1-09700-403-0	06	1	0105-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (T) ID=11 L=41	1-09700-403-0	06	1	0105-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3) EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (T) ID=11 L=41	1-09700-403-0	07	1	0105-
16	CLIP; HARNESS ZF M/T<X9E> (N) ID=15 H=30 L=30	1-09700-832-0	01	1	0105-0105
16	CLIP; HARNESS ZF M/T<X9E> (AK) ID=19 L=28	9-09525-856-0	01	1	0106-0606
16	CLIP; HARNESS ZF M/T<X9E> (AK) ID=19 L=28	0-95235-856-0	01	1	0607-
16	CLIP; HARNESS ZF M/T<X9E> (L) OD=9 H=6	1-09709-178-0	03	1	0105-0106
16	CLIP; HARNESS AUTO CAB TILT<WV2> (L) OD=9 H=6	1-09709-178-0	04	1	0107-
16	CLIP; HARNESS EXC. ZF M/T<X9E> (AE) ID=16 L=40	9-09525-576-0	01	1	0105-0205
16	CLIP; HARNESS ISUZU M/T<X9A>,FULLER M/T<X9B> (AE) ID=16 L=40	9-09525-576-0	01	1	0206-0606
16	CLIP; HARNESS ISUZU M/T<X9A>,FULLER M/T<X9B> (AE) ID=16 L=40	0-95235-576-0	01	1	0607-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (P) ID=11 L=20	9-09525-032-0	01	1	0105-0606
16	CLIP; HARNESS 6WF1 TC-C(1B8) (P) ID=11 L=20	0-95235-032-0	01	1	0607-
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	0306-
81	CLIP; HARNESS (D) L=250	5-09707-030-1	01	1	0105-
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16	9-09525-025-0	01	1	0105-0606
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16	0-95235-025-0	01	1	0607-
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10	8-94472-578-0	02	1	0105-
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) ID=7-10	8-94472-578-0	06	1	0105-
81	CLIP; HARNESS REINFORCEMENT BUMPER<VG7> (C) L=180	1-09707-162-1	02	1	0105-
81	CLIP; HARNESS EXC. REINFORCEMENT BUMPER<VG7> (E) L=140	5-09707-031-1	02	1	0105-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5	1-09709-290-0	08	1	0105-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) L=140	5-09707-031-1	02	1	0105-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5	8-94178-108-0	02	1	0105-
116	CLIP; ROOF HARNESS EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	05	1	0201-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	0105-0112
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	06	1	0201-
116	CLIP; ROOF HARNESS LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	06	1	0105-0112
116	CLIP; ROOF HARNESS LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	08	1	0201-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	0105-0606
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0607-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0105-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	04	1	0105-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	06	1	0105-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	0105-
235	CLIP; HARNESS,SPD SENSOR,SSPS EXC. FULLER M/T<X9B>,ZF M/T<X9E> ID=13 H=29 L=30	1-09700-001-0	01	1	0105-0106
235	CLIP; HARNESS,SPD SENSOR,SSPS EXC. FULLER M/T<X9B>,ZF M/T<X9E> ID=10 H=25 L=20	1-09700-519-0	01	1	0107-
421	CLIP; FLOOR HARNESS (B) L=20 SET=10 PIECE	1-09987-246-2	01	1	0105-0207
421	CLIP; FLOOR HARNESS (C) ID=19 L=20	9-09525-832-0	02	1	0105-0105
421	CLIP; FLOOR HARNESS (D) ID=21 L=28	1-09700-673-1	02	1	0106-
421	CLIP; FLOOR HARNESS LAMP-ROOM OPERATION W/CONSOLE<C93> (B) L=20 SET=10 PIECE	1-09987-246-2	05	1	0105-
421	CLIP; FLOOR HARNESS ELECTRONIC GOV RED4(Q4F) EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B) L=20 SET=10 PIECE	1-09987-246-2	05	1	0105-
421	CLIP; FLOOR HARNESS VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140	5-09707-031-1	01	1	0105-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20	1-09709-068-0	02	1	0301-

5 1 224 185 1 178 178 178 530 503 510 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 L=50	5-09360-835-0	01	1	0212-
1	SLEEVE; RUBBER ELECTRONIC GOV RED4(Q4F) (A) ID=14 OD=18 L=60	1-09337-030-0	01	1	0201-
5	GUIDE; HARNESS L=360	1-82699-476-1	01	1	0105-0403
5	GUIDE; HARNESS 6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> L=360	1-82699-476-1	01	1	0404-
5	GUIDE; HARNESS ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) L=360	1-82699-476-1	01	1	0404-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	03	1	0105-
178	GROMMET; HARNESS (C) ID=24 OD=30 T=22	1-09332-104-0	01	1	0105-
178	GROMMET; HARNESS SINGAPORE EQUIPMENT(WQ3) (C) ID=24 OD=30 T=22	1-09332-104-0	01	1	0105-
178	GROMMET; HARNESS (C) ID=24 OD=30 T=22	1-09332-104-0	01	1	0105-
178	GROMMET; HARNESS (B) ID=15 OD=20 T=26	1-09332-132-0	02	1	0105-
178	GROMMET; HARNESS (D)	1-82699-891-0	01	1	0105-
185	SLEEVE; RUBBER ID=6 L=30	5-09360-352-0	01	1	0105-
224	SLEEVE; RUBBER,HARNESS REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50	1-09337-023-0	01	1	0105-
503	CONNECTOR EXC. AUTO CAB TILT<WV2> 2P MALE LIGHT GRAY	1-82691-078-0	01	1	0105-
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	02	1	0105-
530	SEAL; HARNESS 180X40	1-72498-019-0	07	1	0105-0207
530	SEAL; HARNESS 180X40	1-72498-019-0	08	1	0208-
530	SEAL; HARNESS EXC. HIGH ROOF<S2F> 100X40	1-72498-022-0	01	1	0105-
530	SEAL; HARNESS LAMP-ROOM OPERATION W/CONSOLE<C93> 180X40	1-72498-019-0	03	1	0105-
530	SEAL; HARNESS 6WA1 TC-C(55L),6WG1 TC-C(72L) 180X40	1-72498-019-0	04	1	0105-
530	SEAL; HARNESS 6WF1 TC-C(1B8) 180X40	1-72498-019-0	06	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
