◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10882 - CXH RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#28096) — 204 parça

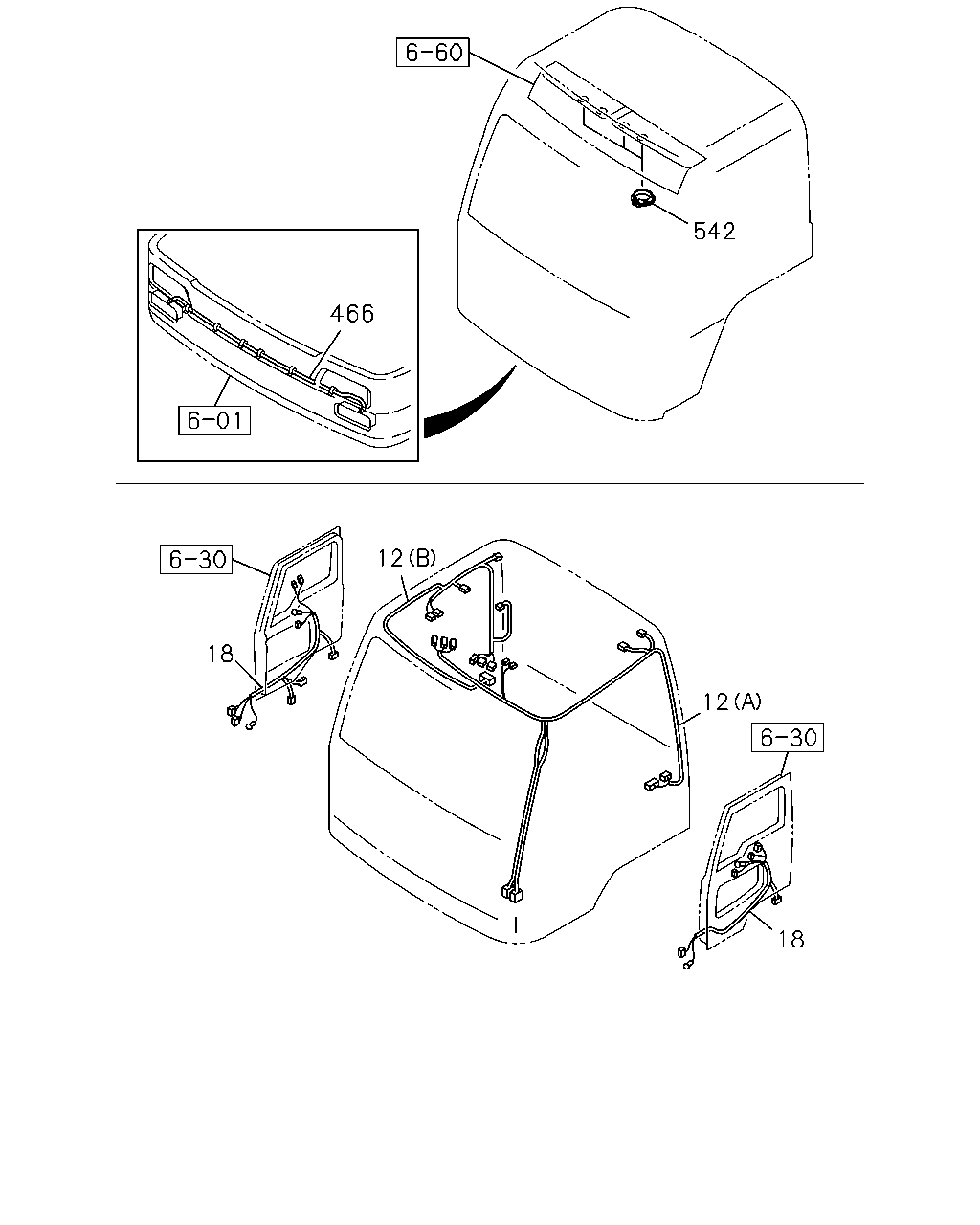

çizim 25471
542 466 12 18 12 18
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (A) 		1-82629-922-2 01 1 0105-
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> HIGH ROOF<S2F> (A) 		1-82629-923-2 01 1 0105-
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. HIGH ROOF<S2F> (A) 		1-82629-919-2 01 1 0105-
12 HARNESS; ROOF
EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,HIGH ROOF<S2F> (A) 		1-82629-918-2 01 1 0105-
12 HARNESS; ROOF
SPEAKER SYSTEM 4 SPEAKER<NBV> (B) 		1-82628-107-0 01 1 0105-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-588-0 01 1 0105-
18 HARNESS; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82628-673-0 01 1 0105-
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82628-582-0 01 1 0105-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 0105-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-589-0 01 1 0105-
466 HARNESS; BUMPER
REINFORCEMENT BUMPER<VG7> 		1-82639-227-3 01 1 0105-
466 HARNESS; BUMPER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82639-281-0 01 1 0105-
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 0105-

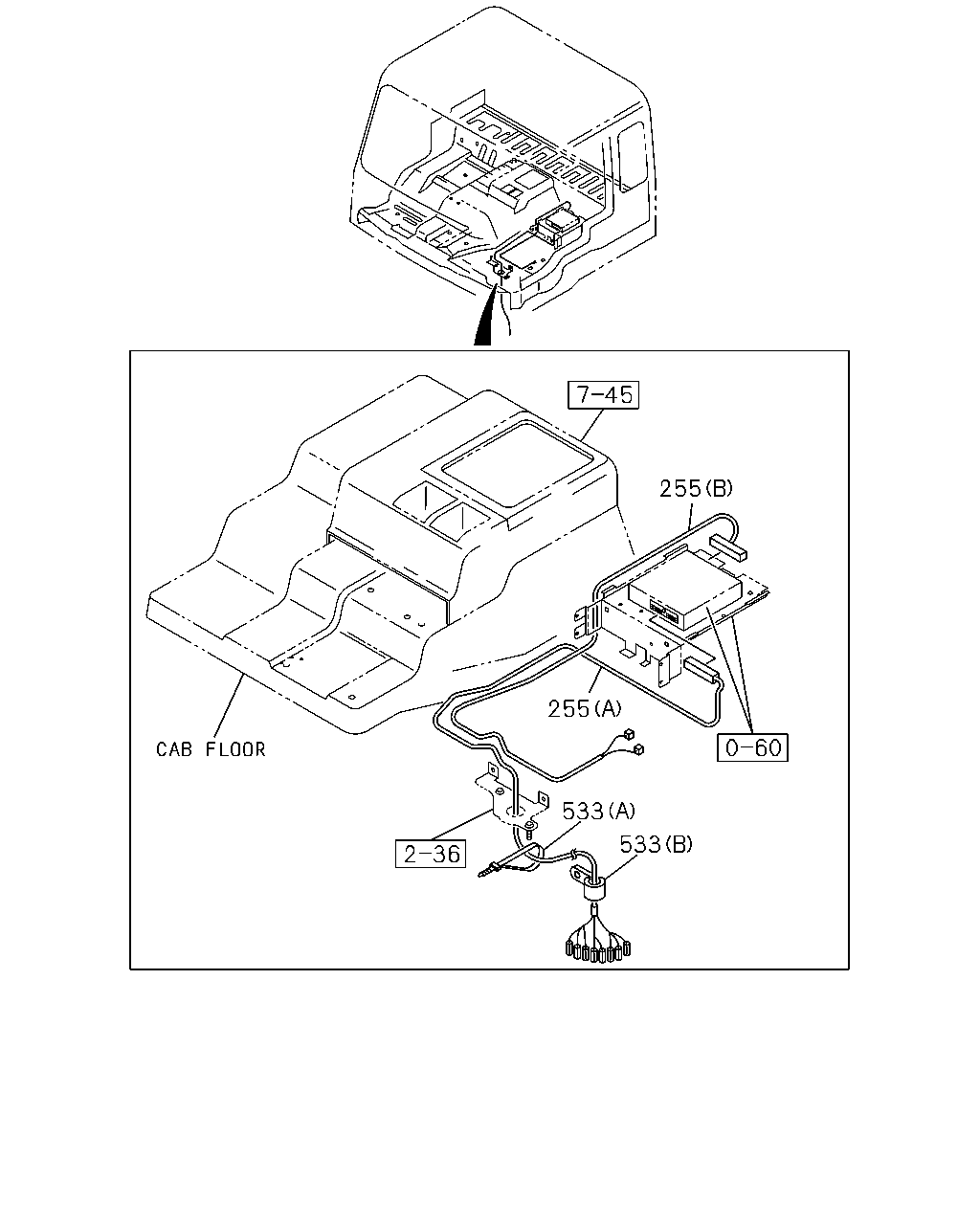

çizim 25543
255 255 533 533
BalonParca AdiParca NoAdetTipApplied Date
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) (B) 		1-82660-380-2 01 1 0105-
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> (A) 		1-82660-373-3 01 1 0105-
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED4(Q4F) (A) 		1-82660-377-4 01 1 0105-
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED4(Q4F) (B) 		1-82660-383-2 01 1 0105-
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (A) 		1-82660-371-2 01 1 0105-
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) 		1-82660-379-0 01 1 0105-
533 CLIP
(B) ID=19 L=32 		1-09701-235-0 01 1 0105-0109
533 CLIP
(B) ID=21 L=24 		8-94176-807-1 01 1 0110-
533 CLIP
(A) L=250 		5-09707-030-1 03 1 0105-0205
533 CLIP
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (A) L=180 		1-09707-162-1 03 1 0206-
533 CLIP
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) L=180 		1-09707-162-1 03 1 0206-

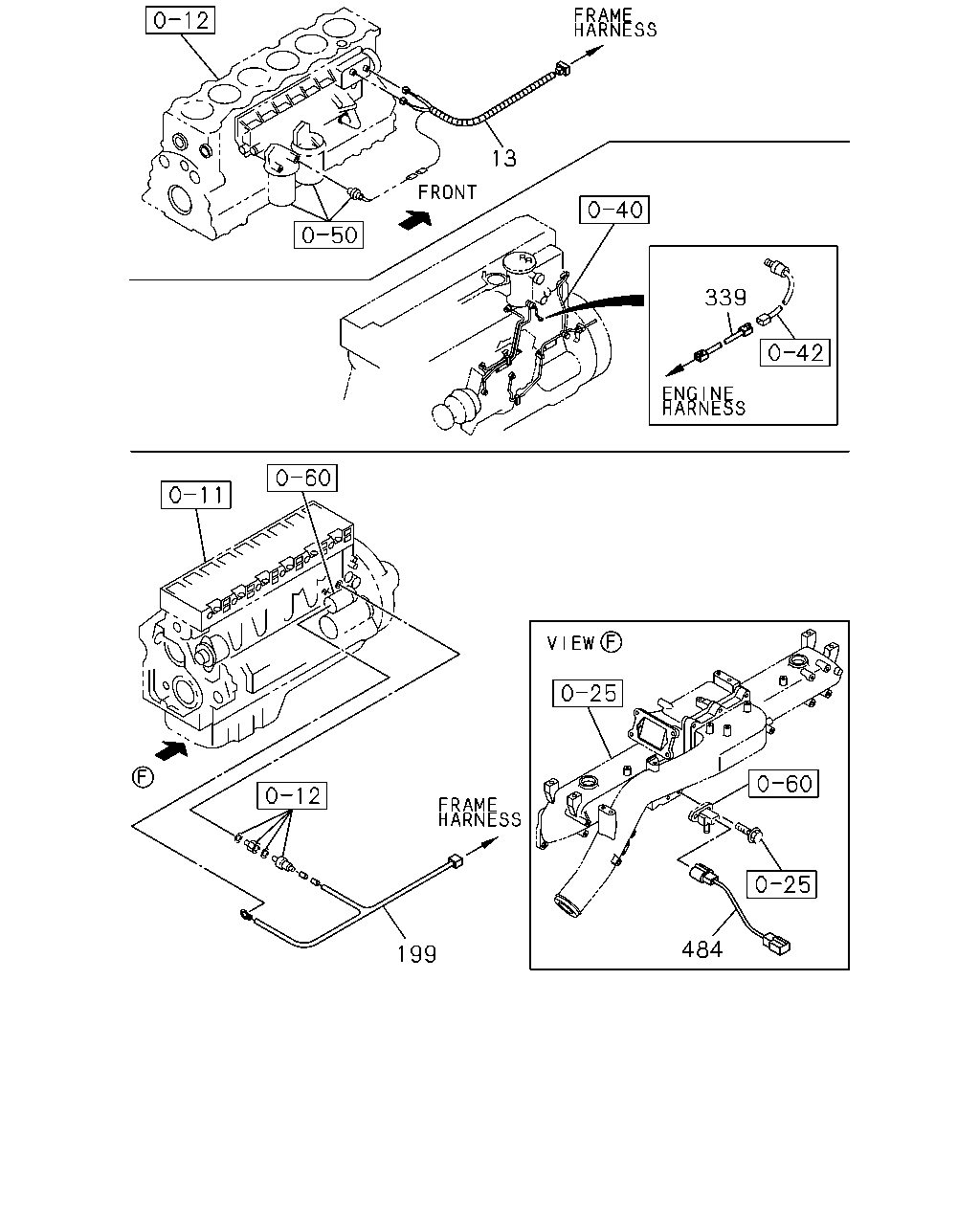

çizim 25545
13 199 484 339
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG 1-82640-553-4 01 1 0105-
199 HARNESS; STARTER 1-82640-734-1 01 1 0105-
339 HARNESS; EXT,FUEL
6WF1 TC-C(1B8) 		1-82641-316-0 01 1 0311-
484 HARNESS; BOOST SENSOR
6WF1 TC-C(1B8) 		1-82641-149-0 01 1 0105-

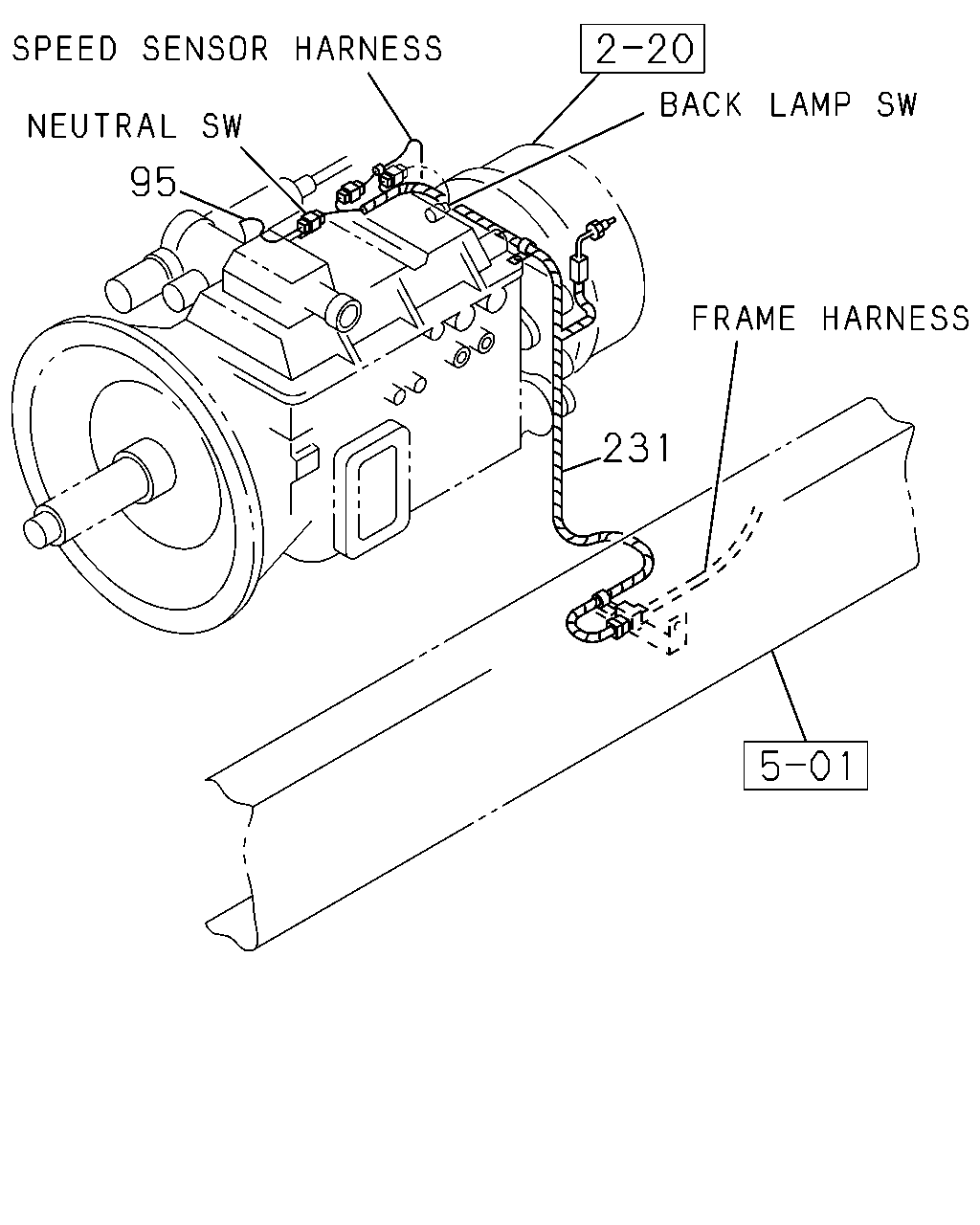

çizim 77963
95 231
BalonParca AdiParca NoAdetTipApplied Date
95 HARNESS; NEUTRAL SW
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) 		1-82639-626-0 01 1 0105-
231 HARNESS; TRANS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> 		1-82674-850-1 01 1 0105-0106
231 HARNESS; TRANS
BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ISUZU M/T<X9A> 		1-82674-850-1 01 1 0107-
231 HARNESS; TRANS
FULLER M/T<X9B> 		1-82674-853-1 01 1 0105-
231 HARNESS; TRANS
ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82674-849-1 01 1 0105-0106
231 HARNESS; TRANS
ISUZU M/T<X9A> EXC. BRAKE SYSTEM RETARDER<RE2>,BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82674-849-1 01 1 0107-
231 HARNESS; TRANS
ZF M/T<X9E> 		1-82674-852-0 01 1 0105-0107
231 HARNESS; TRANS
ZF M/T<X9E> 		1-82675-056-0 01 1 0108-

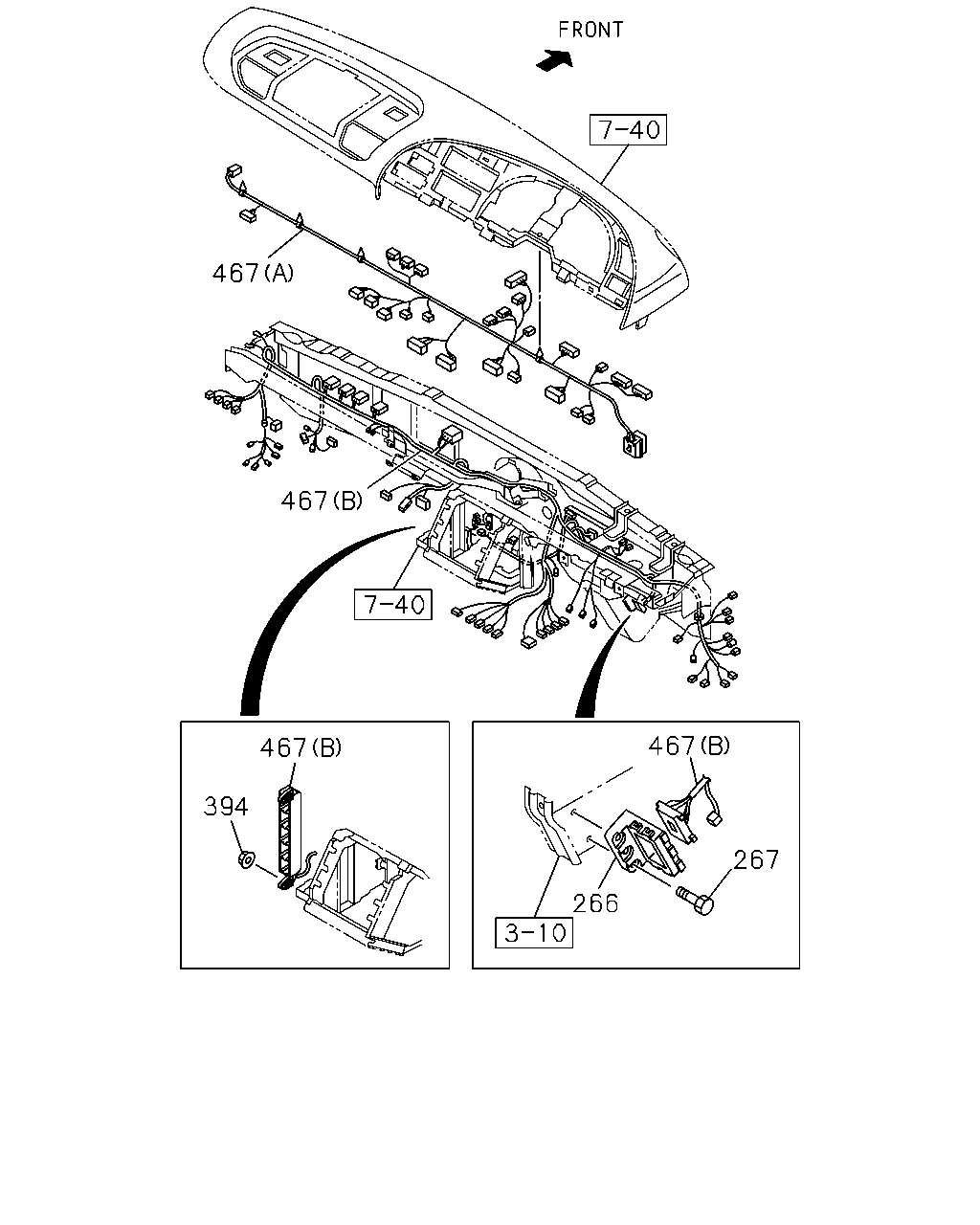

çizim 78946
267 467 266 467 394 467 467
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0105-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0105-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91150-106-0 01 1 0401-0602
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0603-
467 HARNESS; FACIA
(A) UPPER 		1-82629-926-2 01 1 0105-
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-424-2 01 1 0105-
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-426-2 01 1 0105-
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-425-2 01 1 0105-
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-454-3 01 1 0105-
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-456-3 01 1 0105-
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-455-3 01 1 0105-
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) LOWER 		1-82660-421-3 01 1 0105-
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),CORNERING LAMP<TDS> (B) LOWER 		1-82660-422-3 01 1 0105-
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-423-3 01 1 0105-

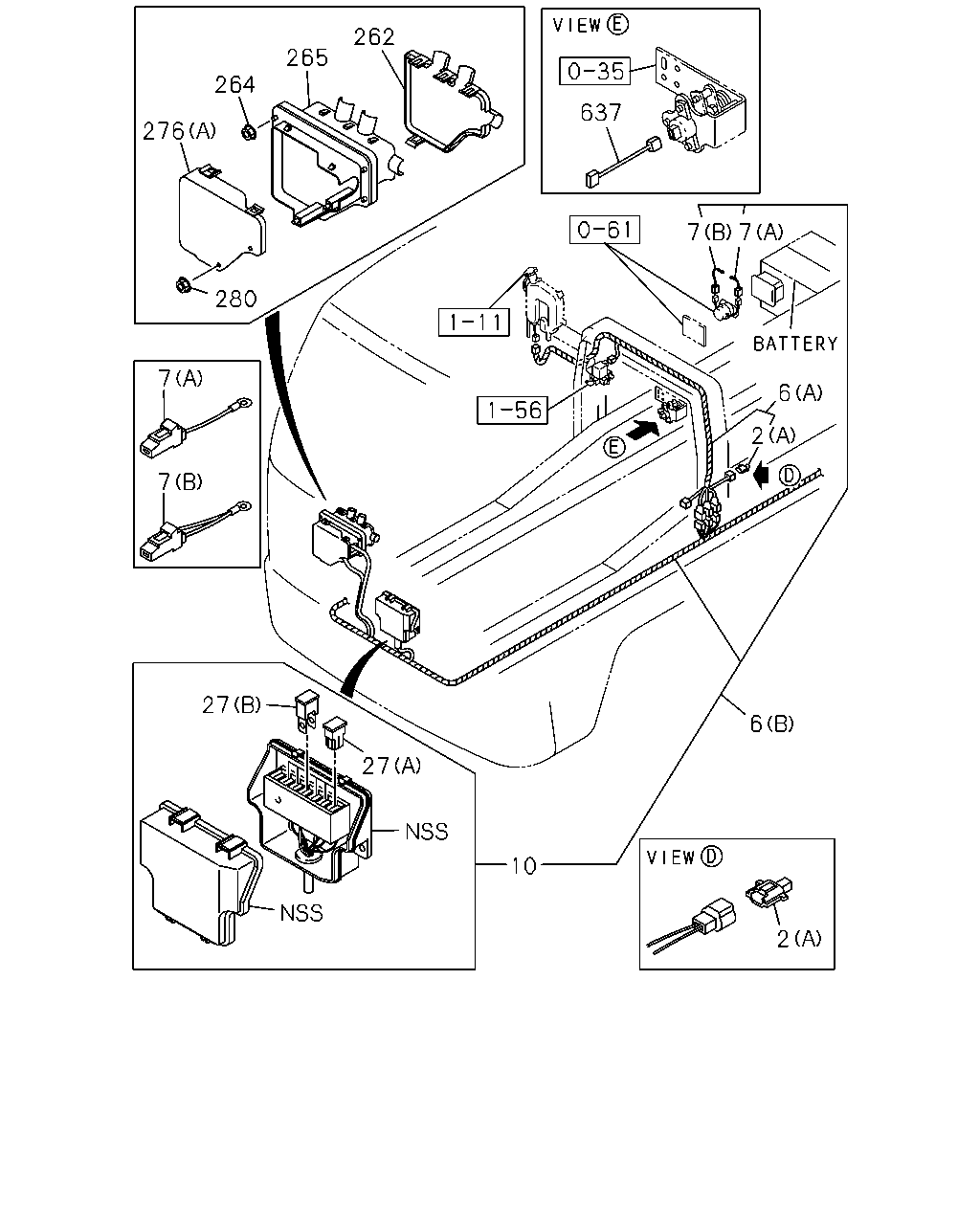

çizim 79560
2 6 7 7 637 262 265 264 276 280 7 7 27 27 10 2 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0105-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0105-
6 HARNESS; FRAME
PAPUA NEW GUINEA EQUIPMENT(PV5) (B) FRAME 		1-82674-868-2 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) AUTO CAB TILT<WV2> EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-810-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) MEMBER 		1-82674-811-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-809-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-860-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME 		1-82674-861-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 6600MM(66W) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-864-2 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 6600MM(66W) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME 		1-82674-865-2 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-826-1 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-827-1 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-825-1 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-870-2 01 1 0105-0109
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82675-523-0 01 1 0110-
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-869-2 01 1 0105-0109
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-522-0 01 1 0110-
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 6300MM(63W) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-862-2 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 6300MM(63W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-863-2 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 6600MM(66W) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-866-3 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 6600MM(66W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME 		1-82674-867-3 01 1 0105-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-813-1 01 1 0105-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-814-1 01 1 0105-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-812-1 01 1 0105-
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-872-2 01 1 0105-0109
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82675-525-0 01 1 0110-
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-871-2 01 1 0105-0109
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-524-0 01 1 0110-
7 LINK ASM; FUSIBLE
(B) 		1-82659-085-0 01 1 0105-
7 LINK ASM; FUSIBLE
(A) 60A BLUE 		1-82659-119-0 01 1 0105-
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L) 		1-82510-466-0 01 1 0105-
10 BOX; FUSE,HARNESS
6WF1 TC-C(1B8),6WG1 TC-C(72L) 		1-82510-467-0 01 1 0105-
10 BOX; FUSE,HARNESS
PAPUA NEW GUINEA EQUIPMENT(PV5) 		1-82510-467-0 01 1 0105-
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 05 1 0105-
27 FUSE UNIT
(B) 80A BLACK 		8-94468-671-0 01 1 0105-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 0105-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0105-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0105-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0105-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 0105-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0105-
637 HARNESS; EXT,S/SENSOR
ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 0207-

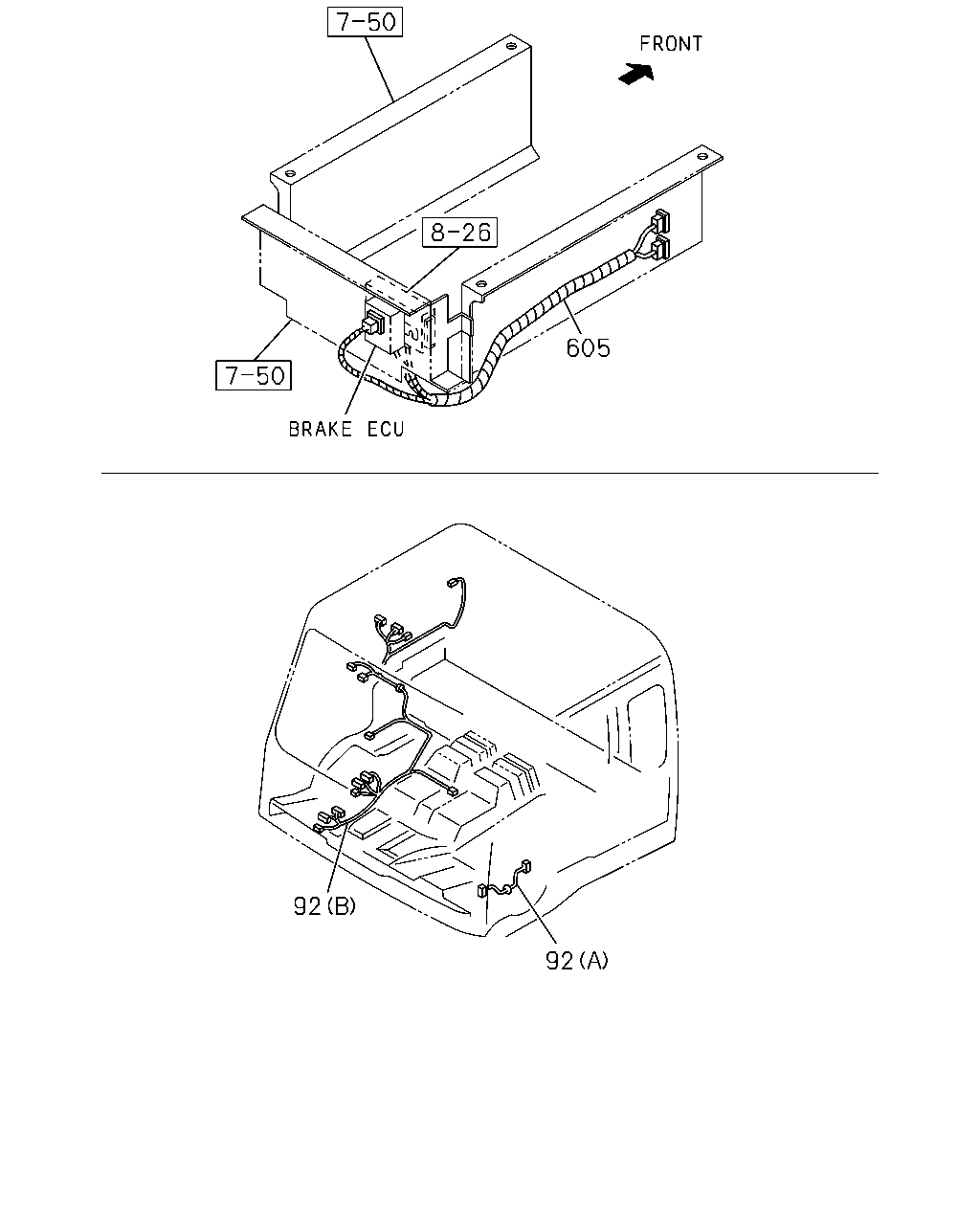

çizim 79706
605 92 92
BalonParca AdiParca NoAdetTipApplied Date
92 HARNESS; FLOOR
DRIVER ISRINGHAUSEN SEAT(SJA) ELEC OUTLET 12V<TAW> EXC. ELECTRONIC GOV RED4(Q4F) (B) 		1-82660-389-2 01 1 0105-0604
92 HARNESS; FLOOR
DRIVER ISRINGHAUSEN SEAT(SJA) ELEC OUTLET 12V<TAW> EXC. ELECTRONIC GOV RED4(Q4F) (B) 		1-82662-919-1 01 1 0605-
92 HARNESS; FLOOR
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. ELECTRONIC GOV RED4(Q4F),ELEC OUTLET 12V<TAW> (B) 		1-82660-388-3 01 1 0105-
92 HARNESS; FLOOR
ELEC OUTLET 12V<TAW> EXC. ELECTRONIC GOV RED4(Q4F),DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-82660-387-2 01 1 0105-0604
92 HARNESS; FLOOR
ELEC OUTLET 12V<TAW> EXC. ELECTRONIC GOV RED4(Q4F),DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-82662-918-1 01 1 0605-
92 HARNESS; FLOOR
ELECTRONIC GOV RED4(Q4F) DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-82660-392-3 01 1 0105-
92 HARNESS; FLOOR
ELECTRONIC GOV RED4(Q4F) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-82660-390-3 01 1 0105-
92 HARNESS; FLOOR
EXC. ELECTRONIC GOV RED4(Q4F),DRIVER ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> (B) 		1-82660-386-3 01 1 0105-
92 HARNESS; FLOOR
LAMP-ROOM OPERATION W/CONSOLE<C93> (A) 		1-82625-261-5 01 1 0105-
605 HARNESS; SEAT
ELECTRONIC GOV RED4(Q4F) ELEC OUTLET 12V<TAW> 		1-82660-399-0 01 1 0105-0604
605 HARNESS; SEAT
ELECTRONIC GOV RED4(Q4F) ELEC OUTLET 12V<TAW> 		1-82662-916-0 01 1 0605-
605 HARNESS; SEAT
ELECTRONIC GOV RED4(Q4F) EXC. ELEC OUTLET 12V<TAW> 		1-82660-398-0 01 1 0105-

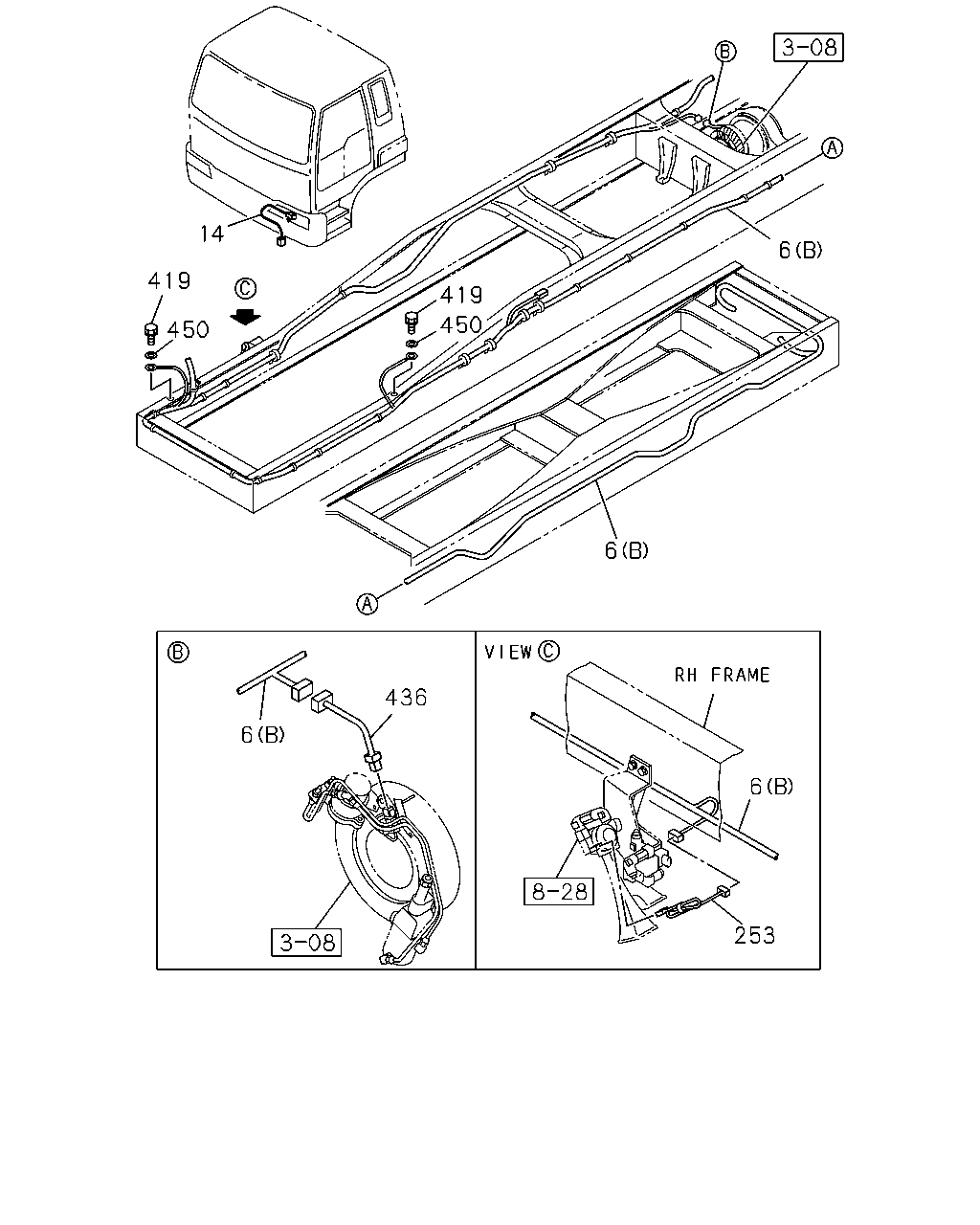

çizim 79776
253 6 436 6 6 6 450 419 14 419 450
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
PAPUA NEW GUINEA EQUIPMENT(PV5) (B) FRAME 		1-82674-868-2 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) AUTO CAB TILT<WV2> EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-810-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) MEMBER 		1-82674-811-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-809-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-860-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME 		1-82674-861-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 6600MM(66W) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-864-2 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 6600MM(66W) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME 		1-82674-865-2 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-826-1 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-827-1 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-825-1 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-870-2 01 1 0105-0109
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82675-523-0 01 1 0110-
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-869-2 01 1 0105-0109
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-522-0 01 1 0110-
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 6300MM(63W) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-862-2 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 6300MM(63W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-863-2 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 6600MM(66W) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-866-3 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 6600MM(66W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME 		1-82674-867-3 01 1 0105-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-813-1 01 1 0105-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-814-1 01 1 0105-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-812-1 01 1 0105-
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-872-2 01 1 0105-0109
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82675-525-0 01 1 0110-
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-871-2 01 1 0105-0109
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-524-0 01 1 0110-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82670-022-2 02 1 0105-
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> 		1-82625-150-2 02 1 0105-
14 HARNESS; HEADLAMP
REINFORCEMENT BUMPER<VG7> 		1-82625-986-0 02 1 0105-
253 HARNESS; EXT,HORN
6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> 		1-82677-941-0 01 1 0405-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105-
436 HARNESS; RETARDER
REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82670-620-0 01 1 0105-0109
436 HARNESS; RETARDER
REAR AXLE RT210<C2A> LOAD SENSING PROPORTIONING VALVE<JR7> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82675-610-0 01 1 0110-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0105-

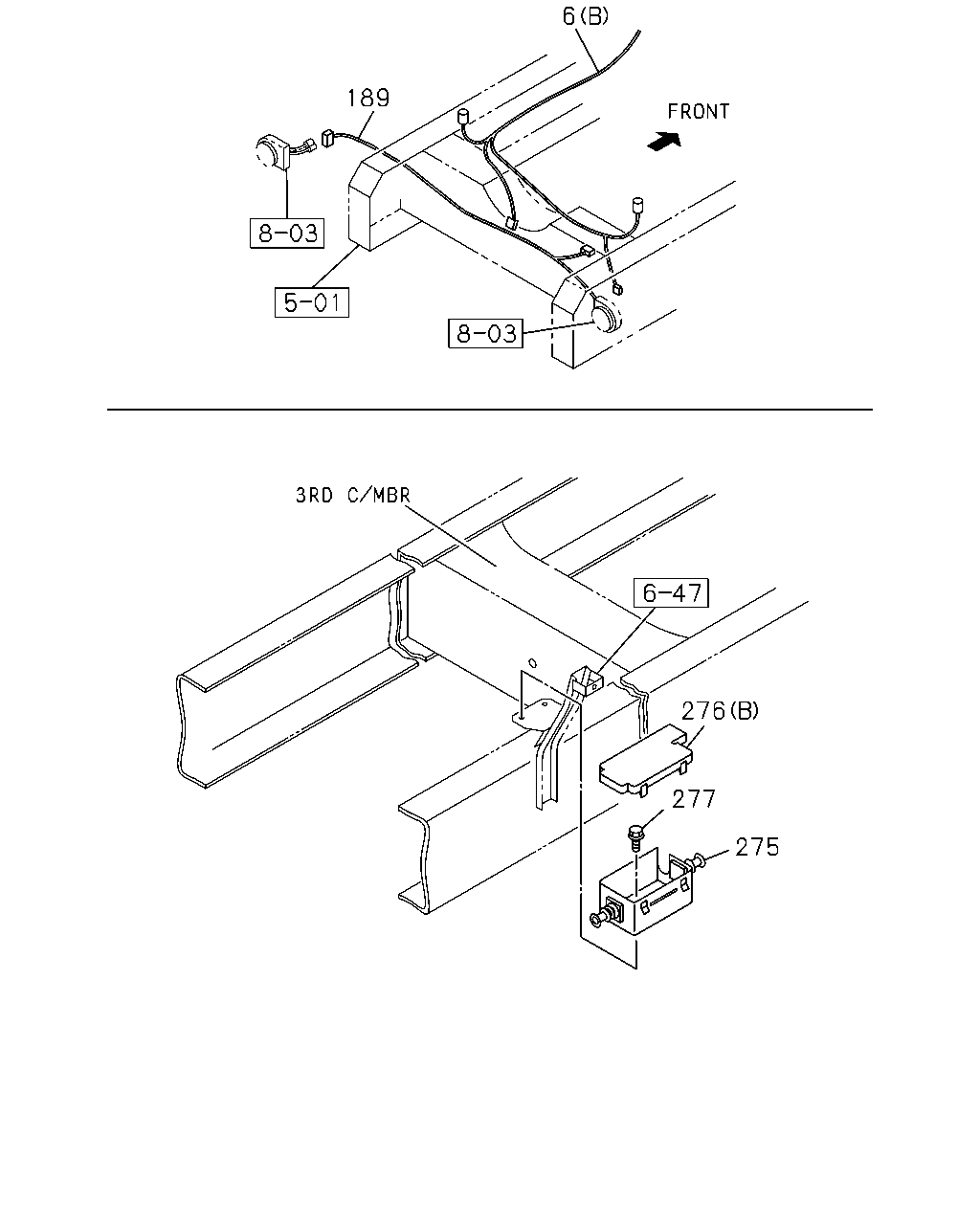

çizim 79811
6 189 276 277 275
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
PAPUA NEW GUINEA EQUIPMENT(PV5) (B) FRAME 		1-82674-868-2 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) AUTO CAB TILT<WV2> EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-810-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) MEMBER 		1-82674-811-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-809-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-860-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME 		1-82674-861-1 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 6600MM(66W) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-864-2 01 1 0105-
6 HARNESS; FRAME
6WA1 TC-C(55L) WHEEL BASE 6600MM(66W) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) FRAME 		1-82674-865-2 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-826-1 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-827-1 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-825-1 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-870-2 01 1 0105-0109
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82675-523-0 01 1 0110-
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-869-2 01 1 0105-0109
6 HARNESS; FRAME
6WF1 TC-C(1B8) FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-522-0 01 1 0110-
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 6300MM(63W) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-862-2 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 6300MM(63W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-863-2 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 6600MM(66W) CAB UP +110MM<TGG> EXC. FULL TRACTOR TRUCK<RD6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82674-866-3 01 1 0105-
6 HARNESS; FRAME
6WF1 TC-C(1B8) WHEEL BASE 6600MM(66W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. FULL TRACTOR TRUCK<RD6> (B) FRAME 		1-82674-867-3 01 1 0105-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-813-1 01 1 0105-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-814-1 01 1 0105-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-812-1 01 1 0105-
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82674-872-2 01 1 0105-0109
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL TRACTOR TRUCK<RD6> FULL FLOATING CAB(W16) (B) FRAME 		1-82675-525-0 01 1 0110-
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82674-871-2 01 1 0105-0109
6 HARNESS; FRAME
6WG1 TC-C(72L) FULL TRACTOR TRUCK<RD6> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-524-0 01 1 0110-
189 HARNESS; EXT
SINGAPORE EQUIPMENT(WQ3) 		1-82670-107-0 01 1 0105-
275 BOX ASM; FRAME HARNESS 1-82699-474-1 01 1 0105-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0105-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 0105-
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-

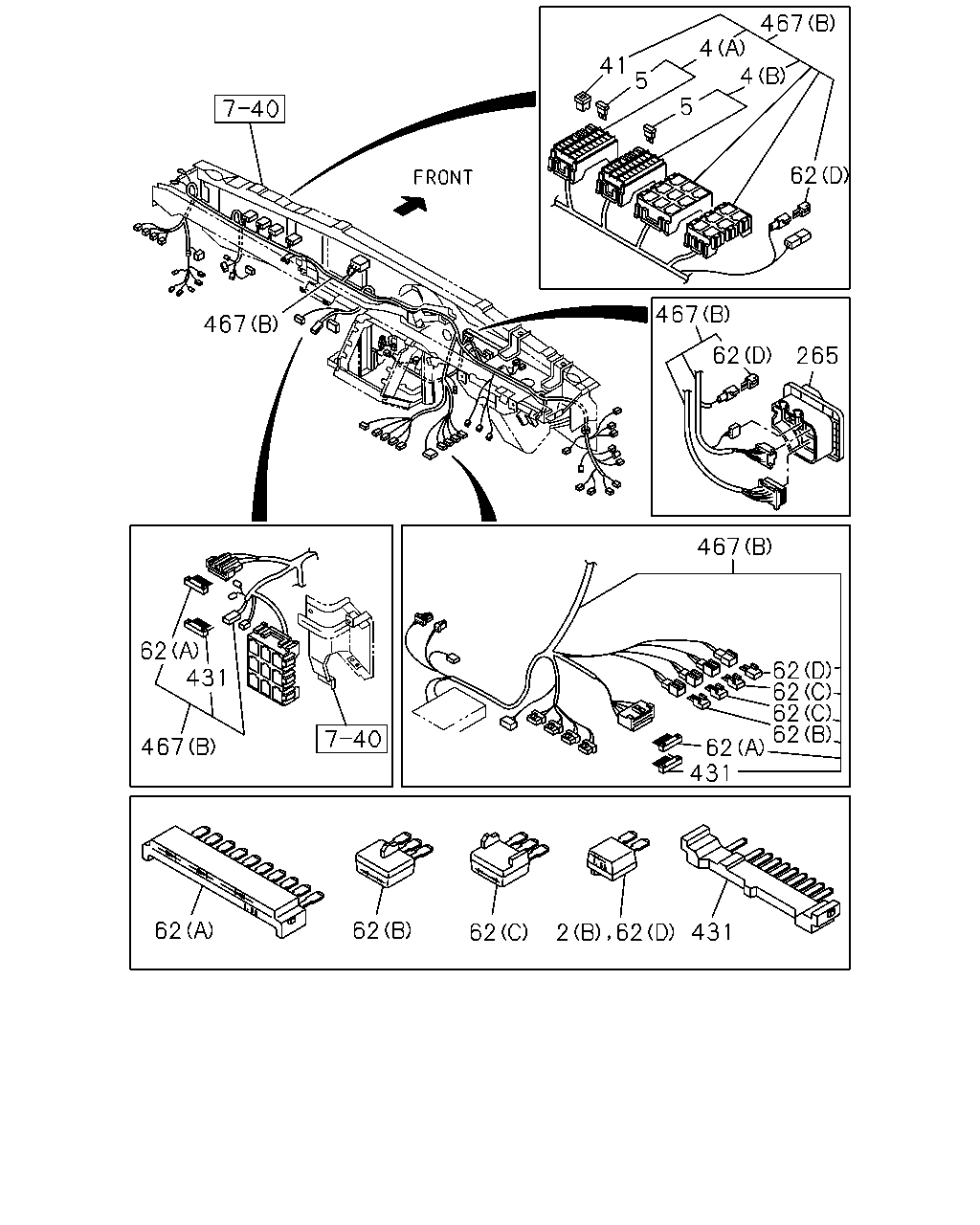

çizim 79990
265 62 467 62 5 5 41 4 467 4 467 467 62 62 62 62 62 431 431 62 2 62 62 62 431 467 62
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0105-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0105-
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 15AX24 25AX2 		1-82510-601-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) (B) 15AX24 25AX2 		1-82510-601-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 15AX23 		1-82510-414-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) (B) 15AX23 		1-82510-414-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX22 10AX4 		1-82510-435-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) (A) 7.5AX22 10AX4 		1-82510-435-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX25 		1-82510-418-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) (A) 7.5AX25 		1-82510-418-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) 15AX22 		1-82510-394-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) 15AX22 		1-82510-394-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),CORNERING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX20 		1-82510-410-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (A) 7.5AX20 		1-82510-410-0 01 1 0105-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 0105-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 AR 1 0105-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 0105-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0105-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 0105-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0105-
62 DIODE; HARNESS
(D) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0105-
62 DIODE; HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0105-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0105-
431 CONNECTOR; JOINT
10P BROWN 		1-82699-601-0 02 1 0105-
467 HARNESS; FACIA
(A) UPPER 		1-82629-926-2 01 1 0105-
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-424-2 01 1 0105-
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-426-2 01 1 0105-
467 HARNESS; FACIA
ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-425-2 01 1 0105-
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) CORNERING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-454-3 01 1 0105-
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-456-3 01 1 0105-
467 HARNESS; FACIA
ELECTRONIC GOV RED4(Q4F) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-455-3 01 1 0105-
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNERING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) (B) LOWER 		1-82660-421-3 01 1 0105-
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),CORNERING LAMP<TDS> (B) LOWER 		1-82660-422-3 01 1 0105-
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F),CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-423-3 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
