◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10882 - CXH RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#28093) — 156 parça

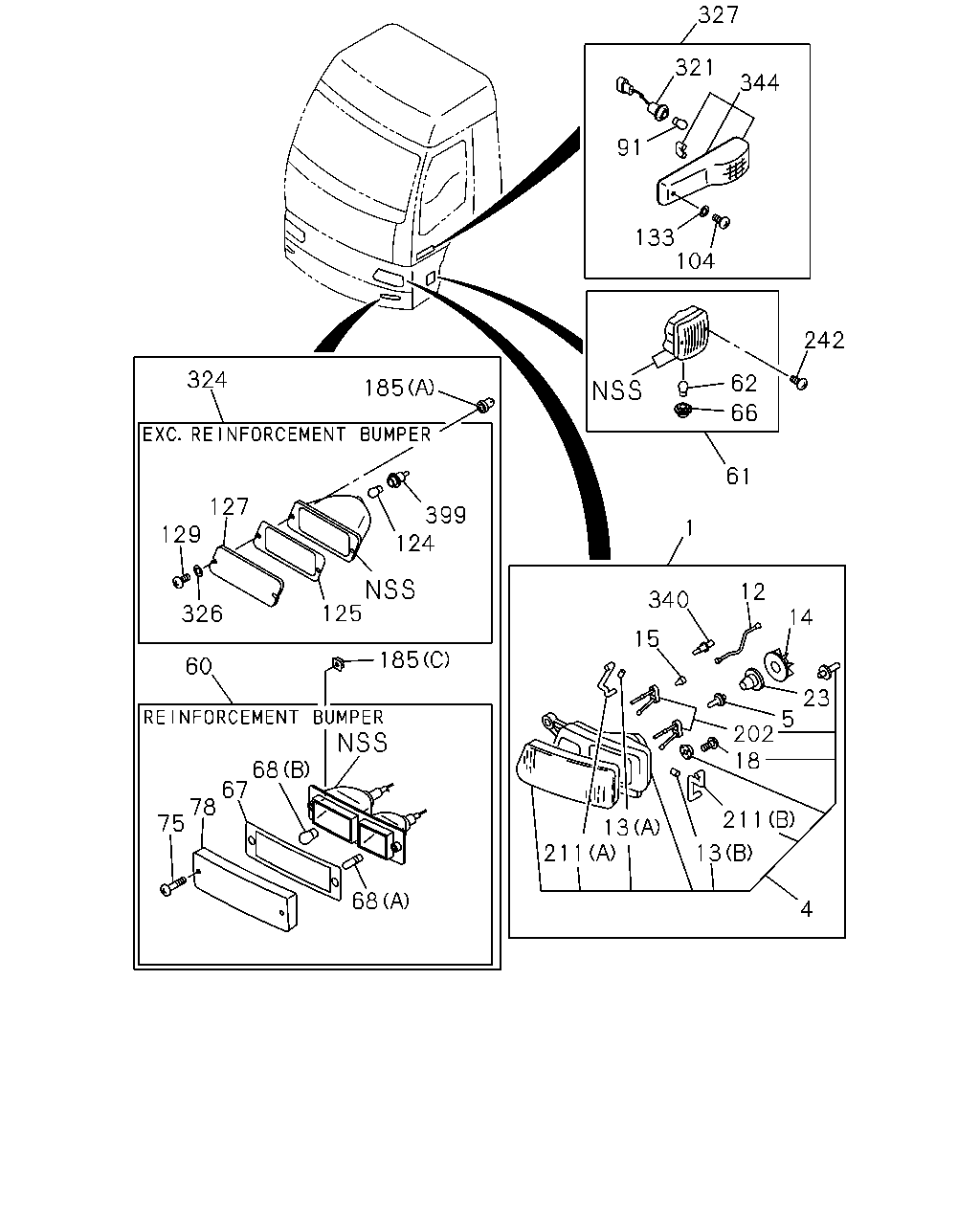

çizim 22822
327 344 321 91 104 133 242 62 66 61 1 14 12 340 15 23 5 202 18 211 13 4 13 211 185 125 124 399 185 324 127 129 326 60 68 67 78 75 68
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-396-2 01 1 0105-0509
1 LAMP ASM; HEAD 8-97609-414-1 01 1 0510-
1 LAMP ASM; HEAD 1-82110-395-2 01 1 0105-0509
1 LAMP ASM; HEAD 8-97609-413-1 01 1 0510-
4 HEADLAMP UNIT
24V 75/70W 		1-82119-129-0 01 1 0105-
4 HEADLAMP UNIT
24V 75/70W 		1-82119-128-0 01 1 0105-
5 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0105-
12 HARNESS; HEADLAMP 1-82118-012-0 02 1 0105-
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 04 1 0105-
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0105-
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0105-
15 BULB; FOG LAMP
24V 55W 		1-82194-079-0 02 1 0105-
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0105-
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0105-
60 LAMP ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		1-86830-273-0 01 1 0105-
60 LAMP ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		1-86830-272-0 01 1 0105-
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-188-2 01 1 0105-
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 24V 30W 		1-86830-187-2 01 1 0105-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0105-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 30W 		8-97010-179-0 01 1 0105-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0105-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 01 1 0105-
67 GASKET; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> 		8-94149-259-0 02 1 0105-
68 BULB; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> (A) 24V 5W 		1-82194-089-0 02 1 0105-
68 BULB; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> (B) 24V 21W 		1-82194-090-0 02 1 0105-
75 SCREW; FRT COMB LAMP
REINFORCEMENT BUMPER<VG7> 		0-91190-435-0 04 1 0105-
78 LENS ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		8-94151-265-0 01 1 0105-
78 LENS ASM; FRT COMB
REINFORCEMENT BUMPER<VG7> 		8-94151-264-0 01 1 0105-
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0105-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0105-
124 BULB; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 24V 21W 		1-82194-036-0 02 1 0105-
125 GASKET; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82216-033-0 02 1 0105-
127 LENS; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> ORANGE 		1-82215-065-0 01 1 0105-
127 LENS; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> ORANGE 		1-82215-064-0 01 1 0105-
129 SCREW; FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82219-026-0 04 1 0105-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0105-0206
185 GROMMET; SCREW
(B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0105-
185 GROMMET; SCREW
EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0105-
185 GROMMET; SCREW
REINFORCEMENT BUMPER<VG7> (C) M4 		5-09470-002-0 04 1 0105-
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0105-
211 TUBE; HEADLAMP
(A) 		1-86830-329-0 01 1 0105-0105
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0105-
211 TUBE; HEADLAMP
(A) 		1-86830-328-0 01 1 0105-0105
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0105-
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 0105-0207
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0208-
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0105-
324 LAMP; FRT FLASHER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82210-203-1 01 1 0105-
324 LAMP; FRT FLASHER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82210-202-1 01 1 0105-
326 WASHER; PL,FRT TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82216-032-0 04 1 0105-
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0105-
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0105-
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0105-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0105-
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0105-
399 SOCKET; TURN SIGNAL
EXC. REINFORCEMENT BUMPER<VG7> 		1-82219-034-0 02 1 0105-

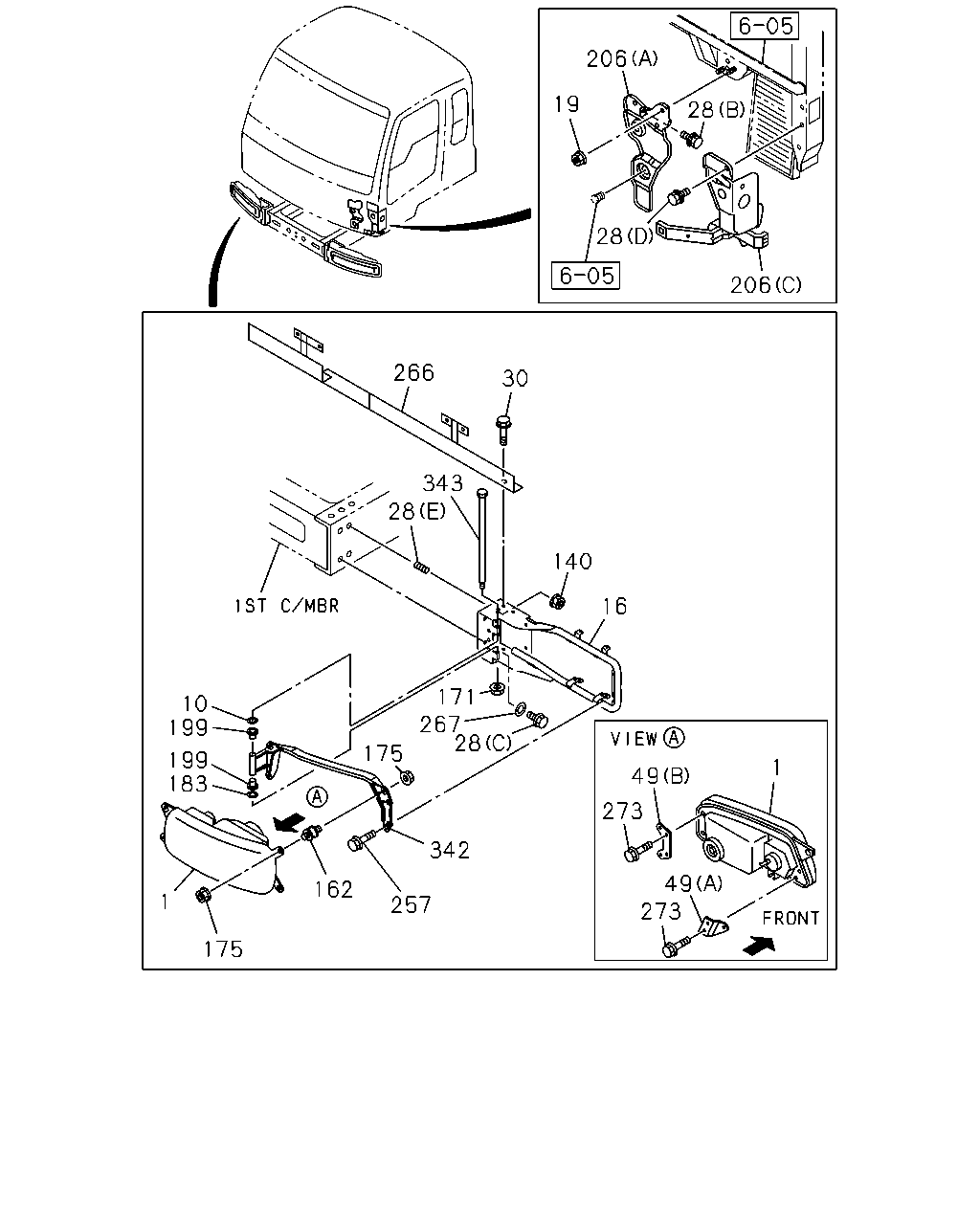

çizim 78948
206 28 28 206 19 30 266 343 28 140 16 1 49 273 49 273 257 342 162 175 1 28 171 267 175 10 199 199 183
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-396-2 01 1 0105-0509
1 LAMP ASM; HEAD 8-97609-414-1 01 1 0510-
1 LAMP ASM; HEAD 1-82110-395-2 01 1 0105-0509
1 LAMP ASM; HEAD 8-97609-413-1 01 1 0510-
10 WASHER; PL,HEADLAMP RIM
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4 		9-09160-508-0 02 1 0105-0605
10 WASHER; PL,HEADLAMP RIM
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4 OD=16 		0-91610-508-0 02 1 0606-
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> 		1-82117-120-2 01 1 0105-0206
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> 		1-82117-119-2 01 1 0105-0206
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82117-155-2 02 1 0207-
16 BRACKET; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> 		1-82117-116-1 02 1 0105-0206
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0105-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE 		0-28081-035-0 06 1 0105-0105
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0106-0512
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28651-030-0 06 1 0601-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0105-
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0105-
30 BOLT; STAY
CAB UP +110MM<TGG> M10X25 FLANGE 		0-28681-025-0 04 1 0105-0512
30 BOLT; STAY
CAB UP +110MM<TGG> M10X25 FLANGE 		0-28651-025-0 04 1 0601-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) 		1-82117-100-0 02 1 0105-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) 		1-82117-102-0 01 1 0105-
49 BRACKET; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) 		1-82117-101-0 01 1 0105-
140 NUT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10 FLANGE 		0-91150-210-0 02 1 0105-0602
140 NUT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M10 FLANGE 		0-91180-210-0 02 1 0603-
162 RUBBER; CUSHION UPR
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82117-086-0 08 1 0105-
171 NUT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6 FLANGE 		0-91150-106-0 02 1 0105-0602
171 NUT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6 FLANGE 		0-91180-106-0 02 1 0603-
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91150-108-0 16 1 0105-0602
175 NUT; BRKT CUSHION RUBBER
BUMPER W/HEADLAMPS<SLB> M8 FLANGE 		0-91180-108-0 16 1 0603-
183 WASHER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.5 		9-09855-333-0 02 1 0105-
199 BUSHING
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		5-15549-001-1 04 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0105-
257 BOLT; BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 FLANGE 		0-28080-820-0 04 1 0105-0512
257 BOLT; BRKT HD LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 FLANGE 		0-28050-820-0 04 1 0601-
266 STAY; BRKT,HEADLAMP
CAB UP +110MM<TGG> 		1-82117-137-1 01 1 0105-0510
266 STAY; BRKT,HEADLAMP
CAB UP +110MM<TGG> 		1-82117-187-0 01 1 0511-
267 WASHER; PL,STAY
BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=10.5 OD=22 		9-09164-610-0 04 1 0207-0605
267 WASHER; PL,STAY
BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=10.5 OD=22 		0-91614-610-0 04 1 0606-
273 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE 		0-28680-616-0 08 1 0105-0512
273 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE 		0-28650-616-0 08 1 0601-
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82117-087-2 01 1 0105-
342 HINGE; LAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82117-088-2 01 1 0105-
343 SHAFT; HINGE
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-82119-096-1 02 1 0105-

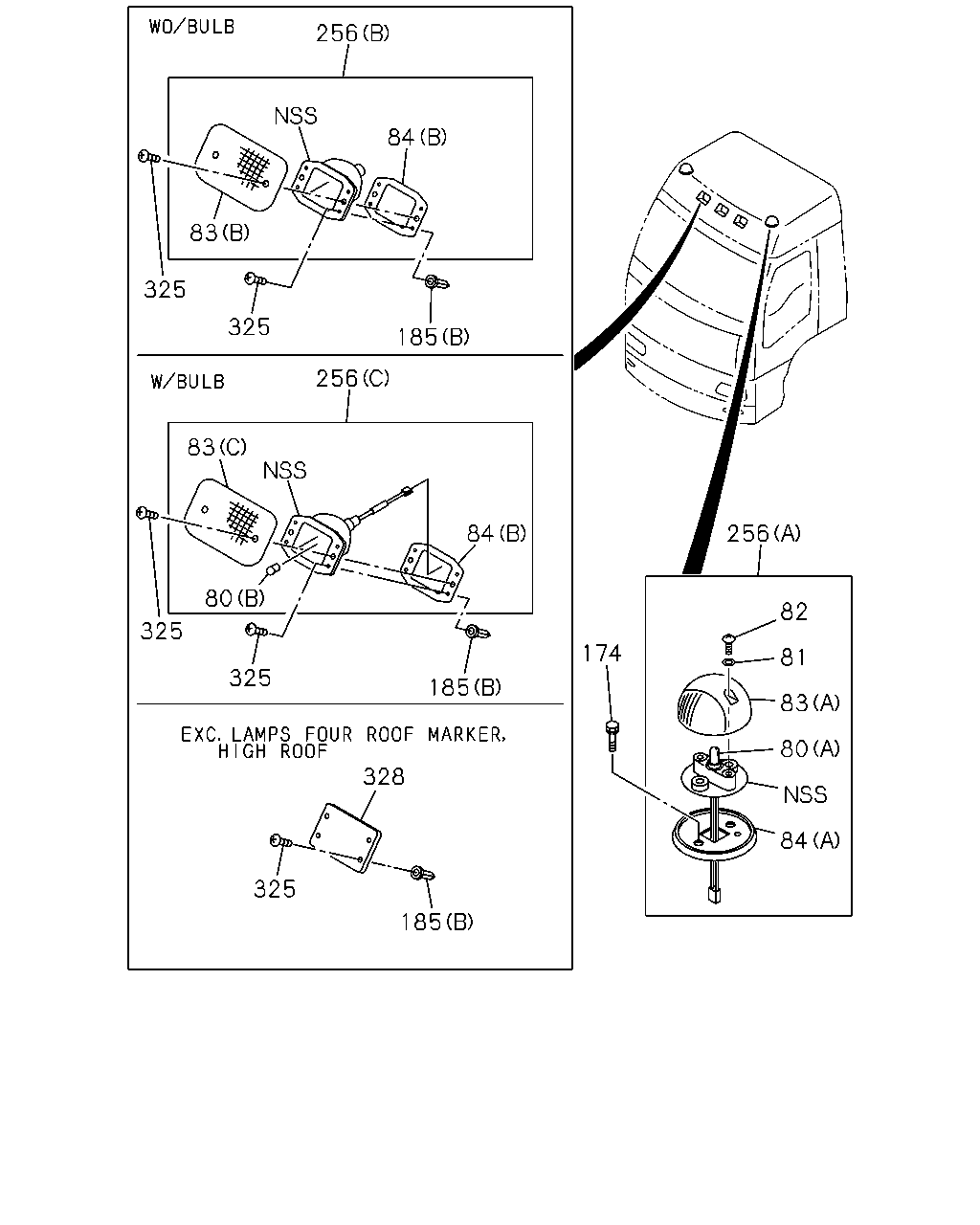

çizim 78949
82 81 83 80 84 174 256 84 185 185 328 325 325 80 325 83 256 185 325 325 83 84 256
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 24V 5W 		8-94135-397-0 02 1 0105-
80 BULB; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (B) 24V 12W 		9-82691-302-0 02 1 0105-
81 SEAT; SCREW
LAMPS FOUR ROOF MARKER<PJ5> 		1-82219-012-0 04 1 0105-
82 SCREW; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> 		1-82219-011-0 04 1 0105-
83 LENS; MARKER LAMP
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-86830-321-0 03 1 0105-
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-82215-048-0 02 1 0105-
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) 		1-86830-320-0 02 1 0105-
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (B) 		1-86830-321-0 01 1 0105-
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (C) 		1-82215-068-0 02 1 0105-
83 LENS; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B) 		1-82215-069-0 01 1 0105-
84 GASKET; MARKER LAMP
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-86830-153-0 03 1 0105-
84 GASKET; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (B) 		1-86830-153-0 03 1 0105-
84 GASKET; MARKER LAMP
LAMPS FOUR ROOF MARKER<PJ5> (A) 		1-86830-288-0 02 1 0105-
174 BOLT
LAMPS FOUR ROOF MARKER<PJ5> M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0105-
185 GROMMET; SCREW
(B) M5 SCREW GROMMET 		1-09983-131-0 12 1 0105-
185 GROMMET; SCREW
EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0105-
185 GROMMET; SCREW
REINFORCEMENT BUMPER<VG7> (C) M4 		5-09470-002-0 04 1 0105-
256 LAMP; MARKER
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B) ROOF MARKER WO/BULB 		1-82210-230-0 03 1 0105-
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> (A) MARKER INDICATER 		1-86830-129-0 02 1 0105-
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C) ROOF MARKER W/BULB 		1-82210-229-0 02 1 0105-
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (B) ROOF MARKER WO/BULB 		1-82210-230-0 01 1 0105-
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B) ROOF MARKER WO/BULB 		1-86830-131-0 01 1 0105-
256 LAMP; MARKER
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (C) ROOF MARKER W/BULB 		1-86830-170-0 02 1 0105-
325 SCREW; SPD INDICATOR LAMP
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0105-
325 SCREW; SPD INDICATOR LAMP
HIGH ROOF<S2F> M5X20 TAPPING 		0-71090-520-0 18 1 0105-
325 SCREW; SPD INDICATOR LAMP
EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> M5X14 TAPPING 		9-07066-514-0 12 1 0105-0603
325 SCREW; SPD INDICATOR LAMP
EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> M5X14 TAPPING 		0-71040-514-0 12 1 0604-
328 COVER; LAMP
EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> 		1-76217-122-1 03 1 0105-

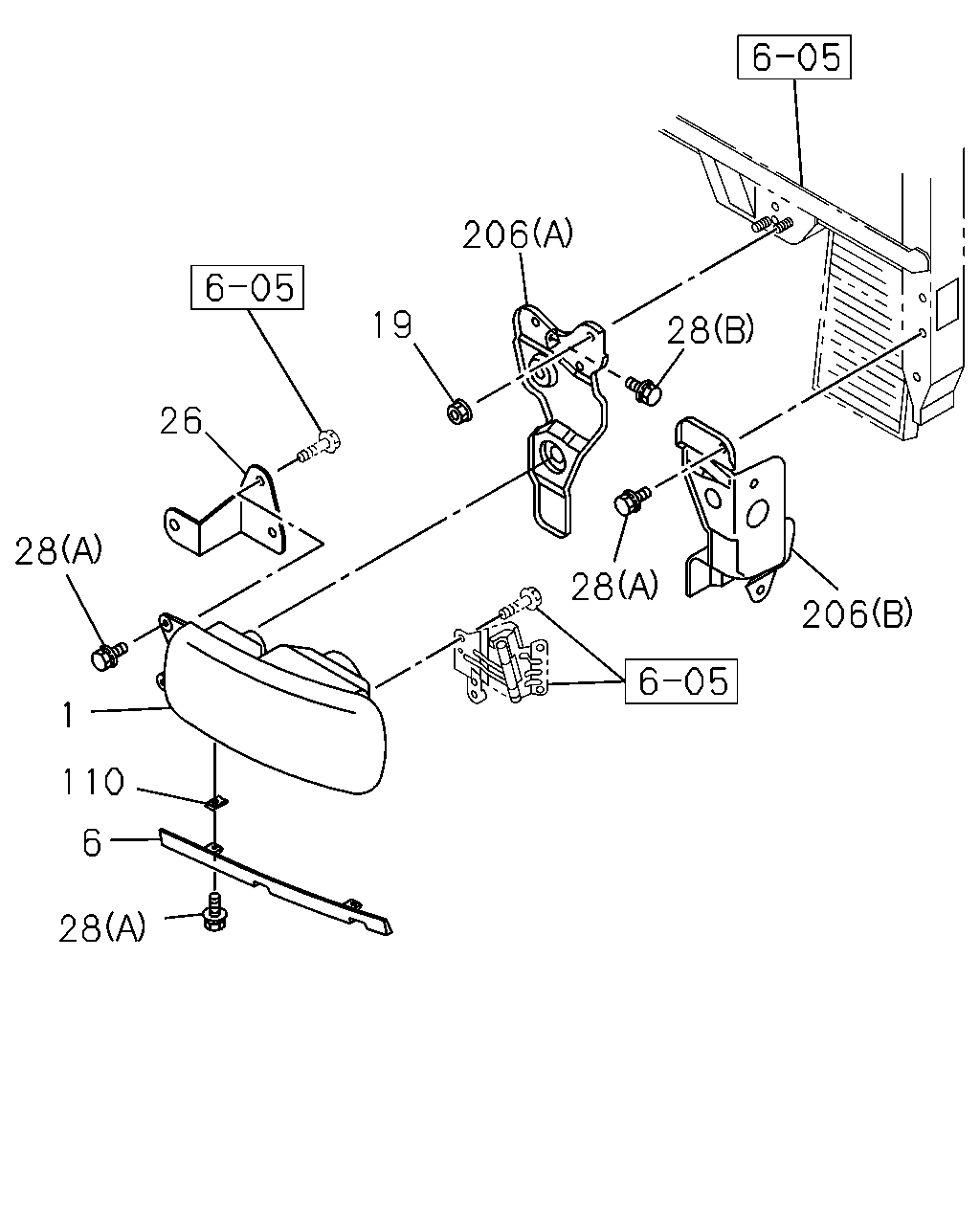

çizim 79075
28 6 1 28 110 26 19 206 28 28 206
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-396-2 01 1 0105-0509
1 LAMP ASM; HEAD 8-97609-414-1 01 1 0510-
1 LAMP ASM; HEAD 1-82110-395-2 01 1 0105-0509
1 LAMP ASM; HEAD 8-97609-413-1 01 1 0510-
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-024-0 01 1 0105-
6 RIM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-71107-023-0 01 1 0105-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0105-
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-085-0 01 1 0105-
26 BRACKET ASM; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-084-0 01 1 0105-
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (D) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X35 FLANGE 		0-28081-035-0 06 1 0105-0105
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28681-030-0 06 1 0106-0512
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X30 FLANGE 		0-28651-030-0 06 1 0601-
28 BOLT; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0105-
28 BOLT; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 14 1 0105-
110 CLIP; RIM,HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-86830-213-1 04 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0105-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-762-3 01 1 0105-
206 HOLDER; HEADLAMP
BUMPER W/HEADLAMPS<SLB> (C) 		1-65671-761-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-574-3 01 1 0105-
206 HOLDER; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> (B) 		1-65671-573-3 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
