◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20A - MANUAL TRANSMISSION ASM AND CASE ▶

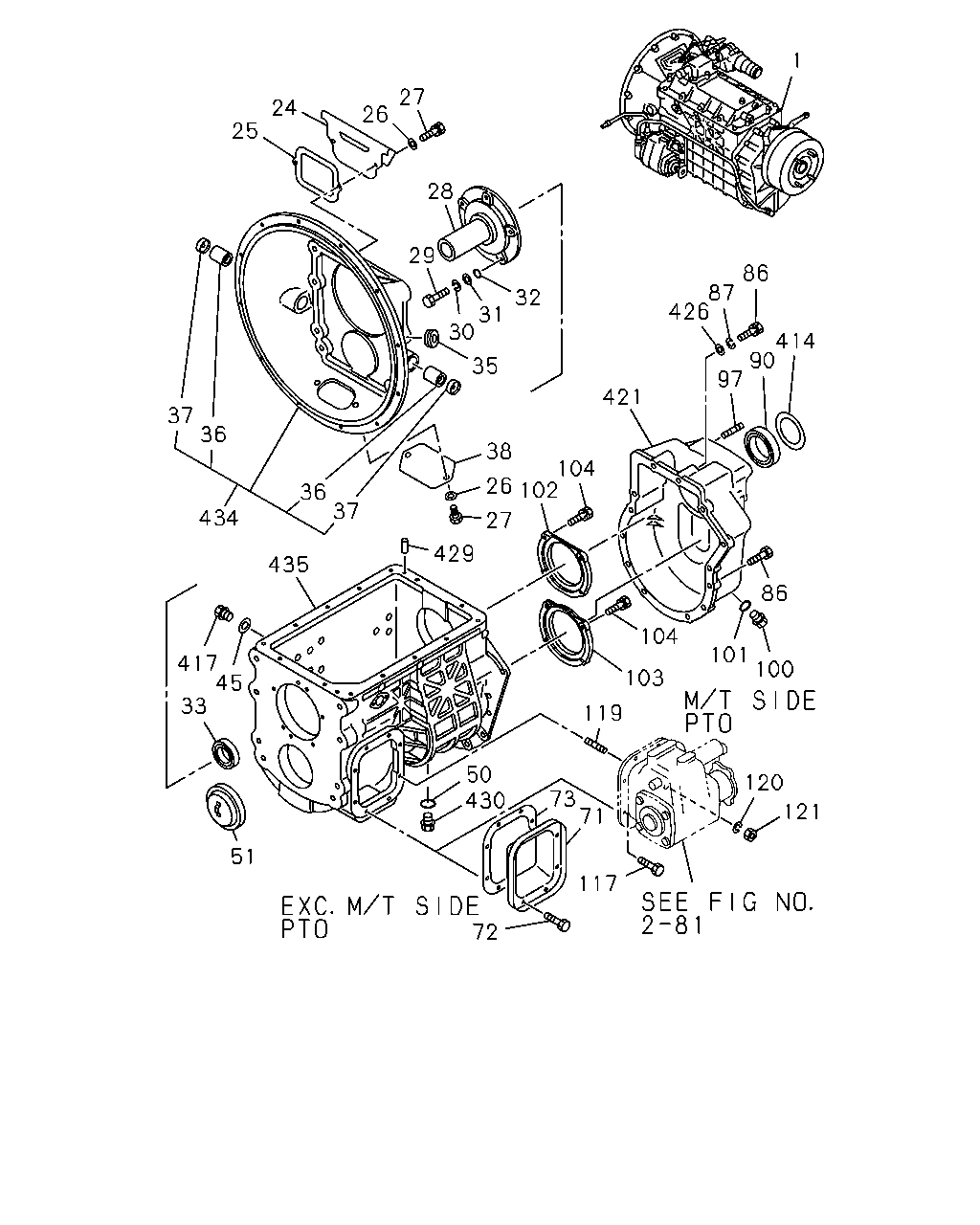

2-20A — MANUAL TRANSMISSION ASM AND CASE (#2809) — 248 parça
çizim 29614
25 24 26 27 28 29 32 31 30 35 37 36 434 36 37 435 38 26 27 429 102 104 421 426 87 86 414 90 97 86 104 101 100 103 119 73 417 45 33 51 50 430 71 117 120 121 1 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 TRANSMISSION ASM; MANUAL 1-33026-886-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
6RB1 STD ENG(07L) 		1-33037-878-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
8PD1 STD ENG(38L) 		1-33037-881-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL 1-33027-866-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 43/6 17.5"(W3U) 		1-33026-765-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
FINAL GEAR 43/7 17.5"(W3Y) 		1-33026-756-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL 1-33037-796-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL 1-33027-883-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
ASSISTER SHIFT CONTROL<WX8> 		1-33037-231-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
EXC. ASSISTER SHIFT CONTROL<WX8> 		1-33027-944-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL 1-33037-807-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) 		1-33026-947-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/8 17.5"(W4B) 		1-33026-938-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) 		1-33037-830-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
6RB1 STD ENG(07L) FINAL GEAR 43/6 17.5"(W3U) 		1-33026-921-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
6RB1 STD ENG(07L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) 		1-33026-912-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
6RB1 STD ENG(07L) 		1-33037-817-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
8PD1 STD ENG(38L) 		1-33037-895-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) FINAL GEAR 43/6 17.5"(W3U),FINAL GEAR 41/6 17.5"(W4W) EXC. ASSISTER SHIFT CONTROL<WX8> 		1-33027-078-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) EXC. ASSISTER SHIFT CONTROL<WX8> 		1-33027-069-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> 		1-33037-851-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 39/8 17.5"(W4B) ASSISTER SHIFT CONTROL<WX8> 		1-33027-095-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> 		1-33037-858-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
10PD1 STD ENG(40L) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 41/6 17.5"(W4W) ASSISTER SHIFT CONTROL<WX8> 		1-33027-104-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
6RB1 STD ENG(07L) 		1-33037-847-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
6RB1 STD ENG(07L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33032-361-0 01 1 9101-9306 ●
1 TRANSMISSION ASM; MANUAL
6RB1 STD ENG(07L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33032-348-0 01 1 9101-9306 ●
1 TRANSMISSION ASM; MANUAL 1-33026-990-0 01 1 9002-9306 ●
1 TRANSMISSION ASM; MANUAL
6RB1 STD ENG(07L) 		1-33037-836-0 01 1 9307- ●
1 TRANSMISSION ASM; MANUAL
8PD1 STD ENG(38L) 		1-33037-901-0 01 1 9307- ●
24 COVER; CHECK HOLE,DUST 1-31131-030-0 01 1 9002- ● ● ● ● ● ● ● ●
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-31139-008-0 01 1 9002- ● ● ● ● ● ● ● ●
26 WASHER; PL,COVER
ID=8.4 OD=22 		9-09160-708-0 02 1 9002-9205 ● ● ● ● ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		9-01900-816-0 04 1 9002-9204 ● ● ● ● ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		0-50040-816-0 04 1 9205-9205 ● ● ● ● ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28080-812-0 04 1 9206- ● ● ● ● ● ● ● ●
28 COVER; FRT,TRANS CASE 1-33121-063-1 01 1 9002- ● ● ● ● ● ● ● ●
29 BOLT; FRT COVER
M10X32 		1-09020-120-1 05 1 9002-9205 ● ● ● ● ● ● ● ●
29 BOLT; FRT COVER
M10X28 FLANGE REAMER 		1-09040-089-0 05 1 9206- ● ● ● ● ● ● ● ●
30 WASHER; LK,FRT COVER
ID=10.2 		9-09150-510-0 05 1 9002-9205 ● ● ● ● ● ● ● ●
31 WASHER; PL,FRT COVER BOLT
ID=10.5 		9-09164-510-0 05 1 9002-9205 ● ● ● ● ● ● ● ●
32 GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=10 		1-09623-369-0 05 1 9002- ● ● ● ● ● ● ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-496-0 01 1 9002- ● ● ● ● ● ● ● ●
35 GROMMET; CLU HSG
OD=45 		9-31139-007-0 01 1 9002- ● ● ● ● ● ● ● ●
36 BEARING; NEEDLE,CLU HSG 1-09811-087-0 02 1 9002- ● ● ● ● ● ● ● ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-003-0 02 1 9002- ● ● ● ● ● ● ● ●
38 COVER; CHECK HOLE,LWR 1-31131-003-0 01 1 9002- ● ● ● ● ● ● ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5 		9-09920-392-0 01 1 9002-9405 ● ● ● ● ● ● ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9406- ● ● ● ● ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9002- ● ● ● ● ● ● ● ●
51 COVER; SEAL,COUNTER,FRT 1-33319-055-1 01 1 9002- ● ● ● ● ● ● ● ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33141-030-1 01 1 9002- ● ● ● ● ● ● ● ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER 		9-01921-020-0 08 1 9002-9204 ● ● ● ● ● ● ● ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER 		0-50051-020-0 08 1 9205-9205 ● ● ● ● ● ● ● ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE 		0-28181-016-0 08 1 9206- ● ● ● ● ● ● ● ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-33142-037-0 01 1 9002-9411 ● ● ● ● ● ● ● ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33142-043-0 01 1 9412- ● ● ● ● ● ● ● ●
86 BOLT; RR COVER
M10X16,M12X35 L=59 		1-09029-031-0 02 1 9002-9205 ● ● ● ● ● ●
86 BOLT; RR COVER
M10X16,M12X30 L=57.7 		1-09049-018-0 02 1 9206-9306 ● ● ● ● ● ●
86 BOLT; RR COVER
M10X16,M12X30 L=57.7 		1-09049-018-0 02 1 9307-9512 ● ● ● ●
86 BOLT; RR COVER
M10X16,M12X30 L=57.7 		1-09049-018-0 03 1 9601- ● ● ● ● ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 09 1 9307-9512 ● ● ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 08 1 9601- ● ● ●
86 BOLT; RR COVER
M10X22 		1-09033-005-0 01 1 9002-9205 ● ●
86 BOLT; RR COVER
M14X20 		1-09044-078-0 01 1 9206- ● ●
86 BOLT; RR COVER
M12X40 		9-01931-240-0 09 1 9002-9205 ● ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 09 1 9206-9306 ● ● ● ● ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 09 1 9601- ● ● ●
86 BOLT; RR COVER
M12X40 		9-01991-240-0 09 1 9002-9205 ● ● ●
86 BOLT; RR COVER
M12X70 		9-01656-270-0 02 1 9002-9205 ● ● ● ● ●
86 BOLT; RR COVER
M12X65 		1-09044-077-0 02 1 9206- ● ● ● ● ●
86 BOLT; RR COVER
FINAL GEAR 43/7 17.5"(W3Y) EXC. ASSISTER SHIFT CONTROL<WX8> 		9-09804-155-0 01 1 9002-9306 ● ●
86 BOLT; RR COVER
M16X40 		9-09804-155-0 01 1 9307- ●
86 BOLT; RR COVER
M12X40 		9-01931-240-0 10 1 9002-9205 ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 10 1 9206-9512 ● ● ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 10 1 9601- ●
86 BOLT; RR COVER
M12X40 		9-01991-240-0 10 1 9002-9205 ● ●
87 WASHER; LK,RR COVER
ID=12.2 		9-09150-512-0 04 1 9002-9205 ● ● ● ● ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-474-0 01 1 9002-9406 ● ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-579-1 01 1 9407- ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-471-0 01 1 9002-9406 ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-578-1 01 1 9407- ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-472-0 01 1 9002-9406 ● ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-577-1 01 1 9407- ● ● ●
97 STUD; PARKING BRK
M16X41 L=62 		1-09302-151-0 01 1 9002- ● ● ● ● ● ●
100 PLUG; DRAIN RR COVER
M24X17 FLANGE 		1-09604-023-0 01 1 9002- ● ● ● ● ● ● ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9002- ● ● ● ● ● ● ●
102 RETAINER; BRG UPR,MAINSHAFT 9-33151-014-0 01 1 9002- ● ●
102 RETAINER; BRG UPR,MAINSHAFT 1-33151-020-1 01 1 9002- ●
102 RETAINER; BRG UPR,MAINSHAFT 1-33151-035-1 01 1 9002- ● ●
103 RETAINER; BRG 9-33151-015-0 01 1 9002- ● ●
103 RETAINER; BRG 9-33151-014-0 01 1 9002- ●
103 RETAINER; BRG 1-33151-035-1 01 1 9002- ● ●
104 BOLT; BRG RET
M10X30 		9-01931-030-0 08 1 9002-9002 ● ● ● ● ●
104 BOLT; BRG RET
M10X30 W/LK WASHER 		0-50051-030-0 08 1 9003-9205 ● ● ● ● ●
104 BOLT; BRG RET
M10X25 		1-09049-006-1 08 1 9206- ● ● ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER 		9-01931-040-0 01 1 9002-9002 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER 		0-50051-040-0 01 1 9003-9105 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		9-01931-025-0 04 1 9002-9002 ● ● ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		0-50051-025-0 04 1 9003-9105 ● ● ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		0-50051-025-0 06 1 9106-9205 ● ● ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE 		0-28181-022-0 06 1 9206- ● ● ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		9-01931-025-0 03 1 9002-9002 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		0-50051-025-0 03 1 9003-9205 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE 		0-28181-022-0 04 1 9206- ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER 		9-01931-040-0 02 1 9002-9002 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER 		0-50051-040-0 02 1 9003-9006 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 		0-16806-050-0 02 1 9007-9205 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE 		0-28181-050-0 02 1 9206- ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37 M10X25 L=37.5 		9-04501-025-0 03 1 9002-9105 ● ● ● ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37 M10X25 L=37.5 		9-04501-025-0 02 1 9106-9203 ● ● ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40 		9-04411-025-0 02 1 9204-9205 ● ● ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40 		9-04411-025-0 02 1 9206- ● ● ● ● ● ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37 M10X25 L=37.5 		9-04501-025-0 03 1 9106-9203 ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40 		9-04411-025-0 03 1 9204-9205 ● ● ●
120 WASHER; LK,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 03 1 9002-9105 ● ● ● ● ●
120 WASHER; LK,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 02 1 9106-9205 ● ● ● ● ●
120 WASHER; LK,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 05 1 9007-9205 ● ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 		9-09110-410-0 02 1 9106-9205 ● ● ● ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91150-210-0 02 1 9206- ● ● ● ● ● ● ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 		9-09110-410-0 03 1 9002-9105 ● ● ● ● ● ● ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 		9-09110-410-0 03 1 9106-9205 ● ● ●
414 COVER; DUST,RR COVER 1-33139-004-0 01 1 9002- ● ● ●
414 COVER; DUST,RR COVER 1-33139-011-1 01 1 9002- ● ● ● ● ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-021-0 01 1 9002-9405 ● ● ● ● ● ● ● ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 9406- ● ● ● ● ● ●
421 COVER; RR,TRANS 1-33131-108-1 01 1 9002- ●
421 COVER; RR,TRANS 1-33131-096-3 01 1 9002- ● ● ●
421 COVER; RR,TRANS 1-33131-111-1 01 1 9002-9306 ●
421 COVER; RR,TRANS 1-33131-109-1 01 1 9002- ●
421 COVER; RR,TRANS 1-33131-122-2 01 1 9002-9011 ● ●
421 COVER; RR,TRANS 1-33131-138-1 01 1 9012- ● ●
426 WASHER; PL,RR COVER
ID=12.5 		9-09160-512-0 02 1 9002-9205 ●
426 WASHER; PL,RR COVER
ID=12.5 		9-09160-512-0 04 1 9002-9205 ● ● ● ● ●
429 PIN; STRAIGHT
OD=8 L=16 		9-08150-816-0 02 1 9002- ● ● ●
429 PIN; STRAIGHT
OD=10 L=18 		9-08151-018-0 02 1 9002- ● ● ● ● ●
430 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-023-0 01 1 9002- ● ● ● ● ● ● ● ●
434 HOUSING; CLU
STEEL 		1-31110-123-5 01 1 9002- ● ● ● ● ●
434 HOUSING; CLU
STEEL 		1-31110-118-8 01 1 9002- ● ● ●
435 CASE; TRANS 1-33111-199-5 01 1 9002- ●
435 CASE; TRANS 1-33111-213-0 01 1 9002-9108 ● ●
435 CASE; TRANS 1-33111-227-0 01 1 9109- ● ●
435 CASE; TRANS 1-33111-208-2 01 1 9002-9306 ●
435 CASE; TRANS 1-33111-224-1 01 1 9002- ●
435 CASE; TRANS 1-33111-197-1 01 1 9002- ●
435 CASE; TRANS 1-33111-195-1 01 1 9002- ● ●
çizim 29637
24 25 26 27 28 29 32 31 30 35 37 36 36 434 37 435 417 45 33 51 38 26 27 429 62 421 90 414 86 86 50 430 73 119 120 121 71 117 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
24 COVER; CHECK HOLE,DUST 1-31131-030-0 01 1 9002- ● ● ● ● ● ● ● ●
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-31139-008-0 01 1 9002- ● ● ● ● ● ● ● ●
26 WASHER; PL,COVER
ID=8.4 OD=22 		9-09160-708-0 02 1 9002-9205 ● ● ● ● ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		9-01900-816-0 04 1 9002-9204 ● ● ● ● ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X16 W/LK WASHER 		0-50040-816-0 04 1 9205-9205 ● ● ● ● ● ● ● ●
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28080-812-0 04 1 9206- ● ● ● ● ● ● ● ●
28 COVER; FRT,TRANS CASE 1-33121-063-1 01 1 9002- ● ● ● ● ● ● ● ●
29 BOLT; FRT COVER
M10X32 		1-09020-120-1 05 1 9002-9205 ● ● ● ● ● ● ● ●
29 BOLT; FRT COVER
M10X28 FLANGE REAMER 		1-09040-089-0 05 1 9206- ● ● ● ● ● ● ● ●
30 WASHER; LK,FRT COVER
ID=10.2 		9-09150-510-0 05 1 9002-9205 ● ● ● ● ● ● ● ●
31 WASHER; PL,FRT COVER BOLT
ID=10.5 		9-09164-510-0 05 1 9002-9205 ● ● ● ● ● ● ● ●
32 GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=10 		1-09623-369-0 05 1 9002- ● ● ● ● ● ● ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-496-0 01 1 9002- ● ● ● ● ● ● ● ●
35 GROMMET; CLU HSG
OD=45 		9-31139-007-0 01 1 9002- ● ● ● ● ● ● ● ●
36 BEARING; NEEDLE,CLU HSG 1-09811-087-0 02 1 9002- ● ● ● ● ● ● ● ●
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-003-0 02 1 9002- ● ● ● ● ● ● ● ●
38 COVER; CHECK HOLE,LWR 1-31131-003-0 01 1 9002- ● ● ● ● ● ● ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=24.5 OD=32.5 		9-09920-392-0 01 1 9002-9405 ● ● ● ● ● ● ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9406- ● ● ● ● ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 9002- ● ● ● ● ● ● ● ●
51 COVER; SEAL,COUNTER,FRT 1-33319-055-1 01 1 9002- ● ● ● ● ● ● ● ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33132-026-0 01 1 9002-9306 ●
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33141-030-1 01 1 9002- ● ● ● ● ● ● ● ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER 		9-01921-020-0 08 1 9002-9204 ● ● ● ● ● ● ● ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 W/LK WASHER 		0-50051-020-0 08 1 9205-9205 ● ● ● ● ● ● ● ●
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE 		0-28181-016-0 08 1 9206- ● ● ● ● ● ● ● ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-33142-037-0 01 1 9002-9411 ● ● ● ● ● ● ● ●
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33142-043-0 01 1 9412- ● ● ● ● ● ● ● ●
86 BOLT; RR COVER
M10X16,M12X35 L=59 		1-09029-031-0 02 1 9002-9205 ● ● ● ● ● ●
86 BOLT; RR COVER
M10X16,M12X30 L=57.7 		1-09049-018-0 02 1 9206-9306 ● ● ● ● ● ●
86 BOLT; RR COVER
M10X16,M12X30 L=57.7 		1-09049-018-0 02 1 9307-9512 ● ● ● ●
86 BOLT; RR COVER
M10X16,M12X30 L=57.7 		1-09049-018-0 03 1 9601- ● ● ● ● ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 09 1 9307-9512 ● ● ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 08 1 9601- ● ● ●
86 BOLT; RR COVER
M10X22 		1-09033-005-0 01 1 9002-9205 ● ●
86 BOLT; RR COVER
M14X20 		1-09044-078-0 01 1 9206- ● ●
86 BOLT; RR COVER
M12X40 		9-01931-240-0 09 1 9002-9205 ● ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 09 1 9206-9306 ● ● ● ● ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 09 1 9601- ● ● ●
86 BOLT; RR COVER
M12X40 		9-01991-240-0 09 1 9002-9205 ● ● ●
86 BOLT; RR COVER
M12X70 		9-01656-270-0 02 1 9002-9205 ● ● ● ● ●
86 BOLT; RR COVER
M12X65 		1-09044-077-0 02 1 9206- ● ● ● ● ●
86 BOLT; RR COVER
FINAL GEAR 43/7 17.5"(W3Y) EXC. ASSISTER SHIFT CONTROL<WX8> 		9-09804-155-0 01 1 9002-9306 ● ●
86 BOLT; RR COVER
M16X40 		9-09804-155-0 01 1 9307- ●
86 BOLT; RR COVER
M12X40 		9-01931-240-0 10 1 9002-9205 ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 10 1 9206-9512 ● ● ●
86 BOLT; RR COVER
M17X35 		1-09044-076-0 10 1 9601- ●
86 BOLT; RR COVER
M12X40 		9-01991-240-0 10 1 9002-9205 ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-474-0 01 1 9002-9406 ● ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-579-1 01 1 9407- ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-471-0 01 1 9002-9406 ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-578-1 01 1 9407- ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-472-0 01 1 9002-9406 ● ● ●
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-577-1 01 1 9407- ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER 		9-01931-040-0 01 1 9002-9002 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER 		0-50051-040-0 01 1 9003-9105 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		9-01931-025-0 04 1 9002-9002 ● ● ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		0-50051-025-0 04 1 9003-9105 ● ● ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		0-50051-025-0 06 1 9106-9205 ● ● ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE 		0-28181-022-0 06 1 9206- ● ● ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		9-01931-025-0 03 1 9002-9002 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 W/LK WASHER 		0-50051-025-0 03 1 9003-9205 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE 		0-28181-022-0 04 1 9206- ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER 		9-01931-040-0 02 1 9002-9002 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 W/LK WASHER 		0-50051-040-0 02 1 9003-9006 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 		0-16806-050-0 02 1 9007-9205 ● ● ●
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE 		0-28181-050-0 02 1 9206- ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37 M10X25 L=37.5 		9-04501-025-0 03 1 9002-9105 ● ● ● ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37 M10X25 L=37.5 		9-04501-025-0 02 1 9106-9203 ● ● ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40 		9-04411-025-0 02 1 9204-9205 ● ● ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40 		9-04411-025-0 02 1 9206- ● ● ● ● ● ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=37 M10X25 L=37.5 		9-04501-025-0 03 1 9106-9203 ● ● ●
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40 		9-04411-025-0 03 1 9204-9205 ● ● ●
120 WASHER; LK,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 03 1 9002-9105 ● ● ● ● ●
120 WASHER; LK,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 02 1 9106-9205 ● ● ● ● ●
120 WASHER; LK,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 05 1 9007-9205 ● ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 		9-09110-410-0 02 1 9106-9205 ● ● ● ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91150-210-0 02 1 9206- ● ● ● ● ● ● ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 		9-09110-410-0 03 1 9002-9105 ● ● ● ● ● ● ● ●
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 		9-09110-410-0 03 1 9106-9205 ● ● ●
414 COVER; DUST,RR COVER 1-33139-004-0 01 1 9002- ● ● ●
414 COVER; DUST,RR COVER 1-33139-011-1 01 1 9002- ● ● ● ● ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-021-0 01 1 9002-9405 ● ● ● ● ● ● ● ●
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 9406- ● ● ● ● ● ●
421 COVER; RR,TRANS 1-33131-108-1 01 1 9002- ●
421 COVER; RR,TRANS 1-33131-096-3 01 1 9002- ● ● ●
421 COVER; RR,TRANS 1-33131-111-1 01 1 9002-9306 ●
421 COVER; RR,TRANS 1-33131-109-1 01 1 9002- ●
421 COVER; RR,TRANS 1-33131-122-2 01 1 9002-9011 ● ●
421 COVER; RR,TRANS 1-33131-138-1 01 1 9012- ● ●
429 PIN; STRAIGHT
OD=8 L=16 		9-08150-816-0 02 1 9002- ● ● ●
429 PIN; STRAIGHT
OD=10 L=18 		9-08151-018-0 02 1 9002- ● ● ● ● ●
430 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-023-0 01 1 9002- ● ● ● ● ● ● ● ●
434 HOUSING; CLU
STEEL 		1-31110-123-5 01 1 9002- ● ● ● ● ●
434 HOUSING; CLU
STEEL 		1-31110-118-8 01 1 9002- ● ● ●
435 CASE; TRANS 1-33111-199-5 01 1 9002- ●
435 CASE; TRANS 1-33111-213-0 01 1 9002-9108 ● ●
435 CASE; TRANS 1-33111-227-0 01 1 9109- ● ●
435 CASE; TRANS 1-33111-208-2 01 1 9002-9306 ●
435 CASE; TRANS 1-33111-224-1 01 1 9002- ●
435 CASE; TRANS 1-33111-197-1 01 1 9002- ●
435 CASE; TRANS 1-33111-195-1 01 1 9002- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
