13 |
MIRROR ASM; OUTSIDE RR VIEW

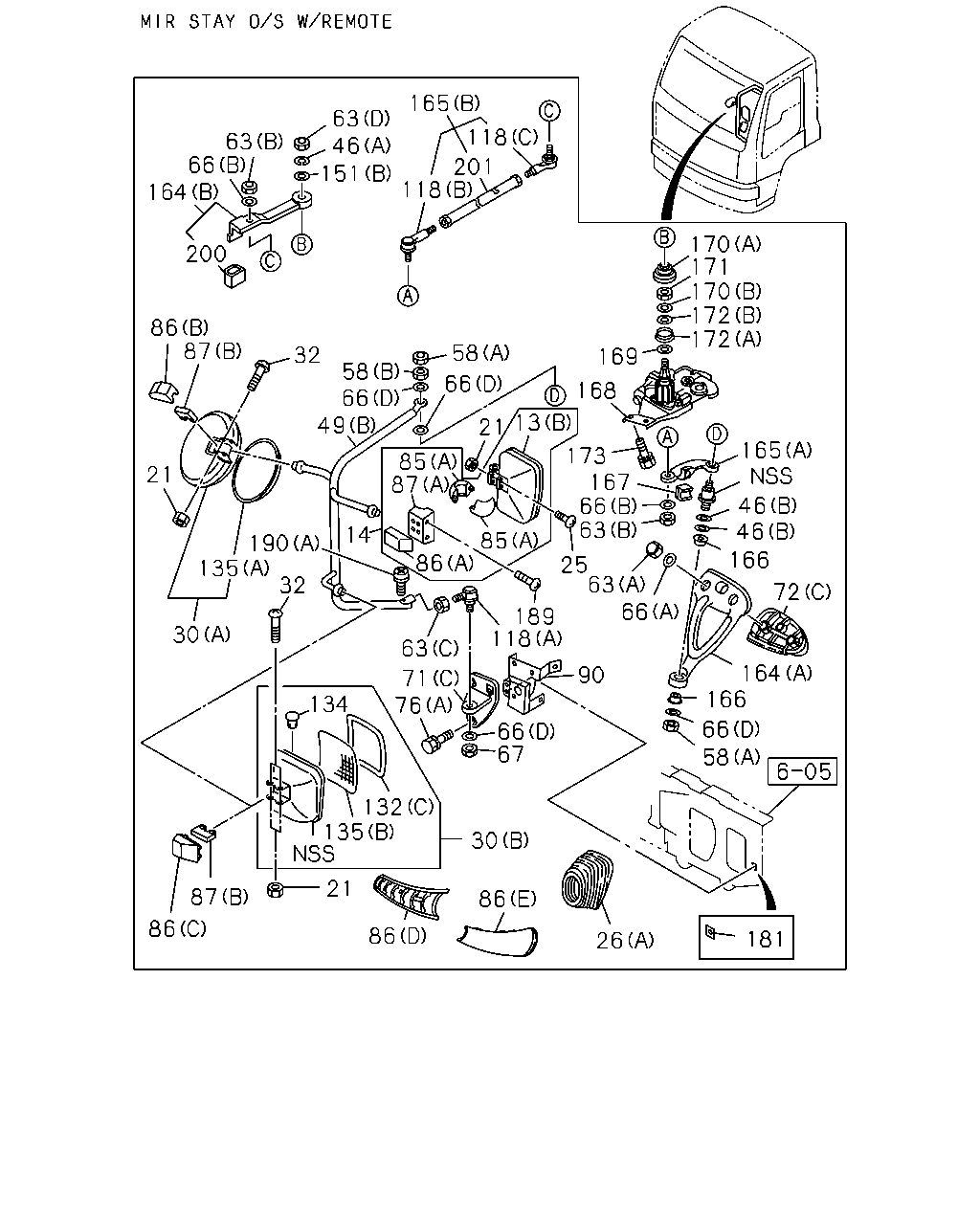

MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-917-3 |
01 |
1 |
0105- |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW

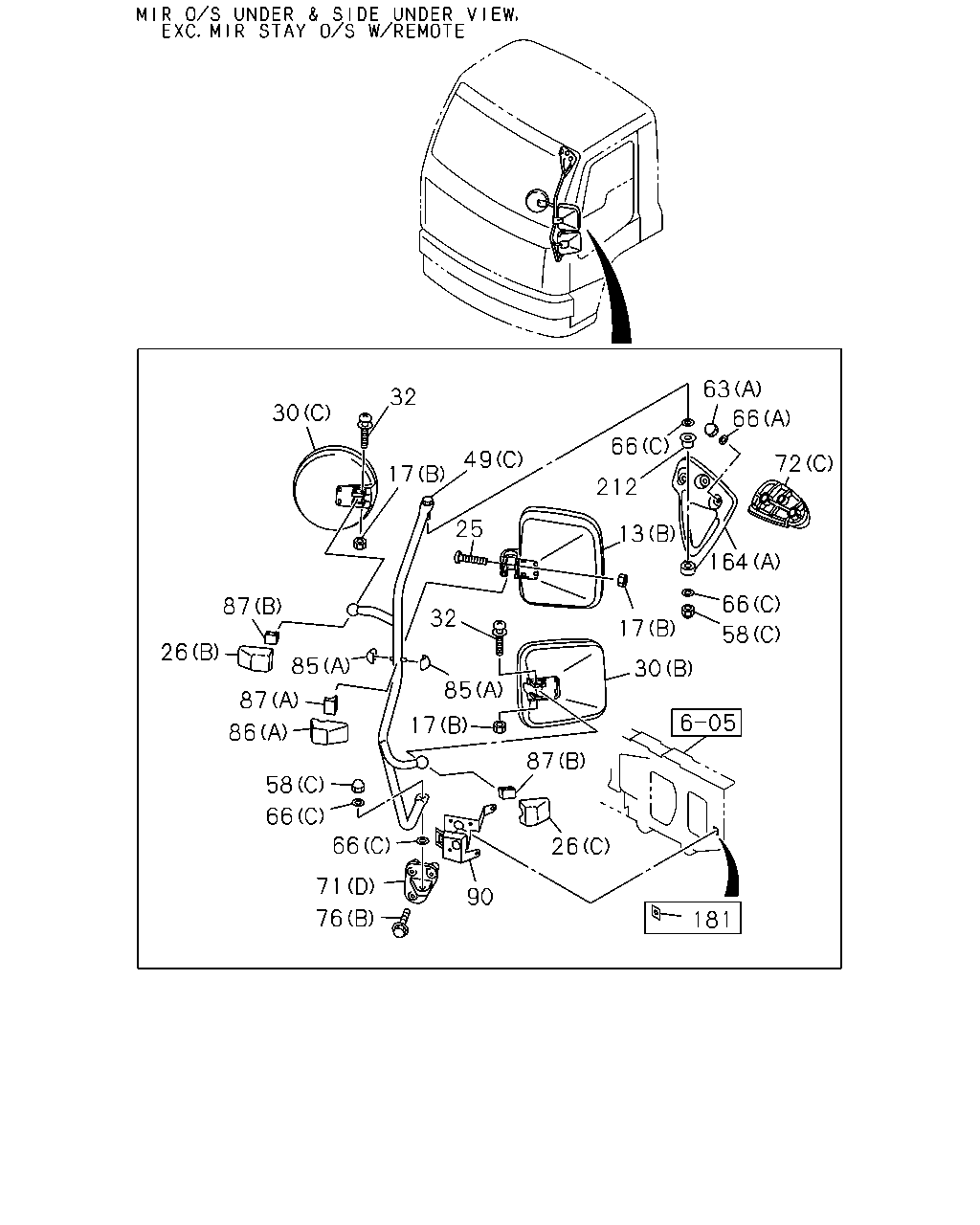

MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-917-3 |
01 |
1 |
0105- |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW

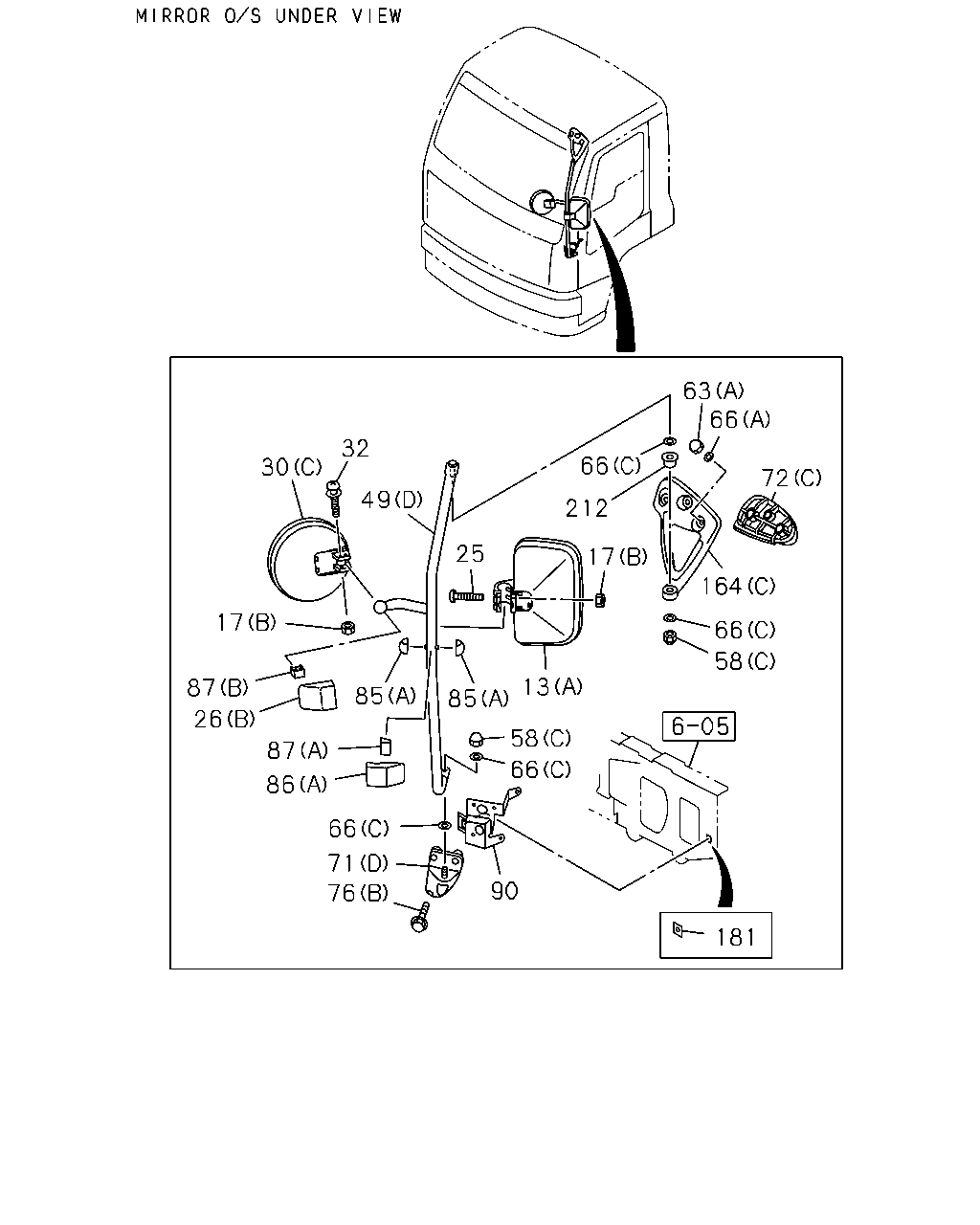

MIRROR O/S UNDER VIEW<RR9>
(A)
|
1-71737-918-3 |
01 |
1 |
0105- |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW

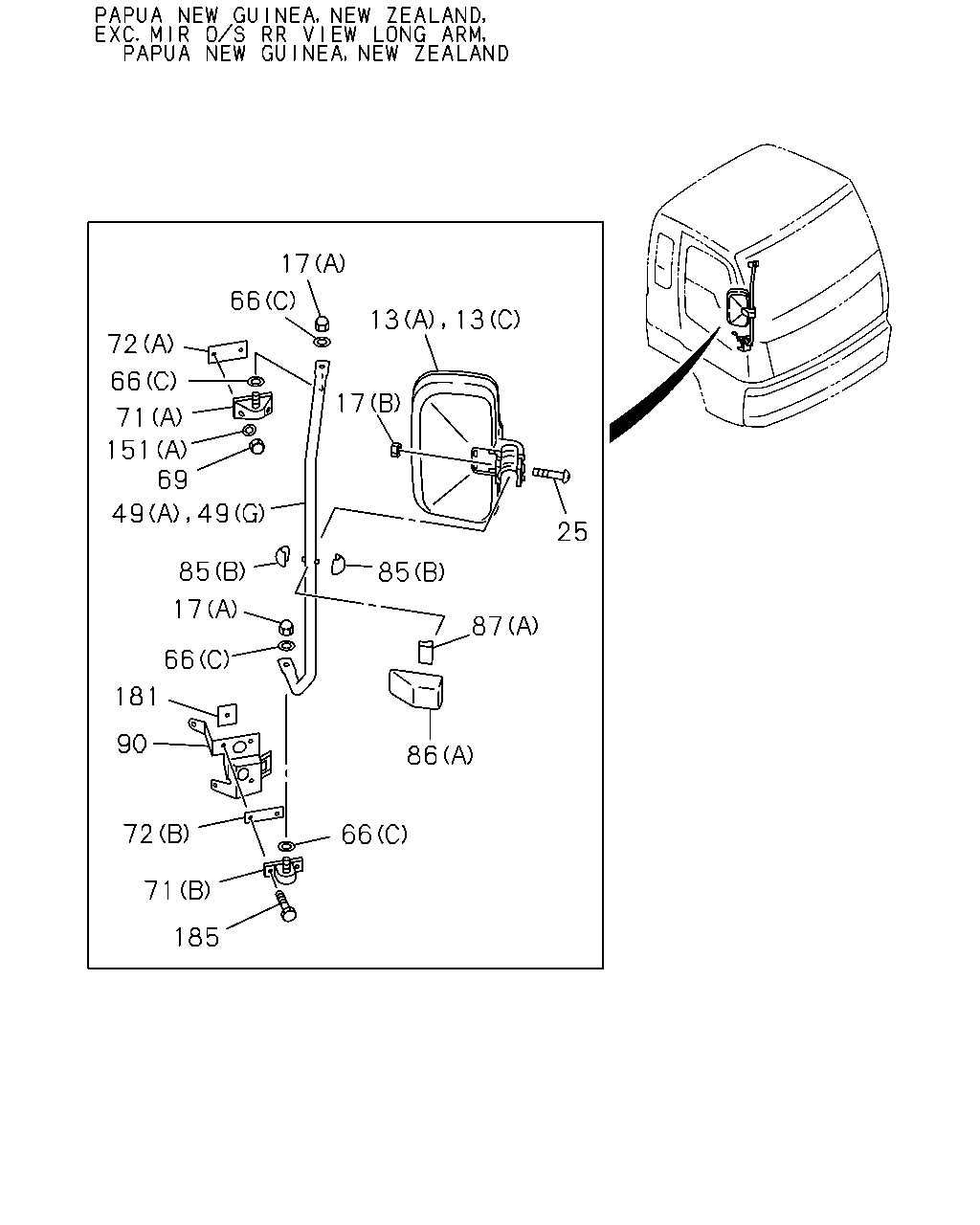

EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND
EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)
(A)
|
1-71737-918-3 |
01 |
1 |
0105- |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW

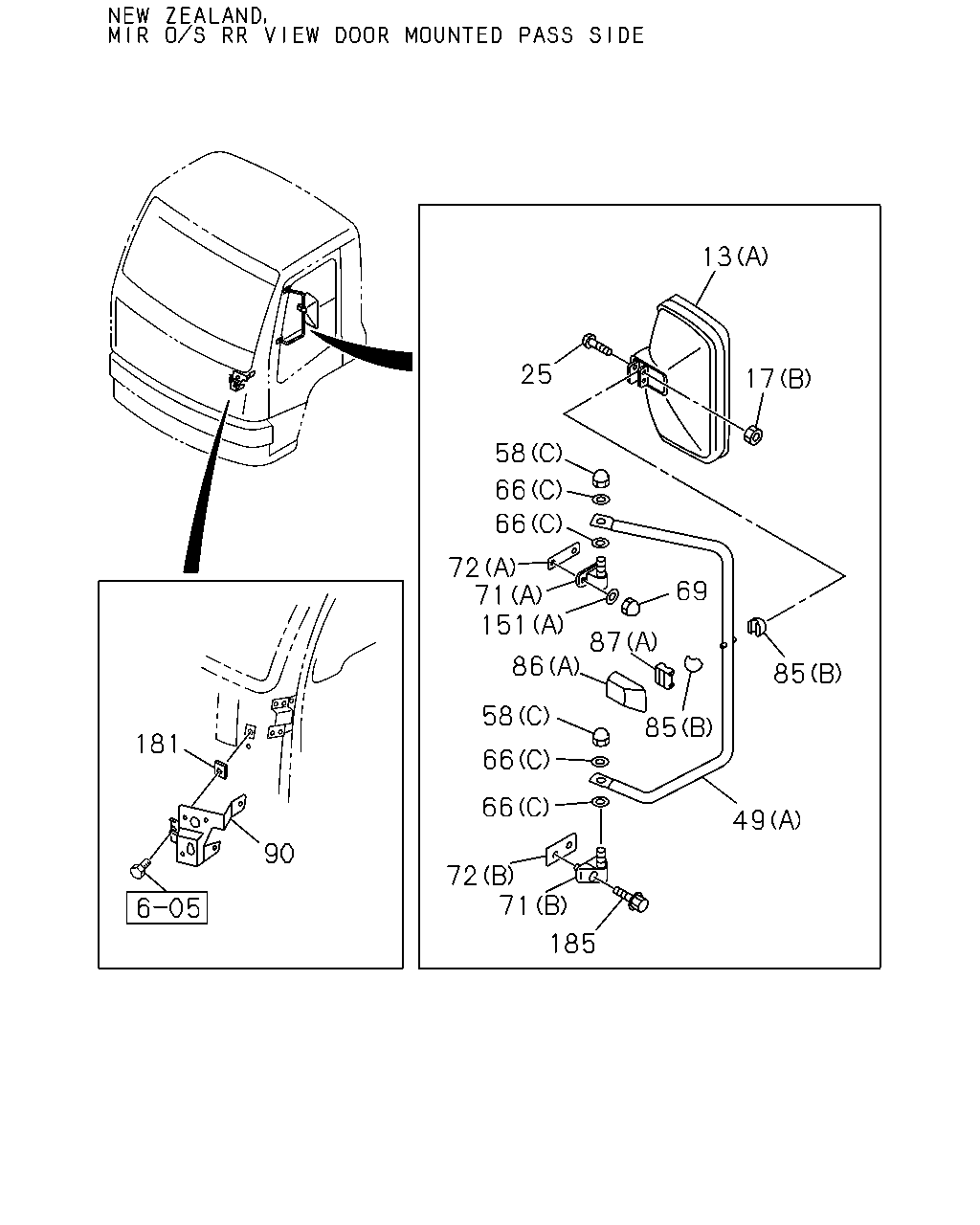

MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/SRR VIEW LONG ARM<DH2>
(A)
|
1-71737-918-3 |
01 |
1 |
0105- |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
PAPUA NEW GUINEA EQUIPMENT(PV5)
(C)
|
8-97865-547-1 |
01 |
1 |
0105-0302 |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
PAPUA NEW GUINEA EQUIPMENT(PV5)
(C)
|
8-97865-547-1 |
01 |
1 |
0105-0302 |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
PAPUA NEW GUINEA EQUIPMENT(PV5)
(C)
|
8-97094-318-1 |
01 |
1 |
0303-0603 |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
PAPUA NEW GUINEA EQUIPMENT(PV5)
(C)
|
8-97094-318-1 |
01 |
1 |
0303-0603 |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
PAPUA NEW GUINEA EQUIPMENT(PV5)
(C)
|
8-98037-582-0 |
01 |
1 |
0604- |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
PAPUA NEW GUINEA EQUIPMENT(PV5)
(C)
|
8-98037-582-0 |
01 |
1 |
0604- |
| |
14 |
MIRROR ASM; OUTSIDE
MIR STAY O/S W/REMOTE<TBA>
PIVOT ID=22.2
|
1-71707-152-1 |
01 |
1 |
0105- |
| |
21 |
NUT; MIRROR
MIR STAY O/S W/REMOTE<TBA>
M5
|
1-09984-124-0 |
06 |
1 |
0105- |
| |
25 |
SCREW; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
M5X50
|
1-09981-444-0 |
02 |
1 |
0105-0404 |
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
M5X50
|
1-09981-444-0 |
02 |
1 |
0105-0404 |
| |
25 |
SCREW; OUTSIDE MIRROR
EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND
EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)
M5X50
|
1-09981-444-0 |
02 |
1 |
0105-0404 |
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/SRR VIEW LONG ARM<DH2>
M5X50
|
1-09981-444-0 |
02 |
1 |
0105-0404 |
| |
25 |
SCREW; OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
M5X50
|
1-09981-444-0 |
02 |
1 |
0105-0404 |
| |
25 |
SCREW; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
|
1-09981-541-0 |
02 |
1 |
0405- |
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
|
1-09981-541-0 |
02 |
1 |
0405- |
| |
25 |
SCREW; OUTSIDE MIRROR
EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND
EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)
|
1-09981-541-0 |
02 |
1 |
0405- |
| |
25 |
SCREW; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/SRR VIEW LONG ARM<DH2>
|
1-09981-541-0 |
02 |
1 |
0405- |
| |
25 |
SCREW; OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
|
1-09981-541-0 |
02 |
1 |
0405- |
| |
26 |
COVER; OUTSIDE MIRROR

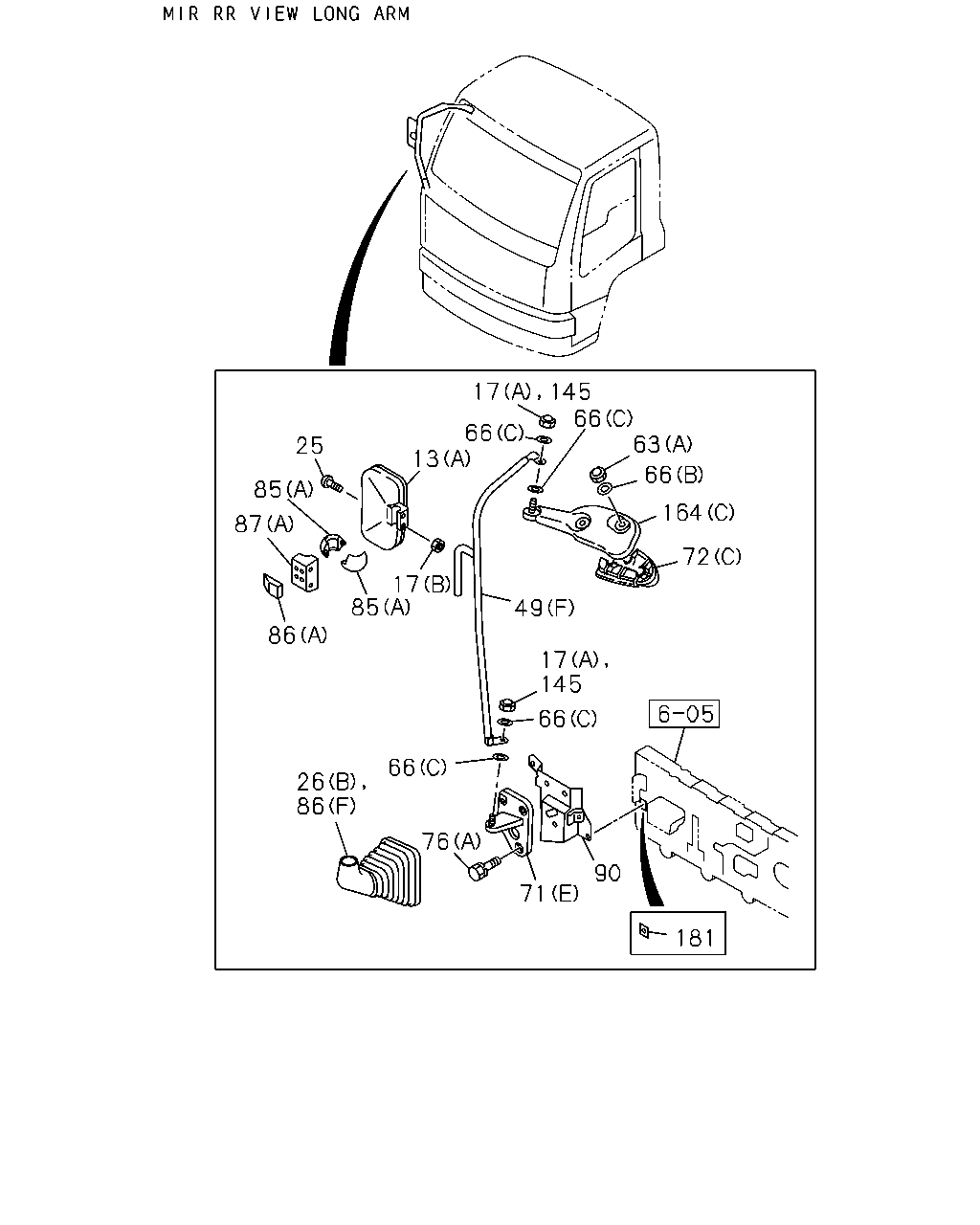

MIR O/S RR VIEW LONG ARM<DH2>
(B)
|
1-71798-695-0 |
01 |
1 |
0112-0204 |
| |
26 |
COVER; OUTSIDE MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(C)
BLACK
|
1-71737-652-1 |
01 |
1 |
0105- |
| |
26 |
COVER; OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71798-316-2 |
01 |
1 |
0105- |
| |
26 |
COVER; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(B)
BLACK
|
1-71737-649-1 |
01 |
1 |
0105- |
| |
26 |
COVER; OUTSIDE MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
BLACK
|
1-71737-649-1 |
01 |
1 |
0105- |
| |
30 |
MIRROR; UNDER
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71797-853-1 |
01 |
1 |
0105- |
| |
30 |
MIRROR; UNDER
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71798-592-1 |
01 |
1 |
0105- |
| |
30 |
MIRROR; UNDER
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71798-592-1 |
01 |
1 |
0105- |
| |
30 |
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
(C)
|
1-71798-591-1 |
01 |
1 |
0105- |
| |
30 |
MIRROR; UNDER
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(C)
|
1-71798-591-1 |
01 |
1 |
0105- |
| |
32 |
SCREW; UNDER MIRROR
MIR STAY O/S W/REMOTE<TBA>
M5X40 W/PL WASHER
|
1-71737-797-0 |
04 |
1 |
0105- |
| |
32 |
SCREW; UNDER MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
M5X40 W/PL WASHER
|
1-71737-797-0 |
04 |
1 |
0105- |
| |
32 |
SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9>
M5X40 W/PL WASHER
|
1-71737-797-0 |
02 |
1 |
0105- |
| |
46 |
WASHER; LK,STAY
MIR STAY O/S W/REMOTE<TBA>
(B)
ID=16.7 OD=22.5 WAVE WASHER
|
9-61166-107-0 |
02 |
1 |
0105- |
| |
46 |
WASHER; LK,STAY
MIR STAY O/S W/REMOTE<TBA>
(A)
ID=10
|
1-09985-180-0 |
01 |
1 |
0105-0206 |
| |
46 |
WASHER; LK,STAY
MIR STAY O/S W/REMOTE<TBA>
(A)
ID=10
|
1-09985-345-0 |
01 |
1 |
0207- |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
(F)
|
1-71798-599-1 |
01 |
1 |
0105- |
| |
49 |
STAY; MIRROR SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(C)
|
1-71797-896-2 |
01 |
1 |
0105- |
| |
49 |
STAY; MIRROR SIDE
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71707-087-1 |
01 |
1 |
0105- |
| |
49 |
STAY; MIRROR SIDE
MIRROR O/S UNDER VIEW<RR9>
(D)
|
1-71797-856-2 |
01 |
1 |
0105- |
| |
49 |
STAY; MIRROR SIDE
NEW ZEALAND EQUIPMENT(PK5)
(A)
|
1-71798-491-3 |
01 |
1 |
0105- |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71798-491-3 |
01 |
1 |
0105- |
| |
49 |
STAY; MIRROR SIDE
NEW ZEALAND EQUIPMENT(PK5)
(A)
|
1-71798-490-3 |
01 |
1 |
0105- |
| |
49 |
STAY; MIRROR SIDE
EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND
EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)
(A)
|
1-71798-490-3 |
01 |
1 |
0105- |
| |
49 |
STAY; MIRROR SIDE
PAPUA NEW GUINEA EQUIPMENT(PV5)
(E)
|
1-71798-584-2 |
01 |
1 |
0105-0302 |
| |
49 |
STAY; MIRROR SIDE
PAPUA NEW GUINEA EQUIPMENT(PV5)
(E)
|
1-71707-157-1 |
01 |
1 |
0303- |
| |
49 |
STAY; MIRROR SIDE
PAPUA NEW GUINEA EQUIPMENT(PV5)
(G)
|
1-71798-583-2 |
01 |
1 |
0105-0302 |
| |
49 |
STAY; MIRROR SIDE
PAPUA NEW GUINEA EQUIPMENT(PV5)
(G)
|
1-71707-156-1 |
01 |
1 |
0303- |
| |
58 |
NUT; MIRROR STAY
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5),MIR STAY O/S W/REMOTE<TBA>
(C)
M10
|
1-09985-342-0 |
02 |
1 |
0105- |
| |
58 |
NUT; MIRROR STAY
MIR STAY O/S W/REMOTE<TBA>
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
M12
|
1-09984-178-1 |
02 |
1 |
0105- |
| |
58 |
NUT; MIRROR STAY
MIR STAY O/S W/REMOTE<TBA>
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(B)
M12
|
1-09984-184-1 |
01 |
1 |
0105- |
| |
63 |
NUT; STAY
MIR O/S RR VIEW LONG ARM<DH2>
(A)
M8
|
1-09984-187-0 |
02 |
1 |
0105- |
| |
63 |
NUT; STAY
MIR STAY O/S W/REMOTE<TBA>
(C)
M14
|
9-99110-414-0 |
01 |
1 |
0105-0512 |
| |
63 |
NUT; STAY
MIR STAY O/S W/REMOTE<TBA>
(C)
M14
|
0-91110-514-0 |
01 |
1 |
0601- |
| |
63 |
NUT; STAY
MIR STAY O/S W/REMOTE<TBA>
(B)
M8
|
1-71798-603-1 |
02 |
1 |
0105- |
| |
63 |
NUT; STAY
MIR STAY O/S W/REMOTE<TBA>
(D)
M10
|
1-71798-833-0 |
01 |
1 |
0105-0206 |
| |
63 |
NUT; STAY
MIR STAY O/S W/REMOTE<TBA>
(D)
M10 CAP NUT
|
1-71798-859-0 |
01 |
1 |
0207- |
| |
63 |
NUT; STAY
MIRROR O/S RR VIEW<D37>
(A)
M8
|
1-09984-187-0 |
03 |
1 |
0105-0207 |
| |
63 |
NUT; STAY
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5)
(A)
M8
|
1-09984-187-0 |
03 |
1 |
0208- |
| |
66 |
WASHER; PL
MIR O/S RR VIEW LONG ARM<DH2>
(C) BLACK
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
0205- |
| |
66 |
WASHER; PL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(C) CROMATE
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
04 |
1 |
0105-0111 |
| |
66 |
WASHER; PL
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5)
(C) CROMATE
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
04 |
1 |
0105-0111 |
| |
66 |
WASHER; PL
MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE
UNDER VIEW<TAF>
(C) CROMATE
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
04 |
1 |
0105-0111 |
| |
66 |
WASHER; PL
MIR STAY O/S W/REMOTE<TBA>
(B)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
0105- |
| |
66 |
WASHER; PL
MIR O/S RR VIEW LONG ARM<DH2>
(B)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
0105- |
| |
66 |
WASHER; PL
MIR STAY O/S W/REMOTE<TBA>
(D)
ID=12.5
|
1-09985-334-0 |
01 |
1 |
0105- |
| |
66 |
WASHER; PL
MIR STAY O/S W/REMOTE<TBA>
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(D)
ID=12.5
|
1-09985-334-0 |
03 |
1 |
0105- |
| |
66 |
WASHER; PL
MIRROR O/S RR VIEW<D37>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
03 |
1 |
0105-0207 |
| |
66 |
WASHER; PL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5)
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
03 |
1 |
0208- |
| |
66 |
WASHER; PL
(C)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
04 |
1 |
0105-0111 |
| |
66 |
WASHER; PL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5),MIR STAY O/S W/REMOTE<TBA>
(C)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
04 |
1 |
0105-0111 |
| |
66 |
WASHER; PL
(C) CROMATE
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
04 |
1 |
0112- |
| |
66 |
WASHER; PL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5),MIR STAY O/S W/REMOTE<TBA>
(C) CROMATE
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
04 |
1 |
0112- |
| |
66 |
WASHER; PL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(C) CROMATE
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
04 |
1 |
0112- |
| |
66 |
WASHER; PL
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5)
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(C) CROMATE
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
04 |
1 |
0112- |
| |
67 |
NUT; STAY
MIR STAY O/S W/REMOTE<TBA>
M12
|
1-09984-178-1 |
01 |
1 |
0105- |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>
(E)
|
1-71798-309-3 |
01 |
1 |
0105-0204 |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>
(E)
|
1-71798-309-4 |
01 |
1 |
0205- |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71798-484-1 |
01 |
1 |
0105- |
| |
71 |
BRACKET; OUTSIDE MIRROR
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5)
(A)
|
1-71798-484-1 |
01 |
1 |
0105- |
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. MIR O/S RR VIEW LONG ARM<DH2>
(A)
|
1-71798-484-1 |
01 |
1 |
0105- |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(B)
|
1-71798-486-2 |
01 |
1 |
0105- |
| |
71 |
BRACKET; OUTSIDE MIRROR
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5)
(B)
|
1-71798-486-2 |
01 |
1 |
0105- |
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. MIR O/S RR VIEW LONG ARM<DH2>
(B)
|
1-71798-486-2 |
01 |
1 |
0105- |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
(C)
|
1-71797-809-2 |
01 |
1 |
0105- |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR O/S RR VIEW<D37>
EXC. MIR STAY O/S W/REMOTE<TBA>
(D)
|
1-71798-581-3 |
01 |
1 |
0105-0207 |
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5),MIR STAY O/S W/REMOTE<TBA>
(D)
|
1-71798-581-3 |
01 |
1 |
0208- |
| |
72 |
SHEET
MIR O/S RR VIEW LONG ARM<DH2>
HIGH ROOF<S2F>
(C)
|
1-71797-798-1 |
01 |
1 |
0205- |
| |
72 |
SHEET
HIGH ROOF<S2F>
(C)
|
1-71797-799-1 |
01 |
1 |
0105-0111 |
| |
72 |
SHEET
MIR O/S RR VIEW LONG ARM<DH2>,MIRROR O/S RR
VIEW<D37>
HIGH ROOF<S2F>
(C)
|
1-71797-799-1 |
01 |
1 |
0112-0207 |
| |
72 |
SHEET
HIGH ROOF<S2F>
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5)
(C)
|
1-71797-799-1 |
01 |
1 |
0208- |
| |
72 |
SHEET
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
|
1-71798-487-3 |
01 |
1 |
0105- |
| |
72 |
SHEET
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5)
(A)
|
1-71798-487-3 |
01 |
1 |
0105- |
| |
72 |
SHEET
EXC. MIR O/S RR VIEW LONG ARM<DH2>
(A)
|
1-71798-487-3 |
01 |
1 |
0105- |
| |
72 |
SHEET
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(B)
|
1-71798-488-1 |
01 |
1 |
0105- |
| |
72 |
SHEET
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5)
(B)
|
1-71798-488-1 |
01 |
1 |
0105- |
| |
72 |
SHEET
EXC. MIR O/S RR VIEW LONG ARM<DH2>
(B)
|
1-71798-488-1 |
01 |
1 |
0105- |
| |
76 |
BOLT; STAY BRKT
MIR STAY O/S W/REMOTE<TBA>
(A)
M8X40 W/LK&PL WASHER
|
0-50140-840-0 |
03 |
1 |
0105-0204 |
| |
76 |
BOLT; STAY BRKT
MIR STAY O/S W/REMOTE<TBA>
(A)
M8X40 W/LK&PL WASHER
|
0-50140-840-0 |
03 |
1 |
0205-0512 |
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW LONG ARM<DH2>
(A)
M8X40 W/LK&PL WASHER
|
0-50140-840-0 |
03 |
1 |
0205-0512 |
| |
76 |
BOLT; STAY BRKT
MIR STAY O/S W/REMOTE<TBA>
(A)
M8X40 W/LK&PL WASHER
|
0-50640-840-0 |
03 |
1 |
0601- |
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW LONG ARM<DH2>
(A)
M8X40 W/LK&PL WASHER
|
0-50640-840-0 |
03 |
1 |
0601- |
| |
76 |
BOLT; STAY BRKT
MIR O/S RR VIEW LONG ARM<DH2>
(A)
M8X40 W/LK&PL WASHER
|
0-50140-840-0 |
03 |
1 |
0105-0204 |
| |
76 |
BOLT; STAY BRKT
MIRROR O/S RR VIEW<D37>
(B)
M8X30 W/LK WASHER
|
8-94279-183-1 |
03 |
1 |
0105-0207 |
| |
76 |
BOLT; STAY BRKT
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5),MIR STAY O/S W/REMOTE<TBA>
(B)
M8X30 W/LK WASHER
|
8-94279-183-1 |
03 |
1 |
0208- |
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(B)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0105- |
| |
85 |
PIVOT; MAIN MIRROR
EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND
EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)
(B)
ID=19.1
|
1-71737-633-2 |
02 |
1 |
0105- |
| |
85 |
PIVOT; MAIN MIRROR
MIRROR O/S UNDER VIEW<RR9>
(A)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
0105- |
| |
85 |
PIVOT; MAIN MIRROR
MIR STAY O/S W/REMOTE<TBA>
(A)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
0105- |
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
0105- |
| |
85 |
PIVOT; MAIN MIRROR
MIR O/S RR VIEW LONG ARM<DH2>
(A)
ID=22.2
|
1-71736-489-2 |
02 |
1 |
0105- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(G)
|
1-73317-322-0 |
01 |
1 |
0105- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW LONG ARM<DH2>
(F)
|
1-71798-695-0 |
01 |
1 |
0105- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
(B)
BLACK
|
1-71737-649-1 |
01 |
1 |
0105- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
(C)
BLACK
|
1-71737-652-1 |
01 |
1 |
0105- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
(D)
|
1-71798-732-0 |
01 |
1 |
0105- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
(E)
|
1-71798-733-0 |
01 |
1 |
0105- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(A)
BLACK
|
1-71737-760-1 |
01 |
1 |
0105- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR STAY O/S W/REMOTE<TBA>
(A)
BLACK
|
1-71737-760-1 |
01 |
1 |
0105- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
BLACK
|
1-71737-760-1 |
01 |
1 |
0105- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND
EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)
(A)
BLACK
|
1-71737-760-1 |
01 |
1 |
0105- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/SRR VIEW LONG ARM<DH2>
(A)
BLACK
|
1-71737-760-1 |
01 |
1 |
0105- |
| |
87 |
SPACER
MIR O/S RR VIEW LONG ARM<DH2>
(A)
|
1-71737-704-0 |
01 |
1 |
0105- |
| |
87 |
SPACER
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-646-2 |
02 |
1 |
0105- |
| |
87 |
SPACER
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-646-2 |
02 |
1 |
0105- |
| |
87 |
SPACER
MIRROR O/S UNDER VIEW<RR9>
(A)
|
1-71737-704-0 |
01 |
1 |
0105- |
| |
87 |
SPACER
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-704-0 |
01 |
1 |
0105- |
| |
87 |
SPACER
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-704-0 |
01 |
1 |
0105- |
| |
87 |
SPACER
EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND
EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)
(A)
|
1-71737-704-0 |
01 |
1 |
0105- |
| |
87 |
SPACER
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/SRR VIEW LONG ARM<DH2>
(A)
|
1-71737-704-0 |
01 |
1 |
0105- |
| |
87 |
SPACER
MIRROR O/S UNDER VIEW<RR9>
(B)
|
1-71737-646-2 |
01 |
1 |
0105- |
| |
90 |
BRACKET; MIRROR STAY
|
1-71798-829-1 |
01 |
1 |
0105- |
| |
90 |
BRACKET; MIRROR STAY
|
1-71798-828-1 |
01 |
1 |
0105- |
| |
118 |
JOINT ASM; BALL
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71797-805-1 |
01 |
1 |
0105- |
| |
118 |
JOINT ASM; BALL
MIR STAY O/S W/REMOTE<TBA>
(C)
RH THREAD
|
1-71798-819-2 |
01 |
1 |
0105- |
| |
118 |
JOINT ASM; BALL
MIR STAY O/S W/REMOTE<TBA>
(B)
LH THREAD
|
1-71798-820-2 |
01 |
1 |
0105- |
| |
132 |
RING; MIRROR
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-935-0 |
01 |
1 |
0105- |
| |
132 |
RING; MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71737-935-0 |
01 |
1 |
0105- |
| |
132 |
RING; MIRROR
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-933-0 |
01 |
1 |
0105- |
| |
132 |
RING; MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-933-0 |
01 |
1 |
0105- |
| |
132 |
RING; MIRROR
MIRROR O/S UNDER VIEW<RR9>
(C)
|
1-71737-934-0 |
01 |
1 |
0105- |
| |
132 |
RING; MIRROR
EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND
EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)
(C)
|
1-71737-934-0 |
01 |
1 |
0105- |
| |
132 |
RING; MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/SRR VIEW LONG ARM<DH2>
(C)
|
1-71737-934-0 |
01 |
1 |
0105- |
| |
134 |
CLIP; MIRROR LENS
MIR STAY O/S W/REMOTE<TBA>
|
1-71737-936-0 |
02 |
1 |
0105- |
| |
134 |
CLIP; MIRROR LENS
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
|
1-71737-936-0 |
02 |
1 |
0105- |
| |
134 |
CLIP; MIRROR LENS
MIRROR O/S UNDER VIEW<RR9>
|
1-71737-936-0 |
01 |
1 |
0105- |
| |
134 |
CLIP; MIRROR LENS
EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND
EQUIPMENT(PK5),PAPUA NEW GUINEA EQUIPMENT(PV5)
|
1-71737-936-0 |
01 |
1 |
0105- |
| |
134 |
CLIP; MIRROR LENS
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR
O/SRR VIEW LONG ARM<DH2>
|
1-71737-936-0 |
01 |
1 |
0105- |
| |
135 |
LENS; MIRROR,SIDE UNDER
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71707-130-0 |
01 |
1 |
0105- |
| |
135 |
LENS; MIRROR,SIDE UNDER
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-929-0 |
01 |
1 |
0105- |
| |
135 |
LENS; MIRROR,SIDE UNDER
MIR O/S UNDER & SIDE UNDER VIEW<TAF>
EXC. MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71737-929-0 |
01 |
1 |
0105- |
| |
151 |
WASHER; PL,MIRROR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
0105- |
| |
151 |
WASHER; PL,MIRROR
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5)
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
0105- |
| |
151 |
WASHER; PL,MIRROR
EXC. MIR O/S RR VIEW LONG ARM<DH2>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
02 |
1 |
0105- |
| |
151 |
WASHER; PL,MIRROR
MIR STAY O/S W/REMOTE<TBA>
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
01 |
1 |
0105- |
| |
164 |
STAY; ROOF
MIR O/S RR VIEW LONG ARM<DH2>
(C)
|
1-71798-300-5 |
01 |
1 |
0105- |
| |
164 |
STAY; ROOF
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71798-602-1 |
01 |
1 |
0105- |
| |
164 |
STAY; ROOF
MIRROR O/S RR VIEW<D37>
(A)
|
1-71798-299-4 |
01 |
1 |
0105-0207 |
| |
164 |
STAY; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,
NEW ZEALAND EQUIPMENT(PK5),PAPUA NEW GUINEA
EQUIPMENT(PV5)
(A)
|
1-71798-299-4 |
01 |
1 |
0208- |
| |
165 |
LINK; POWER MIRROR
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-71798-600-1 |
01 |
1 |
0105- |
| |
165 |
LINK; POWER MIRROR
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-71798-782-2 |
01 |
1 |
0105- |
| |
166 |
BUSHING; STAY
MIR STAY O/S W/REMOTE<TBA>
|
1-09983-179-0 |
02 |
1 |
0105- |
| |
167 |
RUBBER; STOPPER
MIR STAY O/S W/REMOTE<TBA>
|
1-71798-308-0 |
01 |
1 |
0105- |
| |
168 |
POWER UNIT; MIRROR STAY
MIR STAY O/S W/REMOTE<TBA>
|
1-86855-031-0 |
01 |
1 |
0105-0202 |
| |
168 |
POWER UNIT; MIRROR STAY
MIR STAY O/S W/REMOTE<TBA>
|
1-86855-035-0 |
01 |
1 |
0203-0204 |
| |
168 |
POWER UNIT; MIRROR STAY
MIR STAY O/S W/REMOTE<TBA>
|
1-86855-031-0 |
01 |
1 |
0205- |
| |
169 |
WASHER; PL,POWER UNIT
MIR STAY O/S W/REMOTE<TBA>
ID=26.2 OD=44 T=2
|
1-86855-011-1 |
01 |
1 |
0105- |
| |
170 |
CAP; POWER UNIT
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-86855-012-0 |
01 |
1 |
0105- |
| |
170 |
CAP; POWER UNIT
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-86855-014-1 |
01 |
1 |
0105- |
| |
171 |
NUT; POWER UNIT
MIR STAY O/S W/REMOTE<TBA>
M26
|
1-86855-013-1 |
01 |
1 |
0105- |
| |
172 |
SEAL; RUBBER,POWER UNIT
MIR STAY O/S W/REMOTE<TBA>
(A)
|
1-79928-003-1 |
01 |
1 |
0105- |
| |
172 |
SEAL; RUBBER,POWER UNIT
MIR STAY O/S W/REMOTE<TBA>
(B)
|
1-86855-015-0 |
01 |
1 |
0105- |
| |
173 |
BOLT; POWER UNIT
MIR STAY O/S W/REMOTE<TBA>
M6X16 W/LK&PL WASHER
|
1-09980-574-0 |
04 |
1 |
0105- |
| |
181 |
SEAL; BRKT
25X25
|
8-94272-533-0 |
02 |
1 |
0105- |
| |
189 |
SCREW; PIVOT
MIR STAY O/S W/REMOTE<TBA>
M5X50
|
1-09981-444-0 |
02 |
1 |
0105-0404 |
| |
189 |
SCREW; PIVOT
MIR STAY O/S W/REMOTE<TBA>
|
1-09981-541-0 |
02 |
1 |
0405- |
| |
190 |
SCREW; COVER
HIGH ROOF<S2F>
MIR STAY O/S W/REMOTE<TBA>
(B)
M5X16 W/PL WASHER TAPPING
|
8-94279-123-0 |
03 |
1 |
0105- |
| |
190 |
SCREW; COVER
MIR STAY O/S W/REMOTE<TBA>
(A)
M6X16 W/LK&PL WASHER
|
8-94279-402-0 |
01 |
1 |
0105- |
| |
200 |
STOPPER; STAY
MIR STAY O/S W/REMOTE<TBA>
|
1-71798-597-0 |
01 |
1 |
0105- |
| |
201 |
ROD; MIRROR
MIR STAY O/S W/REMOTE<TBA>
|
1-71798-821-0 |
01 |
1 |
0105- |
