Isuzu WW
▶
TRUCKS
▶
CXH
▶
10882 - CXH RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-10 - CAUTION PLATE AND LABEL
▶
7-10 — CAUTION PLATE AND LABEL
(#28083) — 43 parça
◀
[710A] AIR CLEANER (2 parça)

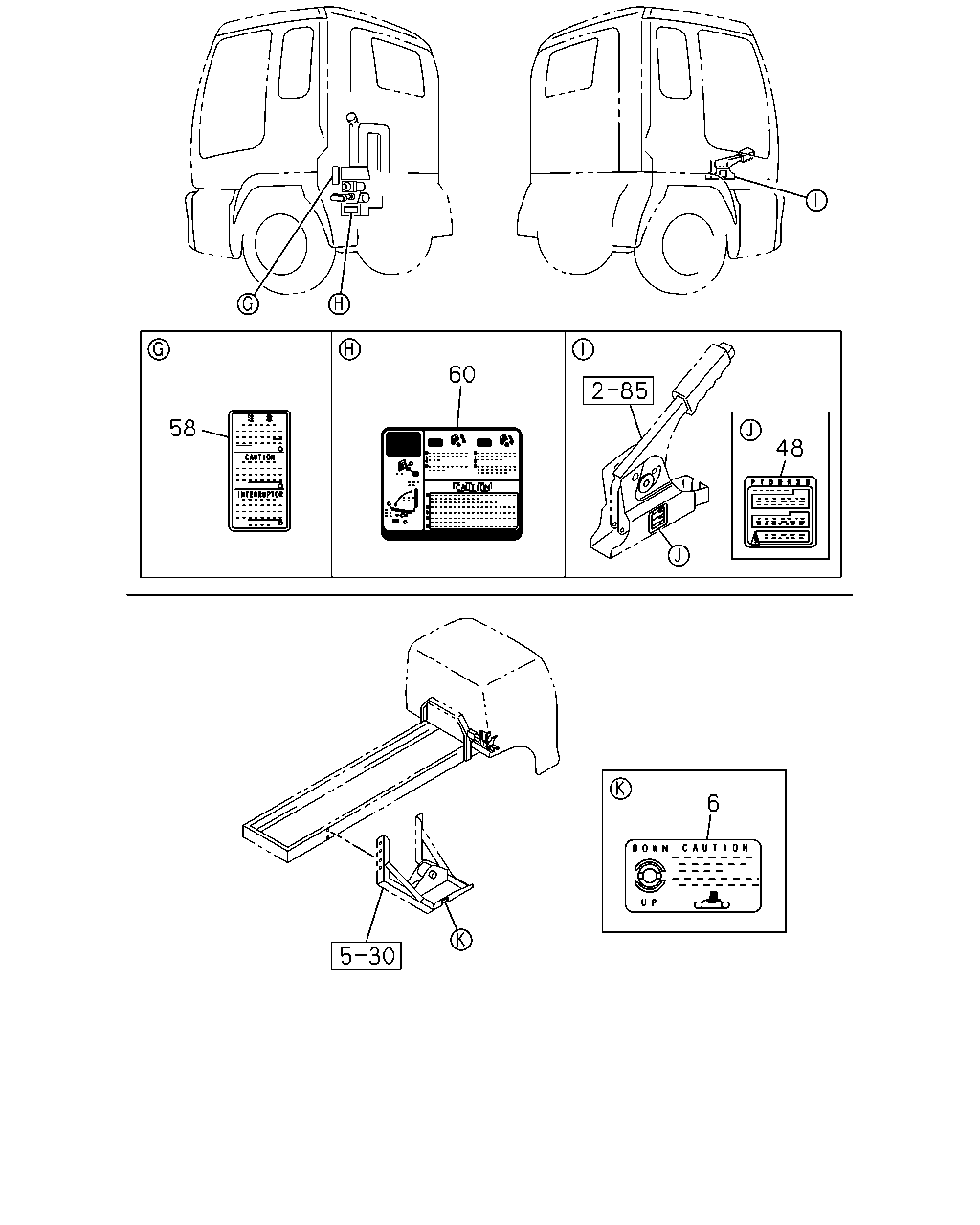

[710A] SPARE TIRE,PTO,ENG START,CAB TILT (10 parça)

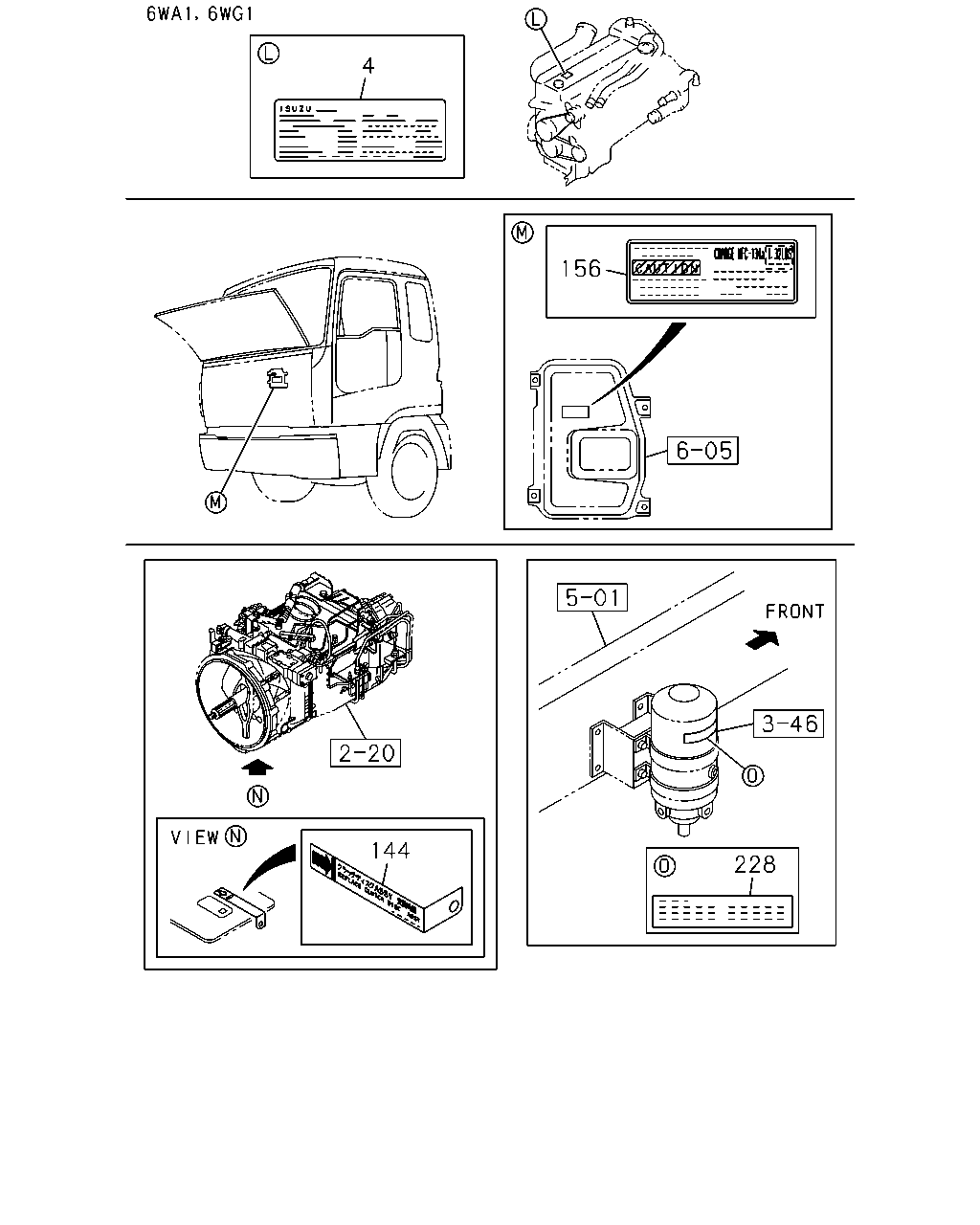

[710A] ENG MAINTENANCE,CLUTCH,A/C,AIR DRYER (8 parça)

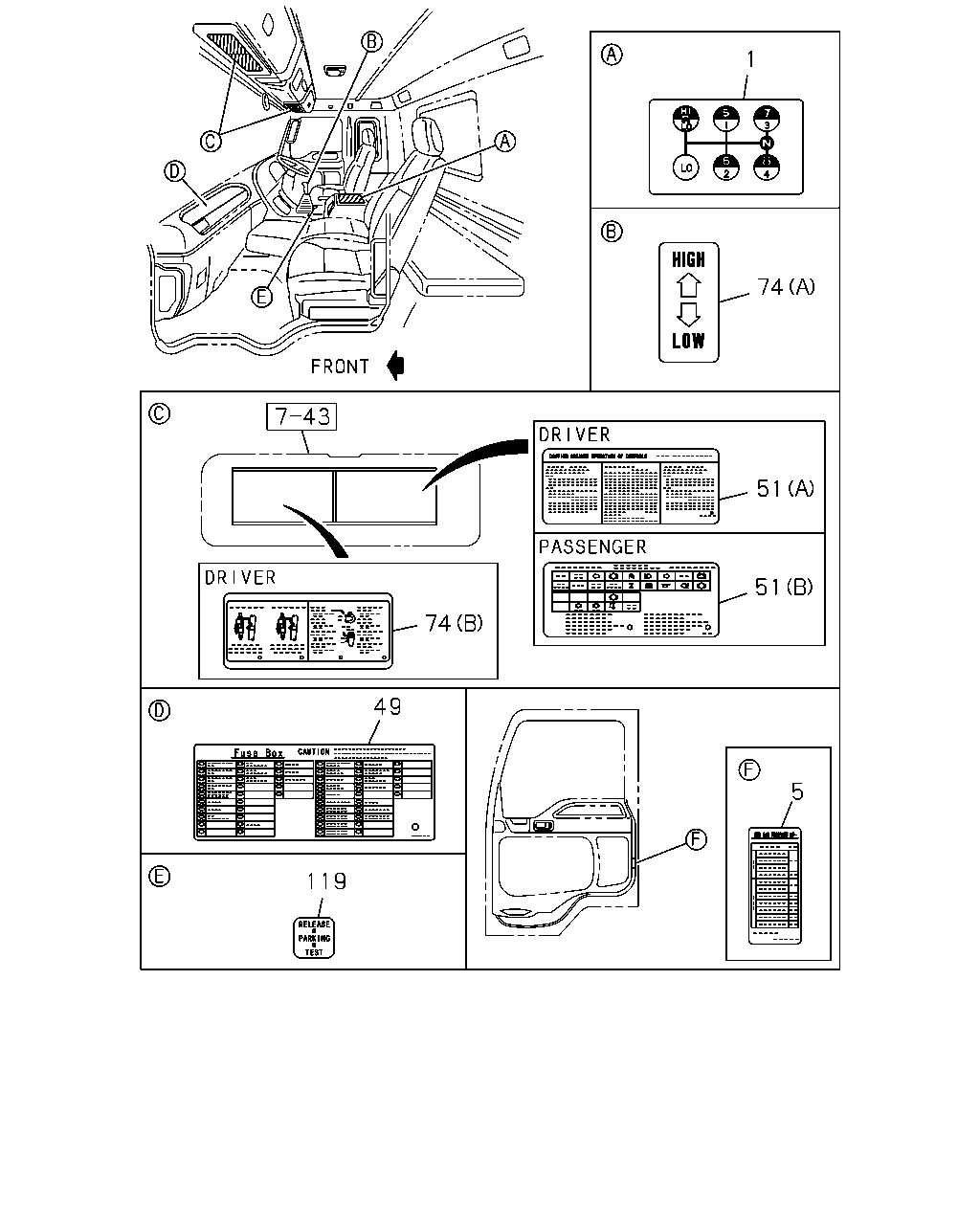

[710A] CAB INSIDE (23 parça)
▶
181
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
181
PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B)
1-85886-884-0
01
1
0105-
181
PLATE; CAUTION,AIR CLEANER
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A)
1-85886-796-1
01
1
0105-
6
48
60
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7>
1-85883-113-0
01
1
0106-
6
PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53639-004-0
01
1
0105-0105
6
PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>
1-53639-004-0
01
1
0106-
48
PLATE; CAUTION,PTO
DUMP CONTROL LEVER<RC4>
1-85881-254-0
01
1
0105-0404
58
PLATE; CAUTION,ENG START
CAUTIONS CHINESE<SL7>
1-85887-536-0
01
1
0106-
58
PLATE; CAUTION,ENG START
1-85887-457-0
01
1
0105-0105
58
PLATE; CAUTION,ENG START
EXC. CAUTIONS CHINESE<SL7>
1-85887-457-0
01
1
0106-
60
PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7>
1-85883-175-0
01
1
0106-
60
PLATE; CAUTION,CAB TILT
1-85883-174-0
01
1
0105-0105
60
PLATE; CAUTION,CAB TILT
EXC. CAUTIONS CHINESE<SL7>
1-85883-174-0
01
1
0106-
4
156
228
144
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
LABEL; ENG MAINTENANCE
6WA1 TC-C(55L)
1-85886-840-0
01
1
0105-
4
LABEL; ENG MAINTENANCE
6WG1 TC-C(72L)
1-85886-863-0
01
1
0105-
144
PLATE; CAUTION,CLU
TRANSMISSION-ZF 16S151 OD(Y2N)
1-85888-690-0
01
1
0105-0106
144
PLATE; CAUTION,CLU
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)
1-85888-690-0
01
1
0107-
156
PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-97105-399-0
01
1
0105-0108
228
PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS CHINESE<SL7>
1-85887-934-0
01
1
0106-
228
PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7>
1-85887-935-0
01
1
0105-0105
228
PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7>
1-85887-935-0
01
1
0106-
5
51
51
74
1
74
49
119
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PLATE; CAUTION,SHIFT PATTERN
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C)
1-85881-519-0
01
1
0105-
5
LABEL; TIRE AIR PRESSURE
1-85880-763-0
01
1
0105-0105
5
LABEL; TIRE AIR PRESSURE
1-85880-764-0
01
1
0106-0405
5
LABEL; TIRE AIR PRESSURE
1-85880-780-0
01
1
0406-0410
5
LABEL; TIRE AIR PRESSURE
1-85880-778-0
01
1
0411-
49
PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7>
1-85878-329-0
01
1
0106-0106
49
PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7>
1-85878-359-0
01
1
0107-
49
PLATE; CAUTION,FUSE BOX
1-85878-327-0
01
1
0105-0105
49
PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS CHINESE<SL7>
1-85878-327-0
01
1
0106-
51
PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (B)
1-85878-334-1
01
1
0106-
51
PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (A)
1-85880-727-0
01
1
0106-
51
PLATE; CAUTION,WARNING
(B)
1-85878-333-1
01
1
0105-0105
51
PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7> (B)
1-85878-333-1
01
1
0106-
51
PLATE; CAUTION,WARNING
(A)
1-85880-725-0
01
1
0105-0105
51
PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7> (A)
1-85880-725-0
01
1
0106-
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S151 OD(Y2N) CAUTIONS CHINESE<SL7> (A)
1-85881-666-2
01
1
0106-0106
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) CAUTIONS CHINESE<SL7> (A)
1-85881-666-2
01
1
0107-
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (B)
1-85881-617-0
01
1
0105-
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (B)
1-85881-786-0
01
1
0105-
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S151 OD(Y2N) (A)
1-85881-736-1
01
1
0105-0105
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S151 OD(Y2N) EXC. CAUTIONS CHINESE<SL7> (A)
1-85881-736-1
01
1
0106-0106
74
PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. CAUTIONS CHINESE<SL7> (A)
1-85881-736-1
01
1
0107-
119
PLATE; CAUTION,HAND BRK LEVER
NEW ZEALAND EQUIPMENT(PK5)
1-85881-791-0
01
1
0105-
