Sayfa 6-76 - Isuzu EPC

6-76 — FLOOR EQUIPMENT AND SEALING (#28075) — 57 parça

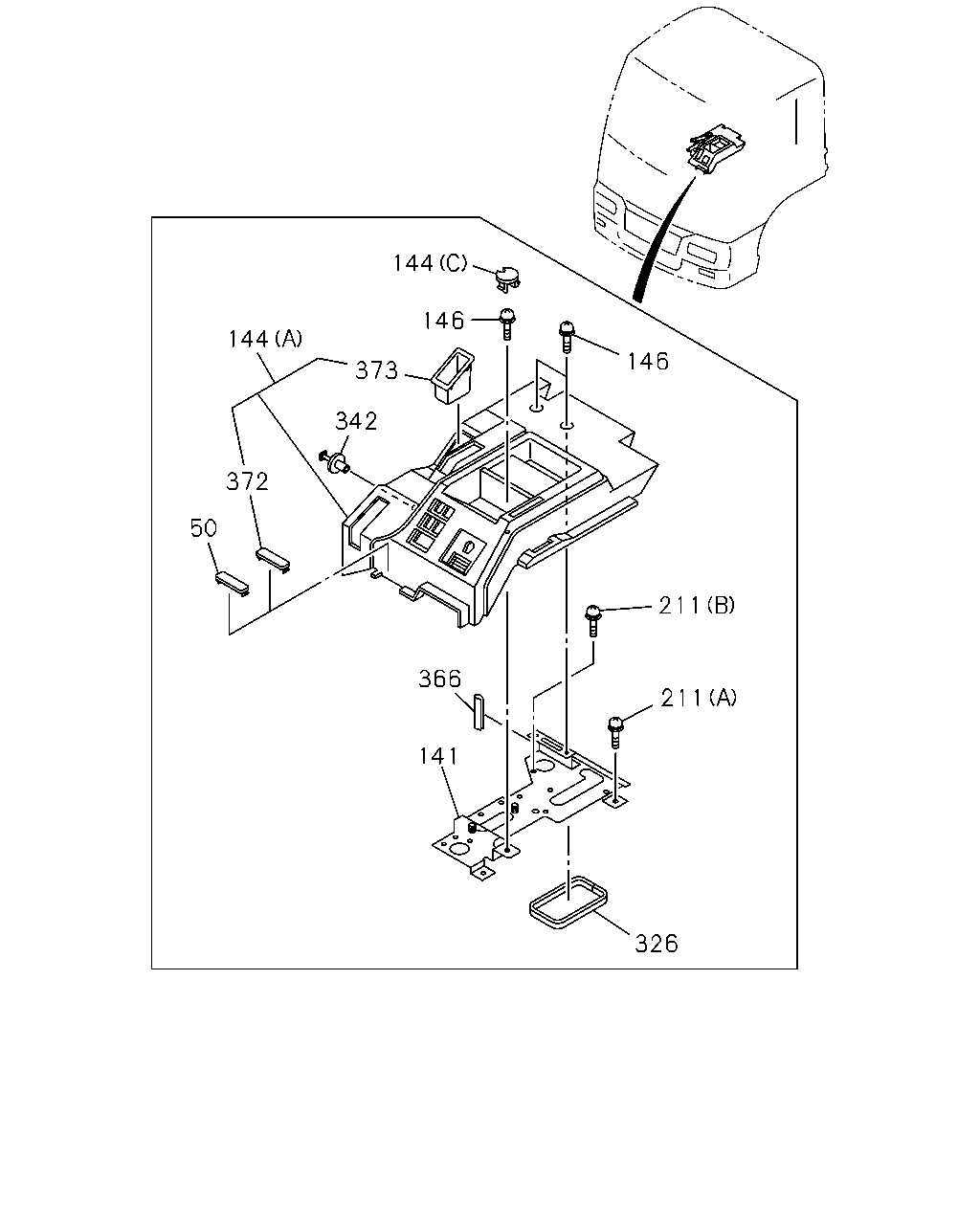

146 146 144 342 50 211 211 366 144 141 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	COVER ASM; SUPPORT,SIDE ISUZU M/T<X9A>	1-72537-124-0	01	1	0105-0208
50	COVER ASM; SUPPORT,SIDE PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B>	1-72537-124-0	01	1	0209-
141	HOLDER	1-79907-076-2	01	1	0105-
144	COVER; HAND BRK VLV ELEC OUTLET 12V<TAW> PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-72417-340-0	01	1	0105-0106
144	COVER; HAND BRK VLV ELEC OUTLET 12V<TAW> PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-72417-340-1	01	1	0107-
144	COVER; HAND BRK VLV ELEC OUTLET 12V<TAW> PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6> (B)	1-72417-385-0	01	1	0105-0106
144	COVER; HAND BRK VLV ELEC OUTLET 12V<TAW> PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL TRACTOR TRUCK<RD6> (B)	1-72417-385-1	01	1	0107-
144	COVER; HAND BRK VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-72417-348-0	01	1	0105-0106
144	COVER; HAND BRK VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-72417-379-0	01	1	0107-
144	COVER; HAND BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> (C)	1-72537-106-0	01	1	0105-
144	COVER; HAND BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6>,ELEC OUTLET 12V<TAW> (A)	1-72417-338-0	01	1	0105-0106
144	COVER; HAND BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6>,ELEC OUTLET 12V<TAW> (A)	1-72417-338-1	01	1	0107-
144	COVER; HAND BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6> (C)	1-76337-461-0	01	1	0105-
144	COVER; HAND BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6>,ELEC OUTLET 12V<TAW> (B)	1-72417-382-0	01	1	0105-0106
144	COVER; HAND BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL TRACTOR TRUCK<RD6>,ELEC OUTLET 12V<TAW> (B)	1-72417-382-0	01	1	0107-
146	BOLT; COVER BRKT M6X24 W/LK&PL WASHER	8-94279-404-0	03	1	0105-
211	BOLT; COVER (A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-
211	BOLT; COVER (B) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	0105-
326	SEAL; COVER	1-79997-978-1	01	1	0105-
342	FASTENER PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> D8X13.5	1-09987-248-1	01	1	0105-
342	FASTENER PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6> D8X13.5	1-09987-270-0	01	1	0105-
366	FINISHER; COVER FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> L=50	8-94270-377-1	01	1	0306-

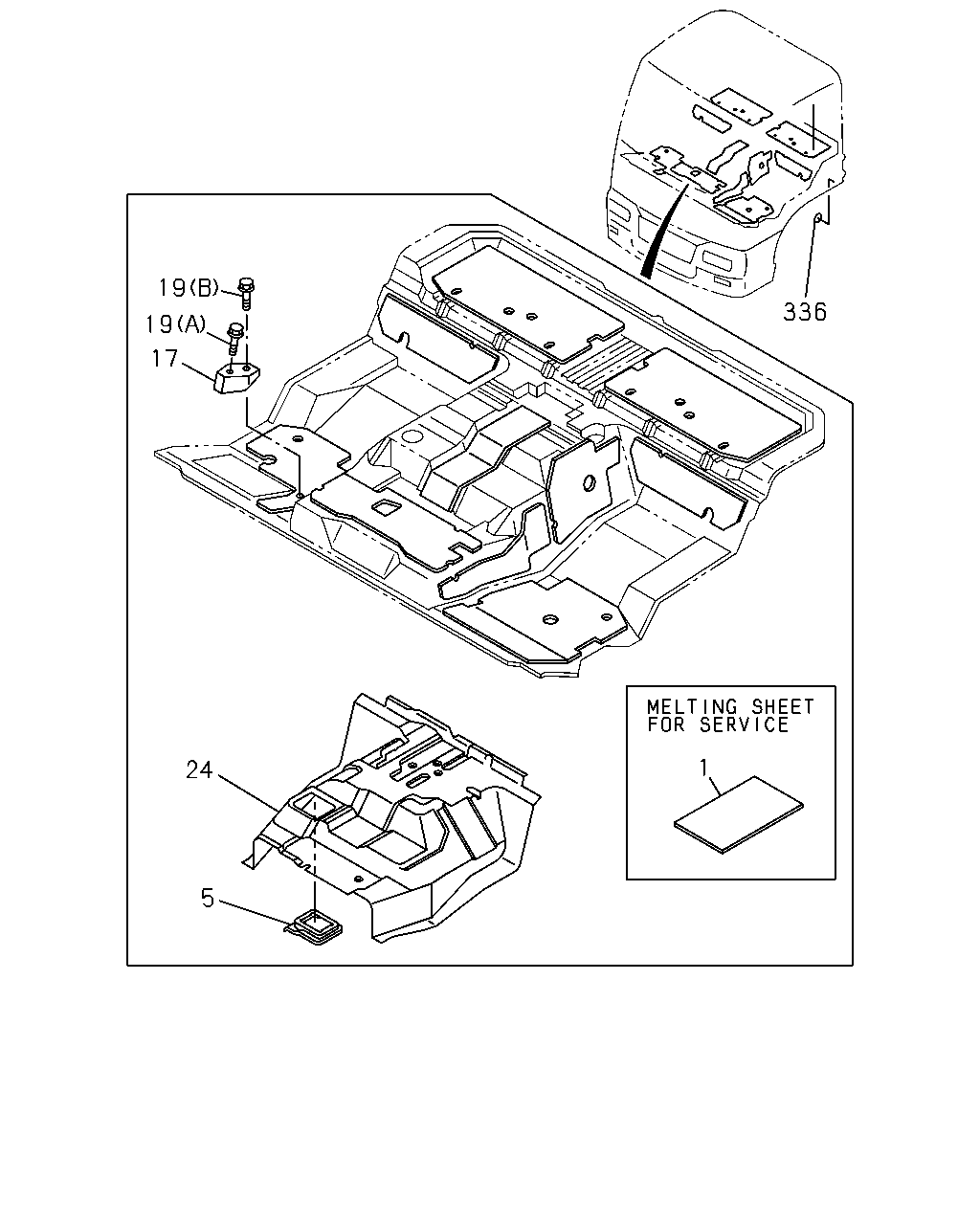

336 17 19 19 24 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHEET; MELTING,FLOOR CUT BULK SHEET 600X1000 T=3.0	1-61970-039-0	AR	1	0105-
5	COVER; CHANGE LEVER	1-33619-163-0	01	1	0105-
17	REST; FOOT,DRIVER	1-73907-176-1	01	1	0105-
19	BOLT; FOOT REST (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-
19	BOLT; FOOT REST (A) M6X47	8-94407-876-1	01	1	0105-
24	INSULATOR; HEAT,FRT	1-71907-299-6	01	1	0105-
336	SEAL; FLOOR SIDE OD=25 BLACK	1-76798-019-0	02	1	0105-

146 146 144 144 373 342 372 50 211 211 366 141 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	COVER ASM; SUPPORT,SIDE ISUZU M/T<X9A>	1-72537-124-0	01	1	0105-0208
50	COVER ASM; SUPPORT,SIDE PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B>	1-72537-124-0	01	1	0209-
141	HOLDER	1-79907-076-2	01	1	0105-
144	COVER; HAND BRK VLV ELEC OUTLET 12V<TAW> PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-72417-340-0	01	1	0105-0106
144	COVER; HAND BRK VLV ELEC OUTLET 12V<TAW> PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A)	1-72417-340-1	01	1	0107-
144	COVER; HAND BRK VLV ELEC OUTLET 12V<TAW> PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6> (B)	1-72417-385-0	01	1	0105-0106
144	COVER; HAND BRK VLV ELEC OUTLET 12V<TAW> PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL TRACTOR TRUCK<RD6> (B)	1-72417-385-1	01	1	0107-
144	COVER; HAND BRK VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-72417-348-0	01	1	0105-0106
144	COVER; HAND BRK VLV FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-72417-379-0	01	1	0107-
144	COVER; HAND BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> (C)	1-72537-106-0	01	1	0105-
144	COVER; HAND BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6>,ELEC OUTLET 12V<TAW> (A)	1-72417-338-0	01	1	0105-0106
144	COVER; HAND BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6>,ELEC OUTLET 12V<TAW> (A)	1-72417-338-1	01	1	0107-
144	COVER; HAND BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6> (C)	1-76337-461-0	01	1	0105-
144	COVER; HAND BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6>,ELEC OUTLET 12V<TAW> (B)	1-72417-382-0	01	1	0105-0106
144	COVER; HAND BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL TRACTOR TRUCK<RD6>,ELEC OUTLET 12V<TAW> (B)	1-72417-382-0	01	1	0107-
146	BOLT; COVER BRKT M6X24 W/LK&PL WASHER	8-94279-404-0	03	1	0105-
211	BOLT; COVER (A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-
211	BOLT; COVER (B) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	0105-
326	SEAL; COVER	1-79997-978-1	01	1	0105-
342	FASTENER PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> D8X13.5	1-09987-248-1	01	1	0105-
342	FASTENER PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6> D8X13.5	1-09987-270-0	01	1	0105-
366	FINISHER; COVER FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> L=50	8-94270-377-1	01	1	0306-
372	COVER; CONSOLE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48>	1-72537-124-0	01	1	0105-0106
372	COVER; CONSOLE PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6>	1-72537-124-0	01	1	0105-0106
372	COVER; CONSOLE PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6>	1-72537-124-0	01	1	0107-
373	COVER; HOLE FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48>	1-72537-194-0	01	1	0105-0106
373	COVER; HOLE PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6>	1-72537-194-0	01	1	0105-0106
373	COVER; HOLE PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6>	1-72537-194-0	01	1	0107-
